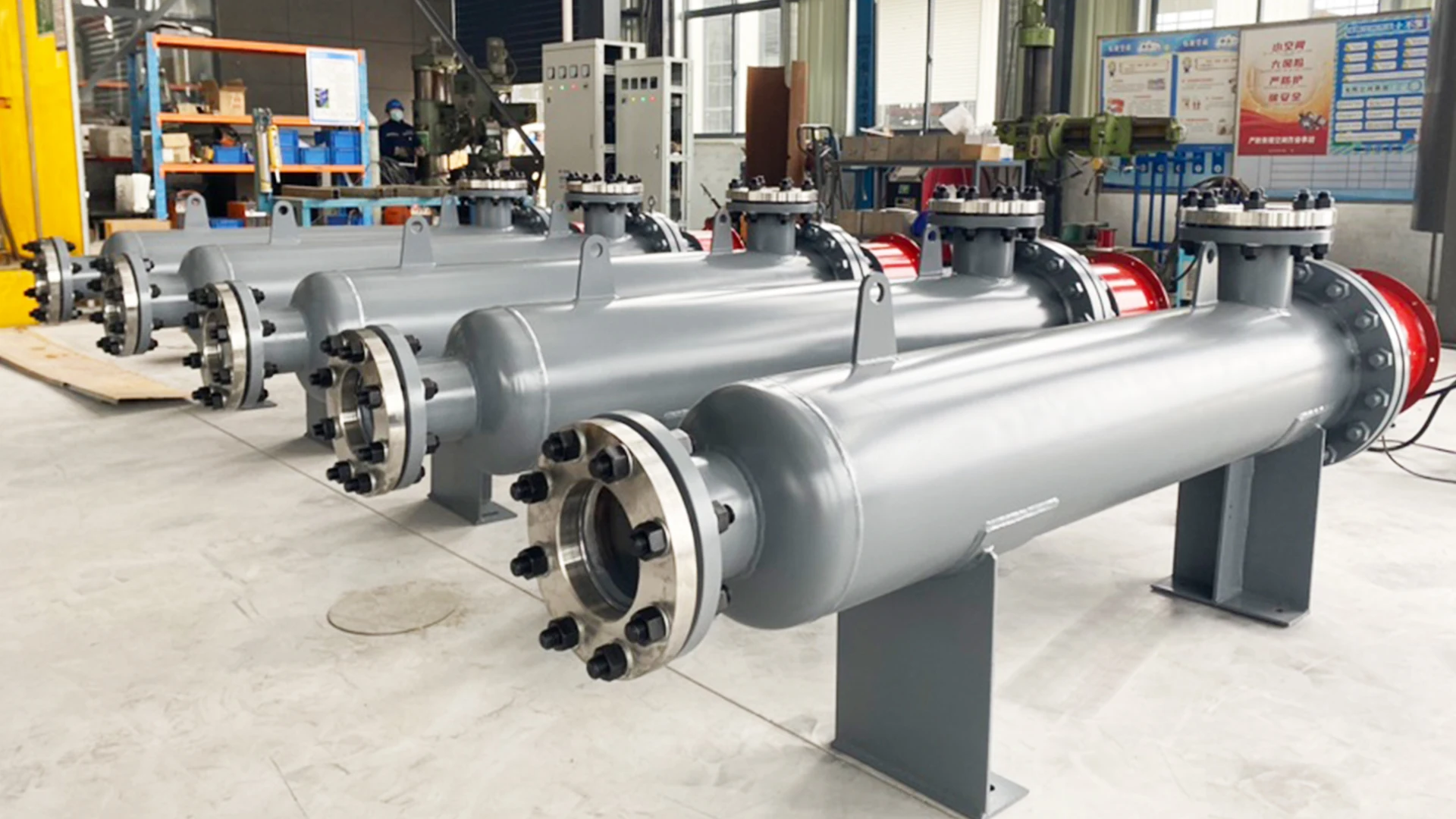

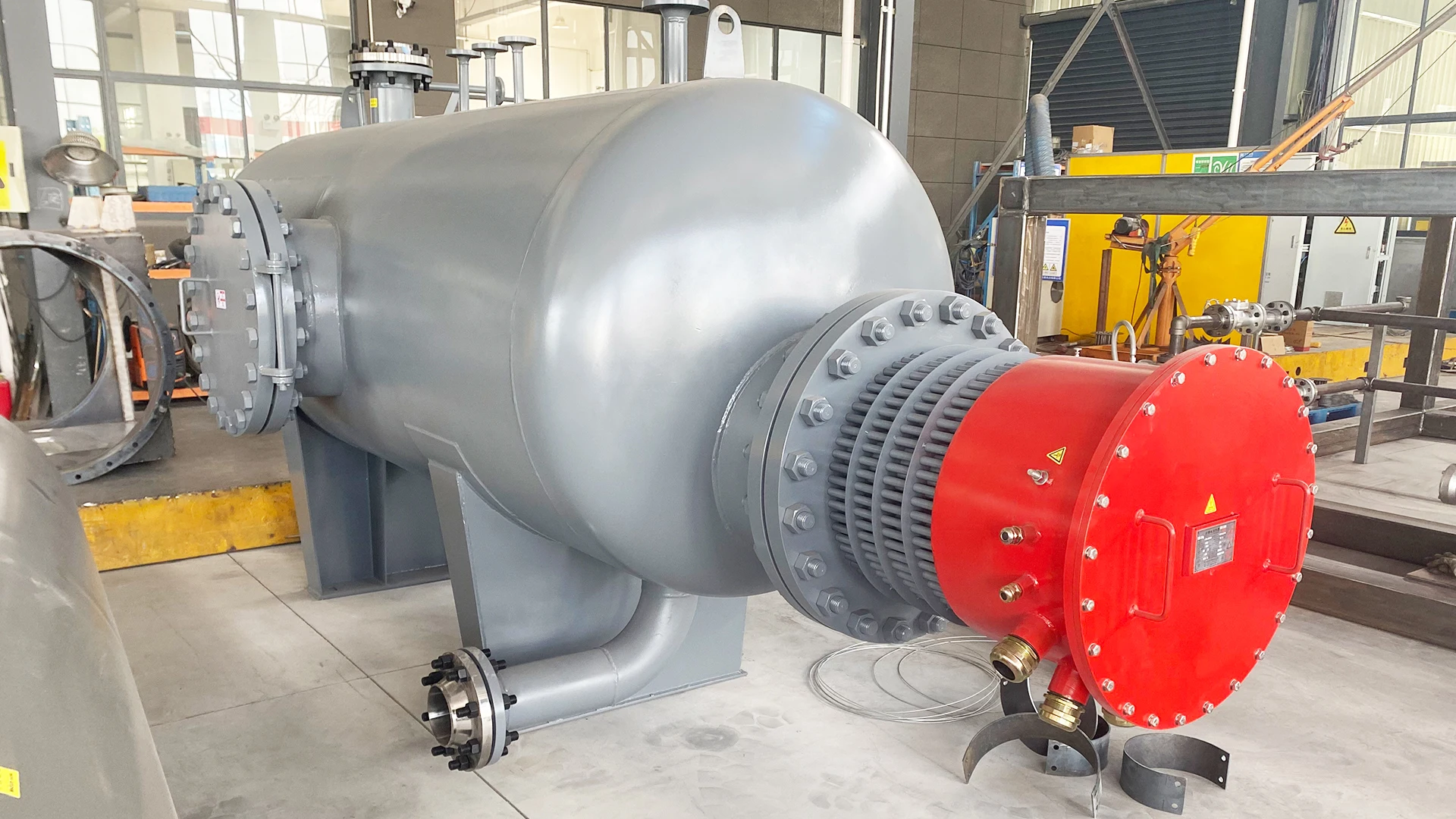

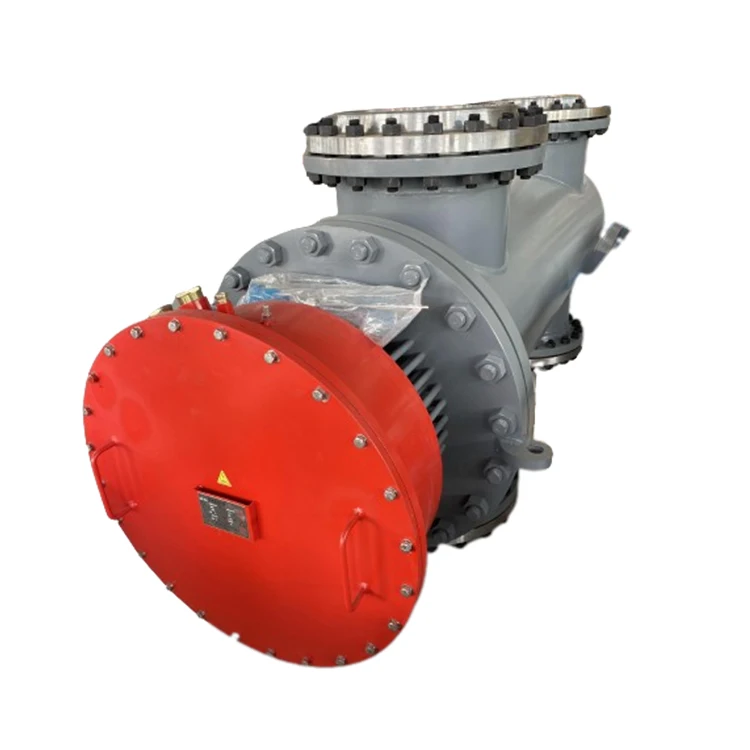

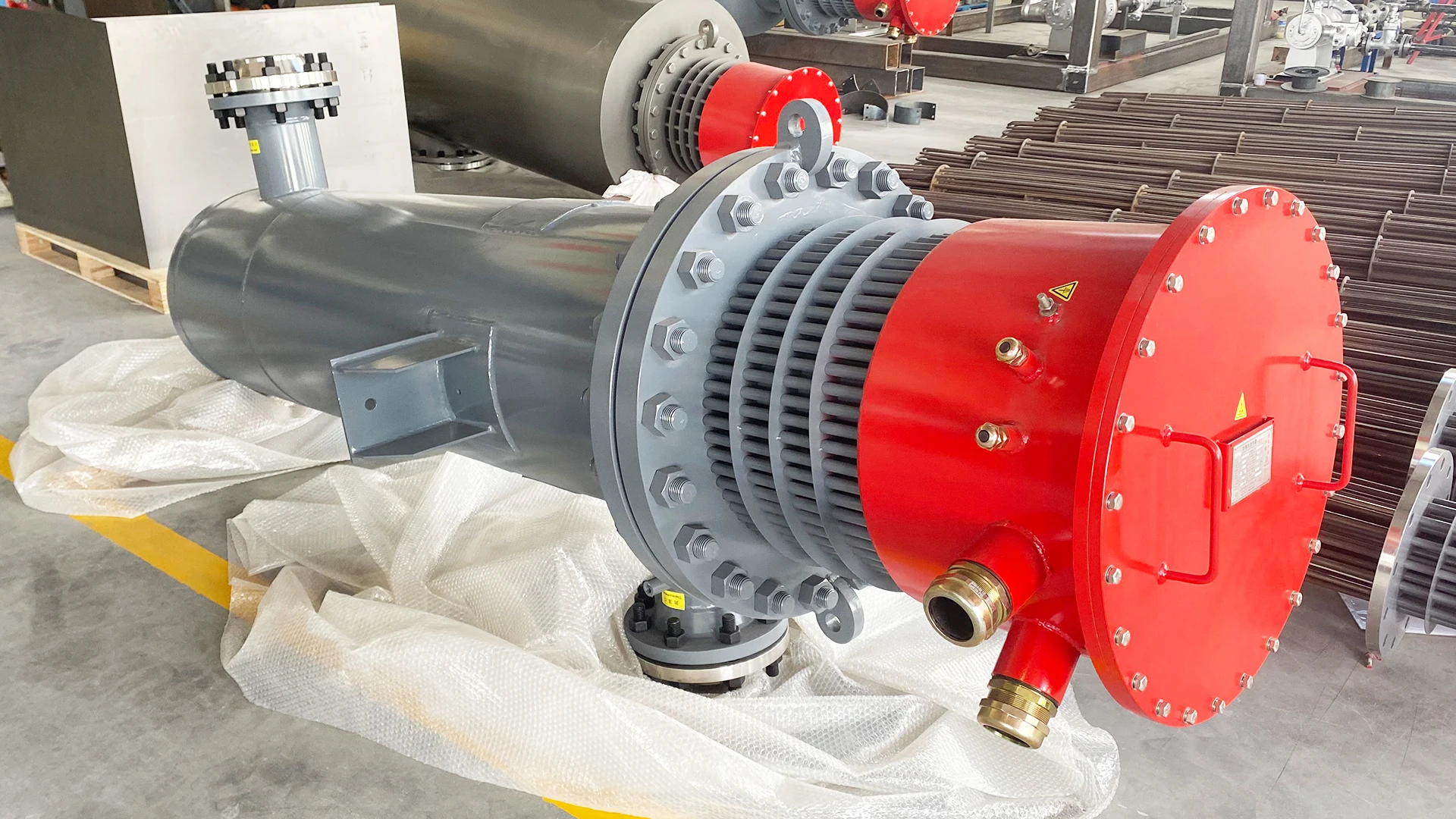

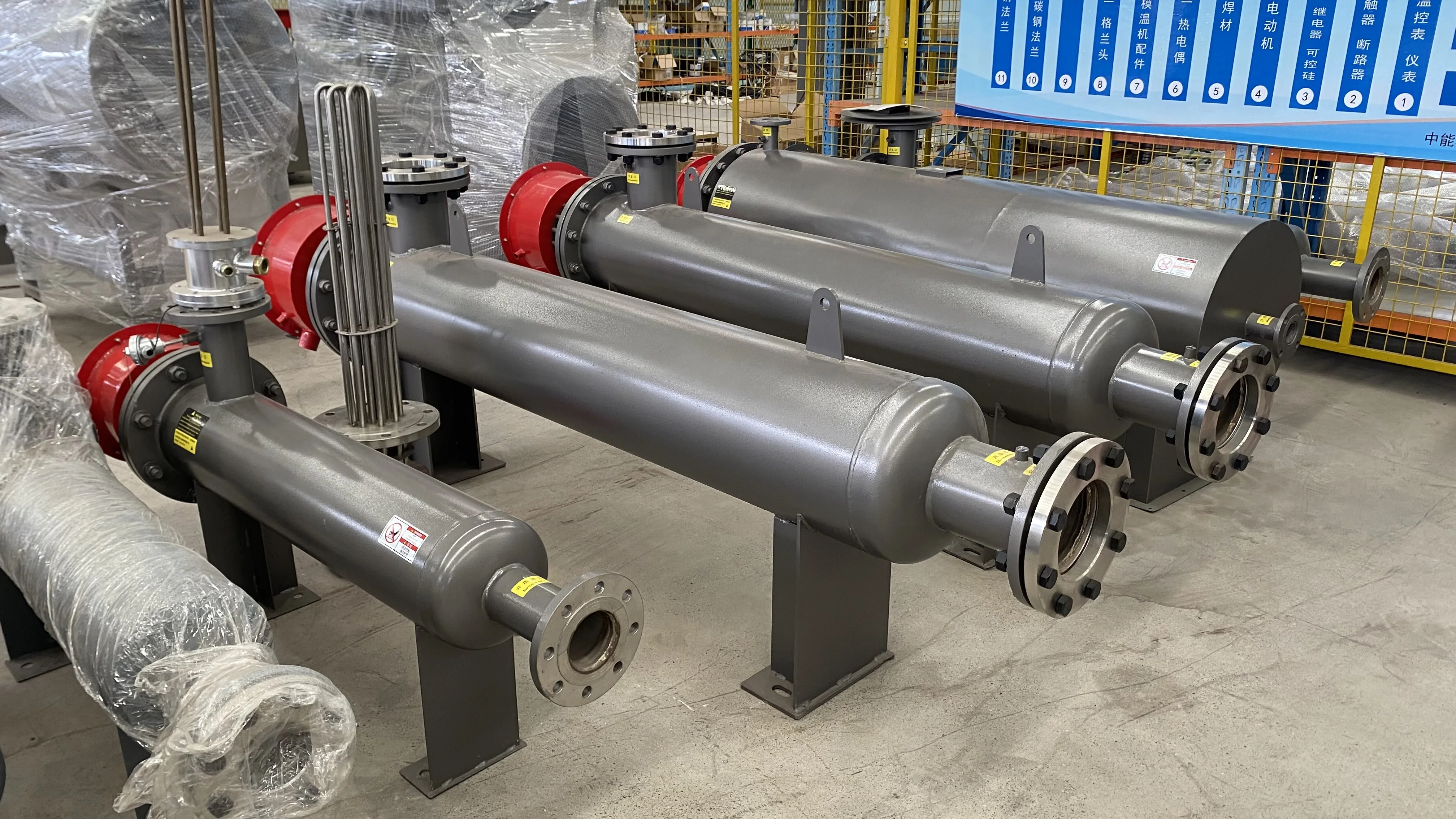

Explosion Proof Circulation Electric Heaters used for hot oil
- Category: >>>
- Supplier: China Hopebond Eco Tech Co. Ltd.
Share on (1601012589348):
Product Overview
Description

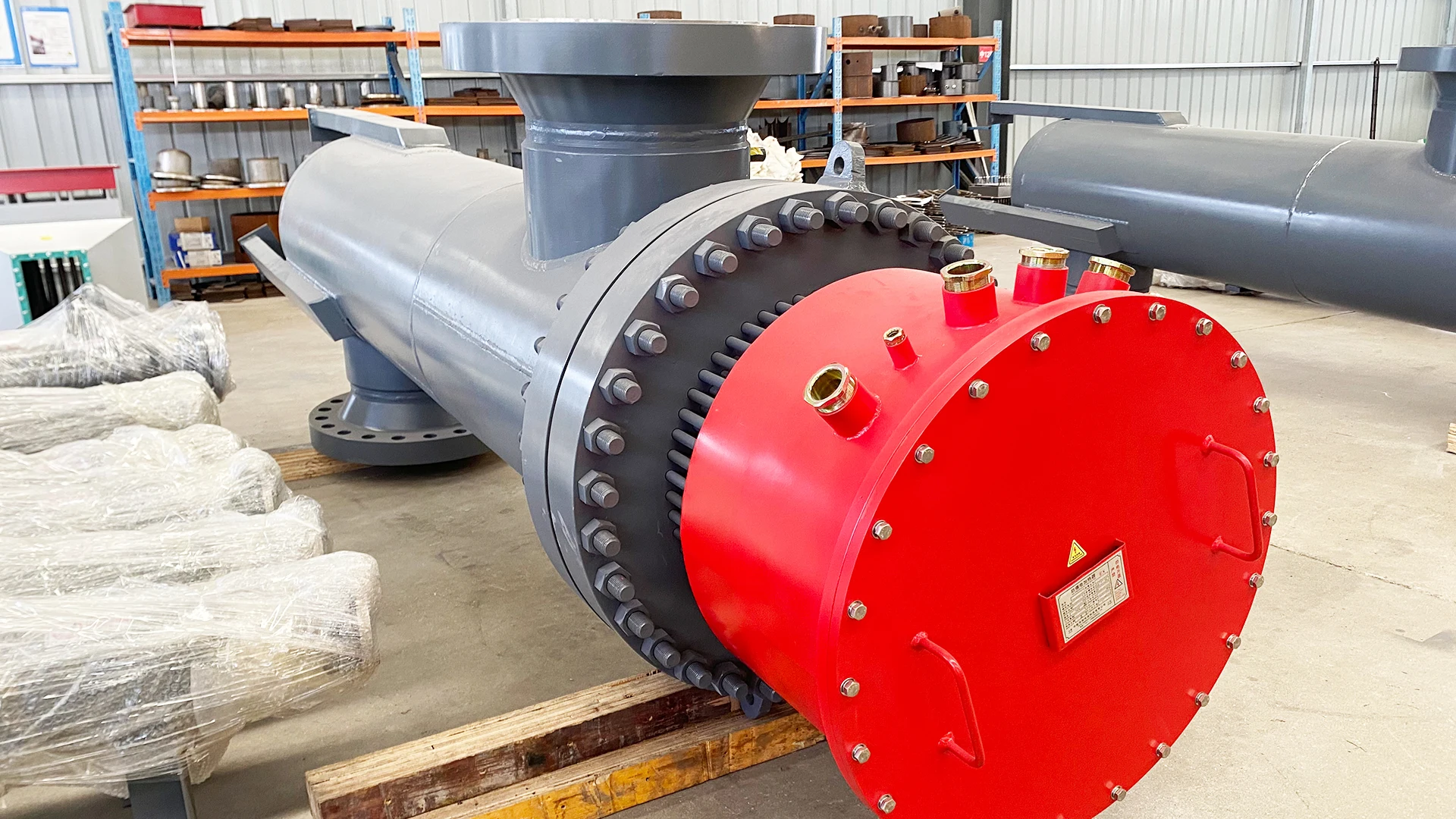

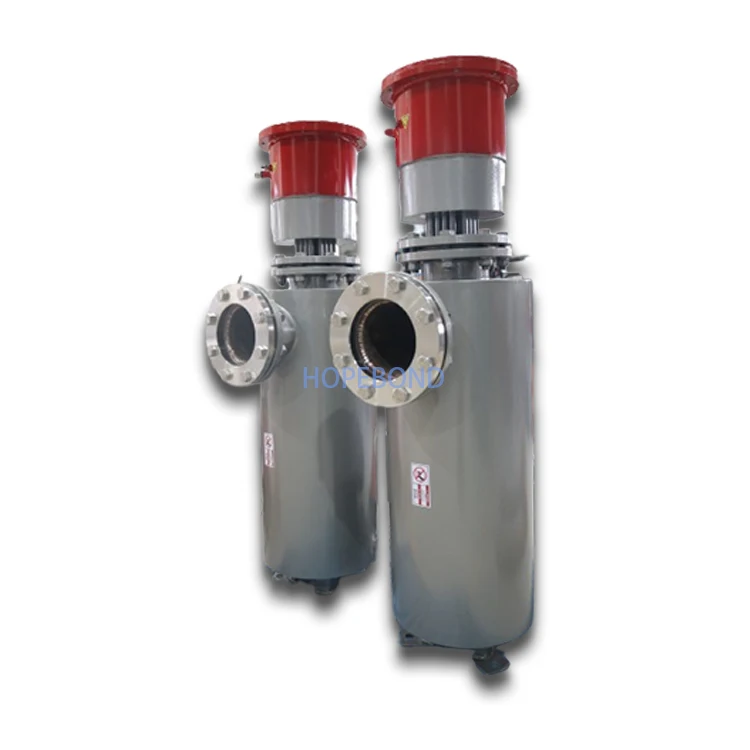

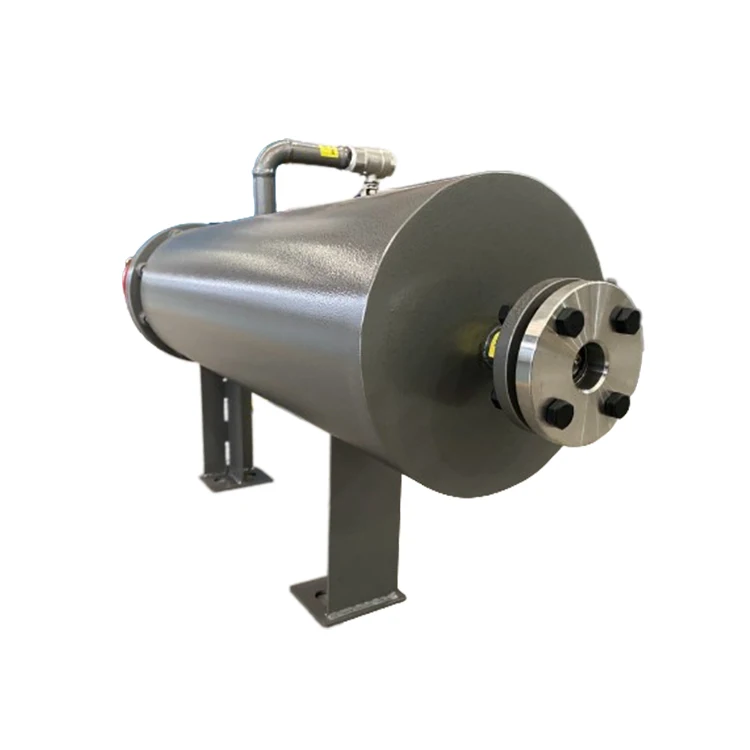

Pipleline Heater

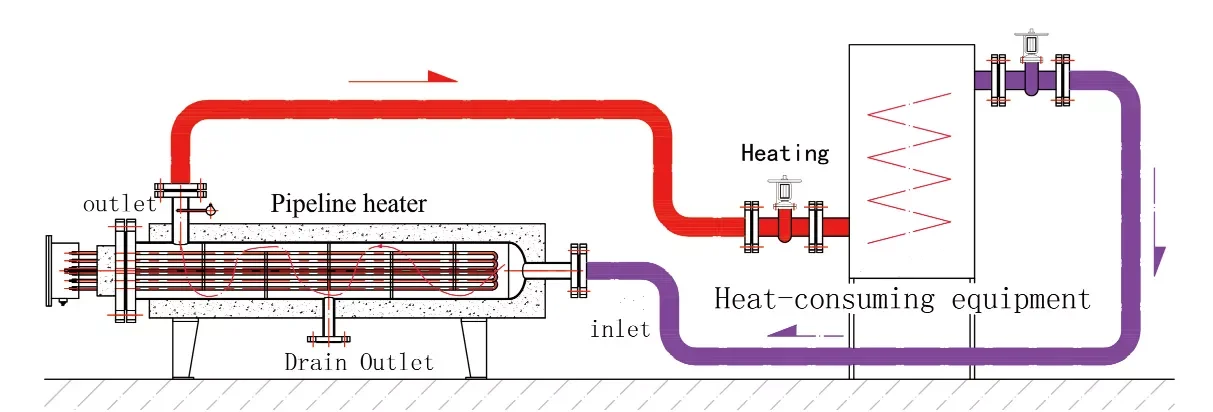

Circulating electric heater makes fluid circulate between storage tank and heater by forced convection of pump to heat all kinds of gases and liquids.
If power - pump - Pipe - heater is fully functional linked and has control components, it will become a circulating electric heater system.
Its integral skid mounted frame is convenient for mobile installation.
1. Solid structure, compact seal, high thermal efficiency.
2. The maximum heating temperature can reach 850 ℃, which can not be achieved by ordinary heat exchangers.
3. The design heat load is very low, with multiple protection such as anti dry burning protection device, long service life.
4. It can be used in both ordinary and explosion-proof situations. The explosion-proof level can reach class B and class C, and the pressure resistance can reach 7MPa. It can be vertical or horizontal according to the needs of users.
5. The system can run automatically without routine maintenance. Through the circuit design, it can realize the automatic control of temperature, pressure, flow and other parameters, including PLC system control, and realize man-machine dialogue.
If power - pump - Pipe - heater is fully functional linked and has control components, it will become a circulating electric heater system.
Its integral skid mounted frame is convenient for mobile installation.
1. Solid structure, compact seal, high thermal efficiency.
2. The maximum heating temperature can reach 850 ℃, which can not be achieved by ordinary heat exchangers.
3. The design heat load is very low, with multiple protection such as anti dry burning protection device, long service life.
4. It can be used in both ordinary and explosion-proof situations. The explosion-proof level can reach class B and class C, and the pressure resistance can reach 7MPa. It can be vertical or horizontal according to the needs of users.
5. The system can run automatically without routine maintenance. Through the circuit design, it can realize the automatic control of temperature, pressure, flow and other parameters, including PLC system control, and realize man-machine dialogue.
Main Features
1)During heating,air max temperature can reach 1100 degree celsius,but the surface temperature of the sheath is just around 50degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years
6)Clean air,small volume
7)Made as client design,2KW~1000KW
8)After reached the max temperature,the working wattages can reduce to half.
1)During heating,air max temperature can reach 1100 degree celsius,but the surface temperature of the sheath is just around 50degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years
6)Clean air,small volume
7)Made as client design,2KW~1000KW
8)After reached the max temperature,the working wattages can reduce to half.
Order Guide
Please specify the following when ordering:
Voltage and wattages, Size of duct sheath, Inlet size and outlet size, Temperature required and time, Flow rate of air and the space’s volume(which will be heated), Order quantity, Delivery date
Please specify the following when ordering:
Voltage and wattages, Size of duct sheath, Inlet size and outlet size, Temperature required and time, Flow rate of air and the space’s volume(which will be heated), Order quantity, Delivery date
Specification
Specifications | Power | Pipeline heater(liquid) | Pipeline heater(gas) | ||||
KW | Heating room size（mm） | Connection diameter(mm) | Heating room size（mm） | Connection diameter(mm) | |||
XTGD-5 | 5 | DN80*500 | DN25 | DN100*600 | DN25 | ||
XTGD-10 | 10 | DN80*700 | DN32 | DN100*700 | DN32 | ||
XTGD-15 | 15 | DN125*700 | DN32 | DN125*700 | DN32 | ||
XTGD-20 | 20 | DN150*800 | DN40 | DN150*900 | DN40 | ||
XTGD-30 | 30 | DN150*800 | DN40 | DN150*1000 | DN40 | ||
XTGD-40 | 40 | DN200*1000 | DN50 | DN200*1200 | DN50 | ||
XTGD-50 | 50 | DN200*1000 | DN50 | DN200*1200 | DN50 | ||
XTGD-60 | 60 | DN200*1200 | DN50 | DN250*1300 | DN80 | ||
XTGD-80 | 80 | DN250*1400 | DN80 | DN250*1500 | DN80 | ||
XTGD-100 | 100 | DN250*1600 | DN80 | DN300*1600 | DN100 | ||
XTGD-120 | 120 | DN250*1600 | DN80 | DN300*1600 | DN100 | ||
XTGD-150 | 150 | DN300*1600 | DN100 | DN350*1600 | DN125 | ||
XTGD-180 | 180 | DN300*1600 | DN100 | DN350*1800 | DN125 | ||
XTGD-200 | 200 | DN300*1800 | DN100 | DN400*1800 | DN150 | ||
XTGD-240 | 240 | DN350*1800 | DN125 | 2*DN300*1600 | DN150 | ||
XTGD-280 | 280 | DN350*1800 | DN125 | 2*DN350*1600 | DN150 | ||
XTGD-300 | 300 | DN400*1800 | DN150 | 2*DN350*1600 | DN150 | ||
XTGD-360 | 360 | DN400*1800 | DN150 | 2*DN350*1800 | DN150 | ||
XTGD-400 | 400 | 2*DN300*1800 | DN150 | 2*DN400*1800 | DN150 | ||
XTGD-450 | 450 | 2*DN350*1800 | DN150 | 2*DN400*1800 | DN150 | ||
XTGD-500 | 500 | 2*DN350*1800 | DN150 | 2*DN450*1800 | DN150 | ||
XTGD-600 | 600 | 2*DN400*1800 | DN150 | 2*DN450*1800 | DN150 | ||
XTGD-700 | 700 | 2*DN400*1800 | DN150 | 2*DN500*1800 | DN150 | ||
XTGD-800 | 800 | 4*DN300*1800 | DN150 | 4*DN400*1800 | DN150 | ||
XTGD-900 | 900 | 4*DN350*1800 | DN150 | 4*DN400*1800 | DN150 | ||
XTGD-1000 | 1000 | 4*DN350*1800 | DN150 | 4*DN450*1800 | DN150 | ||
Application
It can be applied in the following areas: high temperature shaping, plate heating, rubber, drying,dyeingand printing, chemical industry, plywood production, rolled water-proof material production, asphalt heating, non-woven hot- rolled machine, fiber, glass hot press machine, reactor, mould, drying room, oven, and other heating industries..
Oil industry
Machinery
Industry
Chemical industry
Manufacturing Plant
Farms
Nitrogen heating
Energy & Mining
Construction works

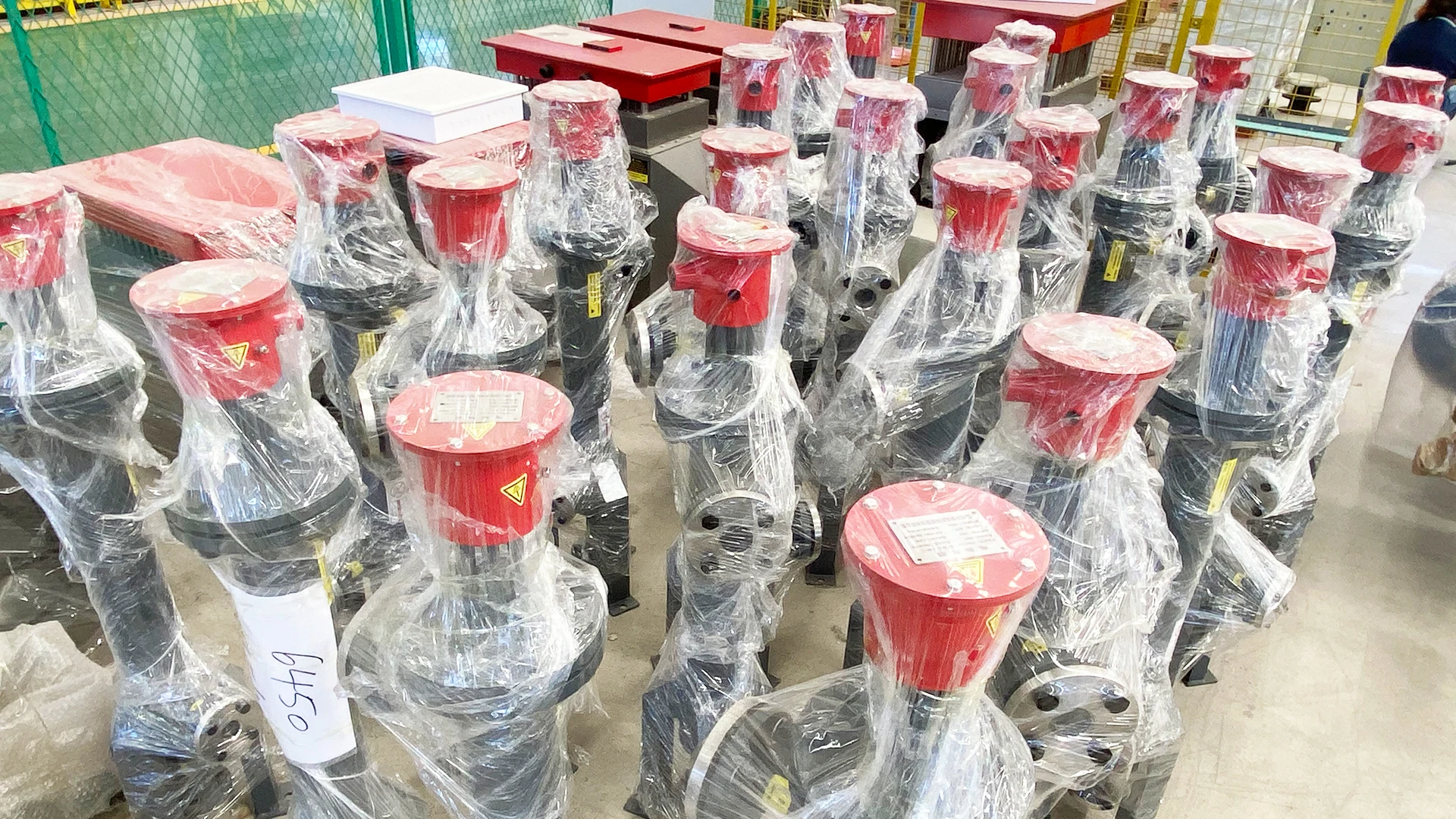

Packing & Delivery
Certifications

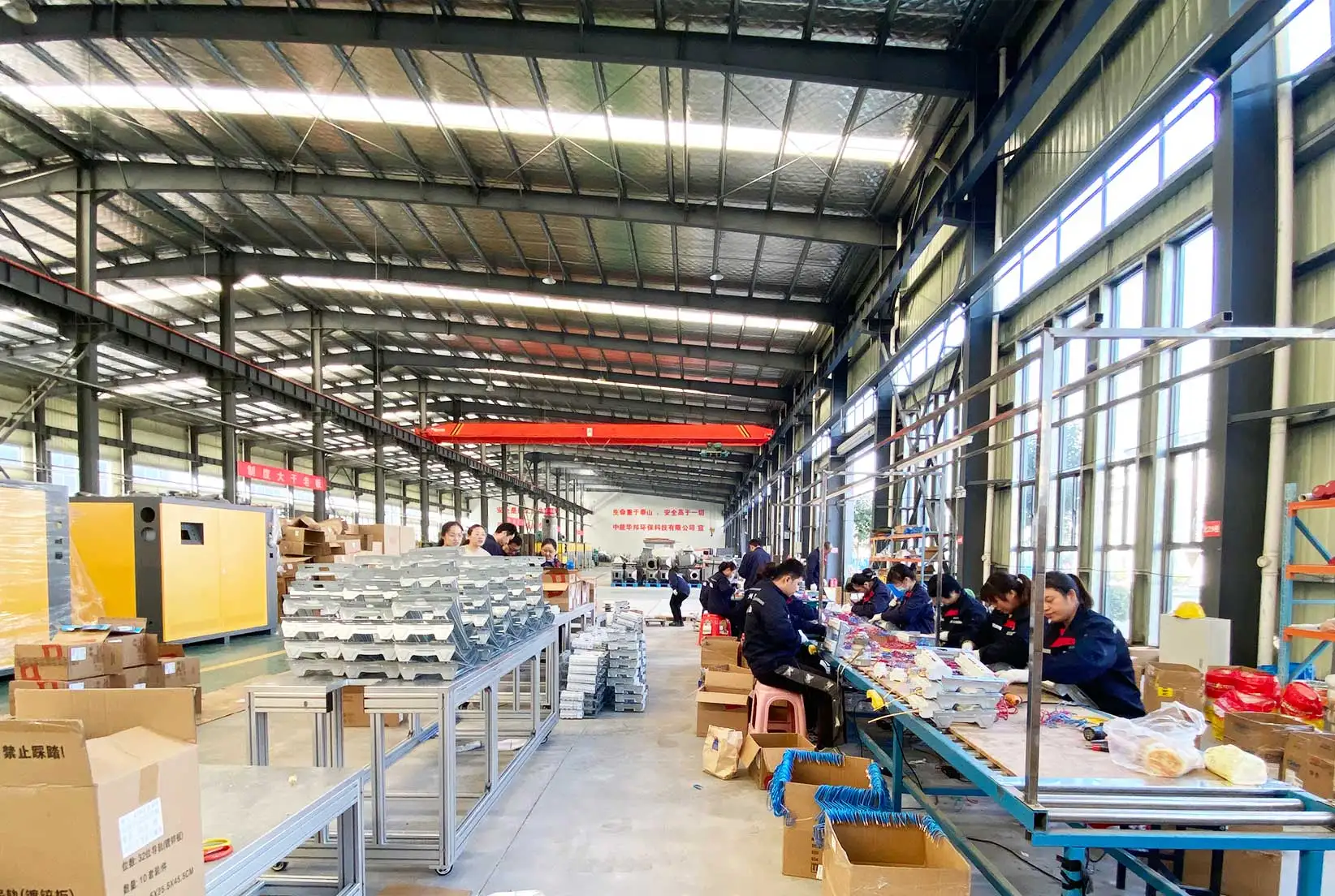

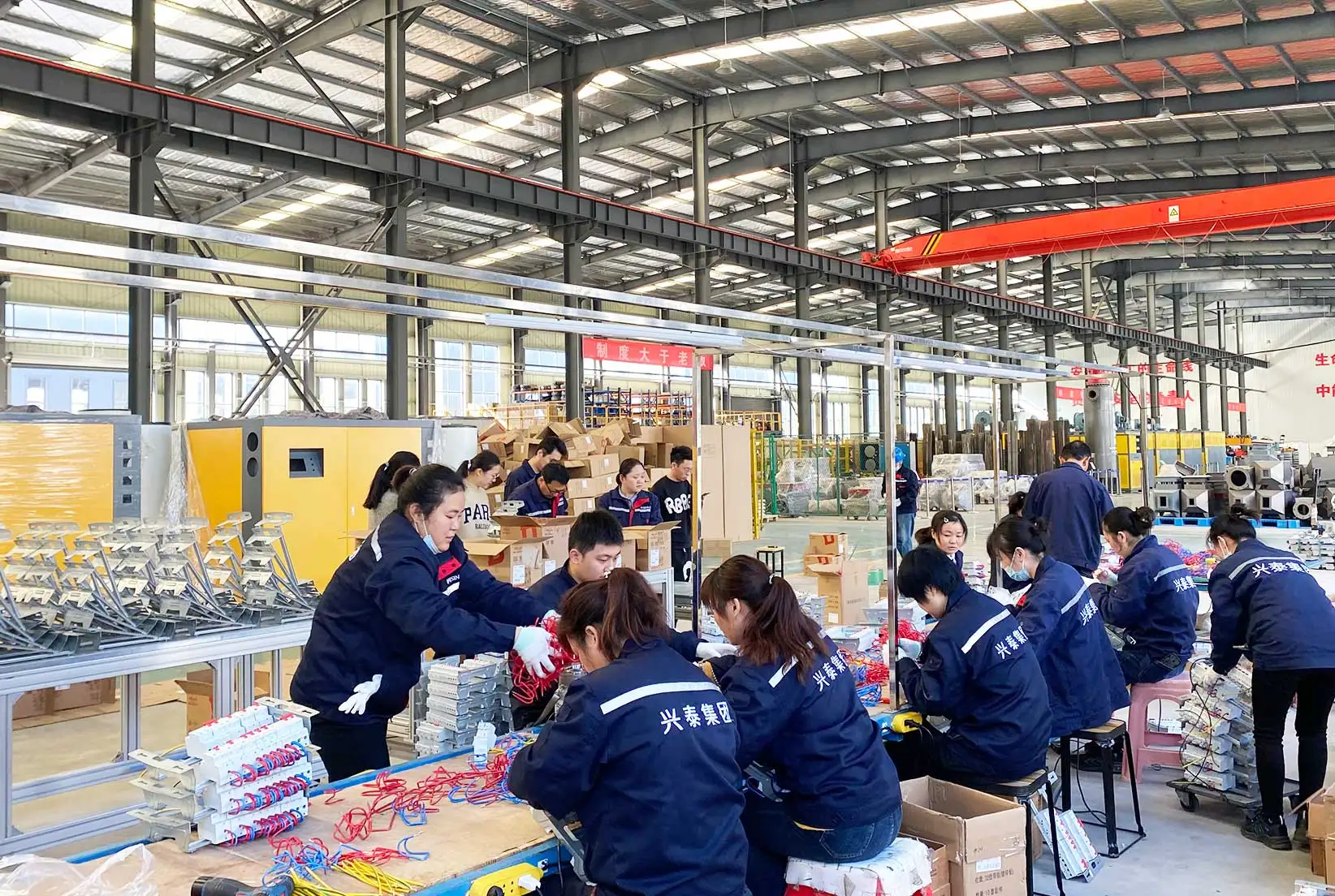

Company Profile

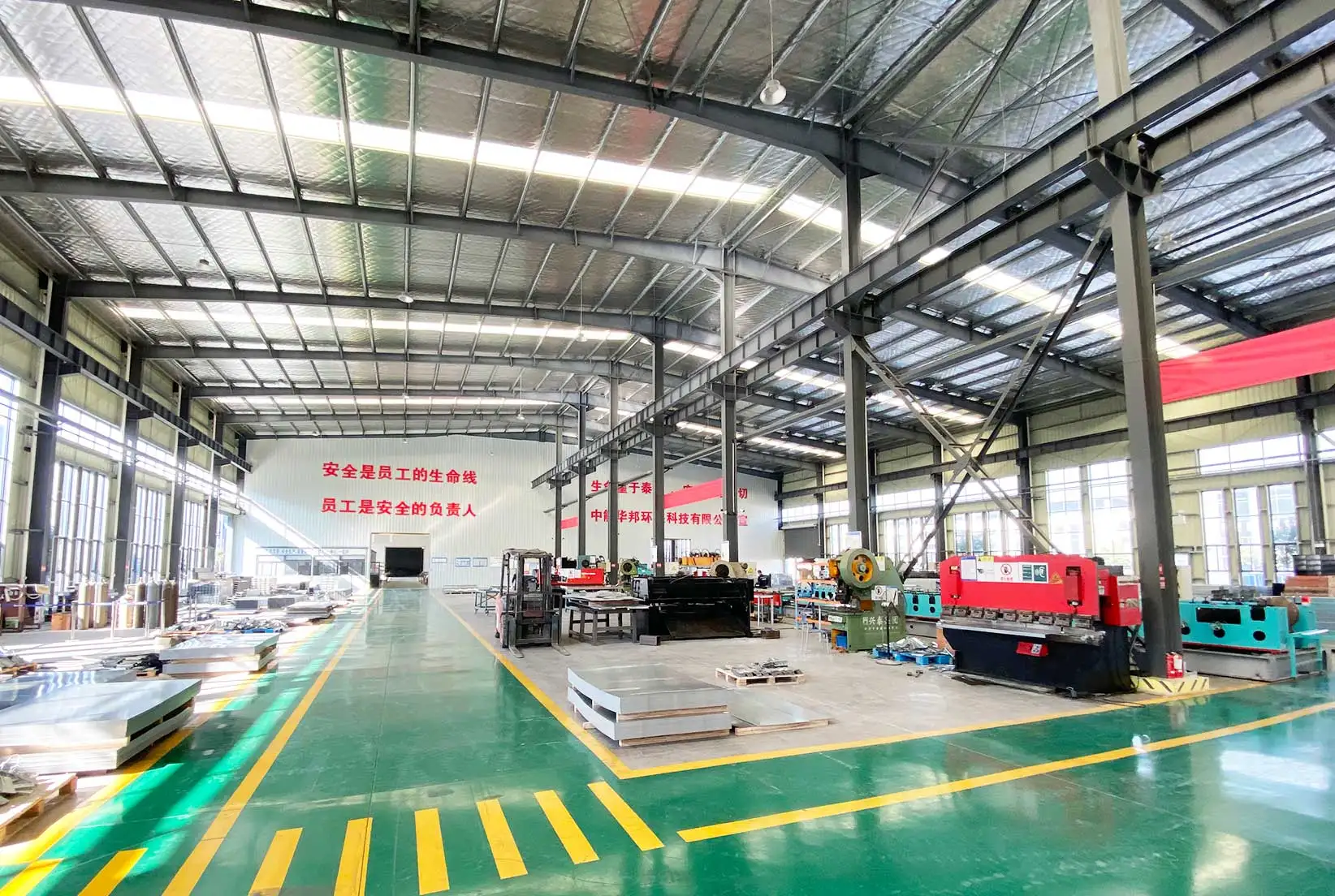

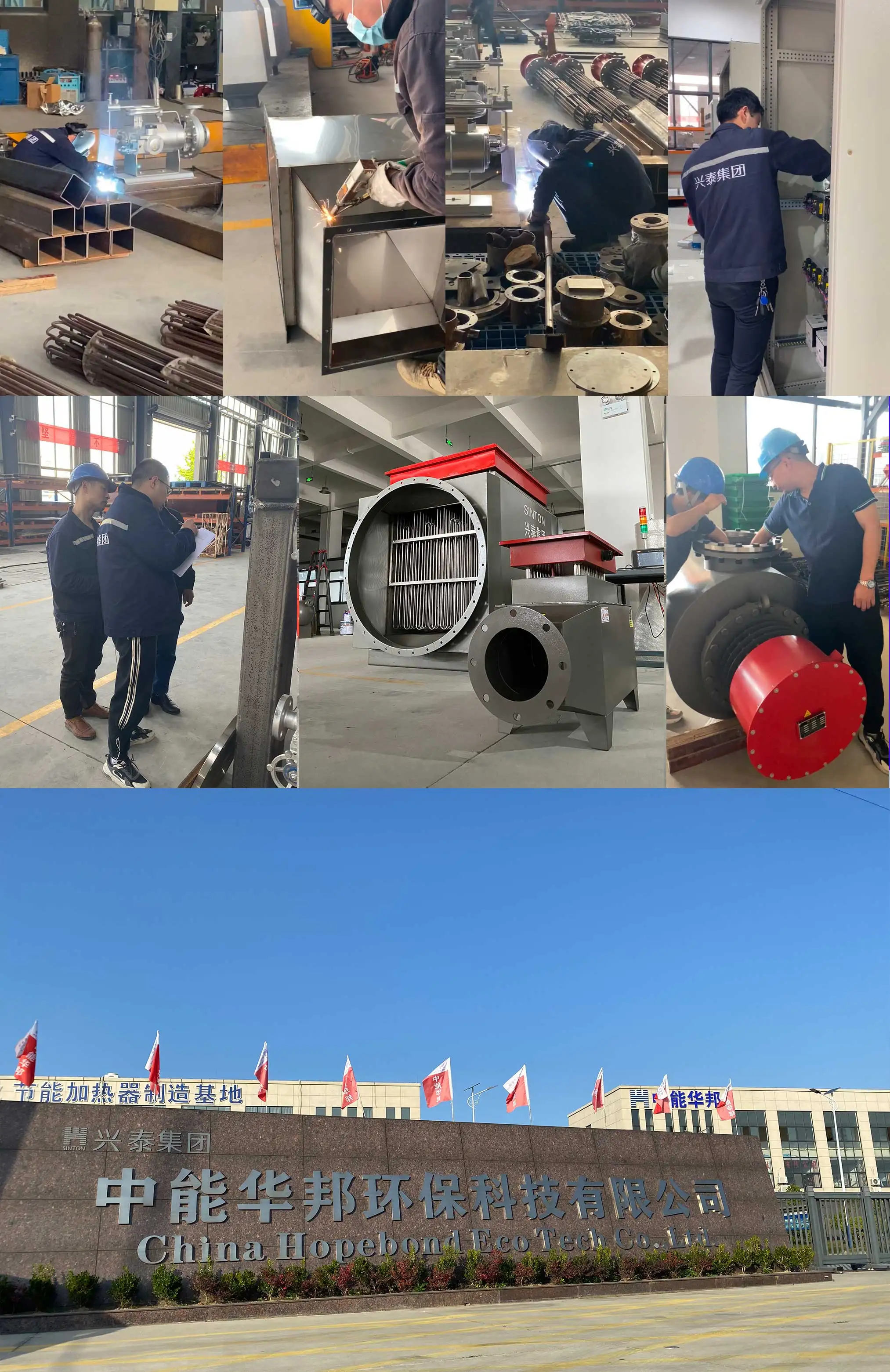

China Hopebond was formerly known as the trade of electric heating and instrumentation, the company's total assets are RMB 120million, with 360 employees. In 2010, we had our own factory building and 5A office production environment, From trade mangement to self-built factory, office building production and sales of explosion-proof heater ,air duct heater,pipeline heater, drying oven, gas mould temperature machine, electromagnetic thermal oil furnace, thermal oil furnace and all kinds of heating elements.From embarrassingly short of money to group mangement model, at present, we integrated research, development, production and sales the products are exported to 12 countries in the world,Mainly Europe and America with strong product independent research and development capabilities and technological innovation. The work has obtained the explosion proof authentication,many patents authentication, the quality system authentication.
Recommend Products
FAQ
1. What is our competitive advantage?
You are ordering directly from the factory.
2.Where is your factory located? How can I visitthere?
Our factory is located in Yancheng City, Jiangsu Province, China. It almost takes 4 hours from Shanghai to Yancheng by bus.Welcome to visit us.
3.What types of payment do you have available?
We accept TT and L/C as sample order, the western Union ,Money
gram and Aliexpress is available.
gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is our culture."We always attach great importance to quality controlling from the beginning tothe ending Welcome to contact us for more details.
