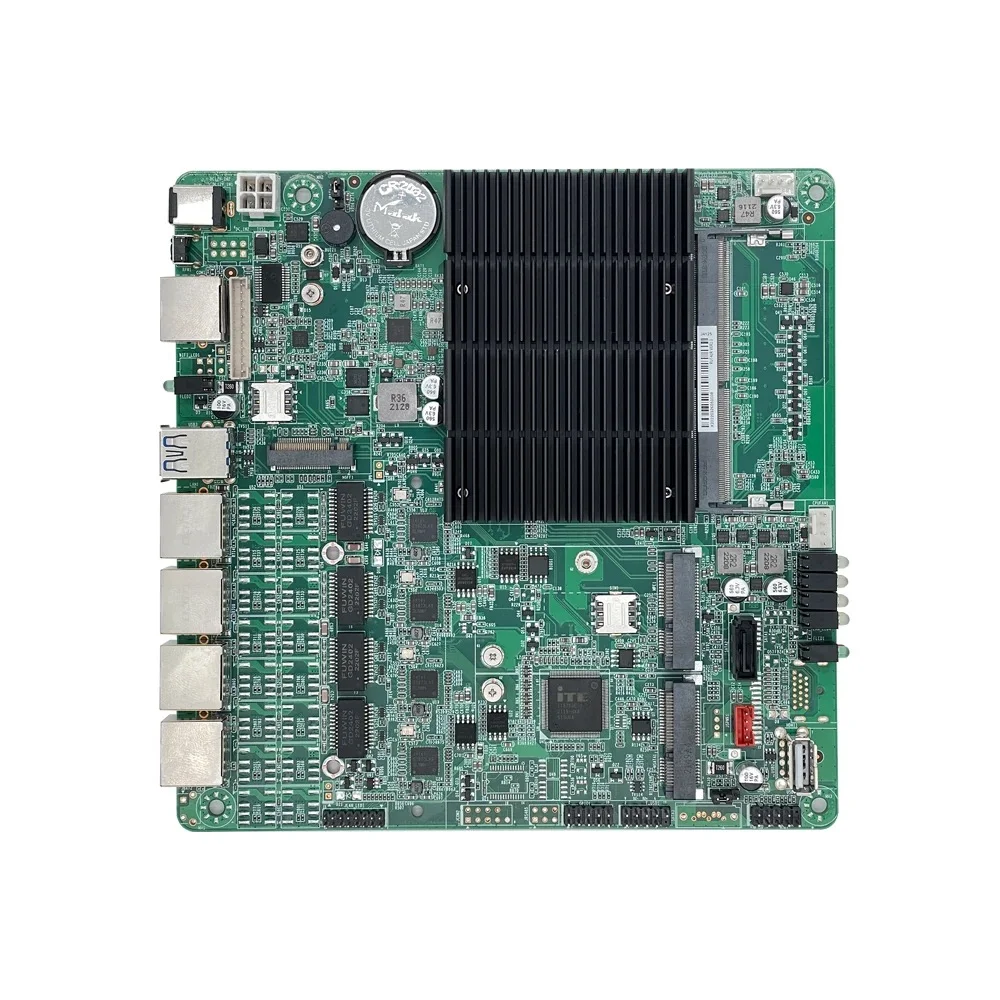

WANLAN 4 RJ45 mother board onboard processor j4125 4* i225 V i226 V 2.5G ethernet NICs j1900 cpu is optional

Processor performance

Processor

Intel® Celeron J4125 Quad core 2.0GHz Turbo boost 2.7GHz

Celeron D2700/D525 are optional

Chipset

Intel® SOC, TDP 10W

Memory

1*SODIMM,

4GB upgrade to 16GB DDR4-2666

Storage

1*SATA3.0

1*MSATA

Expansion Interface

1*MINI PCIE for WiFi+Bluetooth

1*MINI PCIE for 4G/5G LTE

BIOS

AMI UEFI BIOS

OS support

pfSense/OPNsense

Linux

MikroTik Ros

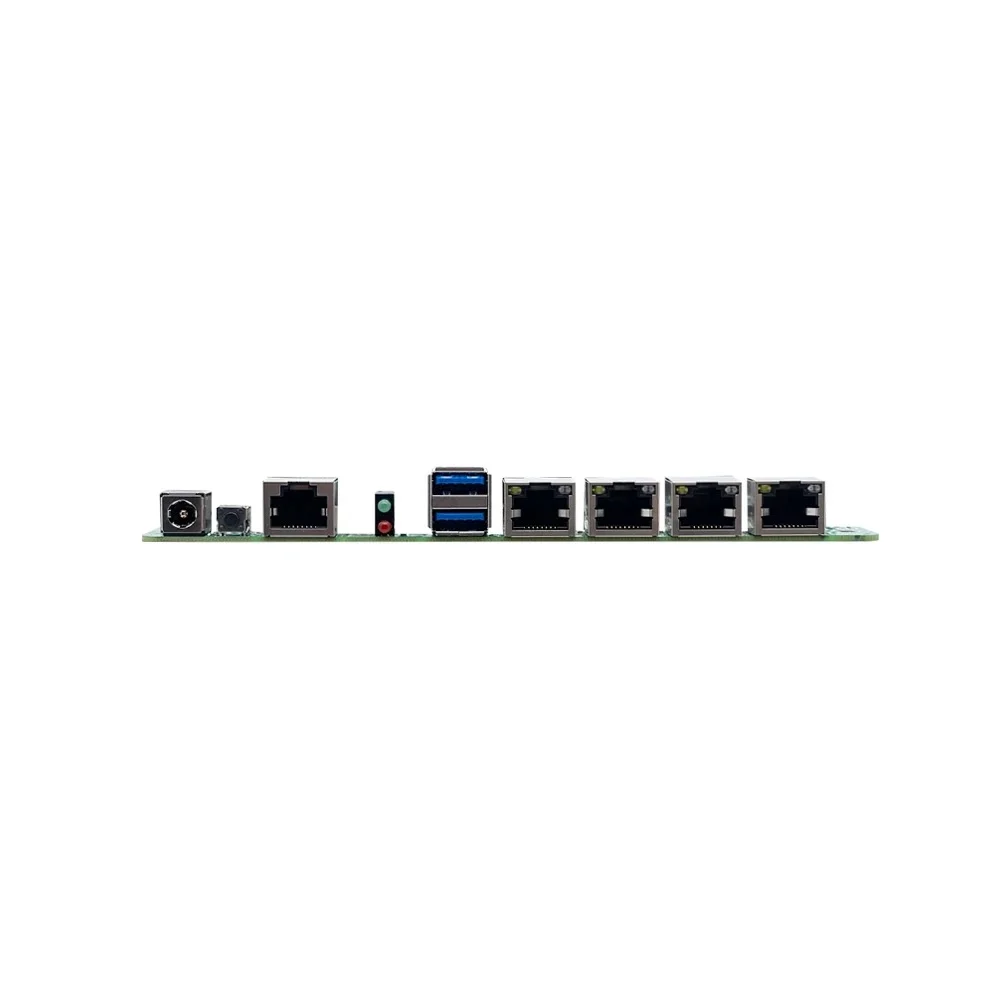

I/O Interface

Ethernet

4*Intel i225V/i226V 2.5G Ethernet controller

SFP

J4125 can’t support SFP, i3i5i7 support SFP

COM

1*Console COM port onboard

1*RS232 optional

USB

2*USB3.0 ports

SIM

1*SIM card interface

GPIO

1*GPIO head pin

Display

Display Interface

1*HDMI: 1920*1080  Optional

1*JVGA/1*12PIN/2.0MM

Multiple Display

Support dual monitor display

Mechanical & Environment

Function

Auto power on, PXE, Watchdog

Dimension

170*170mm

Power Input

DC 12V(5.5*2.5MM) ATX 2*2PIN(MX4.2)

Temperature

Operation: -10℃~60℃, Storage: -20℃~70℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
