230V ABS 868Mhz Digital Programmable Wireless Housing Electronic RF Home Battery Thermostat For Boilers

Share on (1601012726487):


Price:$25.00-30.00

Quantity:


Product Overview

Description



Product Description





RF 868Mhz  Popular Over High Temperature Controller Housing Thermostat



















Features

Specification

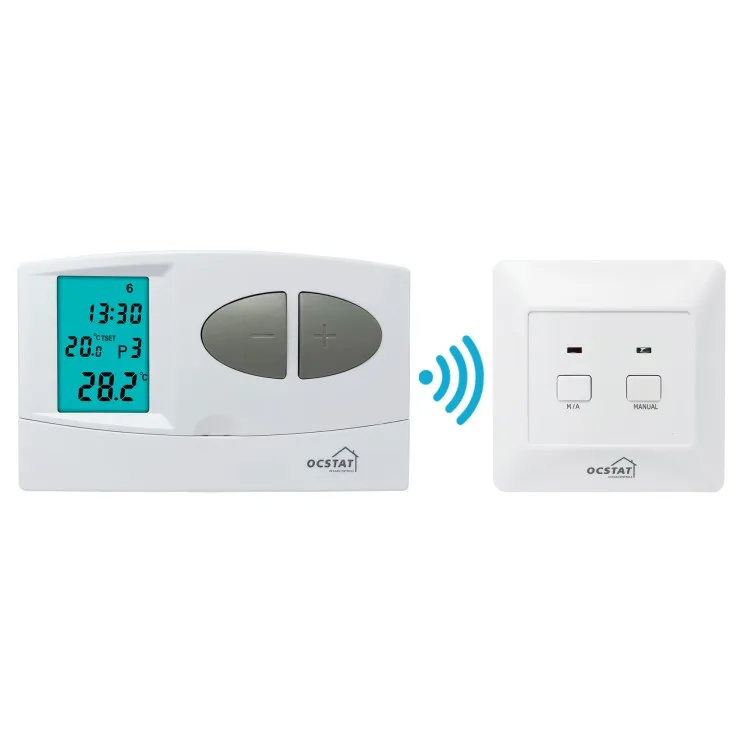

• Wireless Room Thermostat

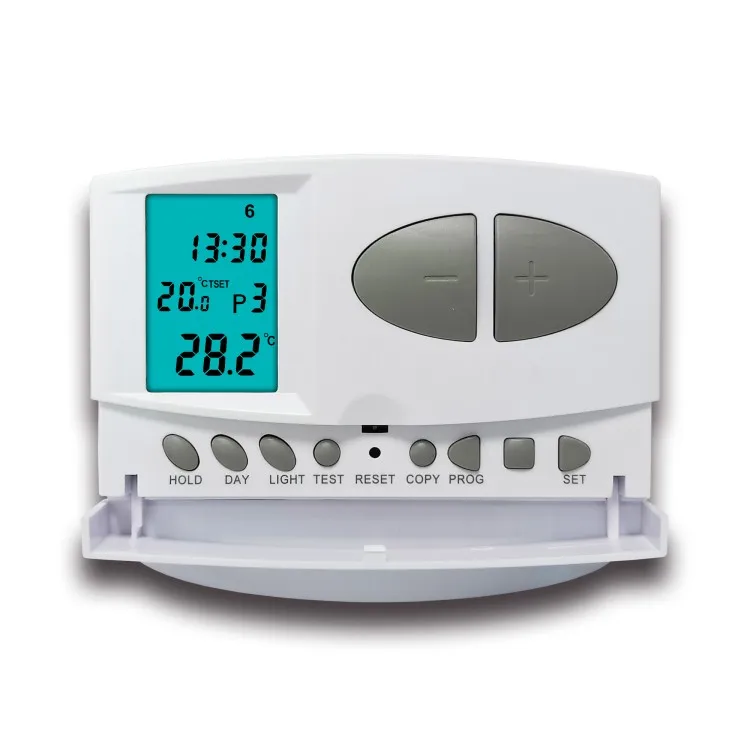

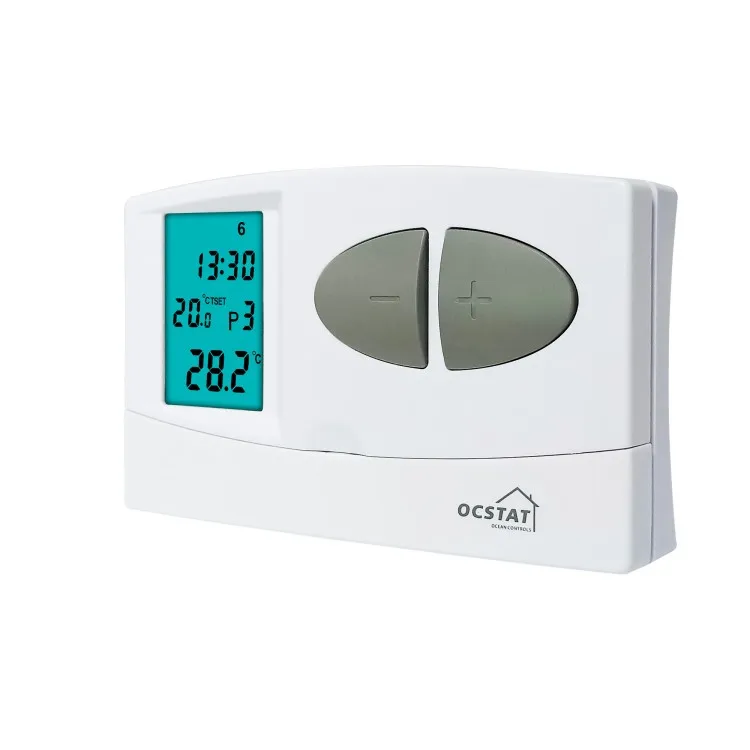

Transmitter:
• 7 Day programmable
• 6 Time & 6 Temp,per day
• Green back light
• Manual override mode
• 868Mhz with more stable communication
• Wall mount or base mount
• °F/ºC: Temperature display in °F/ºC format
• Battery power supply

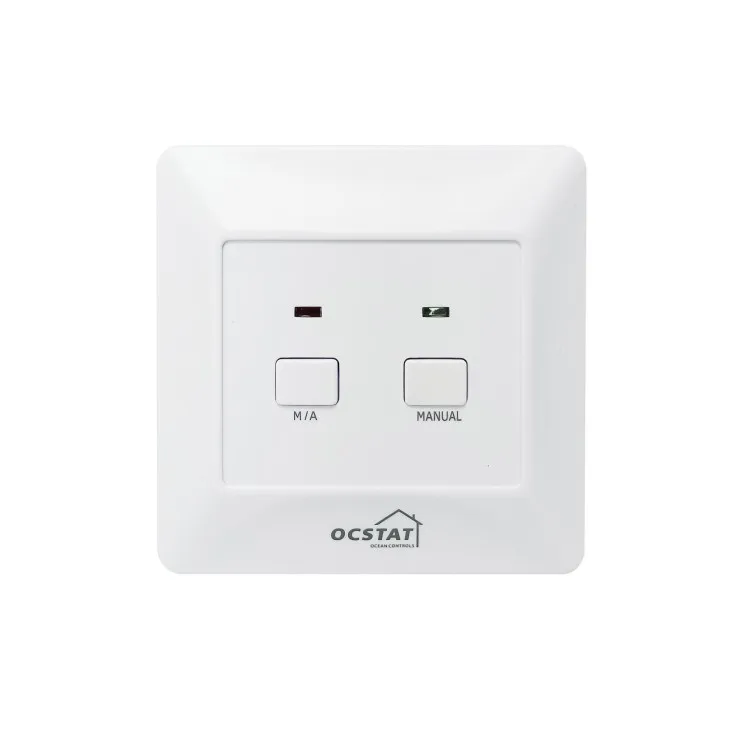

 Receiver:
• AUTO/MANUAL Switch
• LED system indicator
• Power supply: 230V AC
• Contact rating:6(2)A 250VAC Max
Model No.: ST 7 RF
Transmitter:
Operating Frequency: 868.35 MHz
Programmability: Programmable
Temperature Range (ºC): 5ºC-35ºC in 0.5ºC
Control Temp.Range (ºC): 10ºC-30ºC in 0.5ºC
Temp.Meas.Accuracy: ±0.5°C
Sensitivity: ±0.2°C / ±0.3°C
 Storage Temperature: -10°C to +60°C
Power Method: 2x1.5 V AA alkaline batteries (LR6 type)
Power Consumption: 1.3 mW
Dimensions: 130 x 80 x 35mm (without holder)
Temp. Sensor Type: NTC 10 kΩ ±1% at 25°C
 Receiver:
Power Consumption: 6W
Power Supply Voltage: 230V AC, 50Hz
Switchable Voltage: 24 V AC / DC,…250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Transmission Distance: approx. 50 m in open terrain









Packaging & Shipping































Packaging Details:






1.Inner package:Chinese/English/neutral package,special requirements based on clients.






2.Outer package:standard exporting package,special requirements based on clients.






3.One pcs per box.






Delivery Details:






1.7-50 days,according to the quantity and our stock.






2.usually by express,such as TNT,DHL,UPS,EMS,PEDEX,etc.Will take about a week from sending to get to your address.






3.Warranty:We are responsible for any defects in quality or workmanship within one year and repair them free of charge within one year.









Buying Guides





1>Programmable/Non-programmable thermostat





2>Touch Screen/Dail/Push Button thermostat





3>Timer/Programmable/Humidity thermostat





4>Pipe/Cylinder Control





5>Ventilaation Control





6>Underfloor Heating Control





7>Heating System Control Center





8>Wireless RF/Wired thermostat





9>Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.








Our Services

































1. Delivery time is 7 days for sample order and 40 working days for bulk order






2. Strong production capacity and strict quality control system






3. Your inquiry and problems related to our products or prices will be replied in 24 hours






4. Well-trained and experienced staffs to answer all your inquires






5. After-sale tracking service for all of our clients






6. OEM is available,small quantities, mixed bulk orders are also welcome






7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, Money Gram






8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST









Company Information


_02


_03





FAQ

























































































Q1



Why customer choose Ocean Controls Limited?






A1



Ocean Controls Limited, is based on a former with 15 years experience in designing/manufacturing top-end electronic room thermostat. The products is over 8 series more than 50 products range, and we have own factory plant and design RD team.All our products are sell to oversea.The products  qualities level are all up to CE,RoHS,FCC approved.



Q2



Are you Manufacture?






A2



Yes, we are manufacturer and have own production plant in Dongguan city,Guangdong province.The factory has three sets of CNC, 10 sets of injection molding machine and advance moulding  equipments.



Q3



Can we visit your factory?






A3



Yes, of course, we do welcome you to visit our factory at any time, just tell us the time and how many persons for this visiting.



Q4



What kind of products do you have?






A4



1>Programmable/Non-programmable thermostat


2>Wireless RF/Wired thermostat
3>Touch Screen/Dail/Push Button thermostat
4>Timer/Programmable/Humidity thermostat
5>Pipe/Cylinder Control
6>Ventilation Control
7>Underfloor Heating Control
8>Heating System Control Center
9>Provide OEM/ODM service to worldwide customer, including manufacturing, design,engineering and tooling.



Q5



Do you have E-catalog?






A5



 Yes, we have, please tell us your email address, we will send our E catalog to you immediately.



Q6



How can I get price list?






A6



You can send your inquiry to our email address, and just advise us the products what you are interested in, we will send our price list within 24 hours.



Q7



Can you put customer logo on the products? OEM Order?






A7



Yes, we can do it for you, which we provide OEM and ODM service for many international companies,  we can put your logo and brand on the thermostats, valves, thermal actuators and manifolds, also we can print your logo instructions, labels and colorful packing box, before the mass production, we can provide the design of products with your logo for your confirmation, after your approved, we will start the mass production for you.



Q8



What is the delivery time?






A8



7-50 days,according to the quantity and our stock.



Q9



Can you check the freights for us?






A9



Yes, of course, just tell us your address or port nearby, we will check the best freights quote for you according to your ship way choose.



Q10



What is your solution for after sales?






A10



If there is any unqualified products during the warranty.
1.Please provide the copy of Sales Contract and describe the problems appeared.
2.Please provide the issue pictures or videos for our engineer summary analysis.
3.Send back the issue products back for our engineer analysis.
Solutions
1.Engineer will checking the issues, we will inform the customer result of issue.
2.For small issue quantity, our after sales department will fix or replace the qualified products for   you, and send them back to you immediately .
3.For big issue quantity, our after sales department will replace the qualified products in your next order shipments
