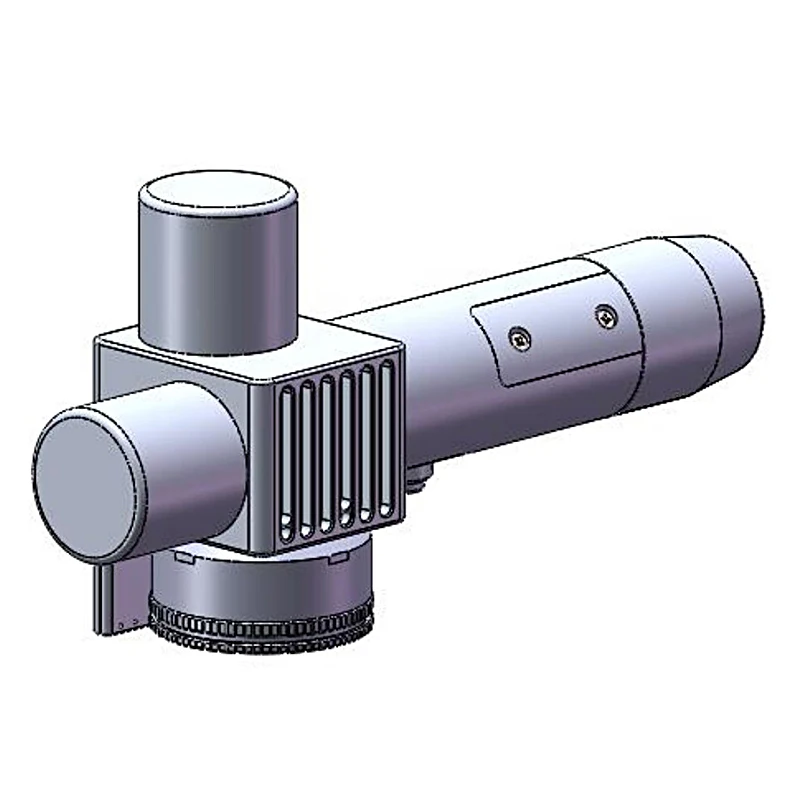

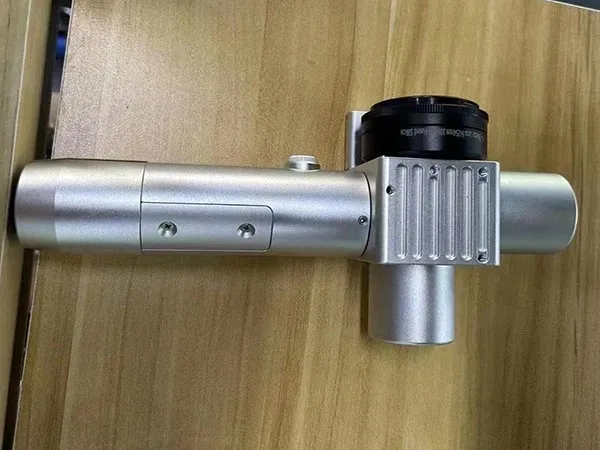

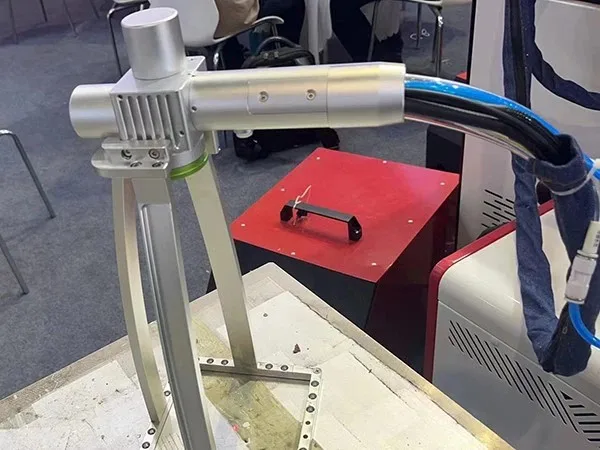

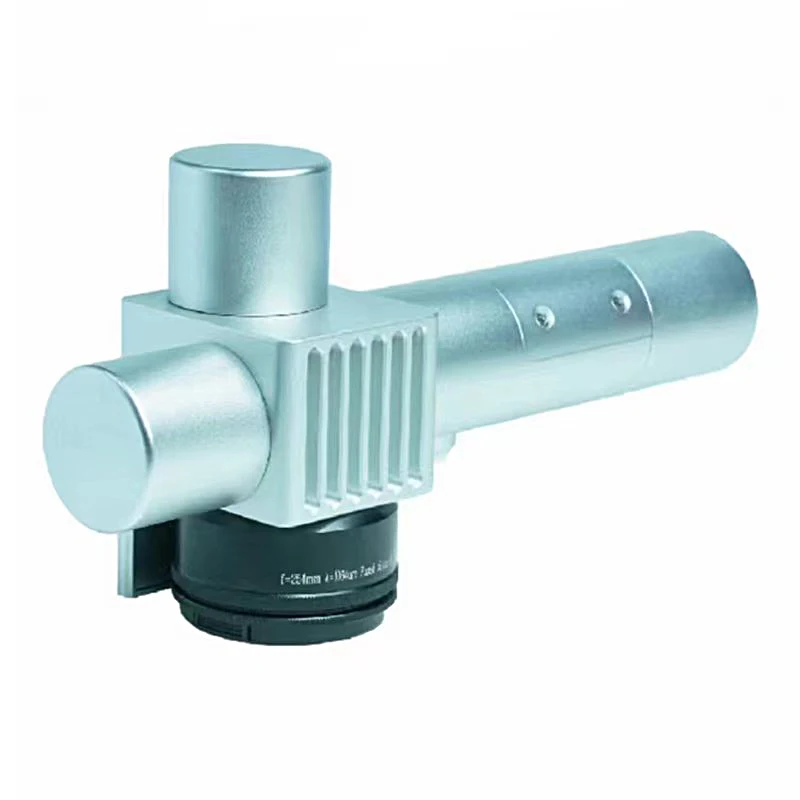

Relfar Handheld Laser Cleaning Head For Pulse Laser Cleaning Machine 300w 500w
- Category: >>>
- Supplier: Demark (Wuhan) Technology Co. Ltd.
Share on (1601012726752):
Product Overview
Description
Products Description
1. Commonly used gases include: argon, nitrogen, and compressed air (oil and water filtration is required).
2. Cooling water: connected to the 6mm air pipe. Its main function is to generate heat when the light path in the cleaning head is used. Through the internal structural parts of the water channel, the excess heat is cooled and taken away to ensure the cleaning performance. The cooling water pipelines must be connected in series, one in and one out, and the water circulates. cool down.
3. Protective gas: Connect to a 6mm air pipe for gas protection of the cleaning head. The input pressure is ≥0.5~0.8MPa.
2. Cooling water: connected to the 6mm air pipe. Its main function is to generate heat when the light path in the cleaning head is used. Through the internal structural parts of the water channel, the excess heat is cooled and taken away to ensure the cleaning performance. The cooling water pipelines must be connected in series, one in and one out, and the water circulates. cool down.
3. Protective gas: Connect to a 6mm air pipe for gas protection of the cleaning head. The input pressure is ≥0.5~0.8MPa.
Product Paramenters
model | FWH50-P10A | FWH50-P20A | |
Fiber interface | QCS Ø17 | QBH | |
wavelength range | 1070±20nm | 1064±20nm | |
power rating | ≤300W/pulse | ≤500W/pulse | |
Field mirror specifications | F254mm | F420mm | |
sweep range | length 100mm*wide 100mm | Length 200mm * width 200mm , square length 140mm * width 140mm | |
scanning speed | ≦30000mm/s | ≦30000mm/s | |
Auxiliary air pressure | ≤1Mpa | ≤1Mpa | |
Effective optical aperture | Ø25 | Ø25 | |
weight | 0.76Kg | 0.9Kg |
