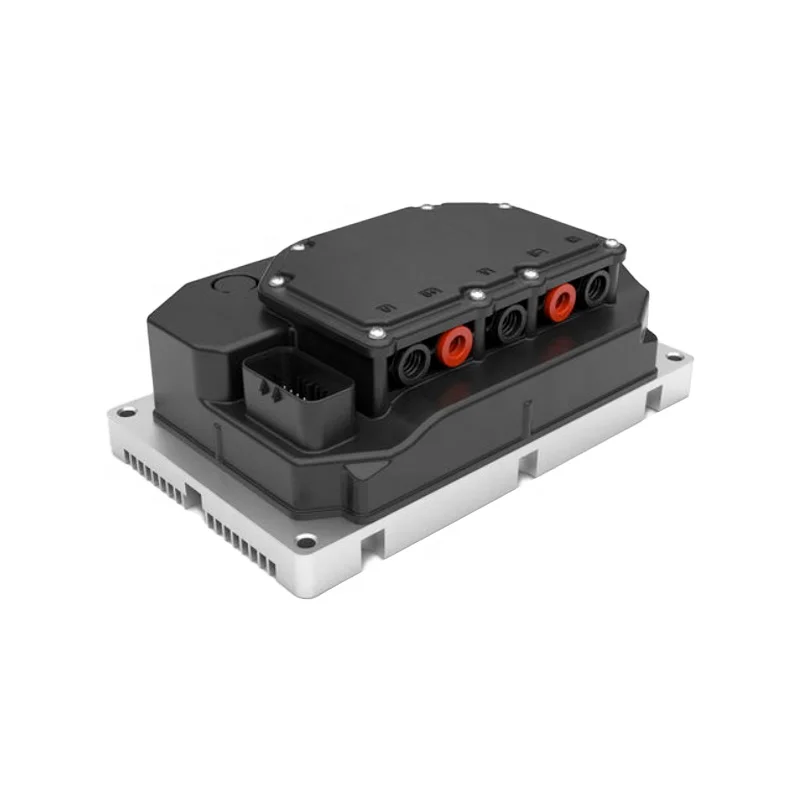

6KW High Torque DC Motor Brushless 3 Phase 7500 rpm BLDC DC Motor Controller Waterproof
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1601012741907):
Product Overview
Description

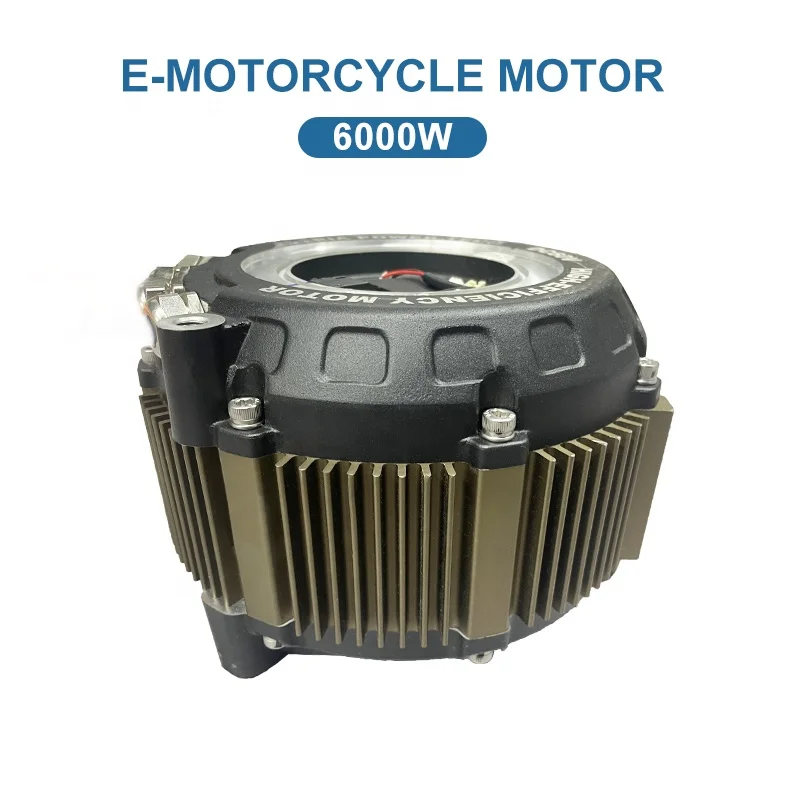

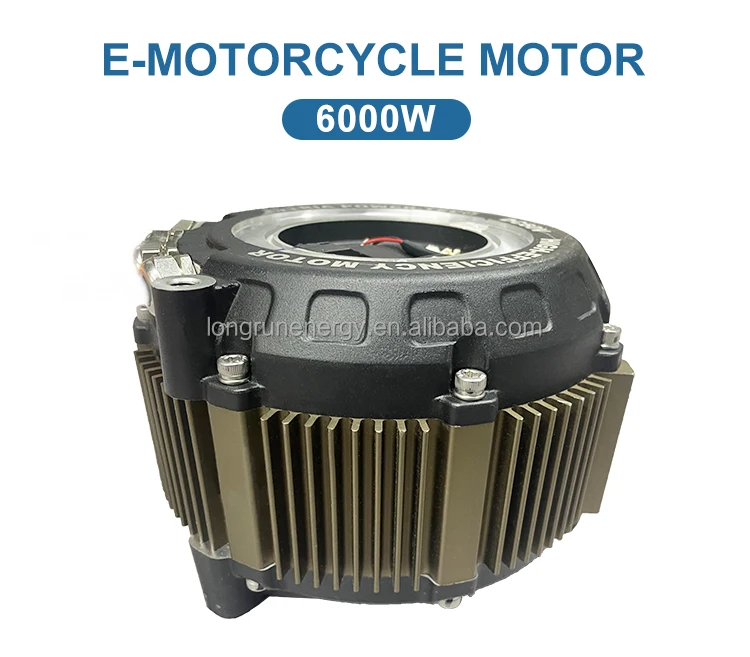

6KW High Torque DC Motor Brushless 3 Phase 7500 rpm BLDC DC Motor Controller Waterproof
Electric power technical parameters | ||
Rated power (W) | 6000 | |
Rated voltage (V) | 74 | |
Peak output current (A) | 550 | |
Rated speed (r/min) | 4500±200 | |
Peak power/Speed (Kw/rpm) | 14kw/7500rpm | |
Peak torque (N·m) | 58 | |
Maximum efficiency (%) | ≥93 | |
Cooling mode | Air-cooled | |
Layout form | Middle-engine | |
Insulation grade | H | |
Waterproof rate | IP67 | |
Features：

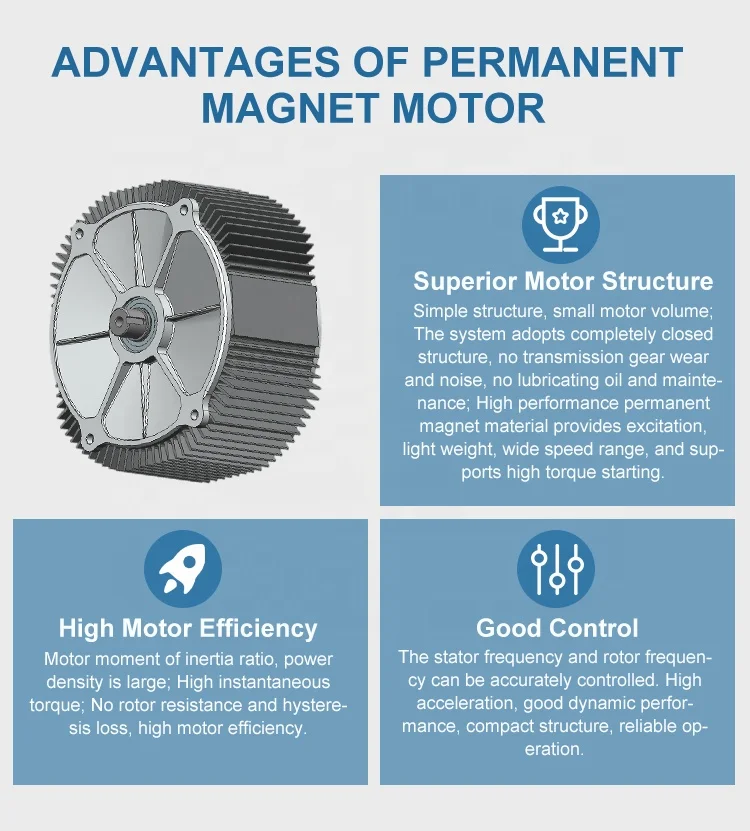

1. The motor is naturally air-cooled, and using permanent magnet synchronous motor.
2. This product meets the dynamic performance of current street racing models, and is suitable for domestic and foreign super electric motorcycles with a speed of ≥100Km/h.
3. The motor adopts flat design and has the characteristics of high power density, which is about 10% higher than ordinary motor.
4. High torque, excellent performance, low speed, heavy load and high torque, super climbing ability, light load speed.
5. Sealed with sealant and the protection grade is IP67.
Details Images
Product packaging

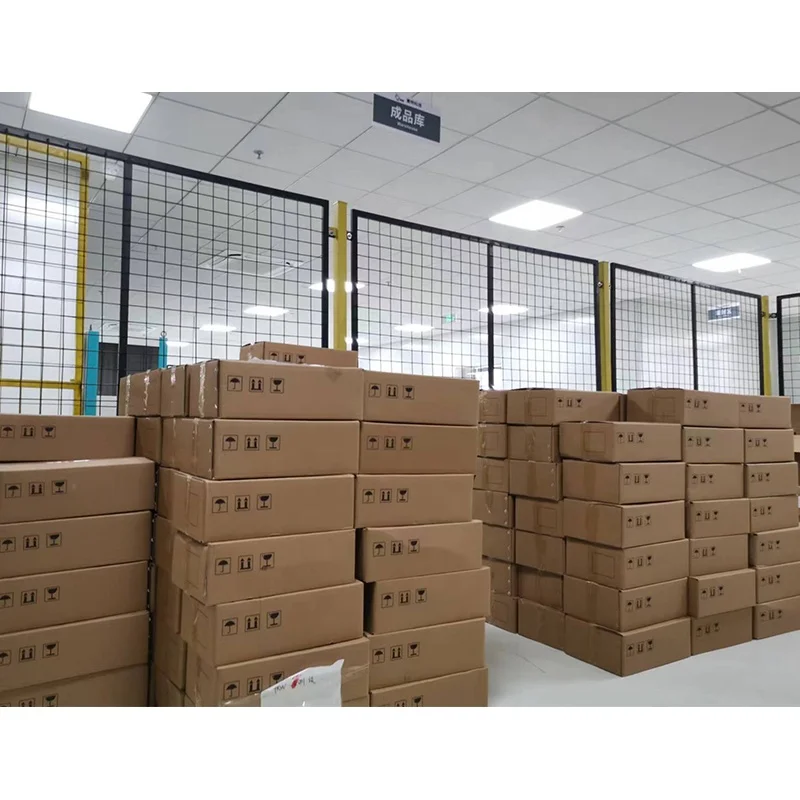

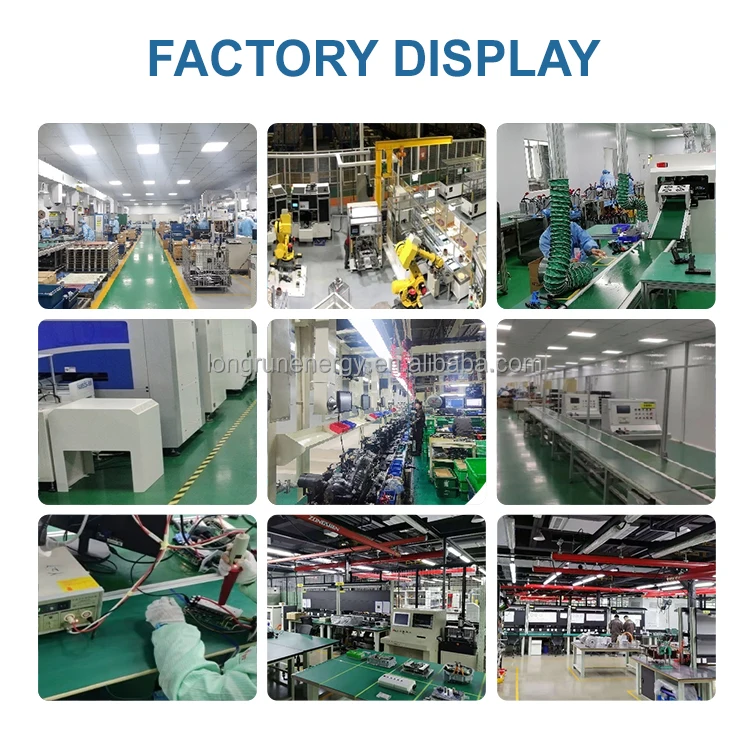

Factory Display
Certifications
