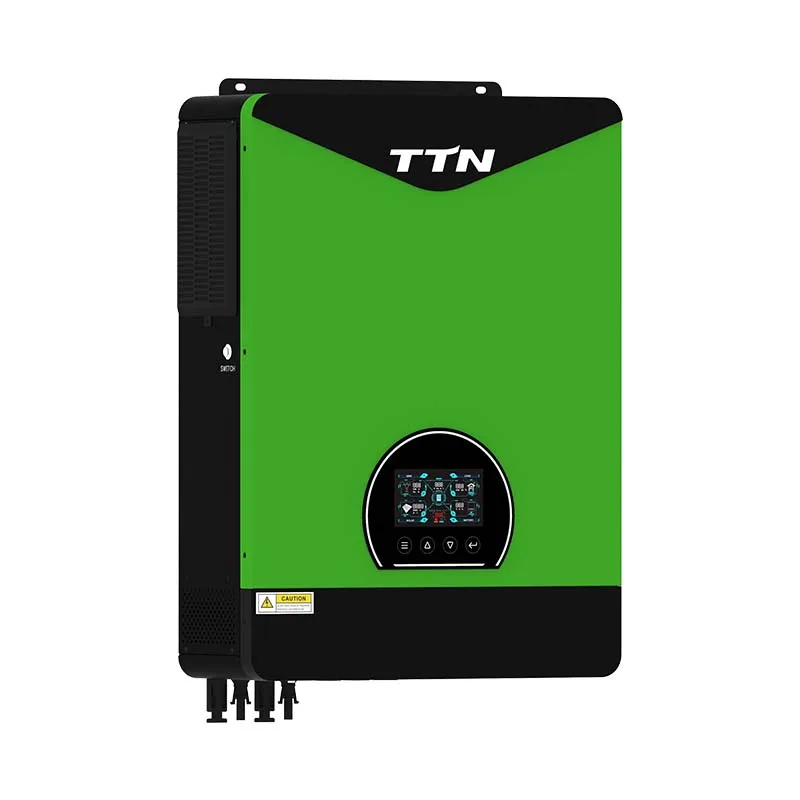

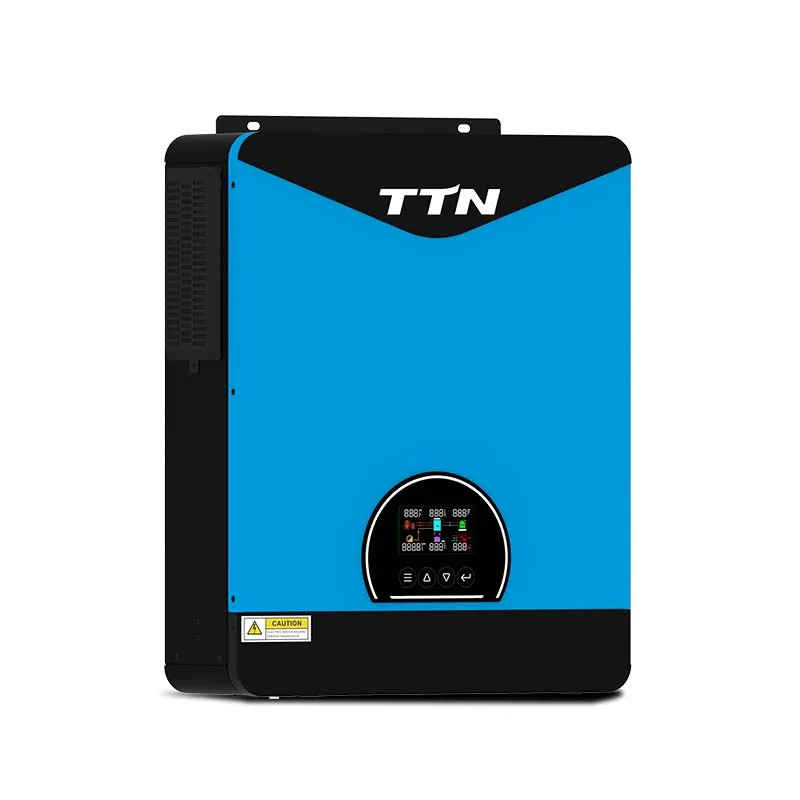

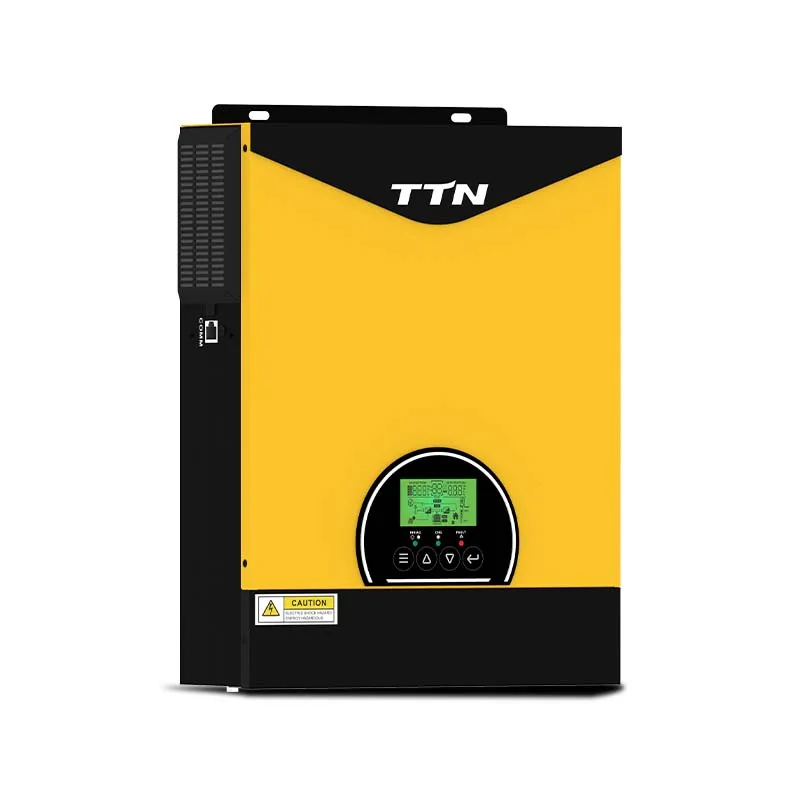

TTN off grid solar inverter 1kw 1.5kw with mppt solar charge controller 220V/230vac Hybrid Solar Inverter For Solar System
- Category: >>>
- Supplier: TTN New Energy Technology (Wenzhou) Co. Ltd.
Share on (1601012748362):
Product Overview
Description
Product Description
TTN 1kw/1.5kw 12/24v Hybrid Solar Inverter With 100A MPPT Solar Charger Led Display

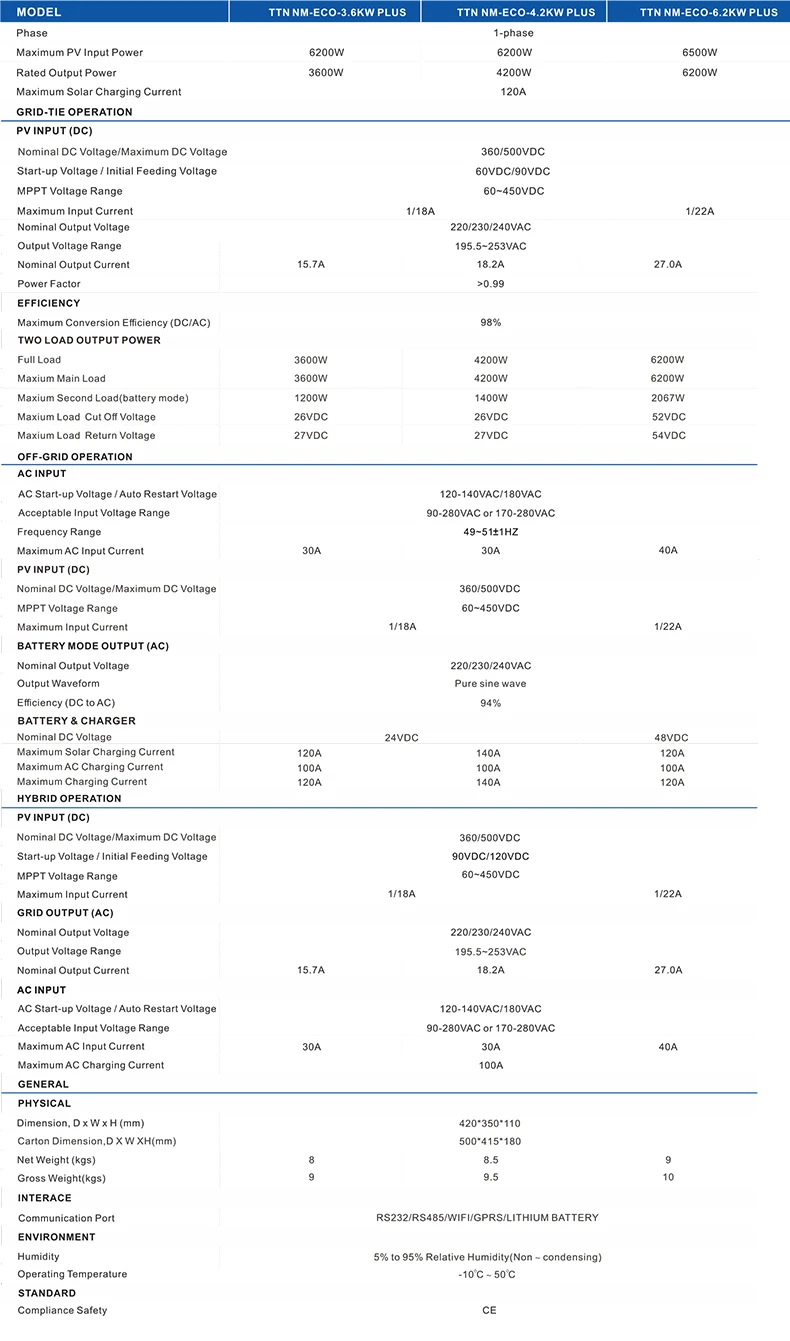

| Model | TTN NM-ECO-3.6KW PLUS | TTN NM-ECO-4.6KW PLUS | TTN NM-ECO-6.2KW PLUS |
| phase | 1-Phase | ||
| maximum pv input power | 6200w | 6200w | 6500w |
| rated output power | 3600w | 4200w | 6200w |
| maximum solar charging current | 120A | ||
| Grid-tie operateion | |||
| Pv Input (DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 60VDC/90VDC | ||
| MPPT Voltage Range | 60-450VDC | ||
| Maximum Input Current | 1/18A | 1/22A | |
| Nominal Output Voltage | 220/230/240vac | ||
| Output Voltage Range | 195.5-253vac | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| Power Factor | >0.99 | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER | |||
| Full Load | 3600W | 4200W | 6200W |
| Maxium Main Load | 3600W | 4200W | 6200W |
| Maxium Second Load(battery mode) | 1200W | 1400W | 2067W |
| Maxium Load Cut Off Voltage | 26VDC | 26VDC | 52VDC |
| Maxium Load Return Voltage | 27VDC | 27VDC | 54VDC |
| Off-grid operation | |||
| Ac Input | |||
| Ac star-up voltage /ac restart voltage | 120-140VAC/180VAC | ||
| Acceptable input vloltage range | 90-280VAC or 170-280vac | ||
| Frequency range | 49-51+-1HZ | ||
| Maximum ac input current | 30A | 30A | 40A |
| Pv Input (DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| MPPT Voltage Range | 60-45VDC | ||
| Maximum Input Current | 1/18A | 1/22A | |
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | pure sine wave | ||
| Efficiency (DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 24VDC | 48VDC | |
| Maximum Solar Charging Current | 120A | 140A | 120A |
| Maximum AC Charging Current | 100A | 100A | 100A |
| Maximum Charging Current | 120A | 140A | 120A |
| HYBRID OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 60-450VDC | ||
| Maximum Input Current | 1/18A | 1/22A | |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240vac | ||
| Output Voltage Range | 195.5-253vac | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280vac | ||
| Maximum AC Input Current | 30A | 30A | 40A |
| Maximum AC Charging Current | 100A | ||
| General | |||
| Physical | |||

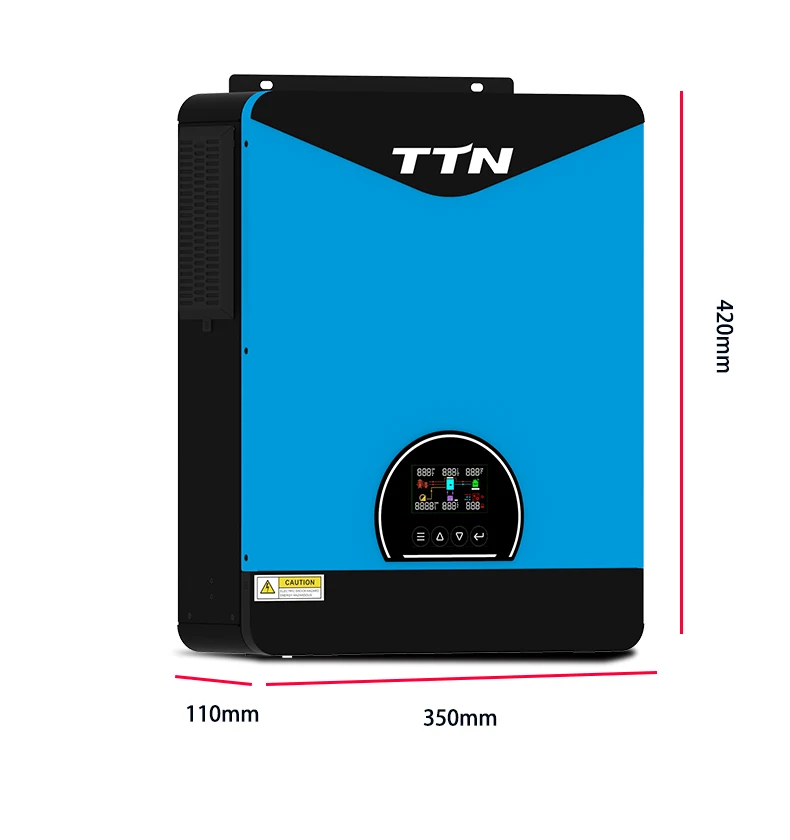

| Dimension. D x Wx H(mm) | 420*350*110 | ||
| Carton Dimension,DX WXH(mm) | 500*415*180 | ||
| Net Weight (kgs) | 8 | 8.5 | 9 |
| Gross Weight(kgs) | 9 | 9.5 | 10 |
| INTERACE | |||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERR | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% relative humidity(non-condensing) | ||
| Operating Temperature | -10℃-50℃ | ||
| STANDARD | |||
| Compliance Safety | CE | ||
