YOHE JCS 02H high voltage electric adjustable hydraulic switch Oil pressure switch pressure relay
- Category: >>>
- Supplier: Ningbo Yohe Supply Chain Co. Ltd.
Share on (1601012758264):
Product Overview
Description

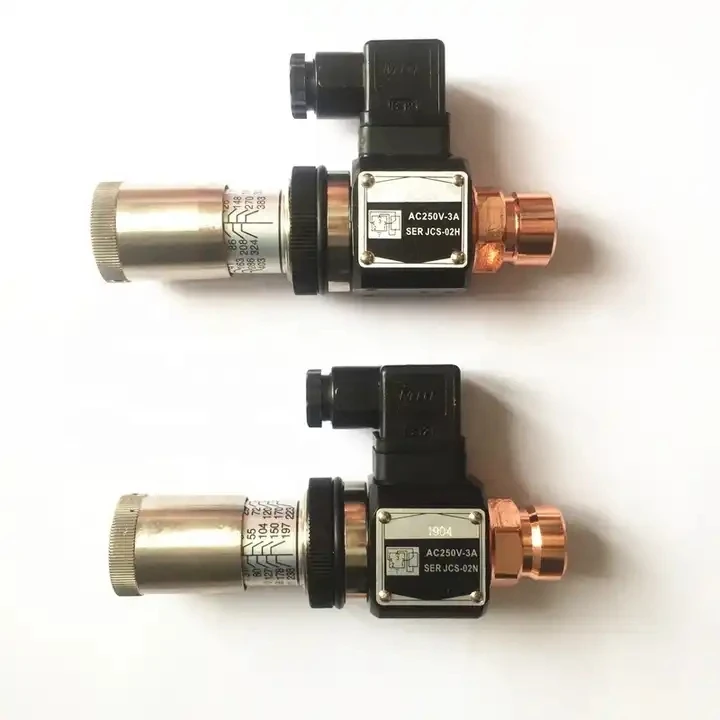

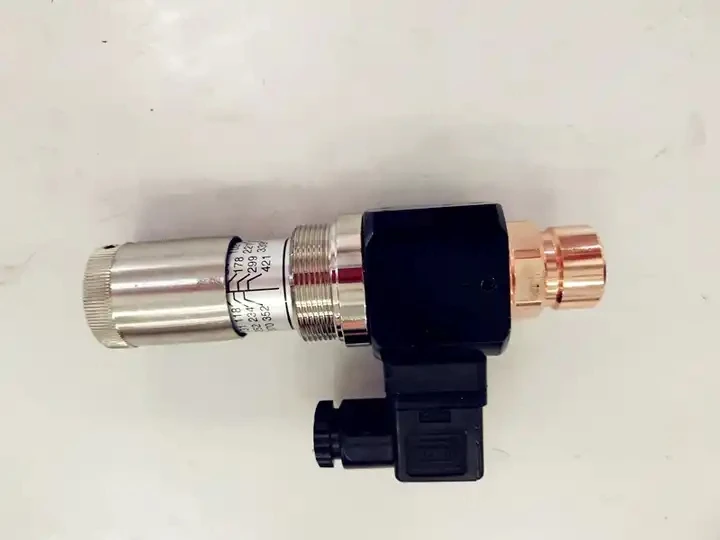

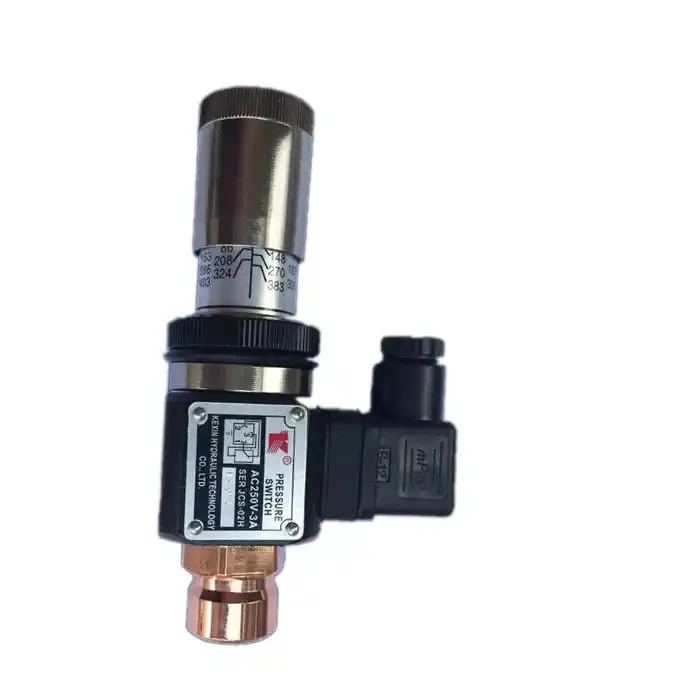

YOHE JCS-02H high voltage electric adjustable hydraulic switch Oil pressure switch pressure relay
Product introduction:

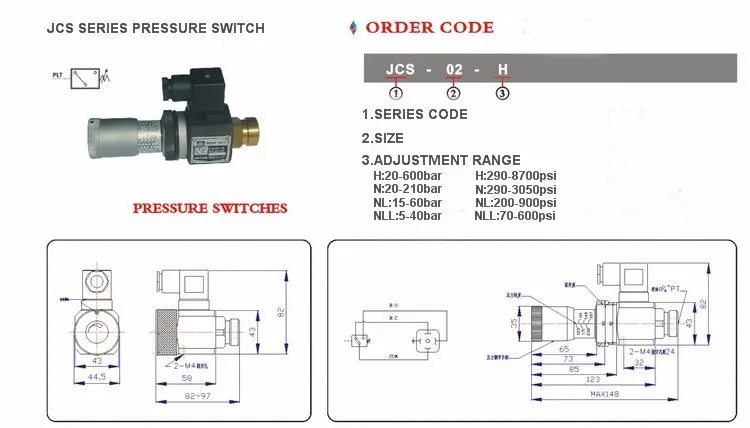

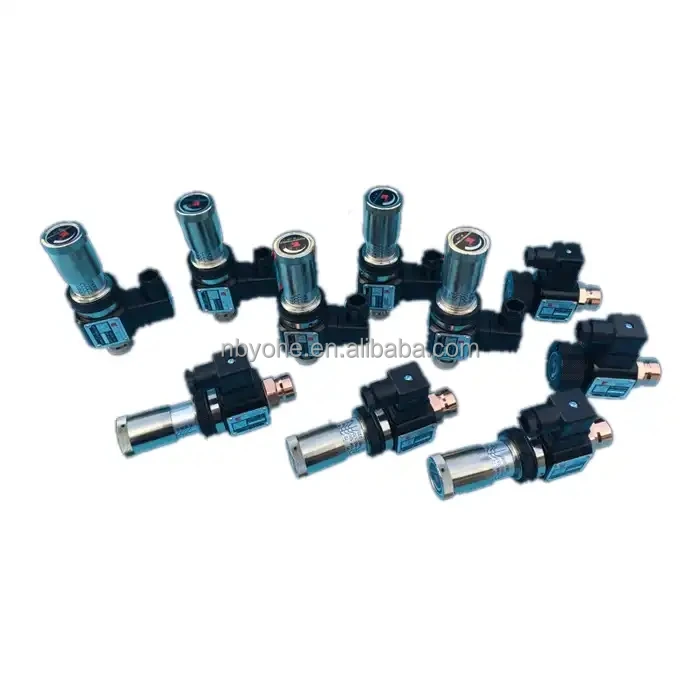

JCS Series of JCS-02N,JCS-02NL,JCS-02NLL Hydraulic Pressure Switch
1. Totally interchangeable with original
2. JCS series built-in micro switch, induction from hydraulic system pressure convey the electrical signal to electromagnetic directional valve or electric motor make it change direction or warning, closed circuit, in order to achieve the effect of system protection
3. Pressure switch is the use of liquid pressure to open/close electrical contact hydraulic electrical interface element. When the system pressure to achieve value of pressure switch setting , a signal, make electrical components (such as electromagnet, motor, time relay, electromagnetic clutch, etc.) action, make the oil pressure relief, reversing, execute component realize order action, or closed motor make the system to stop working, and the safety protection, etc.
4. Max. operating presure 21Mpa(210bar)
5. Very competitive price
6. 1 year of warranty
7. Short delivery time
| Model | Rated Pressure | Max pressure | Weight |
| JCS-02H | 50-350 kg/cm2 | 410 kg/cm2 | 1.0 Kg |

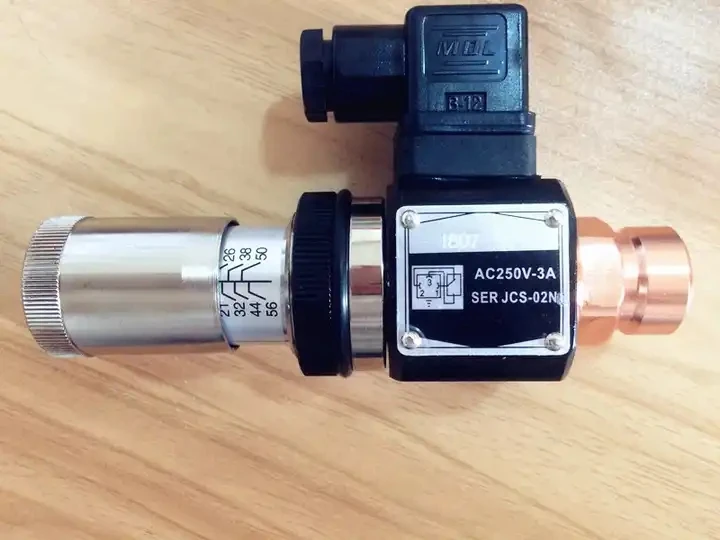

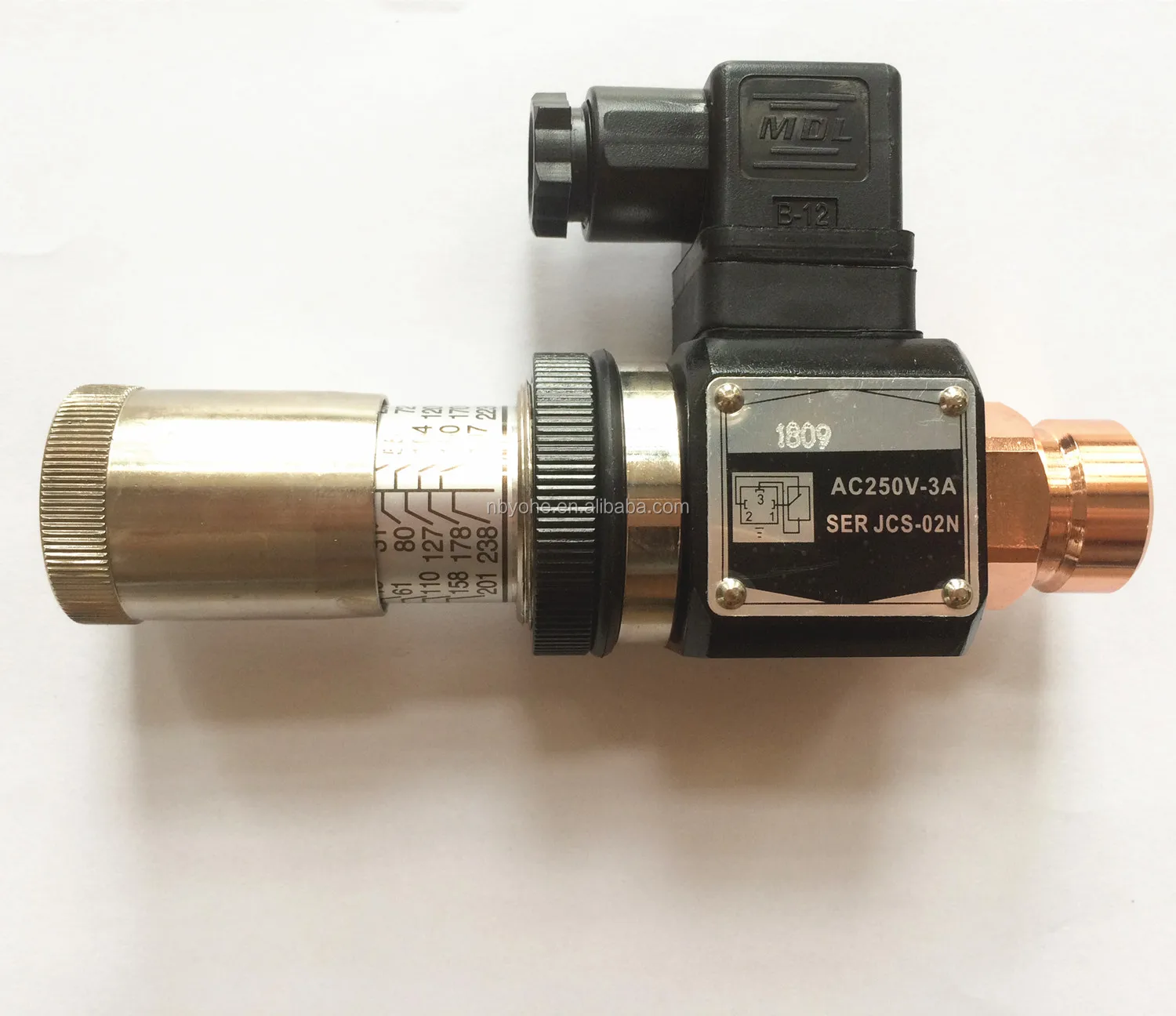

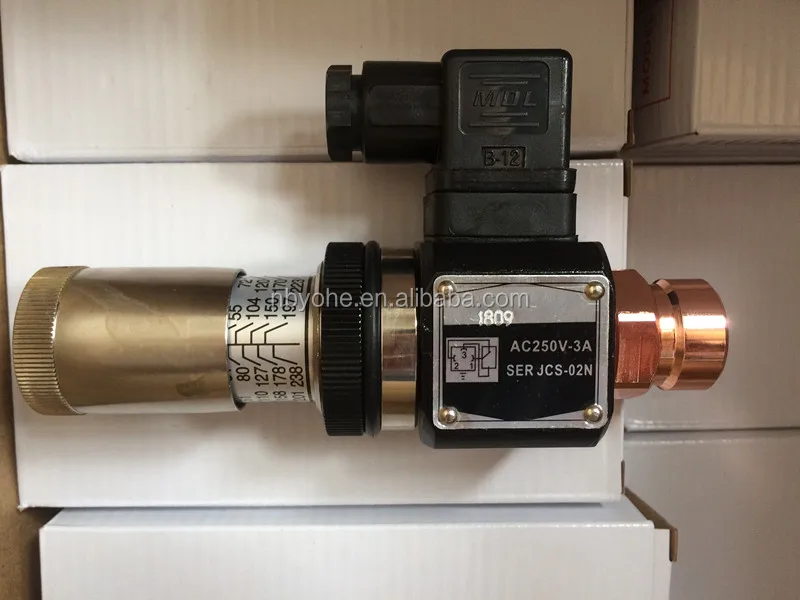

| JCS-02N | 30-210 kg/cm2 | 210 kg/cm2 | 1.0 Kg |
| JCS-02NL | 15-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
| JCS-02NLL | 5-60 kg/cm2 | 70 kg/cm2 | 1.0 Kg |

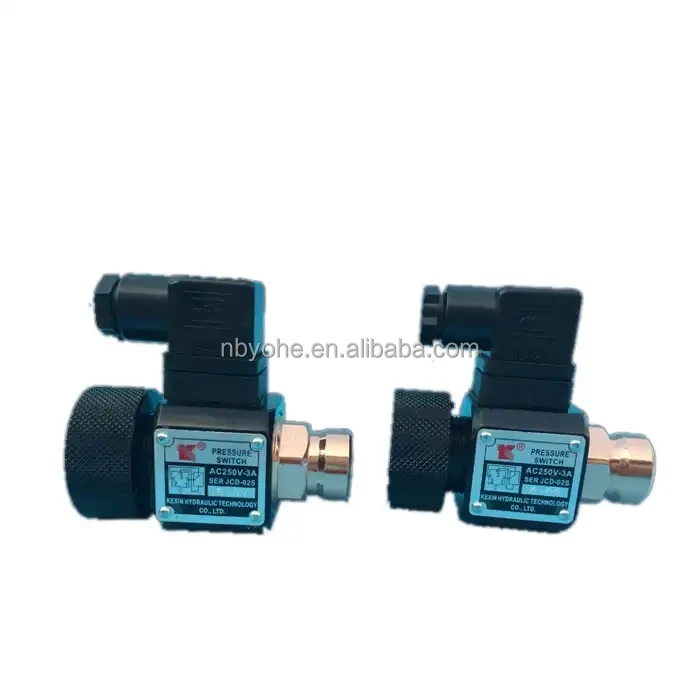

| JCD-02S | 4-26 kg/cm2 | 70 kg/cm2 | 1.0 Kg |
FAQ
Q: Did you accept products customization? Do you need mould fee?
A: Yes, we accept products customiaztion. Need mould fee, but could refund when the order reach a specific quantities.
Q: Can we get free samples?
A: The sample cost and freight cost will be born by the buyers, and could be refund the sample cost in following orders.
Q: How long is your delivery time?
A: Generally it is 5-7 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is the type of payment?
A: Usally 30% deposit , the balance should be paid before delivery.
Q: How to guarantee the high quality?
A: We have testing Dept. to make sure quality of every product, apperance and pressure test and so on.
