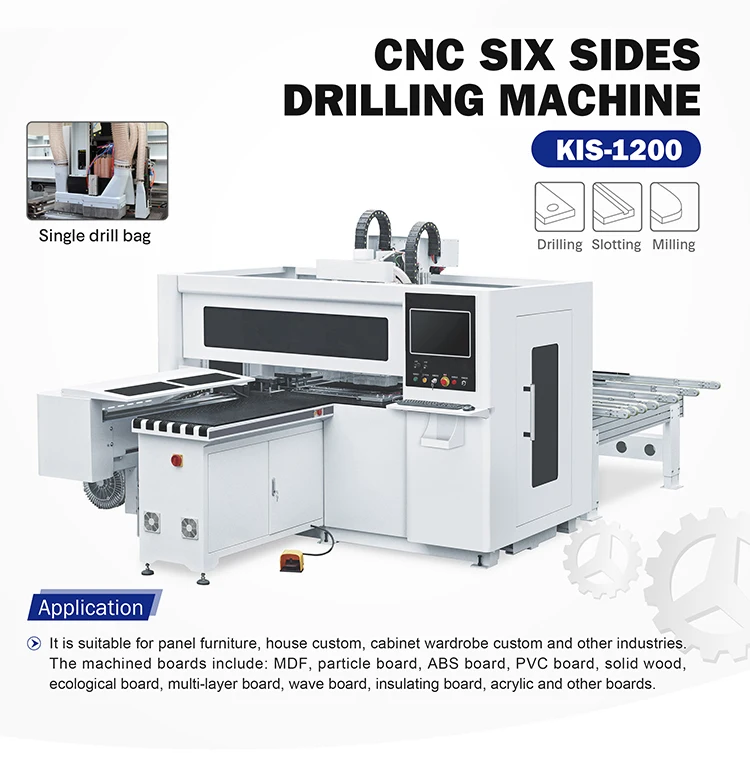

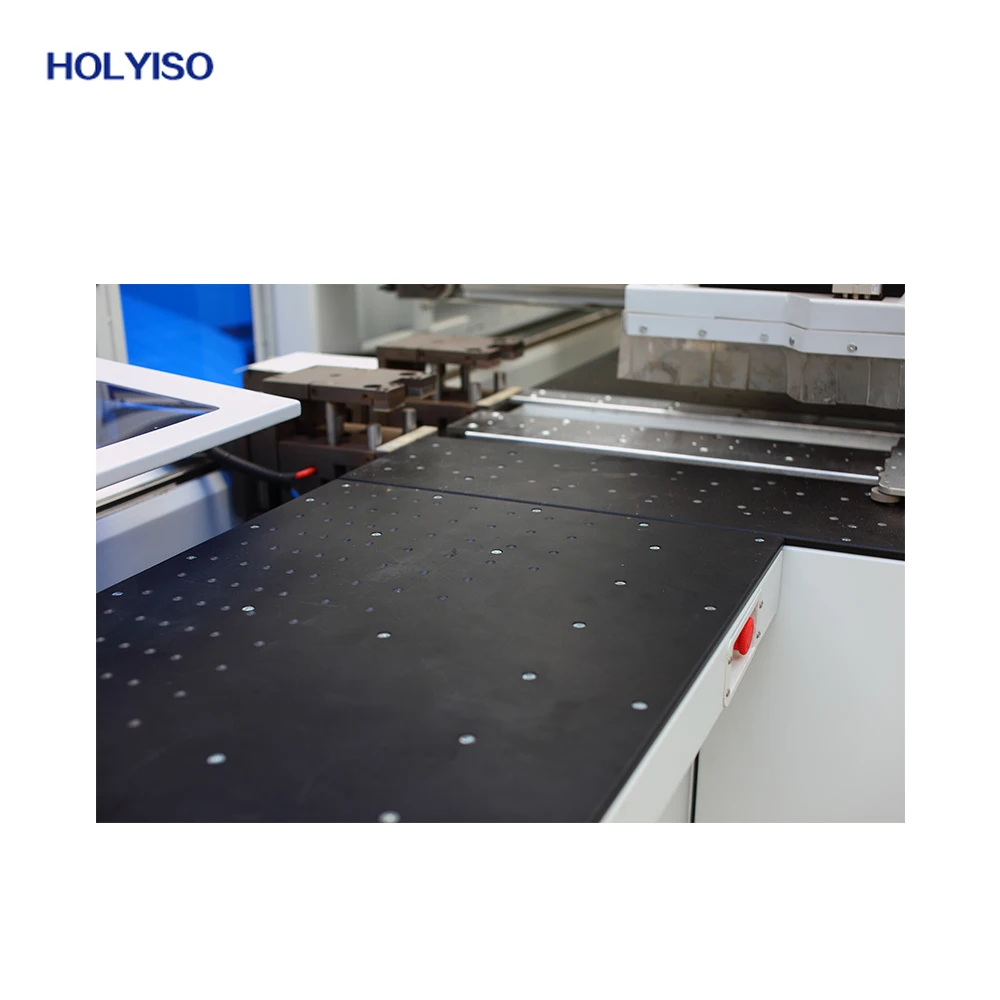

HOLYISO KIS 1200 multi woodworking cnc six 6 sided drilling machine cnc wood holing boring machinery For Cabinet Door
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1601012763533):
Product Overview
Description
Products Description
Model | KIS-1200 | KIS-1200D | ||||
Processing size range&speed | Panel maximum length | 4250mm | 4250mm | |||
Panel minimum length | 200mm | 200mm | ||||
Processing size range&speed | Panel maximum width | 1250mm | 1250mm | |||
Panel minimum width | 30mm | 30mm | ||||
Panel maximum thickness | 50mm | 50mm | ||||
Panel minimum thickness | 10mm | 10mm | ||||
Fastest processing speed | 80m/min | 60m/min | ||||
Main details | Number of Motion axis | 7 | 9 | |||
Processing surface | 6 | 6 | ||||
Drilling bags & configuration | Number of drill bags | Upper: 1 | Upper: 2 | |||
Lower: 1 | Lower: 1 | |||||
Drilling bags & configuration | Upper vertical drill bit | 7 pcs | 14pcs | |||
Upper horizontal drill bit | 4 pcs | 8pcs | ||||
Lower vertical drill bit | 3 pcs | 3pcs | ||||
Spindle | Upper spindle | 1 | 1 | |||
Lower spindle | 1 | 1 | ||||
Spindle power & speed | 3.5kw & 2400rpm | 3.5kw & 2400rpm | ||||
Axis travel & maximum positioning speed | X axis | 3800mm & 130m/min | 3800mm & 100m/min | |||
Y axis | 2500mm & 90m/min | 2500mm & 90m/min | ||||
Z axis | 150mm & 60m/min | 150mm & 60m/min | ||||
Axis travel & maximum positioning speed | A axis | 3800mm & 90m/min | 3800mm & 90m/min | |||
U axis | 1500mm & 60m/min | 1500mm & 60m/min | ||||
V axis | 1250mm & 90m/min | 1250mm & 60m/min | ||||
W axis | 1250mm & 90m/min | 1250mm & 60m/min | ||||
Other parameters | Total power | 22.8kw | 24kw | |||
Tool diameter | 4-35mm (optional) | 4-35mm (optional) | ||||
Working voltage | 380V/50HZ or as your request | 380V/50HZ or as your request | ||||
Working pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | ||||
Weight | 4300kg | 4500kg | ||||
Overall size | 4600*2650*2100mm | 4600*2650*2100mm | ||||
* Machine can be customized according to your needs * | ||||||

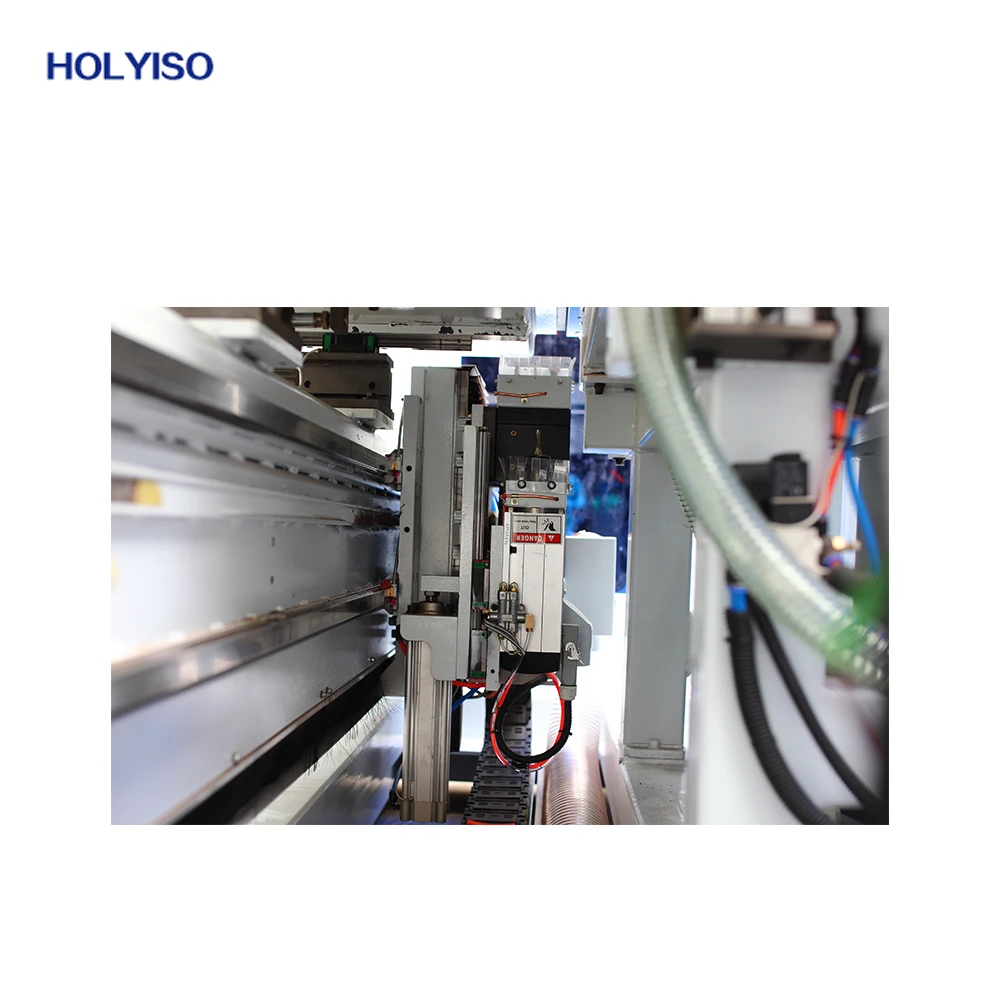

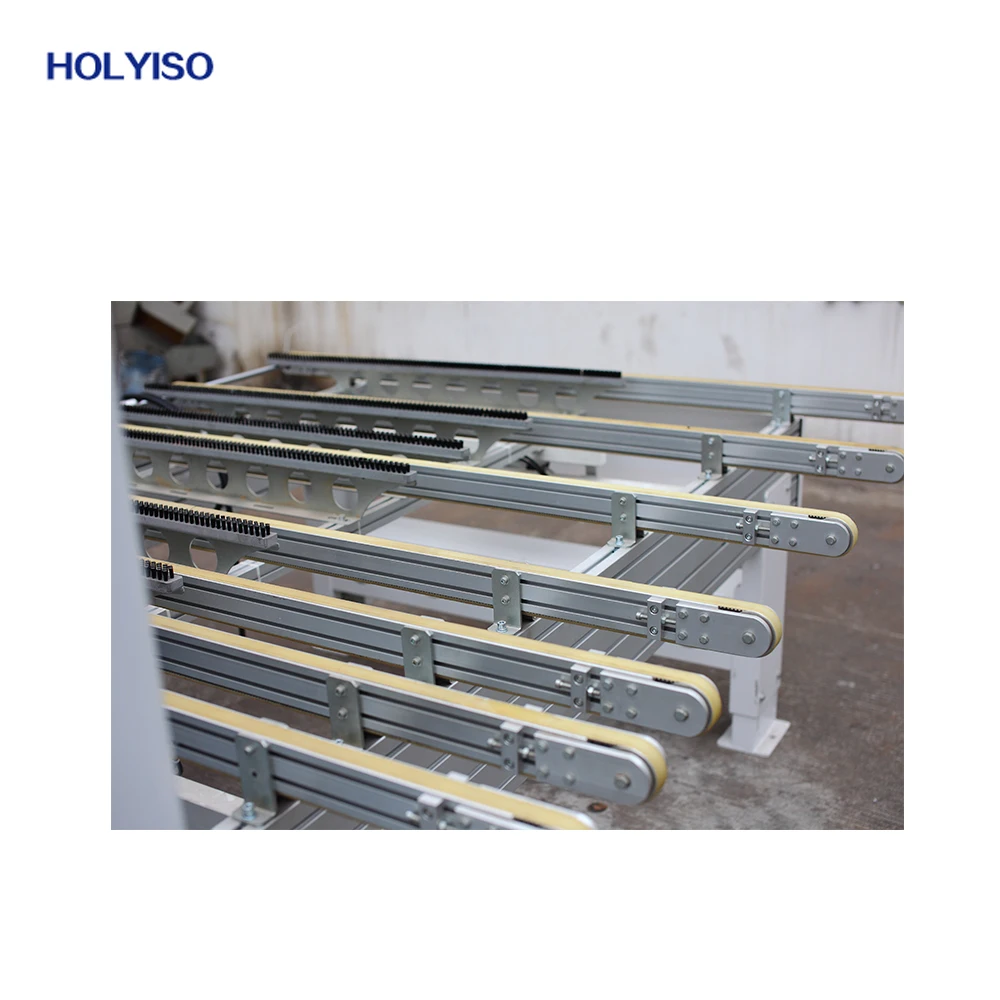

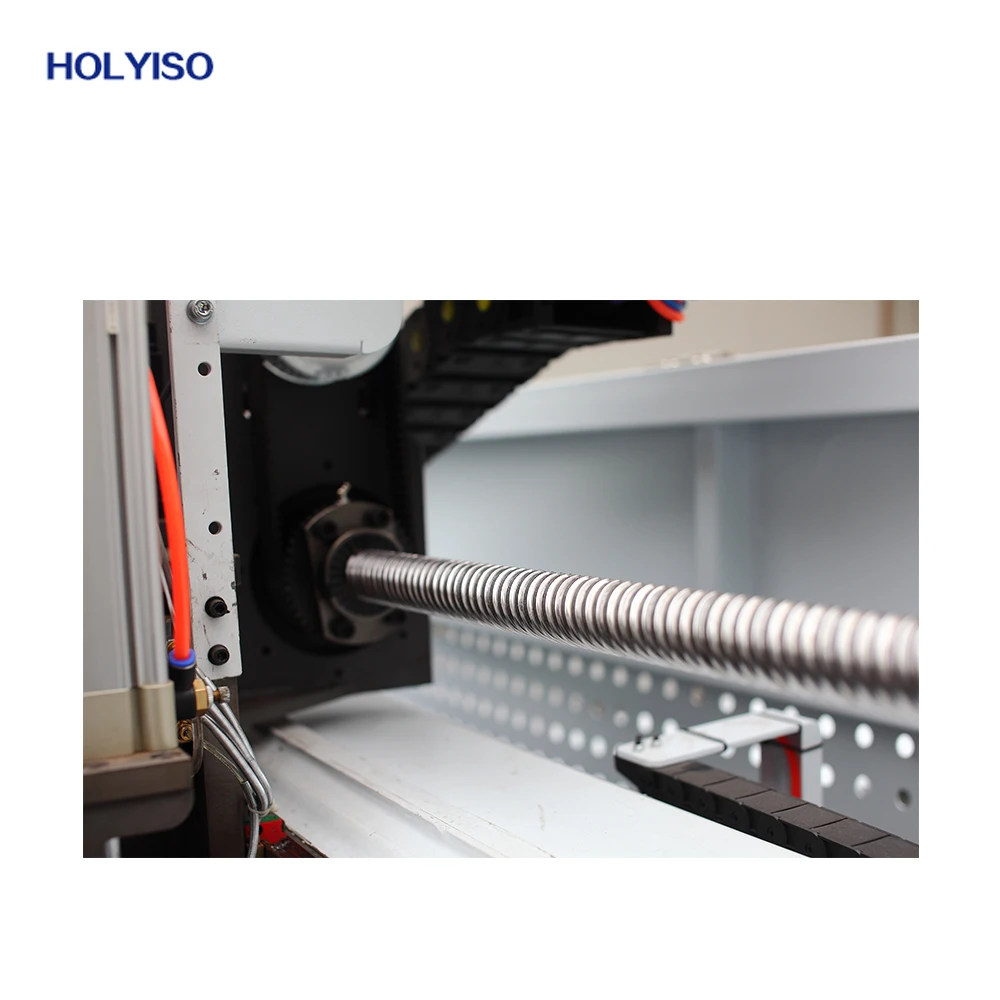

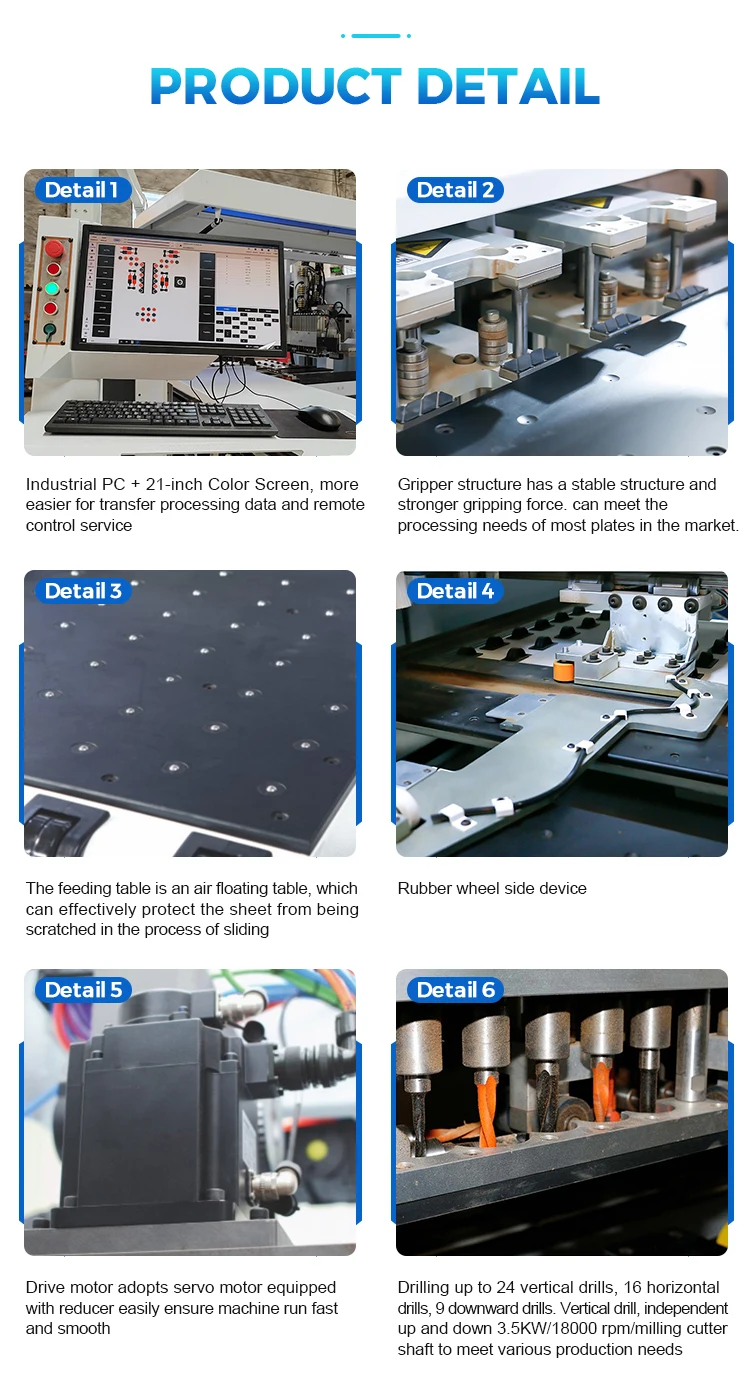

Details Images

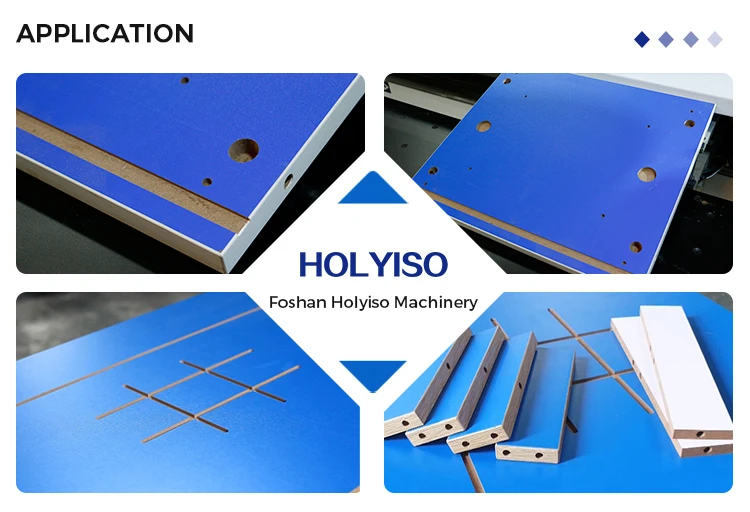

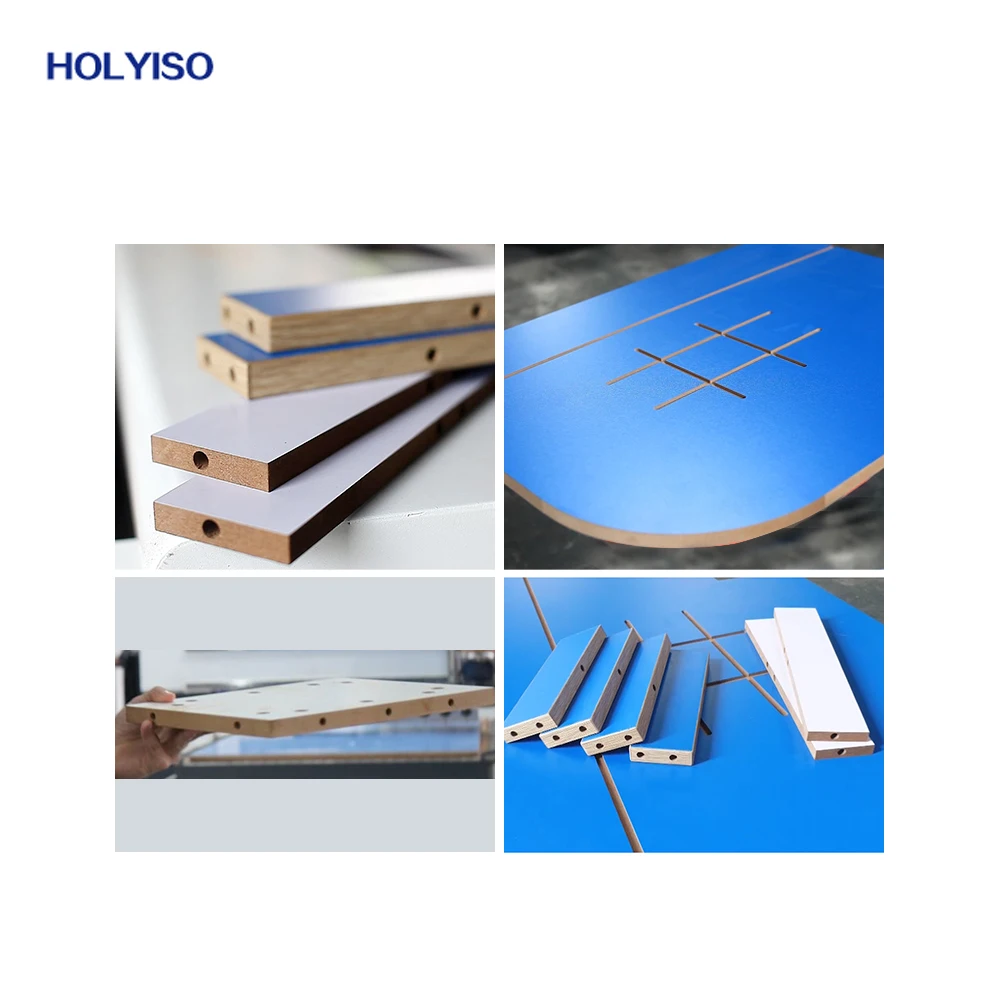

Product Application
Recommend Products
Packing & Shiping
1.Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Recommend Products

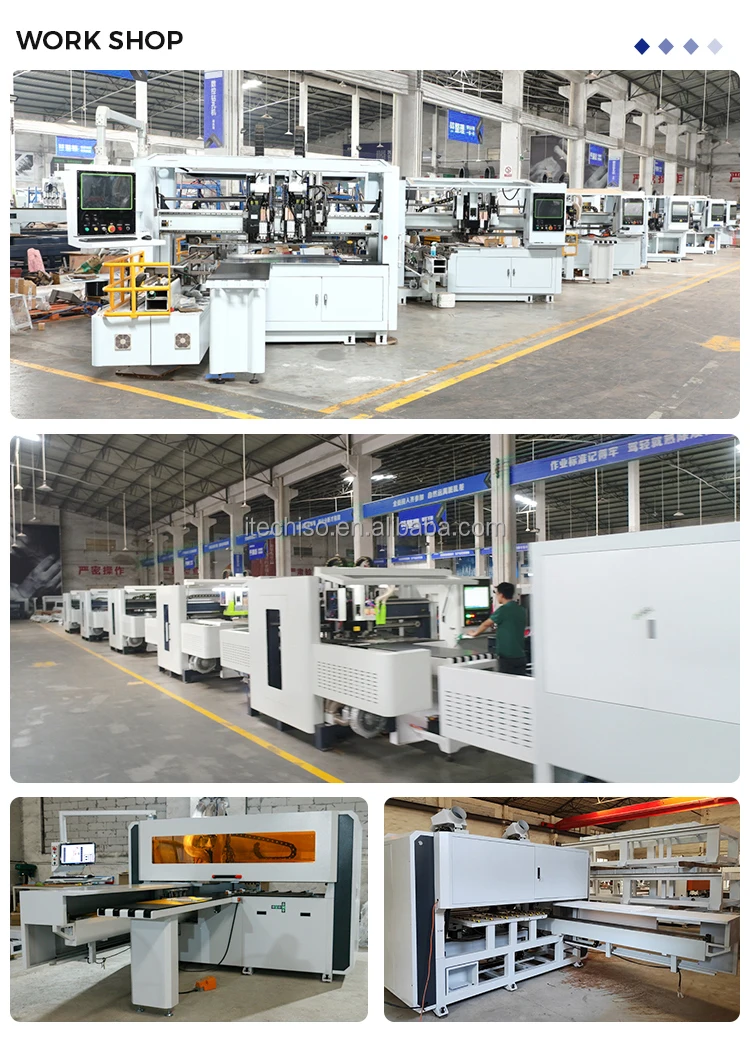

Company Profile
FAQ
FAQ
1. Do you provide installation services?
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 70 countries around the world, such as Russia, Uzbekistan, the United States, Canada, Argentina, Colombia, Mexico, Peru, Chile, Ecuador, Romania, Vietnam, the Philippines, Australia, Malaysia, Thailand, Singapore, South Korea, Indonesia etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
