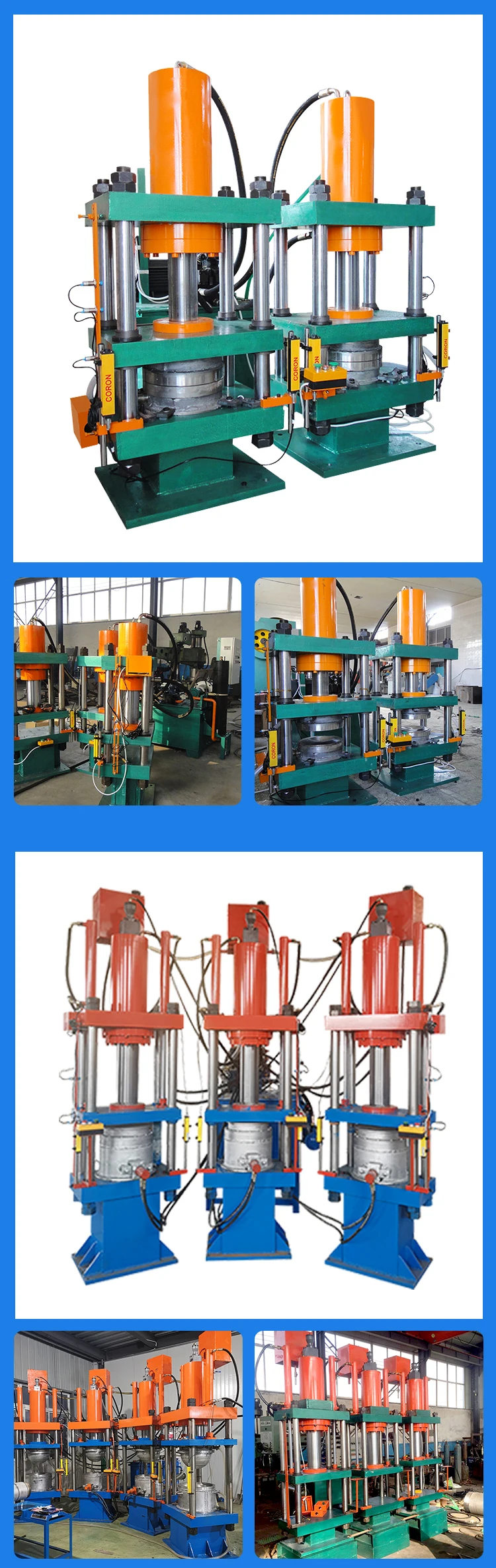

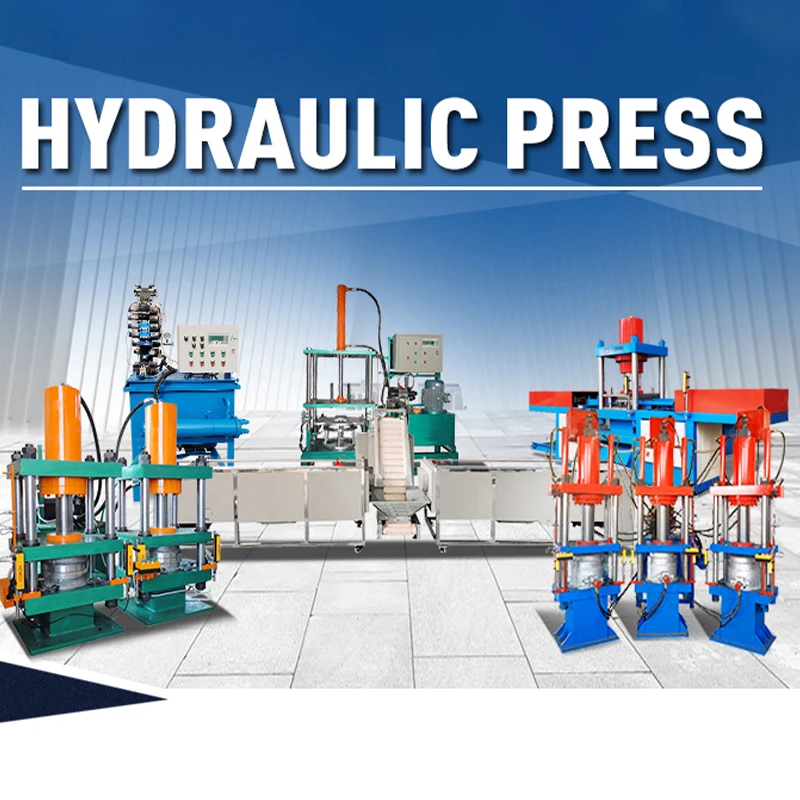

Easy Operation Four Column Hydraulic Press Manufacturer With PLC Computer Control System
- Category: >>>
- Supplier: Laizhou Fengde Plastic Machinery Co. Ltd.
Share on (1601012765276):
Product Overview
Description
Product Description
Hydraulic press is a critical piece of equipment designed for mold pressing, injection molding, and other plastic processing applications. Through an advanced hydraulic system, the machine is able to apply precise force to the heated and softened plastic raw material, allowing it to fill the mold and form the desired plastic product. Equipped with an automated control system, it improves production efficiency, and precise control functions ensure that the plastic products produced have stable quality. It is suitable for molds of various shapes and specifications, as well as different types of plastic raw materials, providing reliable and efficient processing solutions for the modern plastics industry. Safety is taken seriously, and the equipment is equipped with a variety of safety devices to ensure the safety of operators and the production process.

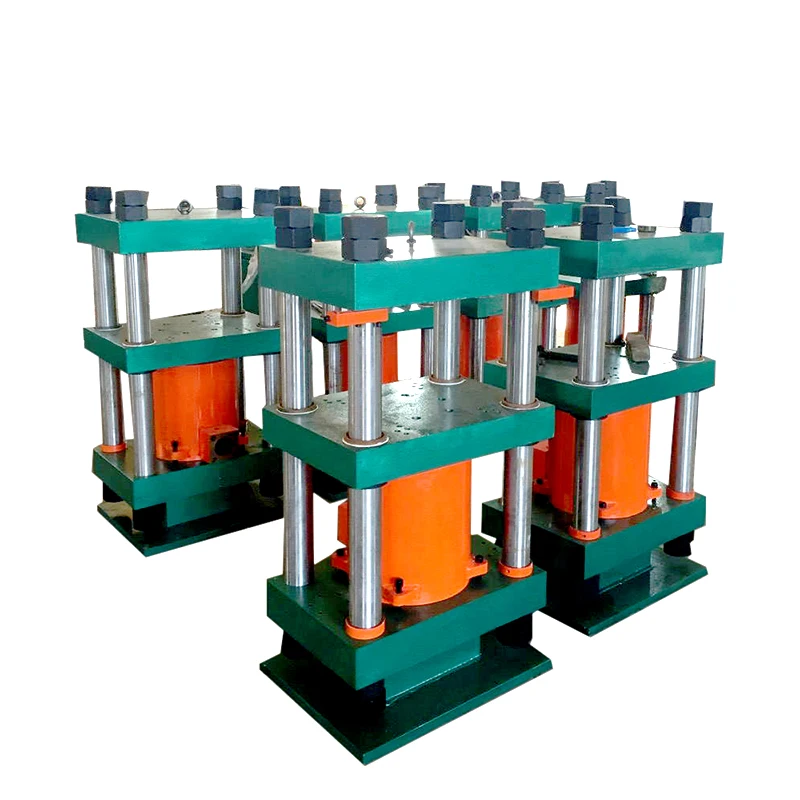

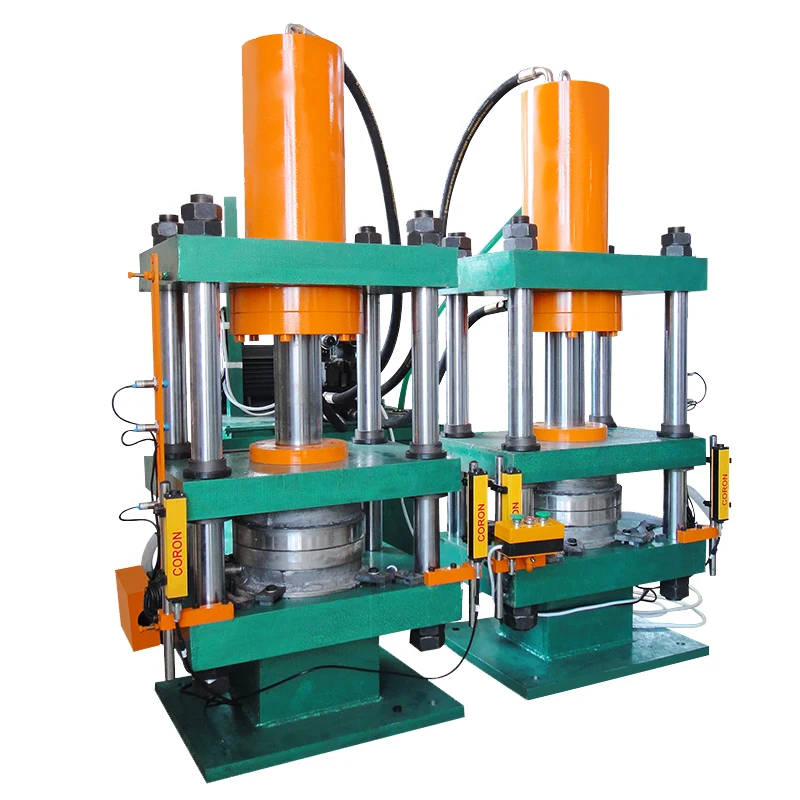

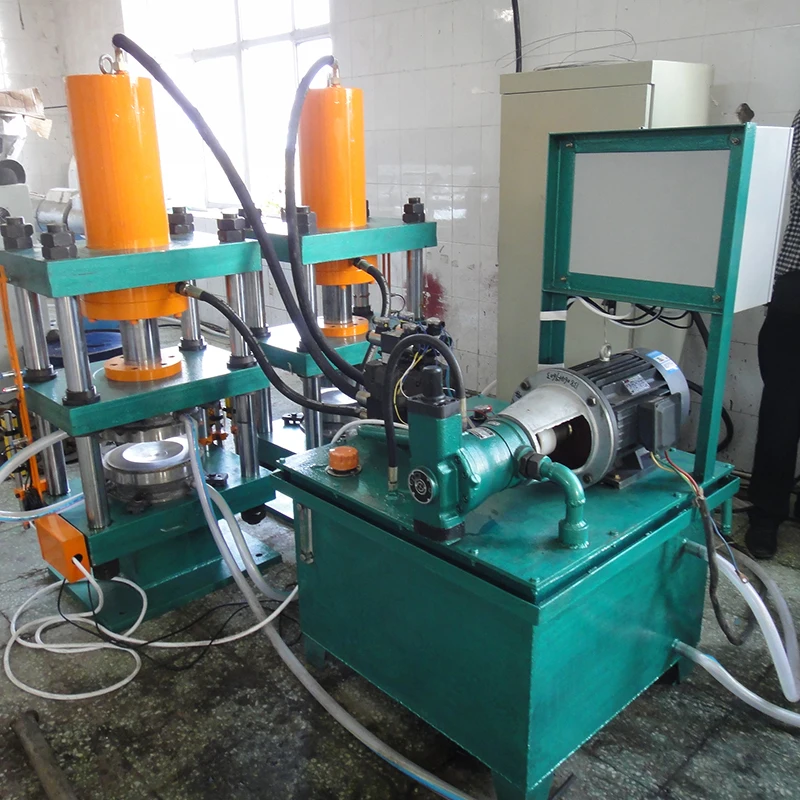

The hydraulic press is mainly composed of frame, hydraulic system, cooling system, pressurizing cylinder, upper die and lower die,the pressurizing cylinder is installed in the upper end of the frame and connected with the upper die, the cooling system is connected with the upper die and lower die. The lower part of the frame is equipped with a moving table and a moving cylinder connected with the moving table, and the lower die is placed on top of the moving table.

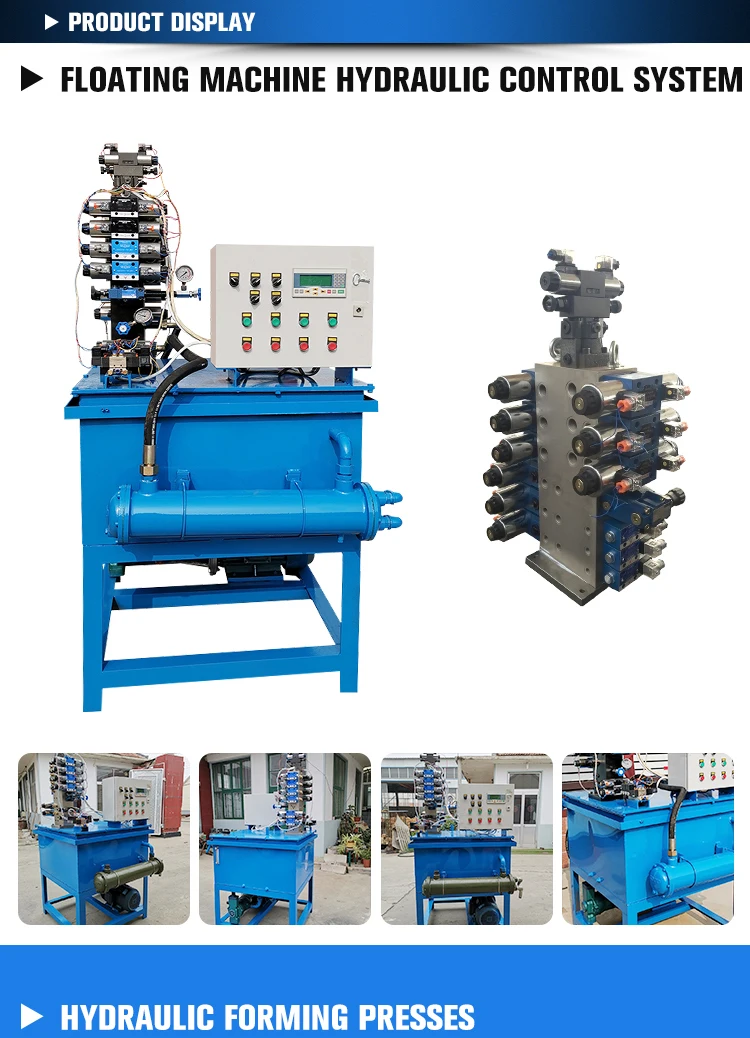

The machine adopts hydraulic drive, highly professional integrated valve block, large flow diameter, so that the system has less pressure loss and good sealing performance. The cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect, even in the case of long-term heavy load work, the system will not appear to be unable to cope with the phenomenon. Advanced quick device, to ensure your shift production. The electric part is controlled by PC, which is anti-interference, high automaticity and simple operation. The oil cylinder adopts tandem oil cylinder, which improves the movement speed and production efficiency.
Hydraulic Press | ||||
Model | YLJ-120 | YLJ-200 | ||
Oil pump | 40YCY axial piston pump | 40YCY axial piston pump | ||
Motor power（kw） | 7.5 | 7.5 | ||
Maximum working pressure（ton） | 120 | 200 | ||
Effective workbench area | 500*450 | 700*700 | ||
PLC control, light curtain safety protection, including hydraulic station | ||||

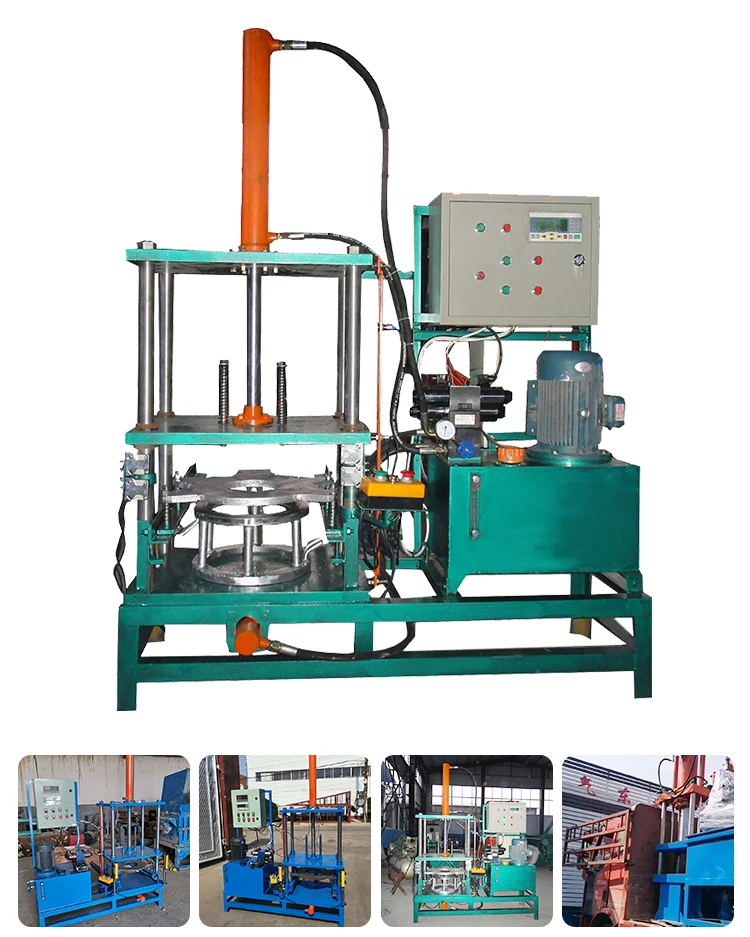

It is mainly used in the later stage of mold making to press the upper and lower molds together with the required pressure.
Our mold clamping machine has the following characteristics.
1, can provide enough force to close the mold, to ensure that the mold under the pressure of molten material, does not produce open seam overflow phenomenon.
2、Adequate space to install the mold and the stroke to open the mold.
3、Fast mold moving speed and slow mold closing speed, with slow-fast-slow movement characteristics when moving the mold. Ensure the effective protection of the mold while improving the production efficiency.
Our mold clamping machine has the following characteristics.
1, can provide enough force to close the mold, to ensure that the mold under the pressure of molten material, does not produce open seam overflow phenomenon.
2、Adequate space to install the mold and the stroke to open the mold.
3、Fast mold moving speed and slow mold closing speed, with slow-fast-slow movement characteristics when moving the mold. Ensure the effective protection of the mold while improving the production efficiency.
Mold closing machine | ||
Oil pump model | CB-B32 | |
Motor power（kw） | 2.2 | |
Heating power（kw） | 4.5 | |
Output（kg/h） | 120-180 | |

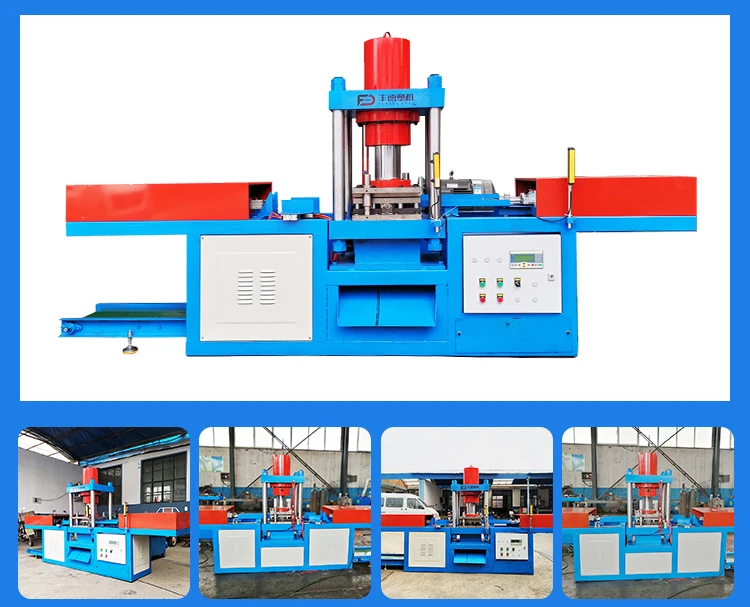

The punching machine is a key equipment specially designed for the production of plastic products. It is mainly used for precise punching and grooving operations on plastic products. Through advanced hydraulic system or mechanical force, the machine can achieve precise processing of plastic raw materials and create holes of various shapes and sizes. Its flexibility makes it suitable for different types and sizes of plastic products, providing a reliable production solution for the plastics industry. It has highly precise control functions and can meet production tasks with high quality and precision requirements.
Punching machine | ||
Nominal Force | 30000kN | |
Color | Customer Request | |
Power Source | Power Required | |
Application | Plastics Processing | |
The hydraulic column extraction machine plays a crucial role in the field of plastic processing, utilizing its precise hydraulic system and flexible control panel to customize the processing of various plastic products. Through accurate force control, this machine efficiently extracts cylindrical portions from plastic products, meeting diverse requirements of shapes and sizes. Its automation features enhance production efficiency, making operations more convenient. Safety is a paramount consideration in its design, with the equipment typically equipped with emergency stop buttons and overload protection to ensure operational safety. Applicable to various plastic materials, this machine plays a vital role in the plastic processing industry, providing an efficient and precise solution for the production process.

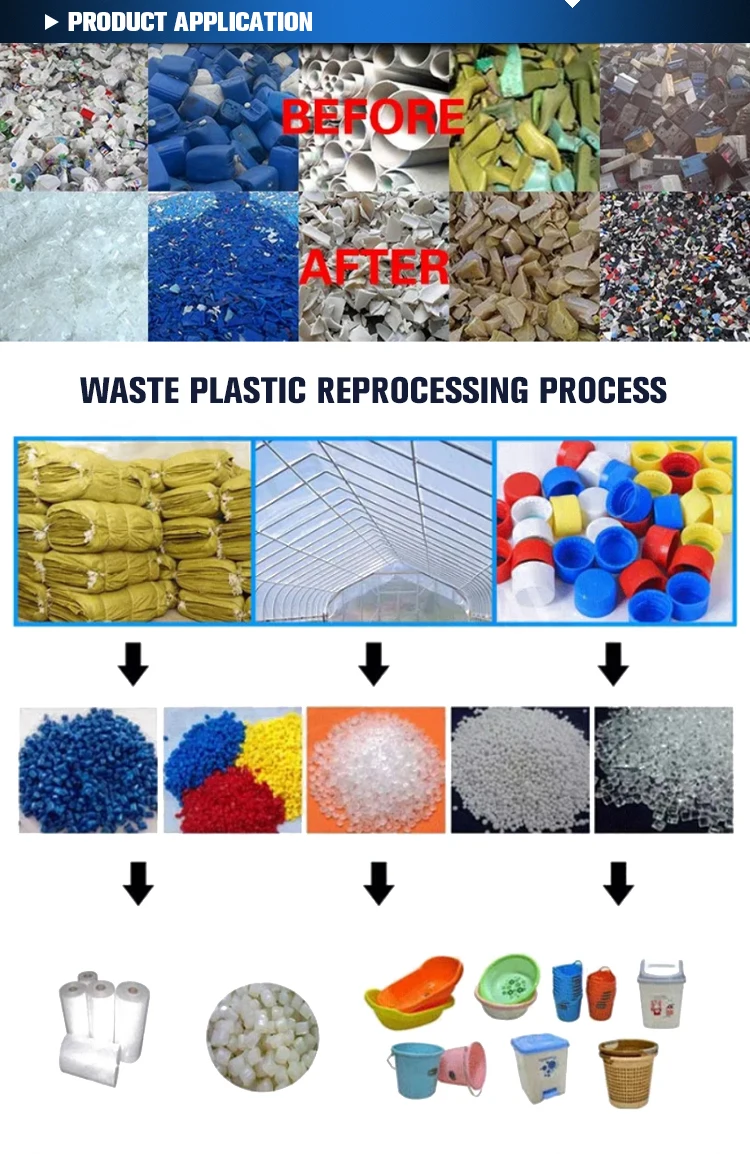

Product Application
Packaging & Shipping
Company Profile
Laizhou Fengde Plastic Machinery Co., LTD., whose office is located in Nanwangjia Village,Shahe Town, Laizhou City, Shandong Province, an important port city in Bohai Rim, mainly engaged in processing and production: mechanical parts, plastic machinery, chemical machinery. The products cover single double three screw extruder, feeding, cutting, water
cutting and auxiliary equipment.
The company has many engineers engaged in research and production in the field of plastic machinery for many years, and has many years of experience in field commissioning engineers. Good technology, stable equipment, strict management is the company to continue to develop and grow, products can get users rely on the fundamental. According to the
specific process requirements of customers, we can provide equipment technical design,complete machine production and assembly, customer field commissioning, after-sales technical services and other services. With the enterprise management mode, strong technical force, as well as the stable performance and quality of equipment, we have won widespread trust and praise from customers.
The company adheres to the business principle of "high quality and low price", so that our customers can purchase at ease. The company will, as always, wholeheartedly provide good service for the majority of users. The company with integrity, strength and product quality to obtain the industry's recognition. Welcome friends from all walks of life to visit, guidance and business negotiation:13806459603
cutting and auxiliary equipment.
The company has many engineers engaged in research and production in the field of plastic machinery for many years, and has many years of experience in field commissioning engineers. Good technology, stable equipment, strict management is the company to continue to develop and grow, products can get users rely on the fundamental. According to the
specific process requirements of customers, we can provide equipment technical design,complete machine production and assembly, customer field commissioning, after-sales technical services and other services. With the enterprise management mode, strong technical force, as well as the stable performance and quality of equipment, we have won widespread trust and praise from customers.
The company adheres to the business principle of "high quality and low price", so that our customers can purchase at ease. The company will, as always, wholeheartedly provide good service for the majority of users. The company with integrity, strength and product quality to obtain the industry's recognition. Welcome friends from all walks of life to visit, guidance and business negotiation:13806459603
FAQ
Q1. What is the advantage about your company?
A1.Our company has professional team and professional production line.
Q2. Why should l choose your products?
A2.Our products are high quality and low price.
Q3.The logo and the color can be customized?
A3.Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4.Yes,we can provide good after-sale and fast delivery.
Q5. What is your MOQ?
A5: Mostly no MOQ. Sample Order is available.
Q6. What about the delivery time?
A6: We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.
A1.Our company has professional team and professional production line.
Q2. Why should l choose your products?
A2.Our products are high quality and low price.
Q3.The logo and the color can be customized?
A3.Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4.Yes,we can provide good after-sale and fast delivery.
Q5. What is your MOQ?
A5: Mostly no MOQ. Sample Order is available.
Q6. What about the delivery time?
A6: We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.
