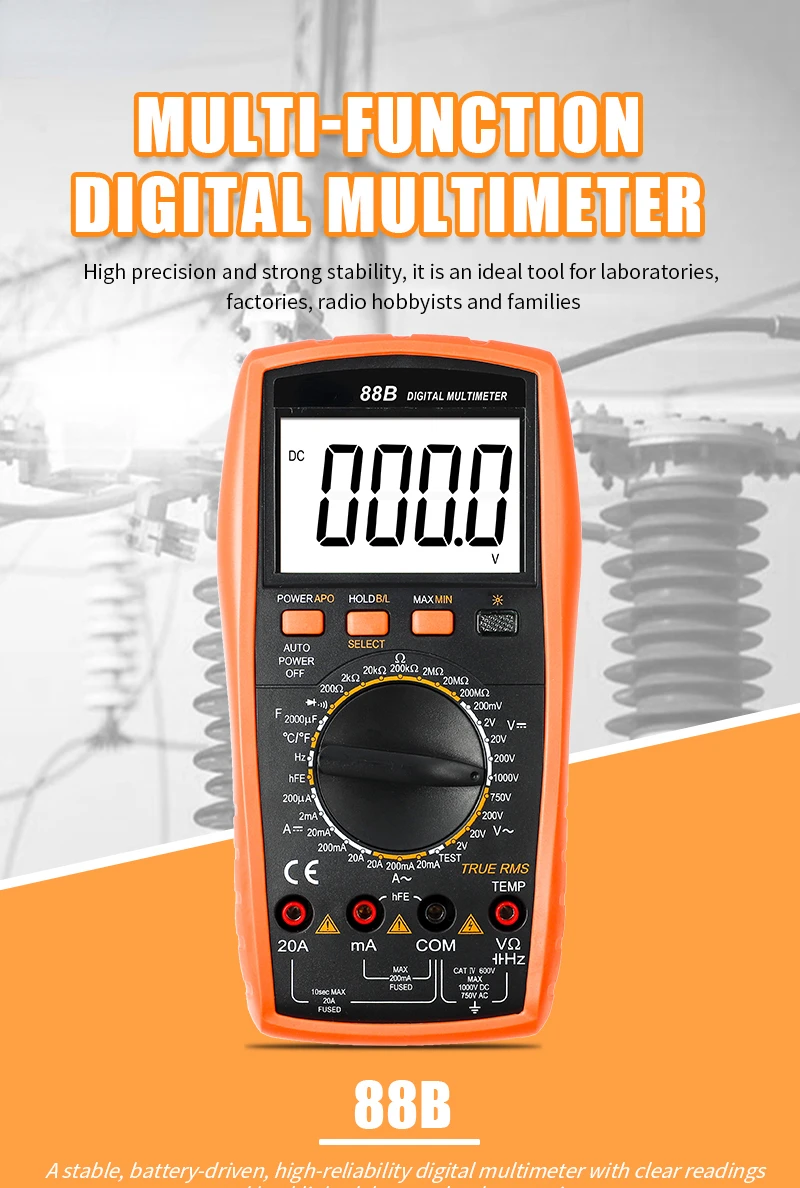

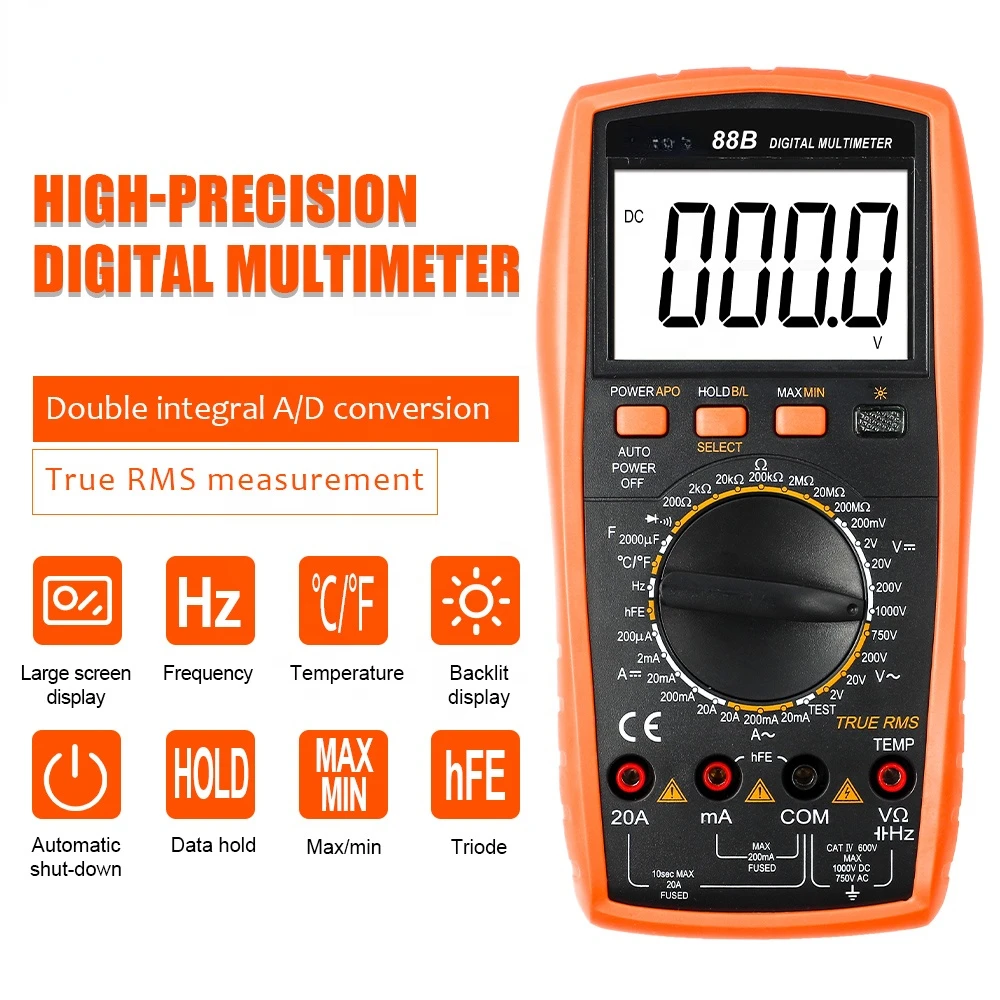

DECCA 88B Ture RMS 1999 Counts LCD Digital Multimeter Tester Manual range With Temperature Frequency
- Category: >>>
- Supplier: Decca Precision Measuring Instrument (Shenzhen) Co. Ltd.
Share on (1601012769500):
Product Overview
Description
Products Description
DECCA 88B Manual Range Digital Multimeter 1999 Counts large LCD Display With True RMS 1000V/20A AC DC With Temperature Frequency
I. Summary

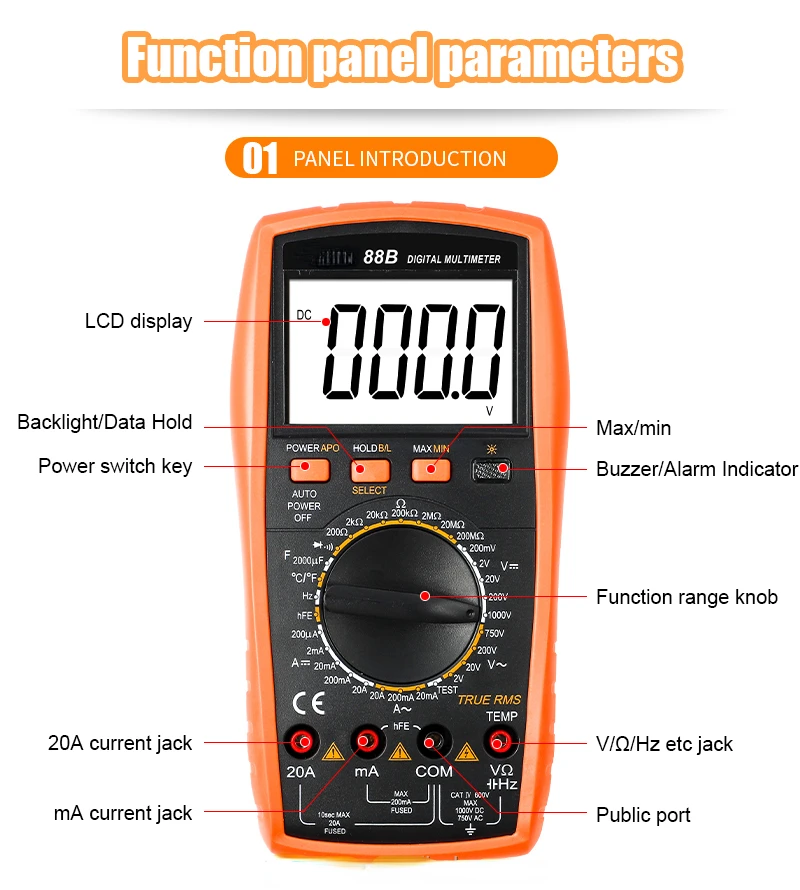

This series product is a stable and battery-driven true RMS digital multimeter with high reliability. It adopts LCD screen with
character height of 26mm; with functions including unit sign/backlight and overload protection, it is easy to use.
This series of device can be used to measure DCV, ACV, DCA, ACA, resistance, capacitance, diode, triode, continuity, temperature
and frequency. As an instrument with excellent performance it adopts double integral A/D converter as its core.
Features
1. General features
1-1. Display mode: LCD;

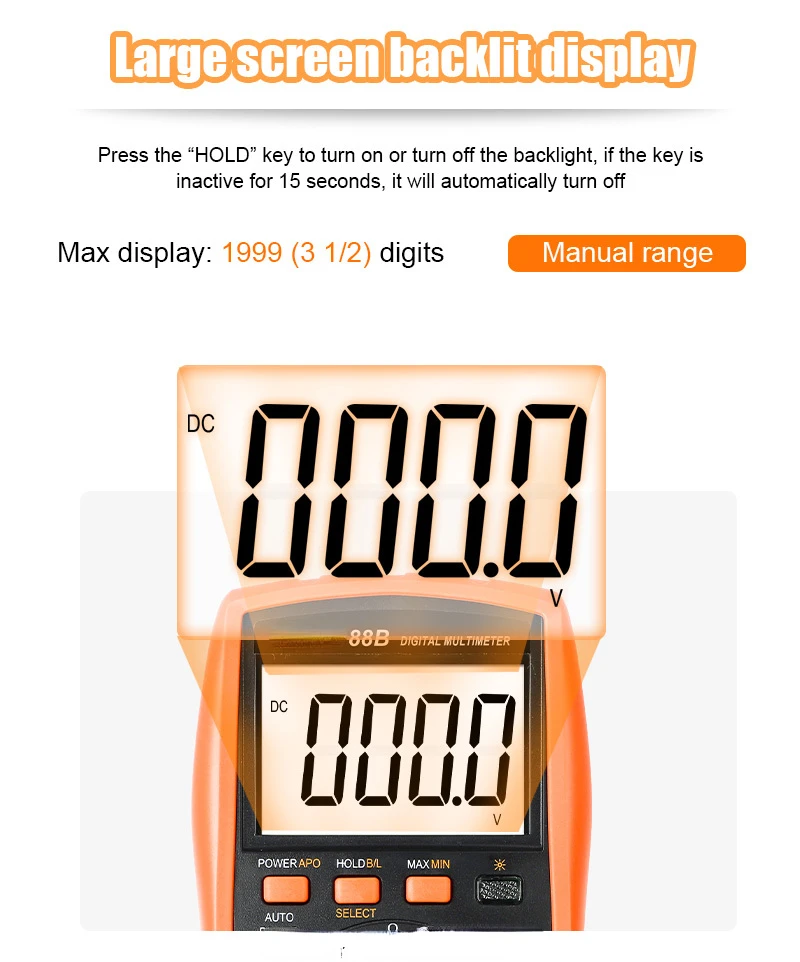

1-2. Max display: 1999 (3 1/2) digits automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 time per second;
1-5. Over-range display: the highest digit displays “OL”
1-6. Low voltage display
1-7. Working environment: (0～40)℃, relative humidity: <80%;
1-8. Power supply: one 9V battery (NEDA1604/6F22 or equivalent model);

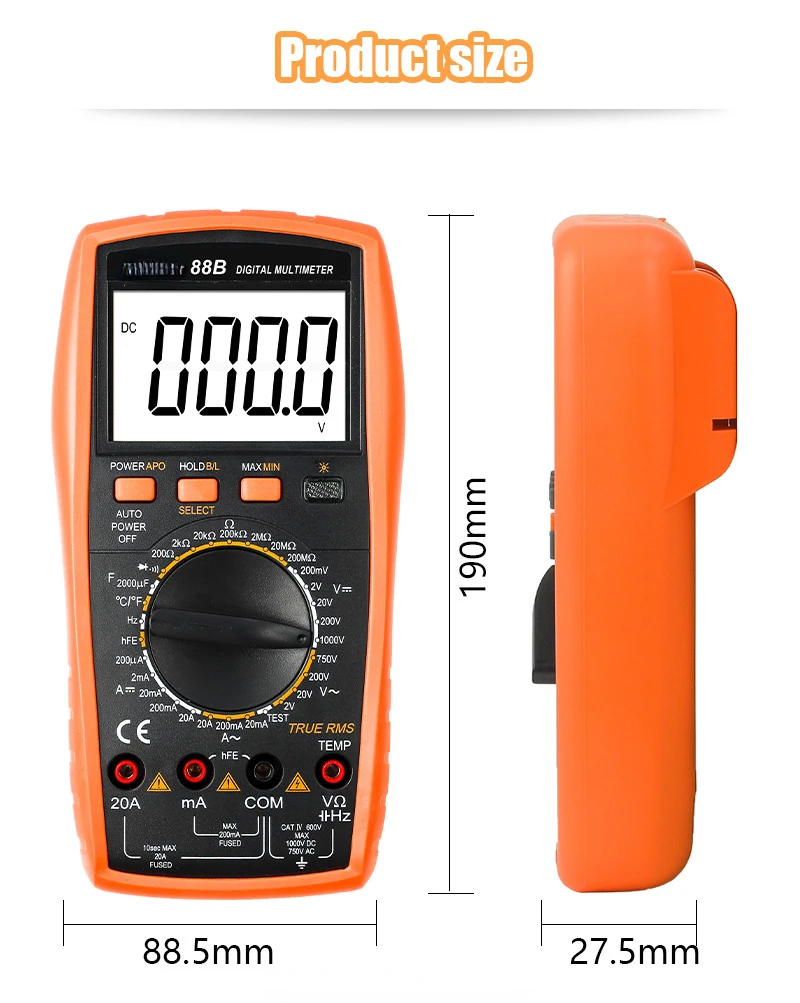

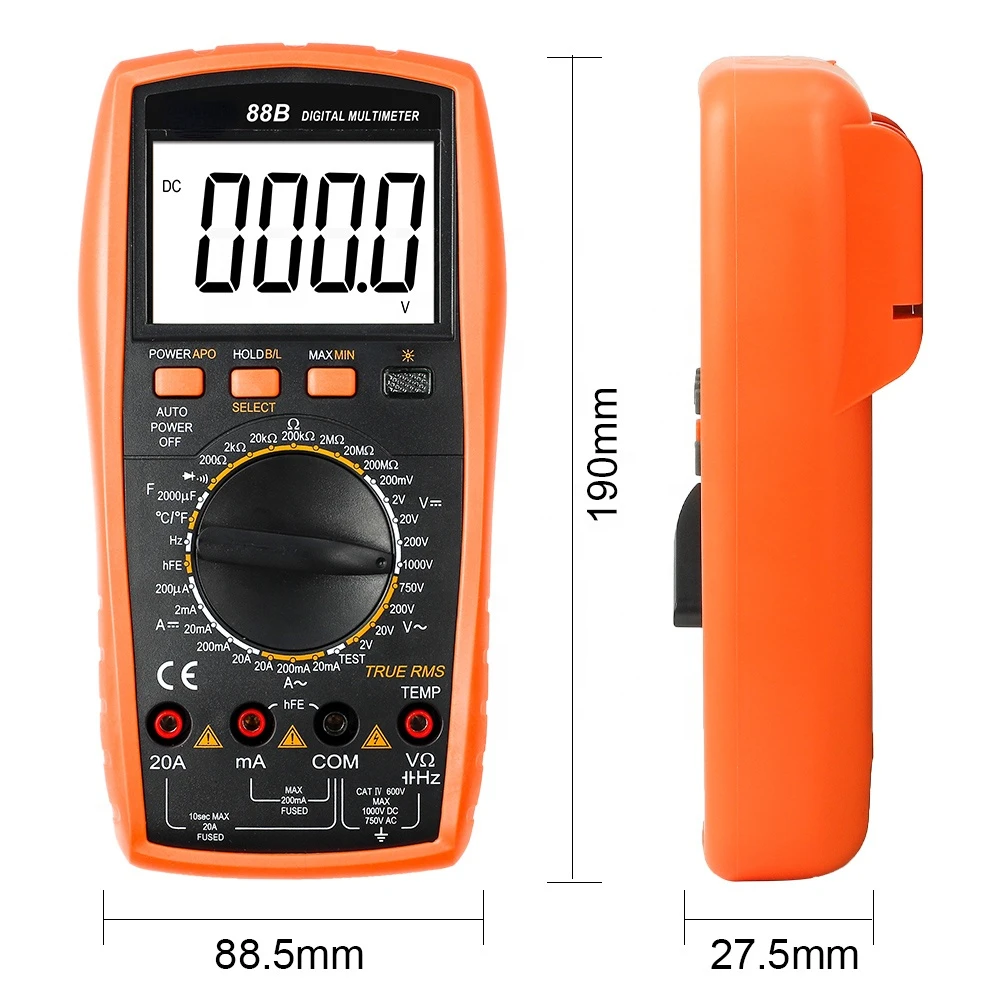

1-9.Dimension:190mm*88.5mm*27.5mm(length*width*height);
1-10. Weight: about 320g (including 9V battery);
1-11.Accessories:instruction manual, holster, color box, test leads one pair, TP01 thermocouple
I. Summary
This series product is a stable and battery-driven true RMS digital multimeter with high reliability. It adopts LCD screen with
character height of 26mm; with functions including unit sign/backlight and overload protection, it is easy to use.
This series of device can be used to measure DCV, ACV, DCA, ACA, resistance, capacitance, diode, triode, continuity, temperature
and frequency. As an instrument with excellent performance it adopts double integral A/D converter as its core.
Features
1. General features
1-1. Display mode: LCD;
1-2. Max display: 1999 (3 1/2) digits automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 time per second;
1-5. Over-range display: the highest digit displays “OL”
1-6. Low voltage display
1-7. Working environment: (0～40)℃, relative humidity: <80%;
1-8. Power supply: one 9V battery (NEDA1604/6F22 or equivalent model);
1-9.Dimension:190mm*88.5mm*27.5mm(length*width*height);
1-10. Weight: about 320g (including 9V battery);
1-11.Accessories:instruction manual, holster, color box, test leads one pair, TP01 thermocouple

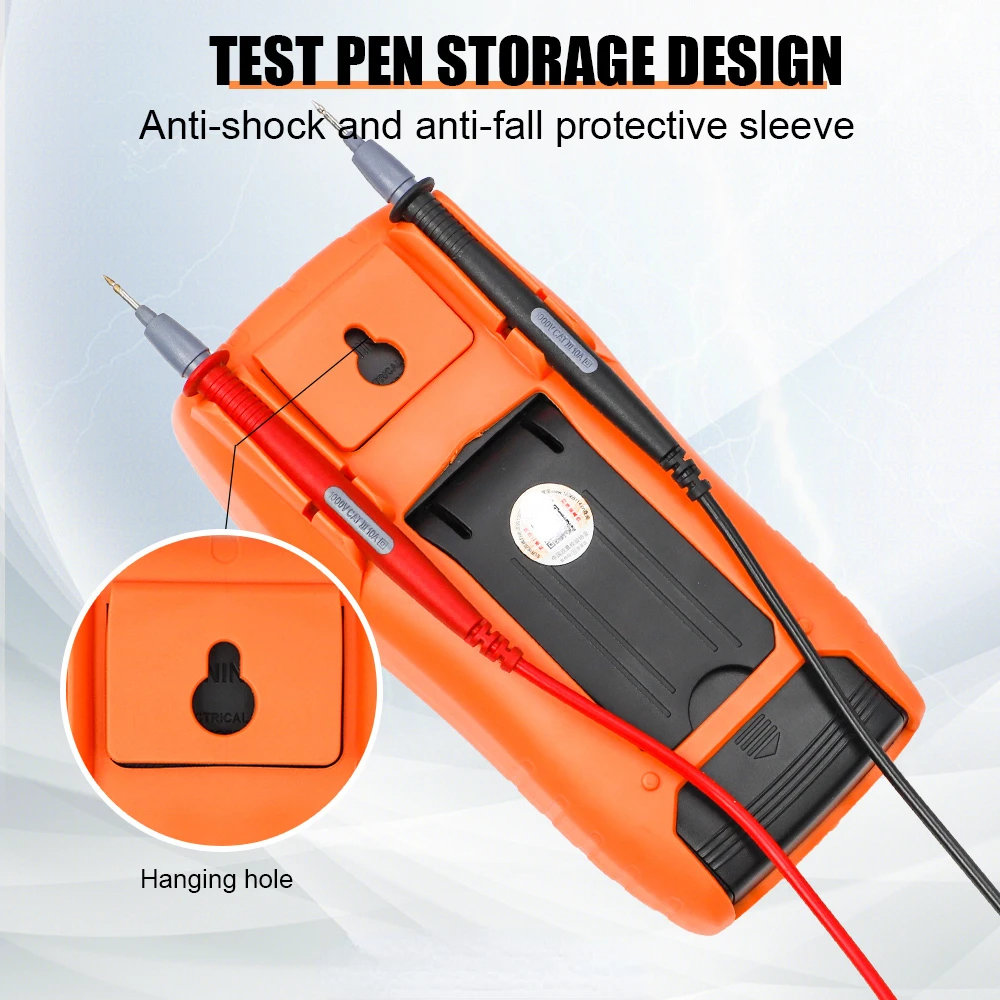

1,New type holster, streamline design.
2,Large LCD makes the reading clearly.
3,Metallic screen board with stronger antimagnetic and anti-interferential function.
4,No power off under natural operation.

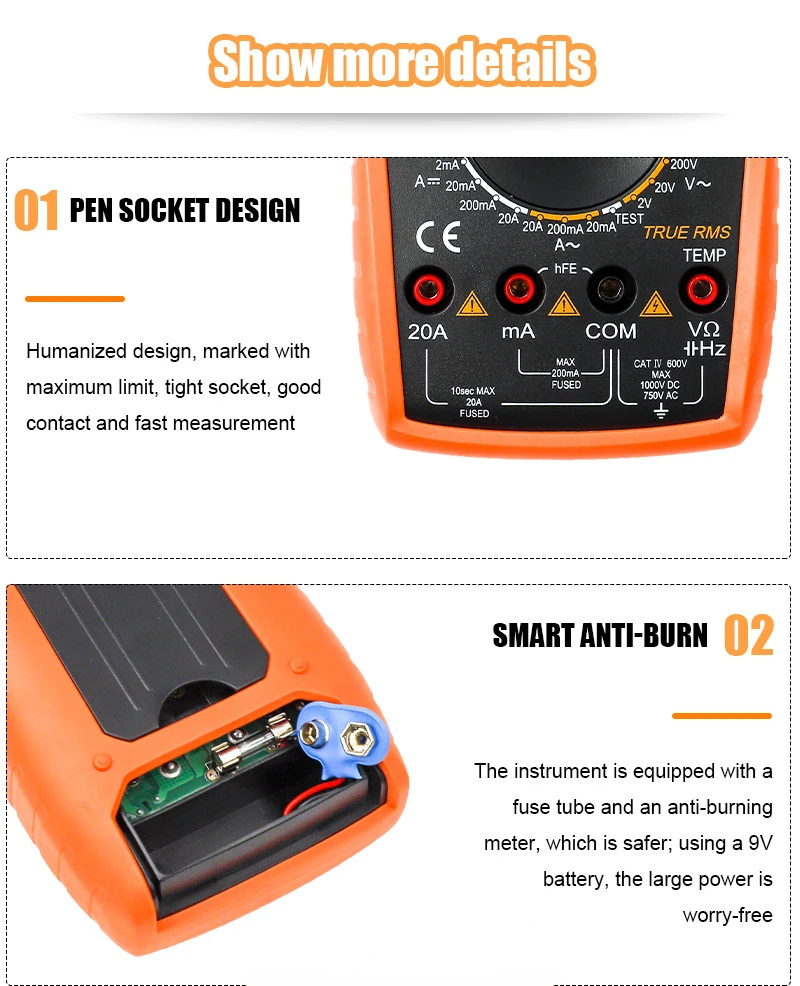

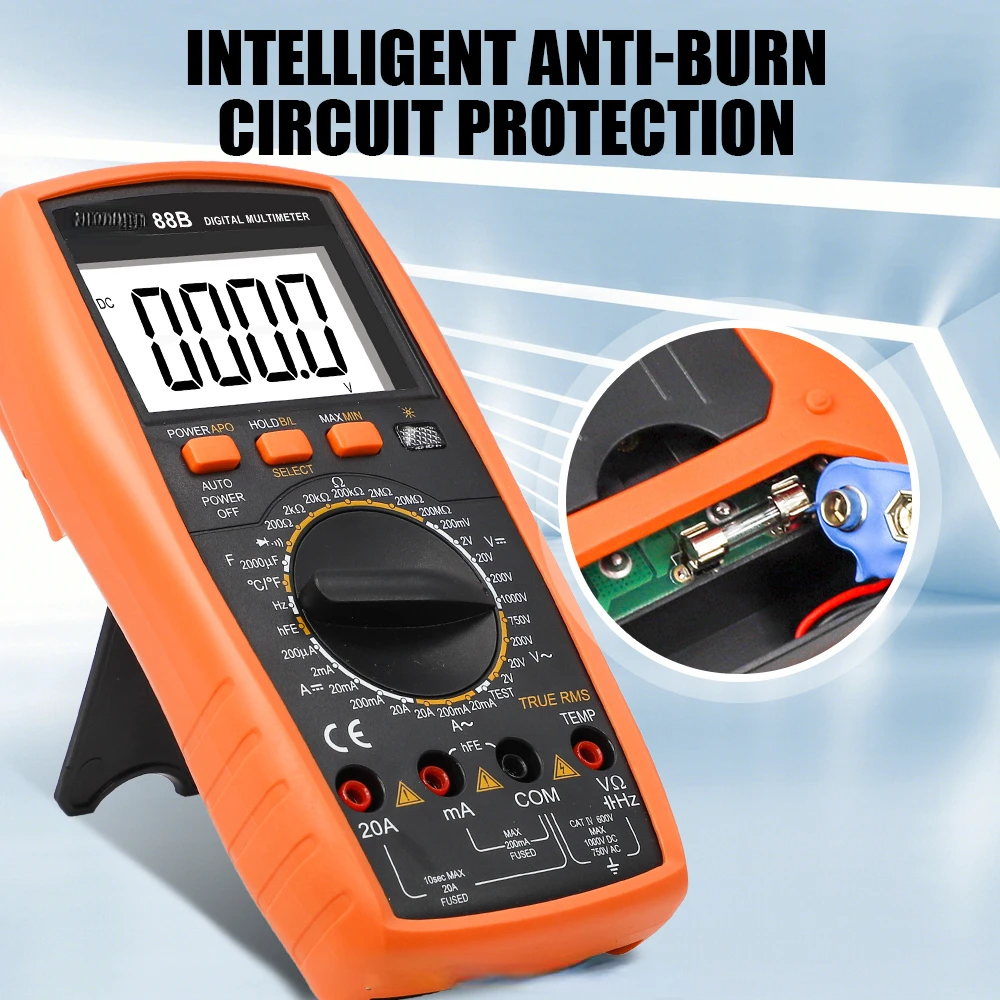

5,Full function protection, anti-high voltage circuit design.one piece, 9V battery one piece.
2,Large LCD makes the reading clearly.
3,Metallic screen board with stronger antimagnetic and anti-interferential function.
4,No power off under natural operation.
5,Full function protection, anti-high voltage circuit design.one piece, 9V battery one piece.

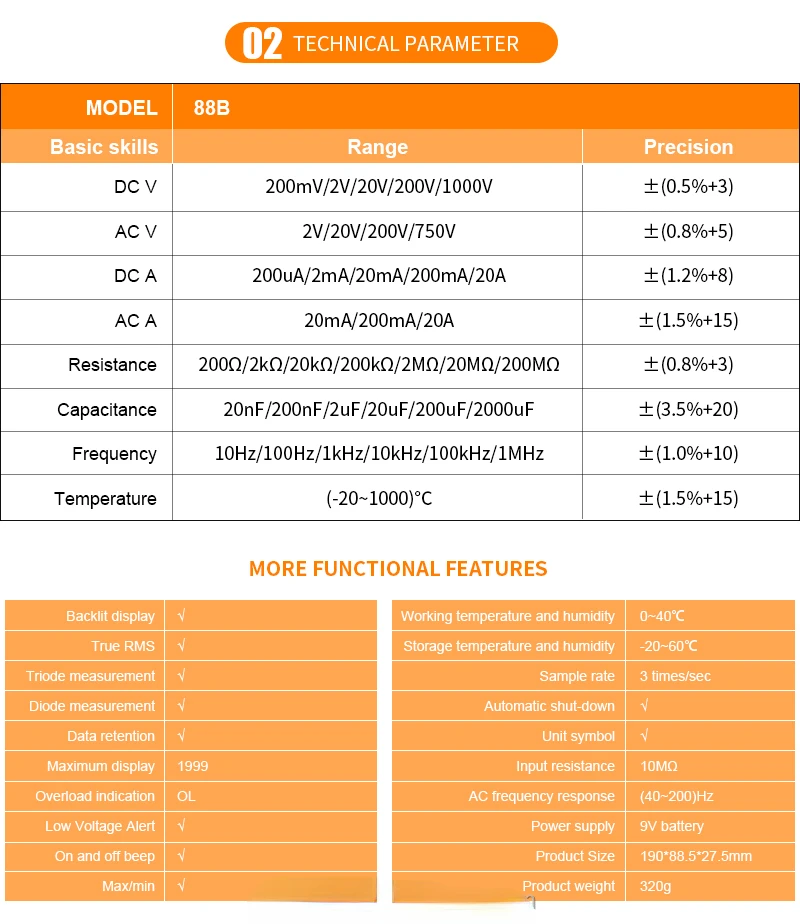

Specification
\t\t\t Basic Function \t\t\t | \t\t\t Range \t\t\t | \t\t\t \t\t\t | \t\t\t Basic accuracy \t\t\t | \t\t\t \t\t\t | ||
\t\t\t DC Voltage \t\t\t | \t\t\t 200mV/2V/20V/200V/1000V \t\t\t | \t\t\t \t\t\t | \t\t\t ±(0.5%+3) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t AC Voltage \t\t\t | \t\t\t 2V/20V/200V/750V \t\t\t | \t\t\t \t\t\t | \t\t\t ±(0.8%+5) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t DC Current \t\t\t | \t\t\t 200uA/2mA/20mA/200 mA/20A \t\t\t | \t\t\t \t\t\t | \t\t\t ±(0.8%+4) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t AC Current \t\t\t | \t\t\t 20mA/200 mA/20A \t\t\t | \t\t\t \t\t\t | \t\t\t ±(1.0%+5) \t\t\t | \t\t\t \t\t\t | ||

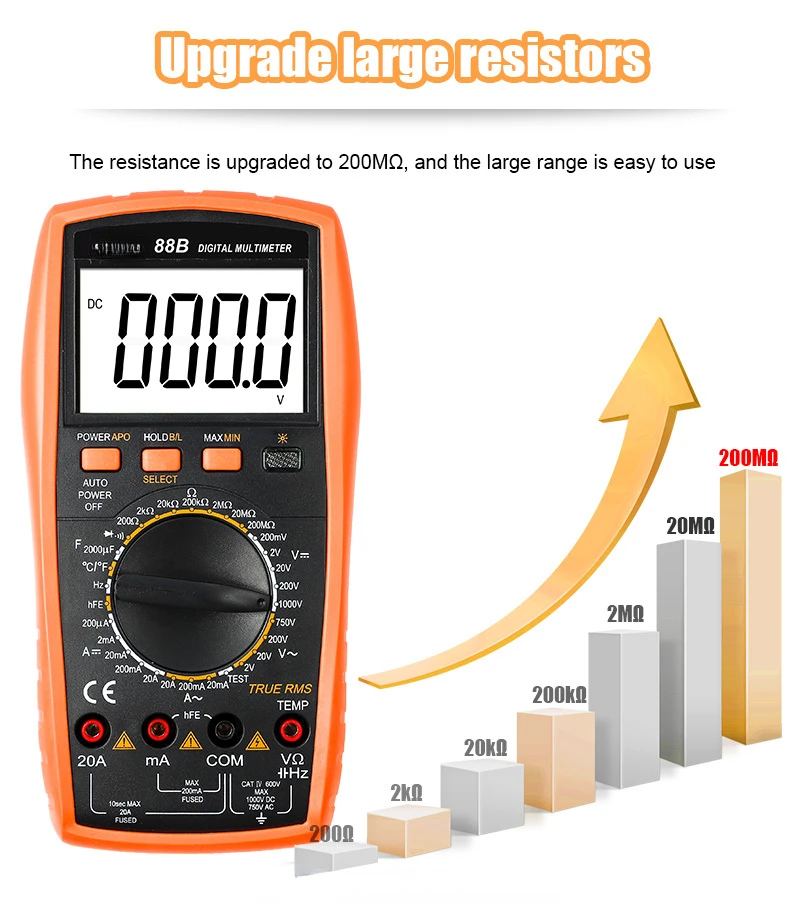

\t\t\t Resistance \t\t\t | \t\t\t 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ \t\t\t | \t\t\t \t\t\t | \t\t\t ±(0.8%+3) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Capacitance \t\t\t | \t\t\t 20nF/200nF/2uF/20uF/200uF/2000uF \t\t\t | \t\t\t \t\t\t | \t\t\t ±(2.5%+20) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Frequency \t\t\t | \t\t\t 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz \t\t\t | \t\t\t \t\t\t | \t\t\t ±(3.0%+15) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Celsius \t\t\t | \t\t\t (-20 ~ 1000)℃ (0 ~ 1832)℉ \t\t\t | \t\t\t \t\t\t | \t\t\t ±(1.0%+3) \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Special Function \t\t\t | \t\t\t \t\t\t | \t\t\t VICTOR88B \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Diode test \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Continuity buzzer \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Low battery indication \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Data hold \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Auto power off \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Backlight \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Function protection \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Restorable Fuse protection \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Shock proof protection \t\t\t | \t\t\t \t\t\t | \t\t\t √ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Input impedance \t\t\t | \t\t\t \t\t\t | \t\t\t 10MΩ \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Sampling rate \t\t\t | \t\t\t \t\t\t | \t\t\t 3 times/s \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t AC frequency response \t\t\t | \t\t\t \t\t\t | \t\t\t (40-400)Hz \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Operation way \t\t\t | \t\t\t \t\t\t | \t\t\t Manual range \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Max. Display \t\t\t | \t\t\t \t\t\t | \t\t\t 1999 \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t LCD size \t\t\t | \t\t\t \t\t\t | \t\t\t 65×45mm \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Battery \t\t\t | \t\t\t \t\t\t | \t\t\t 9V (6F22) \t\t\t | \t\t\t \t\t\t | \t\t\t \t\t\t | ||
\t\t\t Product Color \t\t\t | \t\t\t Case: black ; Holster color: orange \t\t\t |
\t\t\t Product Net Weight \t\t\t | \t\t\t Approx. : 400g(include battery ) \t\t\t |
\t\t\t Product Dimension \t\t\t | \t\t\t 189×97×35mm \t\t\t |
\t\t\t Standard Accessories \t\t\t | \t\t\t Test leads , battery ,instruction manual,TPO1 temperature probe \t\t\t |
\t\t\t Standard inner packing \t\t\t | \t\t\t Color box \t\t\t |
\t\t\t Standard Gross Weight \t\t\t | \t\t\t Approx.21kg \t\t\t |
\t\t\t Carton Size \t\t\t | \t\t\t 465*317*506mm \t\t\t |
\t\t\t Standard Quantity Per Carton \t\t\t | \t\t\t 30Pcs \t\t\t |
