220v Customized U Shape Finned Tubular Stainless Steel Air Heater
- Category: >>>
- Supplier: Yancheng Songtai Electric Heating Element Factory
Share on (1601012793157):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

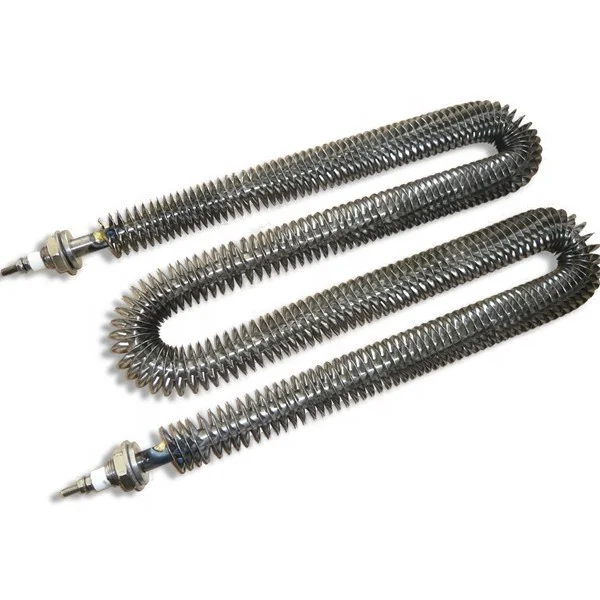

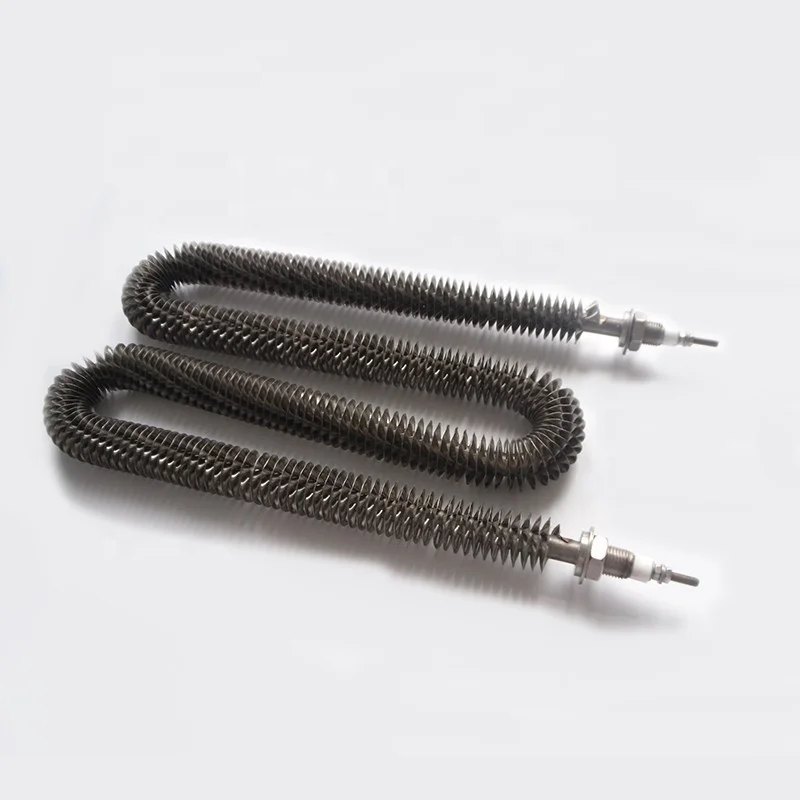

220v Customized U Shape Finned Tubular Stainless Steel Air Heater
In applications where tubular heaters are exposed to forced convection, placing fins around tubular heaters increases their surface area and thus improves their heat transferring capacity. Finned tubular heaters, compared to regular tubular heaters, run at lower surface temperatures for the same watt densities when placed in identical air streams.
Tube Material | SUS304 | SUS310S | Incoloy800 | etc | |||
Fin material | SUS304 | SUS316L | SUS310S | etc | |||
Tube Diameter | 8mm | 10mm | 12mm | 16mm etc | |||
Fin Size | 24-30mm Spiral Fin diameter | 25*50mm, 40*80mm etc Customized Rectangular Fin | |||||
Tube Shape | Straignt | W shape | U Shape | Round shape, etc | |||
Thread Fitting | M12 | M14 | M16 | M18, etc | |||
Standing voltage | 2000V/min | ||||||
Wattage density | 1.0KW -3.0KW/ Meter | ||||||
Leakage Current | <= 0.05MA | ||||||

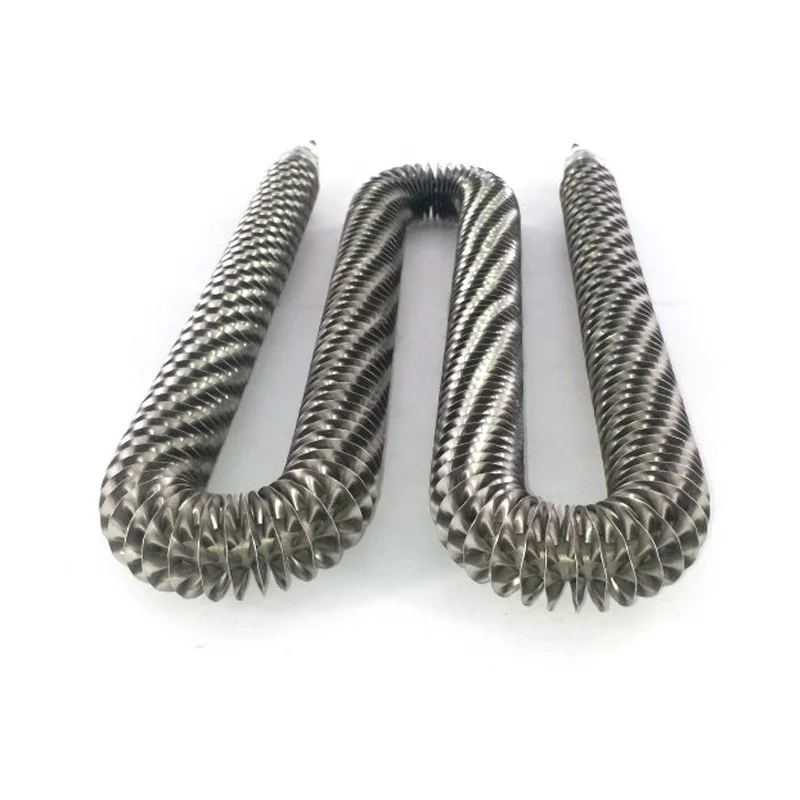

ROUND FINS HEATERS

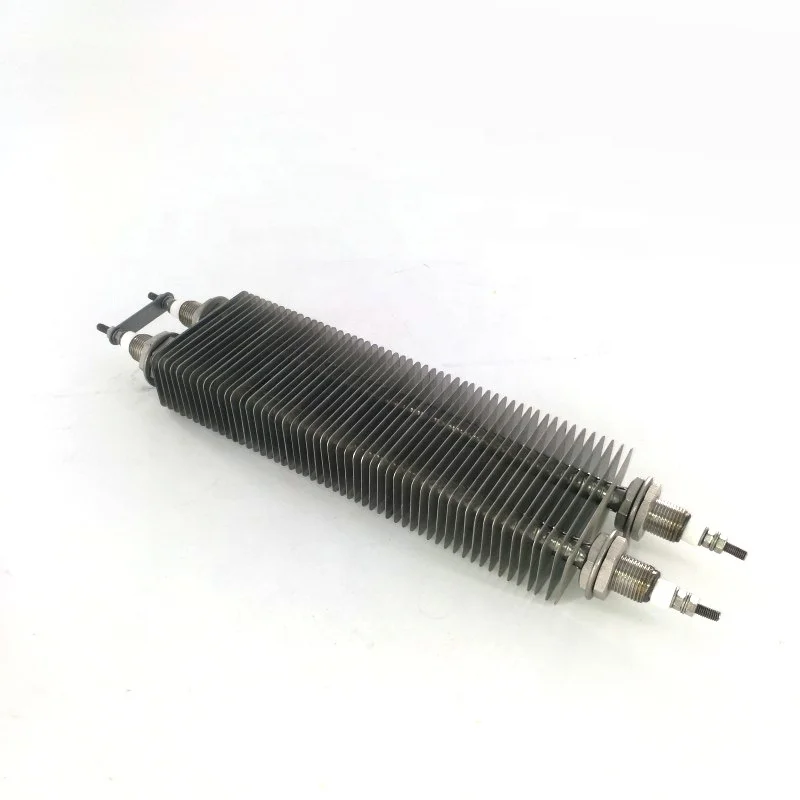

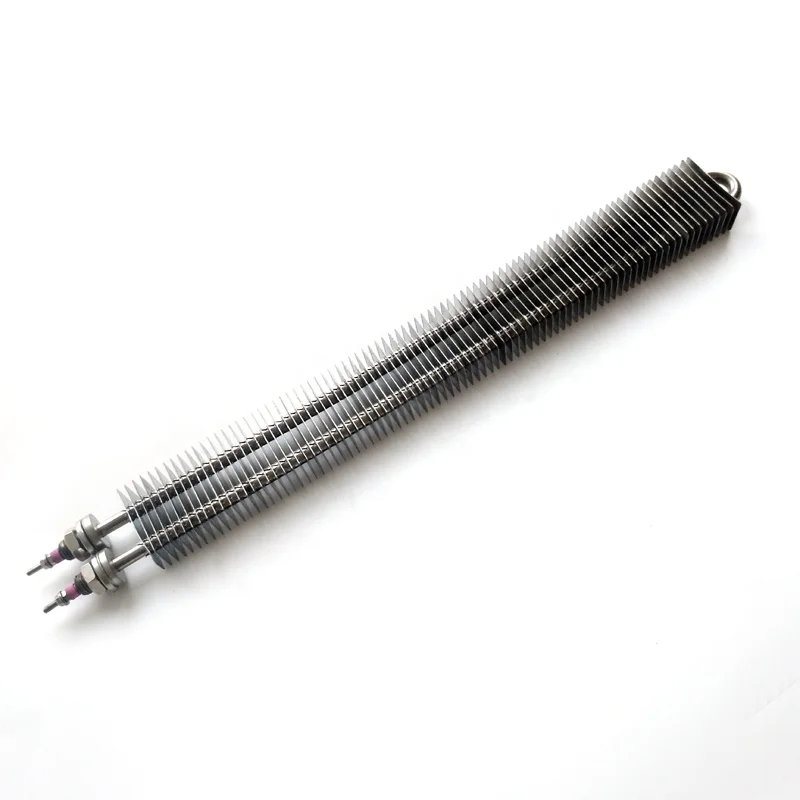

RECTANGULAR FIN HEATERS
\t\t\t\t\t\t\t\t\tProduct Application \t\t\t\t\t\t\t
* for Load banks
* for Spray boot
* for Incubation room
* for Blow Pipes
* for Toaster oven , Burn oven and Drying ovens, etc
\t\t\t\t\t\t\t\t\tProduct Shows \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCompany \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCustomer Visit \t\t\t\t\t\t\t
Poland clients
American clients
American clients
Pakistan clients
\t\t\t\t\t\t\t\t\tExhibition \t\t\t\t\t\t\t
