DEYE SUN-25/30/40/50K-SG01HP3-EU-BM2/3/4 | 25-50KW | Three Phase | 2 MPPT | Hybrid Inverter | High Voltage Battery | ||||||||
Model | SUN-25K-SG01HP3-EU-BM2 | SUN-30K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 | ||||
Battery Input Data | ||||||||
Battery Type | Lithium-ion | |||||||
Battery Voltage Range (V) | 150~800V | |||||||
Max. Charging Current (A) | 50A+50A | |||||||
Max. Discharging Current (A) | 50A+50A | |||||||
Number of battery input | 2 | |||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
PV String Input Data | ||||||||
Max. DC Input Power (W) | 32500W | 39000W | 52000W | 65000W | ||||
Max. DC Input Voltage (V) | 1000V | |||||||
Start-up Voltage (V) | 150V | |||||||
MPPT Range (V) | 200V-850V | |||||||
Full Load DC Voltage Range (V) | 450-850 | 360-850 | 360-850 | 450-850 | ||||
Rated DC Input Voltage (V) | 600 | |||||||
PV Input Current (A) | 36A+36A | 36A+36A+36A | 36A+36A+36A+36A | |||||
Max. PV ISC (A) | 55A+55A | 55A+55A+55A | 55A+55A+55A+55A | |||||
No. of MPP Trackers | 2 | 3 | 4 | |||||
No. of Strings per MPP Tracker | 2 | |||||||
AC Output Data | ||||||||
Rated AC Output and UPS Power (W) | 25000W | 3000W | 40000W | 50000W | ||||
Max. AC Output Power (W) | 27500W | 33000W | 44000W | 55000W | ||||
Peak Power (off grid) | 1.5 times of rated power, 10 S | |||||||
AC Output Rated Current (A) | 38 | 45.6 | 60.8 | 75.8 | ||||
Max. AC Current (A) | 50 | 60 | 70 | 83.3 | ||||
Max. Continuous AC Passthrough (A) | 150A | |||||||
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||||||
Grid Type | Three Phase | |||||||
DC injection current (mA) | <0.5% 1n | |||||||
General Data | ||
Operating Temperature Range (℃) | -40~60℃, >45℃ Derating | |
Cooling | Smart cooling | |
Noise (dB) | <45 dB | |
Communication with BMS | RS485; CAN | |
Weight (kg) | 60 | |
Size (mm) | 560.5W×837H×319D | |
Protection Degree | IP65 | |
Installation Style | Wall-mounted | |
Warranty | 5 years | |
Deye 50Kw Three Phase Hybrid Inverter:
Look no further than the Deye 50Kw Hybrid Inverter! Experience the future of power solutions with the 50kW Inverter.
First, allow us to explain what this 50kW inverter is all about. It’s an Inverter that converts DC into AC power and does so with exceptional efficiency. But what sets the Deye 50kW hybrid inverter apart from others? For instance, it operates at an astounding efficiency of over 97%. Moreover, it smartly manages on-grid/off-grid operations, thus ensuring continuous power supply.
50kw Deye inverter offers the ideal solar solution to meet your needs. Furthermore, Deye believes in making things easy. So if you’re worried about installation, don’t be. On the other hand, its price demonstrates excellent value for money.
After all, its multitude of features, coupled with its superior performance capabilities. Subsequently, if you’re in the market for a 3-phase inverter for sale, your search ends here. Indeed, the Deye 50kW Three Phase Hybrid Inverter is a reliable and efficient choice.
Deye inverter essential for energy management
Deye 50Kw Three Phase Hybrid Inverter Specification:
Battery Type: HV Lithium-Ion Battery.
Battery Voltage Range: 160VDC to 800VDC.
Max. DC Input Power: 65000W.
Start-up Voltage: 180V.
DC Input Voltage: 600V.
PV Input Current: 36+36+36+36A.
MPPT Trackers: 4.
Rated AC Output and UPS Power: 50000W.
AC Passthrough: 200A.
Weight: 80kg
Size (WxHxD): 527×894×294 mm.
Deye’s 50kW hybrid inverter is not just a product but a testament to power solution innovation. Choose Deye today, because when it comes to high-performing power inverters, it’s hard to find better. Afterwards, enjoy the peace of mind that comes from a reliable and efficient power solution named Deye 50kW.
Look no further than the Deye 50Kw Hybrid Inverter! Experience the future of power solutions with the 50kW Inverter.
First, allow us to explain what this 50kW inverter is all about. It’s an Inverter that converts DC into AC power and does so with exceptional efficiency. But what sets the Deye 50kW hybrid inverter apart from others? For instance, it operates at an astounding efficiency of over 97%. Moreover, it smartly manages on-grid/off-grid operations, thus ensuring continuous power supply.
50kw Deye inverter offers the ideal solar solution to meet your needs. Furthermore, Deye believes in making things easy. So if you’re worried about installation, don’t be. On the other hand, its price demonstrates excellent value for money.
After all, its multitude of features, coupled with its superior performance capabilities. Subsequently, if you’re in the market for a 3-phase inverter for sale, your search ends here. Indeed, the Deye 50kW Three Phase Hybrid Inverter is a reliable and efficient choice.
Deye inverter essential for energy management
Deye 50Kw Three Phase Hybrid Inverter Specification:
Battery Type: HV Lithium-Ion Battery.
Battery Voltage Range: 160VDC to 800VDC.
Max. DC Input Power: 65000W.
Start-up Voltage: 180V.
DC Input Voltage: 600V.
PV Input Current: 36+36+36+36A.
MPPT Trackers: 4.
Rated AC Output and UPS Power: 50000W.
AC Passthrough: 200A.
Weight: 80kg
Size (WxHxD): 527×894×294 mm.
Deye’s 50kW hybrid inverter is not just a product but a testament to power solution innovation. Choose Deye today, because when it comes to high-performing power inverters, it’s hard to find better. Afterwards, enjoy the peace of mind that comes from a reliable and efficient power solution named Deye 50kW.
Safe & Reliable
●Built-in isolation transformer for high load adaptability,
●Perfect protection function for inverter and battery,
Redundancy design for important functions;
Abundant Configuration
●Integrated design, easy to integrate;

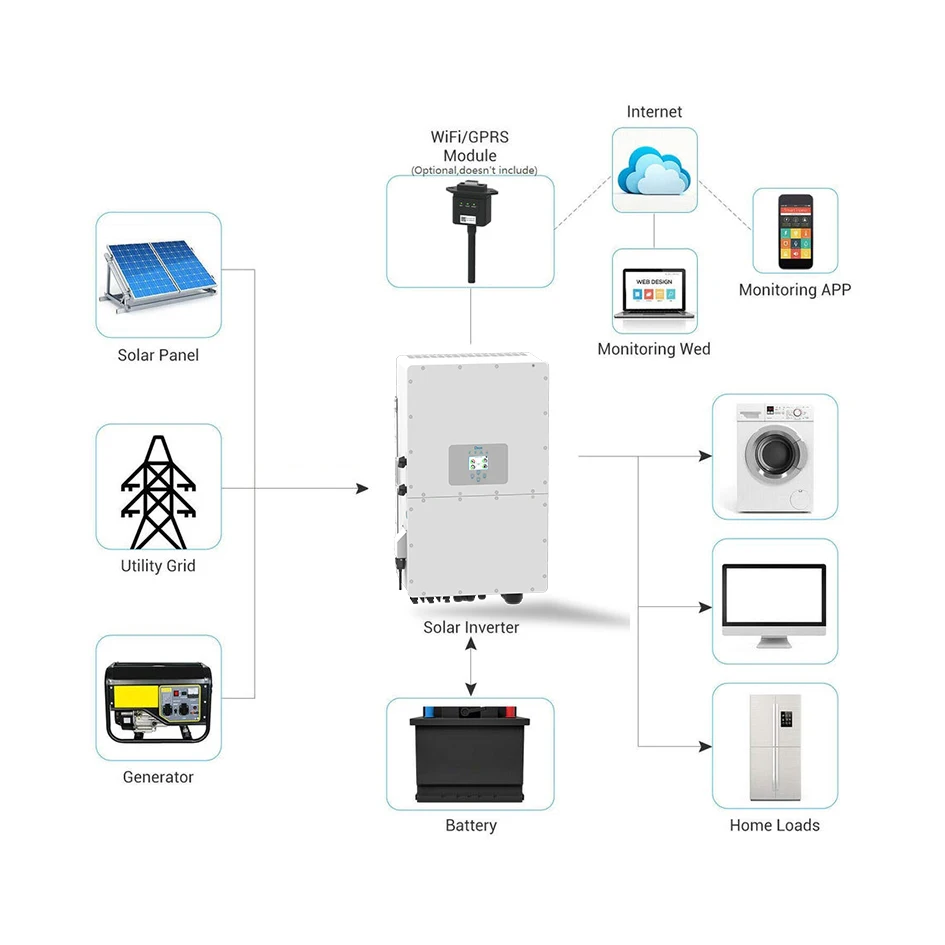

●Support simultaneous access of load,battery,power grid，
diesel and PV;
●Built-in maintenance bypass switch, improve system
availability,
Intelligent & Efficient
●Support battery capacity and discharge time prediction;
●Smooth switching between on and off grid, uninterrupted
supply of load,
Operate with EMS to monitor system status in real time;
Friendly & Flexible
Various working modes can be set flexibly,
PV controller modular design, easy to expand;
