Branch Router C4000 Series Integrated Services Router ISR4321 with 4GB Flash Memory, 4GB DRAM ISR4321/K9
- Category: >>>
- Supplier: Shanghai Chancenetworks Co. Ltd.
Share on (1601012806628):
Product Overview
Description
Product Description

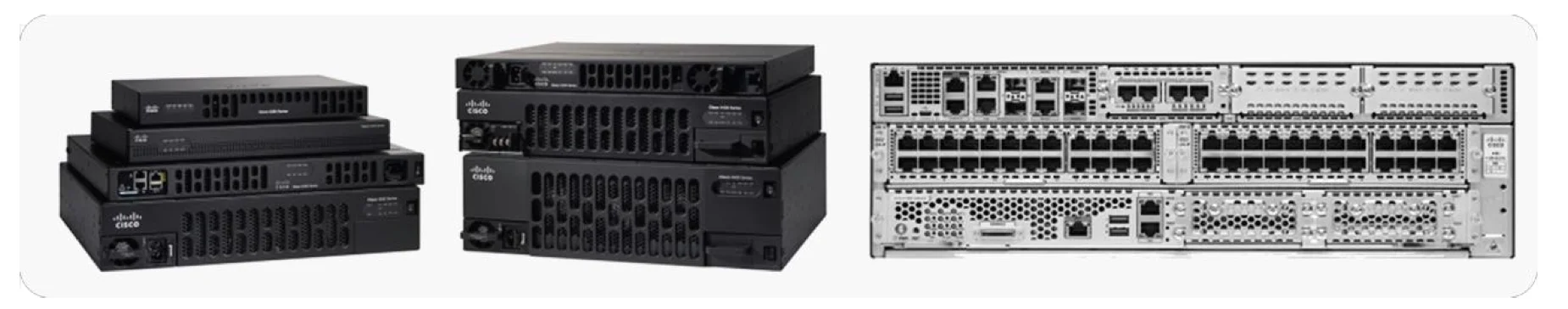

Cisco 4000 Series Integrated Services Routers
The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
| Technical Specifications | Cisco 4461 | Cisco 4451 | Cisco 4431 | Cisco 4351 | Cisco 4331 | Cisco 4321 | Cisco 4221 |
| Aggregate Throughput (Default) | 1.5Gbps | 1 Gbps | 500 Mbps | 200 Mbps | 100 Mbps | 50 Mbps | 35Mbps |
| Aggregate Throughput (Performance License) | 3Gbps | 2 Gbps | 1 Gbps | 400 Mbps | 300 Mbps | 100 Mbps | 75 Mbps |
| Aggregate CEF Only5 Throughput (Boost License) | Over 7Gbps | Over 4Gbps | Over 4Gbps | Over 2Gbps | Over 2Gbps | 1.5Gbps | 1.2Gbps |
| Technical Specifications | Cisco 4461 | Cisco 4451 | Cisco 4431 | Cisco 4351 | Cisco 4331 | Cisco 4321 | Cisco 4221 |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| Total onboard WAN or LAN 10Gbps ports | 2 | - | - | - | - | - | - |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service- module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
| Default flash memory | 8 GB | 8 GB | 8 GB | 4 GB | 4 GB | 4 GB | 8GB |
| Maximum flash memory | 32 GB | 32 GB | 32 GB | 16 GB | 16 GB | 8 GB | 8GB |
| External USB 2.0 slots (type A) | 2 | 2 | 2 | 2 | 1 | 1 | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 | 1 | 1 | 1 | 1 | 1 | 1 (combo CON/AUX port) |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 | 1 | 1 | 1 | 1 | 1 | 1 (combo CON/AUX port) |
| Power-supply options | Internal: AC, DC and PoE | Internal: AC, DC and PoE | Internal: AC, DC, and PoE | Internal: AC, DC and PoE | Internal: AC,DC and PoE | External: AC and PoE | External AC only |
| Redundant power supply | Internal: AC, DC and PoE | Internal: AC, DC and PoE | Internal: AC, DC and PoE | N/A | N/A | N/A | N/A |
| Dimensions (H x W x D) | 88.9 x 438.15 x 469.9 mm) | 88.9 x 438.15 x 469.9 mm | 43.9 x 438.15 x 507.2 mm | 88.9 x 438.15 x 469.9 mm | 44.45 x 438.15 x 438.15 mm | 44.55 x 369.57 x 294.64 mm | 43.7 x 322.6 x 254 mm |
| Shipping Box Dimensions | 24.76 x 56.51 x 66.04 mm | 24.76 x 56.51 x 66.04 mm | 200.2 x 565.1 x 730.25 mm | 24.76 x 56.51 x 66.04 mm | 180.98 x 577.85 x 571.5 mm | 177.8 x 546.1 x 409.6 mm | 104.9 x 463.6 x 328.7 mm |
| Rack height | 3 Rack 2 Rack Units Units (3RU) | 2 Rack Units (2RU) | 1 Rack Units (1RU) | 2 Rack Units (2RU) | 1 Rack Units (1RU) | 1 Rack Units (1RU) | 1 Rack Units (1RU) |
| Weight with 1, 450-WAC power supply (no modules) | N/A | 28.8 lb (13.1 kg) | N/A | 28.8 lb (13.1 kg) | N/A | N/A | N/A |
| Product Name | Product Description |
| ISR4461/K9 | Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane) |
| ISR4451-X/K9 | ISR 4451 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 2 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane) |
| ISR4431/K9 | ISR 4431 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 8GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane) |
| ISR4351/K9 | ISR 4351 with 3 onboard GE, 3 NIM slots, 1 ISC slot, 2 SM slots, 4 GB Flash Memory default, 4 GB DRAM default |
| ISR4331/K9 | ISR 4331 with 3 onboard GE, 2 NIM slots, 1 ISC slot, 1 SM slots, 4 GB Flash Memory default, 4 GB DRAM default |
| ISR4321/K9 | ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default |
| ISR4221/K9 | ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default |
Packaging & Shipping
Original New
Our Services
Our Business type:Trading Company
Main Products: Stroage, Server, Networking Switch, Router, Wireless
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP;
Accepted Payment Currency: USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Russian,Korean
Company Information
Chancenetworks was founded in 2013, based on the distribution of IT network equipment, established a good strategic partnership with well-known manufacturers in the industry to build a network, security and storage product distribution system. Partner brands include Cisco (Cisco), DELL, Huawei, H3C, Juniper, HP, EMC, Fortinet andcc others.
We are based in SHANGHAI , China, start from 2013,sell to Mid East(30.00%),Western Europe(25.00%),North America(20.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),South Asia(5.00%),Domestic Market(3.00%),Oceania(2.00%).
We are home to a professional team with decade-long experience and a large inventory. Looking forward to your call or email for competitive pricing on what you need.
