GWL GWL 5200 slider type toroidal Transformer coil Winding Machine with wire diameter 0.15 0.7mm for thin copper wire
- Category: >>>
- Supplier: Tianjin Grewin Technology Co. Ltd.
Share on (1601012813656):
Product Overview
Description
Specification

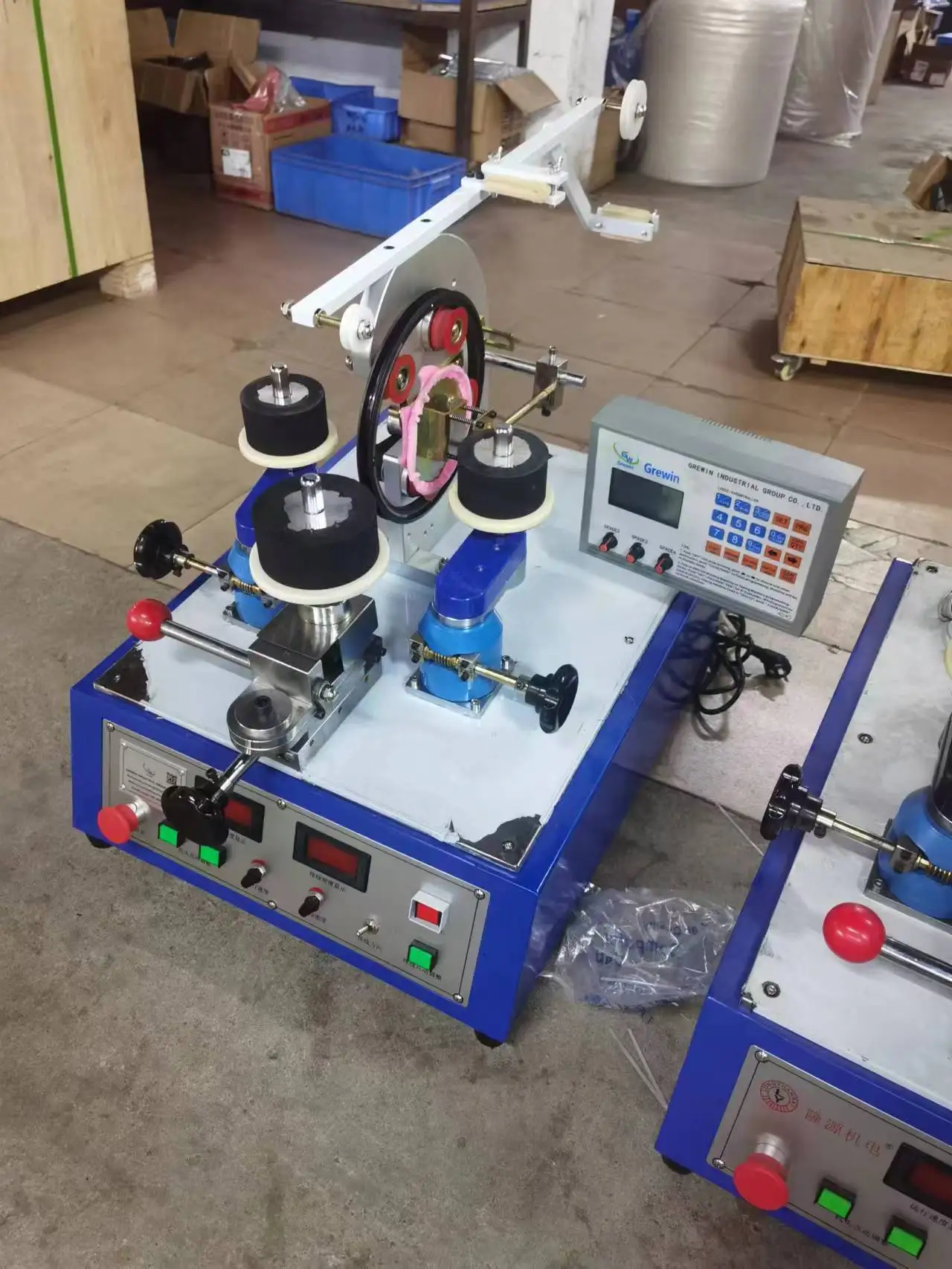

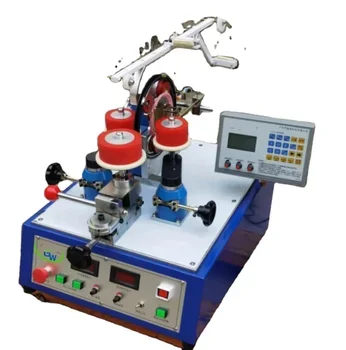

GWL-5200 Toroid Transformer Winding Machine
Equipment model | GWL-5200 |
Winding mode | Slider type |
Finally complete the outside diameter | 60-120 |
Minimum finished inside diameter | 30 |
Maximum completion height | 80 |
Suitable winding diameter range | 0.15-0.7 |
Diameter of wire storage ring | 195 |
Width of storage ring | 3-6 |
Maximum speed | 800 RPM |
Operating voltage | 220V/50HZ |
Overall dimension | 500x600x700 |
Weight | 90KG |
FEATURES：
1.Toroid Digital Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire
without insulation damage.
2.One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes winding shuttles are optional.
3.The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change ,maximizing
output.
4.Accurately wire and tape spacing by adjustable.
5.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
1.Toroid Digital Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire
without insulation damage.
2.One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes winding shuttles are optional.
3.The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change ,maximizing
output.
4.Accurately wire and tape spacing by adjustable.
5.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
ADVANTAGE:
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability
Operation Video
Application
Recommend Products
Company Information and Profile
Grewin Industrial Group Co., Ltd. was founded in 1993 to provide cost-effective, high-quality manufacturing solutions for transformer industries.
Whether producing transformers, chokes,magnetics or other vital components,our winding machine are relied upon by countless manufacturers around the world.
Whether producing transformers, chokes,magnetics or other vital components,our winding machine are relied upon by countless manufacturers around the world.
1. Can produce different size coil：Toroidal winding machine can select different magazine to complete various sizes of transformer coils.
2. High precision and efficiency: Because the correct winding of the coil can greatly affect the performance and life of the electronic device.
3. Grewin can provide cost-effective winding machines to meet the needs of different customers, and provide them with products and technical support
2. High precision and efficiency: Because the correct winding of the coil can greatly affect the performance and life of the electronic device.
3. Grewin can provide cost-effective winding machines to meet the needs of different customers, and provide them with products and technical support
So whether you are a manufacturer of transformers, chokes or other winding components, Grewin's winding machine are a wise choice.
With their precision, flexibility and affordability, they can help you meet your production goals while ensuring the quality of the finished product.
With their precision, flexibility and affordability, they can help you meet your production goals while ensuring the quality of the finished product.
After Service
PRE-SALE：
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE：
1. Delivery time: 5-10 days（standard machine）, 30 days（custom ）
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE：
1.24 hours free remote service: video guide and telephone
2. Warranty：1 year after-sales service
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE：
1. Delivery time: 5-10 days（standard machine）, 30 days（custom ）
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE：
1.24 hours free remote service: video guide and telephone
2. Warranty：1 year after-sales service
