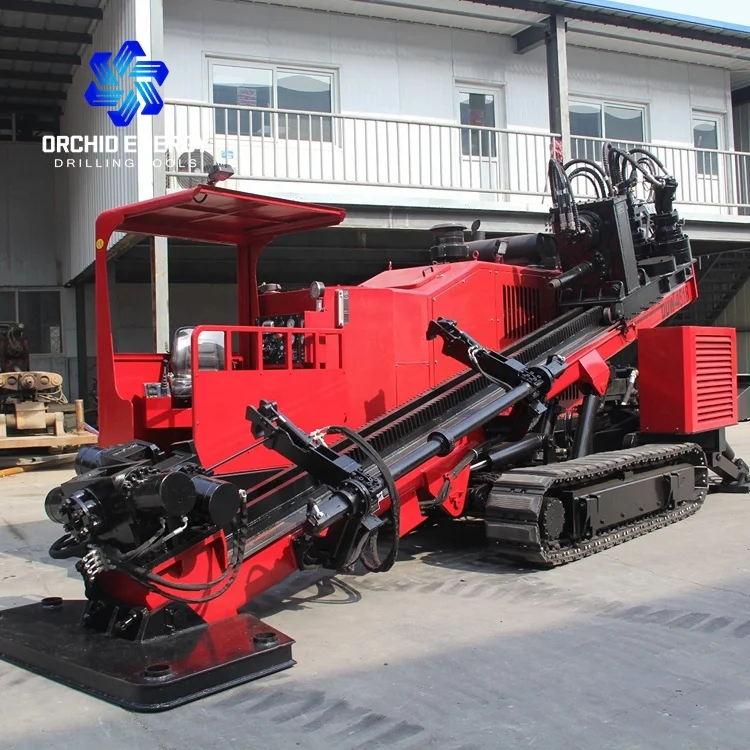

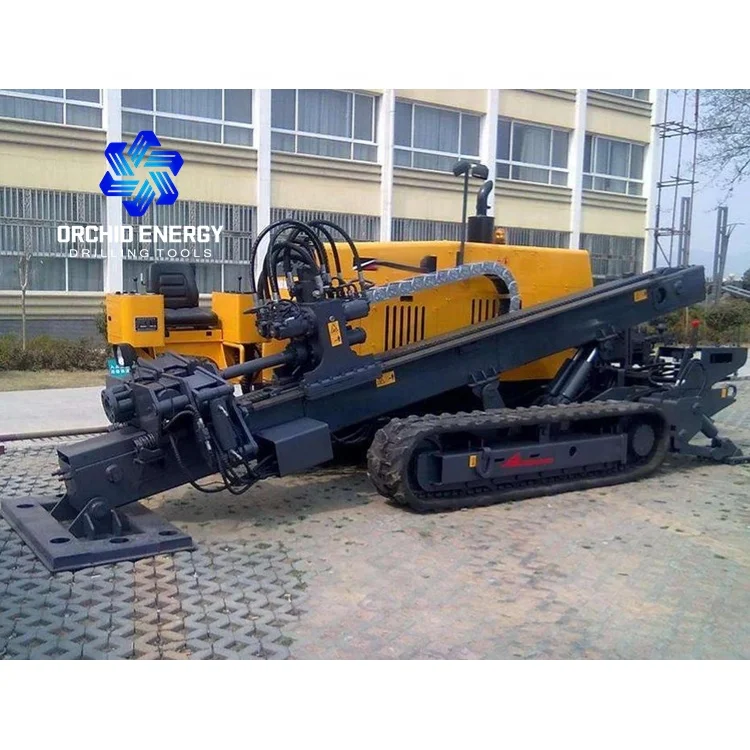

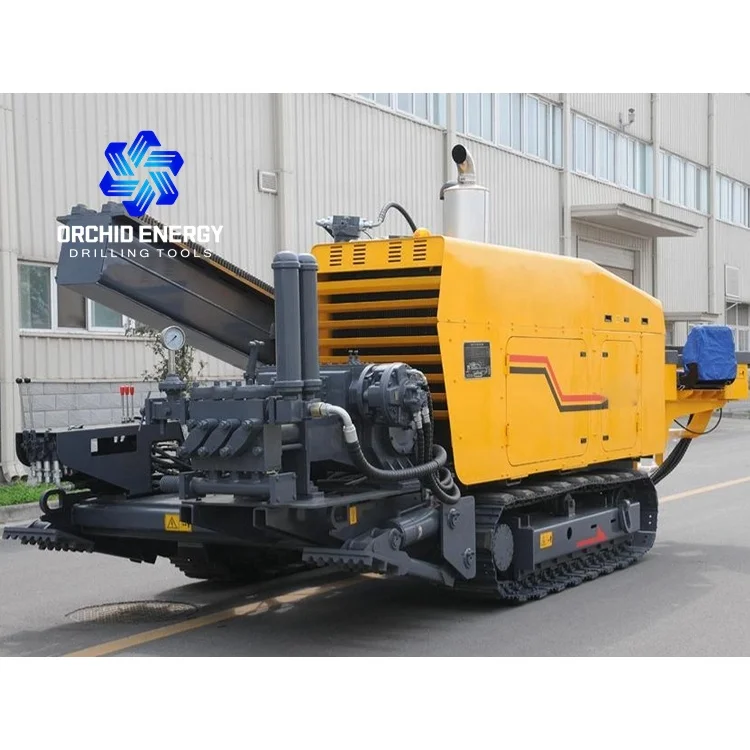

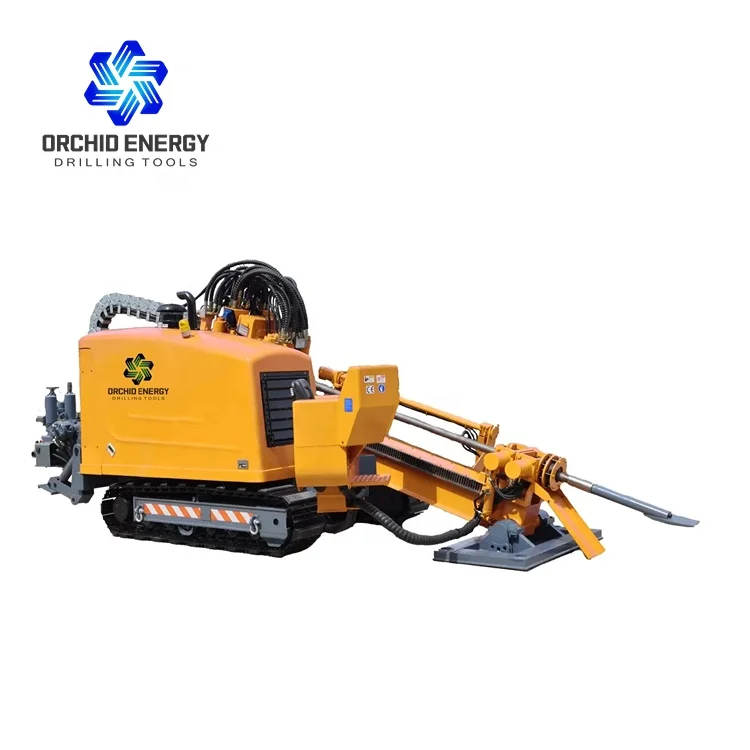

China made 200m HDD Drilling Horizontal Rig Machine for Cable/Pipe Laying
- Category: >>>
- Supplier: Orchid Energy Co. Ltd.
Share on (1601012825528):
Product Overview
Description
Products Description
Horizontal directional drilling rigs are widely used in the construction industry for various applications. They are particularly suitable for projects that require the installation of underground utilities, including telecommunications, water and sewer lines, oil and gas pipelines, and electrical conduits. These rigs are ideal for situations where traditional trenching methods are not feasible or environmentally sensitive areas need to be preserved.
Product Structure
A typical horizontal directional drilling rig consists of several components, including a power unit, a drilling fluid system, a drill string, a drilling head, and a guidance system. The power unit provides the necessary power for the drilling operation. The drilling fluid system circulates drilling fluid to remove cuttings and stabilize the borehole. The drill string contains the drill rods and the cutting tool. The drilling head guides the drill string and performs the cutting action. The guidance system controls the direction and depth of the drilling.
Orchid Energy's Capabilities
Orchid Energy is a renowned company specializing in the manufacturing of high-quality horizontal directional drilling rigs. They offer a wide range of standard specifications and also provide customized solutions to meet specific customer requirements. Orchid Energy's products adhere to international standards, ensuring reliability, durability, and safety. Their horizontal directional drilling rigs are competitively priced, offering excellent value for money without compromising on quality.
Specification
Item | Spec |
Rig Weight | 45,000 kg |
Max. Push&Pull Force | 2,600 kN |
Max. Push&Pull Speed | 35 m/min |
Engine Power | 2*239/2*242kW |
Caterpillar Walking Speed | 4(km/h) |
Entry Drill Angle | 9° ～ 22° |
Max. Aperture Diameter | Φ1,500mm(Soil Depended) |
Dimension(L*W*H) | 16,600*2,950*3,400(mm) |
Max. Torque | 85,000 N·m |
Max. Rotation Speed | 100 r/min |
Max. Mud Pump Flow | Optional Extra Mud Pump |
Max. Mud Pump Pressure | Optional Extra Mud Pump |
Max. Climbing Gradient | 18° |
Max. Crossing length | 1,600m (Soil Depended) |
