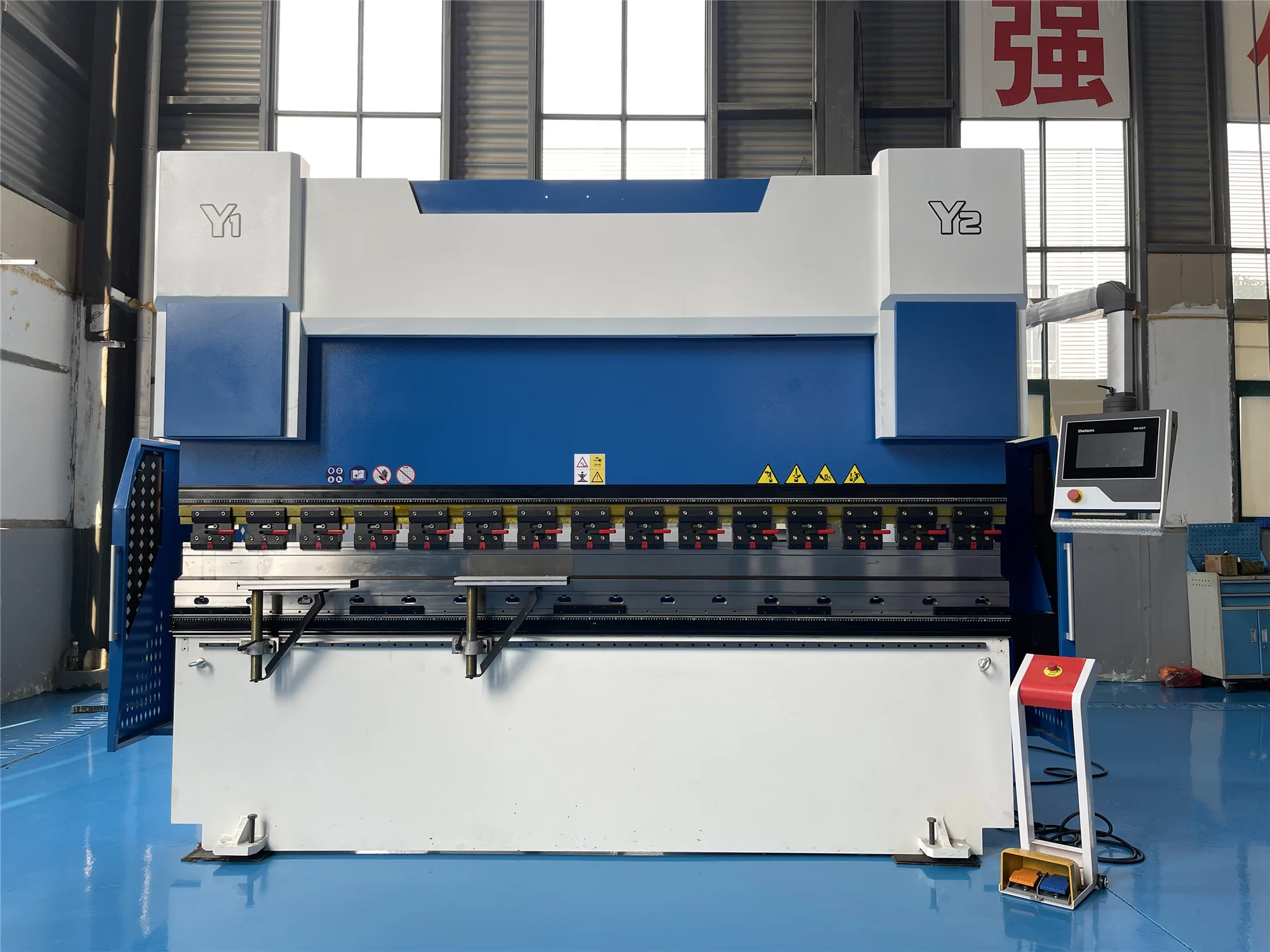

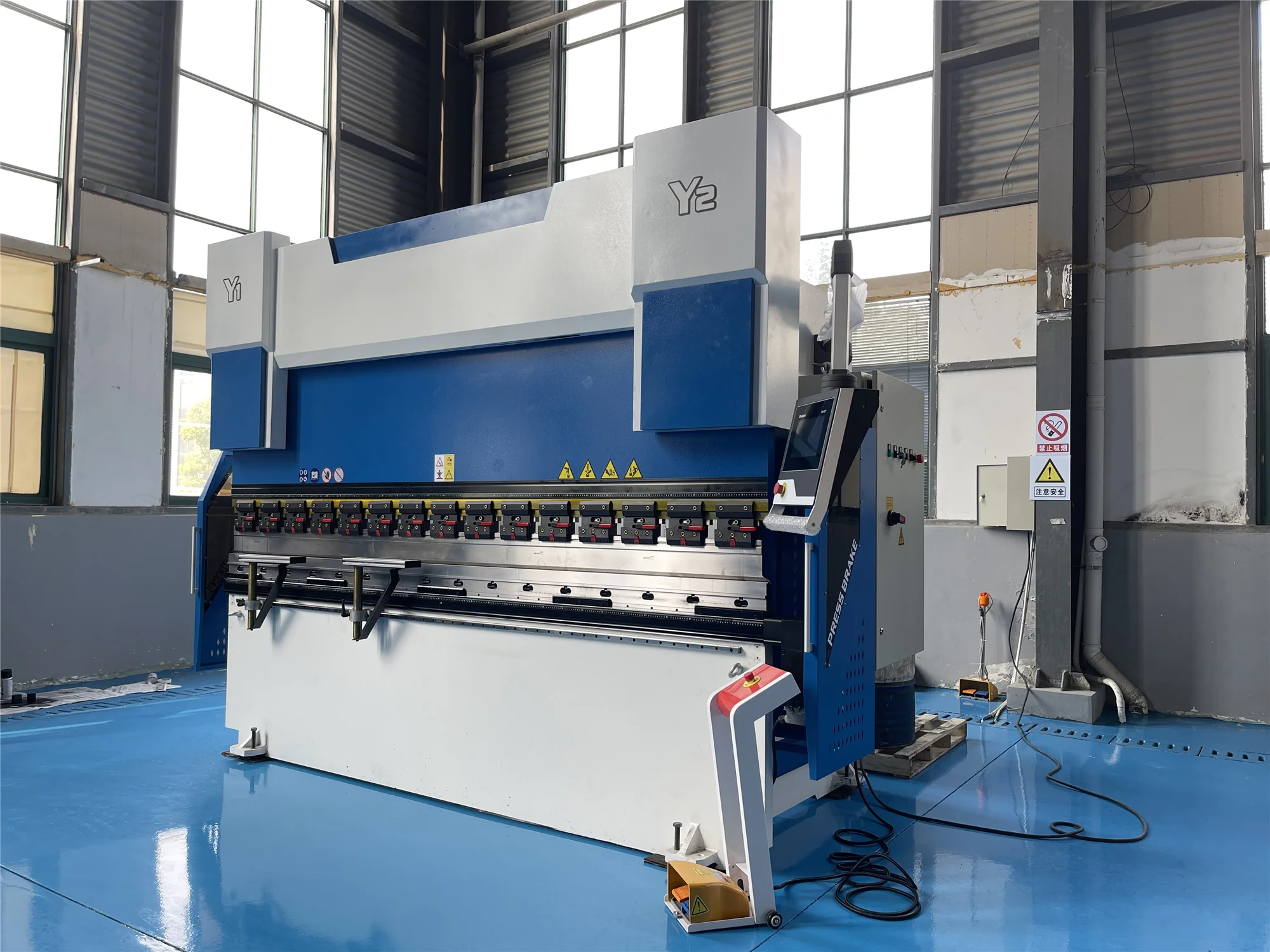

ZWHOPES 160T 3200 CNC Hydraulic Bending Machine Press Brake with Delem DA53T 4 1axis
- Category: >>>
- Supplier: Anhui Zhongwang Precision Machinery Manufacturing Co. Ltd.
Share on (1601012840847):
Product Overview
Description
Product Information
ZWHOPES®EH2024 Series Electric-hydarulic Synchronous CNC Press Brake
ZWHOPES® EH2024 Series Press Brake is a new CNC bending machine launched by ZWHOPES Group in 2024, and is suitable for manufacturers with high precision and cost performance requirements. ZWHOPES® 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.
Stable and durable performance of the machine body
1, The machine frame integrated welding.
2, The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
3,Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment. 4,Shot blast to remove rust and anti-rust treatment.
Scientific design
1, Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
2,Possibility to add options and upgrades on the configuration, at later stage.
Environmental friendly
low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
Energy consumption lower than general machine by 60% by using servo motor.
low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
Energy consumption lower than general machine by 60% by using servo motor.
Technical Parameters
Model | Poles distance (mm) | Throat depth (mm) | Slider stroke (mm) | Max height (mm) | Power (kw) | Weight (kg) | Demension (mm) | |||||||
63T/2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 2500x1300x2210 | |||||||
63T/3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 3200x1300x2210 | |||||||
80T/2500 | 1990 | 300 | 100 | 320 | 7.5 | 5000 | 2500x1400x2300 | |||||||
80T/3200 | 2560 | 320 | 100 | 350 | 7.5 | 6000 | 3200x1500x2300 | |||||||
80T/4000 | 3200 | 320 | 100 | 350 | 7.5 | 7000 | 4000x1500x2400 | |||||||
100T/2500 | 1990 | 320 | 120 | 350 | 7.5 | 6000 | 2500x1600x2400 | |||||||
100T/3200 | 2600 | 320 | 120 | 400 | 7.5 | 6800 | 3200x1600x2600 | |||||||
100T/4000 | 3200 | 320 | 120 | 400 | 7.5 | 8000 | 4000x1600x2600 | |||||||
125T/3200 | 2600 | 320 | 120 | 400 | 7.5 | 7000 | 3200x1600x2600 | |||||||
125T/4000 | 3200 | 320 | 120 | 400 | 7.5 | 8500 | 4000x1600x2600 | |||||||
160T/3200 | 2580 | 320 | 120 | 460 | 11 | 10000 | 3200x1700x2700 | |||||||
160T/4000 | 2900 | 320 | 160 | 460 | 11 | 11000 | 4000x1700x2800 | |||||||

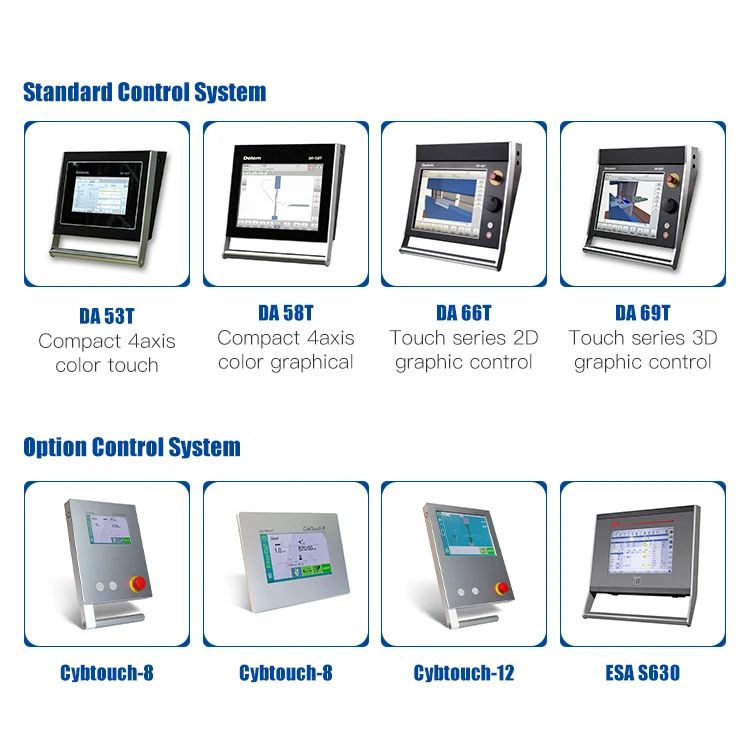

Control System
ZWHOPES CNC bending machine can be equipped with various control systems.
Our high-efficiency backgauge system provides our customers with different automation solutions.
2 AXIS BACK GAUGE (X,R)
4 AXIS BACK GAUGE (X,R,Z1,Z2)
6 AXIS BACK GAUGE (X1,X2,R1,R2,Z1,Z2)
Machine Display

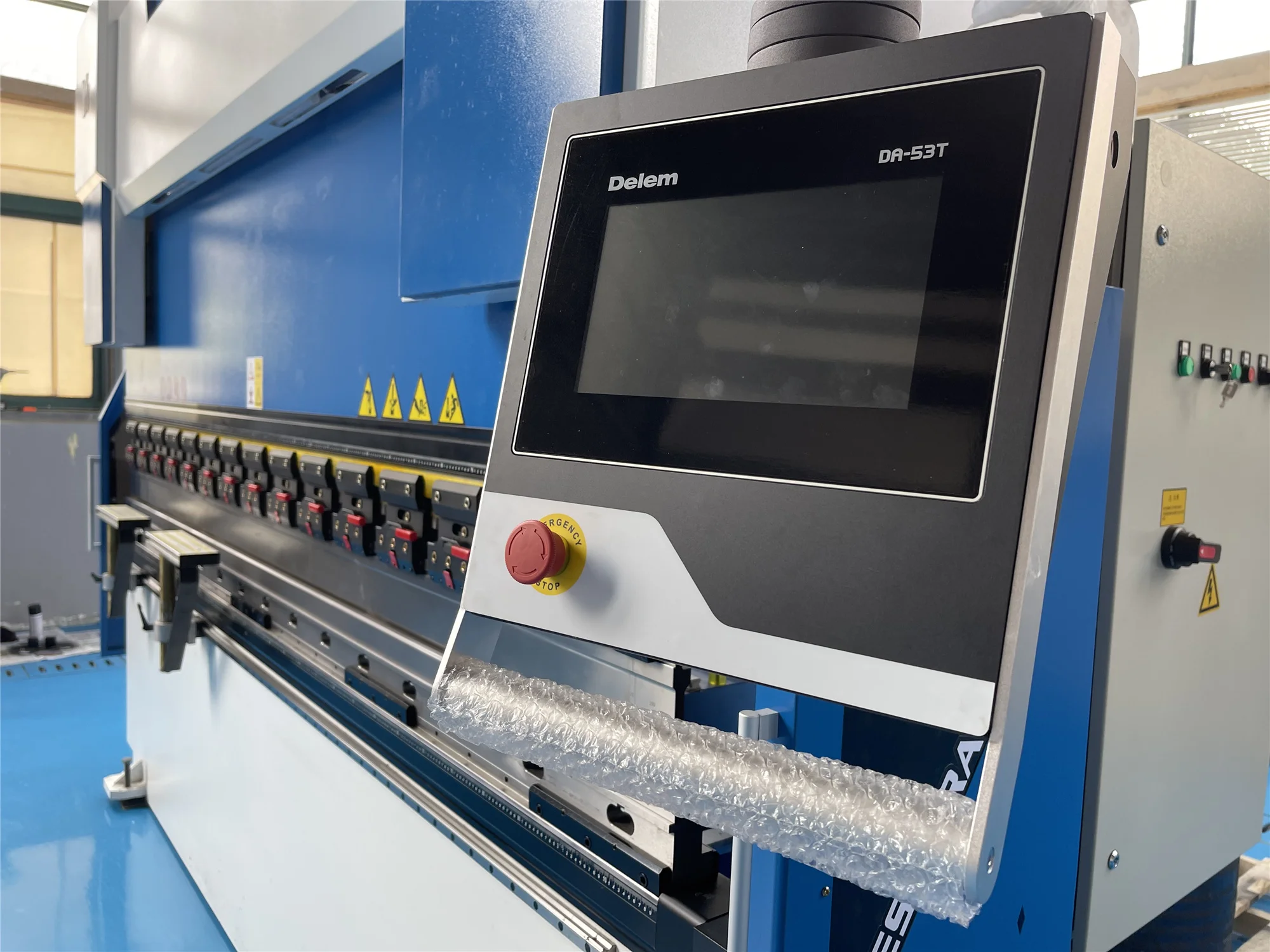

DELEM DA-53T Controller System:
1. Quick, one page programming;
2. Hotkey navigation;
3. 7" widescreen colour TFT;
4. Up to 4 axis (Y1, Y2, and 2 auxiliary axes);
5. Workbench deflection compensation control;
5. Workbench deflection compensation control;
6. USB peripheral interface;
7. Advanced Y-axis control algorithm, which can control both closed-loop and open-loop valves;
8. Panel mounting structure, optional suspension box;
9. Full touch screen.
High Efficient Working Table
1, You can use the whole bending length as there are no interference contours.
2, CNC customized mold
3, Quick clip:fast tool changes thanks to vertical set up，to reduce your set up times.
4,Supporting arms: The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
5.Hydraulic Valve (Rexroth from Germany)
6, GIVI Grating ruler(from Italy): precise positioning stroke travel
7, Automatic Crowning System: To give more accurate bending angle
8, Laser safe

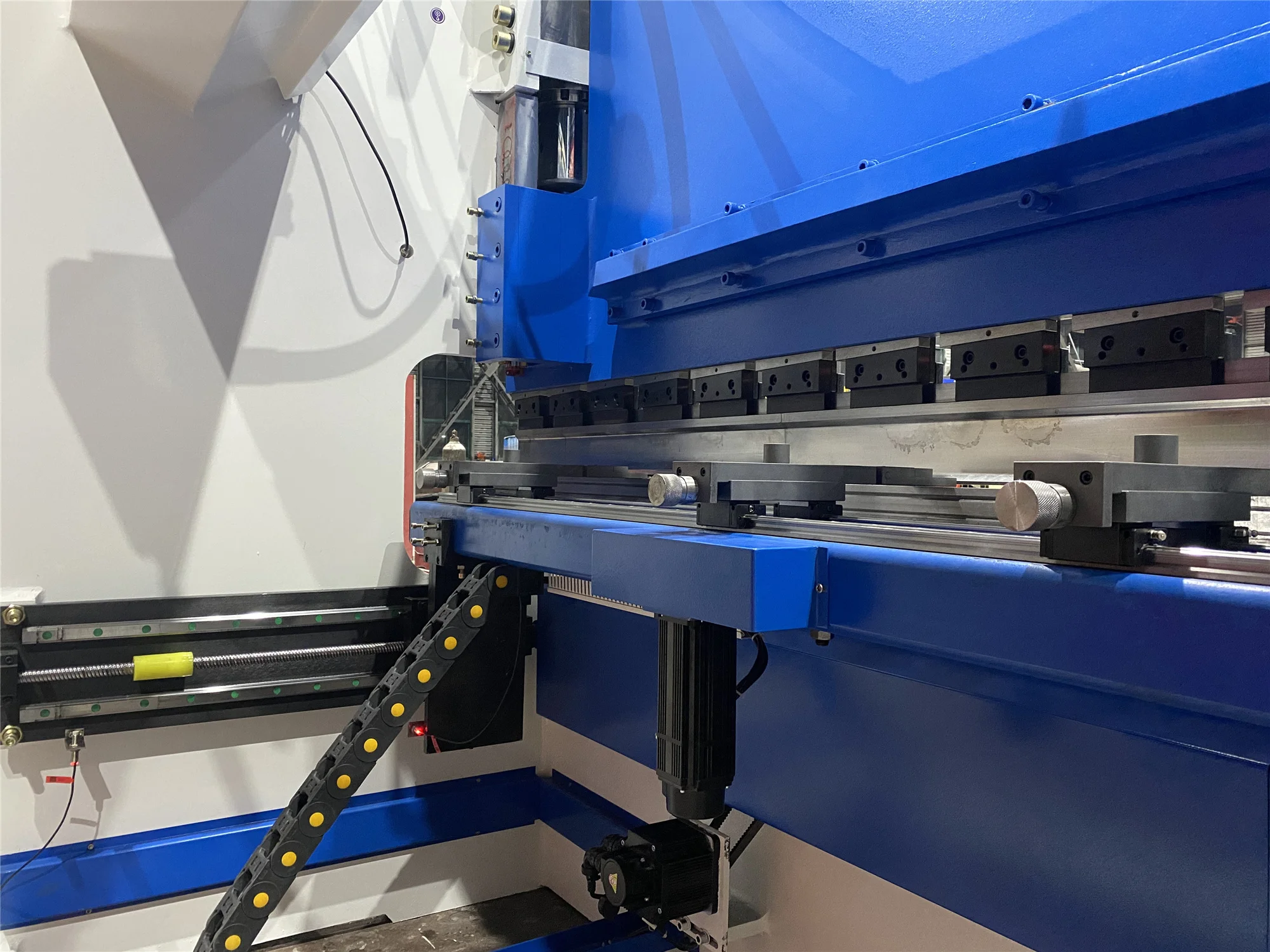

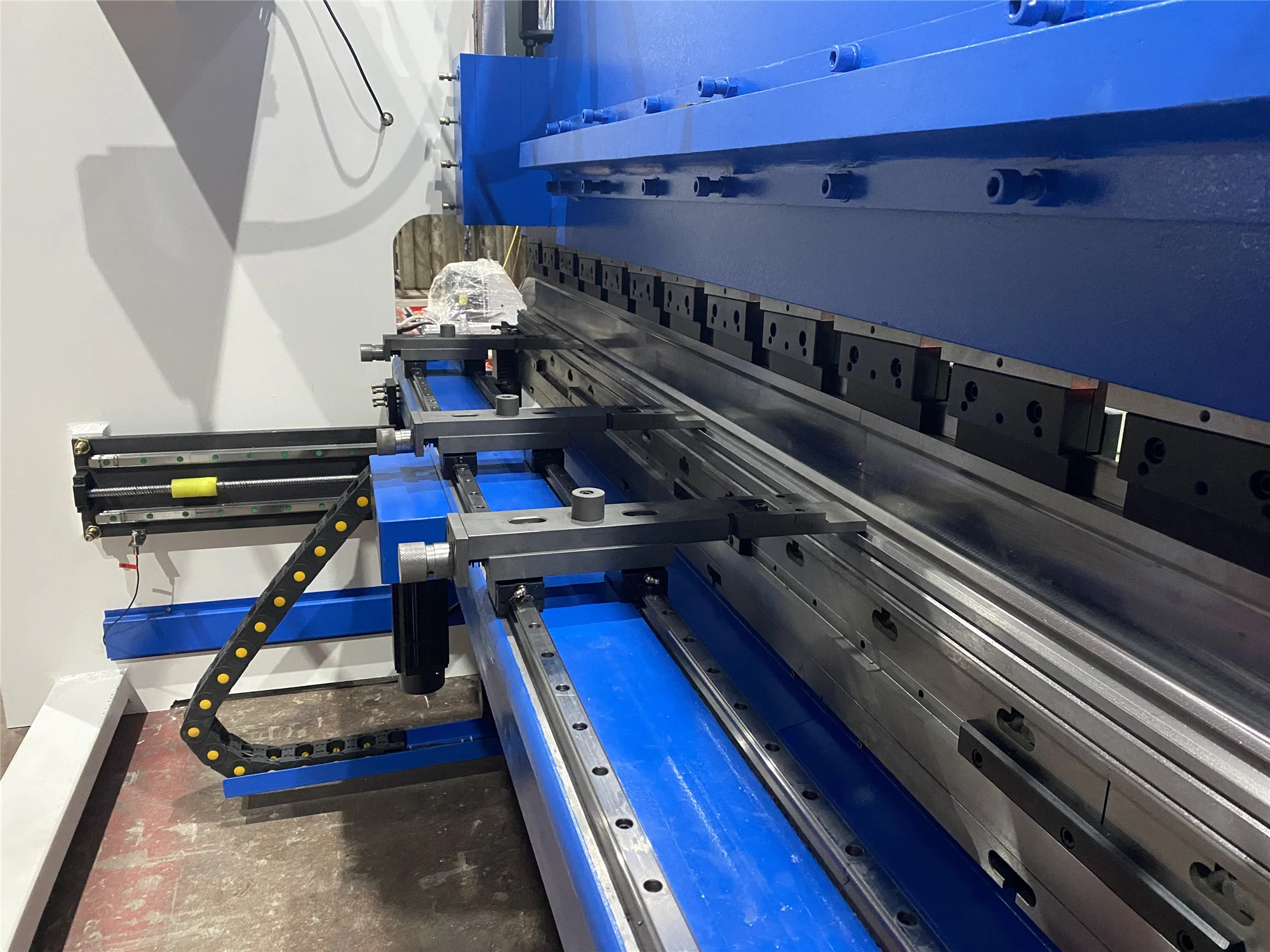

High efficient and powerful back gauge
1, Servo motor drive back gauge: Servo drive back gauge system to increase speed.and energy saving.

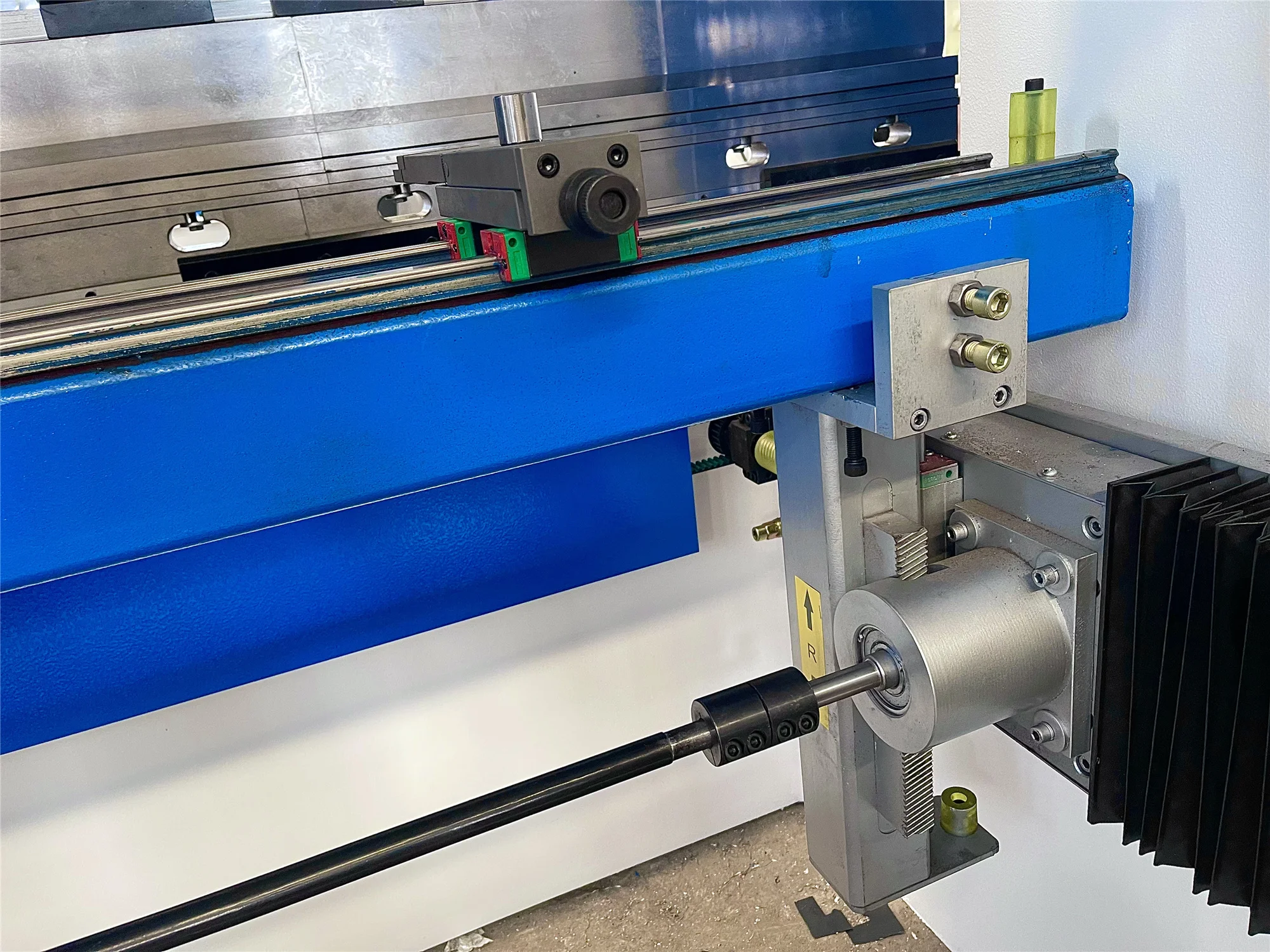

2, The ball screw and linear guide
dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
3, Double linear guides and integrated support beam to improve finger movement accuracy.
Main Configuration
Main motor | Siemens, Germany |
Electrics | Schneider, France |
Hydraulic valve | Rexroth, Germany |
Oil Pump | Sunny, U.S.A |
Seal ring | EMB, Germany |
Controller | DELEM DA66T |
Foot switch | Sanyuan HongKong |
Cylinder | Jining Taifeng, Shandong |
The ball screw and linear guide | HIWIN, Taiwan |
Servo driver | DELTA, Taiwan |
Grating ruler | GIVI, Italy |
Safety & Reliability
All components are certified in accordance with European standards，mainly from Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 (+ N) is used.
Workbench protection
Laser protection: The blade stops when obstacle detected by laser.
Mechanical back
Light curtain protection or Point protection or safety fence, to warn people the dangerous working areas.
Worktable sides
Safety Fence to prevent people from careless entry.
Sustainability
What Makes ZWHOPES® Machine Eco-Friendly?
As ZWHOPES, we believe that the environment, which is becoming more and more vital by the minute, is one of the most important treasures that we can and need to leave to future generations.
1.Less Power Consumption
2.Reduced Reliance on Petroleum Products
3.Noise Reduction
Company Profile
ABOUT ZWHOPES
With over 46 years of industry experience, ZWHOPES is a chinese leading manufacturer of CNC Press Brakes, Shears, Hydraulic Presses and Laser Cutting. We design, manufacture and deliver custom-engineered machines all over the world. Since 1978, we have been supplying equipment to over 100 countries worldwide, even for the most advanced sheet, metal and plate processing work. Our designs have become industry standard in most segments of the business, of which we are very proud.
At ZWHOPES we see the delivery of every press brake, shear machine or straightening press as the beginning of a great relationship with a customer. That is the time when we get to show our highly prioritized after sales and customer support. We know that all users demand a high availability of their equipment. We also know that working machinery is critical for the business to run as expected. That is why we have gathered all our expertise under the same roof, so that we can promise short response times and professional customer support for all our clients.
2-year Quality Warranty
We always arrange final operation testing of your ordered equipment before shipment.And then use the customer's metal materials to test its performance.The shipments will be arrangedonly after we confirmed everything works well with the machine.
Technical Support
ZWHOPES after-sales engineers have launched remote technical support and assisted debugging services, by identifying the type and source of fault using remote diagnostics, we can avoid the time lag in sending a technician on-site, and can solve the problem quickly to minimize downtime.
SPARE PART SERVICE
Any mechanical parts, after a period of use, will be worn or damaged. Therefore, your machine may need to be replaced with new parts. If you are using ZWHOPES machines, don’t worry at all. We have made sufficient preparations to guide you to quickly complete the replacement of accessories in the shortest possible downtime, and debug to full marks.
FAQ
If the machine you will order is standard machine, we can ready the machine within 15days.if some special machines will be some longer.we will give you the answer accordingly.
2. What are your payment terms?
We support L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal and so on.
3. Our tenet?
Customer satisfaction is our top priority.
Seeking sincere cooperation for mutual benefits.
