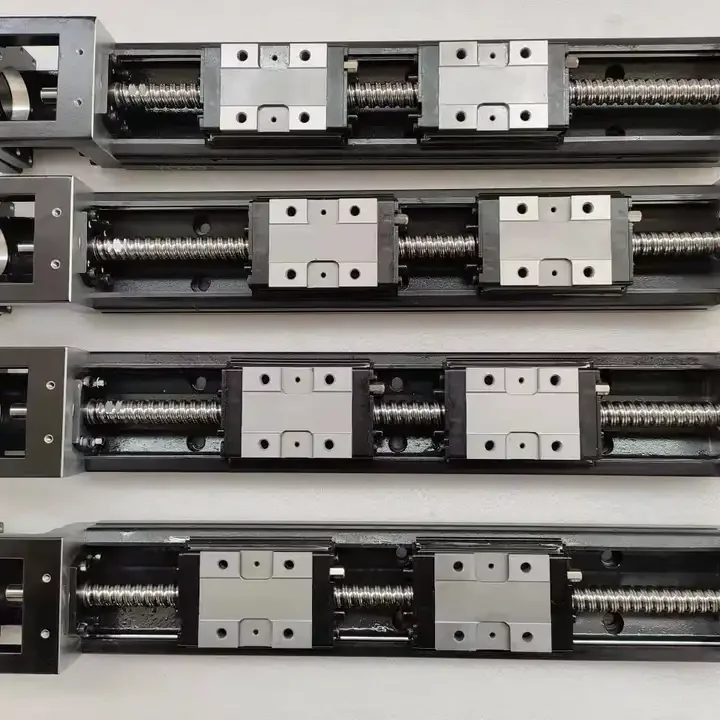

super precision Bidirectional linear module JAPAN/CHINA brand 30mm 100mm stroke micro linear actuator
- Category: >>>
- Supplier: Shenzhen Sefuto Tech Co. Ltd.
Share on (1601012886203):
Product Overview
Description
Product Paramenters
Open/close gripping motions achieved with a single actuator
A single-axis unit that combines a single ball screw and linear guidance system into a compact unit. The left- and right-hand thread ball screws are integrated into a single unit for open/close clamping.
With the slide block designed to fit within the U-guide rail, the actuator realizes a low profile. Compared to conventional table mechanisms, space reduction is greatly improved.
Providing high precision and high rigidity, SE/SG Series actuators are particularly suitable for applications that require precise positioning.
Model No | Stroke [mm] | Repeated positioning accuracy [mm] |
SE1501B-150B-****-*S | 30 | ±0.010 |
SE1502B-150B-****-*S | 30 | |
SE2302B-250B-****-*S | 45 | |
SE2305B-250B-****-*S | 45 | |
SE2305B-300B-****-*S | 70 | |
SE3004B-400B-****-*S | 100 | |
SE3005B-400B-****-*S | 100 | |
SE3010B-400B-****-*S | 100 | |
SE4510B-540B-****-*S | 100 | |
SG2602B-300B-****-*S | 70 | ±0.005 |
SG2605B-300B-****-*S | 70 | |
SG3305B-400B-****-*S | 100 | |
SG3310B-400B-****-*S | 100 | |
SG4610B-540B-****-*S | 130 |
Reduces procurement costs as well as design and assembly time, all while contributing to space efficiency

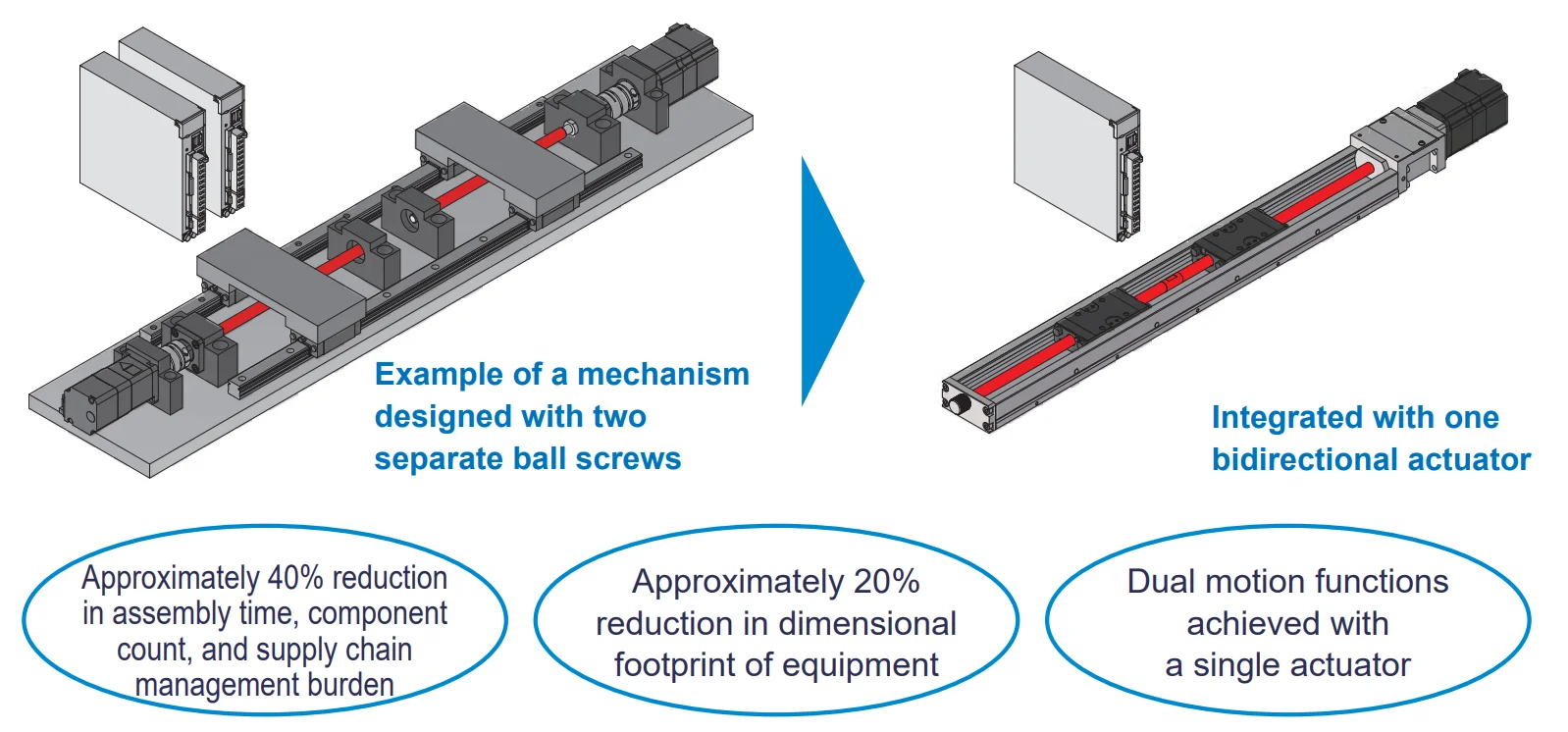

SE/SG bidirectional actuators reduce the overall space required for components, enabling smaller equipment design. By
simultaneously using left and right screw threads in the actuator‘s drive component, the need to prepare one ball screw for each motion function is eliminated. The decreased number of components supports cost reduction as well as simplified supply chain management. The integrated design eliminates the need for complicated, fine adjustment that would otherwise be needed to achieve shaft center alignment and synchronized operation. The number of assembling processes and, consequently, total time required for installation is decreased. The reduced number of linear components accordingly reduces the number of peripheral components such as motors and amplifiers
SE/SG bidirectional actuators reduce the overall space required for components, enabling smaller equipment design. By
simultaneously using left and right screw threads in the actuator‘s drive component, the need to prepare one ball screw for each motion function is eliminated. The decreased number of components supports cost reduction as well as simplified supply chain management. The integrated design eliminates the need for complicated, fine adjustment that would otherwise be needed to achieve shaft center alignment and synchronized operation. The number of assembling processes and, consequently, total time required for installation is decreased. The reduced number of linear components accordingly reduces the number of peripheral components such as motors and amplifiers
Company Profile
SEFUTO tech has professional R&D engineers and sales teams, with many years of export experience. Our products are mainly used in robots,drones, medical equipment, CNC machine tools, semiconductor equipment, high precision industry, electronic machinery equipment , testing equipment.engineering machinery, metallurgical equipment, automation industries. We have close cooperative relations with enterprises in various countries around the world, and have been recognized andtrusted by our customers!
We also have rich experience in brands like orginally Japan,Taiwan products ,and compatible CHINA brand.
Our advantages: customizable, high quality, low cost, short delivery time.
We also have rich experience in brands like orginally Japan,Taiwan products ,and compatible CHINA brand.
Our advantages: customizable, high quality, low cost, short delivery time.
