Double Sides Into Wind Crossflow Water Closed Loop Steel Cooling Tower
- Category: >>>
- Supplier: Wuxi Master Cooling Machinery Manufacturing Co. Ltd.
Share on (1601012933965):
Product Overview
Description
Application
Product Structure & Details
Fan--Low noise large diameter fan
Low speed fully sealed motor adopts blades with super width. The fan is composed of aluminum blades and steel wheel hub, featuring low wind resistance, high rate of air flow, low noise, high efficiency and reliable performance and so on. The protective level is IP55, suitable used for out door.
( Blade options: aluminum alloy, aluminum alloy hollow, carbon fiber, polythylene )
Outer Sheel--Imported Aluminum-zinc Plate
The imported Aluminum-zinc plate is one of the best corrosion resistant materials at present, with life span 3-6 times than common galvanized steel. And has follwing advantages such like high strength and toughness, good heat resistance and beautiful appearance, etc.
( Shell material options: Aluminum-zinc plate, SuperDyma, 304 Stainless steel )
Cooling Coils--Different choices of material
Red Copper Coils: Good heat exchange effect, high antifreeze requirements. Pressure design 1.6Mpa.
Stanless Steel Coils: Pressure design 2.5Mpa, corrosion-resistance ability, cheaper.
Adopt advanced automatic welding equipment to ensure no leakage.
PLC--Brand:Siemens, Schneider
PLC intelligent control, local/remote control, can be adjusted according to different working conditions.
PVC Fills--High efficiency PVC material
High quality PVC material may effectively transfer heat and reducing the water flow to save energy resources.
( Air window options: steel louver type, pvc honeycomb type )
Spraying System--Efficient spray system
Spraying Nozzle: The high-efficiency water spary system provides important guarantee for the cooling capacity. Spray water is evenly distributed, and the spray nozzles are easy to clean and replace.

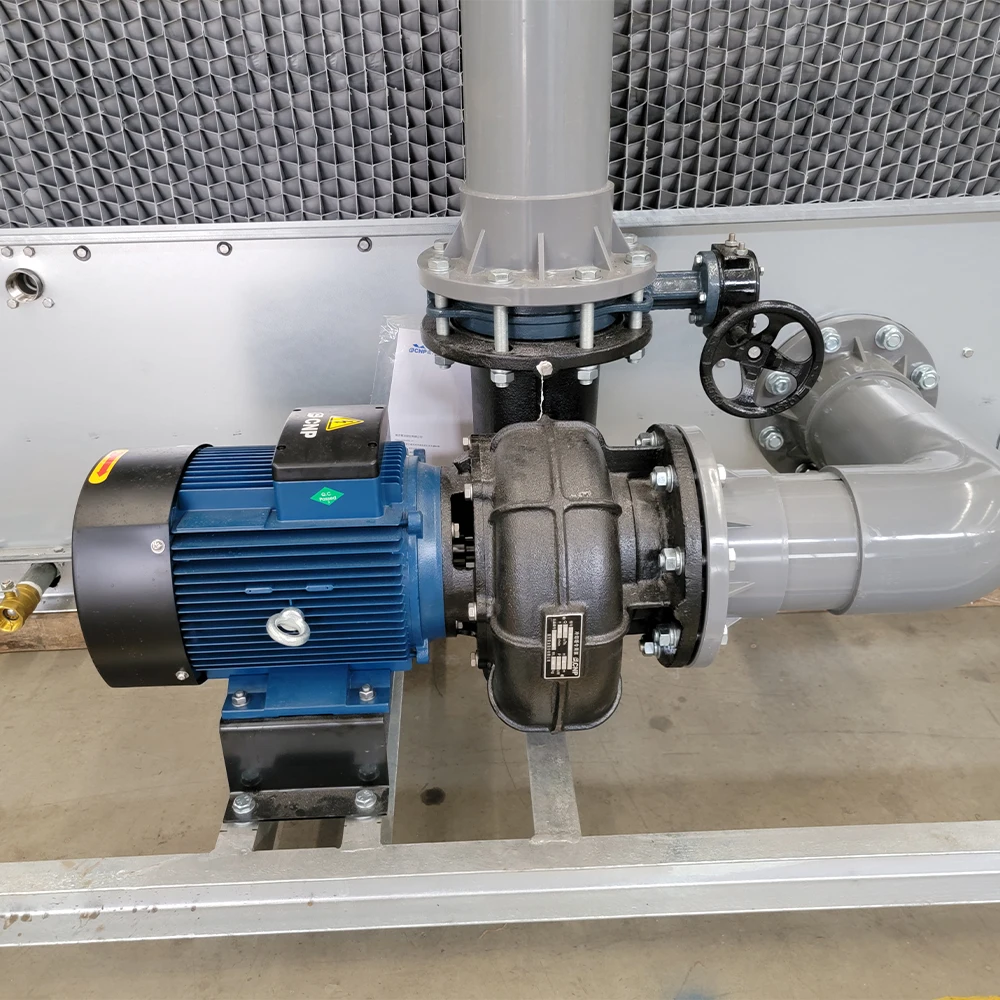

Spraying pump: Special circulating spary pump with the protective level is IP55, no leakage, long life span.

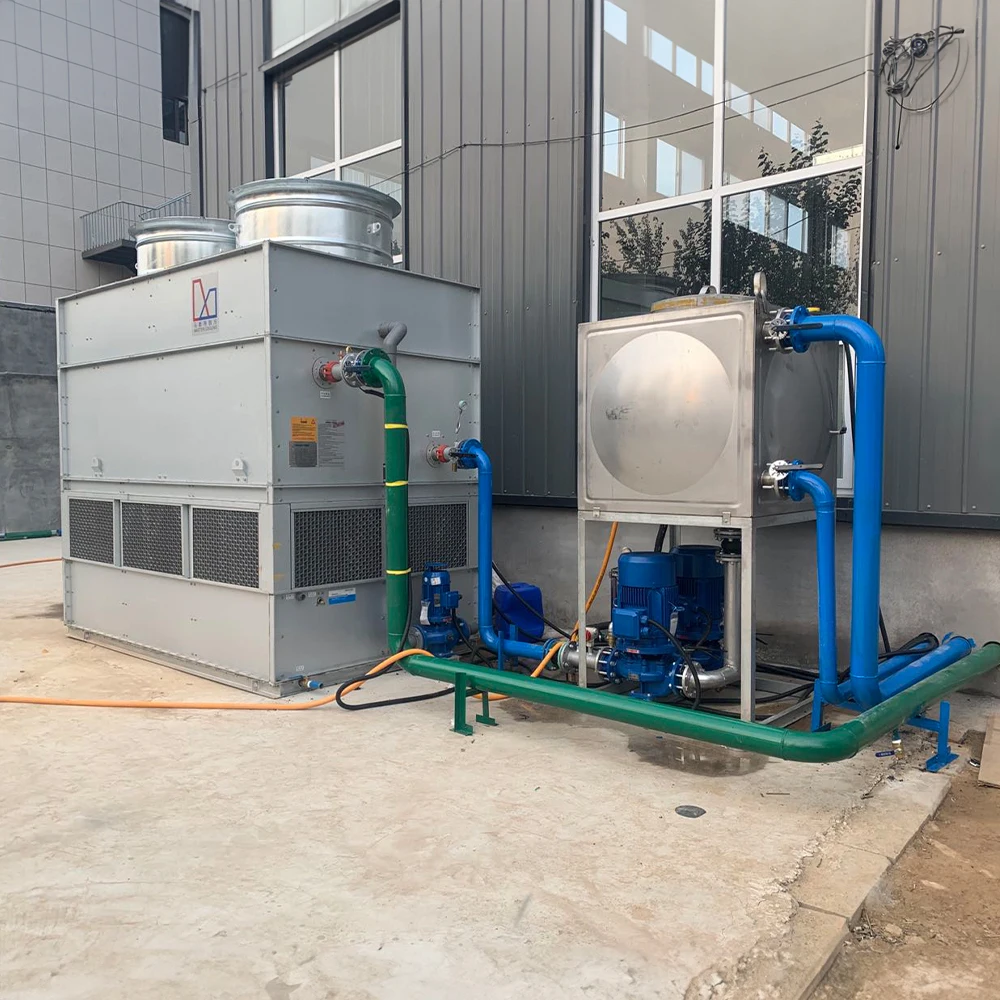

Auxiliary--Choose depend on your needs
Main circulationg pump
A pump with a backup, failure occurs the backup pump can automatically put into operation high efficiency. Low-vibration, low-noise and high energy efficient.
( Motor options: Simens, ABB, Datang, Dongyuan )
Product parameters
Provide us with your working conditions and we will customize the most suitable energy saving solution for you.
MSTNB-10 | MSTNB-100 | MSTNB-200 | ||
Detailed specifications are shown in the table below | ||||
Products Description
Characteristics
1.Compact Structure
Counter-flow closed tower has four faces for wind inlet，which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Counter-flow closed tower has four faces for wind inlet，which is relatively uniform . The inner structure of the tower is more compact , reducing the footprint and meeting the needs of user space . Under the same occupation area , the heat transfer efficiency is higher than that of other models.
2.High efficiency
There is a large height difference between the air inlet and outlet . and will not to short flow . which can ensure that the
saturation humidity of the inlet air is relatively low . And the arrangement of the fan ensures the uniform distribution of air
volume , less heat dissipation blind area and sufficient heat exchange.
3.Easy for installation
We can combine the tower with auxiliary together to be a whole suit , it will convenient for customers to operate , and easy to transportation & installation.
Certifications
Why Choose Us
(1)We have complete service of cooling tower equipment
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
