USR TCP232 306 RS485 RS232 RS422 to Ethernet Converter Modbus Rtu to Tcp Gateway Multi Host Modbus Polling watchdog protection
- Category: >>>
- Supplier: Jinan USR IOT Technology Limited
Share on (1601012944796):
Product Overview
Description
\t\t\t\t\t\t\t\t\tWelcome to Minisite \t\t\t\t\t\t\t
Product Description

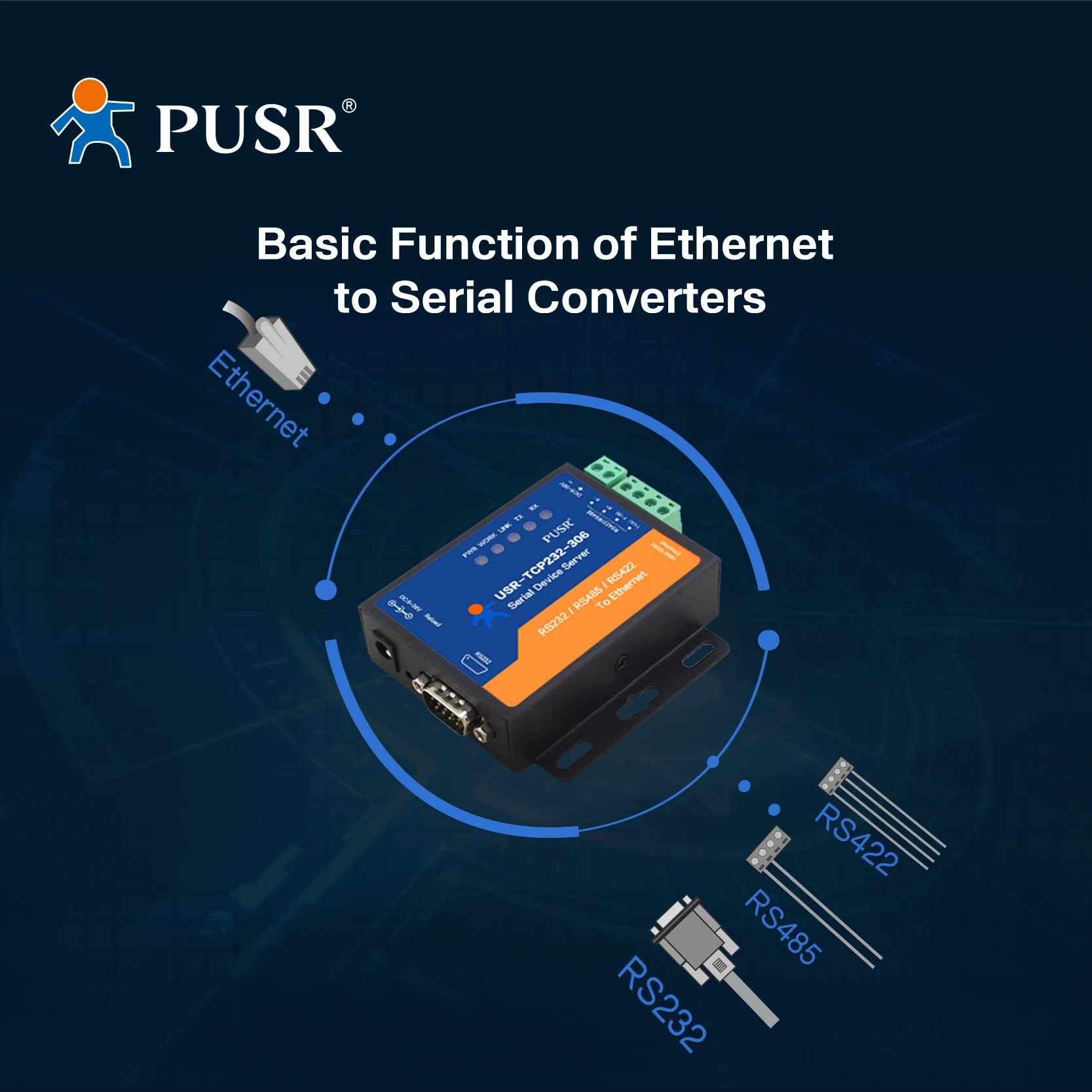

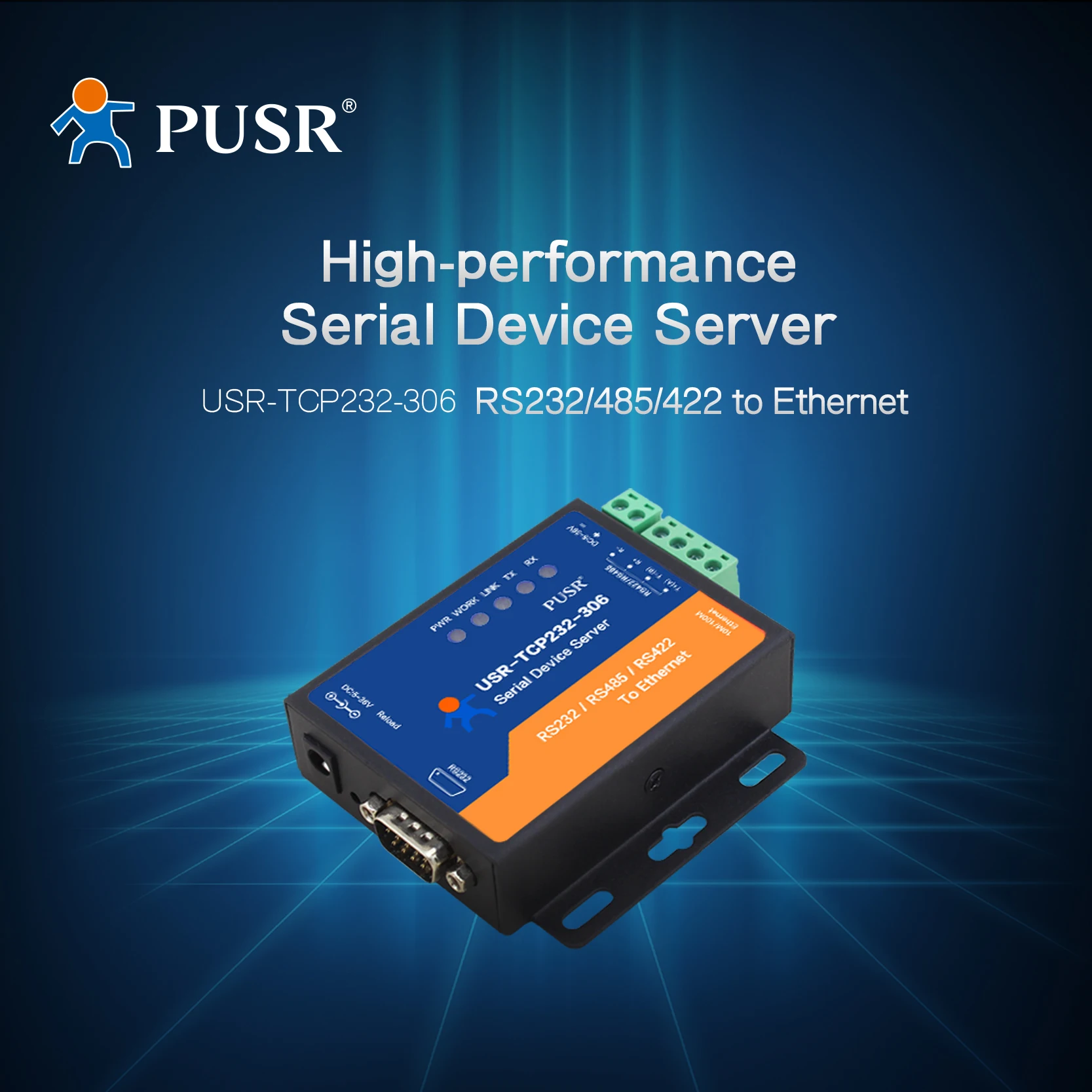

USR-TCP232-302, USR-TCP232-304 and USR-TCP232-306 are cost-effective serial to Ethernet converter. They adopt Cortex-M0 solution,
which has a main frequency up to 48MHz, providing fast transmission speed. Equipped with RS232/RS485/RS422 serial port and 10/100M
Ethernet port, those products can connect to variety of serial devices to achieve transparent transmission via simple

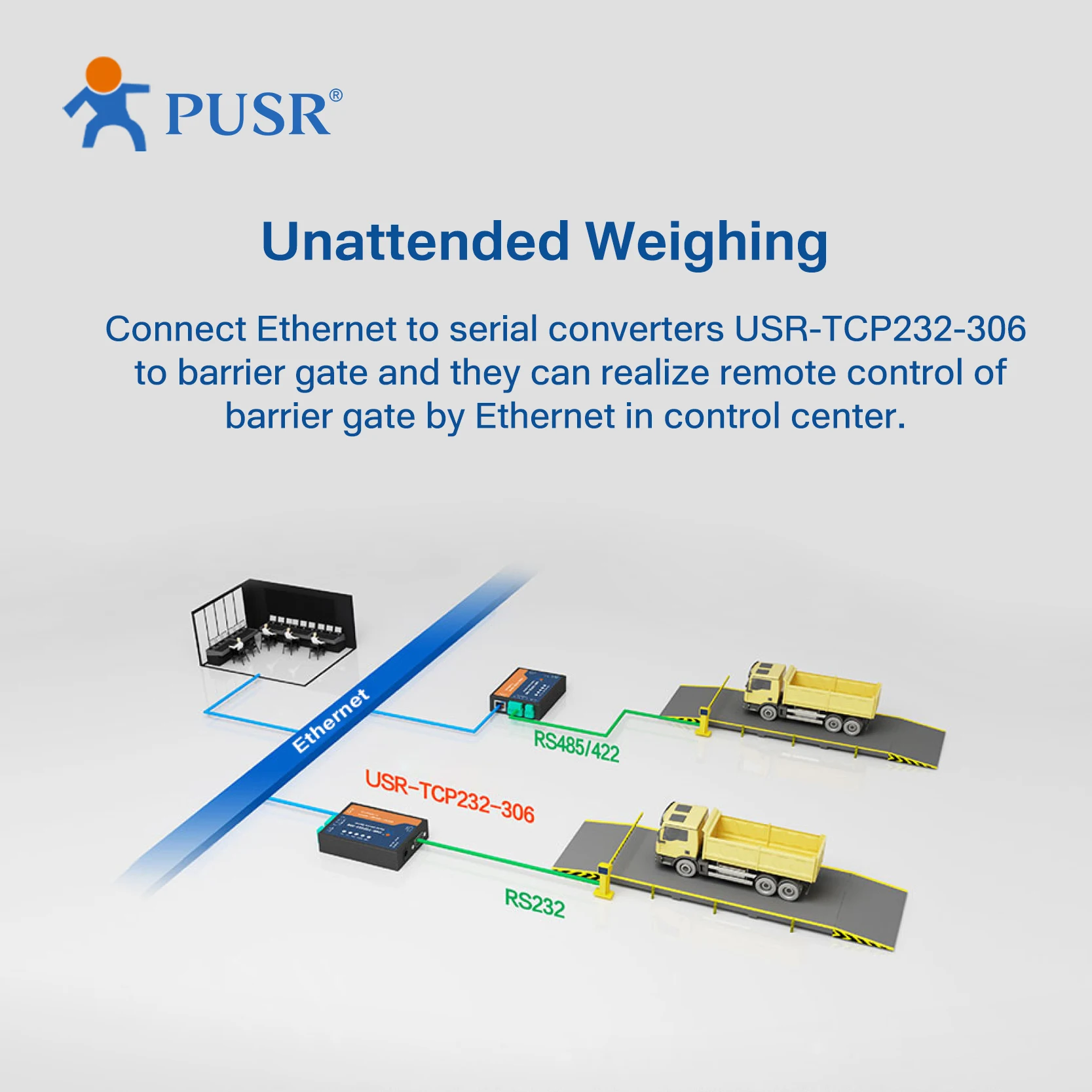

configuration to save manpower and shorten the development cycle. These products are widely used in smart traffic, unattended
Weighing, manufacturing industry etc. USR-TCP232-302, 304 and 306 are identical in software features, they both support

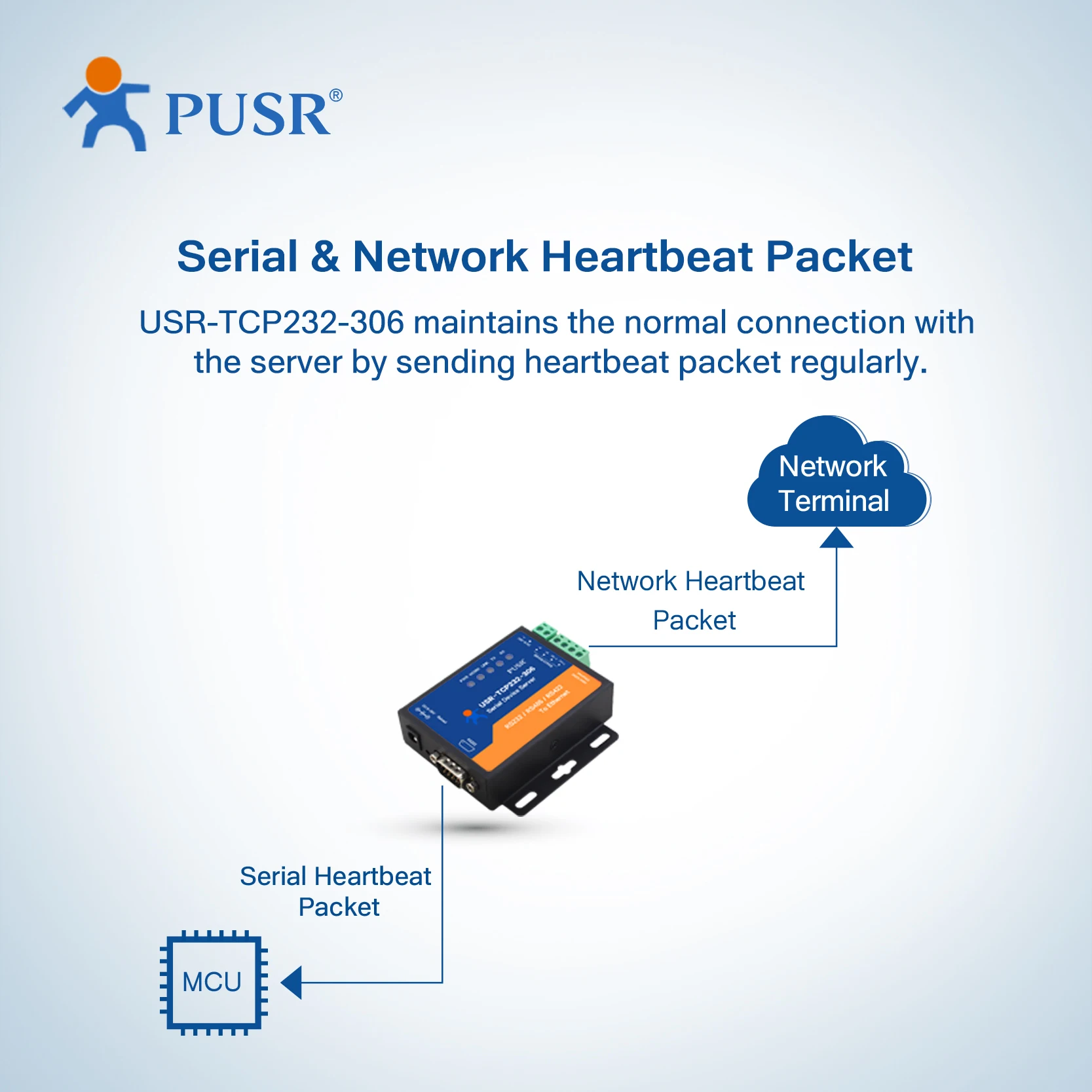

transparent data transmission, Modbus gateway, user-defined webpage, heartbeat packet, registration packet, index function etc. In
hardware, TCP232-302 is RS232 to Ethernet converter, TCP232-304 is RS485 to Ethernet, TCP232- 306 supports RS485/RS232/RS422, but
RS485/RS232/RS422 can’t work at the same time.
which has a main frequency up to 48MHz, providing fast transmission speed. Equipped with RS232/RS485/RS422 serial port and 10/100M
Ethernet port, those products can connect to variety of serial devices to achieve transparent transmission via simple
configuration to save manpower and shorten the development cycle. These products are widely used in smart traffic, unattended
Weighing, manufacturing industry etc. USR-TCP232-302, 304 and 306 are identical in software features, they both support
transparent data transmission, Modbus gateway, user-defined webpage, heartbeat packet, registration packet, index function etc. In
hardware, TCP232-302 is RS232 to Ethernet converter, TCP232-304 is RS485 to Ethernet, TCP232- 306 supports RS485/RS232/RS422, but
RS485/RS232/RS422 can’t work at the same time.
Feature
Chip Solution | Atmel, work temp at -20~75C |
Power Supply | DC/Terminal type 5V~36V |
Serial Port | Supports RS232/RS485/RS422, can't be worked at one time |
Work Mode | TCP Client/TCP Server/UDP client/ UDP server/HTTPD client |
Basic Function | DHCP/DNS/Webpage |
Baud rate | 600~230.4K bps |
Certification | CE/FCC/RoHs/WEEE |
Point 1
1.ARM core, Cortex-M0 solution, equipped with deeply optimized TCP/IP protocol stack. It has low latency and strong scalability,
stable and reliable.2.Supports custom webpage function to help users improve brand influence.
3. 1.5KV built-in network Magnetic
Isolation.
4.Wide baud rate: 600~460.8 Kbps, multiple parity bit: NONE, Odd, Even, Space, Mark
5.Supports Modbus RTU to Modbus TCP
protocol conversion and multi-host polling.
6.Supports keepalive mechanism to quickly detect the dead connections and reconnect.
stable and reliable.2.Supports custom webpage function to help users improve brand influence.
3. 1.5KV built-in network Magnetic
Isolation.
4.Wide baud rate: 600~460.8 Kbps, multiple parity bit: NONE, Odd, Even, Space, Mark
5.Supports Modbus RTU to Modbus TCP
protocol conversion and multi-host polling.
6.Supports keepalive mechanism to quickly detect the dead connections and reconnect.
Point 2
Supports hardware and software watchdog, automatically restarts when the device goes down.1. 10/100Mbps Ethernet port and support
Auto MDI/MDIX.
2.Supports a wide industrial operating temperature, -40℃~85℃.
3.Versatile operation modes: TCP Server, TCP Client,
UDP, HTTP client.
4.Support virtual COM, COM Port Redirector USR-VCOM (windows).
5.Easy to config: built-in webpage and AT command
to set parameters.
Auto MDI/MDIX.
2.Supports a wide industrial operating temperature, -40℃~85℃.
3.Versatile operation modes: TCP Server, TCP Client,
UDP, HTTP client.
4.Support virtual COM, COM Port Redirector USR-VCOM (windows).
5.Easy to config: built-in webpage and AT command
to set parameters.
Character
Serial Port | RS-232 / RS-485 / RS422 |

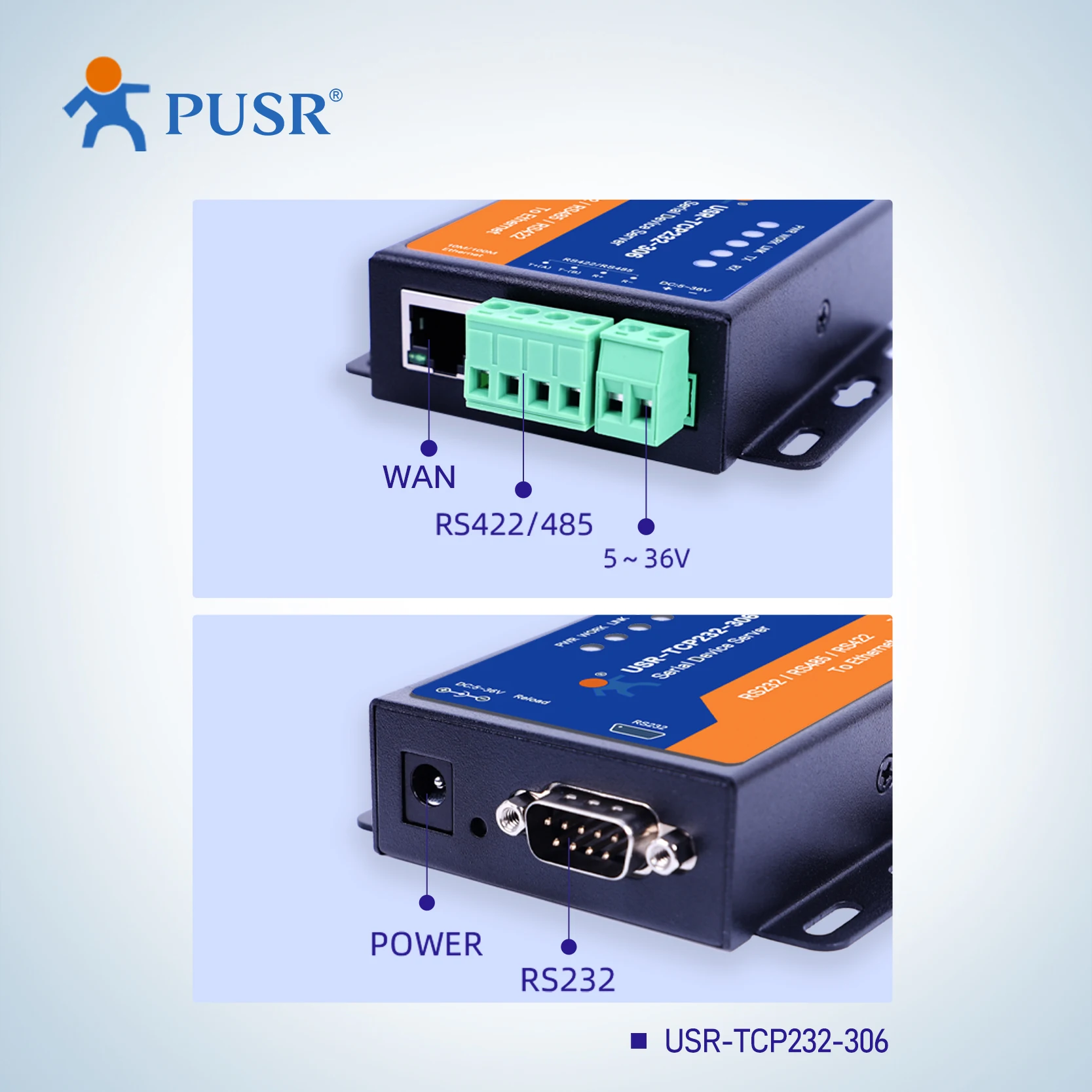

Port Type | RS-232: DB9 male port; RS-485: A+/B; RS422: TX+/TX-/RX+/RX- |
Baud Rate | 600 bps ~230.4K bps |
Data Bit | 5/6/7/8 |
Stop Bit | 1/2 |
Buffer | Receive: 2K bytes; |
Flow Control | Not this function |
Protect | RS-485: ESD/lightning protection/ 2KV electric static protection |
Ethernet | 1 Port |
Speed Rate | 10/100 Mbps, MDI/MDIX |
Buffer | Receive: 4K byte / Send: 6K byte |
Protection | 2 KV Electromagnetic isolation for Ethernet port |
Network Protocol | IP/TCP/UDP/DHCP/DNS/HTTPD client |
Power Supply | DC 5-36 V (ESD/ Surge prevention) |
Work Temp | -25~75C |
Software | Setup/Virtual COM |
