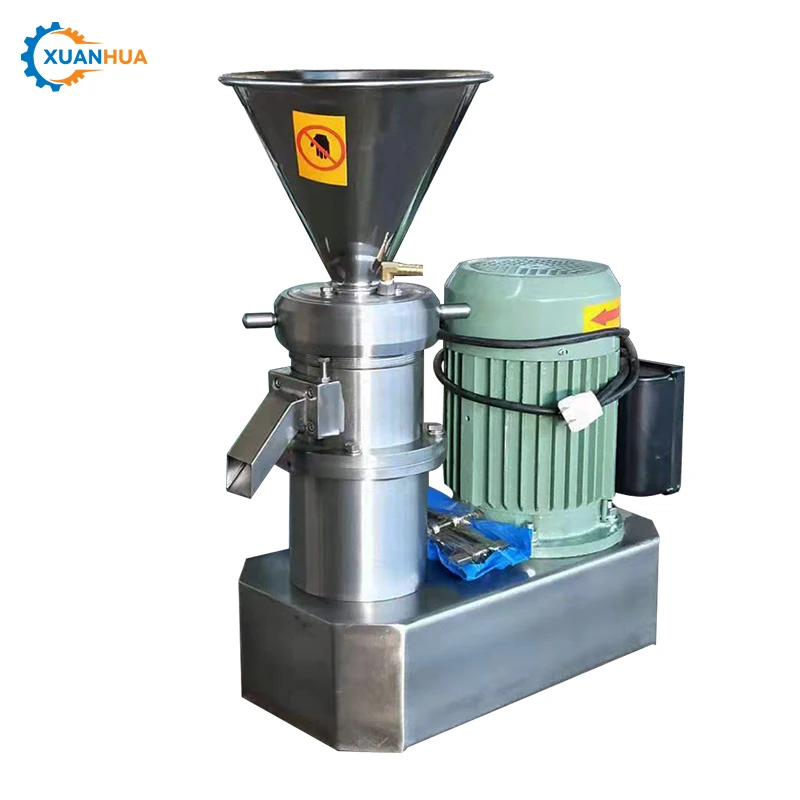

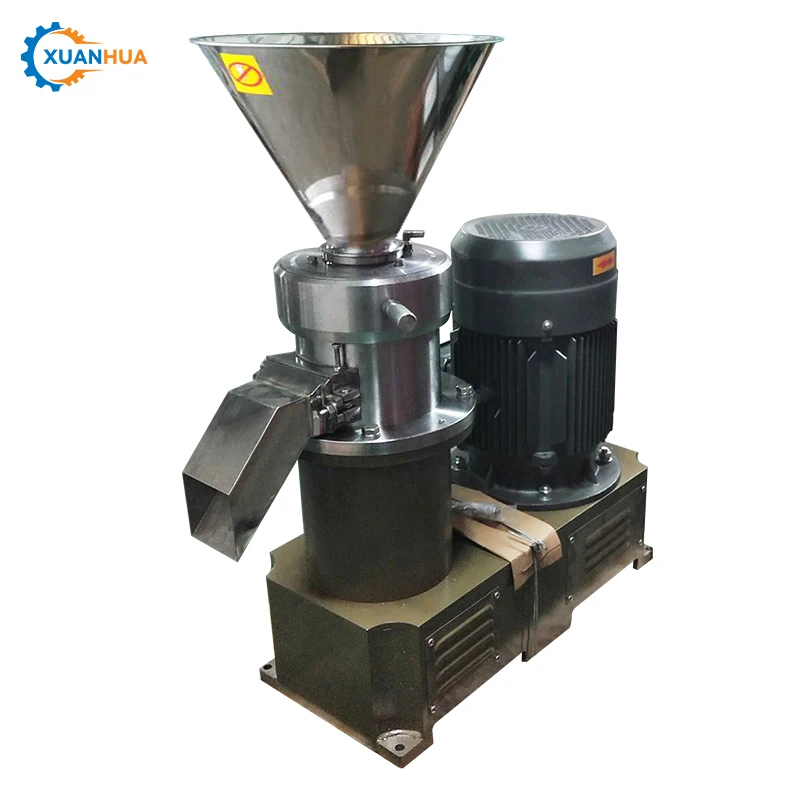

low consumption meat bone grinder peanuts grinding machine with CE
- Category: >>>
- Supplier: Henan Xuanhua Imp.&exp. Trading Co. Ltd.
Share on (1601012967486):
Product Overview
Description
We have colloid mill machine & peanut butter production line.
Which do you want?
Product Description
A colloid mill is a machine that finely processes fluid materials. It combines the performance of homogenizer, ball mill, three-roller, shearing machine, mixer and other machinery, with superior ultra-fine grinding, dispersion emulsification, homogenization, mixing and other effects. After processing the material with a particle size of 50-200 mesh and a homogenization of over 90%, it is an ideal equipment for ultra-fine particle processing.
The machine is suitable for ultrafine grinding, emulsification, homogenization and mixing of wet materials in pharmaceutical, food, chemical and other industries.
1. The main parts are made of high quality stainless steel, food grade and corrosion resistant.
2. The main working parts adopt special machining and heat treatment process with high precision and long service life.

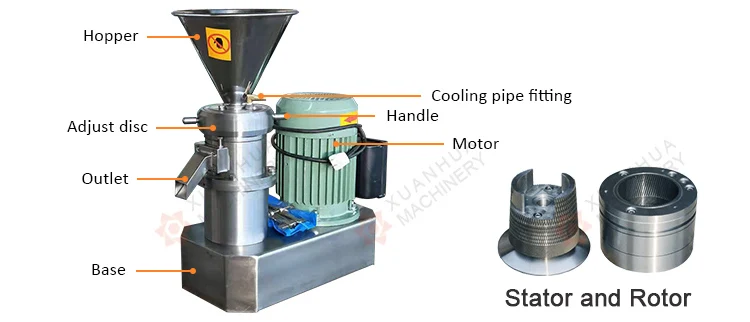

3. The stator and rotor can be made of different materials, with different structures and tooth shapes such as grinding and shearing, and have wide applicability.
4. The machining gap is adjusted by the adjustment ring for easy adjustment.
5. Use standard motor.

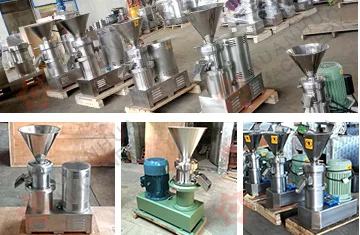

Product Photo

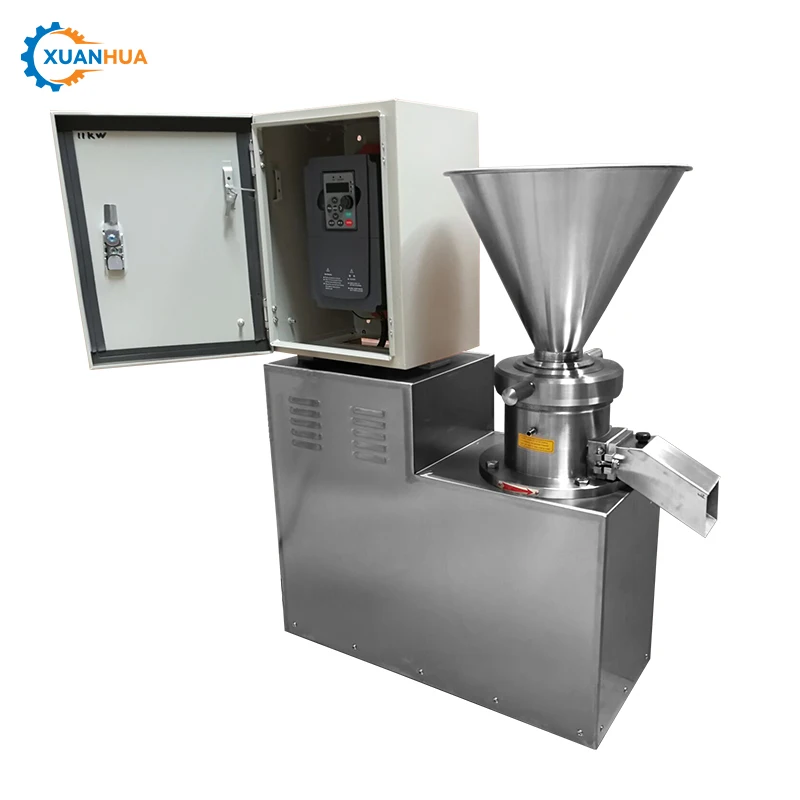

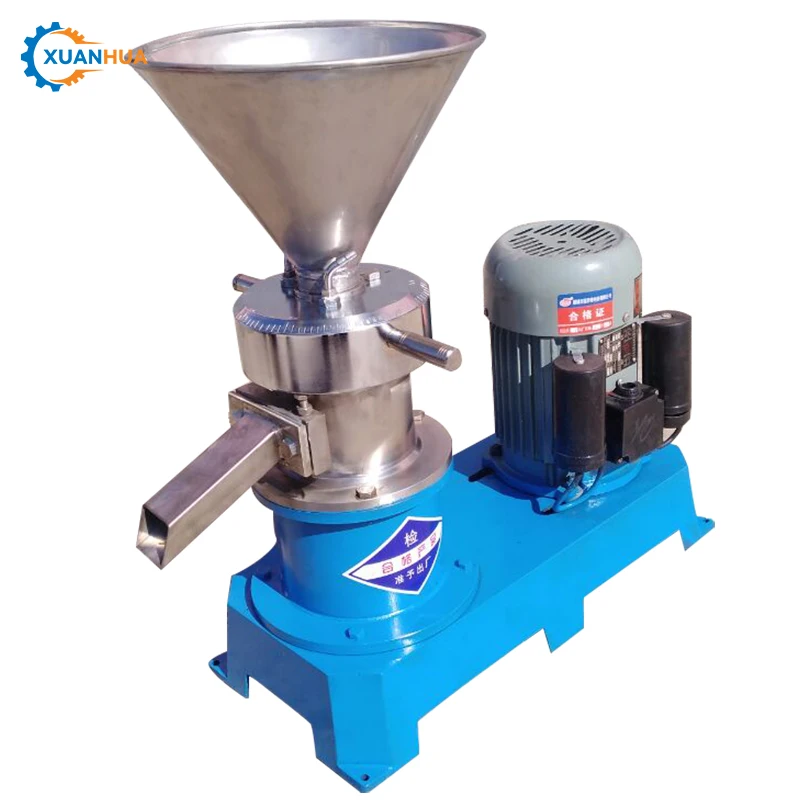

Cost-effective Model

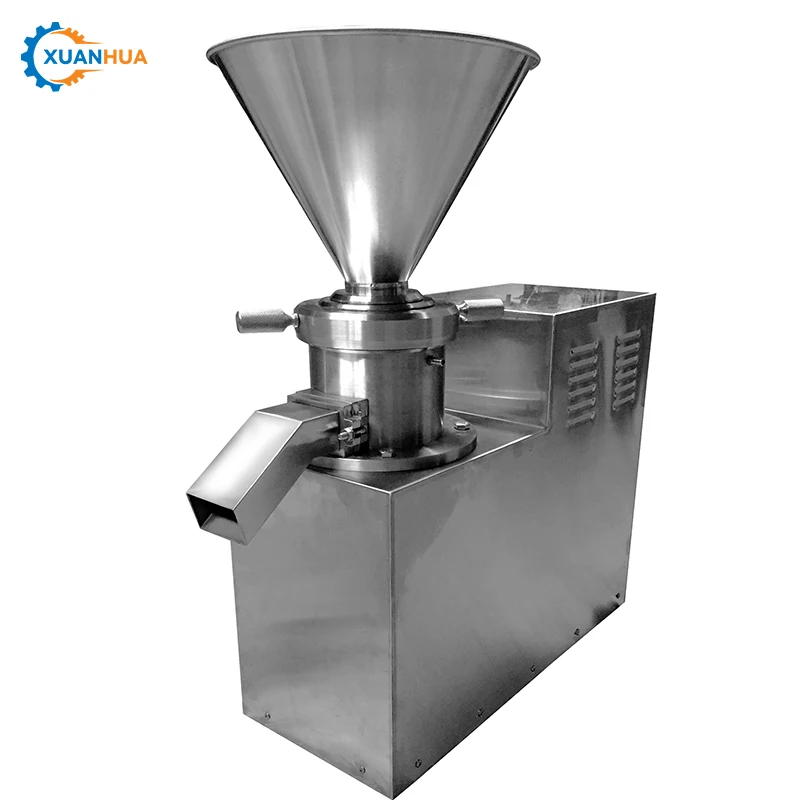

With SS304 Cover
Vertical Model With SS304 Cover
Hardcover Model With Circulation Tube
Hardcover Model
Main Technical Parameters： | Main Technical Parameters | |||||||||||
Model | Fineness | Power | Capacity | Motor Speed | Weight | Dimension | ||||||
JM-50 | 50-100 mesh | 1.5 KW | 10-20 kg/h | 2880 r/min | 50 kg | 53*26*58 cm | ||||||
JM-80 | 50-100 mesh | 4 KW | 30-80 kg/h | 2880 r/min | 150 kg | 64*41*90 cm | ||||||
JM-110 | 100-200 mesh | 7.5 KW | 150-200 kg/h | 2880 r/min | 175 kg | 70*43*98 cm | ||||||
JM-130 | 100-200 mesh | 15 KW | 300-500 kg/h | 2880 r/min | 285 kg | 83*44*110 cm | ||||||
JM-180 | 100-200 mesh | 22 KW | 800-1000 kg/h | 2880 r/min | 340 kg | 83*49*110 cm | ||||||
JM-240 | 100-200 mesh | 45 KW | 1500-2000 kg/h | 2880 r/min | 1300 kg | 132*60*128 cm | ||||||
JM-300 | 60-200 mesh | 75 KW | 3000-4000 kg/h | 2880 r/min | 1600 kg | 150*80*112 cm | ||||||

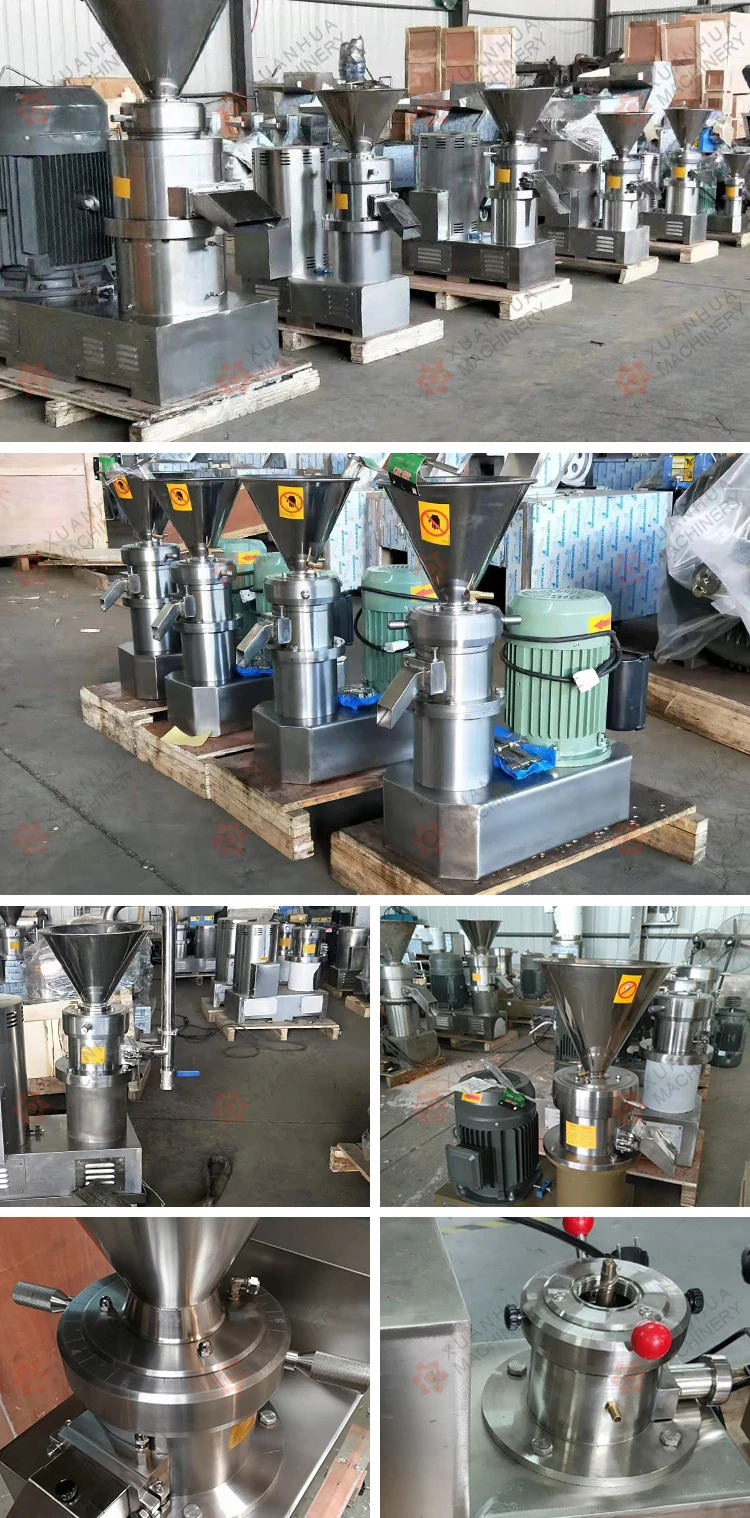

Product show
Working Effect
Colloid mills are widely used
Nuts (peanuts, sesame, almonds, cashews, etc.), Vegetables, Fruits, Bones.
Nuts (peanuts, sesame, almonds, cashews, etc.), Vegetables, Fruits, Bones.
Sesame soy | Peanut butter | Almond butter | Cashew kernel paste |
Hazelnut butter | Tomato ketchup | Chili patse | Bone paste |
20 YEAES MANUFACTURING EXPERIENCE
15600㎡Factory Total Area
5000 Sets Annual Production Capacity
55 Professional Engineers
5000 Sets Annual Production Capacity
55 Professional Engineers
MAIN MARKET
Europe Russia,Austria,Belarus,Ukraine,Poland
South America Brazil,Colombia,Peru,Bolivia
Middle East Saudi Arabia,Oman,Turkey
South America Brazil,Colombia,Peru,Bolivia
Middle East Saudi Arabia,Oman,Turkey
OEM/ODM CUSTOMIZED
Drawing / Whole Plant Customized
Ability / Voltage Customized
Material / Color Customized
Ability / Voltage Customized
Material / Color Customized
24-HOUR ONLINE SERVICE
7×24 customer service online
7×24 engineers online
12 months quality assurance
7×24 engineers online
12 months quality assurance
Similar products

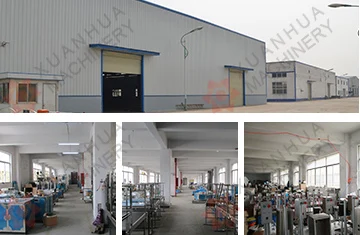

Company Profile
