Touch Screen IP Intercom Call Station For IP Paging PA Intercom System
- Category: >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1601013032579):
Product Overview
Description
Products Description
1, Two-way full duplex voice communication with front-end IP audio intercom station.
2, Hands-free desktop station with gooseneck microphone and built-in speaker.
3, 7” digital HD true color capacitive touch screen (resolution ratio: 1280×800).
4, User-defined ringtones, wallpaper & screensaver, screen brightness and screen lock passcode of the device.
5, Caller ID service (display & announcement) can help the operator to identify who’s calling when receiving an incoming call.
6, Optional answering modes include manual answering & automatic answering.
2, Hands-free desktop station with gooseneck microphone and built-in speaker.
3, 7” digital HD true color capacitive touch screen (resolution ratio: 1280×800).
4, User-defined ringtones, wallpaper & screensaver, screen brightness and screen lock passcode of the device.
5, Caller ID service (display & announcement) can help the operator to identify who’s calling when receiving an incoming call.
6, Optional answering modes include manual answering & automatic answering.
7, Other functionalities such as call transfer, call on hold, three-way calling, PTT (Push-to-Talk) or remote unlocking can also
be achieved during voice communication. 8, Music files stored in the built-in media library, USB flash drive or even your
smartphone can be used to play real-time background music to SPON® IP PA system. 9, Live & pre-recorded voice announcements, TTS
(Text-to-Speech) voice announcement, one-touch emergency voice announcement and other PA functionalities are also available on
this device. 10, Real-time monitoring/surveillance on any specific IP endpoint device (e.g. IP intercom station, IP speaker,
etc.).
be achieved during voice communication. 8, Music files stored in the built-in media library, USB flash drive or even your
smartphone can be used to play real-time background music to SPON® IP PA system. 9, Live & pre-recorded voice announcements, TTS
(Text-to-Speech) voice announcement, one-touch emergency voice announcement and other PA functionalities are also available on
this device. 10, Real-time monitoring/surveillance on any specific IP endpoint device (e.g. IP intercom station, IP speaker,
etc.).

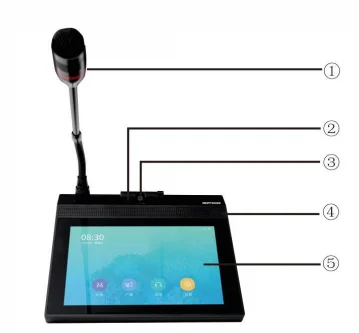

Front Panel
① Gooseneck Microphone Socket: Inset the gooseneck to collect the intercom audio.
② Loudspeaker
③ Touch Screen
② Loudspeaker
③ Touch Screen

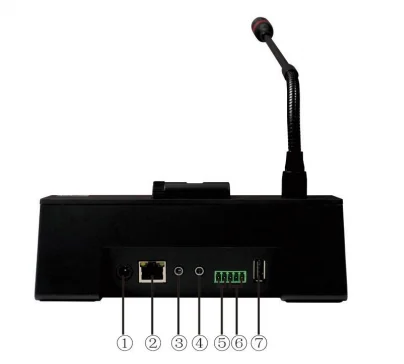

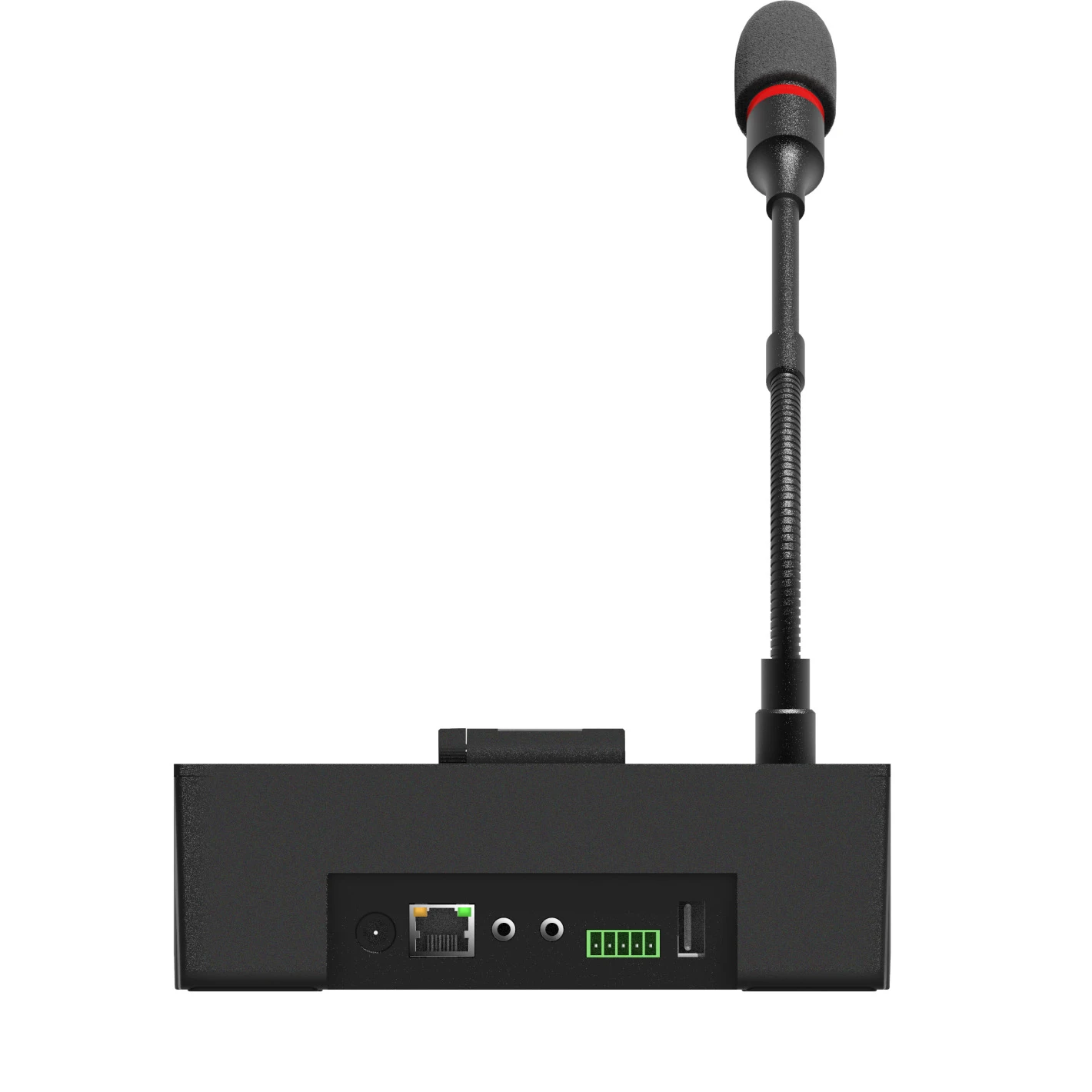

Rear Panel
① Power Input Port : Connect with DC12V/1.5A power adaptor
② RJ45 Network port
③ Audio Input : To connect with mobile phone or laptop, etc.
④ Audio Output : To connect with active speaker or amplifier
⑤ Repaly Input Port : To connect with emergency button, etc.
⑥ Relay Output :To connect with strobe light, buzzer,etc.
② RJ45 Network port
③ Audio Input : To connect with mobile phone or laptop, etc.
④ Audio Output : To connect with active speaker or amplifier
⑤ Repaly Input Port : To connect with emergency button, etc.
⑥ Relay Output :To connect with strobe light, buzzer,etc.
⑦ USB Port: Store the audio/txt file for broadcast
Dimensional Drawing

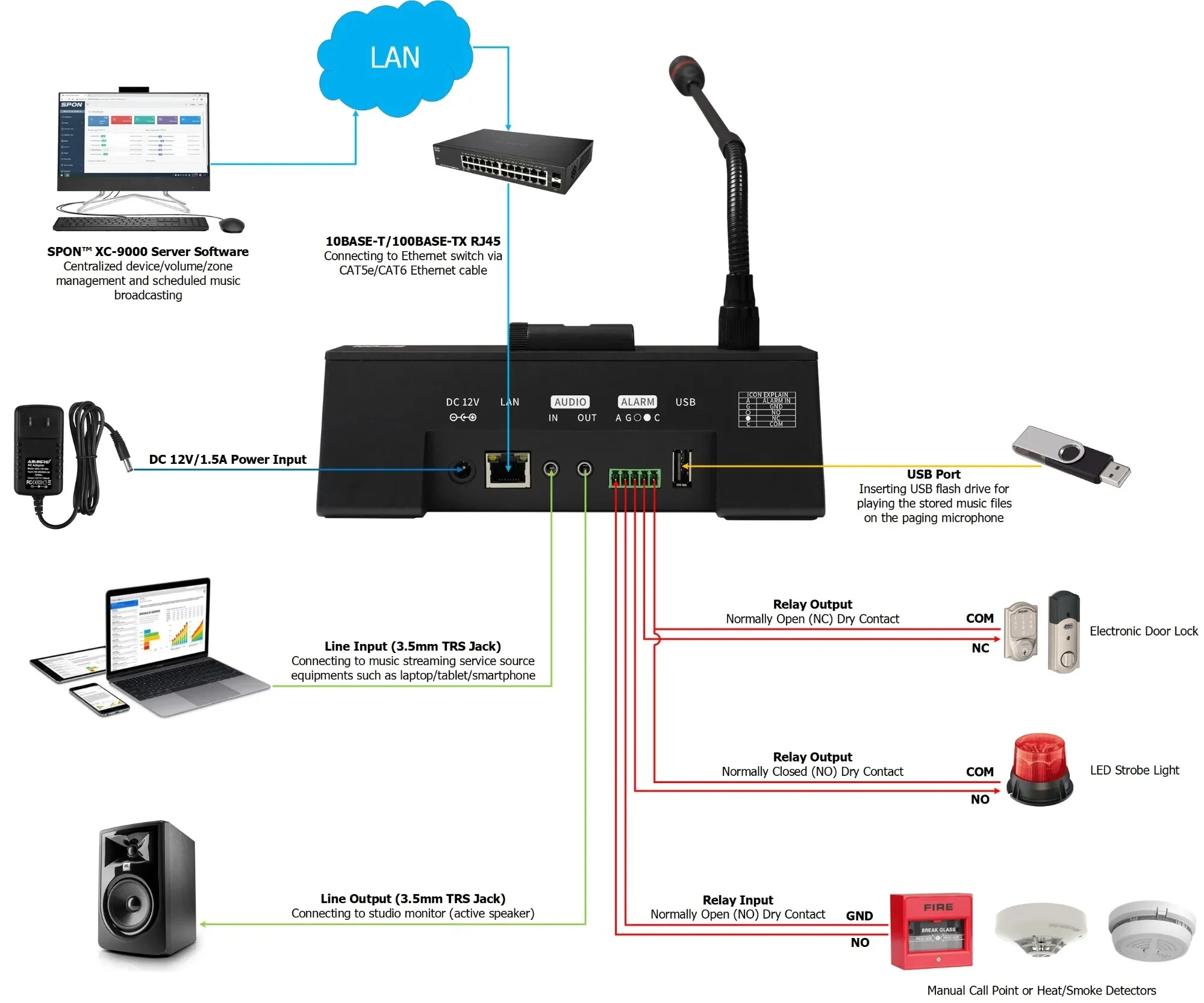

System Topology Diagram
Product Parameters
Power Supply: | DC 12V/1.5A | |||
Audio Codec: | G.711 A-law, G.711 μ-law, G.729, PCM/L16 | |||
S/N (Signal-to-Noise) Ratio: | ≥82dB | |||
Audio Sampling & Bit Rate: | 8kHz-44.1kHz, 16bit, 8kbps-320kbps | |||
Frequency Response: | 40Hz-18kHz | |||
Network Protocol: | SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP | |||
Configuration Method: | Local Settings/Web Page | |||
Mounting Method: | Desktop | |||
Interface: | 1×RJ45 Ethernet Port, 1×USB 2.0, 1×Line Input, 1×Line Output, 1×Relay Input, 1×Relay Output | |||
Dimensions: | 184×169.3×58.9mm | |||
Weight: | 0.75kg | |||
Standard Accessories: | 1×Gooseneck Microphone Rod, 1×5-Pin Terminal Block Connector, 1×Installation Manual | |||
Optional Accessories: | DC 12V/1.5A Power Adapter (US/EU/UK/AU) |
