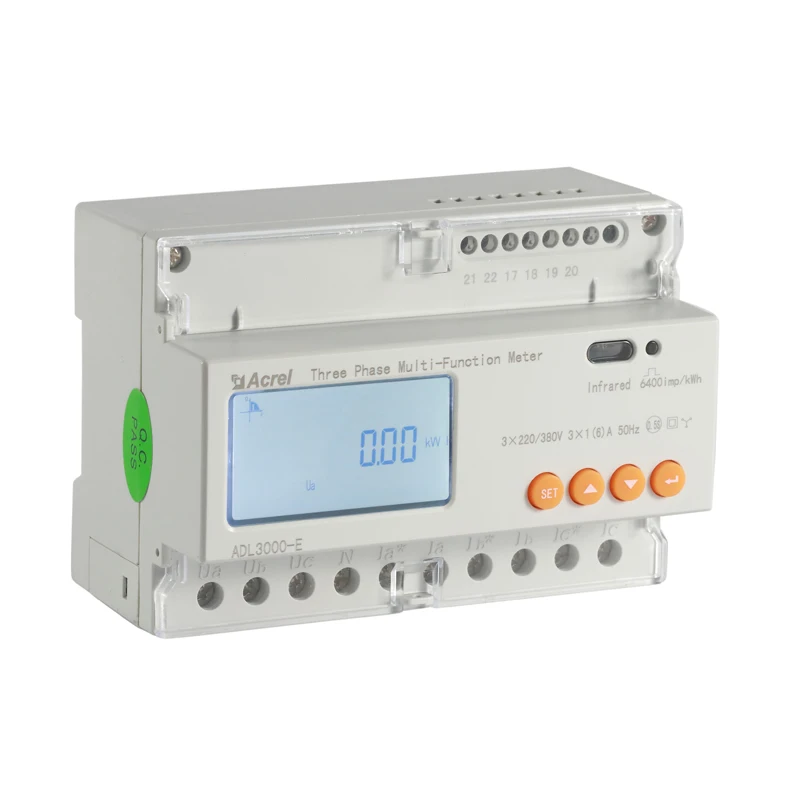

Acrel ADL3000 E/C RS485 modbus 3 Phase Din Rail Smart data recorder power meter for Solar system
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1601013039610):
Product Overview
Description
Solutions & Applications
Power Consumption Monitoring System (Contact me for Clear View！)
IoT EMS Platform
IoT EMS APP
Products Description
Model Name | Rated Voltage | Input current | Communcation | Application |
DTSD1352-C(ADL3000-E/C) | 3*220/380v,3*230/400v,3*57.7/100v | 3*1(6)A, 3*10(80)A | RS485 | Solar system ,factory and so on |

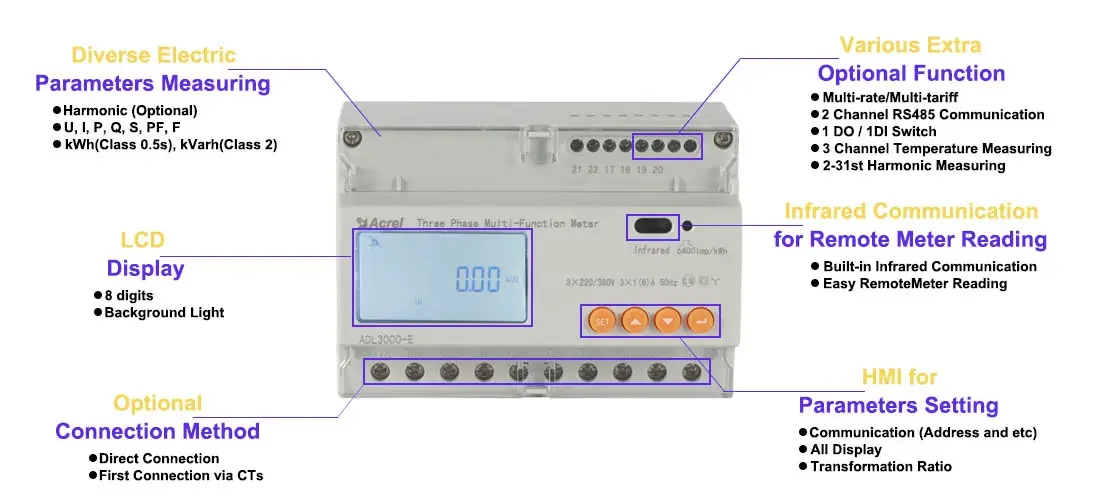

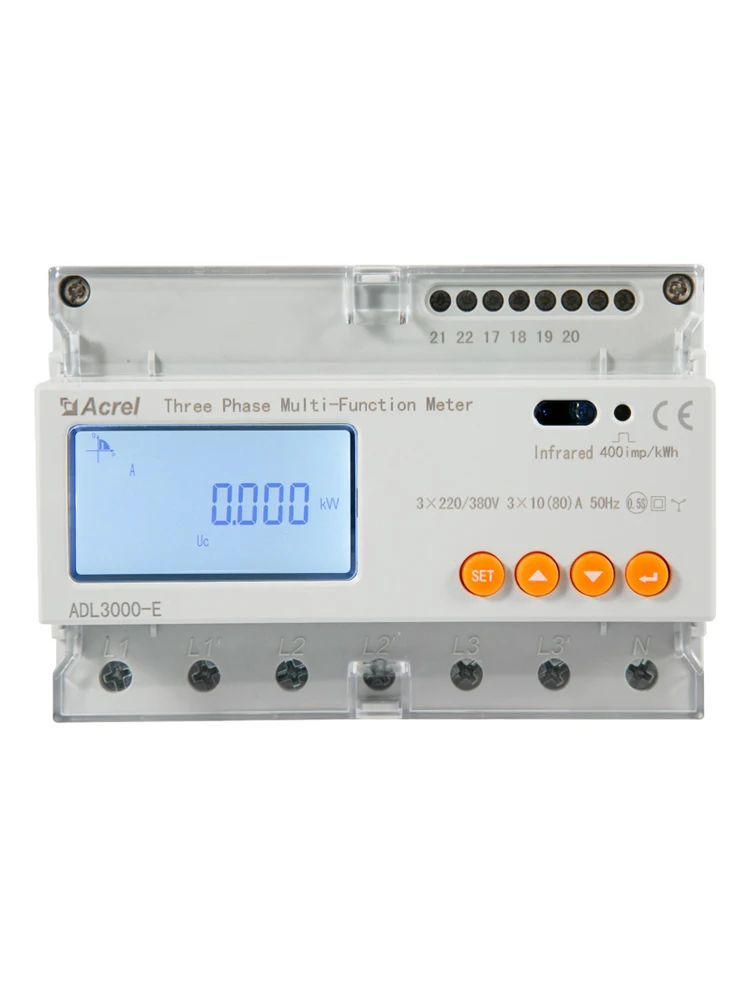

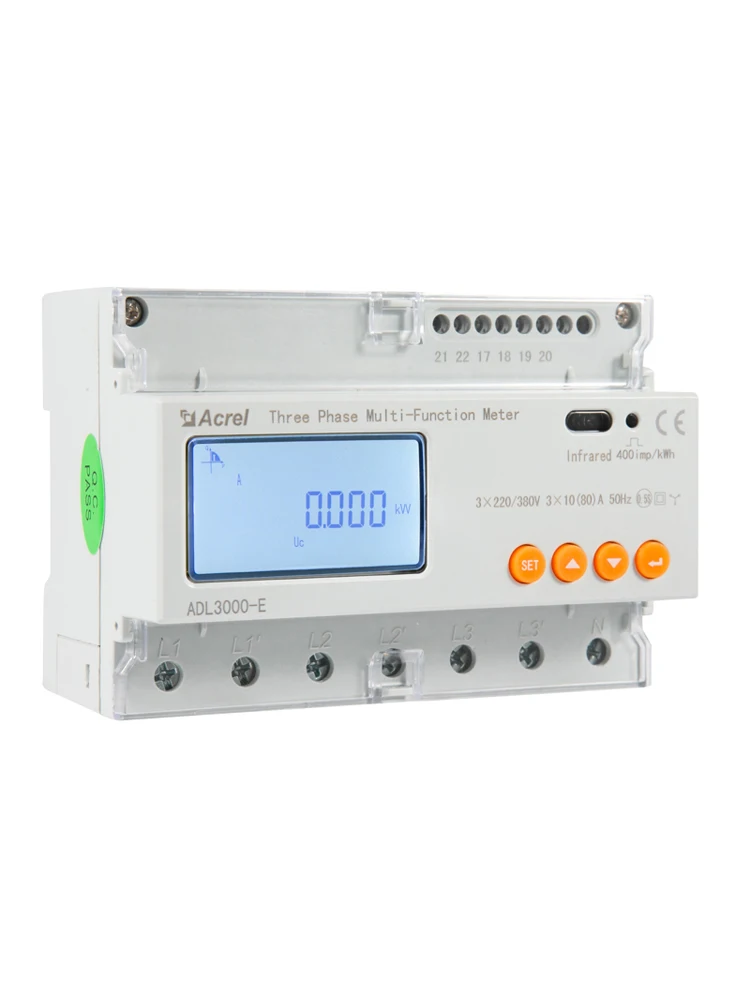

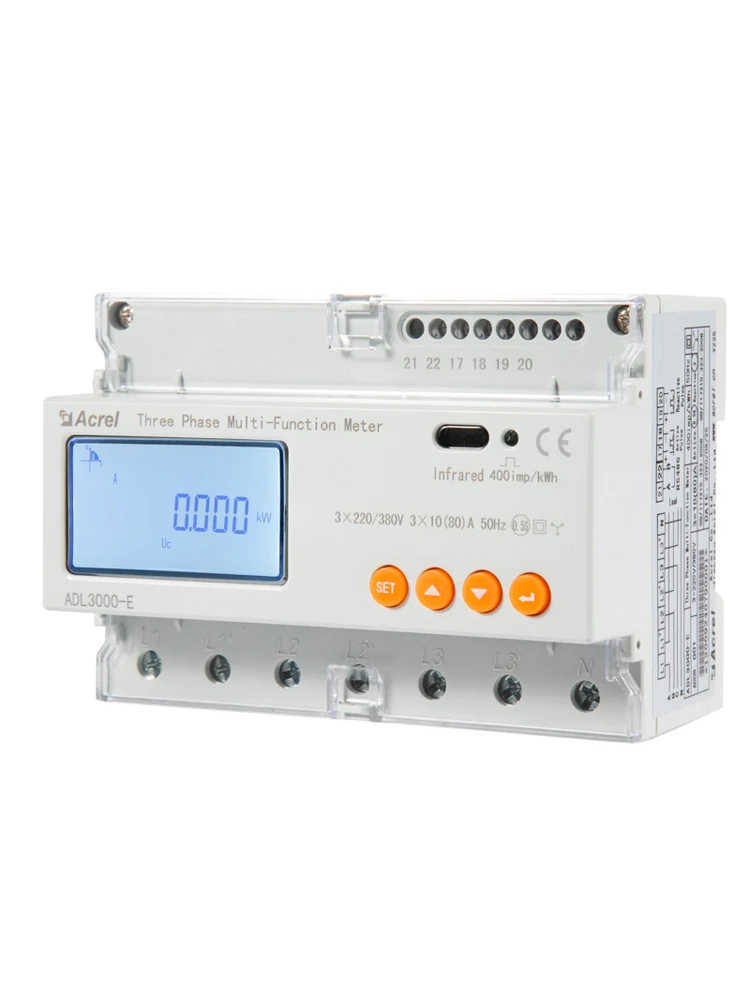

ADL3000-E
ADL3000-E three-phase power meter is designed for 3-phase power measurement on low voltage system. The meter strictly follow the compliance of IEC62053-21,IEC62053-22 standards.
● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
● Current Rating: 3x10(80)A; 3x1(6)A
● Frequency: 45~65Hz
● Commnunication: RS485 (MODBUS-RTU) and Infrared
● Multi-rate: Spike, Peak, Valley and Flat kWh
● Extra Function: Cable Temperature Measurement and DO/DI
● Display: LCD (8 digits)
● Dimension: 127*88*70mm (L*W*H)
● Wiring: 3-phase 4wire; 3-phase 3-wire

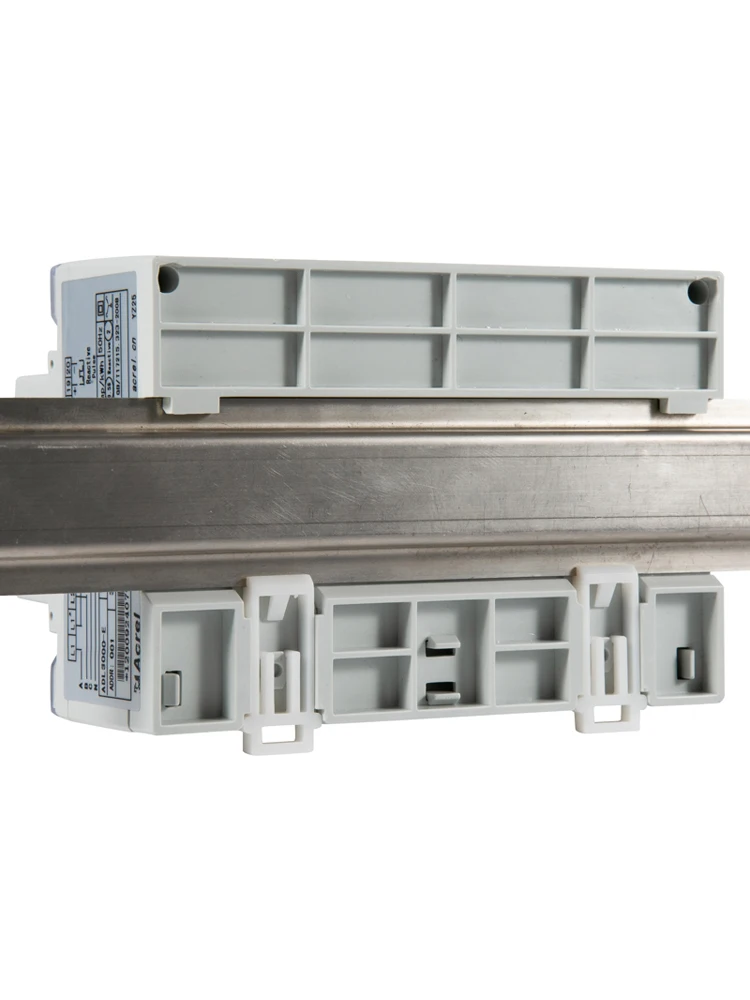

● Installation: 35mm DIN Rail
● Standard&Certificate: IEC; CE; EAC
● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
● Current Rating: 3x10(80)A; 3x1(6)A
● Frequency: 45~65Hz
● Commnunication: RS485 (MODBUS-RTU) and Infrared
● Multi-rate: Spike, Peak, Valley and Flat kWh
● Extra Function: Cable Temperature Measurement and DO/DI
● Display: LCD (8 digits)
● Dimension: 127*88*70mm (L*W*H)
● Wiring: 3-phase 4wire; 3-phase 3-wire
● Installation: 35mm DIN Rail
● Standard&Certificate: IEC; CE; EAC

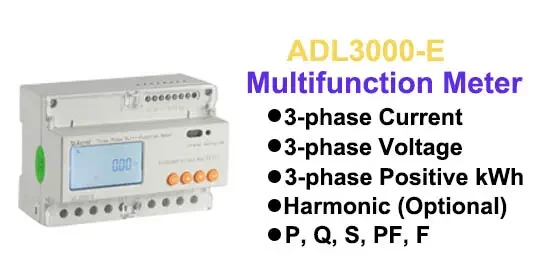

Diverse Electricity Parameters Measurement
● Harmonic (2~31st voltage¤t)---Optional
● F (Frequency)
● U (3-phase Voltage)
● I (3-phase Current)
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● F (Frequency)
● U (3-phase Voltage)
● I (3-phase Current)
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time

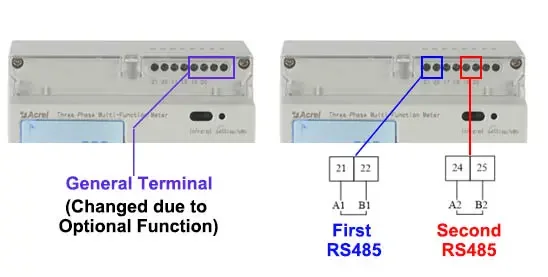

2 Channel RS485 Communication
● Protocol: MODBUS-RTU
● 1 channel RS485 or 2 channel RS485 both optional
● 1 channel RS485 or 2 channel RS485 both optional

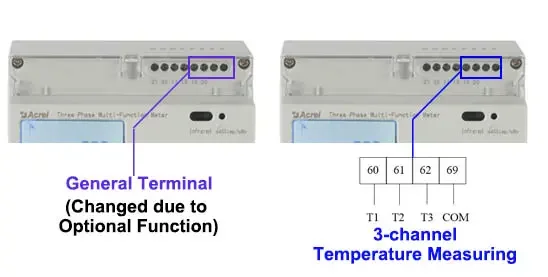

3-channel Temperature Measuring
● Thermistor: NTC temperature sensor
● Measuring Range: -40℃~+125℃
● Measuring Range: -40℃~+125℃

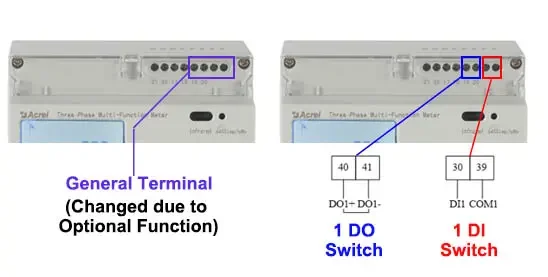

DO/DI Switch
● 1 channel DO
● 1 channel DI
● 1 channel DI

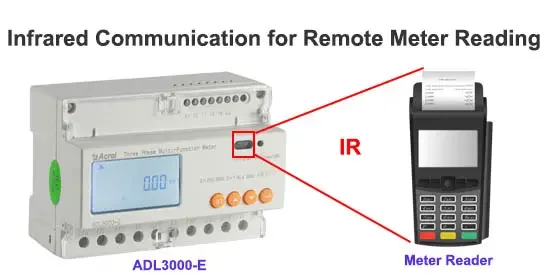

Infrared Communication for Remote Meter Reading
● Built-in infrared communication
● Easy Remote Meter Reading
● Optional Connection Methods
● Direct Connection with Meter
● First Connection via CT.
● Easy Remote Meter Reading
● Optional Connection Methods
● Direct Connection with Meter
● First Connection via CT.

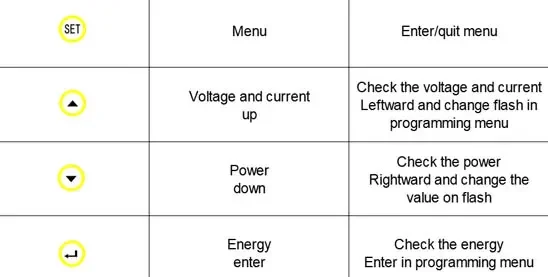

HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display
● Protocol
● Address
● Baud rate
● Parity
● All Display

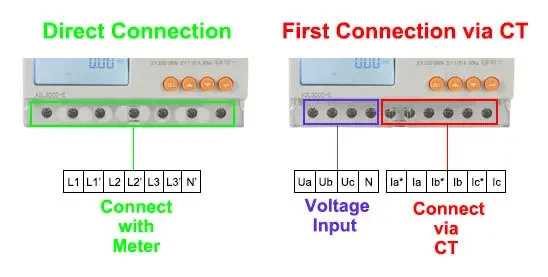

Optional Connection Methods
● Direct Connection with Meter
● First Connection via CT. .
● First Connection via CT. .

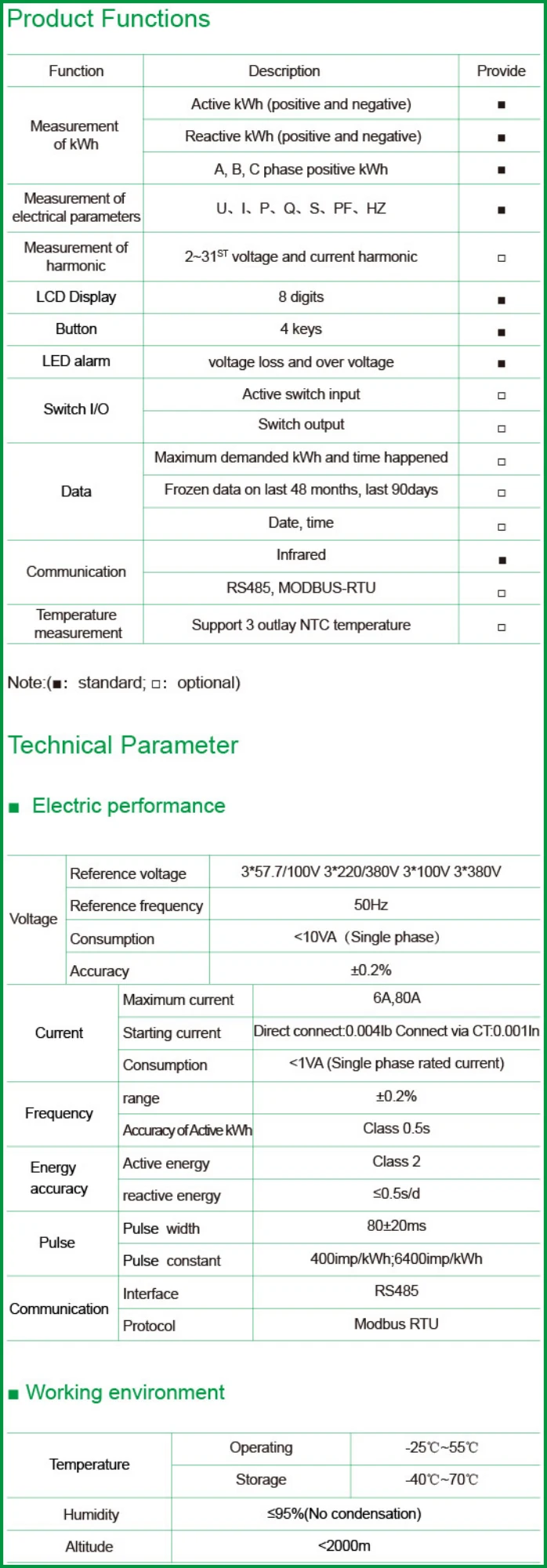

Function & Parameter
Dimension & Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
