50T EPDM Rubber tiles Hydraulic Hot Press/Rubber Flooring Tile Machine / Rubber Vulcanizing Press

Product Overview

Description

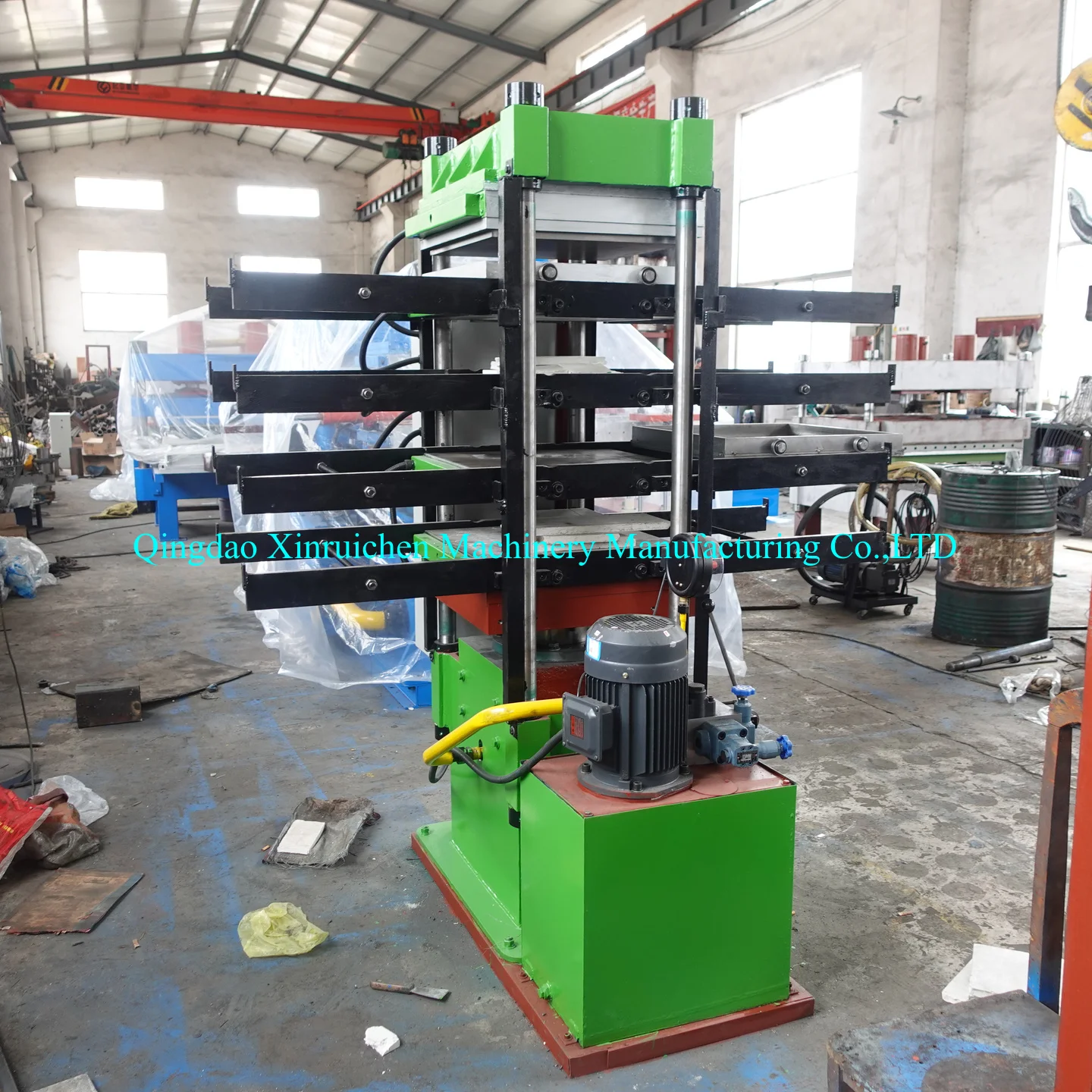

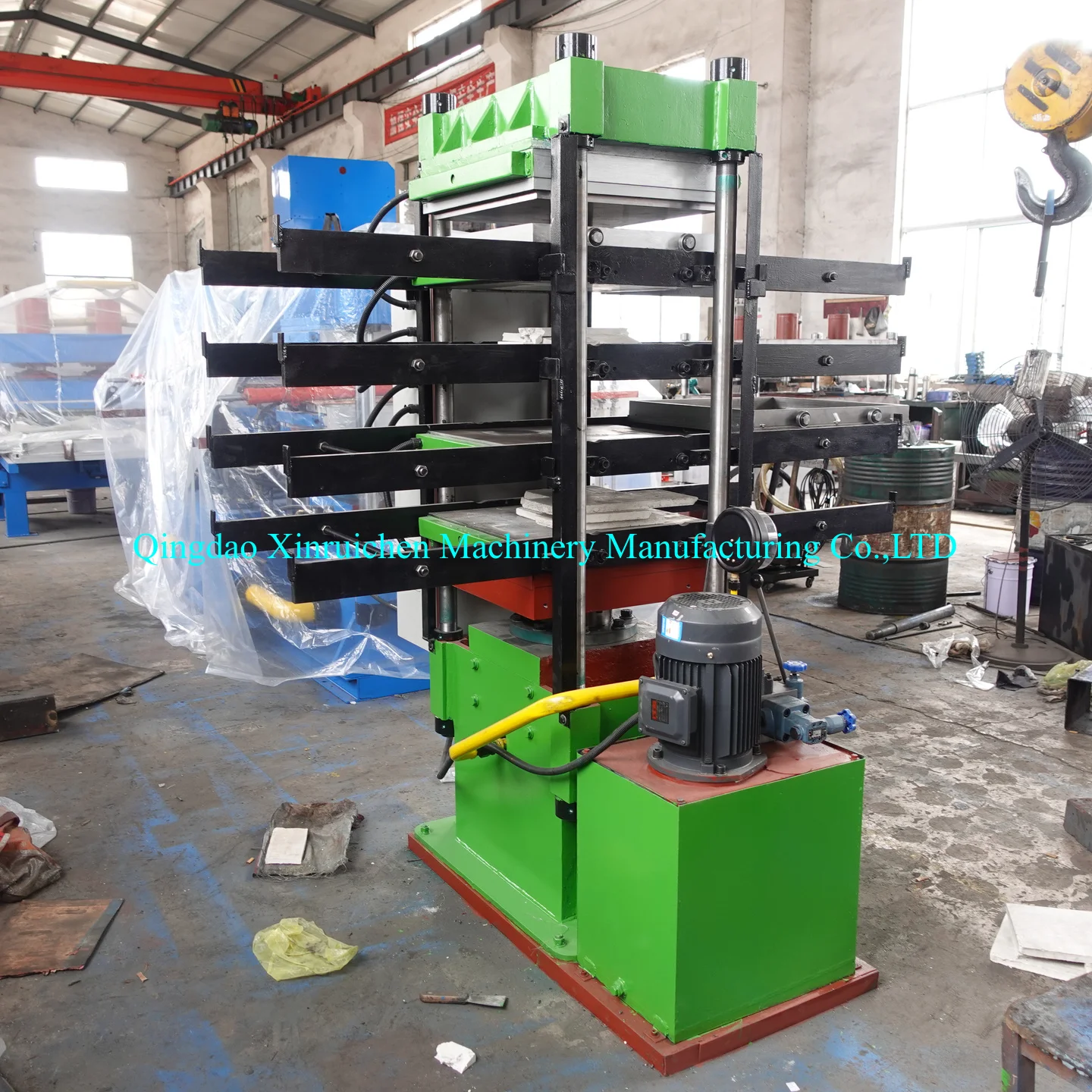

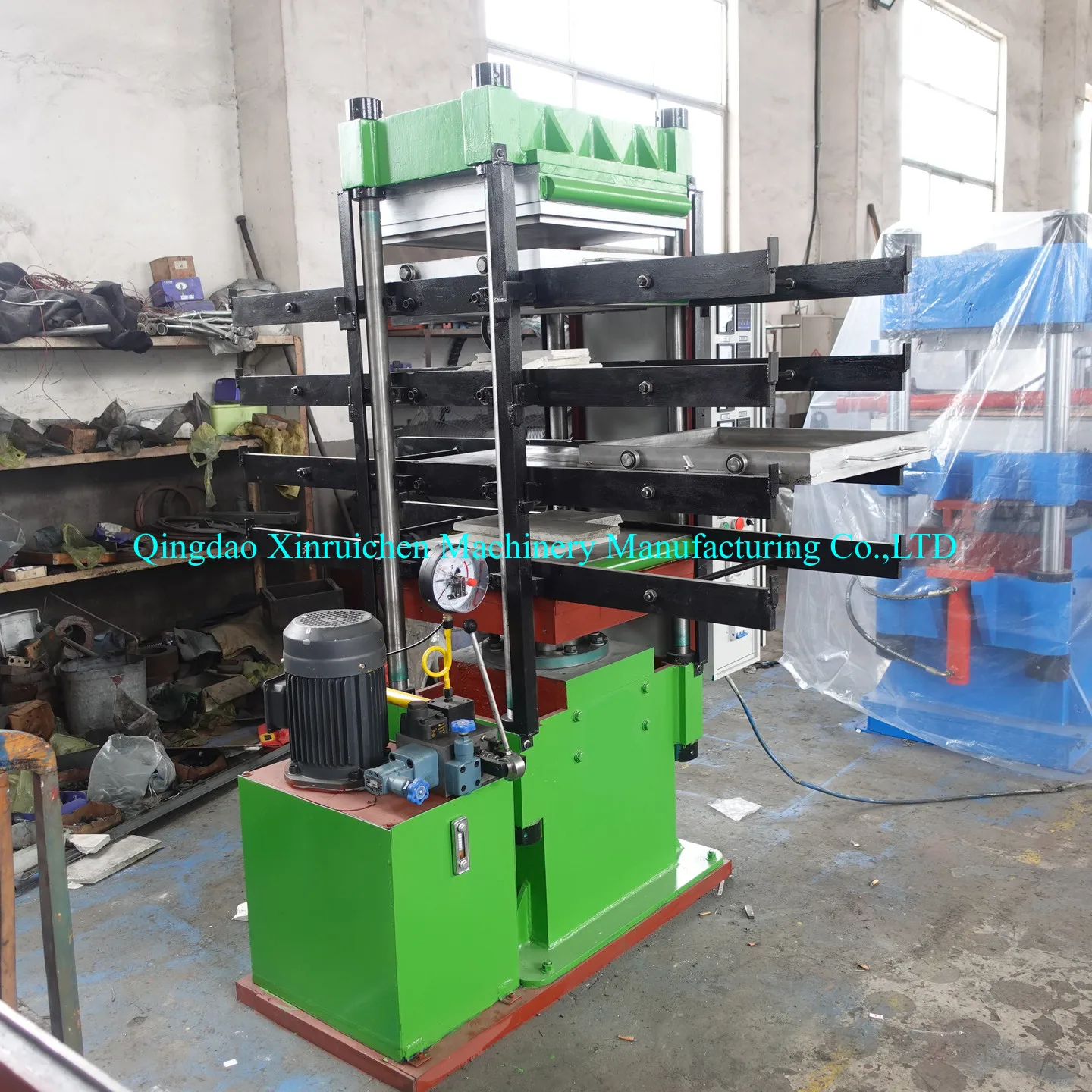

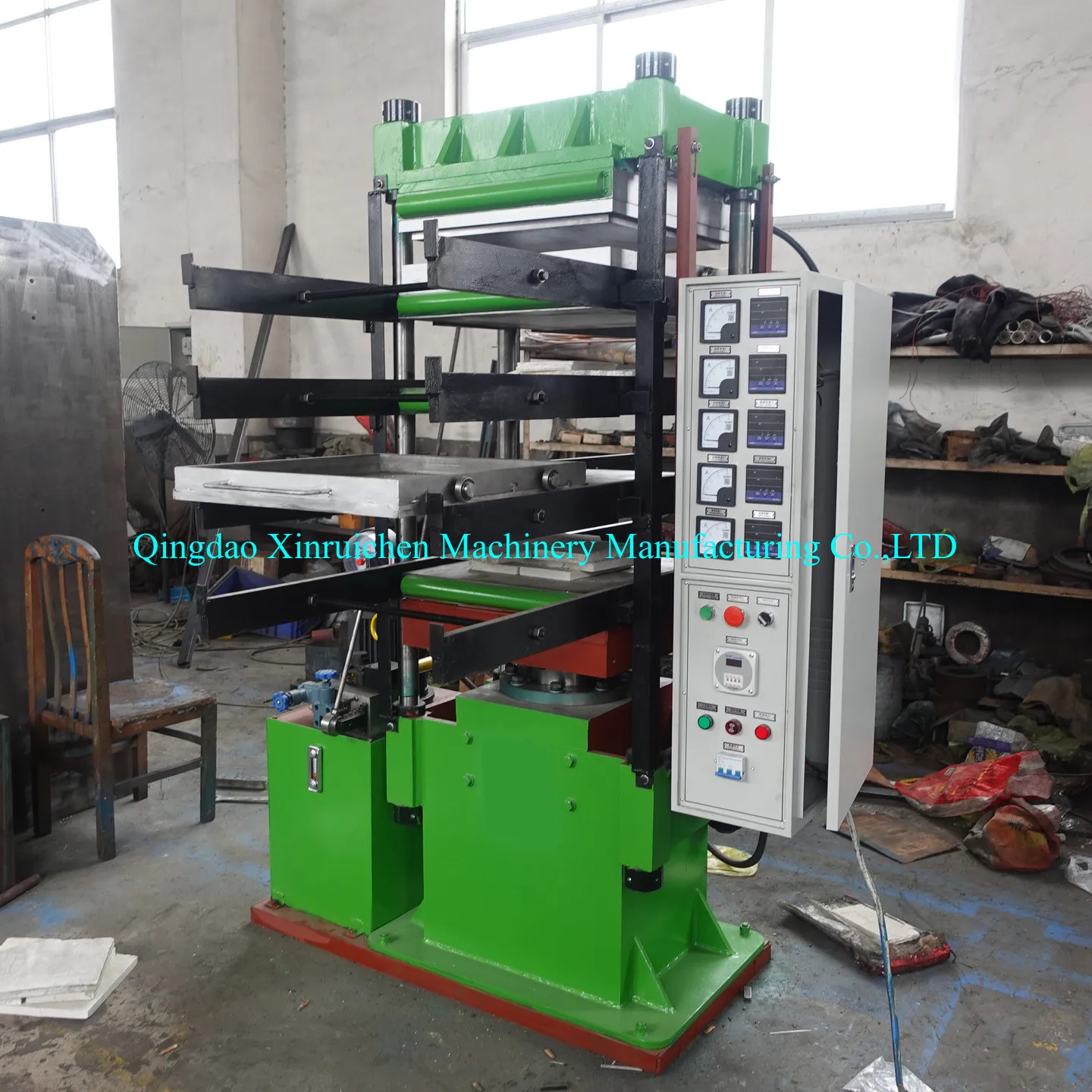

50t EPDM Rubber tiles Hydraulic Hot Press/Rubber Flooring Tile Machine / Rubber Vulcanizing Press

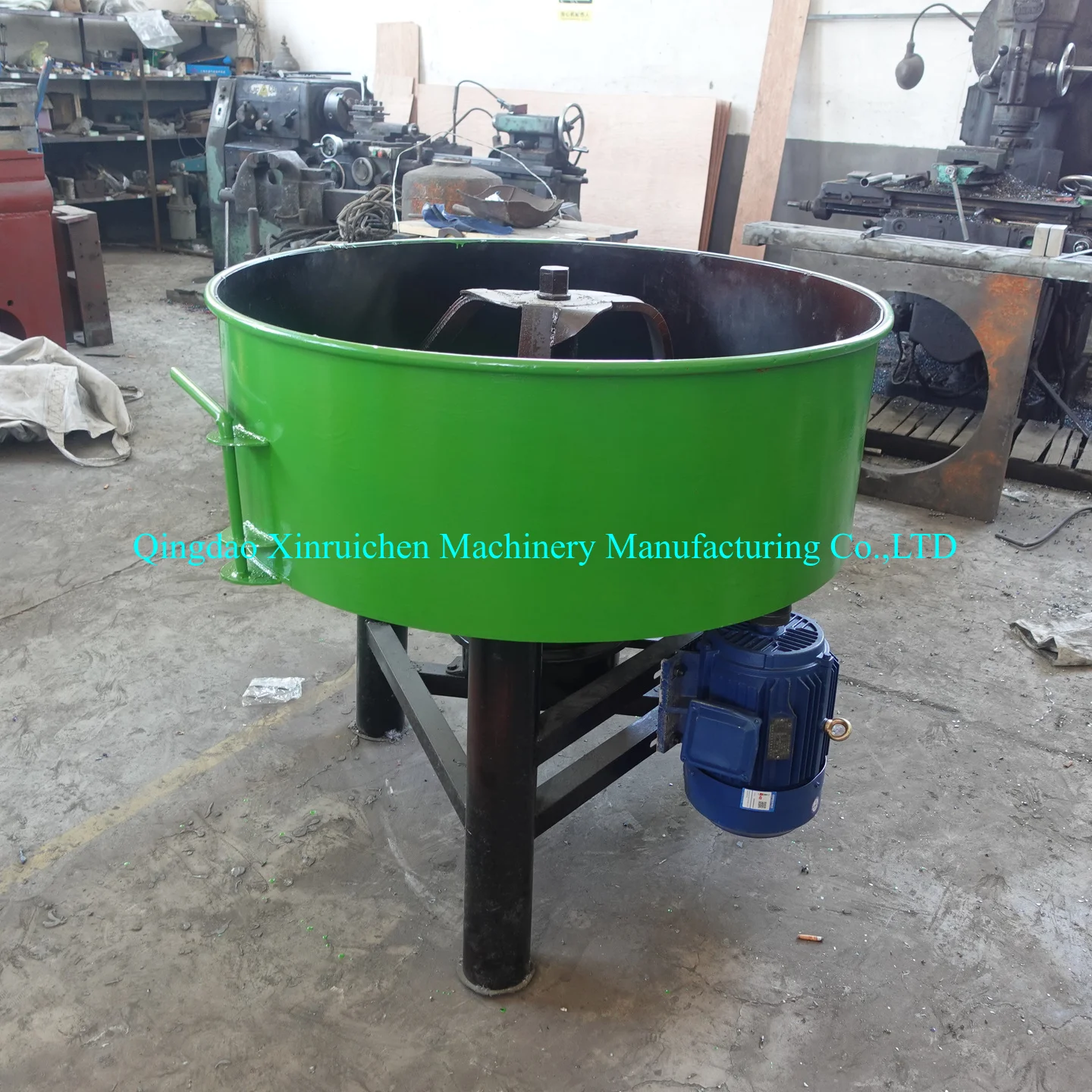

This machine is used to heat , vulcanize and solidify the rubber compound from mixer machine to be  different sizes of rubber flooring tiles

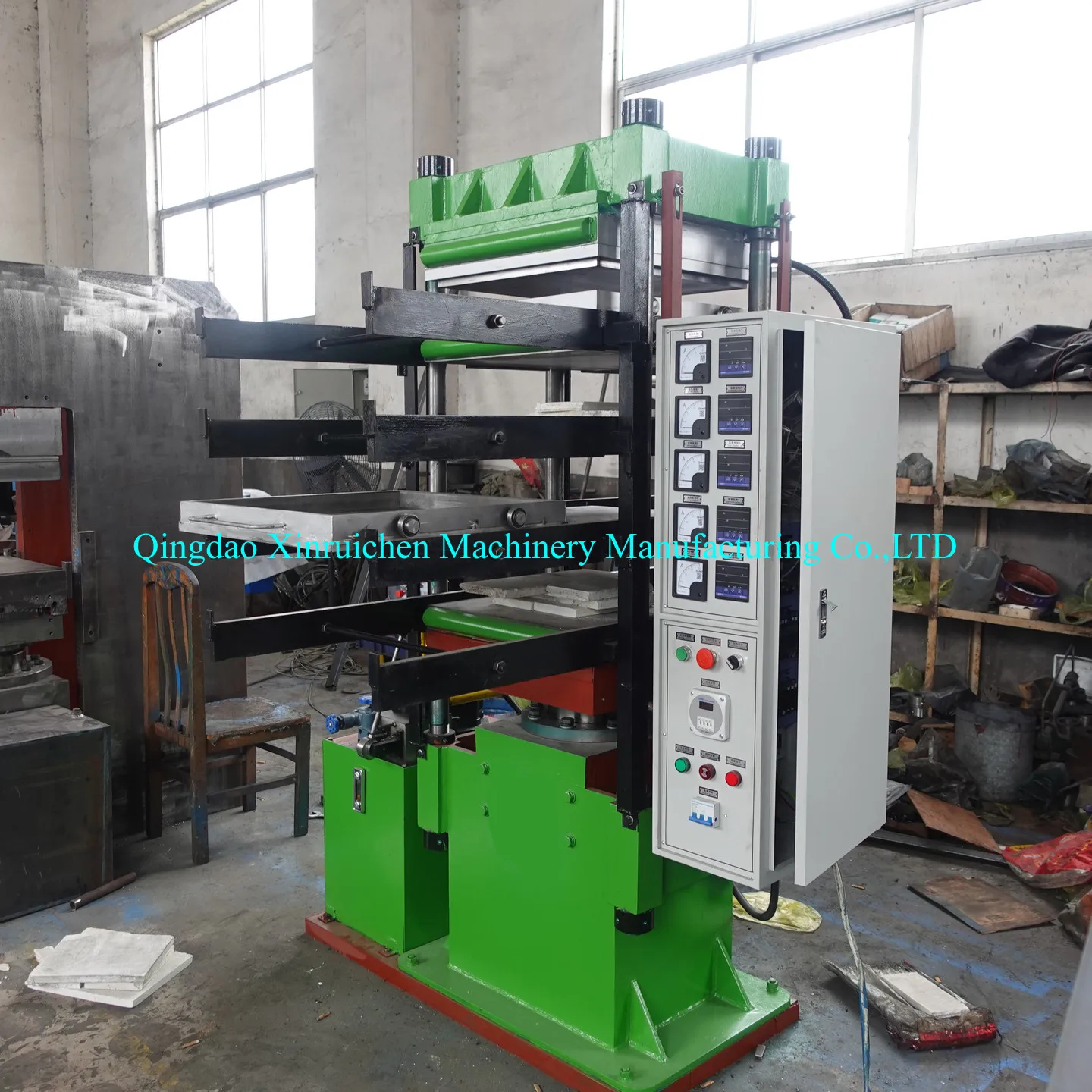

1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program

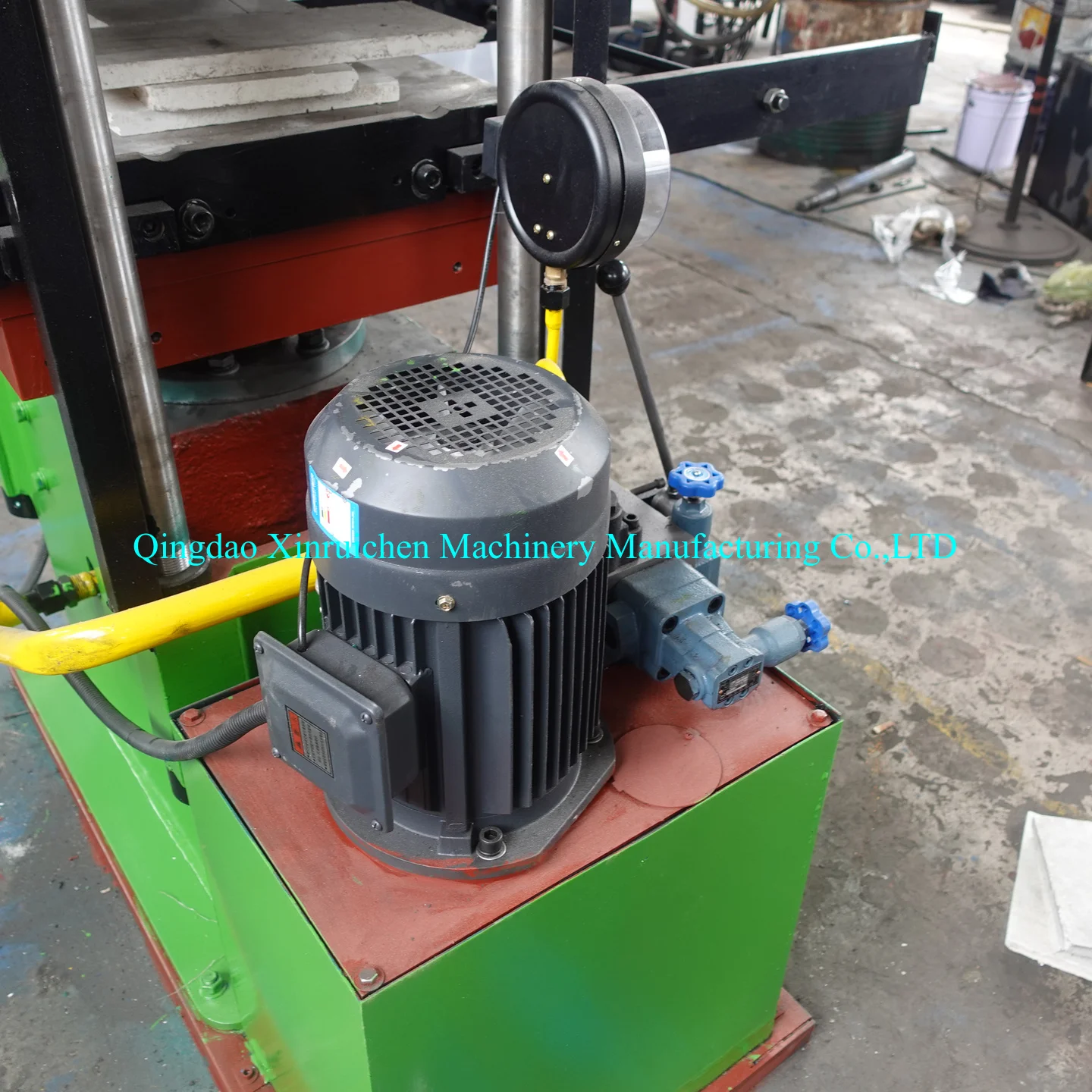

2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance

Model	XLB-550*550*4	XLB-1080*1080*1/2/4
Mold closing force	50T	120T
Heating plate size	550*550mm	1080*1080mm
working layer	4	1/2/4
daylight	150mm	300mm
Plunger stroke	400mm	250mm
cylinder diameter	200mm	300mm
Heating mode	electric heating,steam heating
Weight	1700KG	4500KG





For FCL goods, we usually pack machines with stretched film and then load them to the container. to ensure safety, we will fix machine with steel .

For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .

1. Q:  Are you a manufacturer  or training company?

     A:  We are the manufacturer. We have our own plant,worker and techniques research developing department.



2 .Q:  Where is your factory located? How can I visit there?

     A:  Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.

Nearest airport is Qingdao liuting international airport

Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.



3. Q:  What are your hot sale machine?

     A:  Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.



4. Q:  How does your factory do regarding quality control?

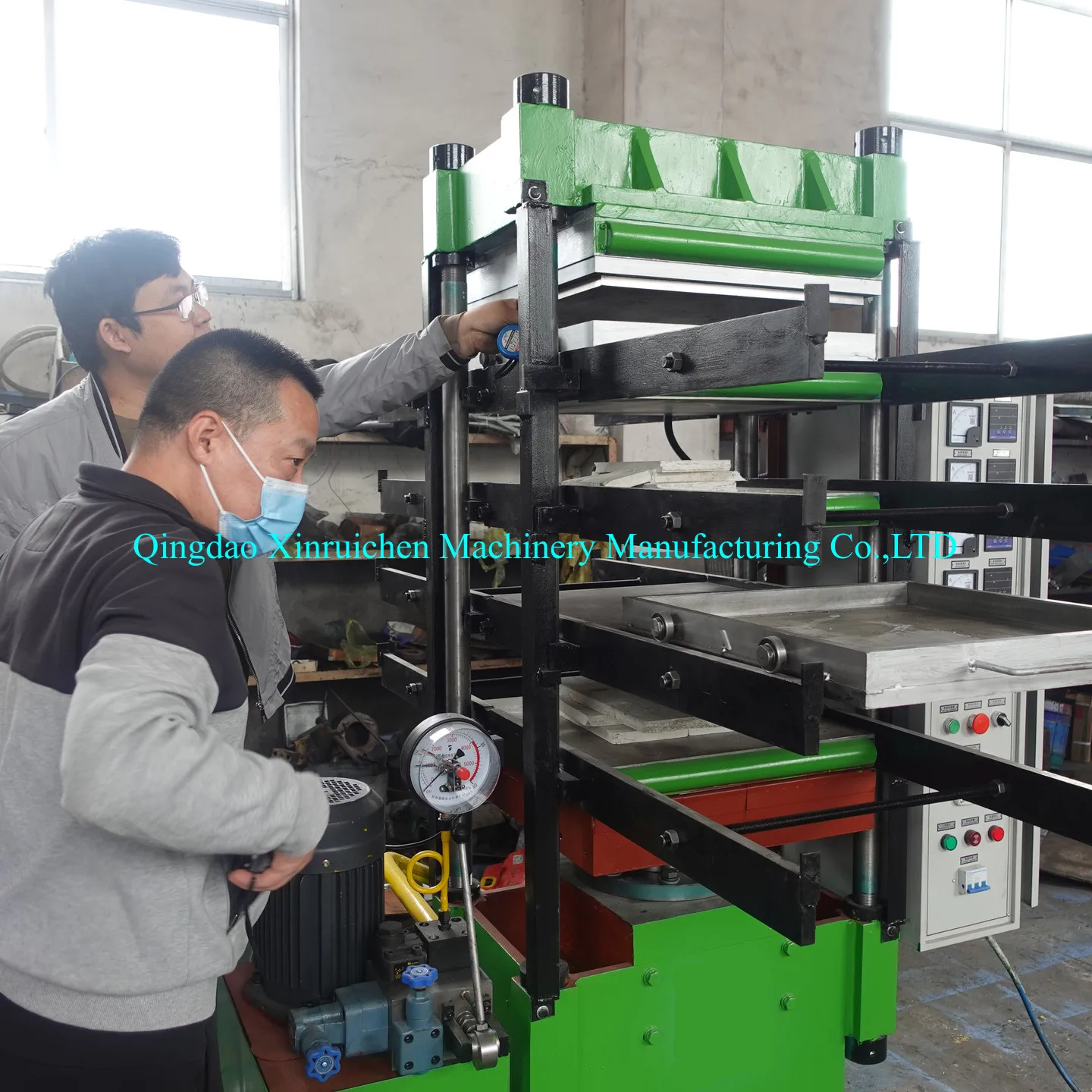

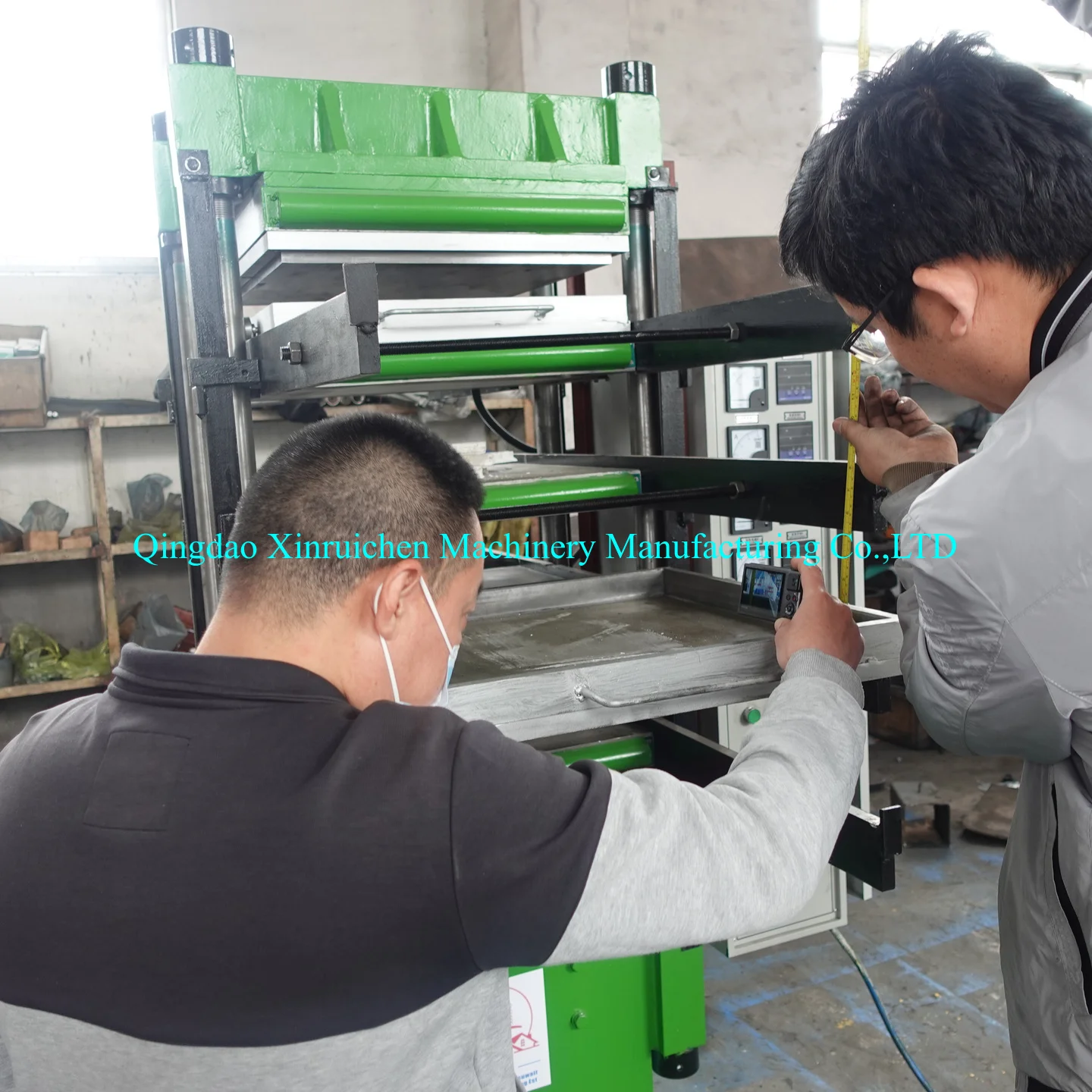

     A:  Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.



5 .Q:  Are the techncal parameter is fixed?

     A:  Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.



6 How to send us your enquiry? Kindly tell me answer

 -1 what is your  rubber tile size ? 500*500mm?1000*1000mm?

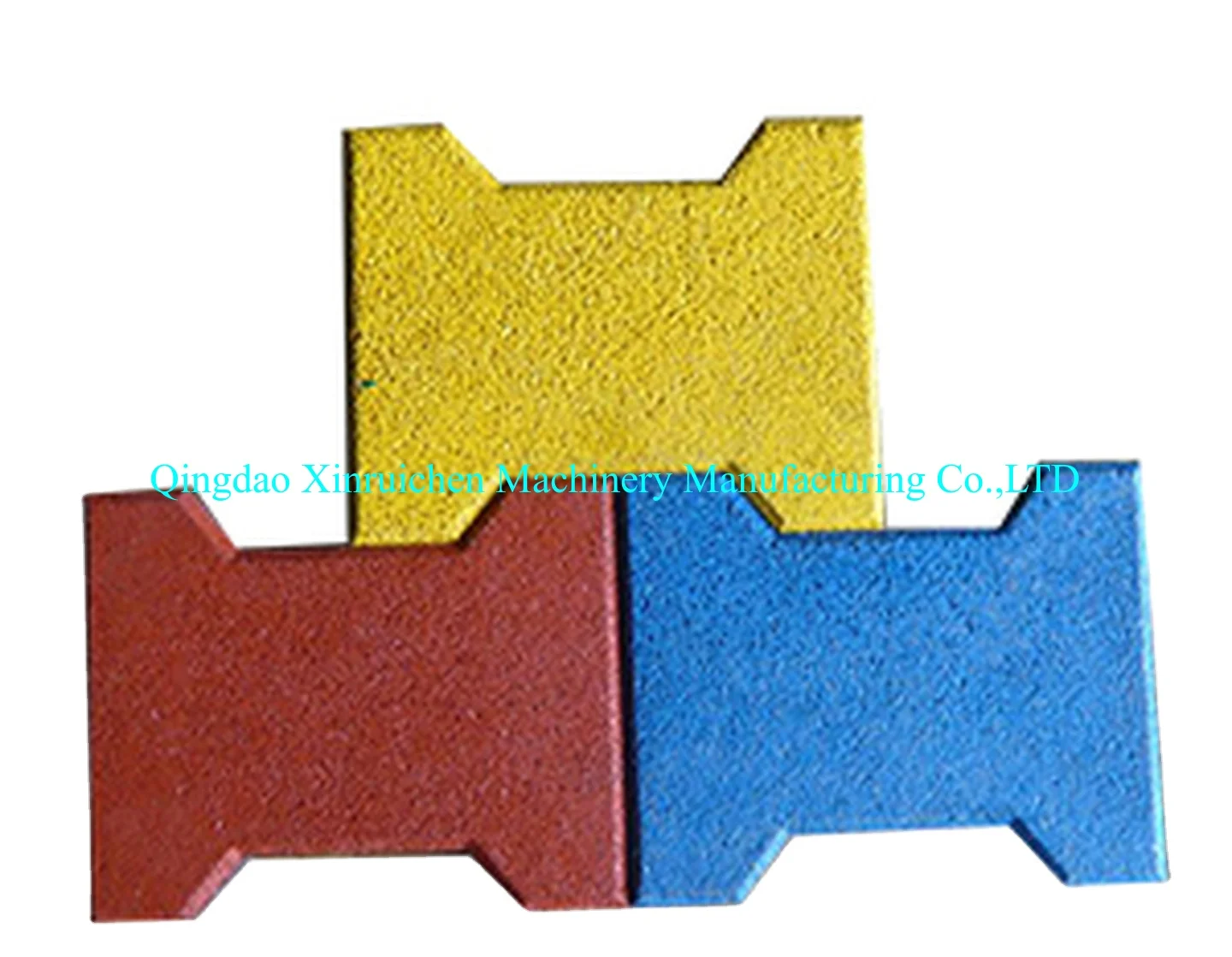

-2 tile shape? better send tile picture or drawing?
