tractor towable wagon trackless motorized transfer trolley for foundry environment 50 ton
- Category: >>>
- Supplier: Henan Perfect Handling Equipment Co. Ltd.
Share on (1601013149115):
Product Overview
Description
heavy duty industrial die transfer cart for the transport of steel
Material Handling Loading trailer with hydraulic elevating platform
The transfer Trailers is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The Hydraulic Elevating Trailers cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more Hydraulic Elevating Trailers could be towed by one tractor. The Hydraulic Elevating Trailers is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
Technical Parameters of Transfer Trailers
| Model | BWT-2t | BWT-5t | BWT-10t | BWT-20t | BWT-30t | BWT-45t | BWT-60t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000*1500 | 2500*1500 | 3000*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
Height (mm) | 500 | 600 | 700 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Design Requirement
The load capacity, table size, color of the Hydraulic Elevating Trailers all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

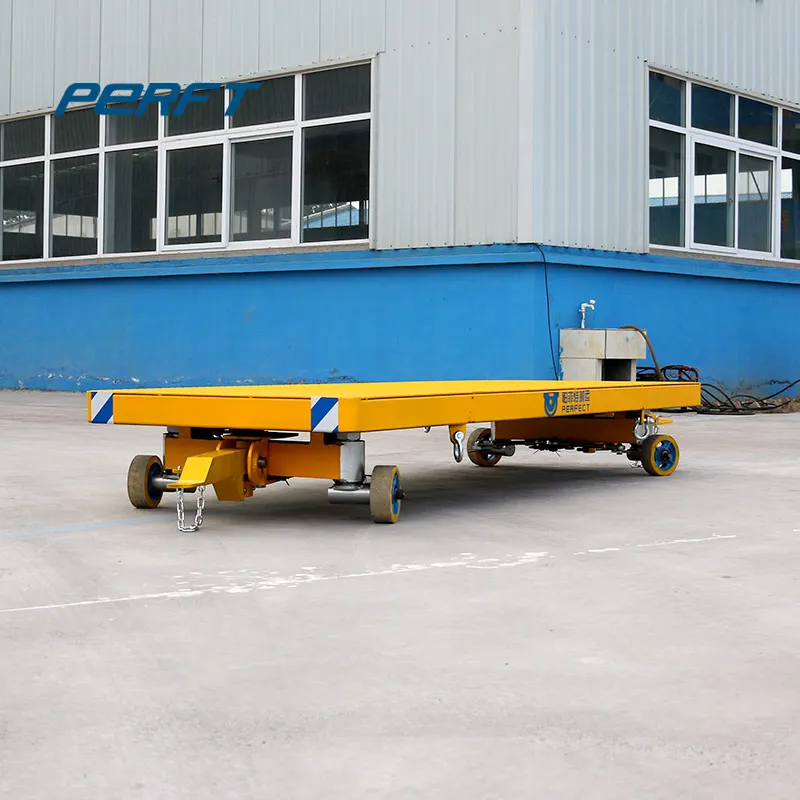

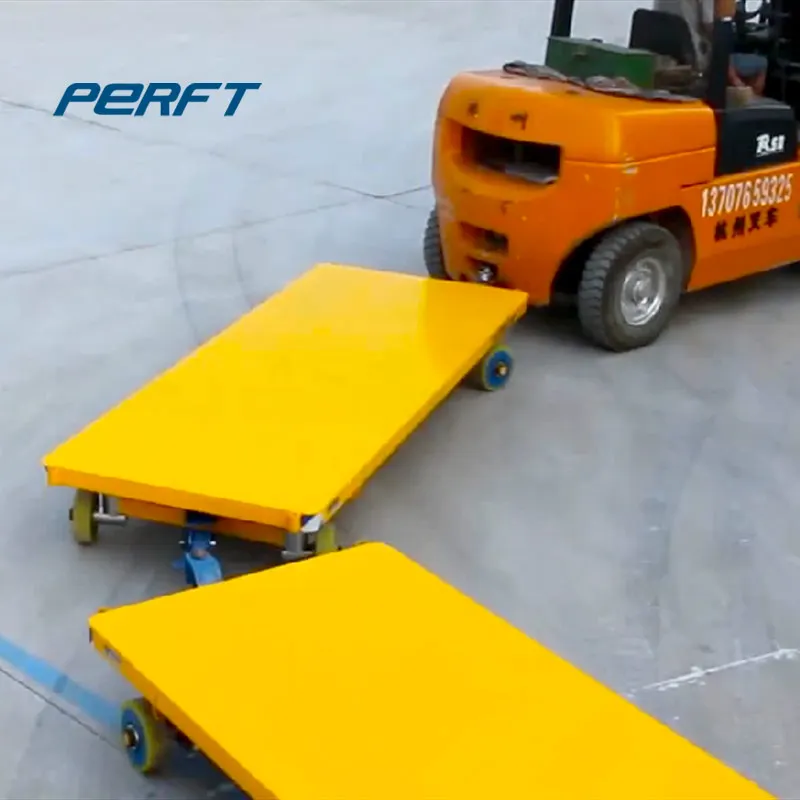

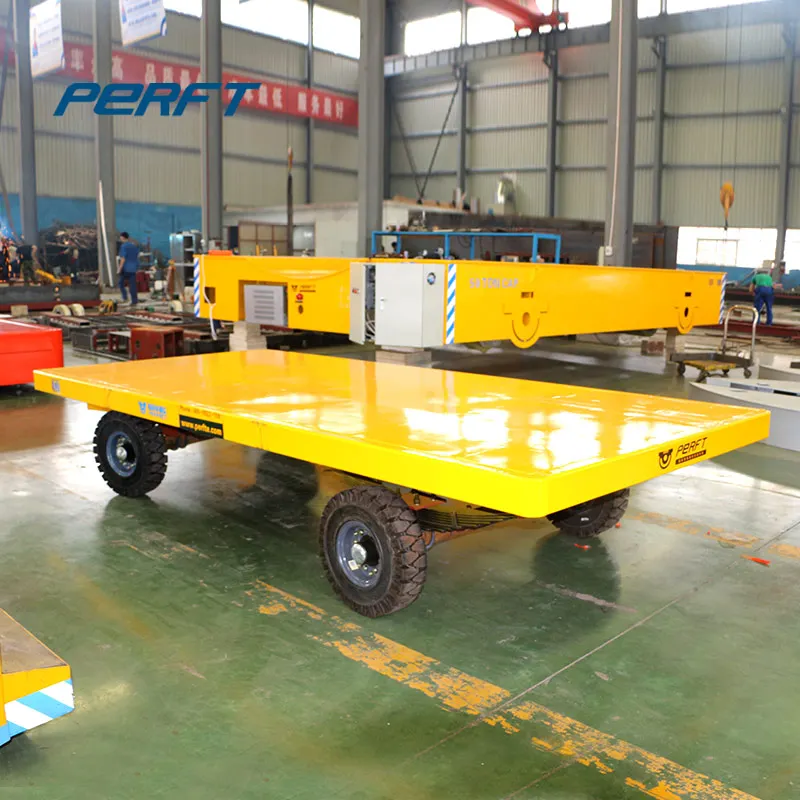

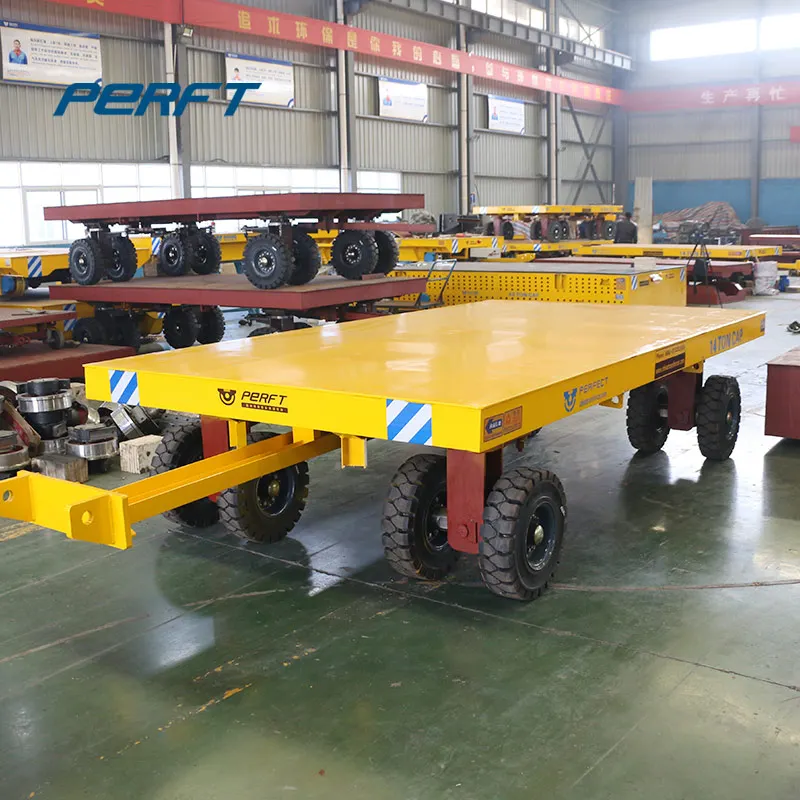

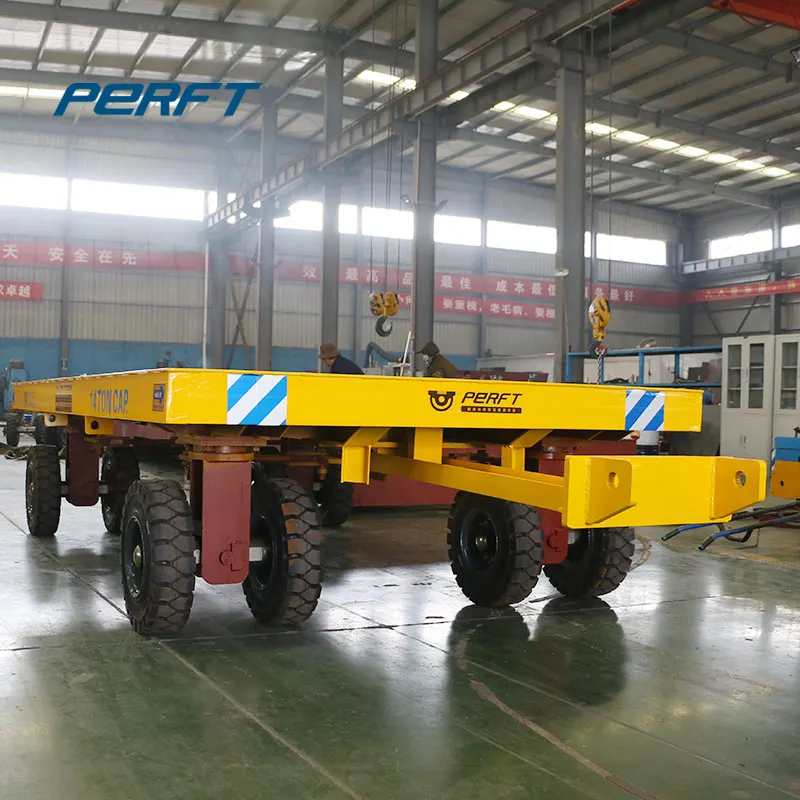

Detailed Image
Other Optional Functions
- Pattern plate is available for the table;
- Four side of the industrial trailer could be installed guardrail or steel bar;
- For load capacity below 3 tons, parking brake is optional to prevent the trailer from moving.
Technology Process

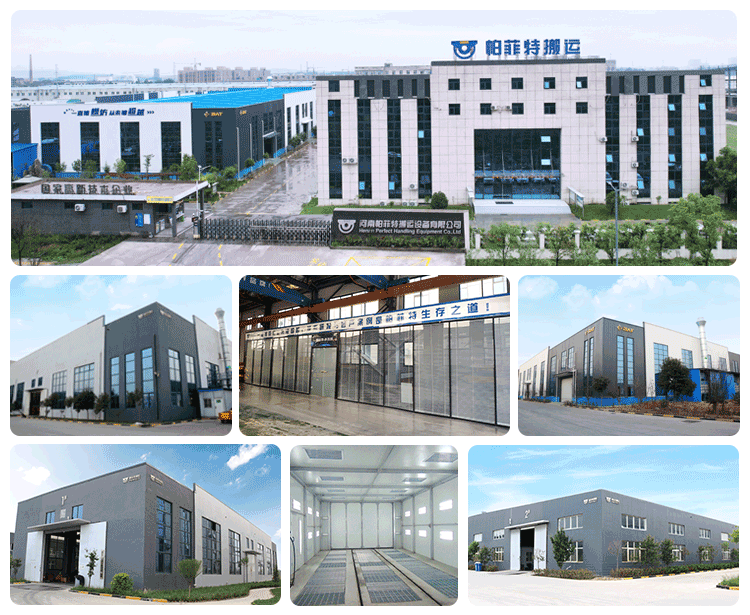

Our Factory
Q & A
1. Q: What term of payment do you accept?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is your delivery time?
A: We will delivery the Hydraulic Elevating Trailers you ordered 45 days after we accept the prepayment.
3. Q: How do Hydraulic Elevating Trailers been shipped?
A: We export the Hydraulic Elevating Trailers by sea or train with full container, LCL or in Bulk.
4. Q: Do you have quality assurance for Hydraulic Elevating Trailers ?
A: Yes, we have 2 year of assurance.
Click here to get the quotation and free design scheme.
