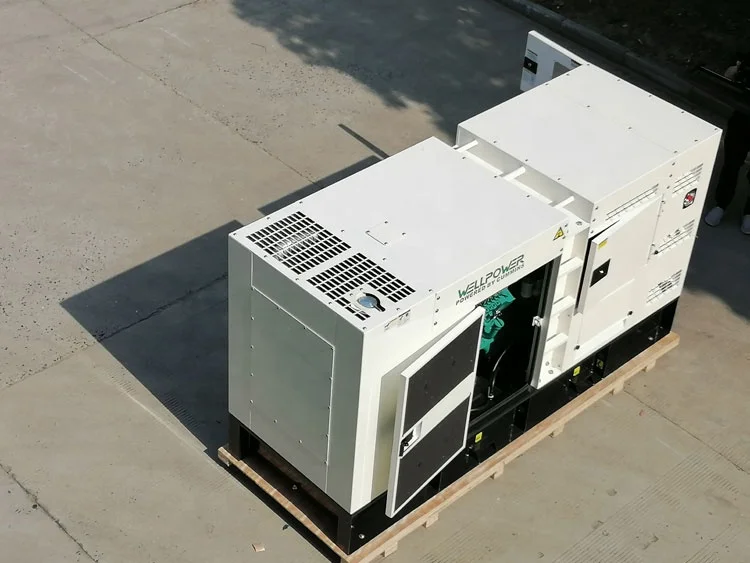

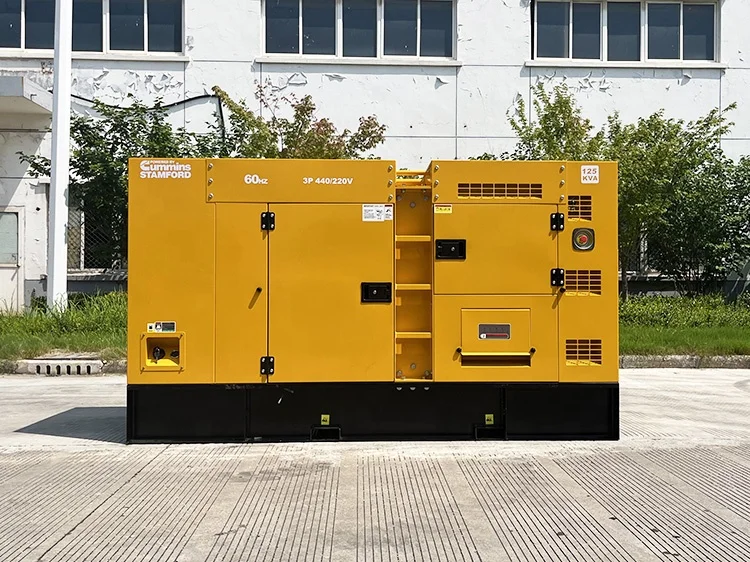

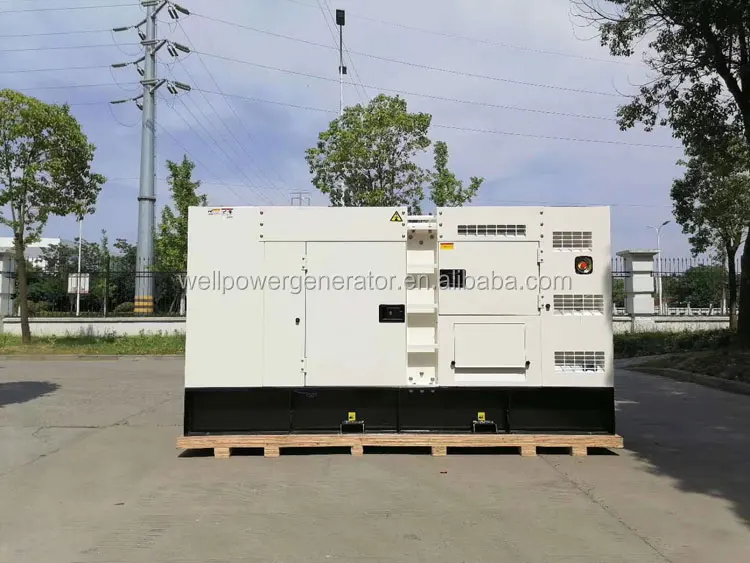

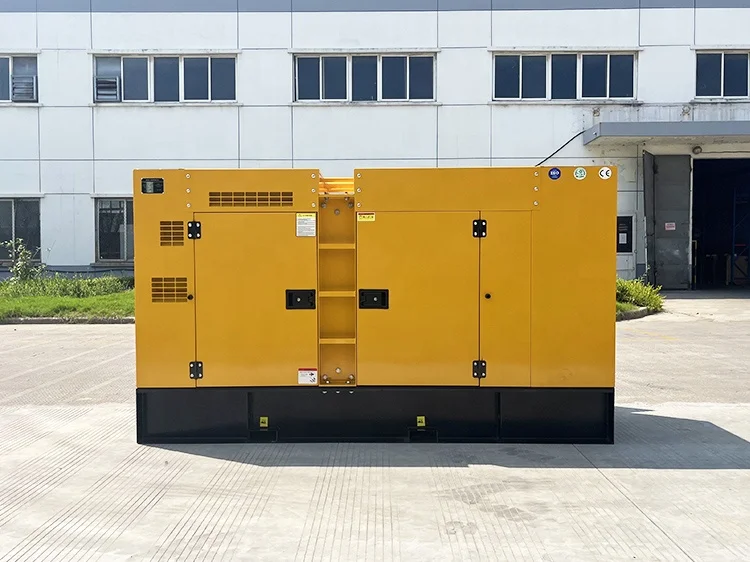

New soundproof diesel generator with Cummins engine NTA855 G1A 220KW 250kw 300kva diesel generator set

Product Overview

Description

220KW diesel generator set with Cummins engine and original Stamford.



Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-C220GF	400V/230V-3P	50	0.8	250 KW	220 KW	2880 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Cummins engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel



Engine Spec

Engine Model	NTA855-G1A
Engine manufacturer	Cummins
Number of Cylinders	6 cylinders in line
Cycle	4 stroke
Aspiration	Turbochanged and Jacket Water Aftercooled
Bore×Stroke	140mm x152mm
Displacement	14L
Compression ratio	14.5 : 1
Prime Power	220KW
Standby Power	250KW
Steady speed droop	≤1%
Coolant capacity(engine only)	5.5 L
Fuel Consumption	207g/kw.h

Alternator Spec

Alternator Model	Stamford/Leroy Somer/Wellpower
Prime power	220KW
Frequency/speed	50HZ/1500rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phases

Control Panel

Brand	Deepsea/ComAp/SmartGen
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts

About us

Jiangsu Wellpower generator Co.,Ltd has passed ISO9001-2008 and CE.

Wellpower generator company mainly produces and sells Diesel Generators, inland diesel generators from 3-3000KVA, marine power emergent diesel generators from 12-500KW,

and kinds of imported diesel generators, movable power station, sound-proof, multi-pieces connection, remote monitoring, generators with ATS, and gas generators. We persostently

insist in high standard of product quality and lay on strict requirements on it, according to the policy of real price for survival and good quality for development.
