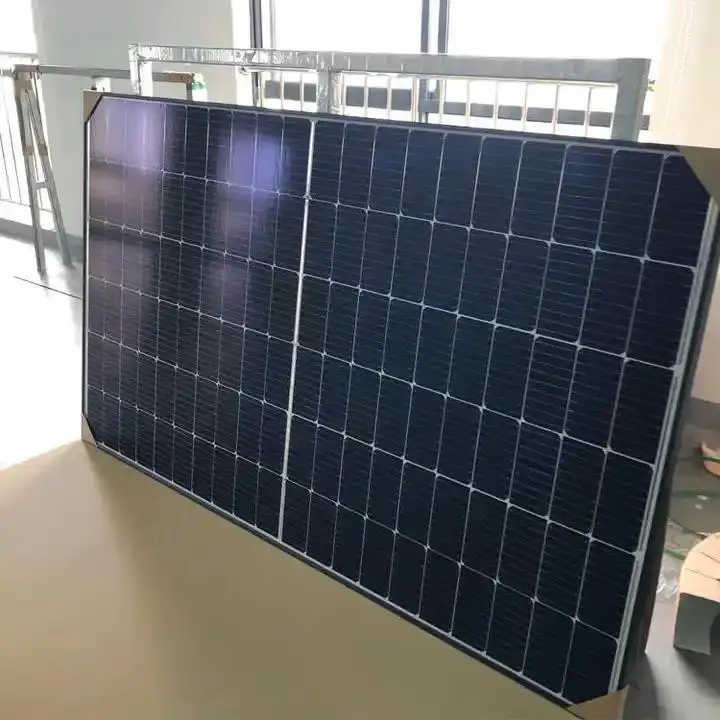

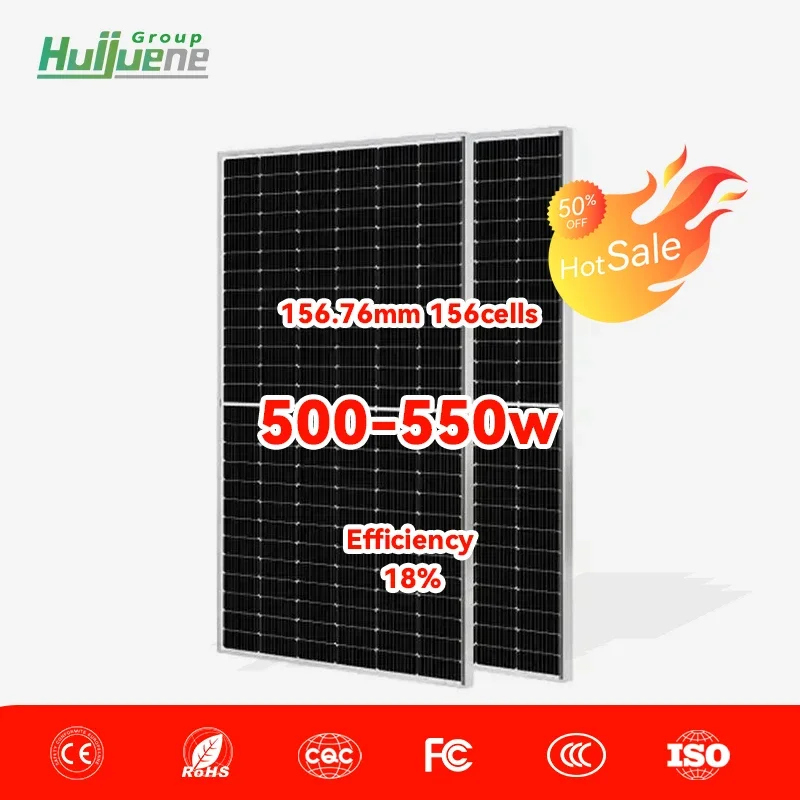

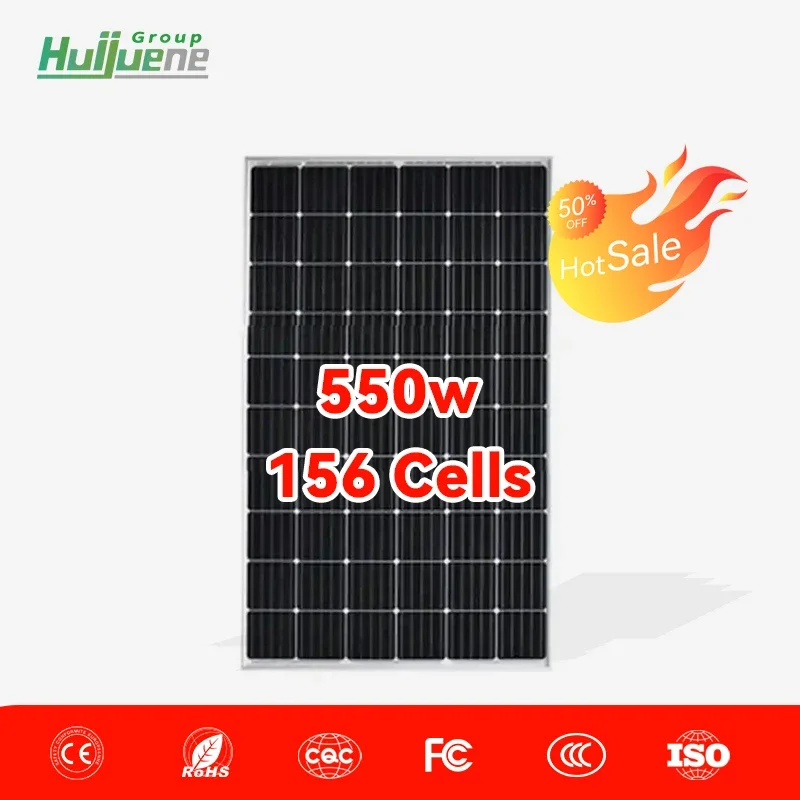

Hanwha qcells panel solar G9 G10 q cell 156cells bifacial double glass 450w 460w 470w 480w 485w qcell solar panel
- Category: >>>
- Supplier: Shanghai Huijue Network Communication Equipment Co. Ltd.
Share on (1601013195205):

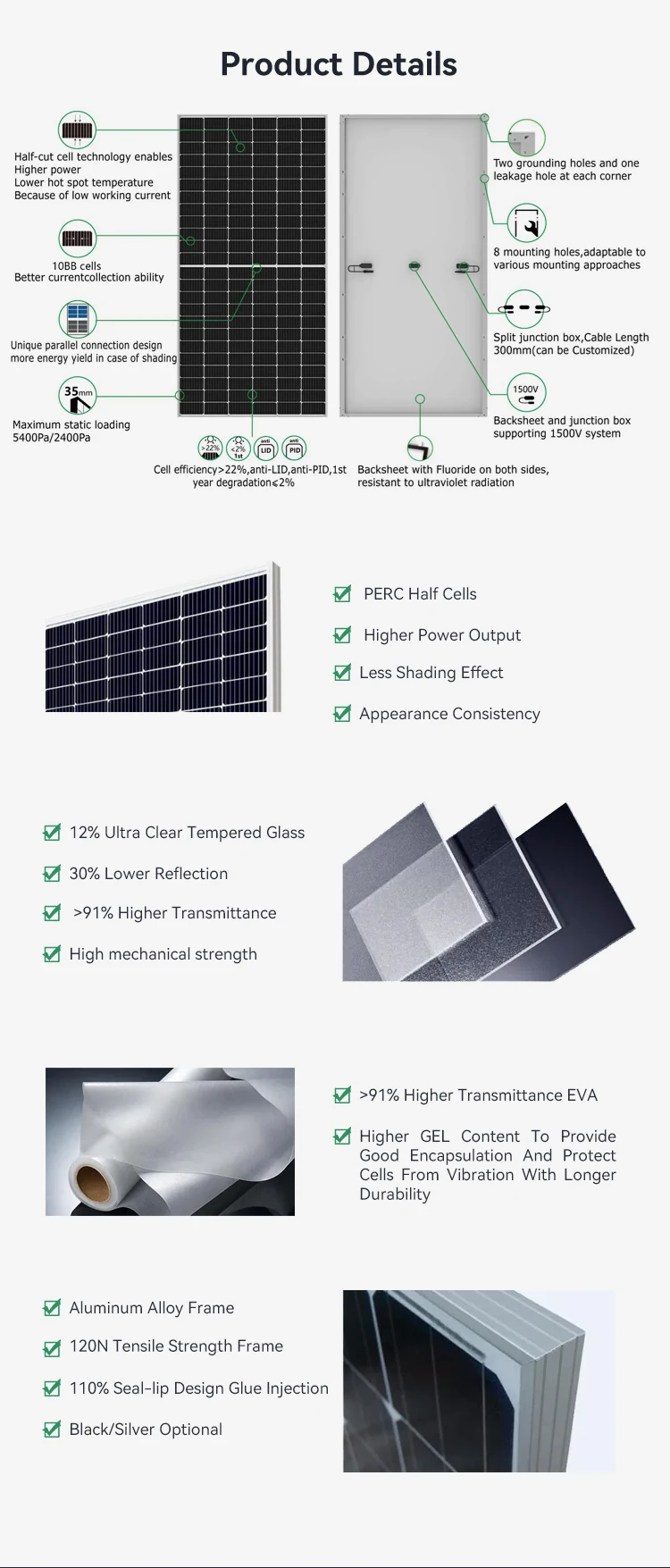

Product Overview

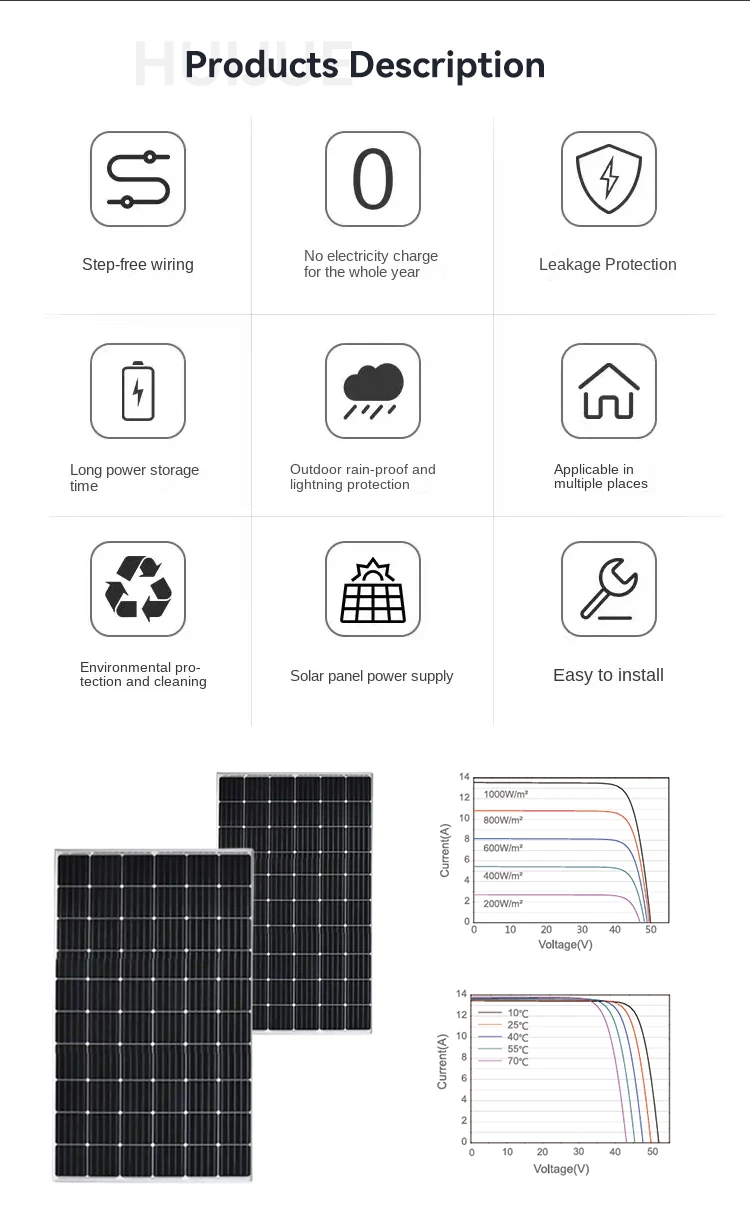

Description
Production processes
Product Paramenters
Electrical Parameters at Standard Test Conditions (STC) | ||||||
Module Type | HJ-SM275-72M | HJ-SM360-96M | HJ-SM400-108M | |||
Power Output(Max. /W) | 275W | 360W | 400W | |||
Module Efficiency | 20.76% | 20.64% | 20.46% | |||
Voltage at Max. power | 21.03V | 27.72V | 31.01V | |||
Current at Max. Power | 13.08A | 12.99A | 12.9A | |||
Open circuit voltage | 24.95V | 33.0V | 36.96V | |||
Short circuit current | 14.03A | 13.9A | 13.82A | |||
Max.system voltage /Maxseries fuse rating | 1500Vdc /20A | |||||
Operating temperature range | -40'C to 85C | |||||
Cell(QTY) | 72PCS Mono | 96PCS Mono | 108PCS Mono | |||
Products Dimension(L/W/H) | 1168*1134*35mm | 1538*1134*35mm | 1724*1134*35mm | |||
Electrical Parameters at Standard Test Conditions (STC) | ||||||
Module Type | HJ-SM450-120M | HJ-SM500-132M | HJ-SM550-144M | |||
Power Output(Max. /W) | 450W | 500W | 550W | |||
Module Efficiency | 20.79% | 21.06% | 21.30% | |||
Voltage at Max. power | 34.67V | 38.09V | 41.57V | |||
Current at Max. Power | 12.98A | 13.13A | 13.23A | |||
Open circuit voltage | 41.25V | 45.29V | 49.62V | |||
Short circuit current | 13.89A | 13.91A | 14.03A | |||
Max.system voltage /Maxseries fuse rating | 1500Vdc /20A | |||||
Operating temperature range | -40'C to 85C | |||||
Cell(QTY) | 120PCS Mono | 132PCS Mono | 144PCS Mono | |||
Products Dimension(L/W/H) | 1909*1134*35mm | 2094*1134*35mm | 2279*1134*35mm | |||

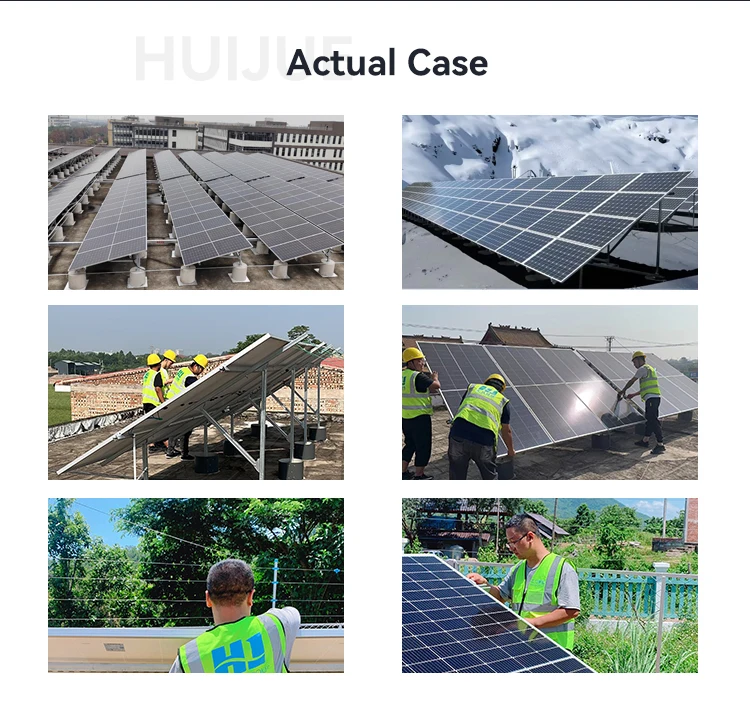

Actual Case
Company Profile
Exhibition
Packaging & Transport
FAQ
