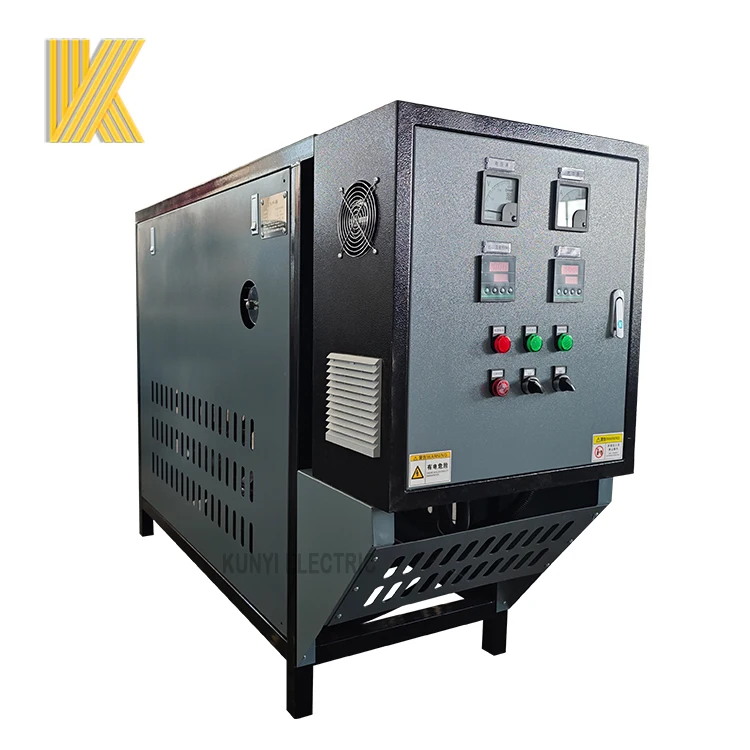

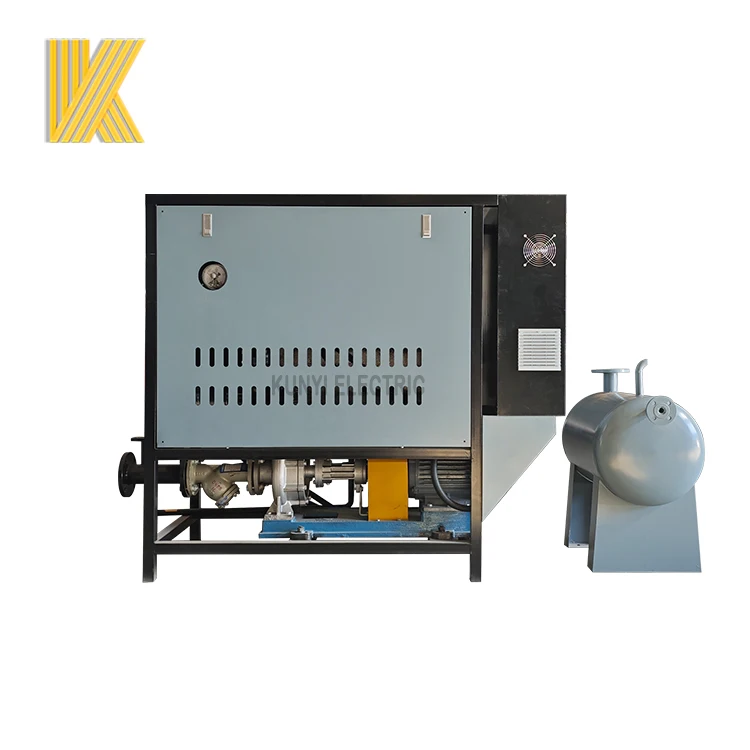

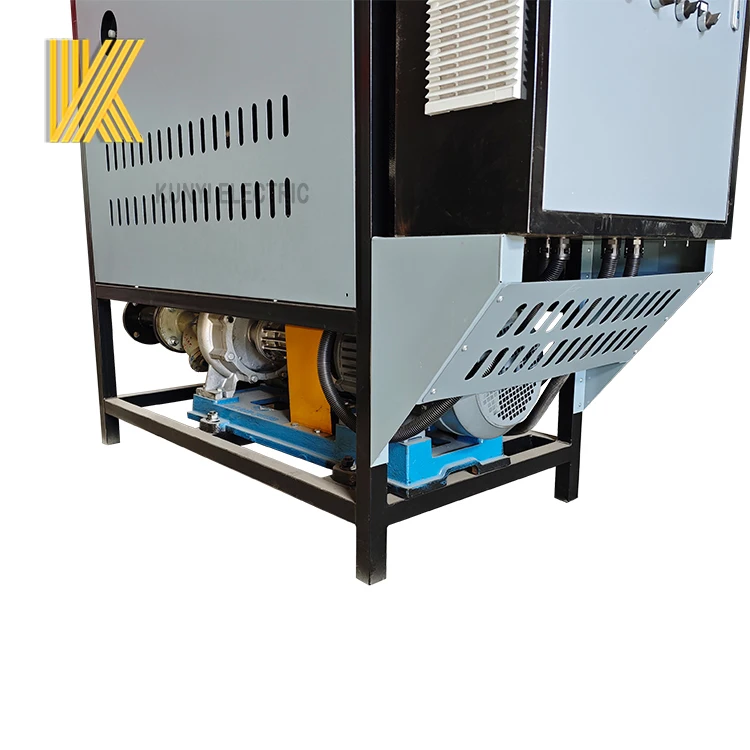

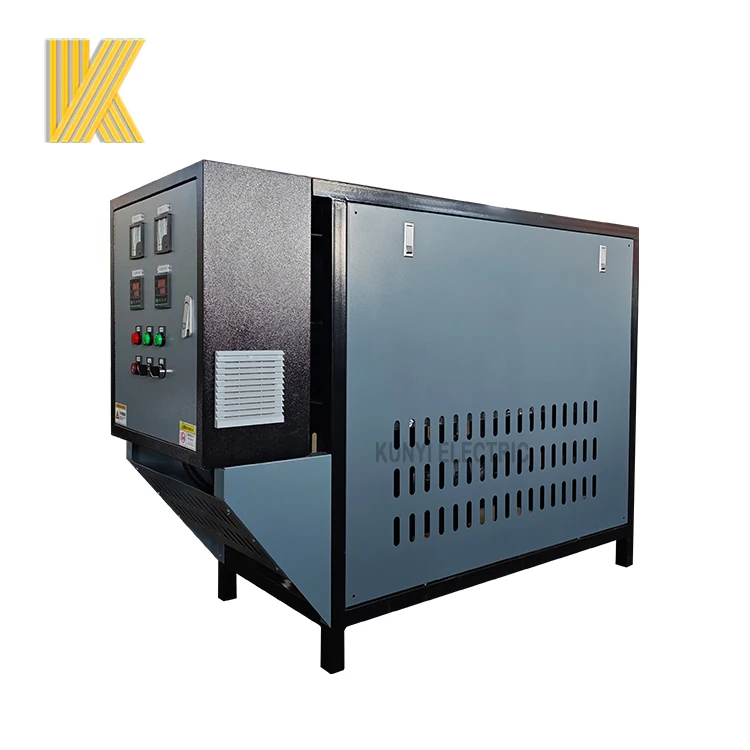

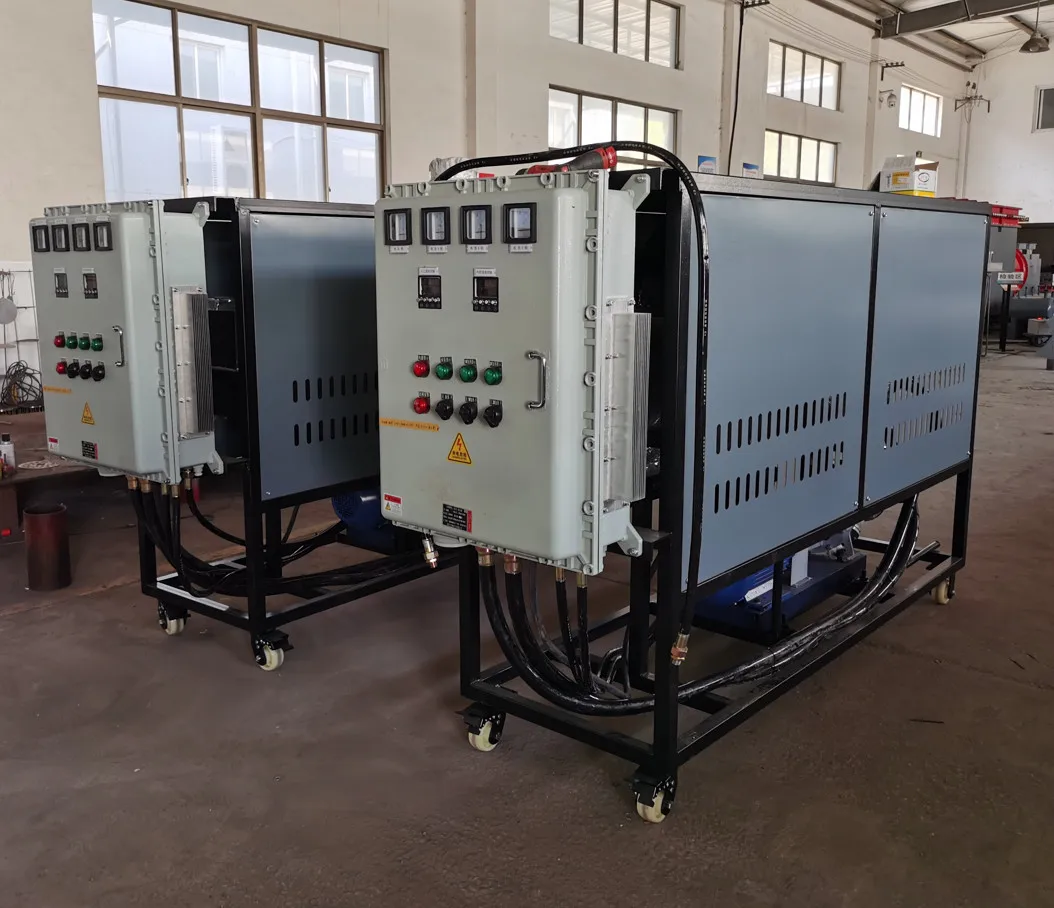

36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace
36KW Industrial Electric Thermal Oil furnace

36KW Industrial Electric Thermal Oil furnace

Share on (1601013207005):


Price:$1,400.00 - $1,500.00

Quantity:


Product Overview

Description





Electric thermal oil heater inserts the heating element directly into the organic carrier (thermal oil) for direct heating. It uses a high-temperature resistant circulation pump to force the thermal oil to circulate in the liquid phase, and transfers the heat absorbed by the thermal oil to one or more users. Thermal equipment, after the heat is unloaded by the thermal equipment, passes the thermal oil through the circulation pump again, returns to the thermal oil furnace heater for additional heating, and then absorbs the heat and transfers it to the thermal equipment. This cycle repeats to achieve continuous transfer of heat. The temperature of the heated object is increased to meet the heating process requirements.

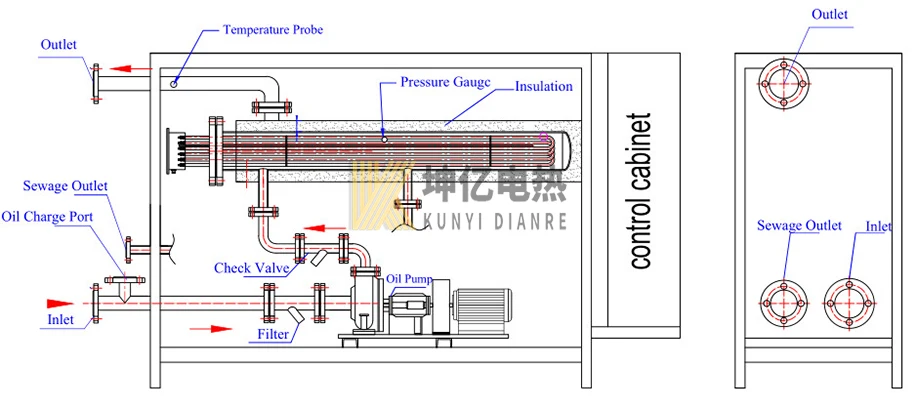

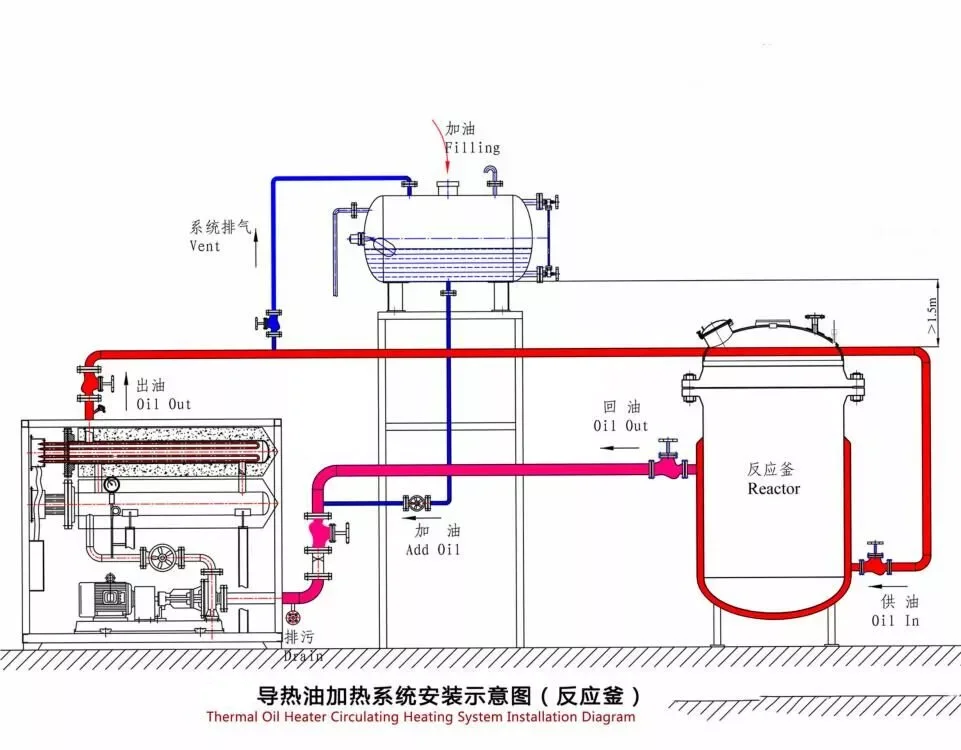

Working Princle:




Structure:

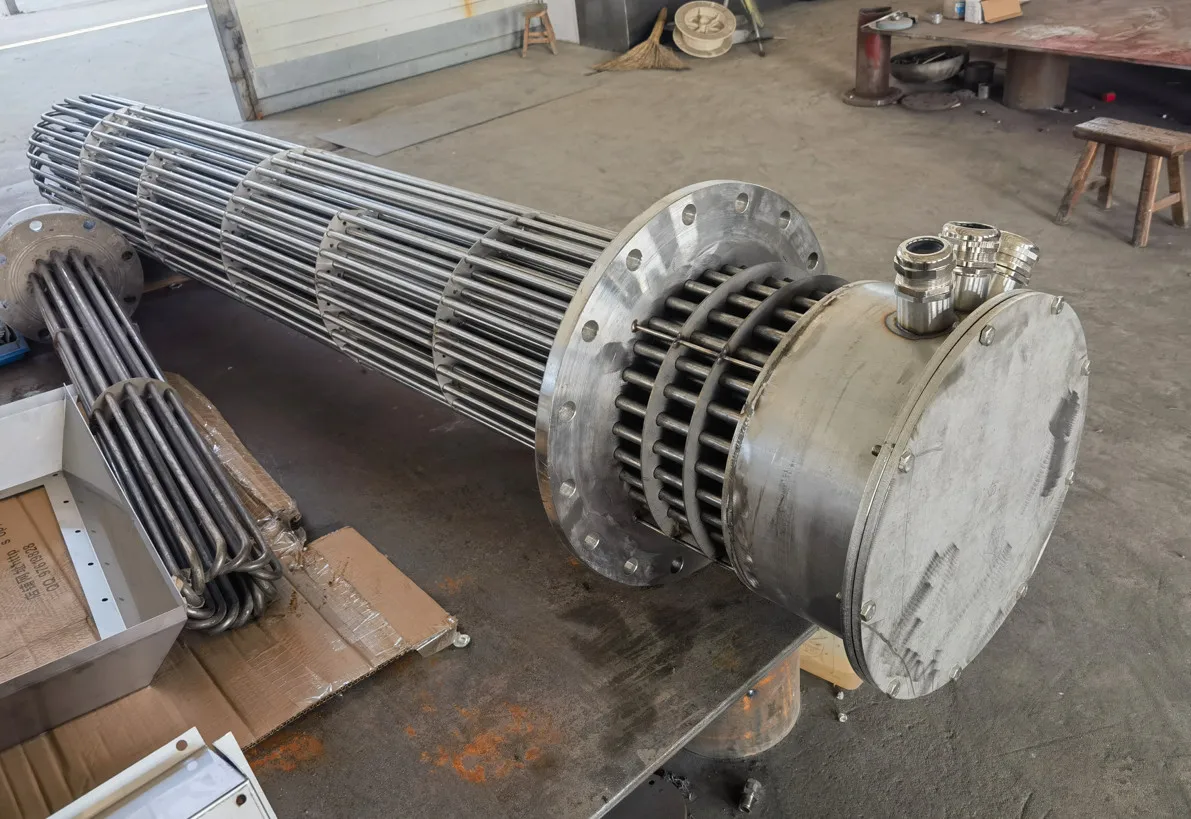

Heating Element

U shape heating tube combined installation, Stainless steel 304 material, and the power can be customized.


Control System

Fast heating and cooling, stable adjustment, double protection, High safety performance


Good mechanical properties

Compact structure, small volume, convenient installation and disassembly


Model
Power (kw)
Oil Capacity
(L)
Overall Dimension(L*W*H)
Heating-oil Pump
Expansion Tank(mm)
Heating room size(mm)
Connection diameter (mm)
Power(kw)
Flow(m3/h)
Head(m)
KYYL-10
10
15
1220(1470)*550*1300
0.75
1.5
22
φ300*400
KYYL-20
20
23
1750*500*1250
1.5
3
28
φ400*500
KYYL-25
25
28
1750*500*1250
1.5
6
28
φ400*500
KYYL-40
40
48
1750*500*1250
2.2
10
28
φ500*600
KYYL-50
50
48
1220(1470)*650*1400
2.2
10
28
φ400*500
KYYL-60
60
52
2000*550*1500
3
12.5
30
φ500*600
KYYL-70
70
60
2000*550*1500
3
12.5
30
φ500*600
KYYL-90
90
68
2100*600*1550
5.5
18
40
φ500*600
KYYL-120
120
105
2100*600*1550
7.5
30
48
φ600*700
KYYL-150
150
195
2200*700*2000
7.5
30
48
φ600*700
KYYL-180
180
230
1650(1850)*750*1600
11
45
40
φ700*800
KYYL-240
240
260
1850*750*1600
11
45
40
φ700*800
KYYL-300
300
293
2200(2600)*850*1800
15
50
50
φ800*1000
KYYL-400
400
358
2200*850*1800
22
60
54
φ800*1000
KYYL-480
480
510
2200*850*1800
22
60
54
φ800*1000
KYYL-600
600
562
2400*1050*2000
30
90
65
φ1000*1200
KYYL-720
720
638
2800*1050*2000
30
100
70
φ1000*1200
KYYL-1000
1000
750
2300*800*2000
37
100
80
φ1000*1200

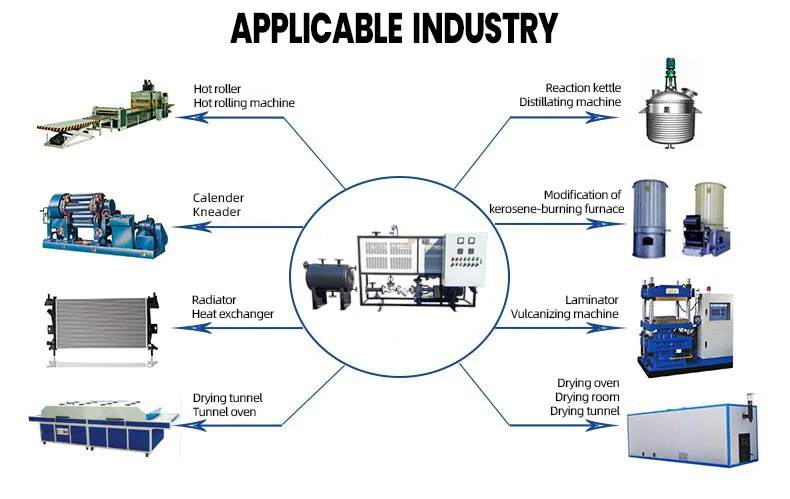

Thermal oil electric heater is widely used on hot roller/hot rolling machine, calender/kneader, radiator/heat exchanger, reaction kettle/distillating machine, drying oven/drying room/drying tunnel, Laminator/ Vulcani zing machine
