UV curing varnish liquid laminator, anti aging scratch resistant gloss matt home decoration vinyl wallpaper
- Category: >>>
- Supplier: Hefei Kana Photoelectric Technology Co. Ltd.
Share on (1601013234701):
Product Overview
Description
Product Description
What is KANA liquid coating technology?
Kana liquid coating cured by Kana LED UV instant curing coating machine forms a glossy or matte protective film on the surface of soft roll inkjet printing product.
Kana coating is high temperature and low temperature resistant (-20℃ to 68 ℃), anti-yellowing, anti-fracture, scratch-resistant, friction-resistant, environmental friendly, pollution free, safe and energy saving(5kw), low cost as only 0.4$/m².
Under real outdoor test, Kana coating can enduring at least 2 years of sun burning, UV light, water pouring.
Coating Type | SC-6748 glossy coating / SC-6738 matte coating |
Varnish Component | 99% solid content and 1% solvents. |
Glossy Varnish | SC-6748 80-85 ° Glossiness (60° vanceometer) |
Matte Varnish | SC-6738 20 ° Glossiness (60° vanceometer) |
Storage | 1 year. (25℃ at room temperature, keep away from light) |

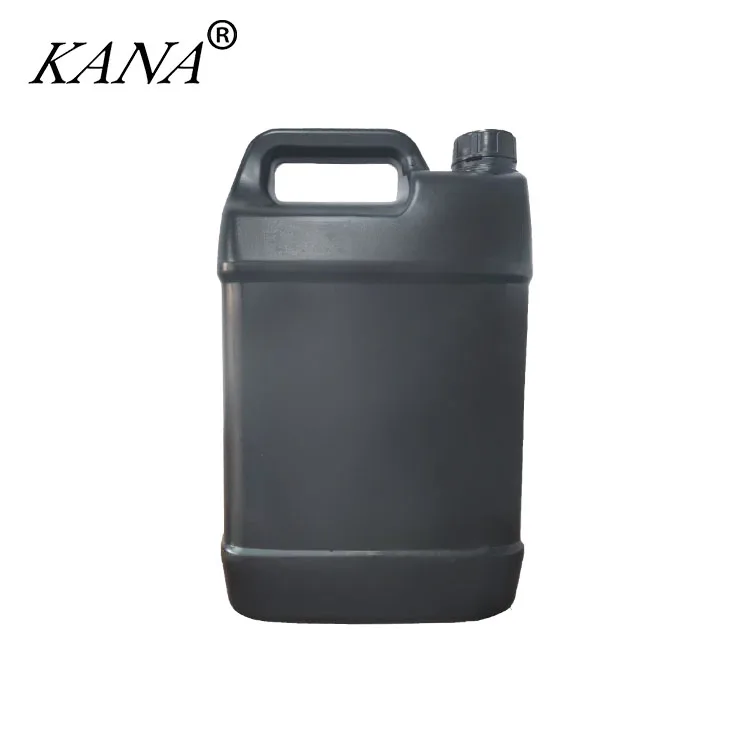

Package | 5kg in PVC Sealed Bottle |
Hardness | ≥2H (pencil hardness) |
Consumption | 6-8g/㎡ Max 600 square meter / 5 kg |
Drying speed | 40-80Ft/Min/80W/Cm/Lamp |
Viscosity | coating with 4 jar in 22 second/25℃ |
Product Paramenters

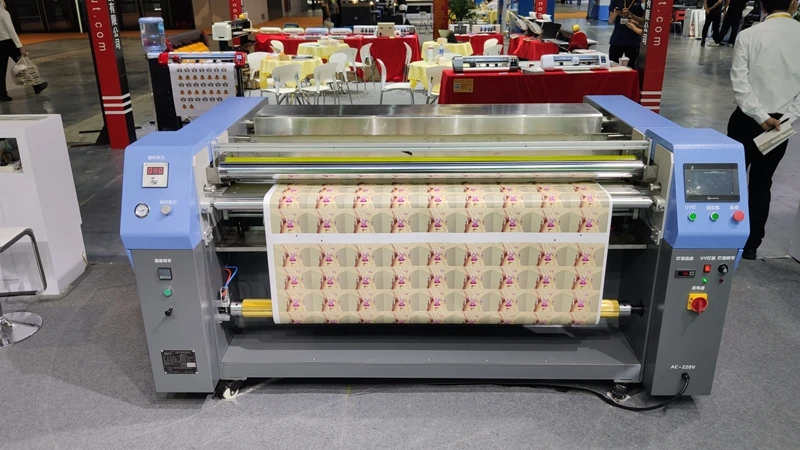

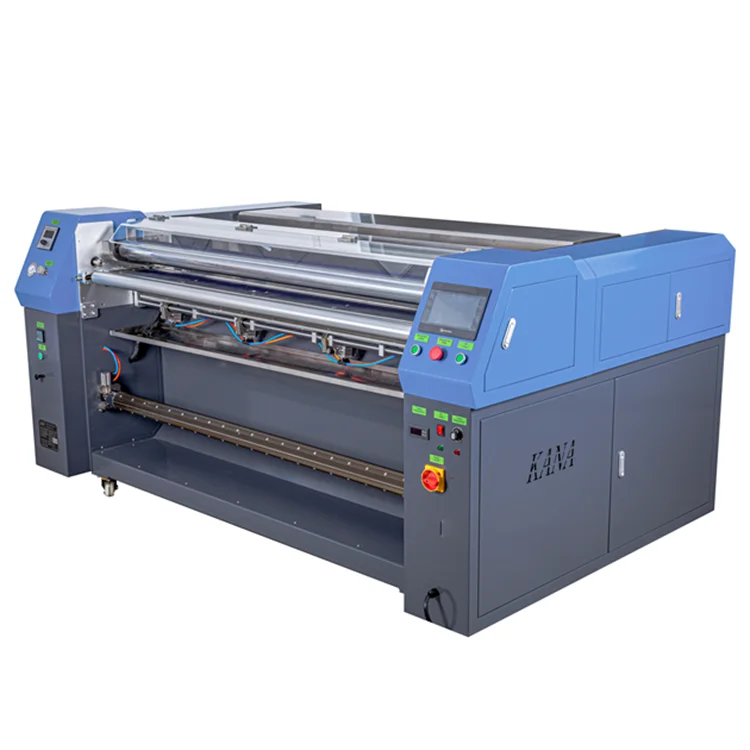

Machine Name | LED UV instant curing liquid coating machine |
Control System | PLC with Touch Screen. Automatic Running |
Model Number | KANA-1700 |
Working Width | 1650mm custom length is ok |
Power | 5kw |
Voltage | 220V 50/60Hz |
Speed | 1-12m/min |
Coating Thickness | 5～10um |
Working Thickness | ≤5mm |
Curing System | LED - UV |
LED Life Expectancy | 15000 hours |
Our Advantages
Comparison | PVC laminating film（×） | KANA UV coating（√） |
Cost | Due to the different sizes of the material, cold laminated film requires a larger inventory , and the scrap rate is close to 15% | Coating on substrates of various formats only needs 6 to 10 grams per square meter, which can reduce waste to 2% |
Application | Poor ductility, inconvenient to use on bus car trailer van sticker | Good ductility and easy to use on bus car trailer van sticker |
Quality | Prone to shrinkage, breakage, separation and wrinkles | No break, no yellowing, scratch resistance, （Aging test report, scratch test in video） |
Transmittance | Low transmittance will darken printing color | It has high light transmittance and good color consistency. The surface brightness of the coating can reach 90° |
Environmental friendly | white pollution, air pollution,water and soil pollution. it takes 30 years to decompose. | The coating and the substrate are better combined, and there is no volatile organic compounds. |
Human hazards | Above 65℃, the laminated PVC film will produce harmful substances and gases such as lead, tin, and chlorine. | No harm to human body（Heavy metal and halogen test report） |
Smell | Heavy odor: the odor is difficult to dissipate in a confined space. | Only a little smell of epoxy resin. 1% solvents solves the problem of volatility and irritation. |
Certifications
YOU CAN DOWNLOAD OUR TEST REPORT BY BELOW LINK
https://drive.google.com/drive/folders/1RxkAYGQeX6t-OkrCDNMiC2ykQulrE2U5?usp=sharing

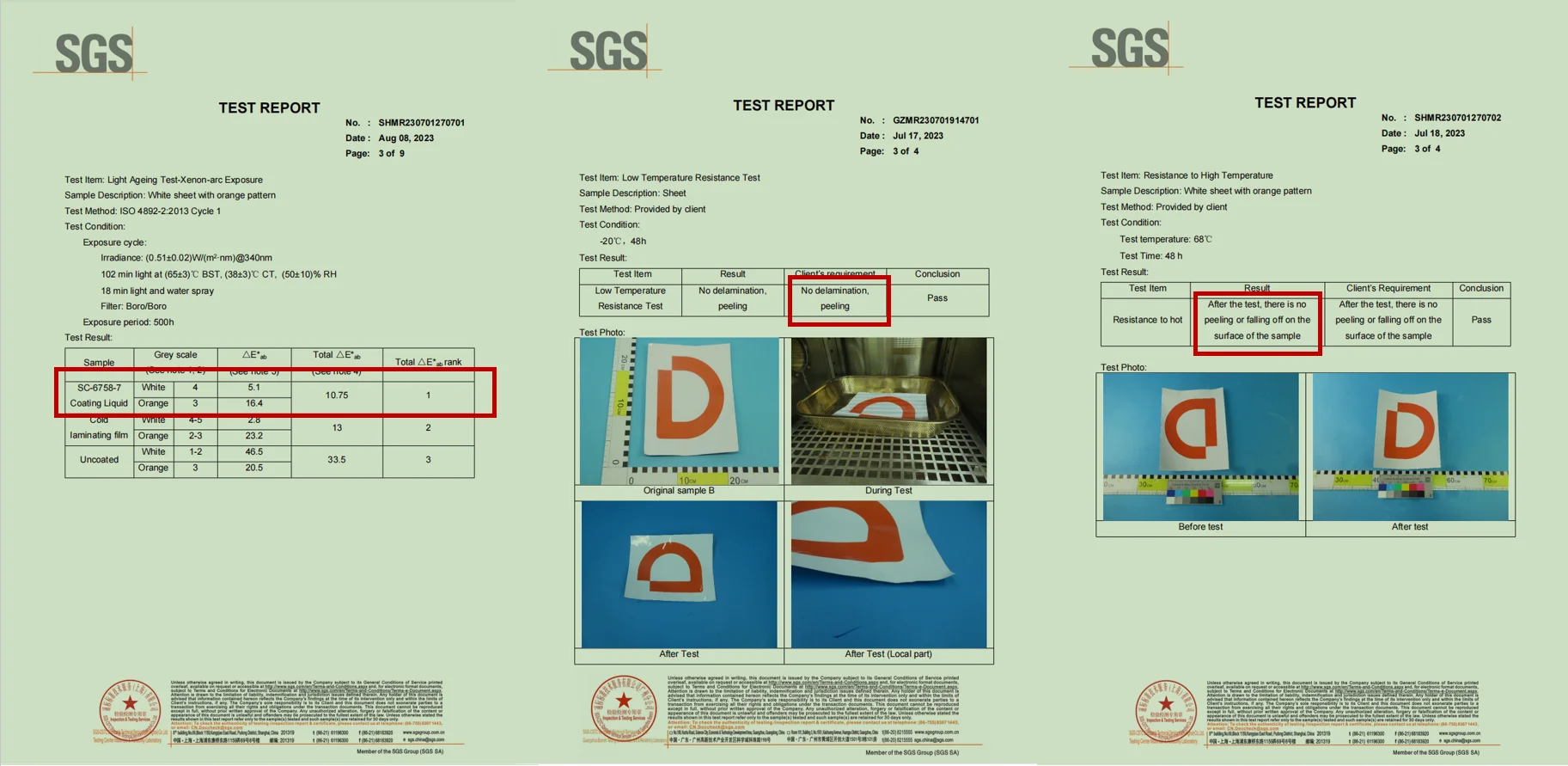

A | KANA coating performance test report (British SGS company) |
1 | Aging test report (coating has no quality change during 500 hours of water spraying and UV light cycle) |
2 | High temperature resistance test report (coating has no quality change under 68℃ within 48 hours) |
3 | Low temperature resistance test report (coating has no quality change under -20℃ within 48 hours) |

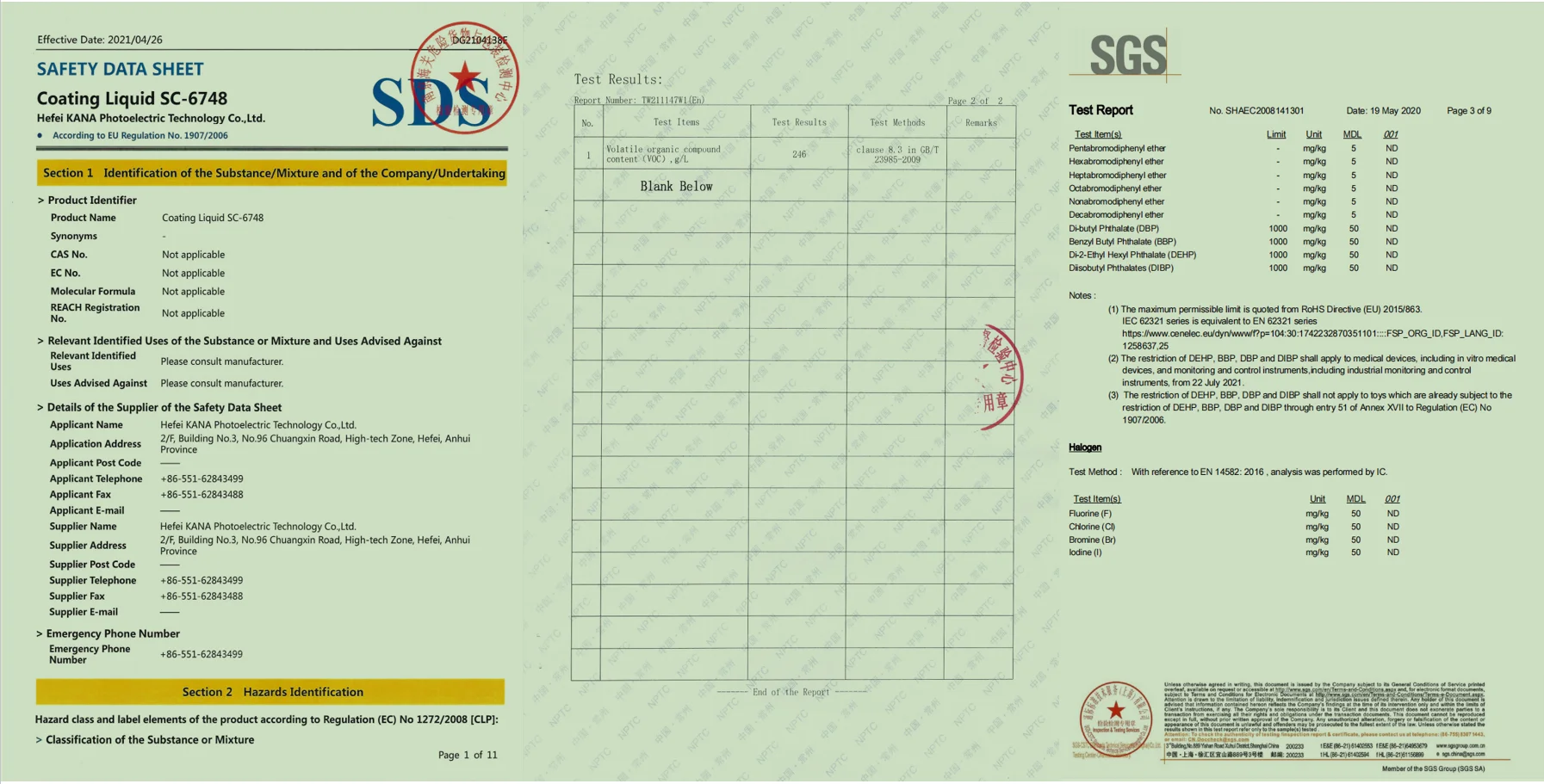

B | KANA coating environmental protection test report (China National Coating Quality Supervision and Inspection Center, British SGS company) |
1 | Heavy metal and halogen test report provided by SGS Test method: burn in a high-pressure oxygen bomb tank, the absorption of combustion products is analyzed by ion chromatography, and no volatile toxic gas will be generated |
2 | SGS inspection report provided by SGS Test method: SVHC 211 high concern substance screening, SVHC test result ≤0.1% (W/W), pass the test standard |
3 | Volatile Organic Compound (VOC) Test Report (By China National Coatings Quality Supervision and Inspection Center) Test method: test condition (105±2)℃/h/about 1g, the test result is 246g/L |
Exhibition
FAQ
No. | Service | Description |
1 | LEAD TIME | 30 working days |
2 | MOQ | Machine 1 pcs, Matte or Glossy Varnish 200kg |
3 | SAMPLE | Free Sample Available,7 Days |
4 | PACKAGING | Plywood Box |
5 | PRICE | EXW FCA FOB CIF DAT DDP |
6 | PAYMENT | Credit/Debit Card,Paypal,Google Pay,ApplePay,WESTERN UNION,T/T,L/C, |
7 | SHIPPING | By Air 9-15 Days,By Express 7-14 Days,By Sea or Train 20-45 days, |
