Product Overview
Description
Introduction
Jig Concentrator is one of the ideal devices in energy-saving gravity separation, mainly used in the mining industry for ore
dressing, such as tungsten, tin, gold,ilmenite, hemtite,rutile sand etc. The maximum feeding particle size is 6-25mm and can be reach 30mm in producing sand ore process.Our jig machine adopts advanced jig technology, reach the leading level.
dressing, such as tungsten, tin, gold,ilmenite, hemtite,rutile sand etc. The maximum feeding particle size is 6-25mm and can be reach 30mm in producing sand ore process.Our jig machine adopts advanced jig technology, reach the leading level.
Laboratory Jigger
JT0.57-1
JT1-1
JT2-2
JT4-2
JT5-2

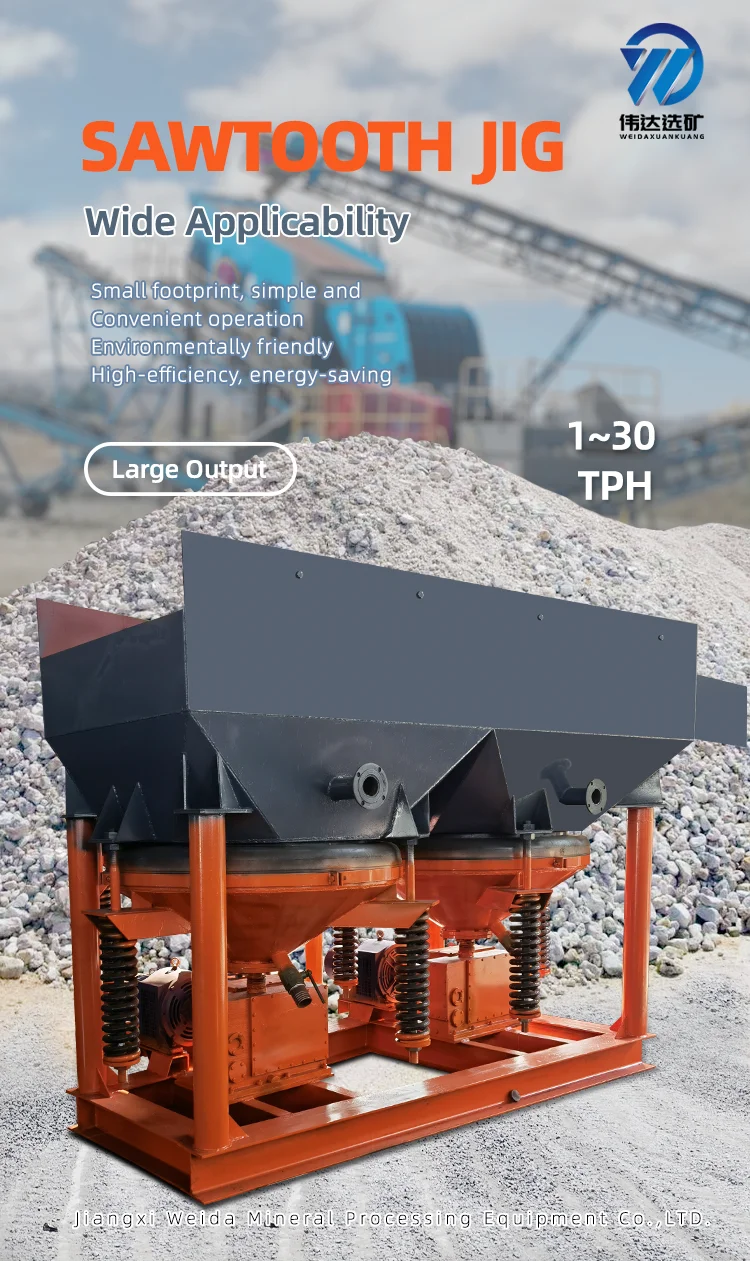

Traditional Sawtooth Wave jigger is screen fixed type machine that realizes the separation of light and heavy mineral by the different sedimentation speed in vertical alternating water flow, it mainly used to handle placer gold,tungsten, tin, hematite and beach placer and other minerals.
We have different models meet different requirements.
Features
1.Stroke and jig frequency are easy to adjust,The advanced frequency conversion speed control technology is convenient to operateand manage. 2.Small cover area, high processing capacity per unit area.
3.Suitable for a wide range of particle size because of large processing capacity.
4.More saving water (around 30%-40%)than other normal jigger.
5.High recovery rate and easy to change spare parts and maintain.

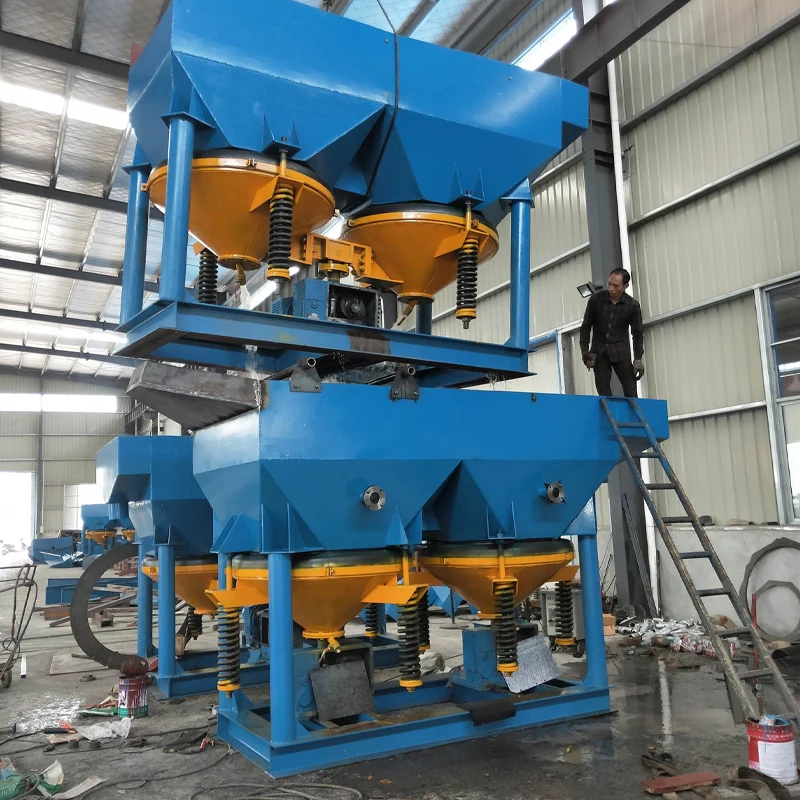

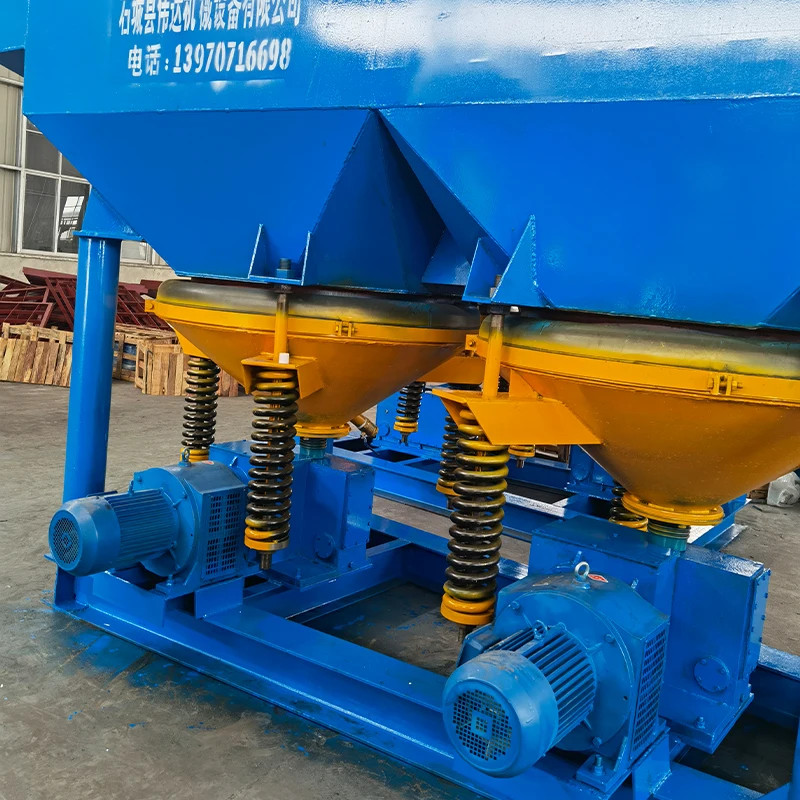

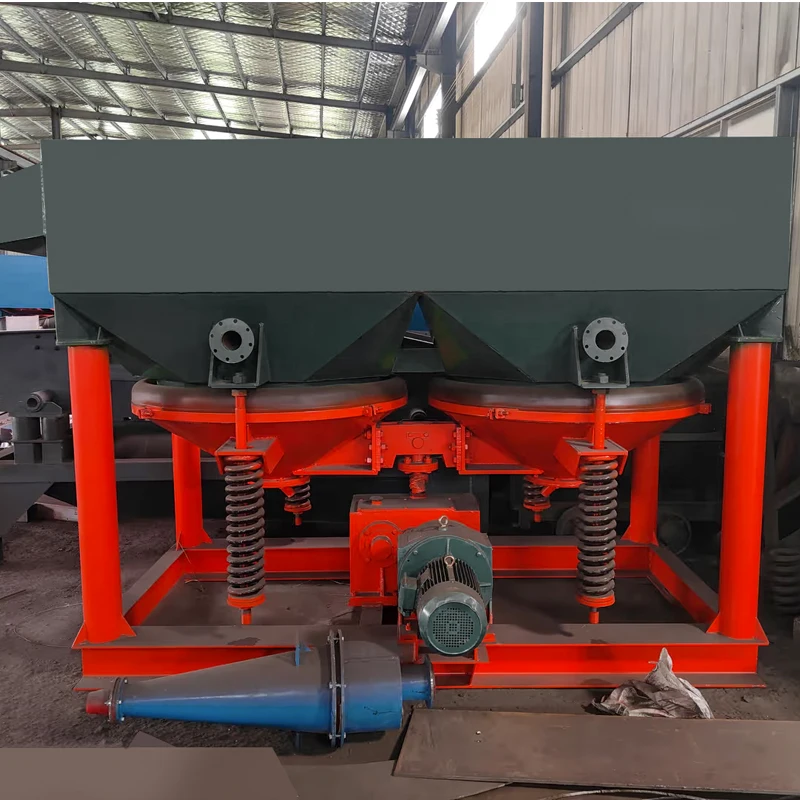

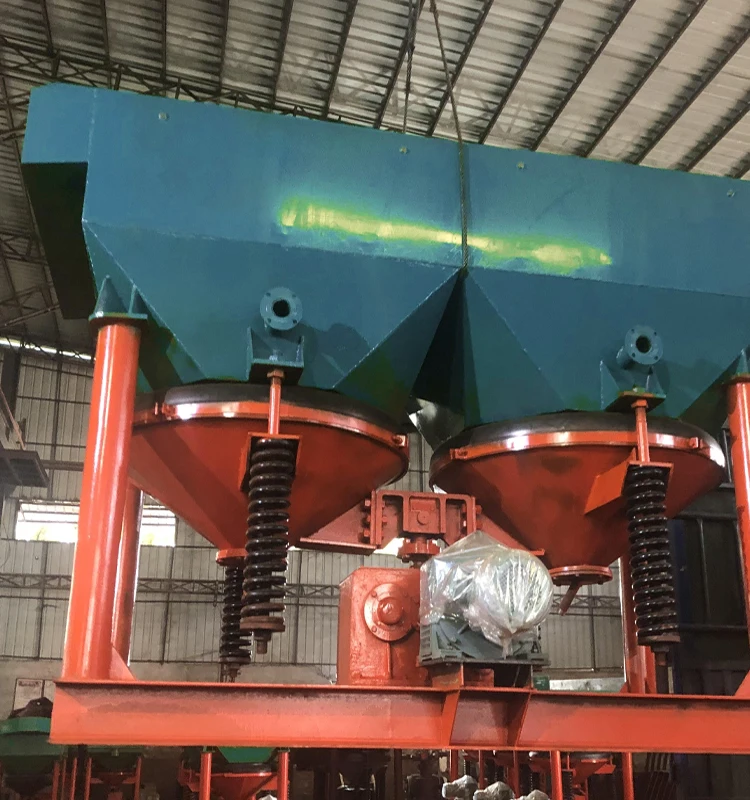

Product Details

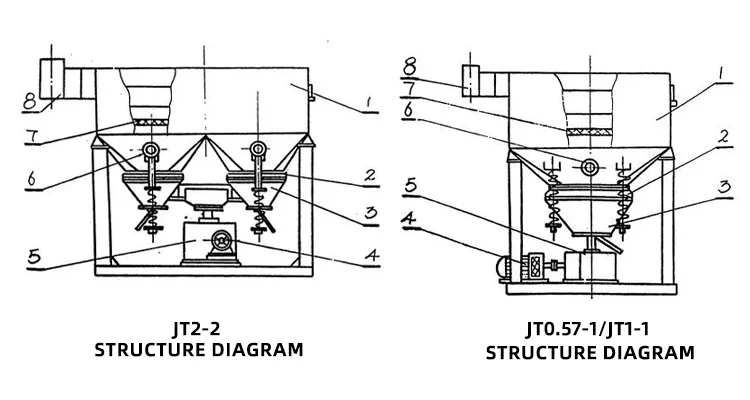

1.Ore dressing groove components 2.Rubber diaphragm section 3.Cone hopper section 4.Electromagnetic speed control motor section 5.Cam box section 6.Feed water pipe flange 7.Screen mesh 8.Ore feeding groove
TECHNICAL PARAMETERS
Model | Charmber | Feeding Size | Adding Water Yield Under Screen | Water Pressure | Handling Capacity | Motor Power | Dimension | Weight | ||
Shape | Area (㎡) | mm | m³/t | MPa | t/h | kw | mm | kg | ||
JT0.57-1 | Ladder | 0.57 | 6 | 1-3 | ≧0.05 | 1-2.5 | 1.5 | 1550x780x1530 | 610 | |
JT1-1 | Ladder | 1.04 | 10 | 1-3 | 2-4 | 2.2 | 2270x1110x1890 | 900 | ||
JT1.5-2 | Rectangle | 1.53 | 10 | 1-2 | 3-8 | 3 | 3200x1550x2050 | 1520 | ||
JT2-2 | Rectangle | 2.28 | 10 | 1-3 | 4-8 | 3 | 3225x1550x2050 | 1640 | ||
JT3-1 | Ladder | 3.3 | 10 | 1-3 | 6-10 | 5.5 | 3180x2000x2600 | 3260 | ||
JT4-2 | Rectangle | 4.33 | 30 | 1-3 | 10-15 | 7.5 | 3600x1850x2600 | 4600 | ||
JT5-2 | Ladder | 4.86 | 10 | 1-3 | 10-15 | 7.5 | 3600x2000x2600 | 4500 | ||
JT1.5-2S | Rectangle | 1.53 | 30 | 1-3 | 3-8 | 1.5x2 | 3200x1550x2050 | 1590 | ||
JT2-2S | Rectangle | 2.28 | 30 | 1-3 | 4-8 | 3x2 | 3225x1550x2050 | 1700 | ||
JT3-2S | Rectangle | 3 | 30 | 1-3 | 6-15 | 5.5x2 | 3560x2030x2600 | 3260 | ||
JT4-2S | Rectangle | 4.33 | 30 | 1-3 | 10-20 | 4x2 | 3600x1850x2600 | 4660 | ||
JT5-2S | Ladder | 4.86 | 30 | 1-3 | 10-20 | 5.5x2 | 3600x2000x2600 | 4700 | ||
JT6-3S | Rectangle | 6 | 30 | 1-3 | 15-30 | 7.5x2 | 4600x2000x2600 | 5900 | ||

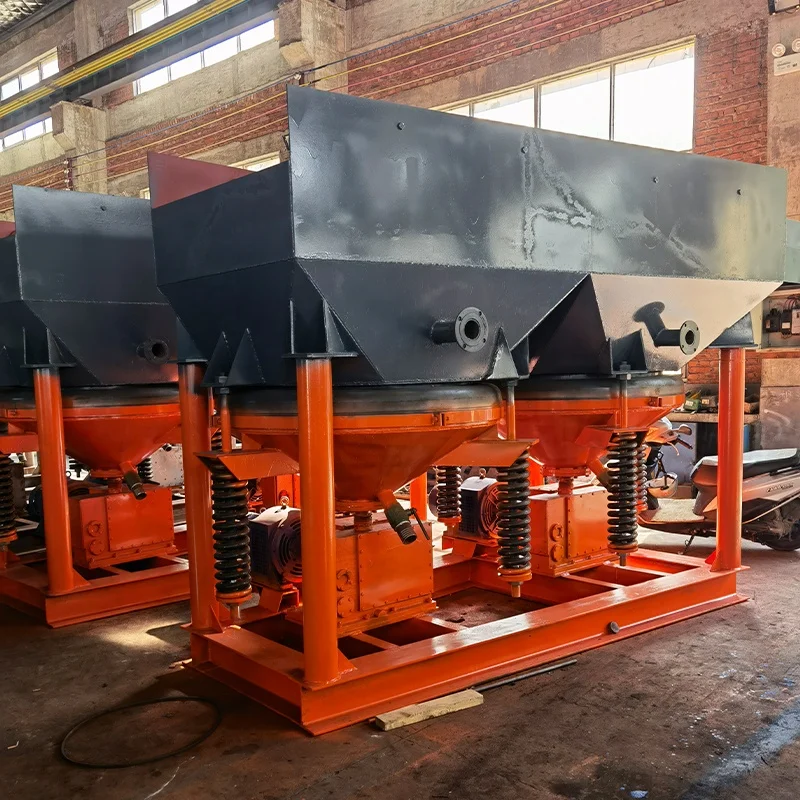

AVAILABLE FROM STOCK
Contact Us
COMPANNY INFORMATION
Jiangxi Weida Mining Machinery Co., Ltd. is a large professional company producing non-ferrous metal and non-metallic separation and treatment equipment. The company covers an area of 25,000 square meters, with fixed assets of 60 million yuan, modern processing workshop 18,000 square meters, more than 40 large processing equipment, mainly producing processing and mineral processing equipment, including ore feeding, crushing, screening, grinding, classification, mixing, flotation, cyanidation and other varieties.
AVAILABLE FROM STOCK

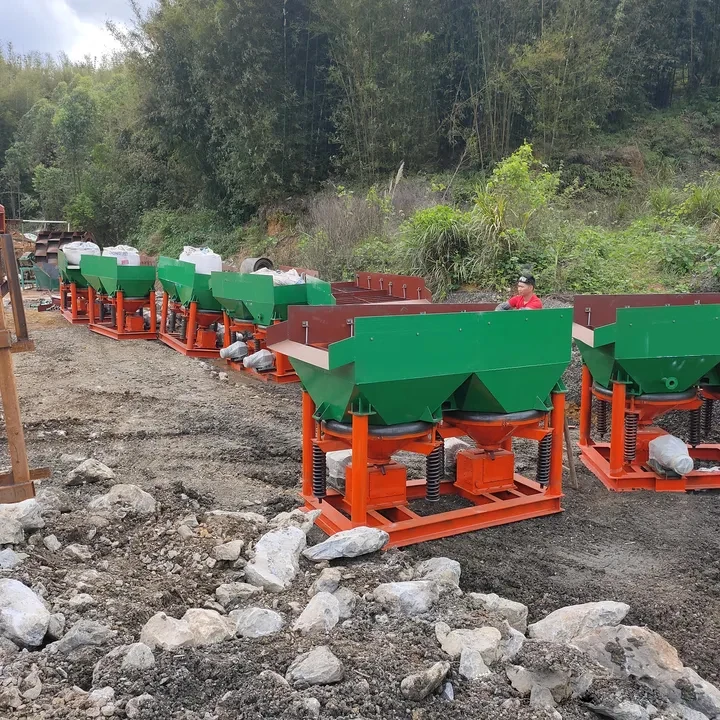

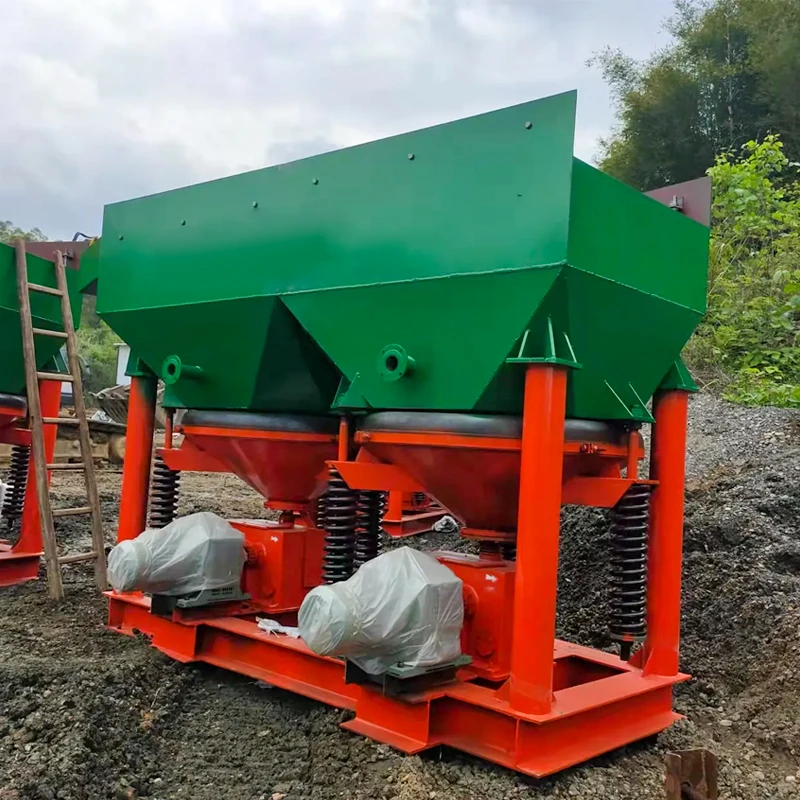

CASE PRESENTATION

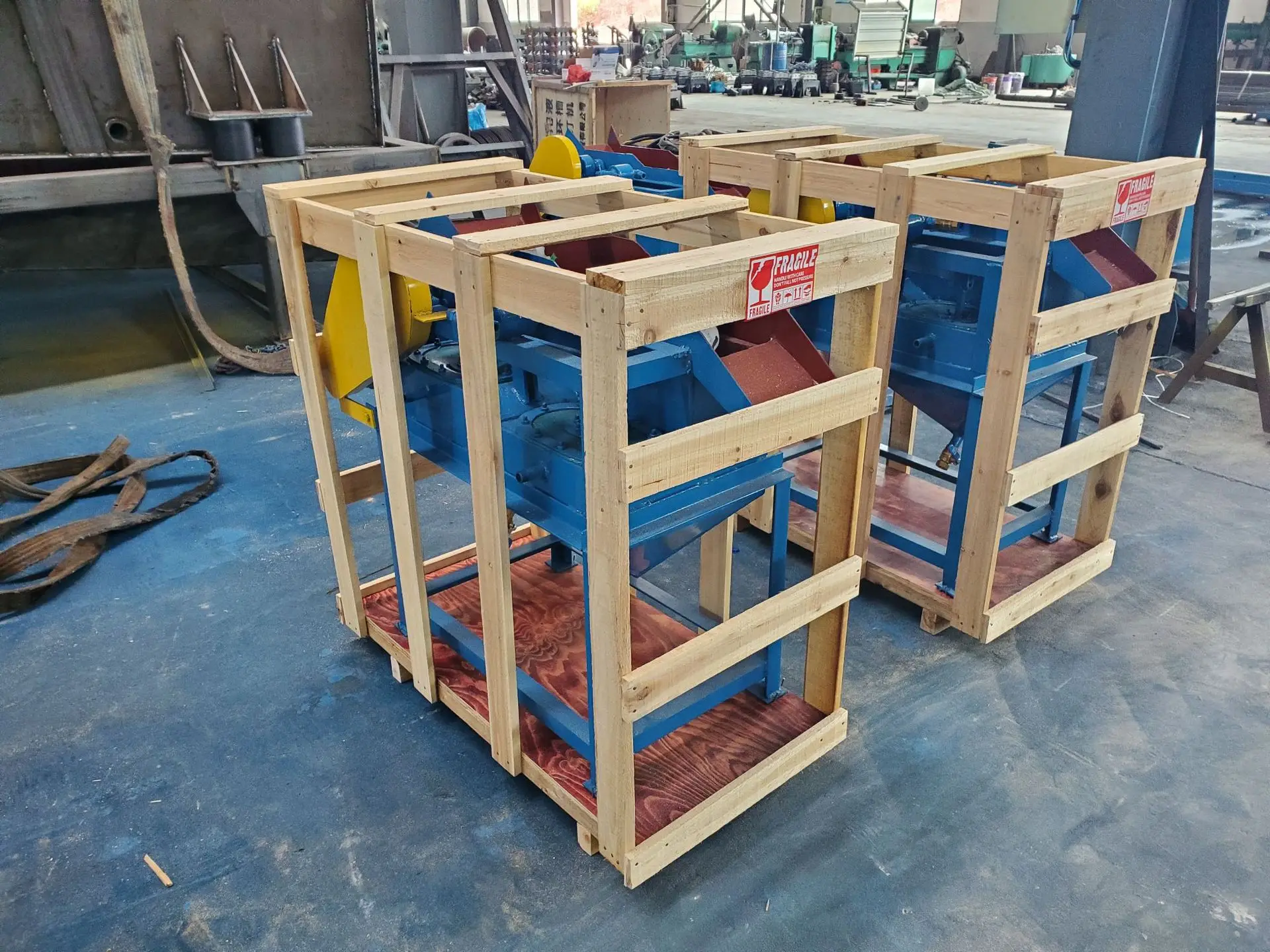

DELIVERY SITE
