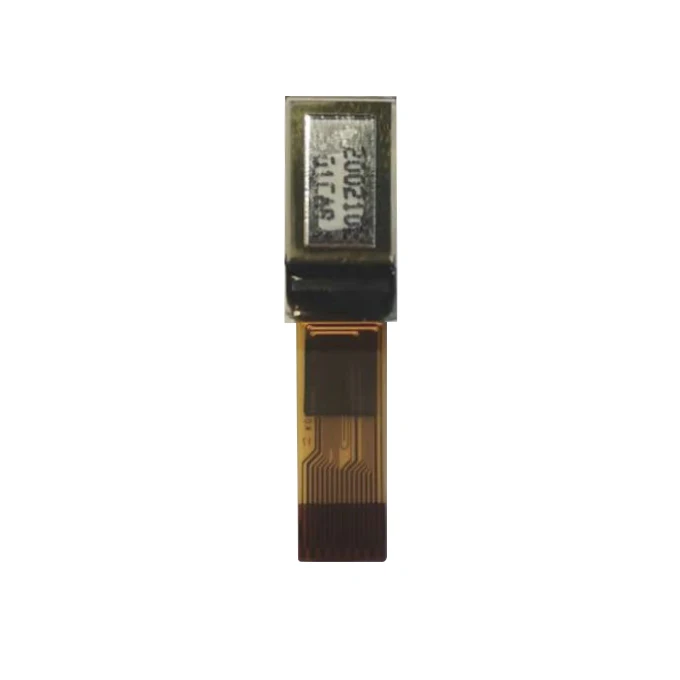

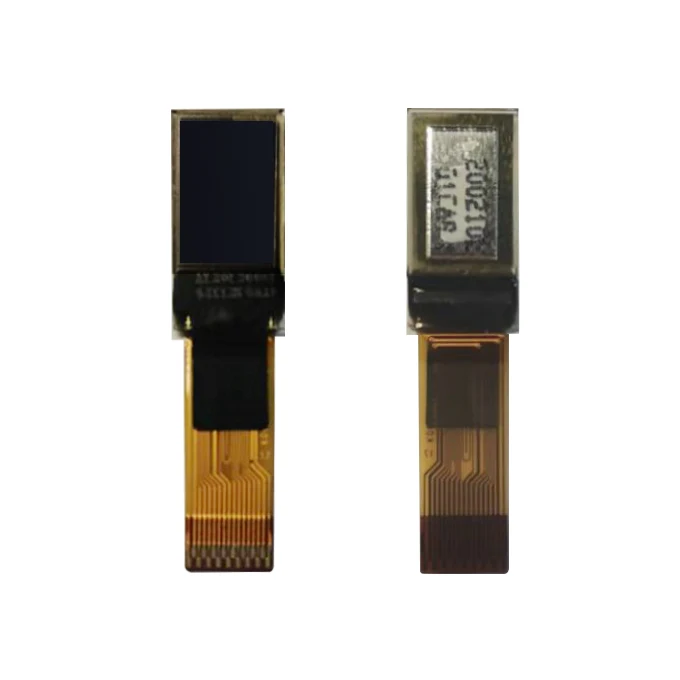

0.33 inch 32x62 Mini OLED Display SSD1312 I2C SPI Small OLED LCD TFT EPD Screen Manufacturer SWI
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1601013267208):
Product Overview
Description
Display General Description
GLO033-D-M2001 produced by SWICN, is a versatile 0.33-inch graphic OLED display module. It presents a visually attractive display in white with a resolution of 128x128 pixels. The module employs the efficient SSD1312Z controller IC and supports 4-wire SPI, and I2C interfaces for seamless communication.
Operating as an OLED display, it operates without the need for a backlight, resulting in reduced power consumption. This
characteristic enhances contrast and widens the viewing angle, ensuring dependable performance across various temperature
conditions.
The module's FPC (Flexible Printed Circuit) features soldering connections, eliminating the requirement for a separate connector.
This simplifies integration and establishes a secure connection directly to your PCB.
GLO033-D-M2001 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability make it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
Shineworld Innovations Limited provides customization options for the display solution, such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility ensures that customers receive an optimized display solution tailored precisely to their specific needs and preferences. Additionally, if required, Shineworld Innovations Limited can also provide customized demo kits for customers.
Operating as an OLED display, it operates without the need for a backlight, resulting in reduced power consumption. This
characteristic enhances contrast and widens the viewing angle, ensuring dependable performance across various temperature
conditions.
The module's FPC (Flexible Printed Circuit) features soldering connections, eliminating the requirement for a separate connector.
This simplifies integration and establishes a secure connection directly to your PCB.
GLO033-D-M2001 is compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This adaptability make it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
Shineworld Innovations Limited provides customization options for the display solution, such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility ensures that customers receive an optimized display solution tailored precisely to their specific needs and preferences. Additionally, if required, Shineworld Innovations Limited can also provide customized demo kits for customers.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | PMOLED | |
2 | Diagonal Size | 0.33 | |
3 | Resolution | 32(W) x 62(H) | Dots |
4 | Active Area | 3.82(W) x 7.42(H) | mm |
5 | Outline Dimension | 6.93(W) x 13.68(H) | mm |
6 | Thickness | 1.02 ±0.1 mm | mm |
7 | Pixel Pitch | 0.12(W) x 0.12(H) | mm |
8 | Pixel Size | 0.1(W) x 0.1(H) | mm |
9 | Display Driver IC | SSD1312Z | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | White | - |
12 | Gray Scale | 1 | Bit |
13 | Brightness | 250(typ) | cd /m2 |
14 | Contrast Ratio | 10000:1 | - |
15 | Interface | 4-wire SPI/I2C | - |
16 | IC Package Type | COG | - |
17 | Module Connecting Type | ZIF Connector (Pitch:0.3mm) | - |
18 | Weight | TBD | g |
19 | Duty | 1/32 | - |
20 | Pins | 17 | Pins |
21 | Operating Temperature | -40~70 | ℃ |
22 | Storage Temperature | -40~85 | ℃ |

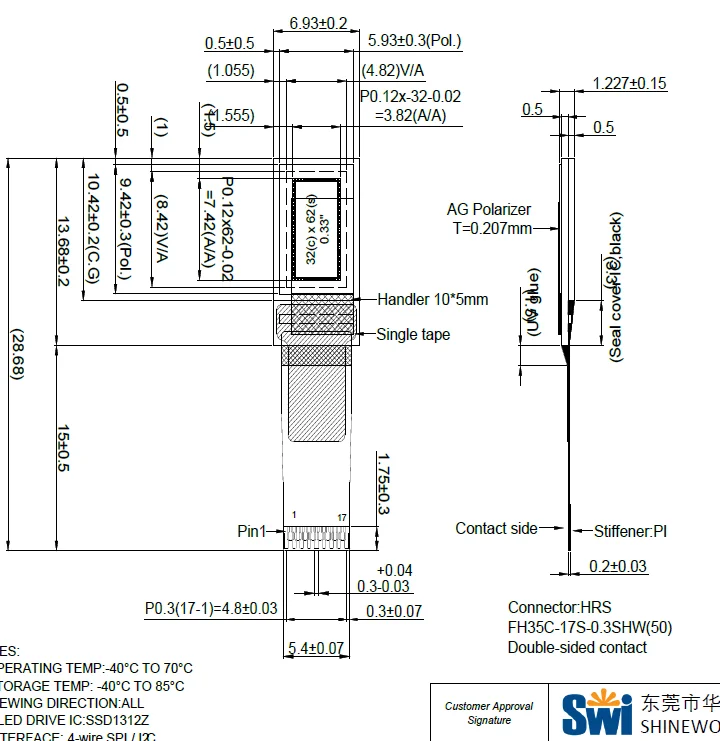

Drawings

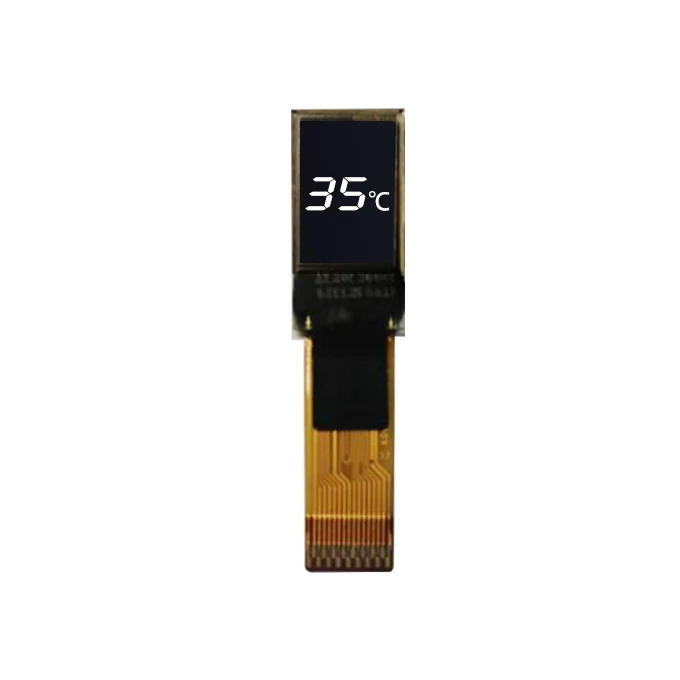

Product Details
More OLEDs Available
Size (inch) | Color | Display Mode | Resolution | Active Area (HxV mm) | Outline Dimension (HxVxD mm) | Interface |
White | Passive Matrix | 32x62 | 3.82x7.42 | 6.93x13.68x1.02 | 4-wire SPI/I2C | |
W/B | Passive Matrix | 72x40 | 9.196x5.18 | 12.0x11.0x1.25 | 4-wire SPI/I2C | |
W/B | Passive Matrix | 64X32 | 11.18x5.58 | 14.5x11.6x1.2 | 4-wire SPI | |
White | Passive Matrix | 48x88 | 11.244x6.124 | 17.1x8.93x1.227 | I2C | |
White | Passive Matrix | 96x32 | 12.46x4.14 | 18.52x7.04x1.22 | I2C | |
Color | Passive Matrix | 64x64 | 10.73x10.73 | 15.0x17.5x1.20 | 4-wire SPI | |
White | Passive Matrix | 120x28 | 15.58x3.62 | 21.54x6.62x1.22 | I2C | |
W/B | Passive Matrix | 64x48 | 13.42x10.06 | 18.46x18.1x1.45 | Parallel/4-wire SPI/I2C | |
W/B | Passive Matrix | 96x16 | 17.26x3.18 | 26.3x8x1.3 | I2C | |
White | Passive Matrix | 48x64 | 10.54x14.7 | 13.9x22x1.2 | I2C | |
White | Passive Matrix | 128x128 | D=19.18 | 23.15x25.93x1.21 | 4-wire SPI/I2C | |
White | Passive Matrix | 80x128 | 9.68x17.26 | 12.13x23.6x1.22 | 4-wire SPI | |
White | Passive Matrix | 128x32 | 21.35x5.32 | 29.0x8.7x1.2 | 4-wire SPI/I2C | |
W/B | Passive Matrix | 128x32 | 22.38x5.58 | 30.0x11.5x1.2 | 4-wire SPI/I2C | |
Color | Passive Matrix | 96x64 | 20.14x13.42 | 25.7x22.2x1.45 | MIPI 1 Lane/4-wire SPI | |
W/B/Y | Passive Matrix | 128x64 | 21.74x11.175 | 26.7x19.26x1.45 | Parallel/4-wire SPI/I2C | |
0.96'' | White | Passive Matrix | 96x96 | 17.26x17.26 | 24x25.7x1.2 | 4-wire SPI |
White | Passive Matrix | 64x128 | 10.86x21.74 | 14x28x1.22 | 4-wire SPI/I2C | |
0.96'' | Color | Passive Matrix | 64x128 | 10.86x21.73 | 14.86x28.4x1.02 | Parallel/4-wire SPI |
White | Passive Matrix | 64x128 | 10.86x25.58 | 14x31.96x1.22 | 4-wire SPI | |
Yellow | Passive Matrix | 96x96 | 20.14x20.14 | 27x42.11x1.61 | Parallel/SPI/I2C | |
Color | Passive Matrix | 126x294 | 10.96x25.57 | 12.96x30.94x0.78 | MIPI 1 Lane/SPI | |
White | Passive Matrix | 128x128 | 20.14x20.14 | 27x30.1x1.25 | Parallel/SPI/I2C | |
Color | Passive Matrix | 96x96 | 19.85x19.85 | 25.9x30.1x1.2 | Parallel/4-wire SPI | |
Color | Passive Matrix | 390x390 | D=30.42 | 33.22x33.75x0.68 | MIPI 2 Lane/SPI | |
Color | Passive Matrix | 128x96 | 26.279x19.70 | 33x25.8x1.2 | Parallel/SPI | |
White | Passive Matrix | 128x64 | 29.42x14.7 | 32.42x21.36x1.43 | Parallel/4-wire SPI/I2C | |
White | Passive Matrix | 128x64 | 29.42x14.7 | 34.5x23.0x1.4 | Parallel/SPI/I2C | |
White | Passive Matrix | 64x128 | 14.1x28.82 | 17.1x35.8x1.43 | 4-wire SPI/I2C | |
Color | Active Matrix | 360x360 | D=32.94 | 35.34x36.07x0.67 | MIPI 2 Lane/SPI/MCU | |
White | Passive Matrix | 128x96 | 26.86x20.14 | 32.5x29.2x1.61 | Parallel/SPI/I2C | |
Color | Passive Matrix | 160x128 | 28.78x23.024 | 35.8x30.8x1.6 | Parallel/4-wire SPI/I2C | |
Color | Active Matrix | 194x368 | 17.46x33.12 | 19.36x36.17x0.78 | MIPI 1 Lane/SPI | |
Color | Passive Matrix | 128x128 | 26.85x26.86 | 33.8x34x1.6 | Parallel/SPI | |
White | Passive Matrix | 128x128 | 26.85x26.85 | 33.9x37.3x1.44 | Parallel/4-wire SPI/I2C | |
W/B/Y | Passive Matrix | 128x64 | 35.05x17.516 | 42.04x27.22x1.4 | Parallel/4-wire SPI/I2C | |
Yellow | Passive Matrix | 128x64 | 36.45x18.21 | 41.9x28.0x1.61 | Parallel/4-wire SPI/I2C | |
Color | Passive Matrix | 160x128 | 33.57x26.86 | 39.9x34x1.6 | Parallel/4-wire SPI/I2C | |
Color | Passive Matrix | 160x128 | 35.01x28.01 | 42.7x33.4x2 | Parallel/SPI | |
W/B | Passive Matrix | 256x32 | 46.06x5.74 | 52x11.5x1.81 | Parallel/4-wire SPI/I2C | |
White | Passive Matrix | 128x160 | 28.90x39.34 | 32.9x118.4x1.22 | Parallel/SPI/I2C | |
White | Passive Matrix | 256x64 | 51.18x12.78 | 62.5x20.6x1.6 | Parallel/4-wire SPI/I2C | |
W/B | Passive Matrix | 128x32 | 55.02x13.1 | 62x24x2 | Parallel/4-wire SPI/I2C | |
2.4'' | W/Y | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.82 | Parallel/4-wire SPI/I2C |
W/B/Y/G | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.8 | Parallel/4-wire SPI/I2C | |
W/Y | Passive Matrix | 128x64 | 61.41x30.69 | 73x41.86x2.0 | Parallel/4-wire SPI | |
W/B/Y/G | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI | |
W/Y | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI | |
Green | Passive Matrix | 256x64 | 135x33.89 | 146x45x2.0 | Parallel/SPI |
Packing

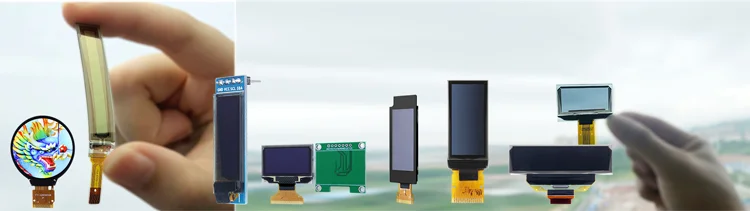

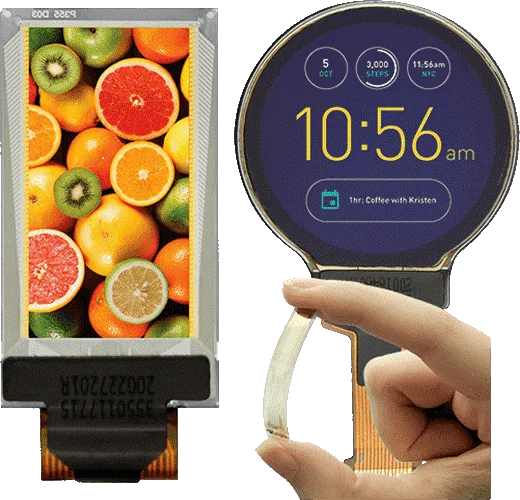

About OLED
OLED displays offer several advantages, including ultra-thin designs (eliminating the need for a backlight), wide viewing angles, clear and bright displays, and reduced power consumption.
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
Display Sizes: 0.42”, 0.49”, 0.5'', 0.6'', 0.63'', 0.66”, 0.69”, 0.71”, 0.75”, 0.87”, 0.91”, 0.95”, 0.96”, 1.09'', 1.1'', 1.12”, 1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”, 2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
Display Sizes: 0.42”, 0.49”, 0.5'', 0.6'', 0.63'', 0.66”, 0.69”, 0.71”, 0.75”, 0.87”, 0.91”, 0.95”, 0.96”, 1.09'', 1.1'', 1.12”, 1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”, 2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
OLED Features
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner, Lighter, and Durable
Wide Operating Temperature Range (-40℃ to +85℃)
Self-emitting, No Backlight Required
Versatile Integration Across Industries
Industrial
Measuring & Meter
OA Equipment
POS & Server
Card Reader
Door Security
USB Key
Banking Device
Cryptocurrency Hardware Wallet
OA Equipment
POS & Server
Card Reader
Door Security
USB Key
Banking Device
Cryptocurrency Hardware Wallet
Communication
Mobile Phone
DECT Phone
Bluetooth Device
Router
Set-Top Box
DECT Phone
Bluetooth Device
Router
Set-Top Box
Automotive
Head Up Display
Car Audio
Speed Detector
ETC
Timer
Climate Control
Dashboard
Car Audio
Speed Detector
ETC
Timer
Climate Control
Dashboard
PC Peripheral
Keyboard
Mouse
Printer
Scanner
NAS
Digital Pen
Mouse
Printer
Scanner
NAS
Digital Pen
Medical
Glucose Meter
Oximeter
Blood-Pressure Meter
Thermometer
Beauty & Cosmetic Equipment
Oximeter
Blood-Pressure Meter
Thermometer
Beauty & Cosmetic Equipment
Consuming
IoT
Wearable Device
Remote Controller
Digital Camera
Game Machine
Audio Video Equipment
Wearable Device
Remote Controller
Digital Camera
Game Machine
Audio Video Equipment
ABOUT US
Who is SWI
Dongguan Shineworld Innovations Technology Co., Ltd. operates as a subsidiary of Shineworld Innovations Limited. Originally established in 2003 and restructured in 2011, Shineworld Innovations Limited (SWI) is a China-based company specializing in the provision of display screens and tailored display solutions. Our primary mission is to offer our clients cutting-edge display technology suitable for diverse environments, enabling enhanced viewing experiences.
At SWI, we boast a pioneering technical team and advanced manufacturing facilities, enabling us to deliver competitive and high-quality products, solutions, and services. Our commitment to innovation revolves around understanding and addressing customer needs. We continuously invest in new technologies, with a particular focus on driving technological breakthroughs that propel the display industry forward.
What does SWI offer the world?
Diverse Industry Applications: Our advanced display technology is used in various industries, such as consumer electronics, portable devices, financial equipment, energy metering, kiosks, wearables, healthcare, and industrial equipment.
Direct Bonding Expertise: Direct bonding, crucial for improved display quality, is our specialty. We offer direct bonding services for touch panels, LCD displays, and other materials, accommodating sizes from 0.2 inches to 110 inches.
Customer-Centric Focus: Our commitment is to create value through collaboration with suppliers and partners, delivering innovative, high-quality products and exceptional customer service.
Employee Growth and Sustainability: At SWI, we prioritize employee development and sustainability, aiming for a bright future for our employees, shareholders, and communities.

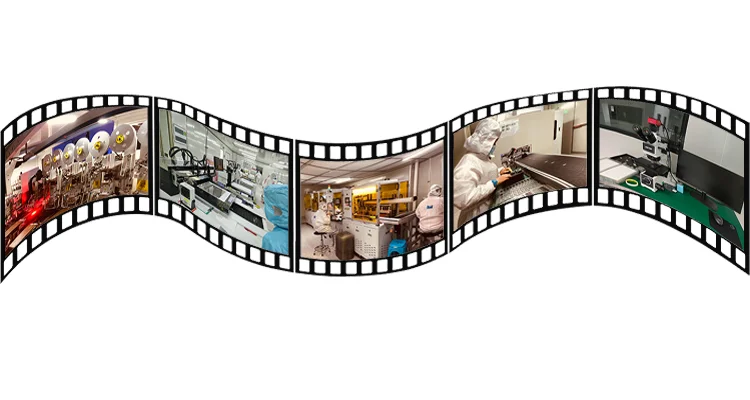

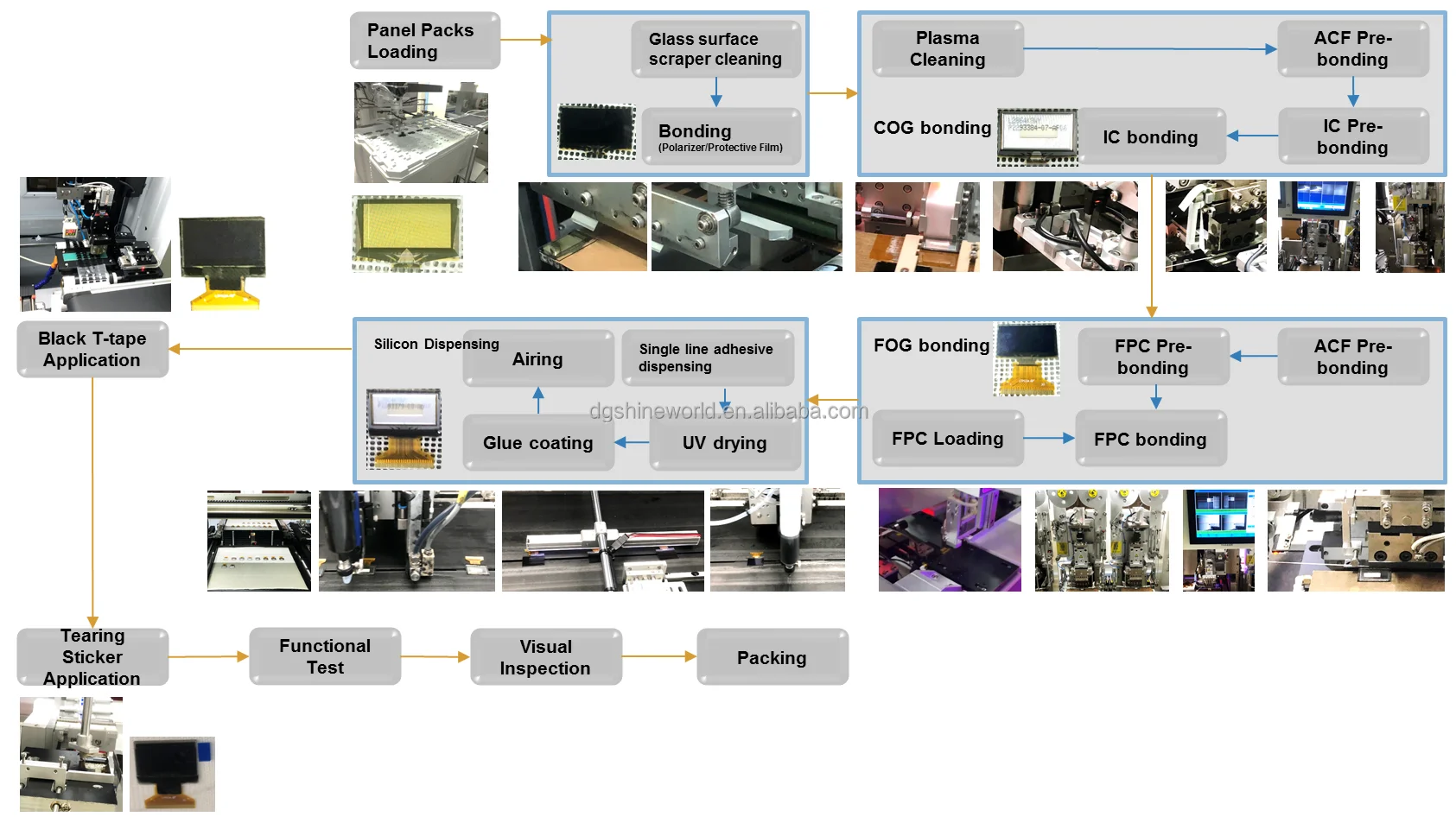

Process Flow
Our Advantages
Customer Focused
Our primary dedication is to our customers, and they remain at the forefront of our focus. We maintain open channels of
communication with our clientele, actively seeking their input on ways we can enhance our ability to meet their requirements and exceed their expectations. This feedback plays a pivotal role in shaping our priorities and methodology.
communication with our clientele, actively seeking their input on ways we can enhance our ability to meet their requirements and exceed their expectations. This feedback plays a pivotal role in shaping our priorities and methodology.
Effective Teamwork
We firmly believe in adopting a team-based approach for all our endeavors. Successful teamwork hinges on robust relationships, mutual respect, and the inclusion of diverse perspectives from all participants. We cultivate an environment that encourages and nurtures these essential elements.
Advanced Facilities
Our state-of-the-art facilities incorporate automated production lines within controlled environments, including class 100 and class 1000 clean rooms, to uphold the highest standards of product quality.
Backed by a pioneering technical team and advanced manufacturing capabilities, SWI delivers products and services that not only compete effectively in the market but also maintain exceptional quality standards.
Backed by a pioneering technical team and advanced manufacturing capabilities, SWI delivers products and services that not only compete effectively in the market but also maintain exceptional quality standards.
Integrated Solutions
We offer our customers well-suited display solutions that seamlessly integrate capacitive touch functionalities and optical bonding solutions.
Our extensive range of display technologies, including LCM, TFT, OLED, EPD, CTP, and optical bonding, along with integrated solutions, caters to the comprehensive one-stop customization needs of our clients.
Our extensive range of display technologies, including LCM, TFT, OLED, EPD, CTP, and optical bonding, along with integrated solutions, caters to the comprehensive one-stop customization needs of our clients.

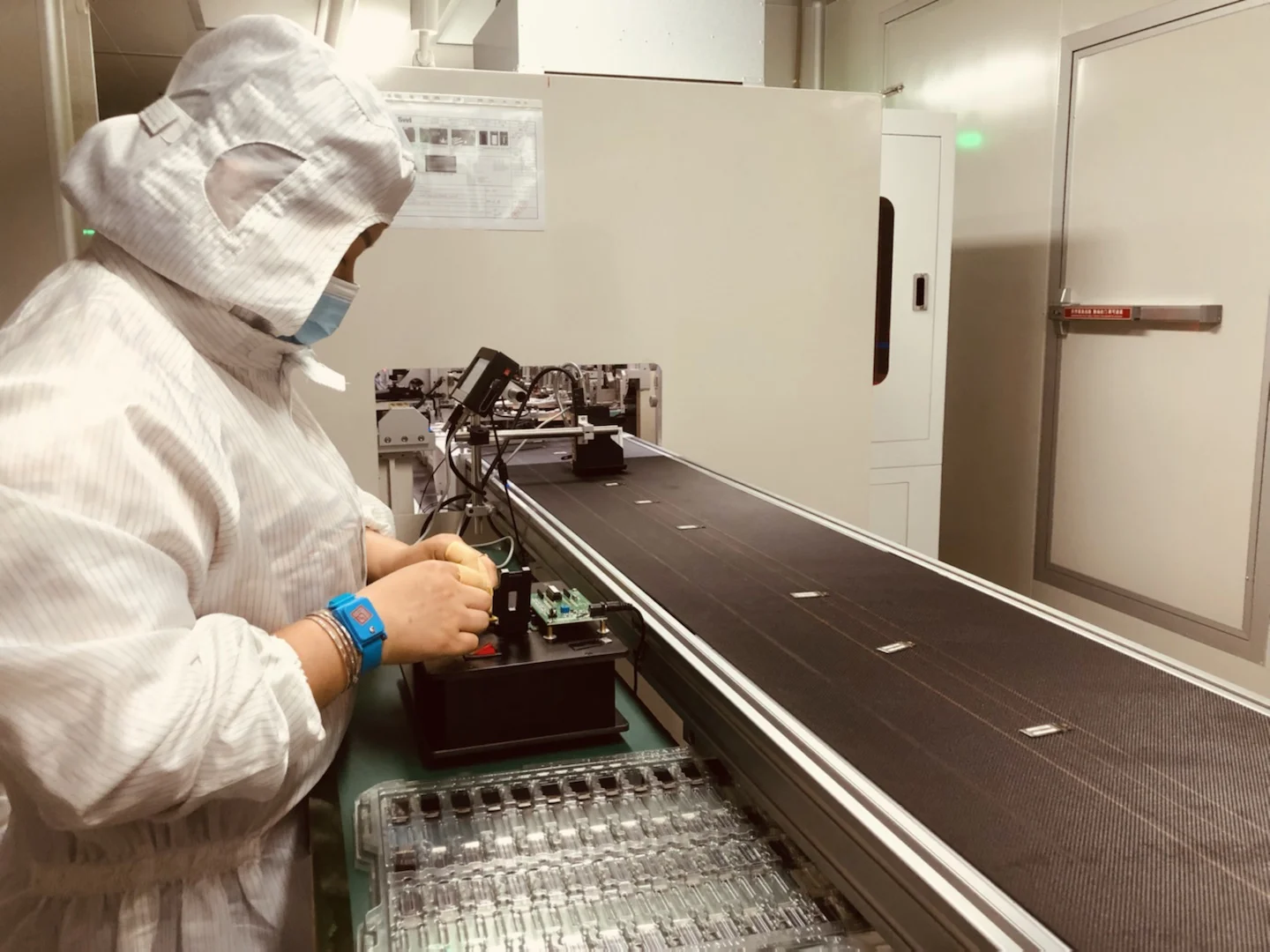

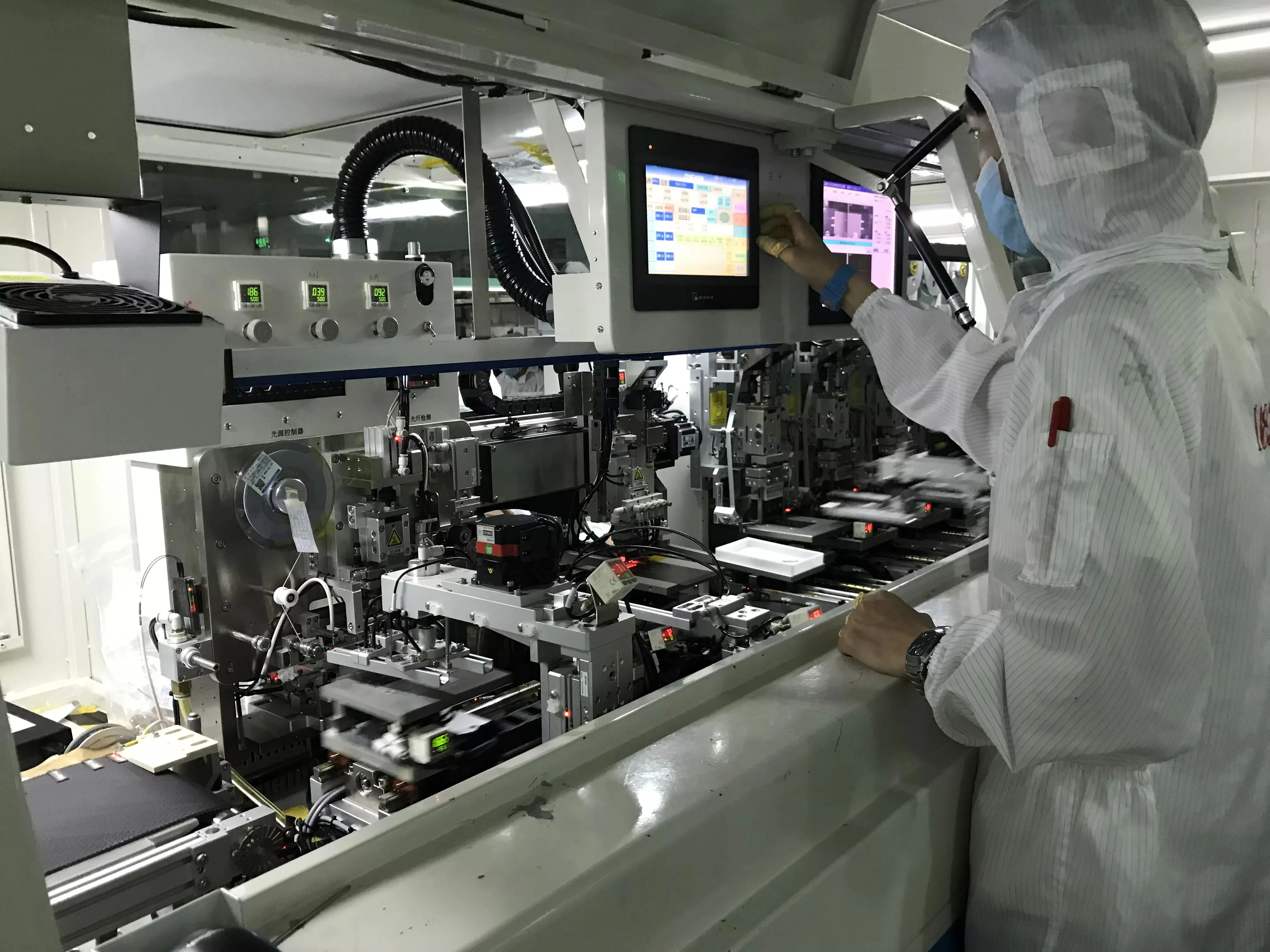

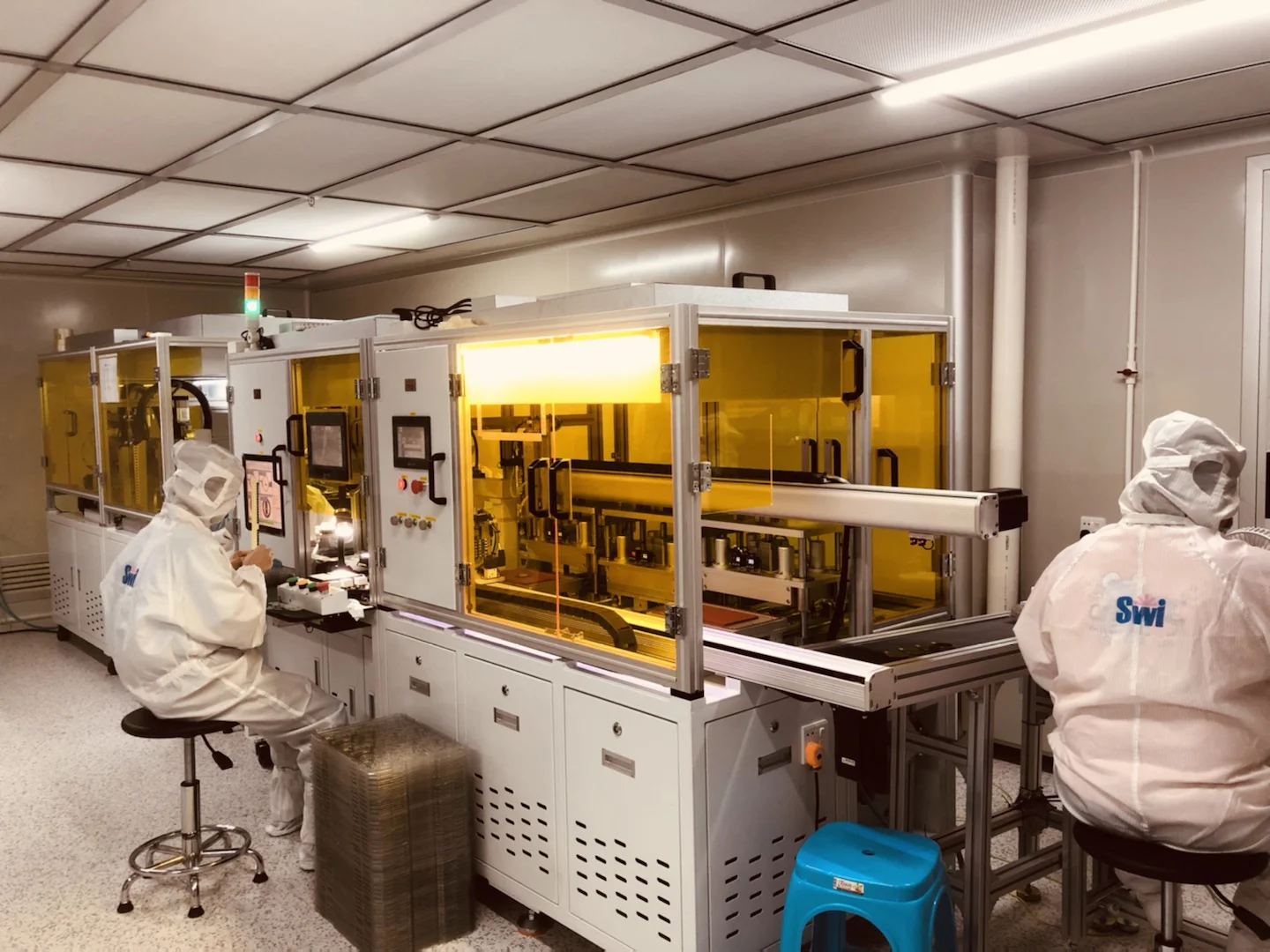

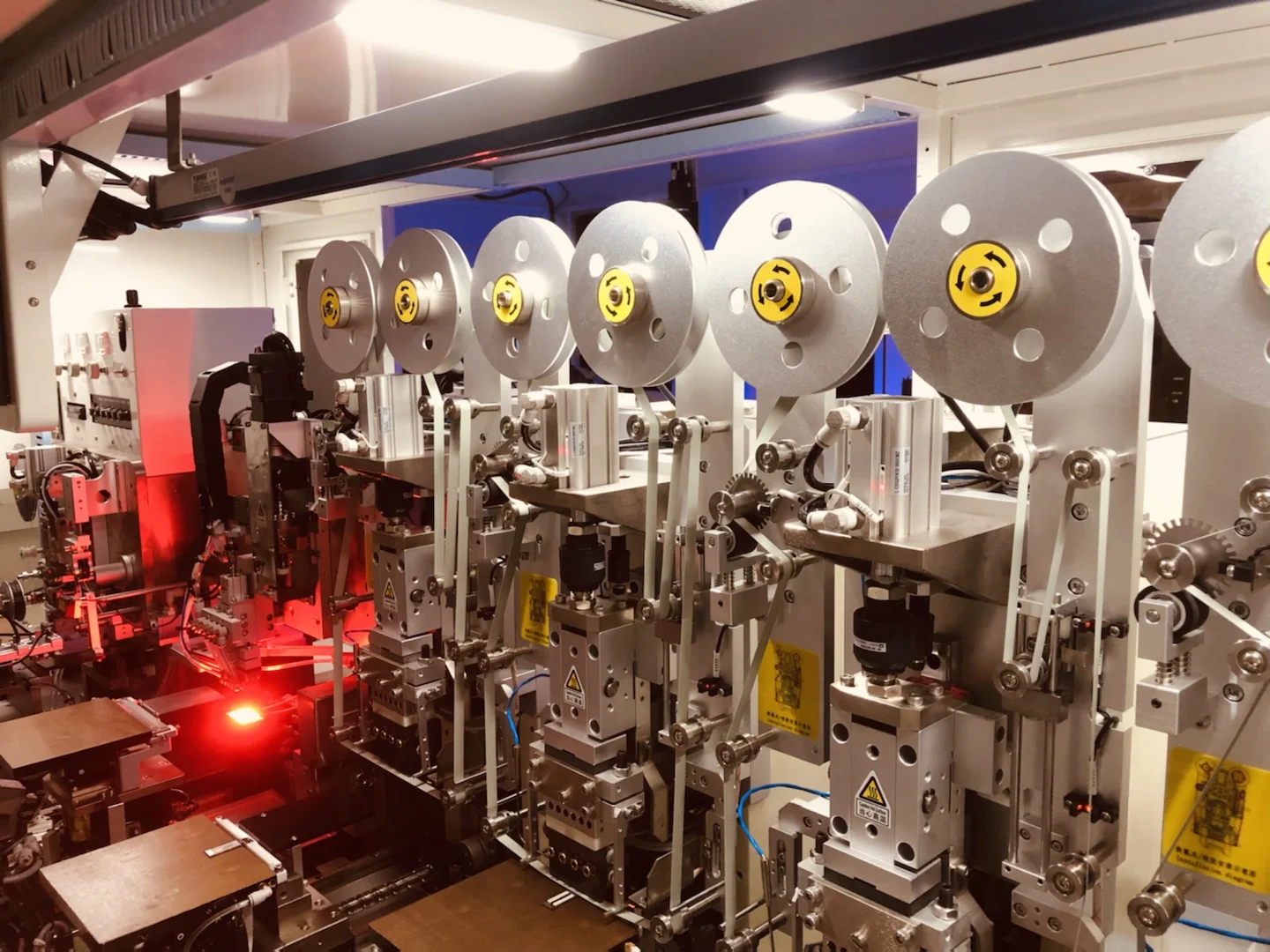

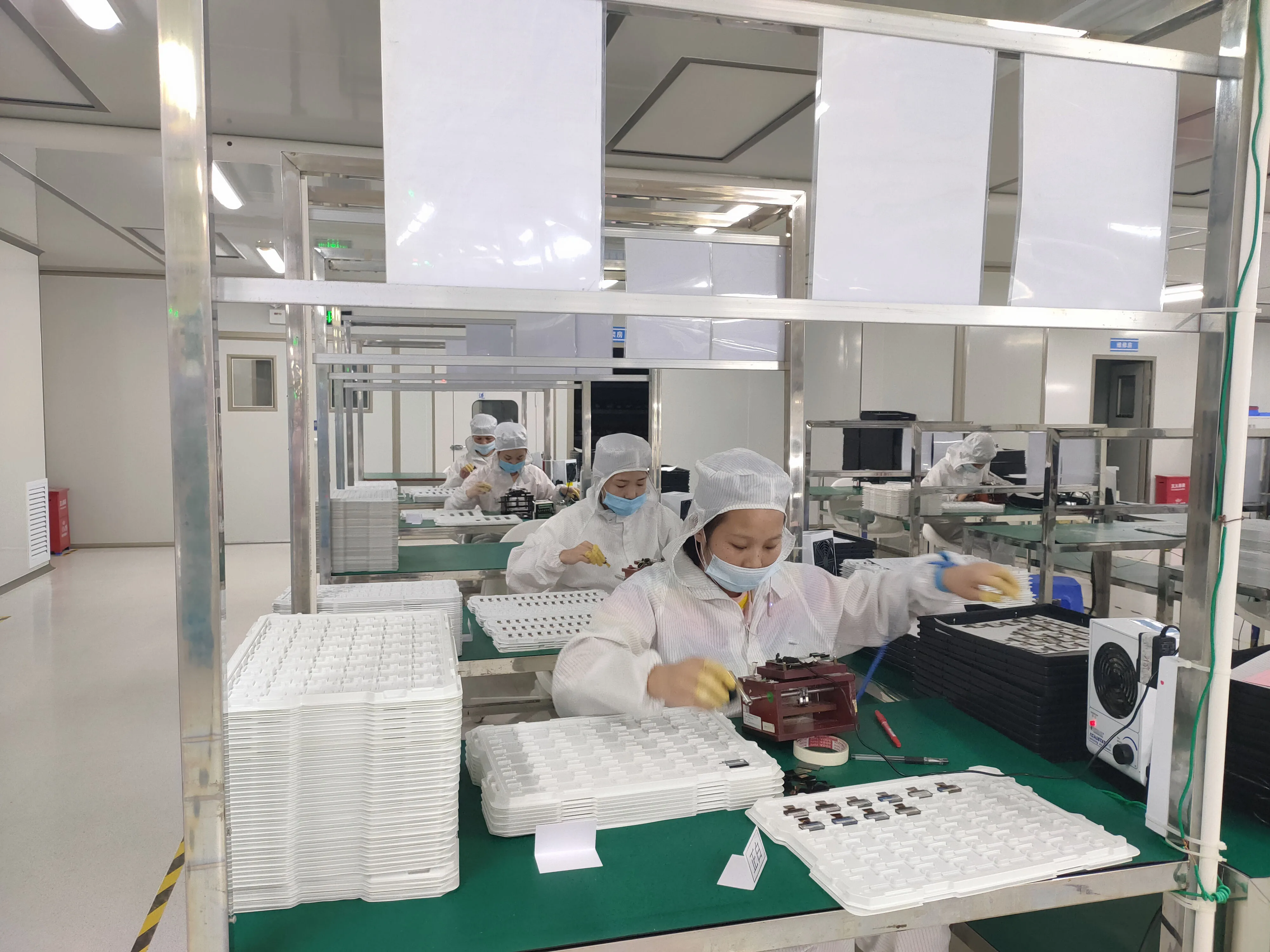

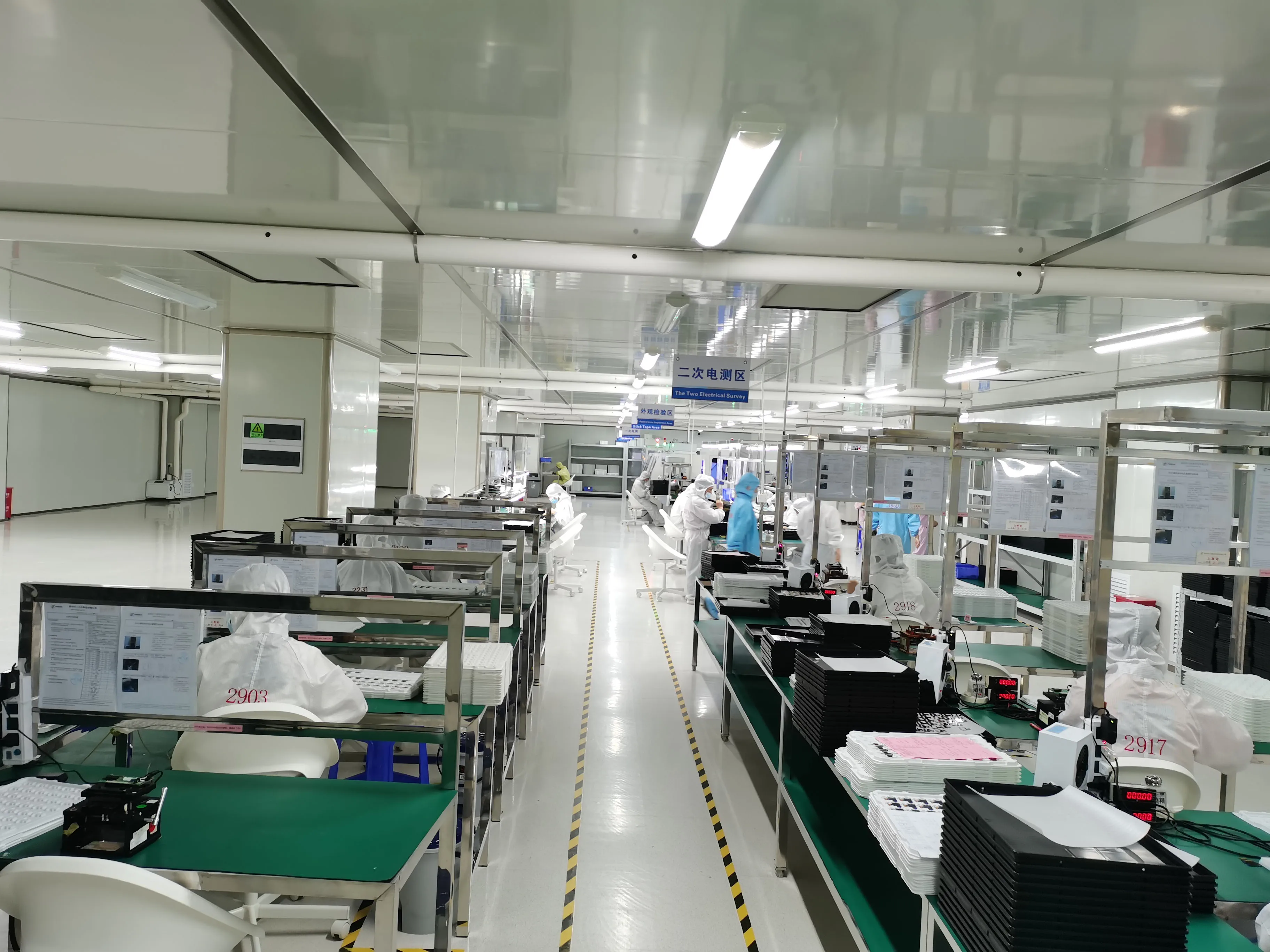

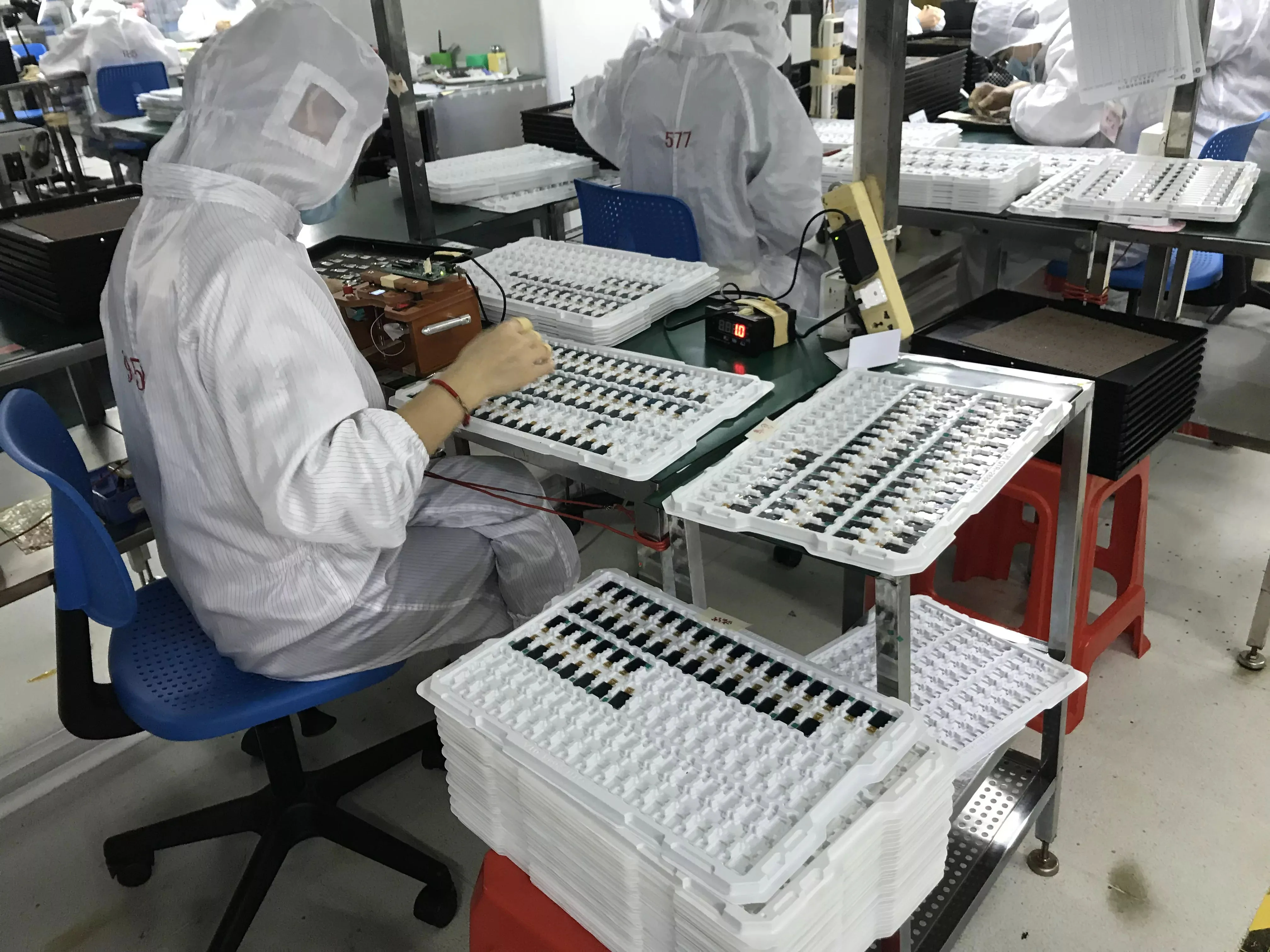

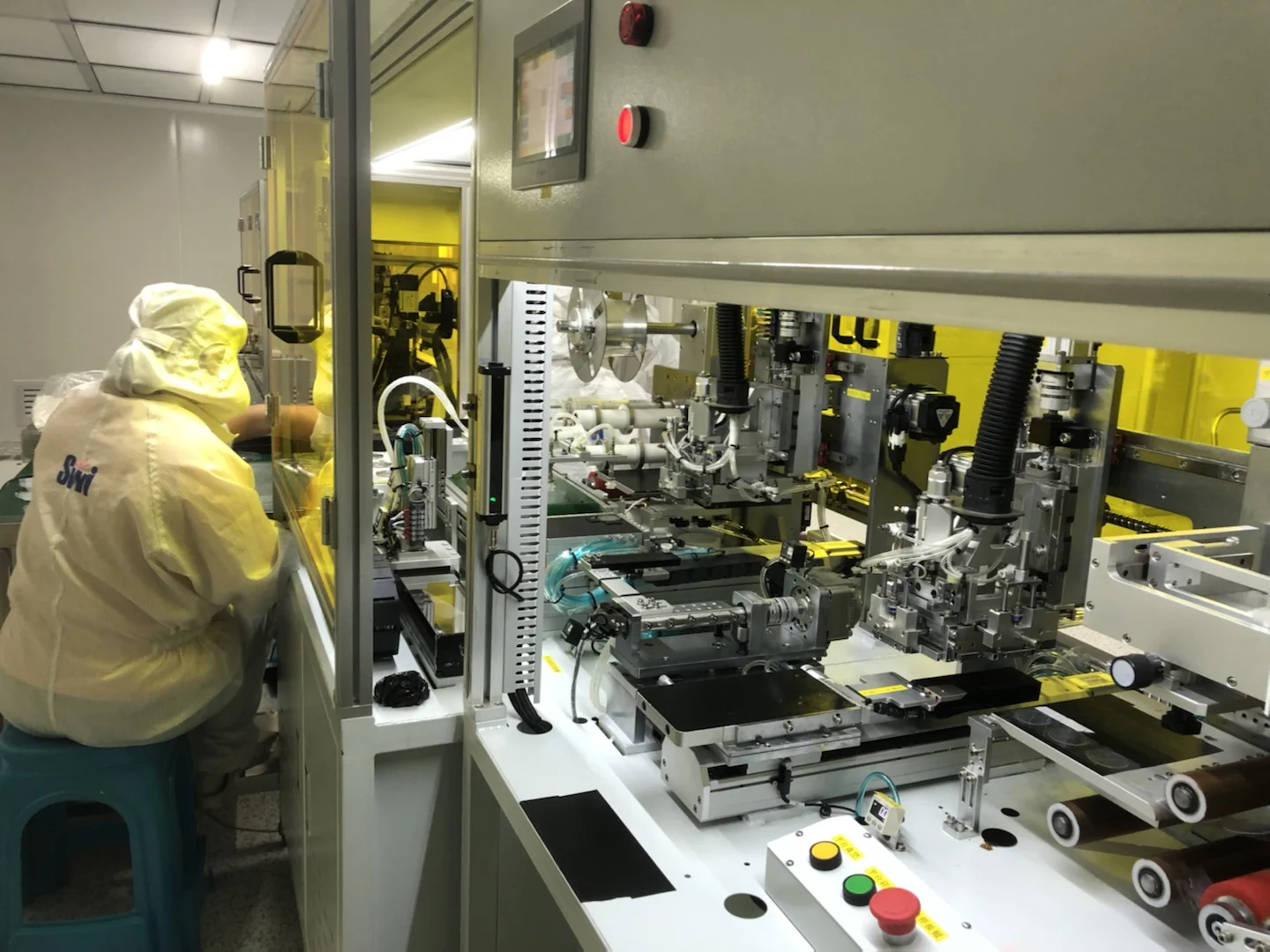

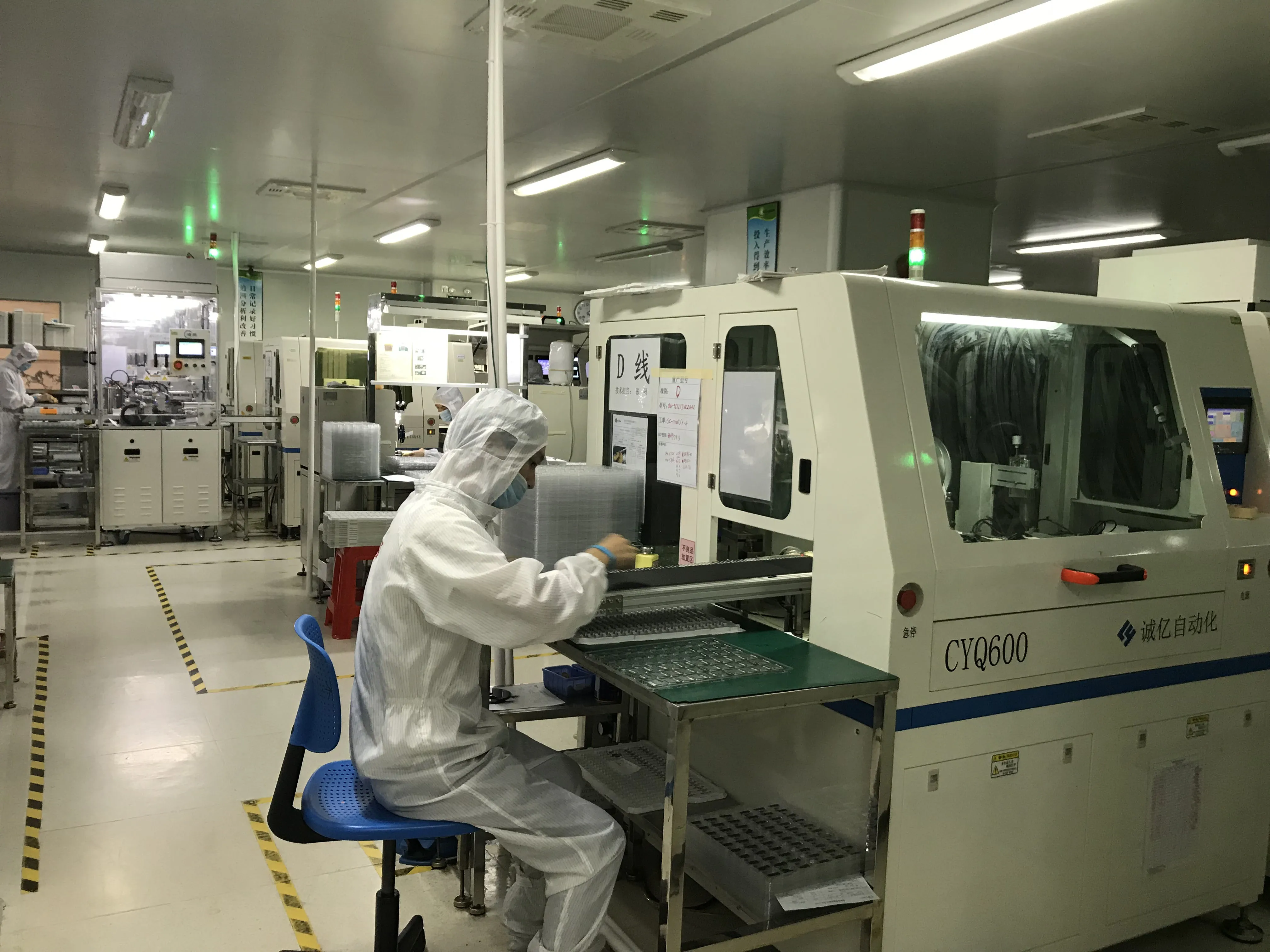

Our Factory

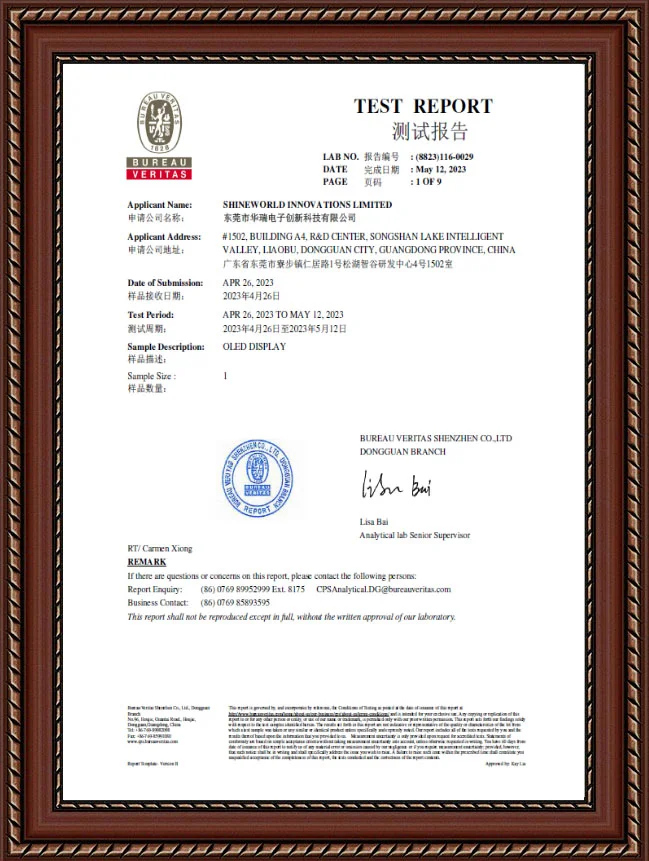

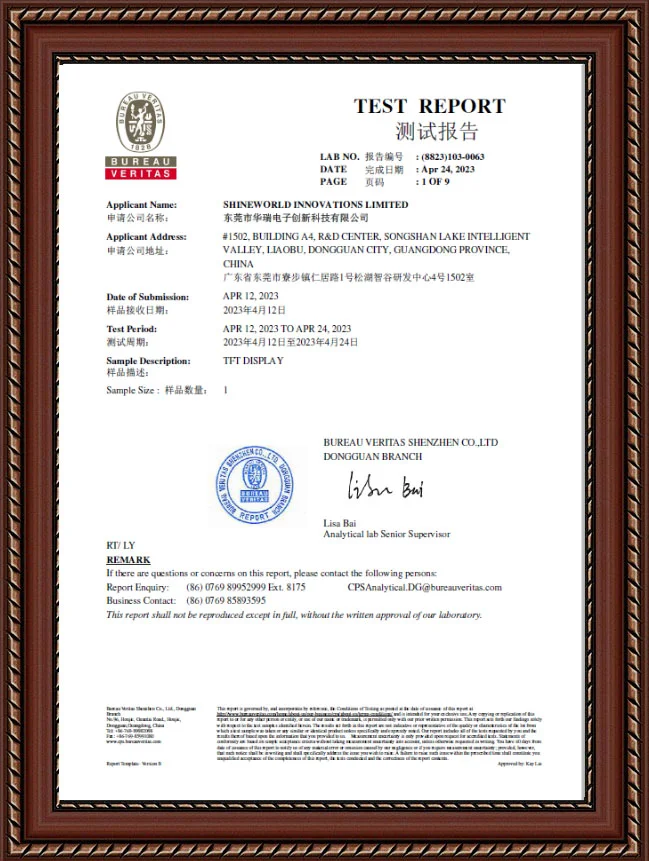

Certifications
Exhibition
2009.10 Asia World Expro
2014.4 Asia World Expro
2014.10 HKTDC HK Electronics Asia
2016.08 America Asia Trade Show
2017.10 HKTDC HK Electronics Asia
2018.10 HKTDC HK Electronics Asia
2018.11 Electronica Germany
2019.10 HKTDC HK Electronics Asia
2022.11 Electronica Germany
FAQ
Q.: What is your business type?
A: We design, produce and export our products.
Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.
Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.
Q: What are the payment terms？
A：Our payment terms are TT(telecom transfer) 40% in advance and TT 60% before shipment.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs/lot, however we accept less quantities for the trial orders.
A: We design, produce and export our products.
Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.
Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.
Q: What are the payment terms？
A：Our payment terms are TT(telecom transfer) 40% in advance and TT 60% before shipment.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs/lot, however we accept less quantities for the trial orders.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
