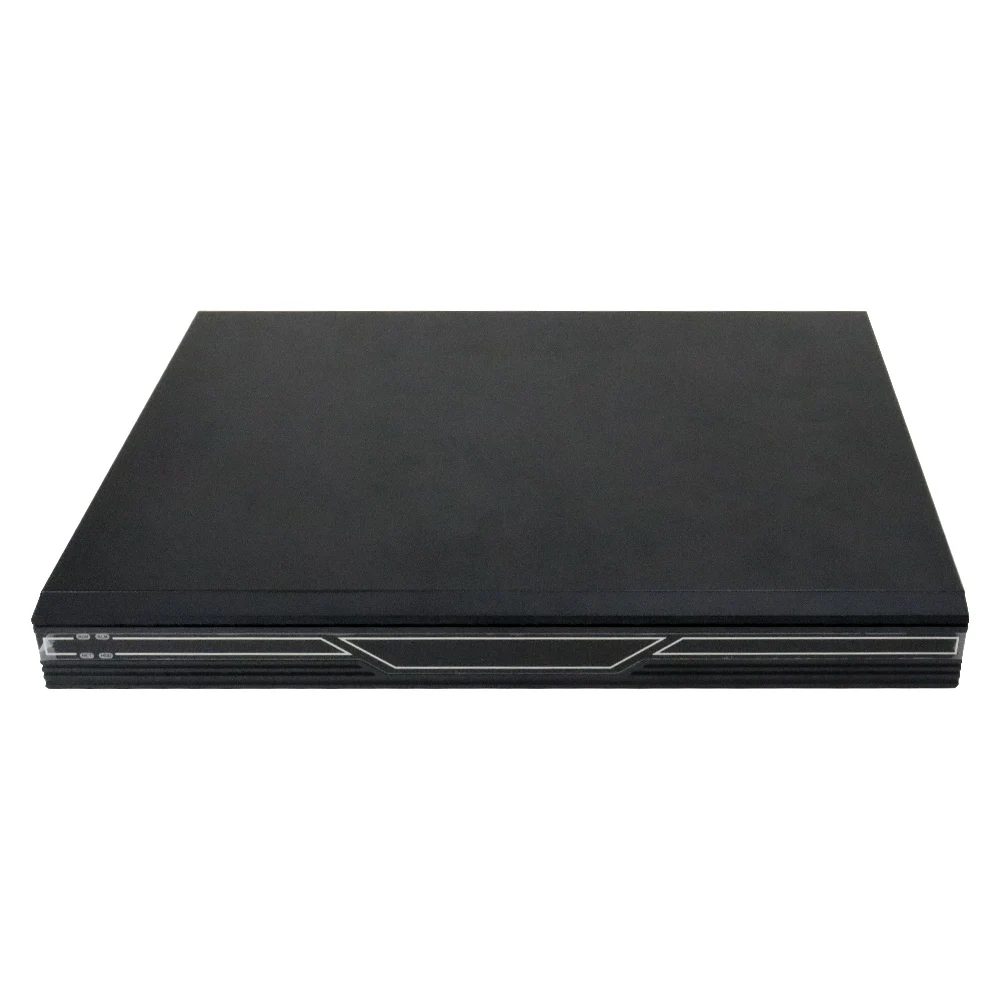

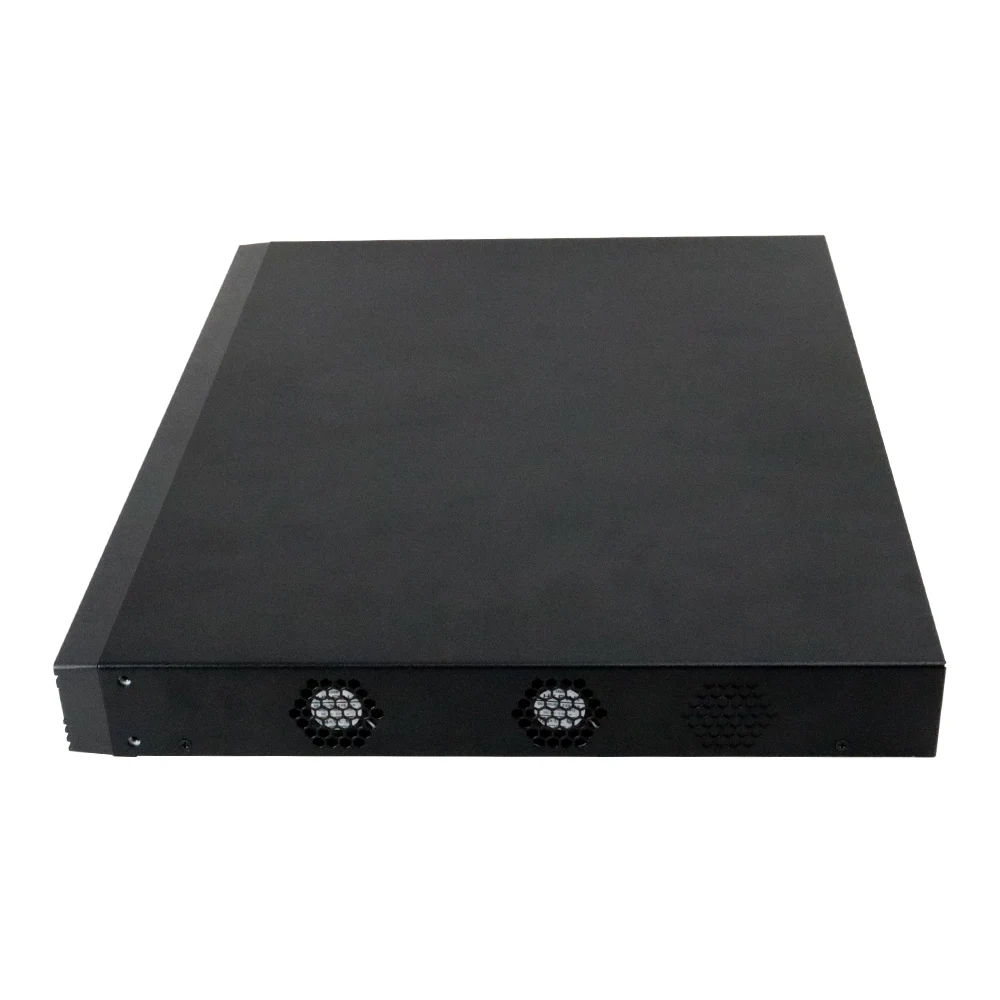

VMS B180 A 250 NVR 500 Cameras Management of IPC, NVR, Decoder, Alarm controller, Access Controller Video Management System
- Category: >>>
- Supplier: Shenzhen Anto Technology Co. Ltd.
Share on (1601013301470):
Product Overview
Description
Product Description
Integrated monitoring platform support 500 cameras 12MP/8MP/6MP VMS for shopping malls cctv nvr camera
It is an integrated video surveillance platform for small and medium sized applications. It can connect and manage devices such as IPC, NVR,decoder, network keyboard, access controller, alarm controller. VMS-B180-A is easy to deploy, stable and scalable, and it is widely applicable in LAN-based applications such as residential areas, buildings, campuses, hotels, retail stores, and WAN-based applications such as networked chain stores.
Feature:
Connection: Connect and manage 250 devices, 500 video channels.
Management: Unified management of IPC, NVR, decoder, network keyboard, alarm controller, access controller, cloud devices.
Bandwidth: 512Mbps input bandwidth, 384Mbps output bandwidth.
Compatibility: Support standard Onvif and RTSP.
Service: Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions, access control management.
Access: Browser/Server, Client/Server and mobile clients (both iOS and Android).
Smart: Multiple smart functions including cross line detection, intrusion detection, face detection, LPR, mixed traffic detection, people counting, behavior search, and alarms and reports.
Stability and reliability: Linux OS, 802.1x authentication, ARP protection, HTTPS, Telnet enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering.
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query.

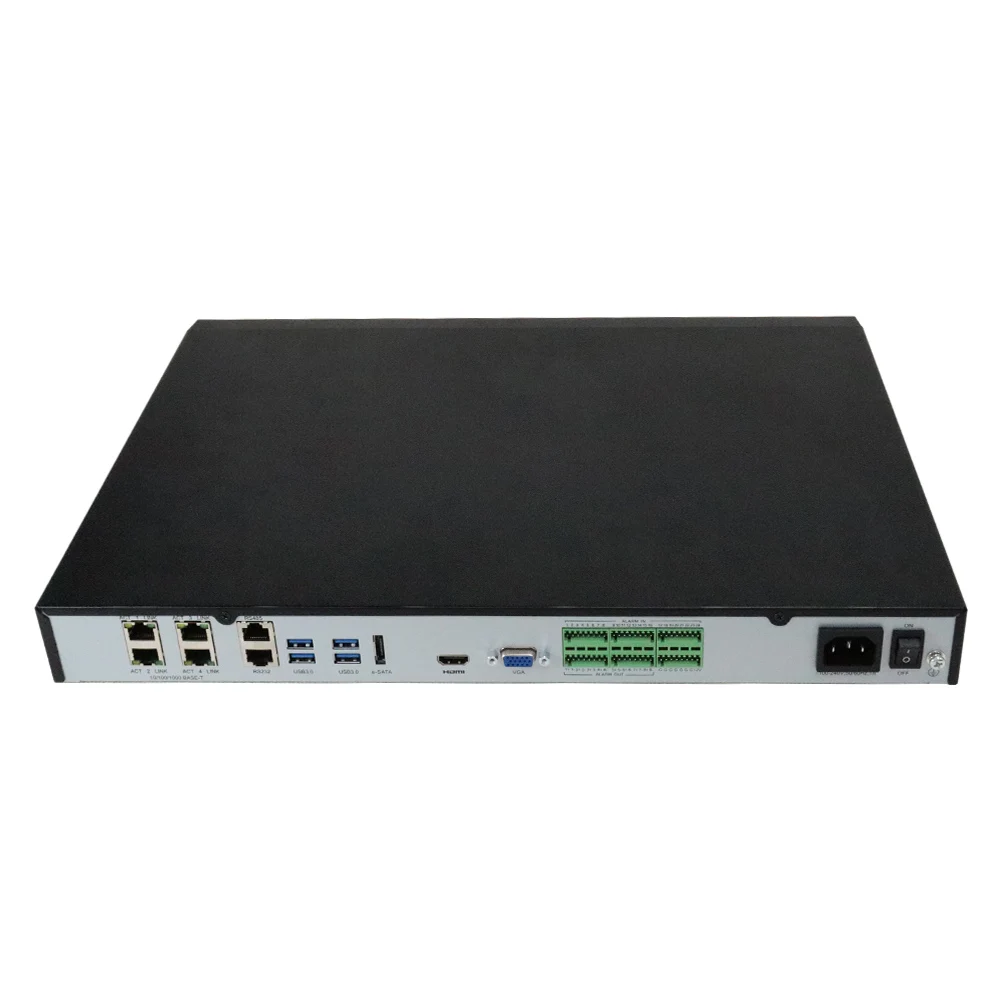

Interfaces: 4 x 1000Mbps Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 x USB 3.0, 1 HDMI and 1 VGA.
| Item | VMS-B180-A | |
| Management | Video | 250 devices, 500 channels |
| Human/vehicle | Can receive 100 vehicle or face images per second. Note: The number of devices supported depends on the number of images sent from the devices per second. For example, if each device sends 1 image per second, then the server can connect 100 devices. If each device sends 5 images per second, then the server can connect 20 devices. | |
| Decoding | Video | H.265, H.264 |
| Resolution | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF | |
| Output (local client) | Independent output to HDMI and VGA HDMI supports 4K resolution | |
| Audio | G.711A, G.711μ | |
| Input Bandwidth | 512Mbps | |
| Output Bandwidth | 384Mbps | |
| User Management | 50 online users | |
| Device Management | IPC, NVR, face recognition terminal, decoder, network keyboard, smart devices, alarm controller, access controller, and cloud devices. | |
| Play Control | 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors | |
| Playback | Play NVR recordings 16-ch synchronous playback Speed: -256, -128, -64, -32, -16, -8, -4, -2, -1, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256 | |
| Data Info | Alarm Records | 200,000 |
| Operation logs | 200,000 | |
| Face capture records | 3 million | |
| Face alarm records | 3 million | |
| Vehicle pass-through records | 3 million | |
| Structured motor vehicle, non-motor vehicle and pedestrian records | 3 million | |
| Access control entry/exit records | 3 million | |
| External Interface | Network | 4 × 10M/100M/1000M Base-T adaptive Ethernet interfaces |
| USB | 4 × USB3.0 | |
| Serial | 1 × RS232 (RJ45), 1 × RS485 (RJ45) | |
| Alarm input/output | 24 alarm inputs, 8 alarm outputs | |
| Power output | 12V DC | |
| Power | 100-240V AC, with power switch | |
| Others | Power consumption | ≤ 40W |
| Operating temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating humidity | 10%-90% (noncondensing) | |
| Weight | ≤ 4.1 Kg (without HDD) | |
| Dimensions (D×W×H) | Height: 1U 400mm x 346mm x 48mm(17.3"×13.6"×1.9") | |

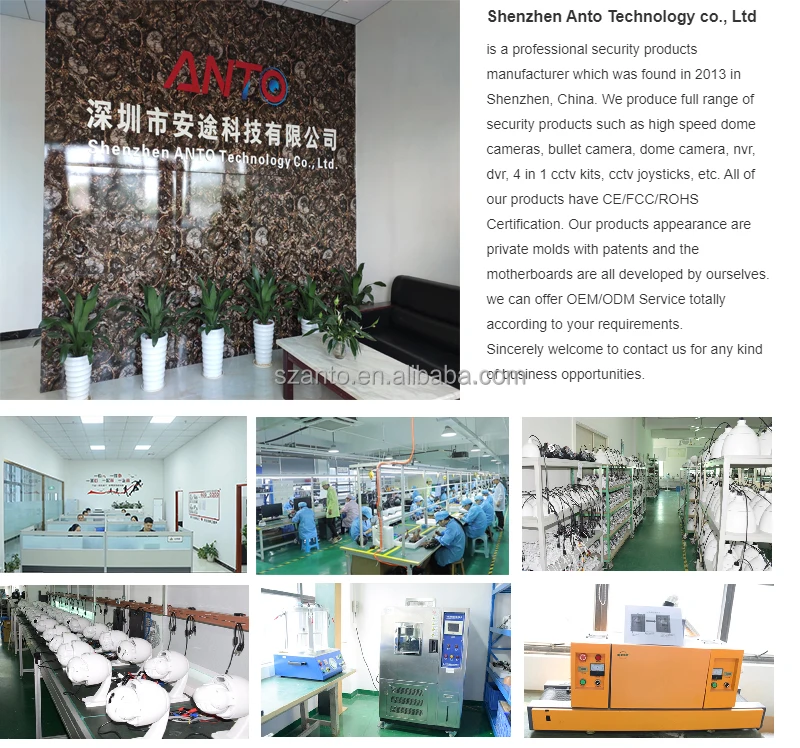

Company Information
Quality Management

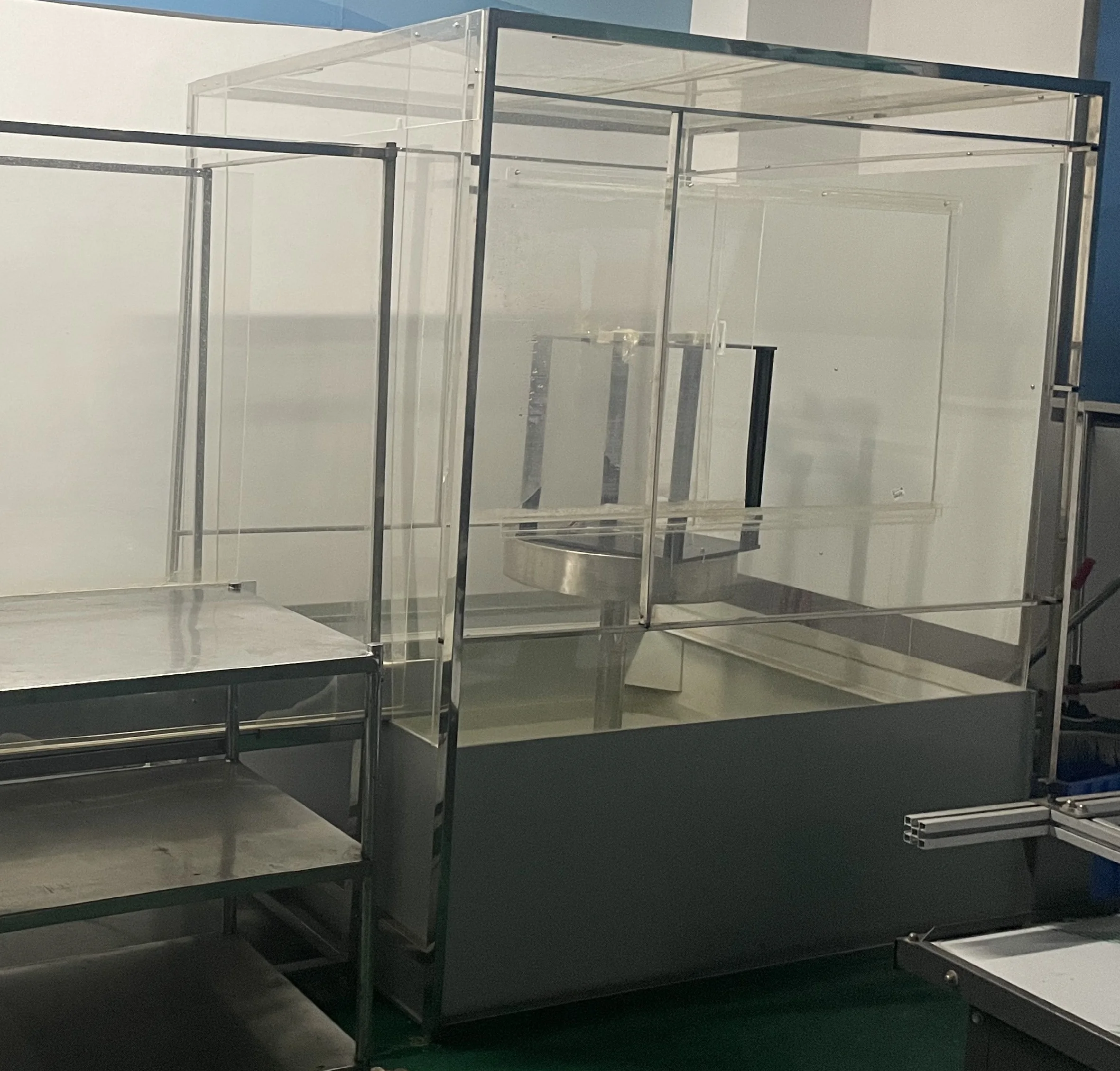

Waterproof Test

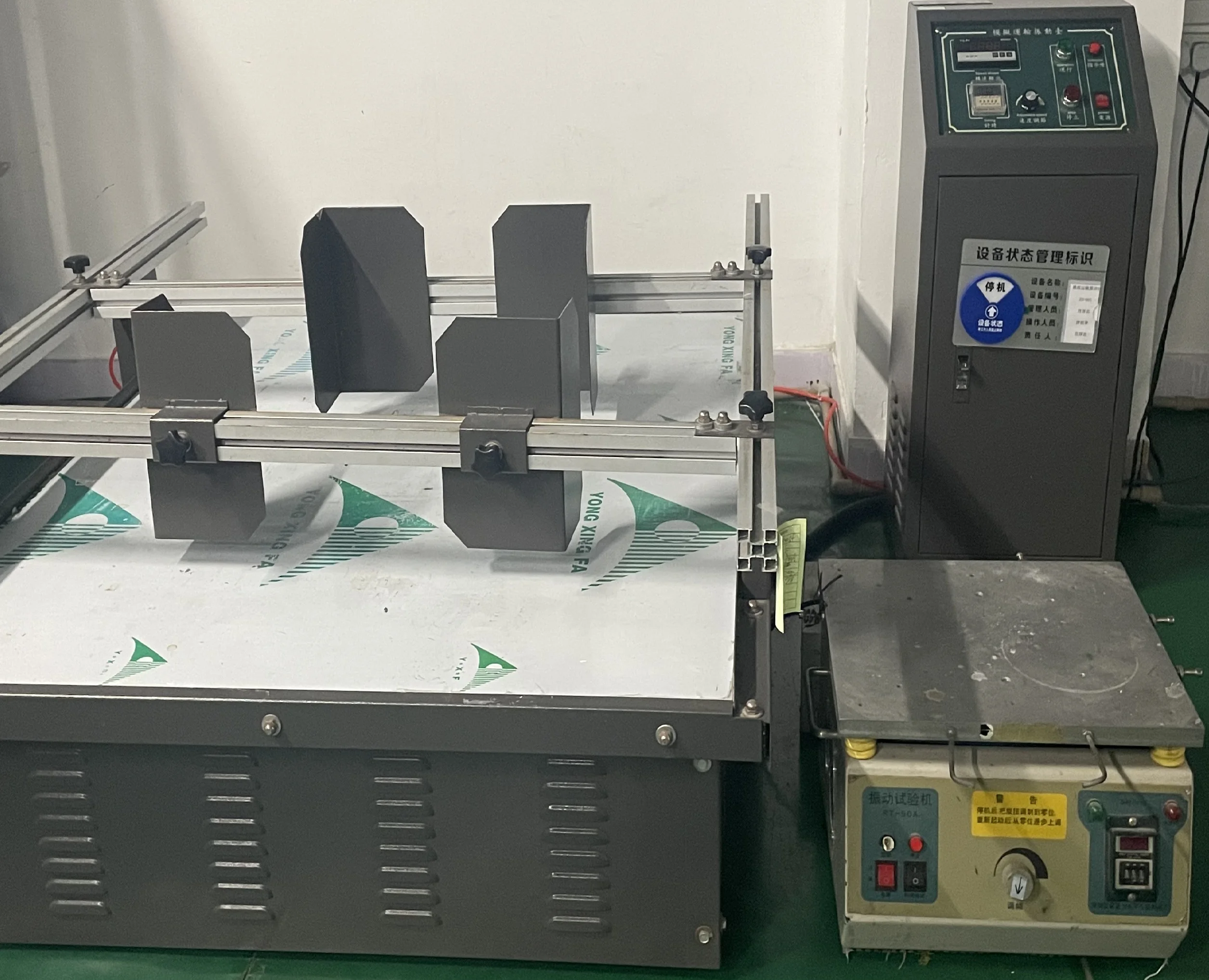

Vibration Test
High and Low Temperature Test
Electrostatic Test
Exhibitions
Certifications
Shipping
Shipping
For sample order, we ship by fast carrier like DHL/UPS/FedEx.
For batch order, we ship by air or by sea with the term of EXW, FOB, CFR, CIF, etc.
For batch order, we ship by air or by sea with the term of EXW, FOB, CFR, CIF, etc.
FAQ
FAQ
Q1: Terms of payment
A1: We accept Payment via T/T, Western Union, and PayPal.
For batch order, 50% deposit should be paid in advance and 50% balance before delivery.
For batch order, 50% deposit should be paid in advance and 50% balance before delivery.
Q2: Sample Policy
A2: We can supply the sample, but the customers have to pay the sample cost and shipping freight.
Q3: MOQ
A3: 1 Piece for sample order. 10 Pieces for batch order.
Q4: Lead time
A4: For sample order, normally we can ship out your order within 10 days.
For batch order, we will ship out your order within 25 days after we receive your payment.
For batch order, we will ship out your order within 25 days after we receive your payment.
Q5: Shipping Method and Delivery Terms
A5: For sample order, we ship by fast carrier like DHL/UPS/FedEx.
For batch order, we ship by sea with the term of EXW, FOB, CFR, CIF, etc.
For batch order, we ship by sea with the term of EXW, FOB, CFR, CIF, etc.
Q6: Packing

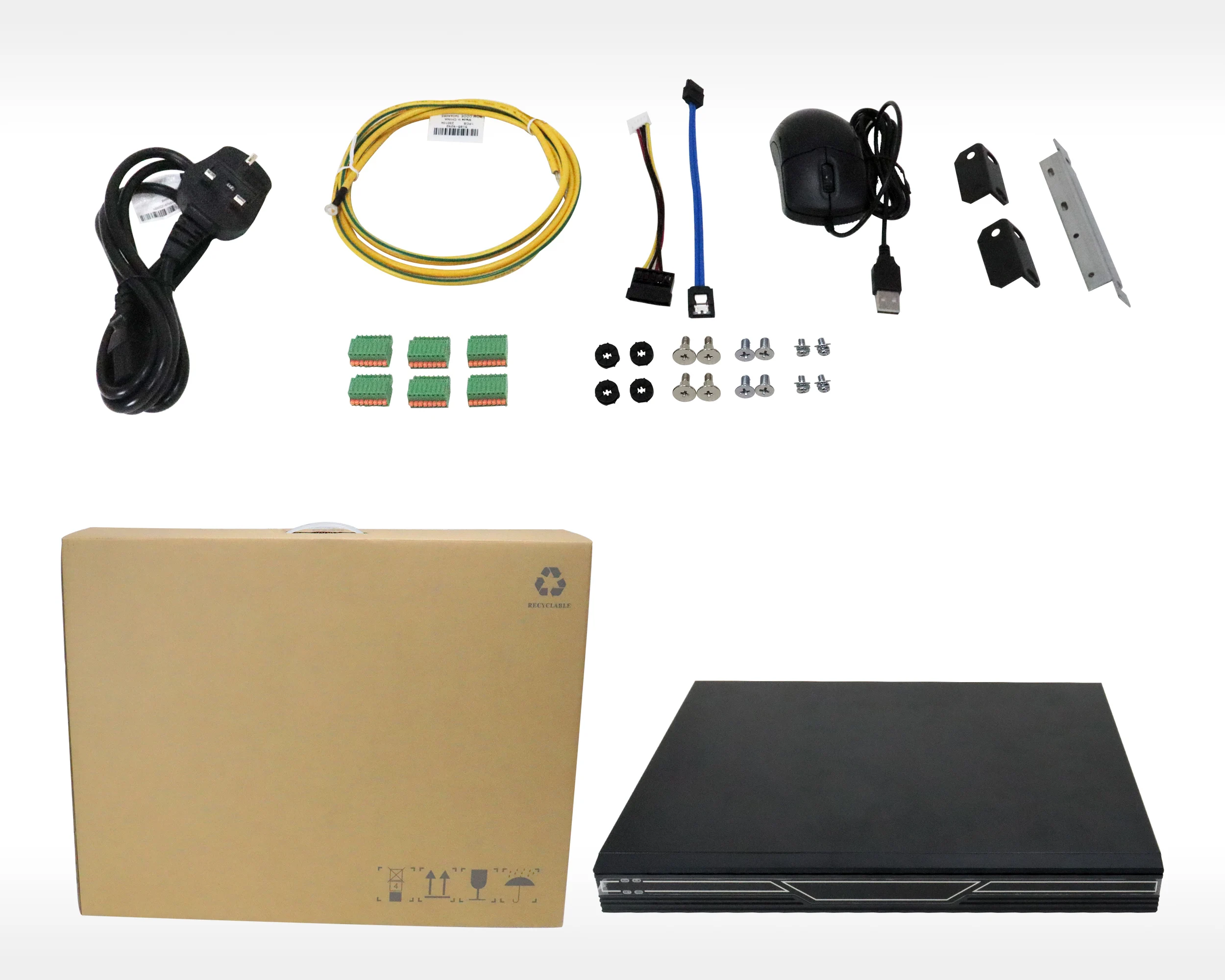

A6: Carton Packing. ODM package is available according to customer’s requirements.
