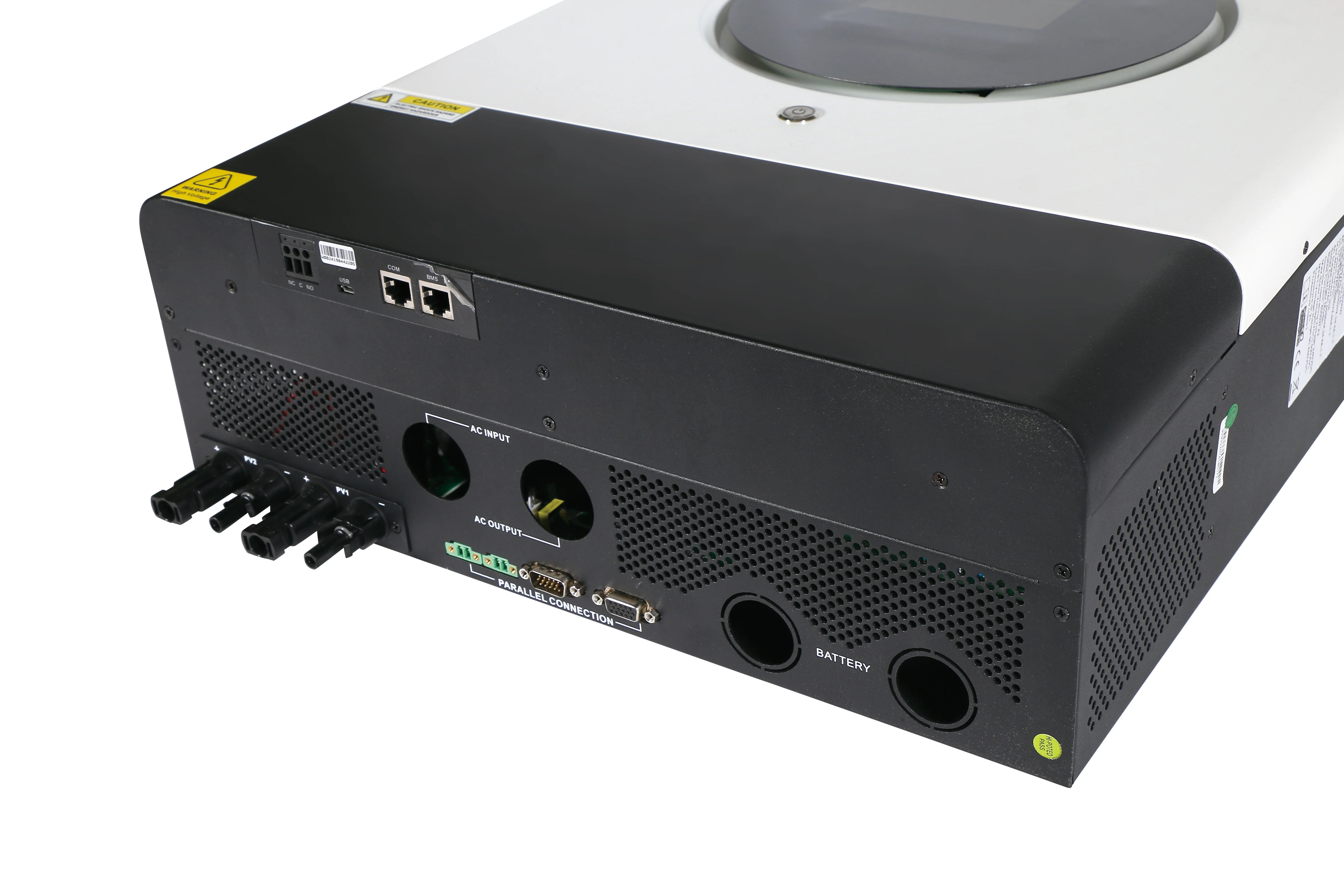

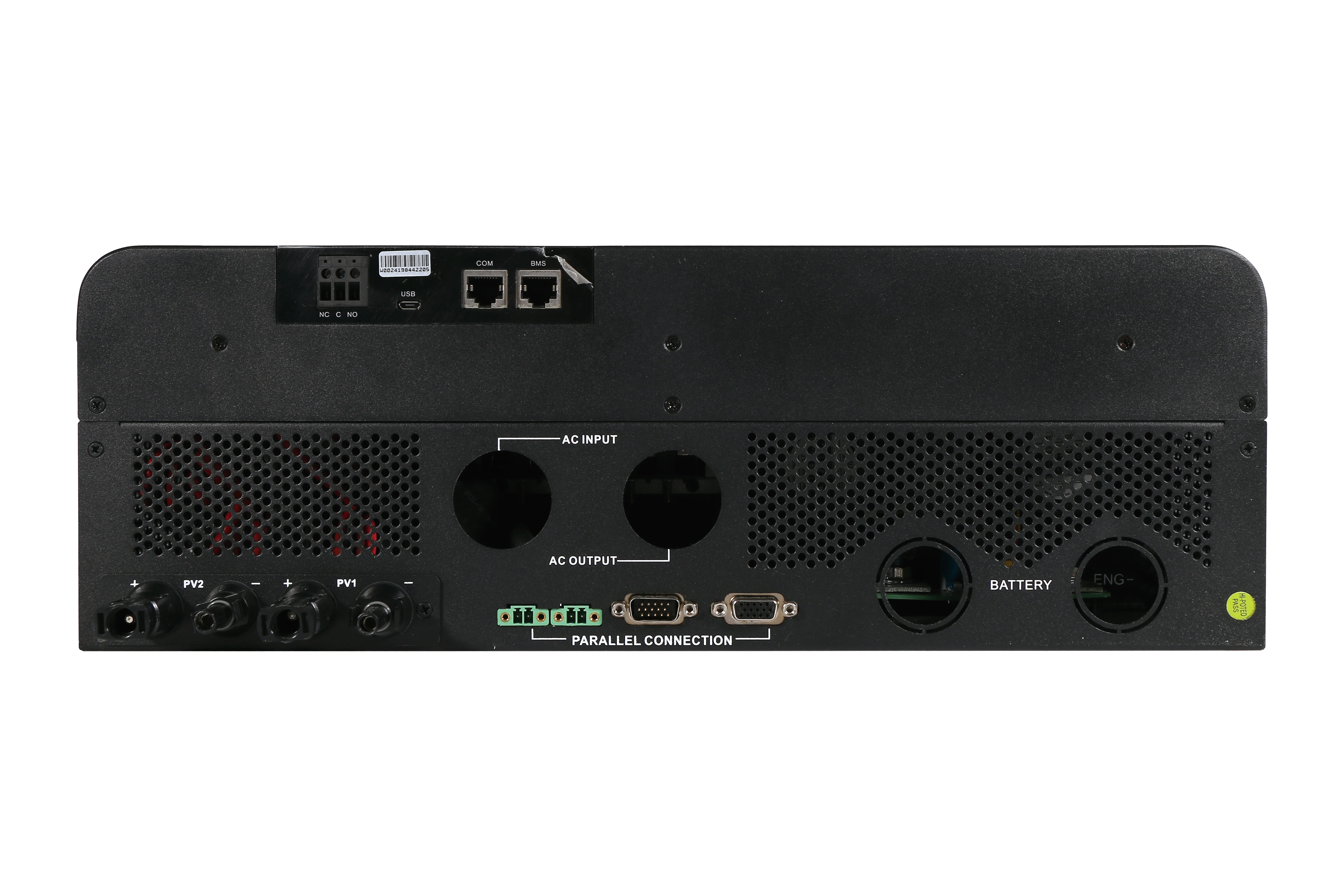

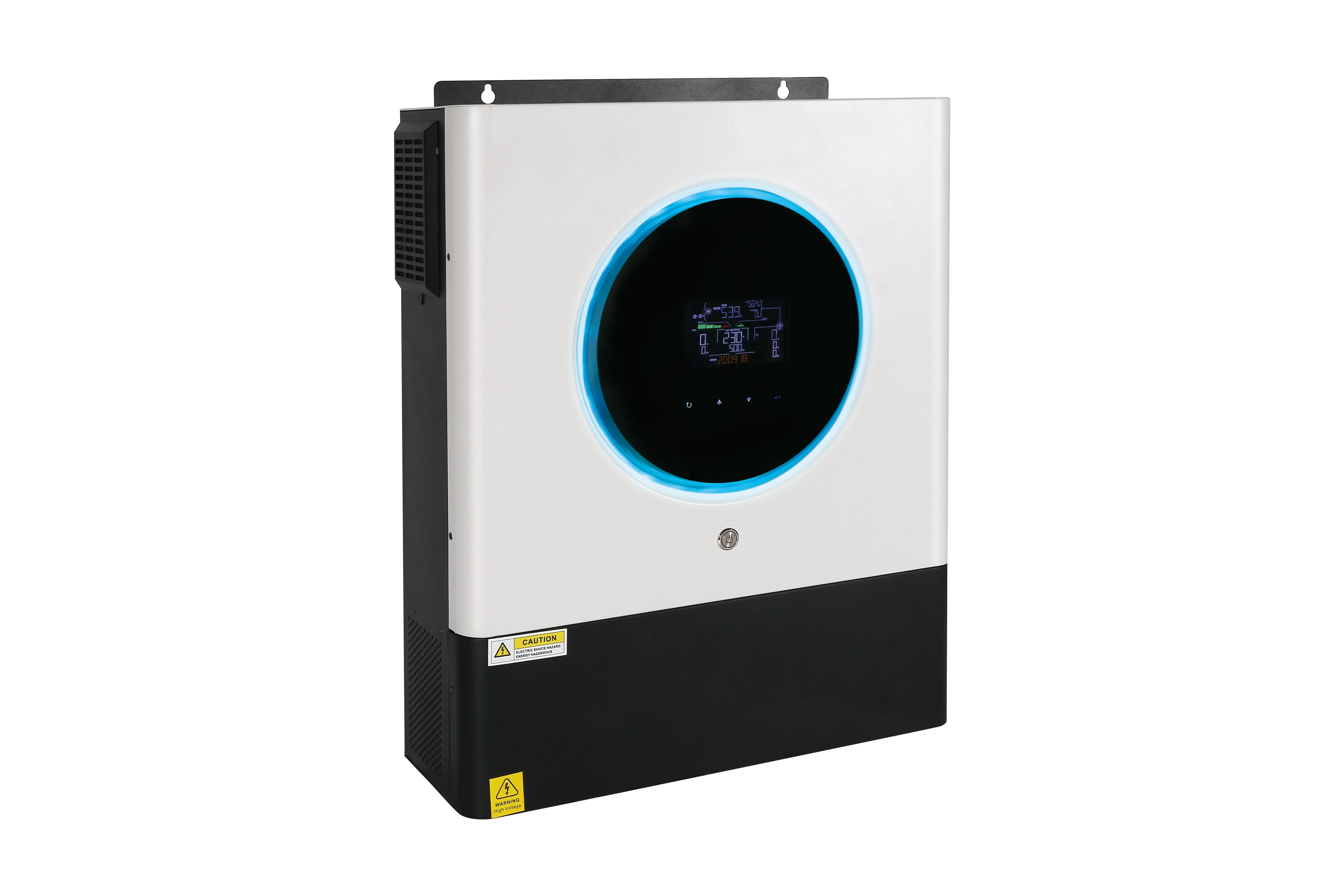

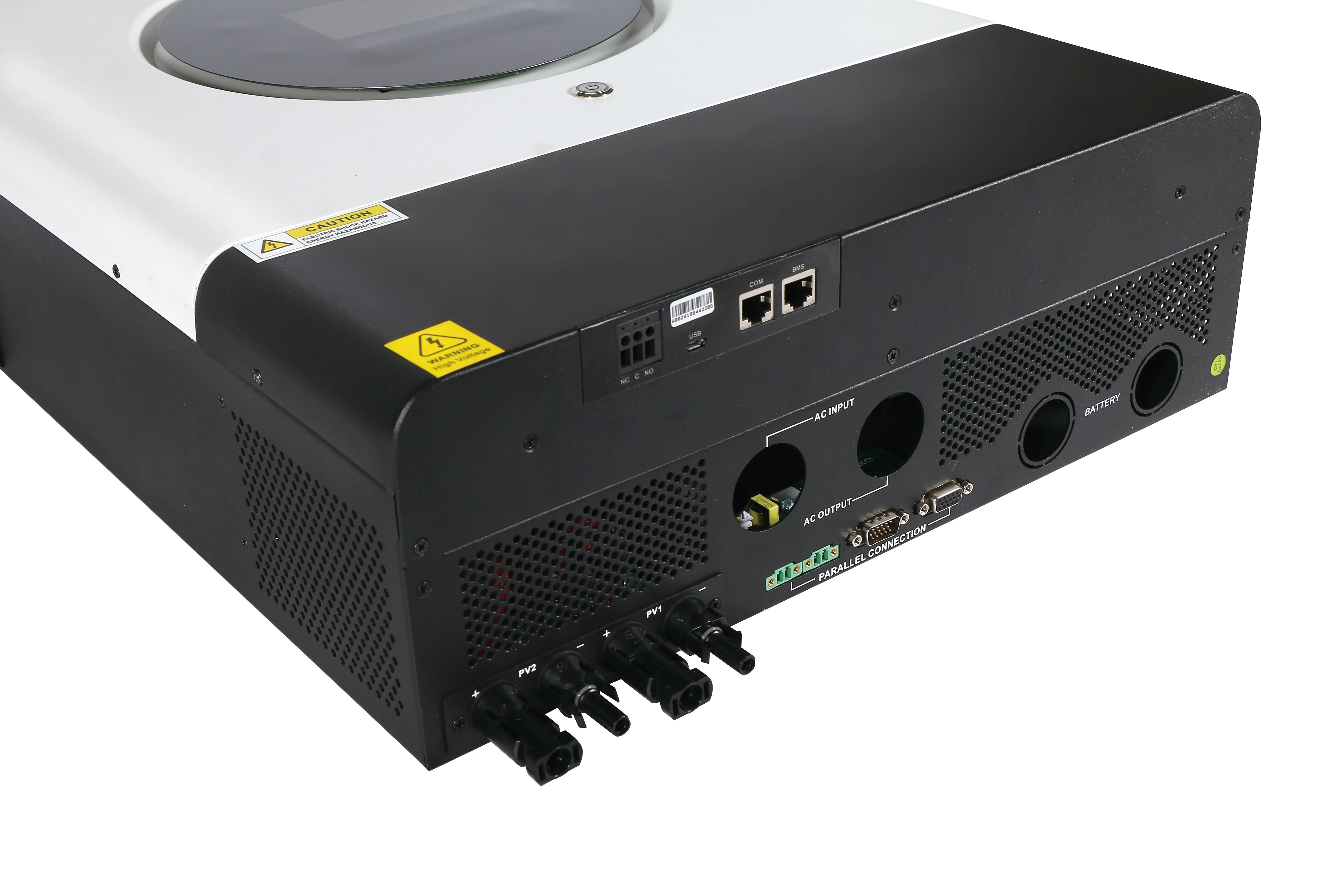

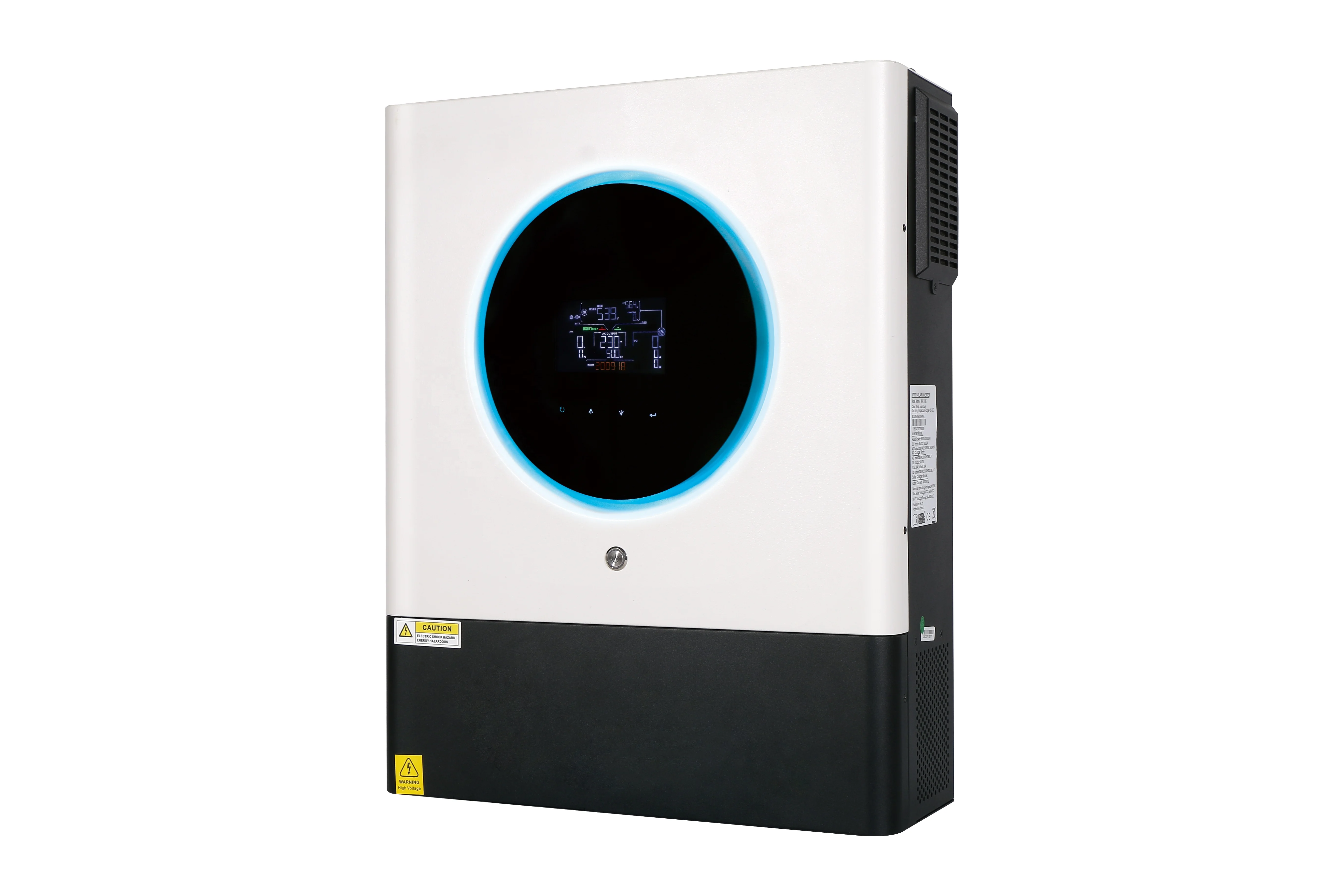

Ouyad Max 8KW high frequency hybrid solar power inverter pure sine wave solar inverter
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (1601013328336):
Product Overview
Description
Products Description
Max Series
1. Customizable status LED bar with RGB lights
2. Built-in WiFi for mobile monitoring (Android/iOS App are available) Support USB on the go function
3. Reserved communication port for BMS (RS485, CAN-BUS or RS232) Replaceable fan design for ease of maintenance
4. Battery independent design
5. Configurable AC/PV output usage timer and prioritization Selectable high power charging current

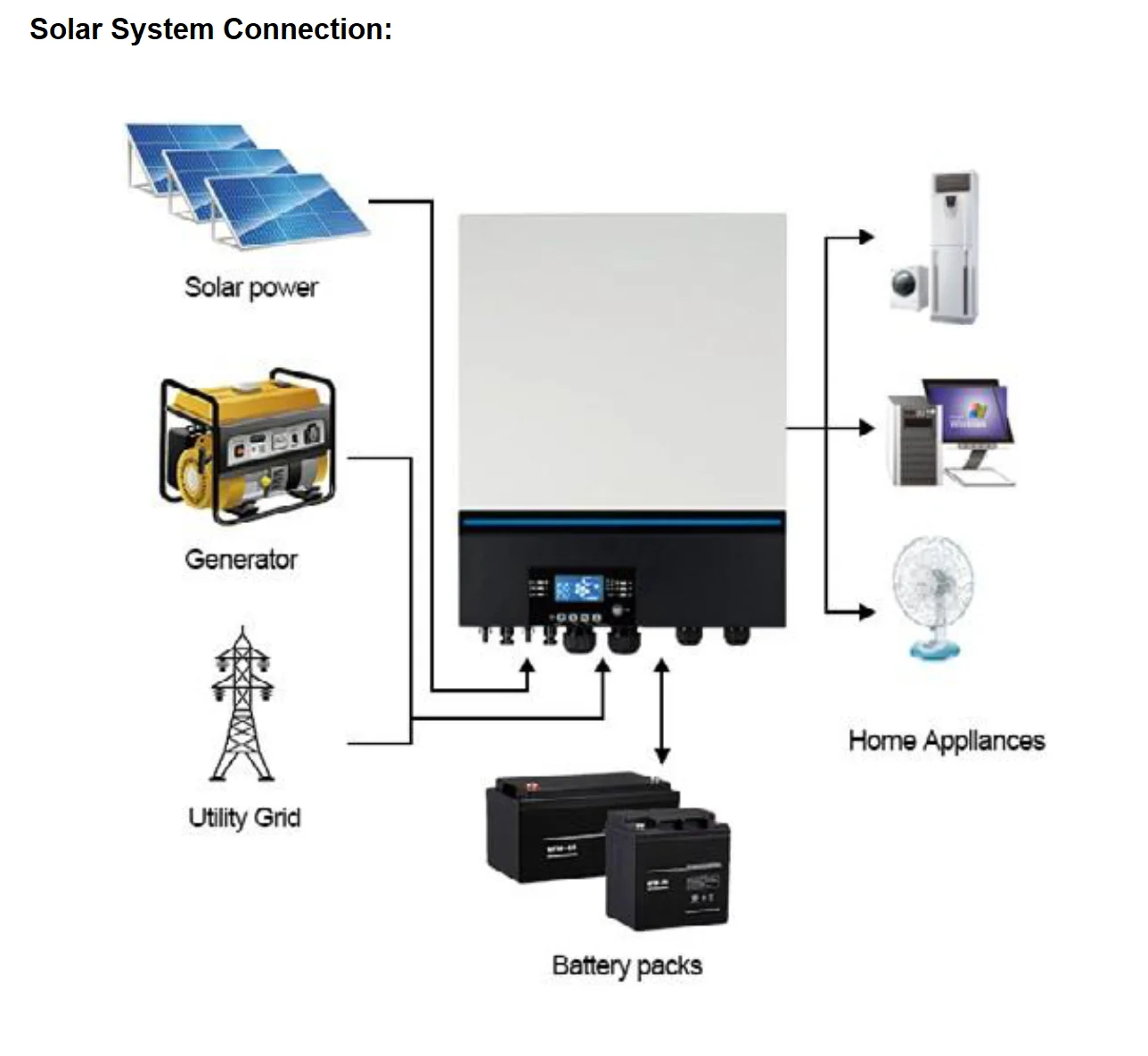

6. Selectable input voltage range for home appliance and personal computers Compatible to Utility Mains or generator input
7. Built-in anti-dust kit
8. Optional DC output for DC fan, LED bulb, router and so on Parallel operation up to 6 units only available for 7.2kVA
2. Built-in WiFi for mobile monitoring (Android/iOS App are available) Support USB on the go function
3. Reserved communication port for BMS (RS485, CAN-BUS or RS232) Replaceable fan design for ease of maintenance
4. Battery independent design
5. Configurable AC/PV output usage timer and prioritization Selectable high power charging current
6. Selectable input voltage range for home appliance and personal computers Compatible to Utility Mains or generator input
7. Built-in anti-dust kit
8. Optional DC output for DC fan, LED bulb, router and so on Parallel operation up to 6 units only available for 7.2kVA
Model | MAX II 8000 | |
Rated power | 8000VA/8000W | |
Parallel Capability | Yes,6 units | |
INPUT | ||
Voltage | 230 VAC | |
Select-able Voltage Range | 170-280VAC(For Personal Computers), 90-280VAC(For Home Appl lances) | |
Frequency range | 50Hz/60Hz | |
OUTPUT | ||
AC Voltage Regulation | 230 VAC±5% | |
Surge power | 16000 VA | |
Efficiency | 93% | |
Transfer Time | 15ms(For Personal Computers)； 20ms(For Home Appliances) | |
Waveform | pure sine wave | |
No Load power consumption | <70w | |
DC voltage (optional) | 12VDC | |
BATTERY | Pure SineWave | |
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 66VDC | |
SOLAR CHARGER & AC CHARGER | ||
Solar charger type | MPPT | |
Max PV Array Power | 8000W(4000W*2) | |
MPP Range @operating Voltage | 90~450VDC | |
Max PV Array Open Circuit Voltage | 500VDC | |
Max Solar Charge Current | 150A | |
Max AC Charge Current | 120A | |
Max Charge Current | 150A | |
PHYSICAL | ||
Dimension， DxWxH(mm) | 158.4*502.5*530.8 | |
Net Weight(kgs) | 20kg | |
Communication Interface | USB/RS232/RS485/WIFI/Dry-contact | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humid ty(Non-condensing) | |
Operating Temperature | -10C-50°℃ | |
Storage Temperature | -15°C-60°C | |
STANDARD | ||
Compliance Safety | CE | |
Hot Sale
Packing & Shipping
FAQ
We accept T/T,LC,D/P D/A,MoneyGram,Credt Card. PayPal,Western Union,Cash,Escrow.
Q2.Can I get a sample?
Please send me the product link and I will reply as soon as possible.
Q3.What is your shipping methods?
We use UPS, DHL, FedEx, EMS, TNT or the shipping agent as your request.
Q4.what is the discount ?
Please tell me the goods and quantity you want, and Iwill give you a more accurate quotation as soon as possible.
Q5.how long is your production cycle ?
The production cydle for each product is different. If you need further clarfication, send me the product link, and I will reply as soon as possble.
Q6.where is your factory located ?
You can find relevant information on the home page of the store or the company profile. You can also tel me the exact question and I will reply to you as soon as possible
Q7.how is the quality ?
You can find relevant information on the home page of the store or the company profle. You can also tel me the exact question and I will reply to you as soon as possible.
Q8.How about the Warranty?
One year (Note: If have quality problem without man made reason within warranty, we can supply spare part but customer need to pay the freight charge).
Q9.How long will it take to ship to my address?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that Ican quote the most cost-effective option.
Q10.Can I customize products?
Yes. Let me know the specfc customization requirements, andI will get back to you as soon as possible.
