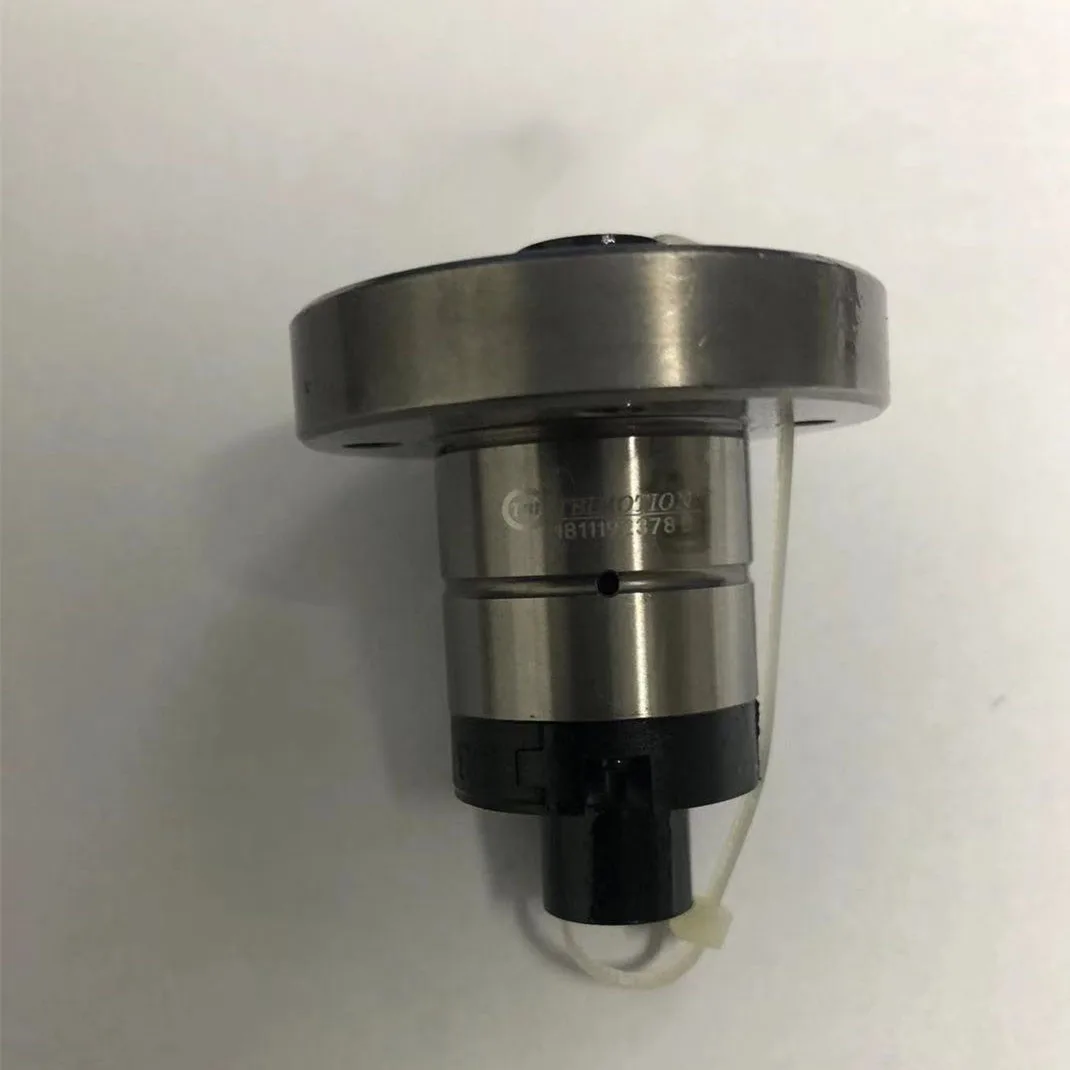

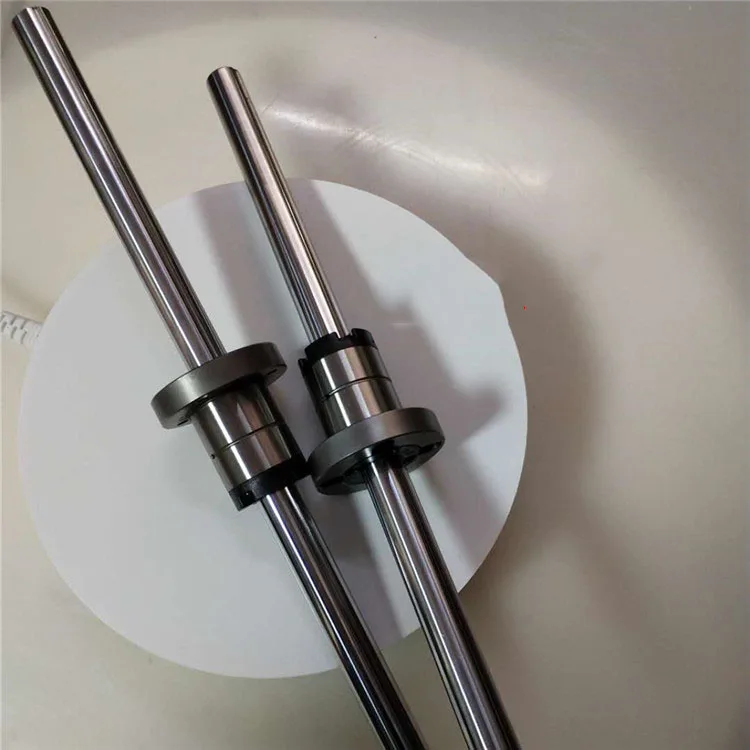

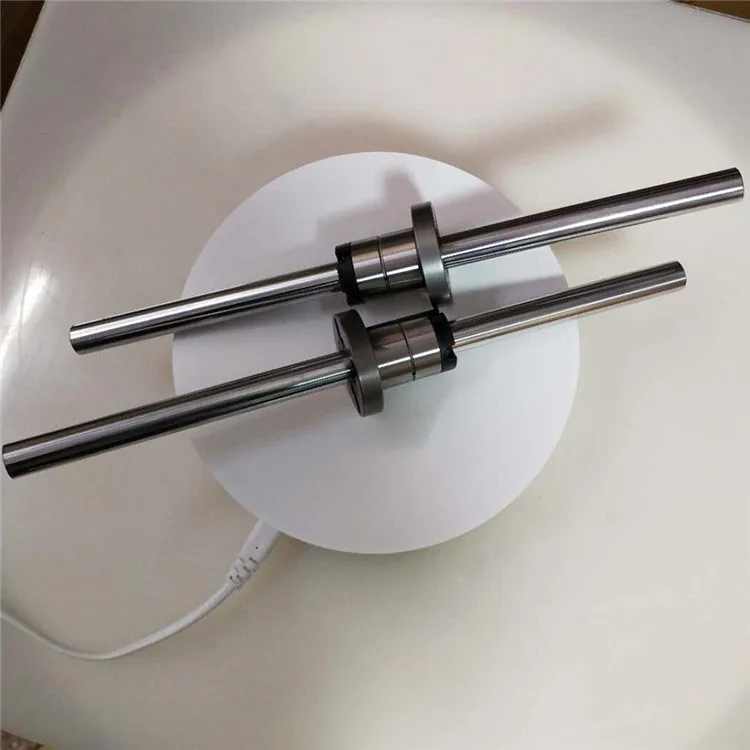

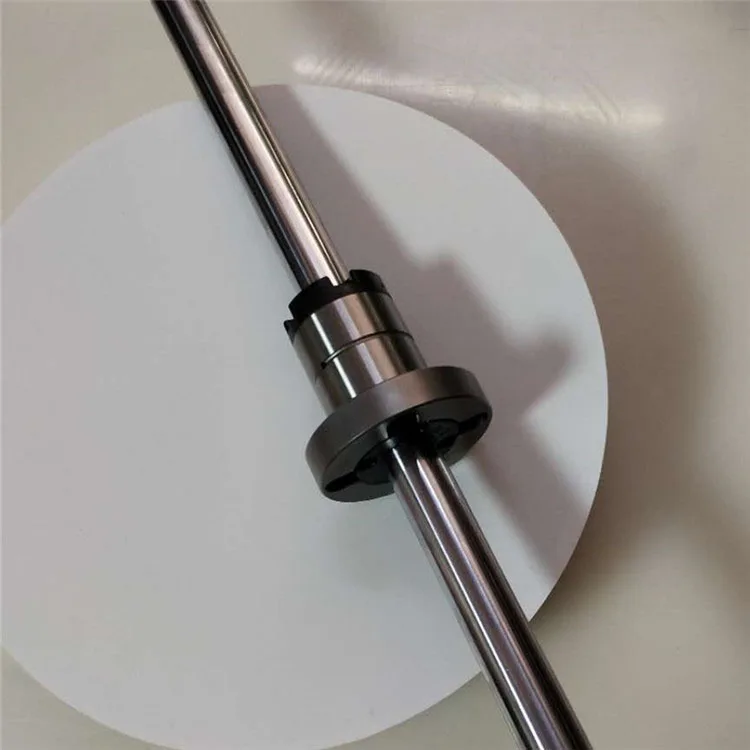

SSPF6 SSPF8 SSPF10 High quality Japanese original flanged ball spline SSPF13A SSPF20
Ball spline can achieve rotational and linear motion on a single axis, improving flexibility in a variety of different industrial applications. Ball splines can operate for a long time and are ideal for applications requiring high speed, resistance to vibration, resistance to shock loads, precise positioning requirements and high Application of torsional loads.
Ball splines can be used as linear bearings. Their rated load is more than ten times that of ordinary linear bearings, and they have a very small size. So they can be used safely even under cantilever loads and impact forces. It has high precision, good stability, exquisite design, saves space, and has a long life.

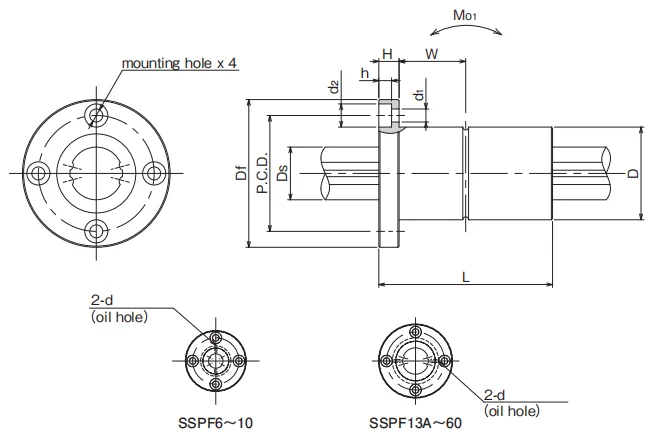

Size Information




Part number
D(mm)
L(mm)
Ds(mm)
Df(mm）
Dynamic rating C(KN)
Static rating C0(KN)
Weight(kg)
SSPF6
14
25
6
30
1.22
2.28
0.037
SSPF8
16
25
8
32
1.45
2.87
0.042
SSPF10
21
33
10
42
2.73
5.07
0.094
SSPF13A
24
36
13
43
2.67
4.89
0.1
SSPF16A
31
50
16
50
6.12
11.2
0.2
SSPF20A
35
63
20
58
8.9
16.3
0.33
SSPF25A
42
71
25
65
12.8
23.4
0.45
SSPF30A
47
80
30
75
18.6
23.2
0.55
SSPF40A
64
100
40
100
30.8
37.5
1.41
SSPF50A
80
125
50
124
40.3
64.9
2.73
SSPF60A
90
140
60
129
47.7
79.5
3.2


Application Field



Ball spline for Manipulator

Ball spline for cars

Ball spline for Medical device


Ball splines are widely used in high-precision equipment
Such as industrial robot manipulators, medical equipment, automatic loading and unloading transporters, grinding machine spindle drive shafts, various transmission devices, precision indexing shafts, riveting machines, winding machines, conveyors, etc. It is a linear motion system with high reliability.
