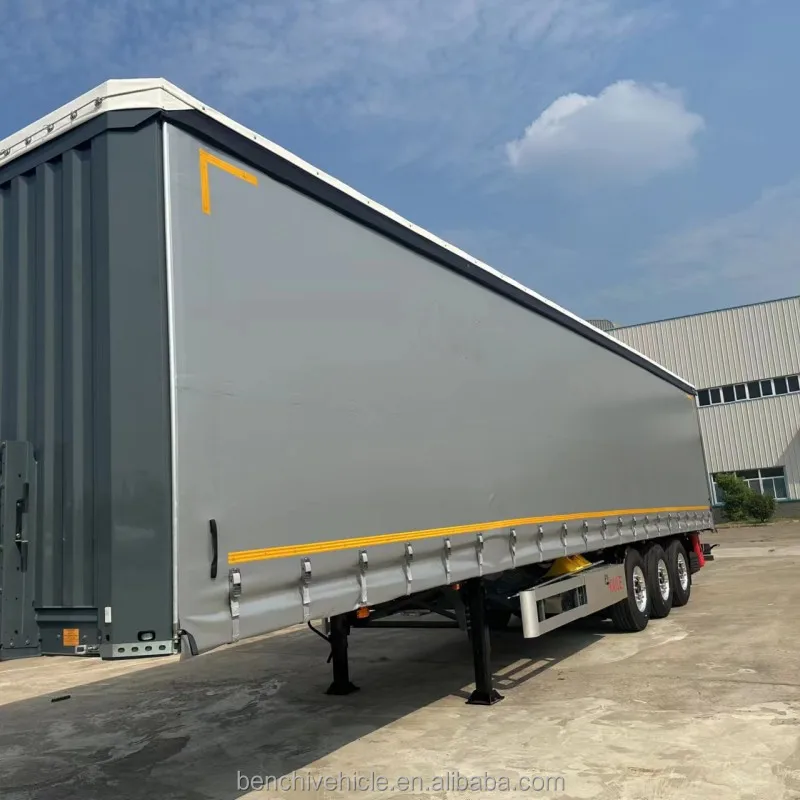

Van Semi Trailer Curtain Side Semi Trailer 3 Axles Side 40 ft Curtain Trailer With Cold Resistant
- Category: >>>
- Supplier: Shandong Benchi Heavy Industry Co. Ltd.
Share on (1601013425145):
Product Overview
Description
Product Description

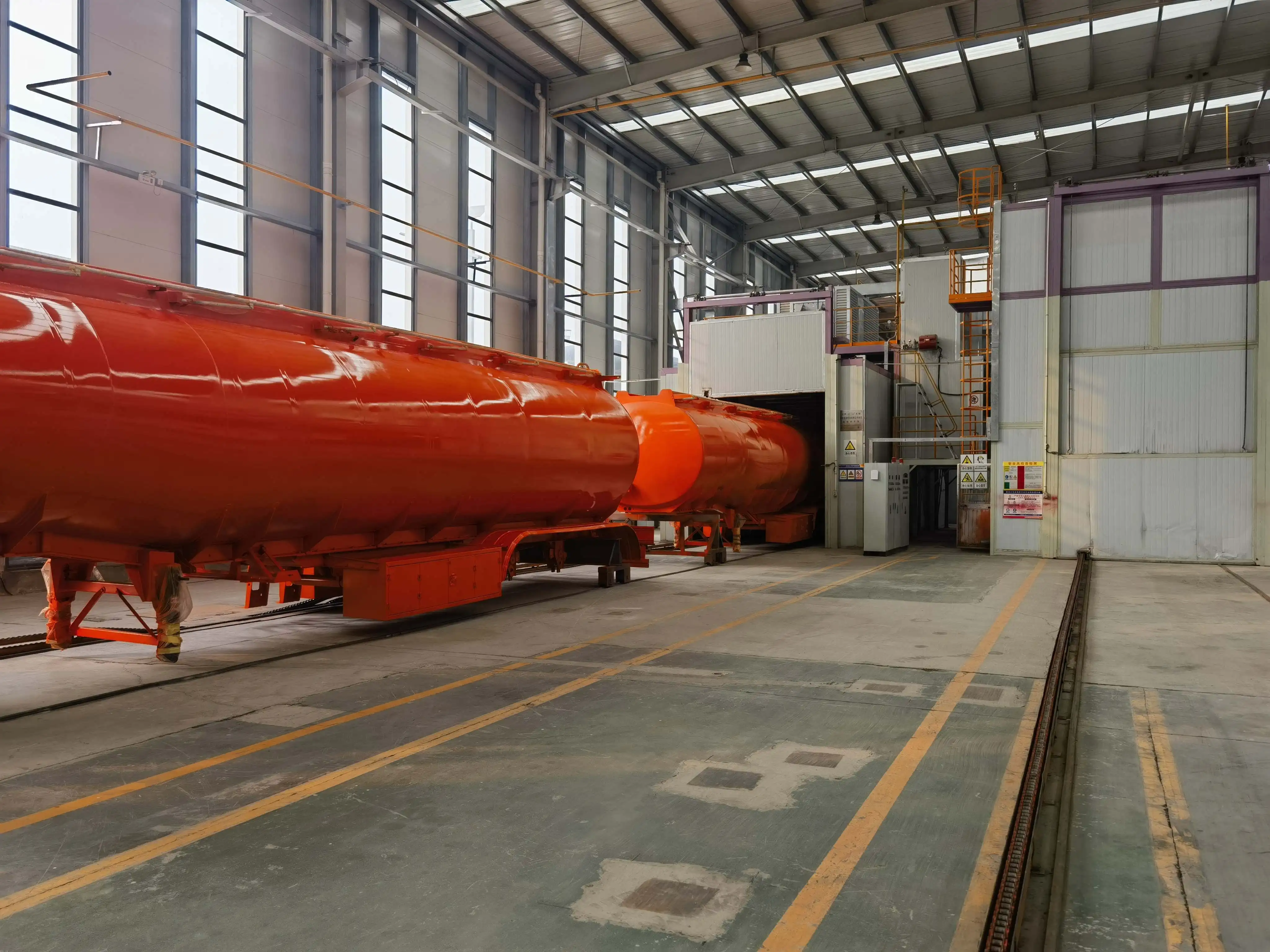

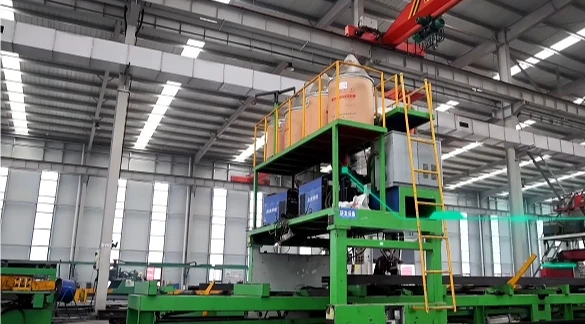

Workshop &Details
Title goes here.
The sliding top of the curtain-side trailer can be opened to load heavy goods, which can be lifted into the curtain-side trailer by a crane and then fixed.
Title goes here.
Front block: high-strength corrugated iron
Title goes here.
Curtain-side trailers can load and unload cargo on both sides at the same time, and the loading and unloading efficiency is much higher than that of side-rail or gate-type trailers.
Title goes here.

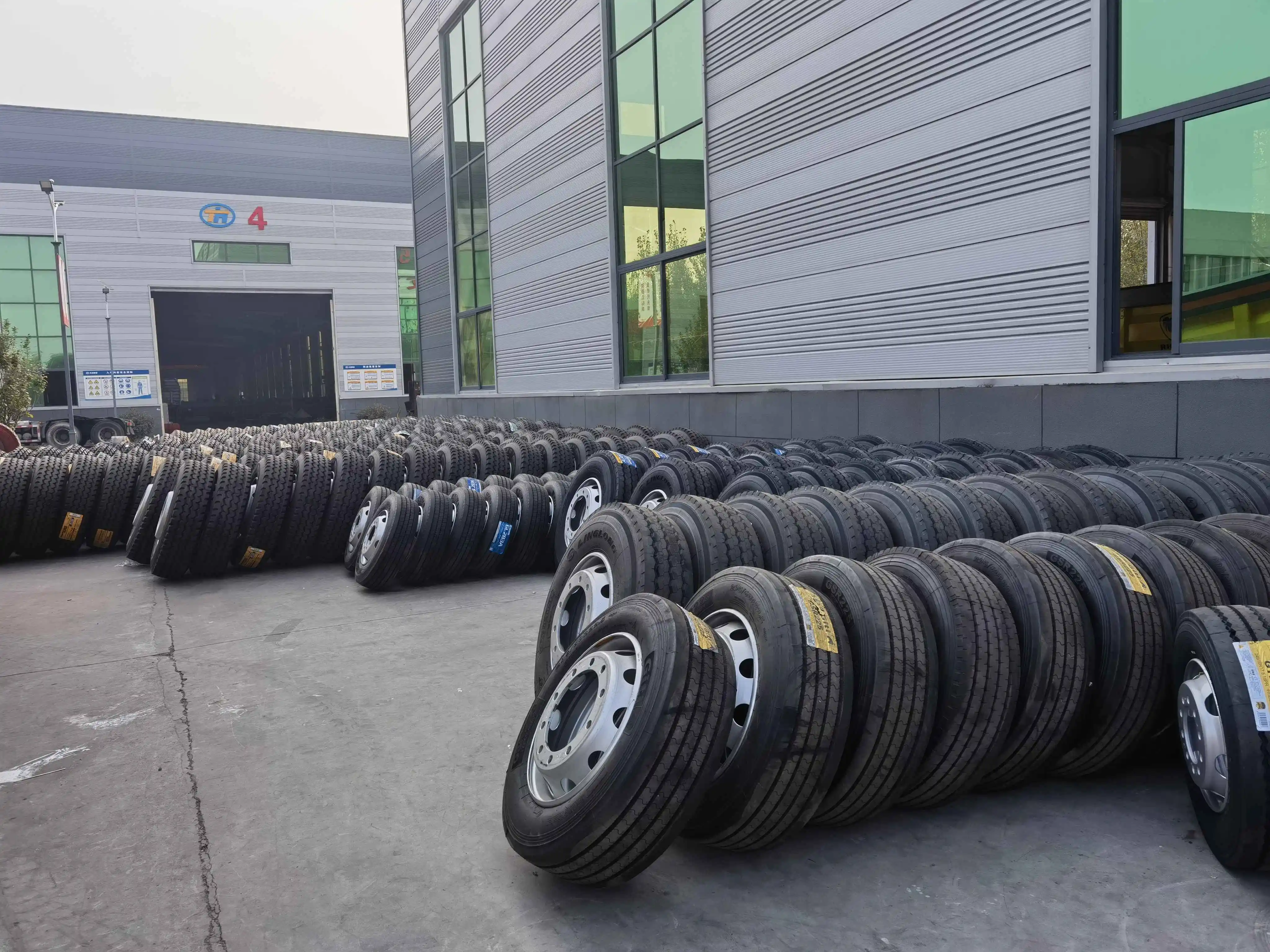

Use famous brand tires, safe and durable, can be customized
Product Paramenters
Name： | side curtain semi trailer | Tare Weight: | Around：7.5T |
Spec.: | 13.75m×2.5m×4m | Axle: | 3 |
Main beam: | upper 14 lower 16 middle 8 height 500 Q355E cold-resistant steel spring plate | Electric system | 24V |
Side beam: | 14 channel steel/bent parts (optional) | Brake chamber： | Standard |
Cross beam: | Mixed use of channel steel and bent parts | Rim： | 11.75-22.5 quantity ：6 |
King pin: | 90# | Tire： | 385/65R22.5 （LingLong） 6 |
Suspension: | 3 Axle ,Air Suspension | Air tanker： | 3 pcs |
Floor: | 3mm/28mm wood (optional) | Emergency valve： | WABOCO |
Landing gear： | single action outrigger | Gas circuit： | 12 red yellow nylon tube |
Draw plate： | Standard | Tool box: | 2pcs |
Tyre carrier： | 2 pcs | EBS： | 4S/2M |
Payload： | 40T | Paint： | One anti-rust paint, one polyurethane, wax spray |
