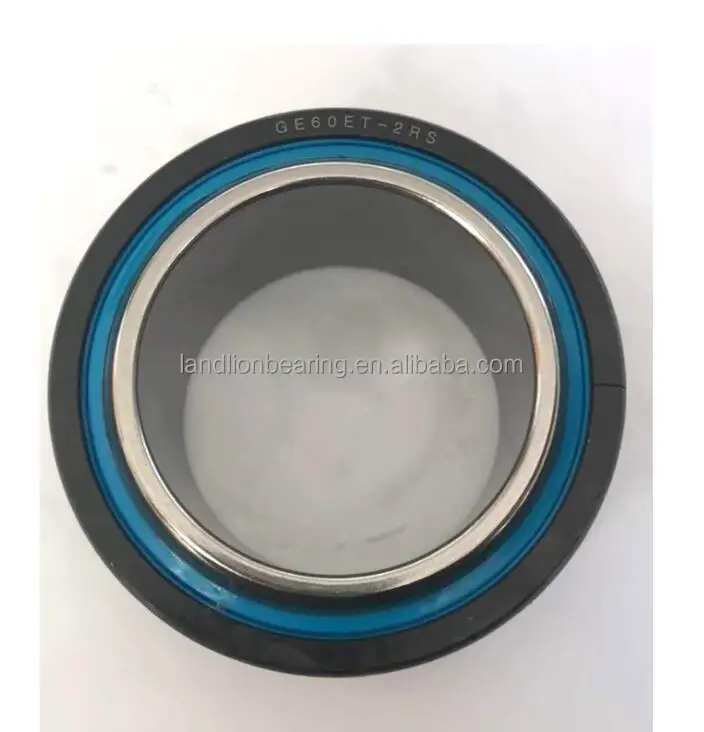

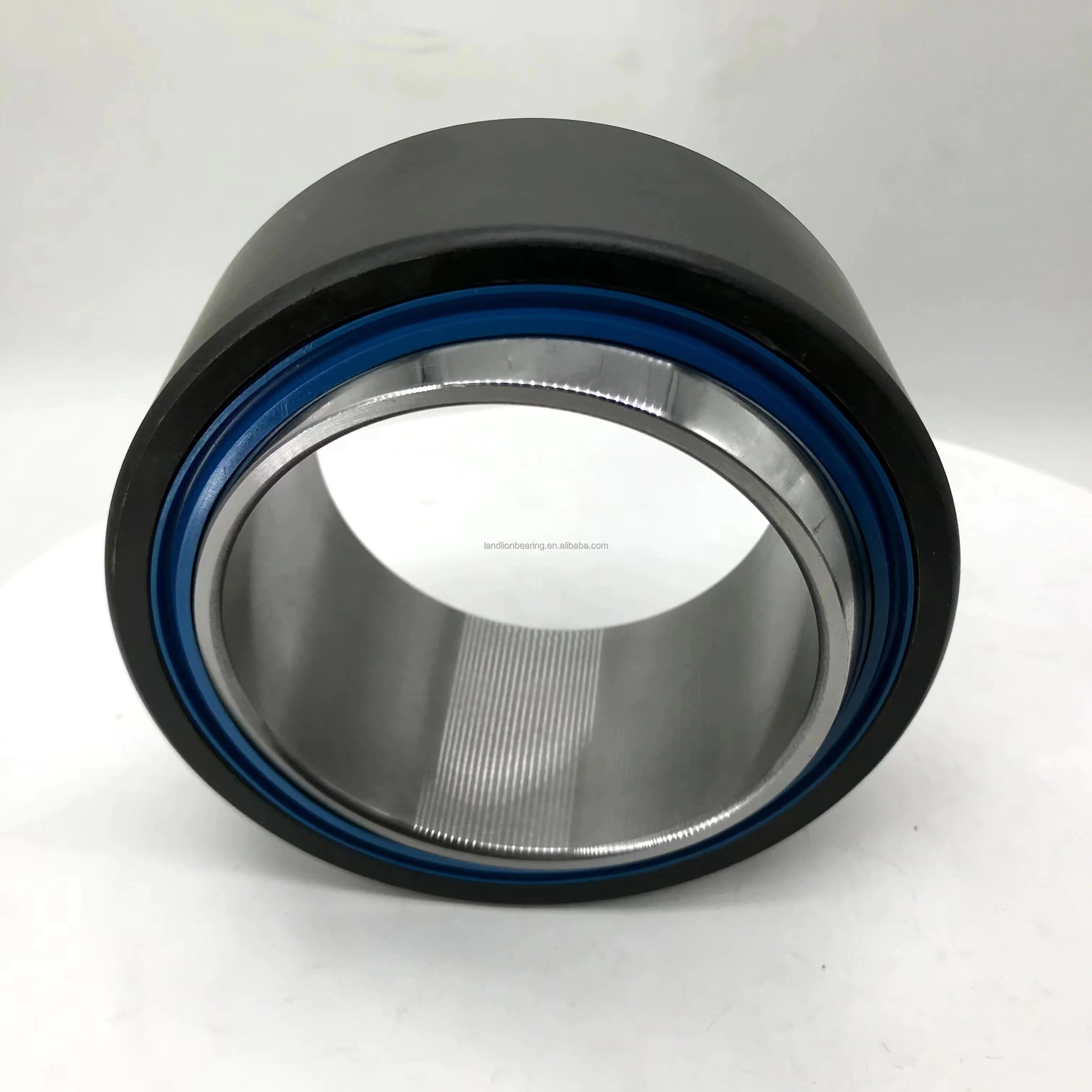

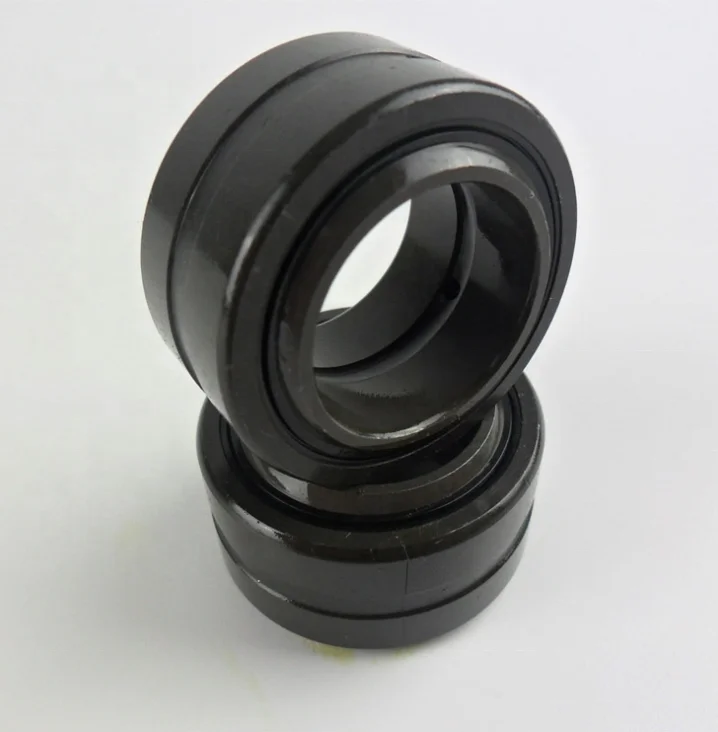

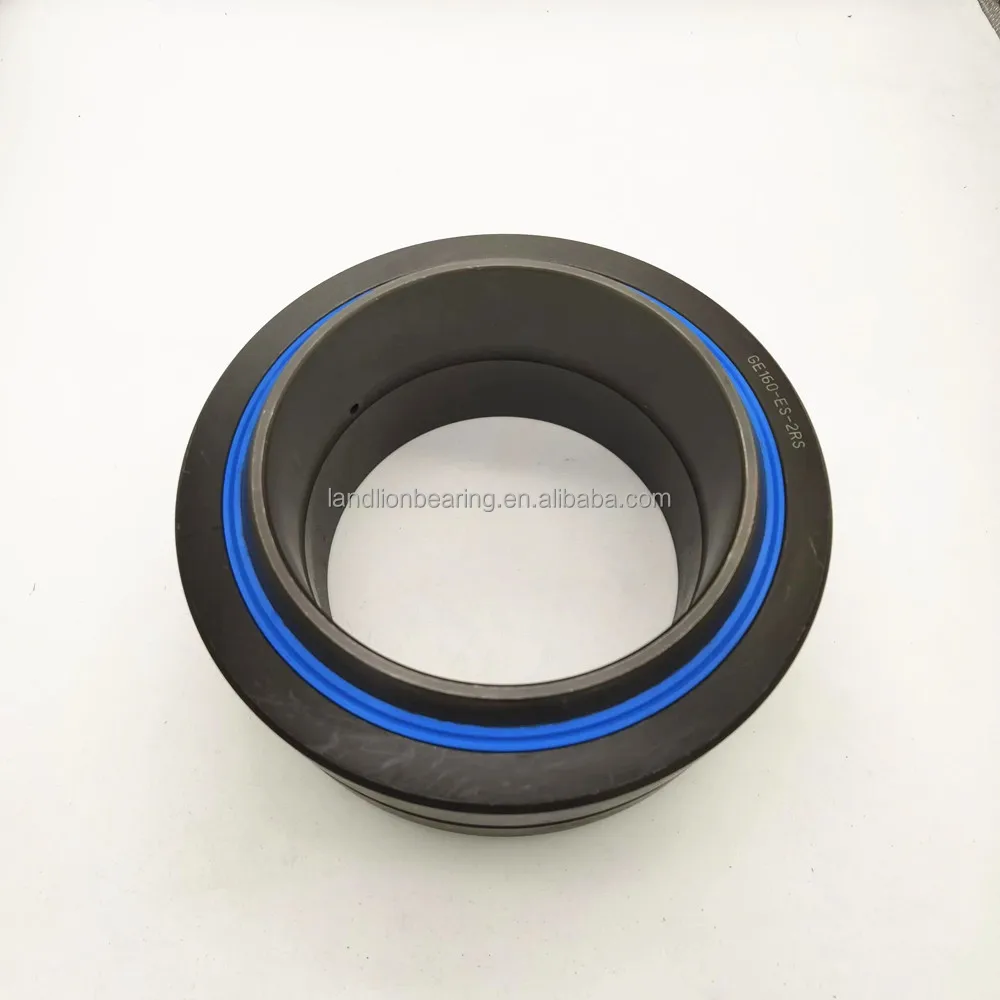

GEH 35 ES 2RS Radial spherical plain bearings GEH35ES 2RS size 35x62x35/22
- Category: >>>
- Supplier: Jinan Landlion Bearing Co. Ltd.
Share on (1601013430633):
Product Overview
Description
Product Description
GEH 35 ES-2RS Radial spherical plain bearings GEH35ES-2RS size 35x62x35/22

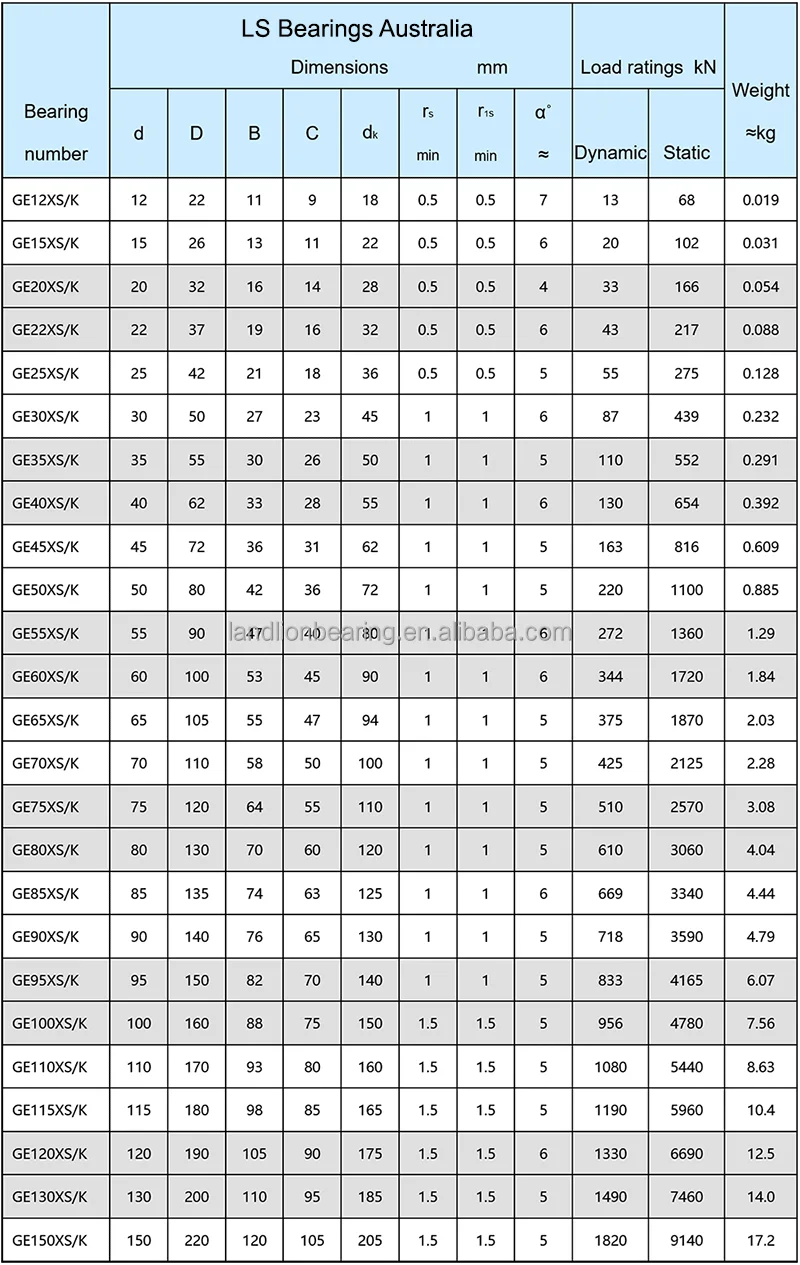

Series and bore diameter range: GE…XS/K 12～150
Sliding contact surfaces: Steel/Steel
Permissible operating temperature range: －50℃～＋150℃
Design characteristics: As series GEC…XS.
Design characteristics: Outer ring of carbon chromium steel, fractured, hardened and phosphated, sliding surface treated with
MoS2.The inner ring of carbon chromium steel, hardened and phosphated, sliding surface treated with MoS2. All bearings have an
annular groove and lubrication holes in each ring except those of the E design. Bearings of the 2RS design are fitted with seals
on both sides
Sliding contact surfaces: Steel/Steel
Permissible operating temperature range: －50℃～＋150℃
Design characteristics: As series GEC…XS.
Design characteristics: Outer ring of carbon chromium steel, fractured, hardened and phosphated, sliding surface treated with
MoS2.The inner ring of carbon chromium steel, hardened and phosphated, sliding surface treated with MoS2. All bearings have an
annular groove and lubrication holes in each ring except those of the E design. Bearings of the 2RS design are fitted with seals
on both sides
Spherical plain bearings are appropriate for bearing arrangements where alignment movements between the shaft and housing have to be accommodated, or where oscillating or recurrent tilting must be allowed at comparatively slow sliding speeds.
The inner and outer rings are made of steel and are manganese-phosphated. The sliding contact surfaces are treated with a running-in lubricant which reduces friction and wear during the running-in period.
These bearings have a permissible operating temperature range of -30 to +130°C. However, if temperatures reach above +120°C, their load carrying capacity will be reduced. Please note appropriate temperature grease will have to be used.
Steel against steel
The inner and outer rings are made of steel and are manganese-phosphated. The sliding contact surfaces are treated with a running-in lubricant which reduces friction and wear during the running-in period.
These bearings have a permissible operating temperature range of -30 to +130°C. However, if temperatures reach above +120°C, their load carrying capacity will be reduced. Please note appropriate temperature grease will have to be used.
Steel against steel
Requires maintenance
Rubber seals on both sides
bearing name | GEH35ES-2RS SPHERICAL PLAIN BEARING 35x62x35/22 |
bearing | GEH 35 ES-2RS |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |
GEH35ES-2RS Spherical Bearing 35mm Steel/Steel GEH

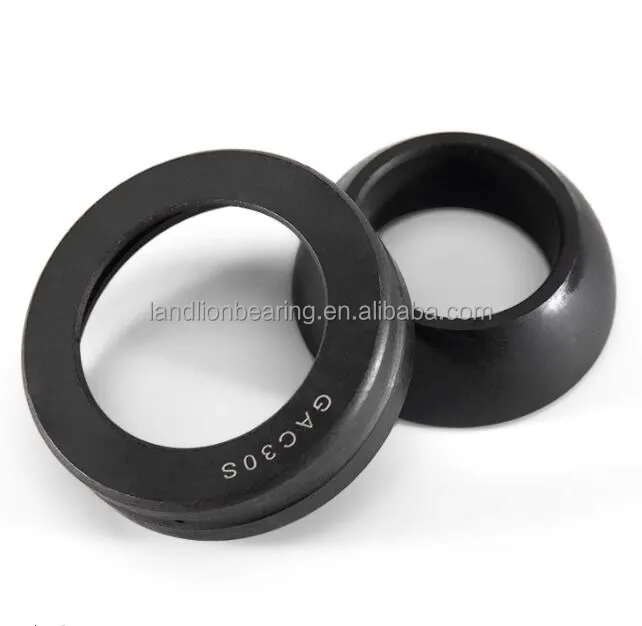

GAC25S GAC28S GAC30S GAC40S GAC45S GAC50S GAC55S/K
GAC60S GAC65S GAC70S GAC75S GAC80S GAC85S GAC90S
GAC95S GAC100S GAC105S GAC110S GAC120S GAC130S GAC140S
GAC160S GAC170S GAC180S GAC190S GAC200S bearing
Detailed Images
Designation | d | D | B | C | dk | α | Dynamic load | Static load | Weight |
(KN) | (KN) | (Kg) | |||||||
GE15ES 2RS | 15 | 26 | 12 | 9 | 22 | 8 | 16 | 84 | 0.027 |
GE17ES 2RS | 17 | 30 | 14 | 10 | 25 | 10 | 21 | 106 | 0.041 |
GE20ES 2RS | 20 | 35 | 16 | 12 | 29 | 9 | 30 | 146 | 0.066 |
GE25ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 7 | 48 | 240 | 0.119 |
GE30ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 6 | 62 | 310 | 0.153 |
GE35ES 2RS | 35 | 55 | 25 | 20 | 47 | 6 | 79 | 399 | 0.233 |
GE40ES 2RS | 40 | 62 | 28 | 22 | 53 | 7 | 99 | 495 | 0.306 |
GE45ES 2RS | 45 | 68 | 32 | 25 | 60 | 7 | 127 | 637 | 0.427 |
GE50ES 2RS | 50 | 75 | 35 | 28 | 66 | 6 | 156 | 780 | 0.546 |
GE60ES 2RS | 60 | 90 | 44 | 36 | 80 | 6 | 245 | 1220 | 1.04 |
GE70ES 2RS | 70 | 105 | 49 | 40 | 92 | 6 | 313 | 1560 | 1.55 |
GE80ES 2RS | 80 | 120 | 55 | 45 | 105 | 6 | 400 | 2000 | 2.31 |
GE90ES 2RS | 90 | 130 | 60 | 50 | 115 | 5 | 488 | 2440 | 2.75 |
GE100ES 2RS | 100 | 150 | 70 | 55 | 130 | 7 | 607 | 3030 | 4.45 |
GE110ES 2RS | 110 | 160 | 70 | 55 | 140 | 6 | 654 | 3270 | 4.82 |
GE120ES 2RS | 120 | 180 | 85 | 70 | 160 | 6 | 950 | 4750 | 8.05 |
GE140ES 2RS | 140 | 210 | 90 | 70 | 180 | 7 | 1070 | 5350 | 11.02 |
GE160ES 2RS | 160 | 230 | 105 | 80 | 200 | 8 | 1360 | 6800 | 14.01 |
GE180ES 2RS | 180 | 260 | 105 | 80 | 225 | 6 | 1530 | 7650 | 18.65 |
GE200ES 2RS | 200 | 290 | 130 | 100 | 250 | 7 | 2120 | 10600 | 28.03 |
GE220ES 2RS | 220 | 320 | 135 | 100 | 275 | 8 | 2320 | 11600 | 35.51 |
GE240ES 2RS | 240 | 340 | 140 | 100 | 300 | 8 | 2550 | 12700 | 39.91 |
Related Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
333
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
