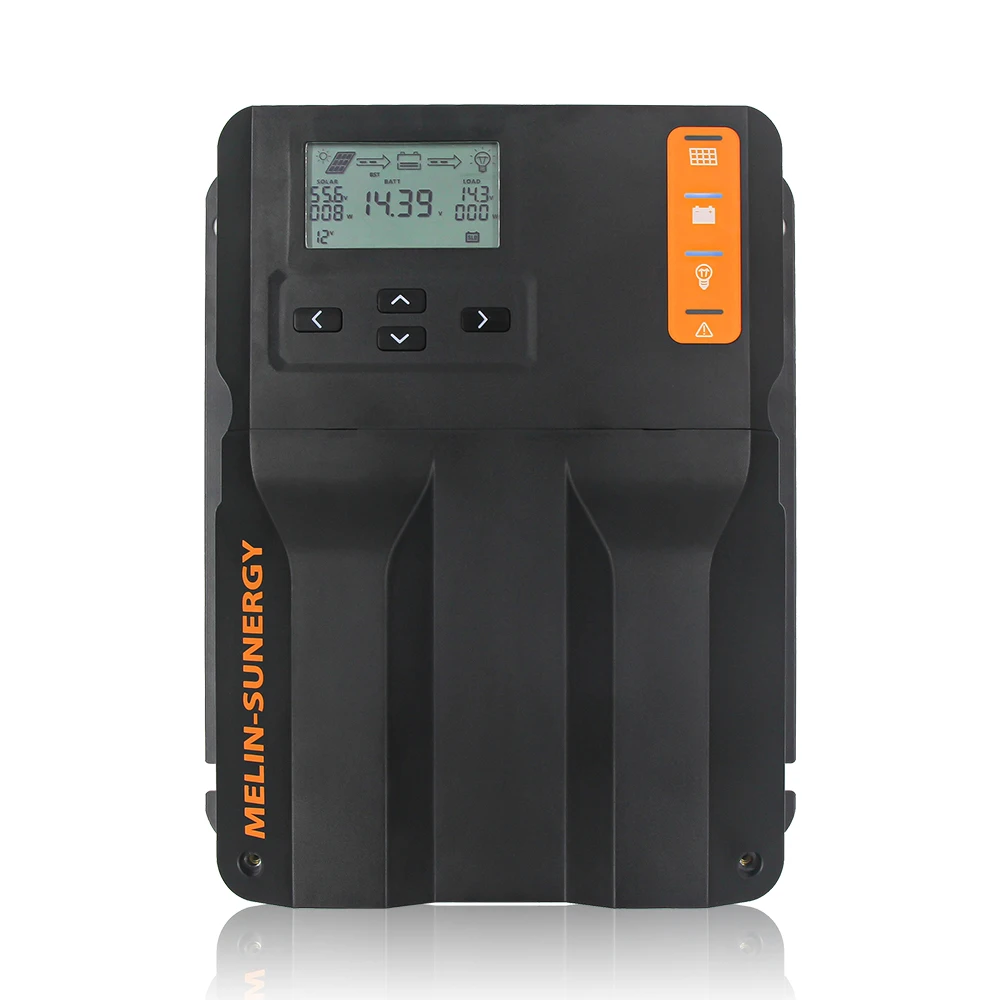

12v 30a 40 amp 300w 96 volt 10a 60v 144v 1500w mppt solar panel mppt pump charge controller mppt pcb sizing
- Category: >>>
- Supplier: Shenzhen Melin Sunergy Co. Ltd.
Share on (1601013443166):
Product Overview
Description
Item No. | MT508-2430 | MT508-2440 | MT508-2460 | MT508-4830 | |||
Rated Current | 30Amp | 40Amp | 60Amp | 30Amp | |||
Rated Load current | 30Amp | 40Amp | 40Amp | 30Amp | |||
Max.PV Input | 27Amp | 35Amp | 53Amp | 27Amp | |||
Max. Solar Power Input | 400W/12V 800W/24V | 520W/12V 1040W/24V | 800W/12V 1600W/24V | 400W/12V 800W/24V 1200W/36V 1600W/48V | |||
Max.Solar Input Voltage (Voc ) | 150V DC | ||||||
Battery type | USE/FLD/GEL/LI/SLD(Default) | ||||||
MPPT Operation Voltage Range | (Battery Voltage +2)~110V | ||||||

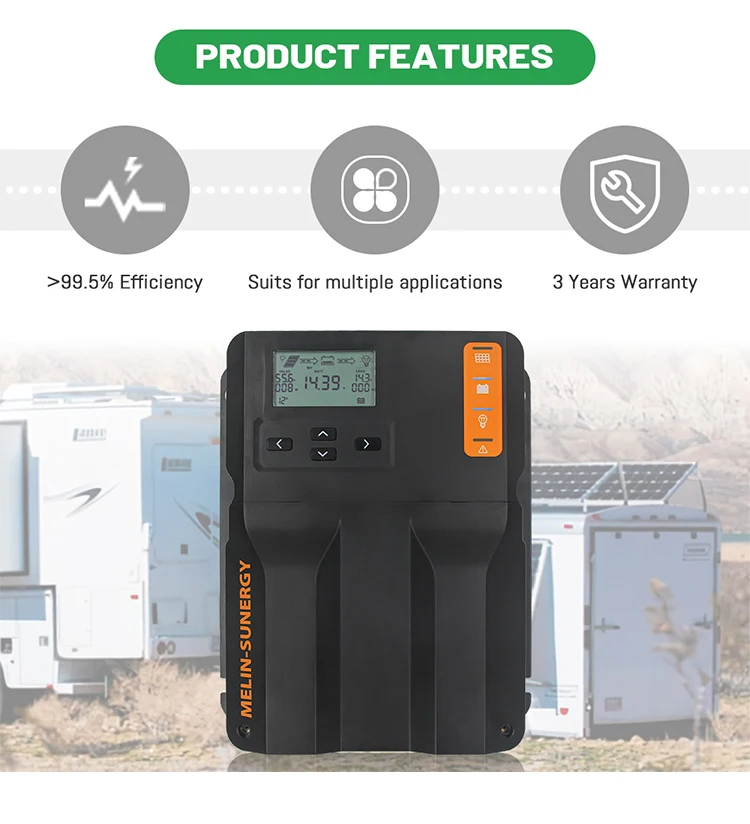

MPPT Efficiency | >99.5% | ||||||
Load operation mode | Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened. | ||||||
Chainable function | No | No | Yes | Yes | |||
Temperature Compensation | Yes | ||||||
Communication | TTL ,RS485 and CAN communication (RV-C Protocol Optional ) | ||||||
Historical Data | In Past 300 Days | ||||||
Protection | Input over voltage , Input Reverse polarity , Nighttime Reverse protection ,Over temperature , load short circuit ,over load for loading ,Battery reverse polarity , Battery over charge and over discharge | ||||||
Ground Type | Negative Grounding | ||||||
Operating Temperature | -35℃~ 65℃ | ||||||

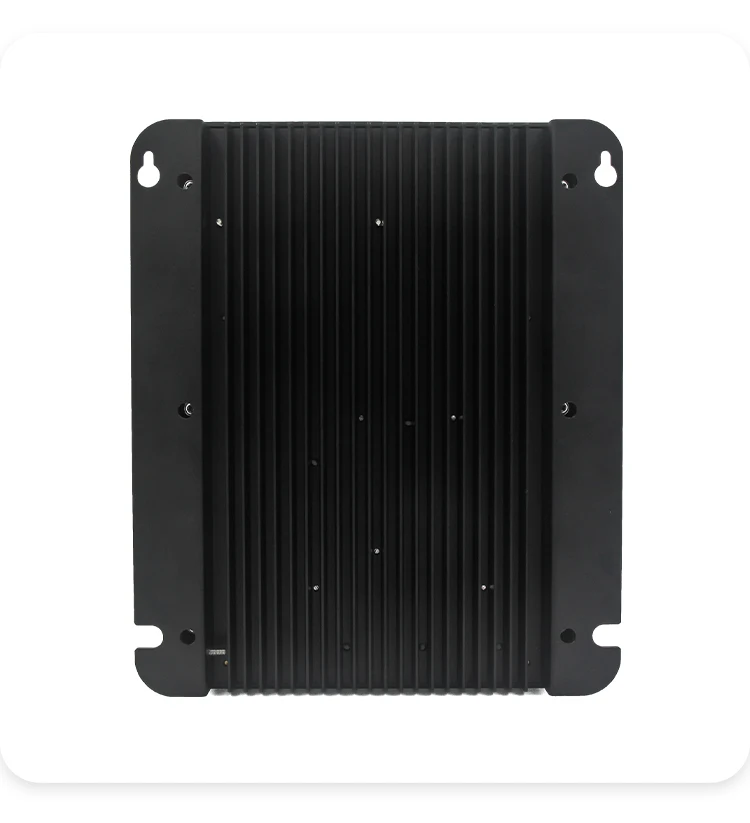

Cooling Mode | Nature cooling | ||||||

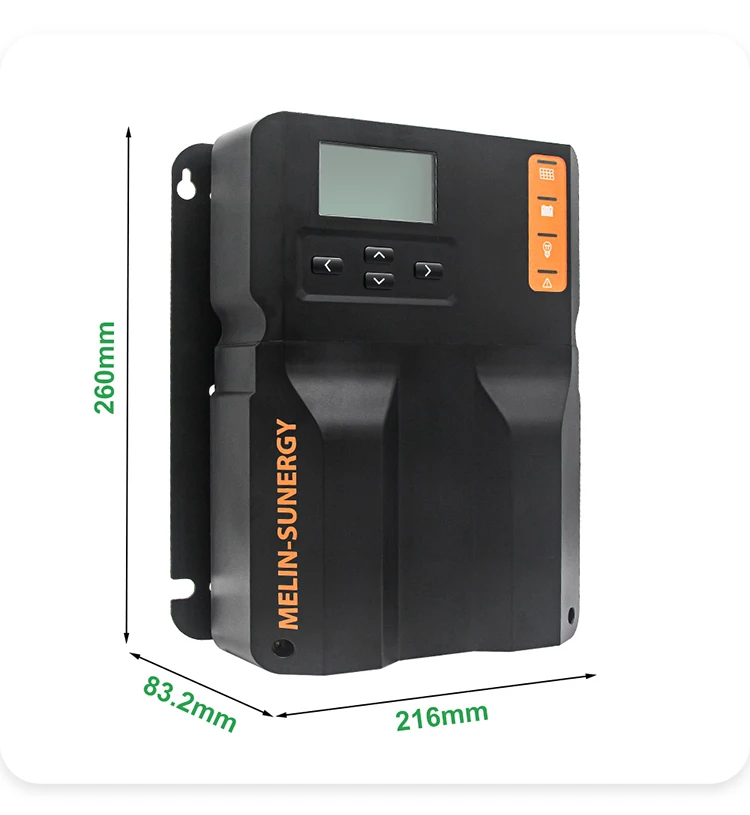

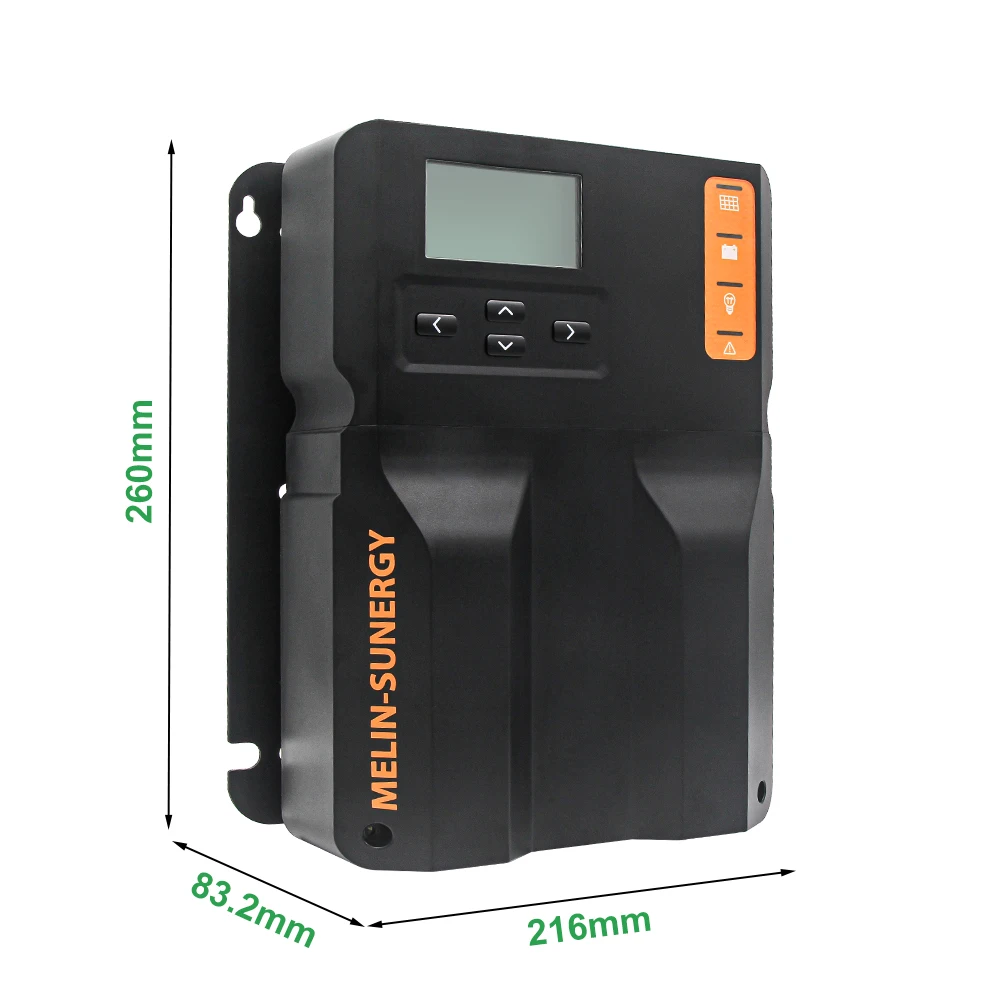

Dimension | 260X216X83.2mm | 260X216X98.5mm | |||||
Weight | 2.3Kg | 2.3Kg | 3.4Kg | 3.6Kg | |||
