Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

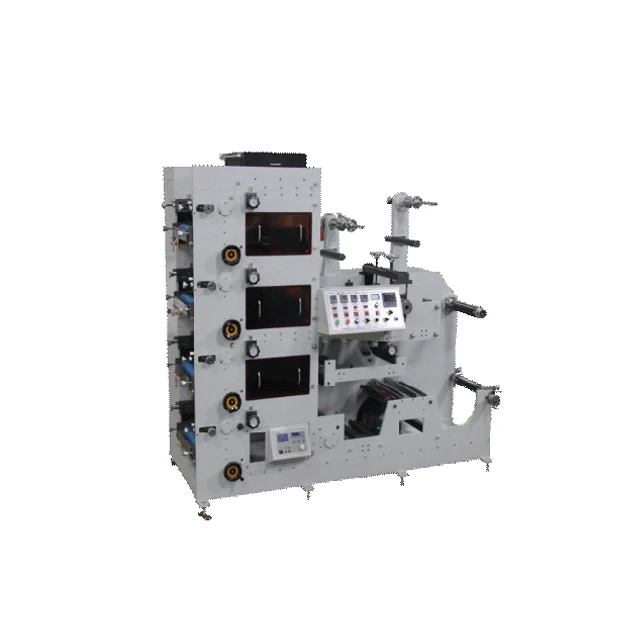

RY 320 Multifunctional Flexo Printing Machine
- Category: >>>
- Supplier: Wenzhou Henghao Machinery Co. Ltd.
Share on (1601013446709):
Product Overview
Description
FEATURE
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and
long using life, etc. It can improve the printing efficiency.
ideal machine for printing note and top-grade adhesive label.
1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and
long using life, etc. It can improve the printing efficiency.
2. Unwinding and rewinding of the flexo printing machine is
controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one
process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label, paper roll, aluminum foil, plastic film,etc.
controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one
process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label, paper roll, aluminum foil, plastic film,etc.
PRODUCT SPECIFICATIONS
Machine model | HH-RY320-5C | HH-RY420-5C | HH-RY480-5C | HH-RY520-5C | |||
Machine color quantities | 4 colors | ||||||
Maximum printing width | 320mm | 420mm | 480mm | 520mm | |||
Maximum web width | 330mm | 430mm | 490mm | 530mm | |||
repeat printing length | 175-380mm | ||||||
Total power | about 15kw | about 25kw | about 26kw | about 27kw | |||
Registering precision | ±0.15mm | ||||||
Die cutting station | one set | ||||||
Waste rewinding device | one set | ||||||
laminating device | one set | ||||||
Total air pressure | 0.6MP | ||||||
Voltage | 380V/220V | ||||||
Machine weight | 3000kg | 3200kg | 3500kg | 3700kg | |||
23Machine dimension | 2600mmX1300mmX2250mm | 2700*1300*2250mm | 2700*1400*2250mm | 2900*1400*2250mm | |||
Labels
all kinds of stickers labels
All Kinds Of Paper (below 250gsm)
plastic film (pvc, pet...)
aluminum foil

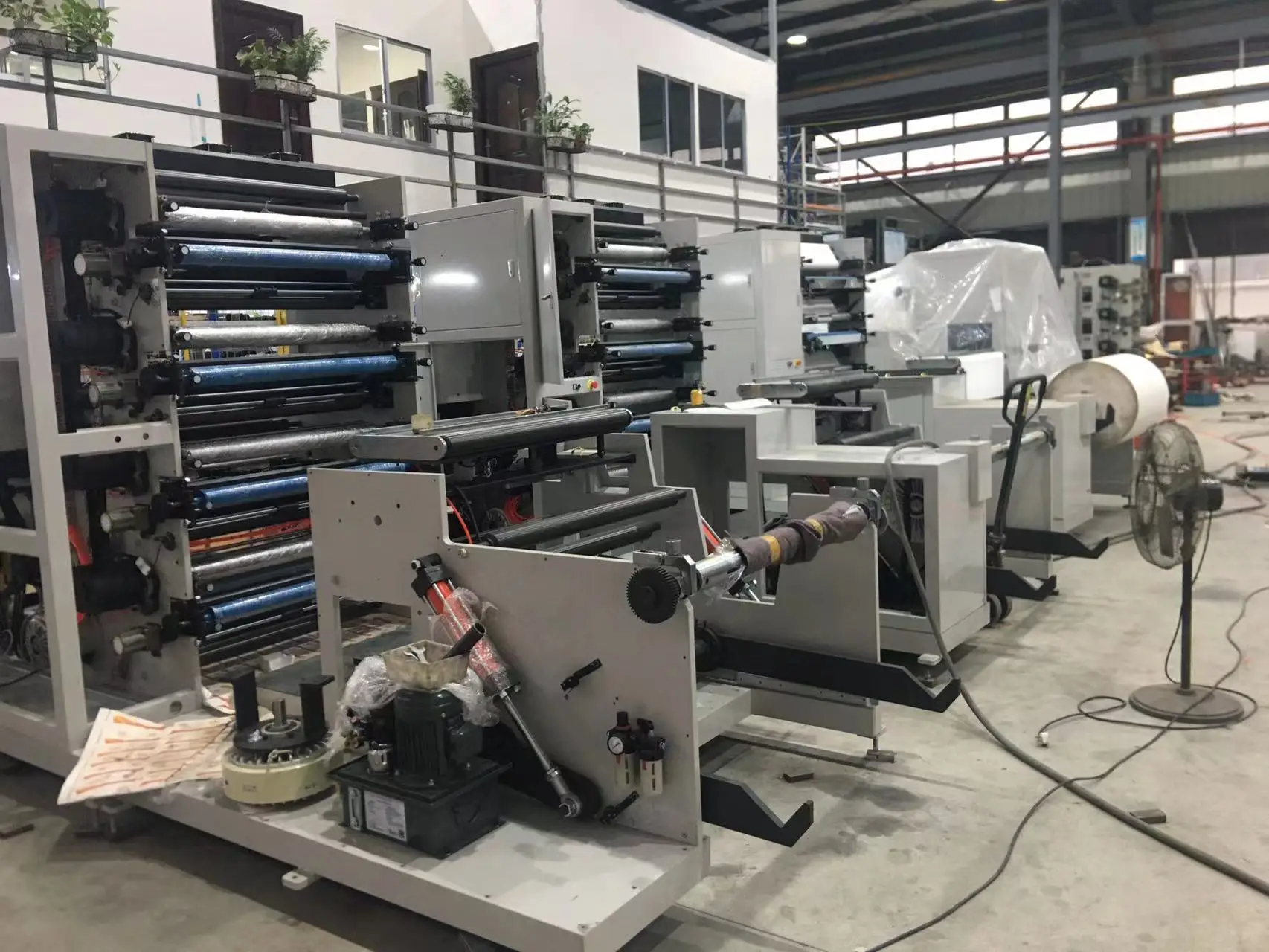

Machine detailed image

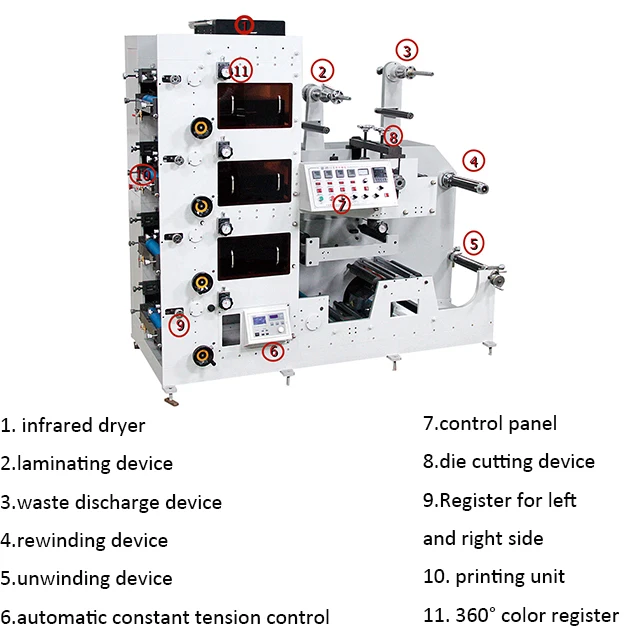

Machine Configuration
IR dryer
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
2).Infrared Heating Drying Oven is placed on material and after each printing station.

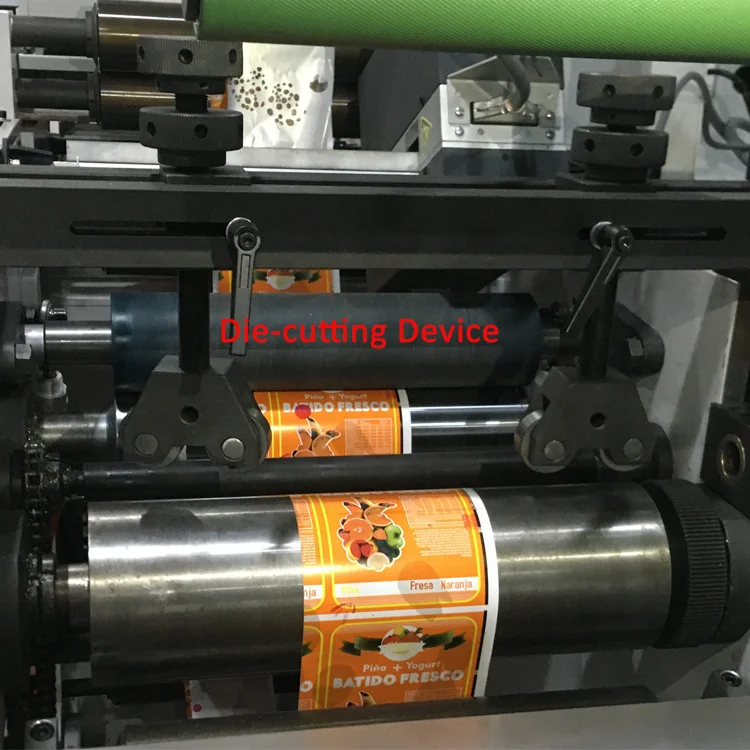

Die cutting station
it can use flexible die and magnetic cylinder to cut various type shape of adhesive sticker, or final product is sheet type, also need this device, but need extra purchase flexible die and magnetic cylinder.
laminating device
laminating material on printing material after printing is finished
printing station
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container, depend roller, with Helical Gear

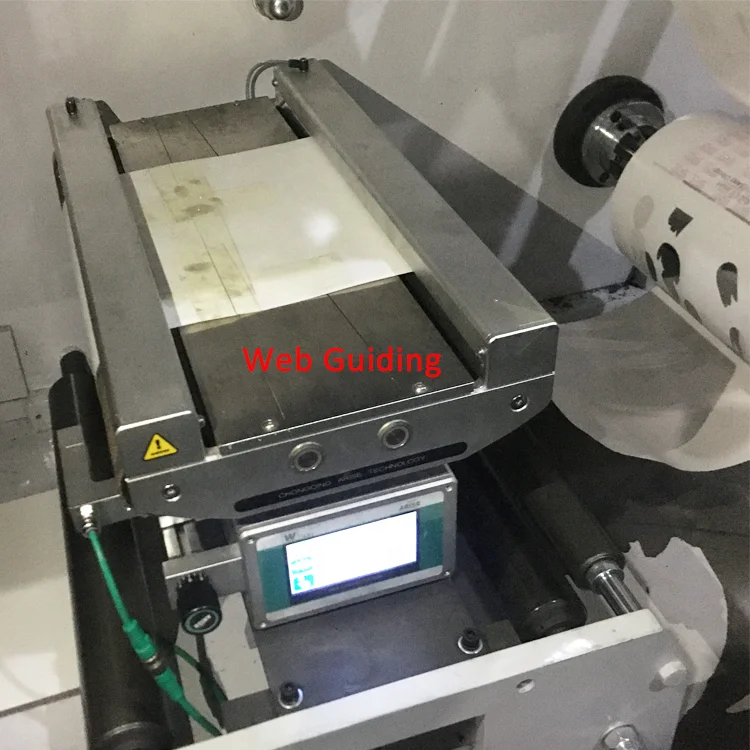

web guide
control paper move straightly, then output final product with good edge.
control panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
4)bottom roller tension control
magnetic brake and clutch
1) Machine has two pcs magnetic brake on unwinding, one is control unwinding roller, another is control bottom roller. this can be increased resistance, can be better to controlled material tension.For rewinding, it has one pcs magnetic clutch.
2)Machine Drive By Synchronous Belt. Low Noise and Stable Operation
2)Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Automatic constant tension control
With 2 Set Auto Constant Tension Controller For Unwind and Rewind.
SIMILAR PRODUCTS
Packing & Delivery

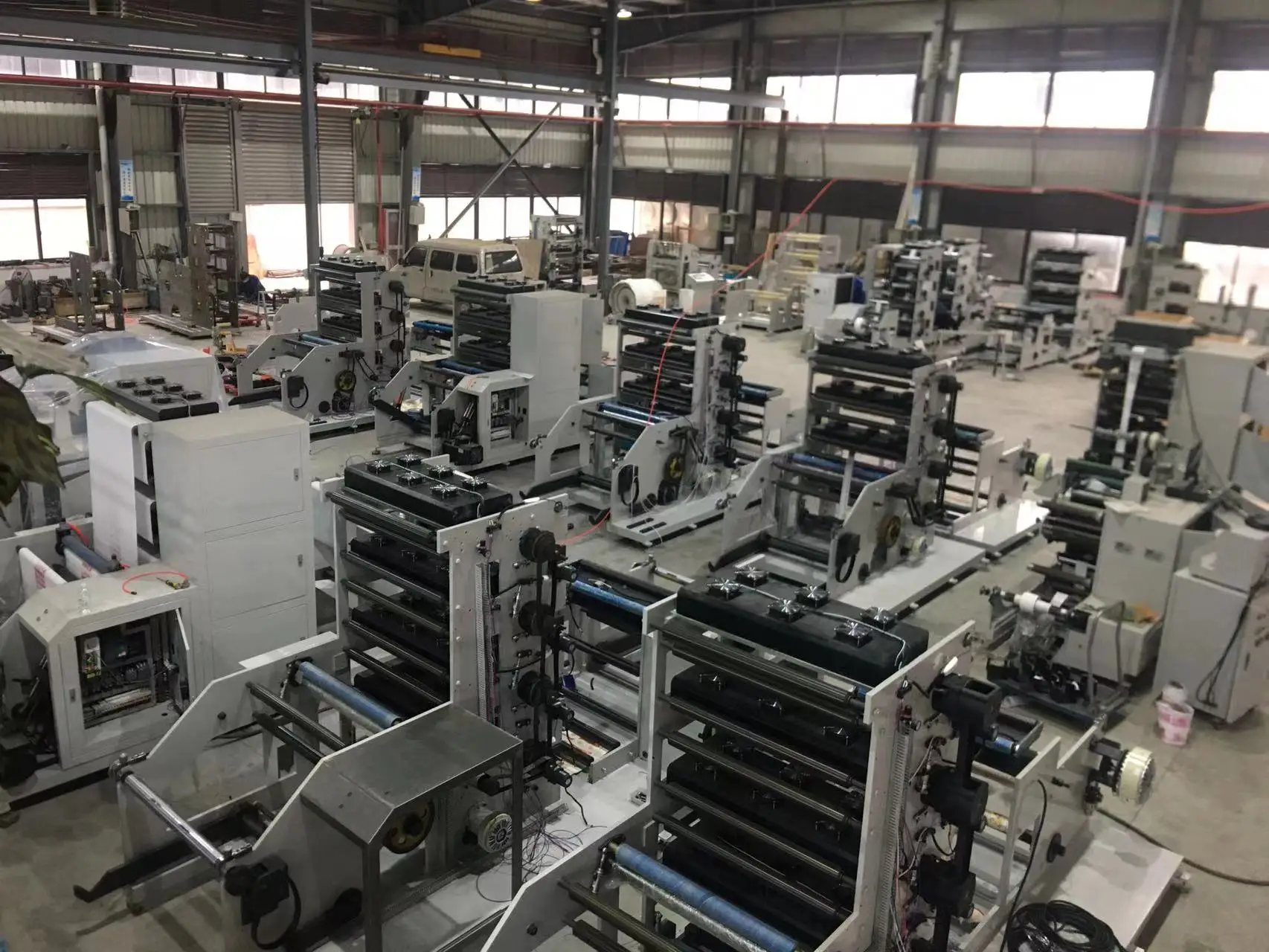

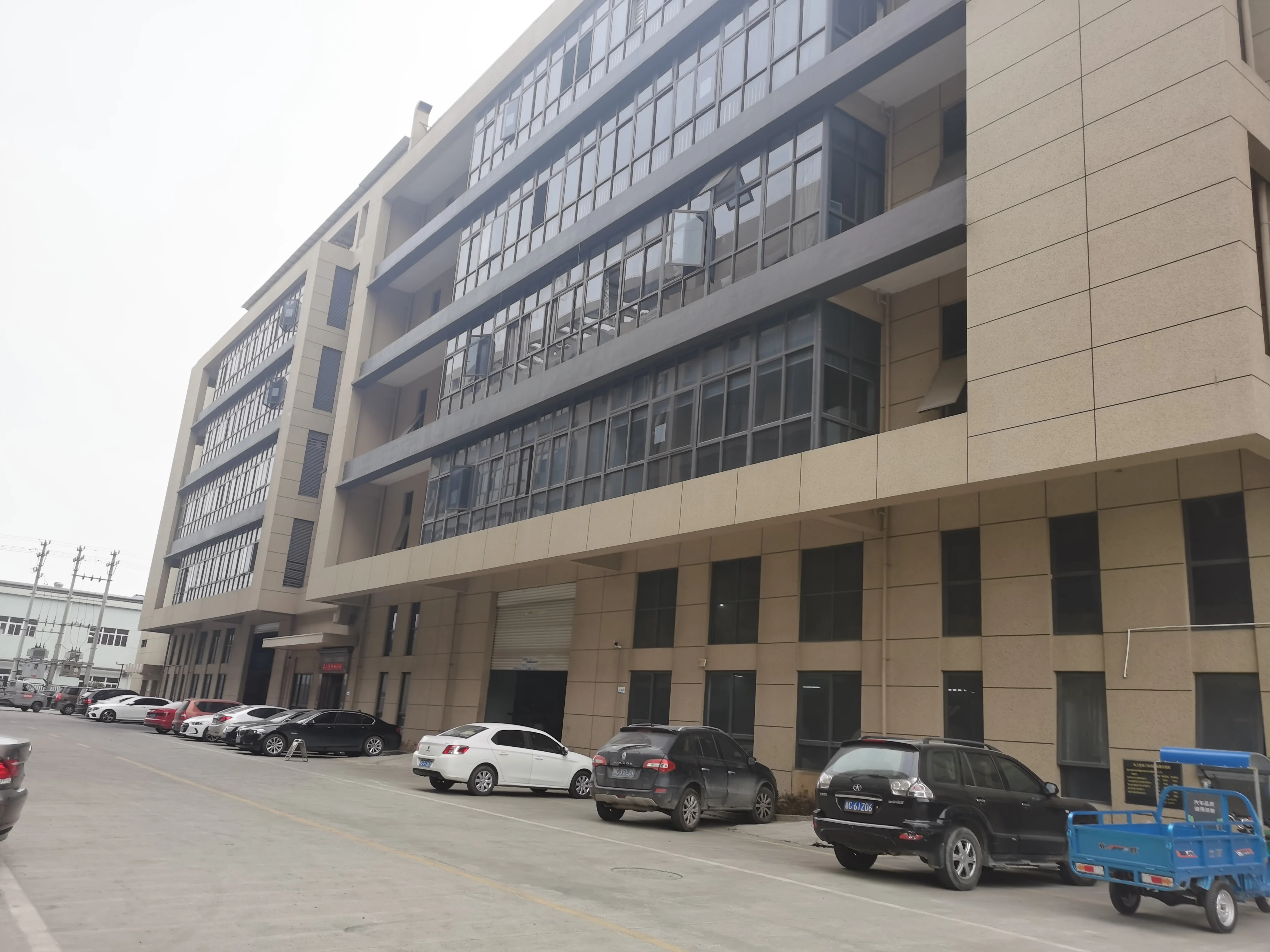

Company Profile
ABOUT US
WENZHOU HENGHAO MACHINERY CO.,LTD is located in water town of the south of ZHEJIANG province WENZHOU RUIAN CITY. Our selling market is around whole world,such as middle south asia , middle east, south America, Europe, etc. countries and regions.
Our factory is mainly specializing in selling various type of flexographic printing machine , die cutting machine, slitting rewinding machine, stamping machine, other automatic equipment,etc. Also we can make customized machine based on client's requirement.
Our machine can use different type raw material based on client requirement such as paper coated pe, kraft paper, thermal paper, greaseproof paper, double silicon paper,PVC film, bopp film, different type adhesive tape,etc.
For aftersales, We have a professional technical team with rich experience in machine, not only can provide engineer go to abroad to teach worker how to operate machine and online guide worker, but also provide new part in warranty period while the parts has broken.
Our factory advantage is that high quality product, fast production time, rich experience, quickly sales before and after, also has Ce certificate support.

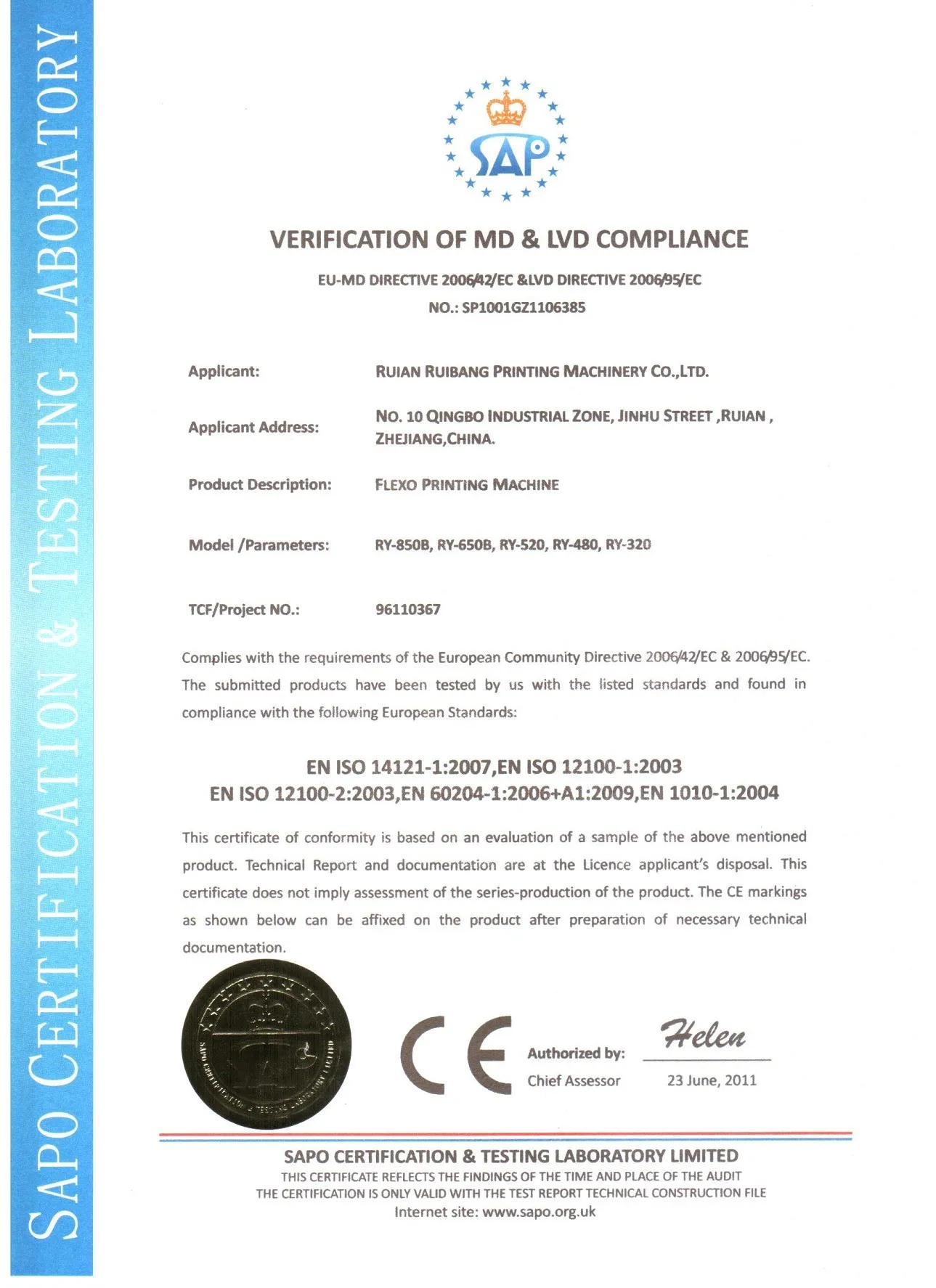

Certifications
Exhibition
FAQ
Q1:Are you a factory or trading company?
A1: We have more than 15years experience in the line of printing&package, so we are actual professional factory,
welcome you visit our factory views and see machine running.
welcome you visit our factory views and see machine running.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located at No. 198, Wangxin Road, Dongshan Economic Development Zone,
Ruian City, Zhejiang Province, China. It takes about one hour by air from Shanghai.
Ruian City, Zhejiang Province, China. It takes about one hour by air from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
Q3: How about payment terms?
A3:For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q4: Which industries are widely used in of your machine?
A4: Those are mainly used in printing, die cutting, stamping ,etc on various raw material such as paper cup, paper bag,plastic bag, plastic film, adhesive tape,etc in the maket.
Q5: What about your main market?
A5: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6:What about the service after sale?
A6:One year warranty. if the machine has some problems, our engineers can go abroad to teach your worker how to operate,and also provide online guide work.
Q7:What about warranty and do the engineers available to overseas?
A7: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
