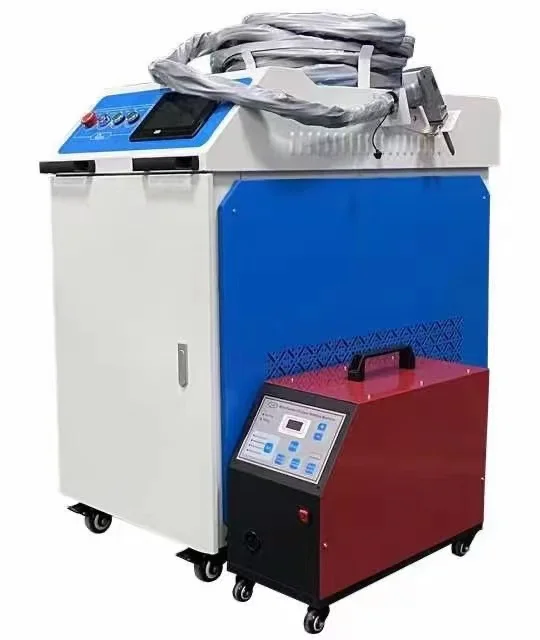

Canton Fair Promotion Automatic Wire Feed Laser Hand Held Welding Machine Welded Aluminum Galvanize Mild Steel Brass SS MS
- Category: >>>
- Supplier: Taiyi Laser Technology Company Limited
Share on (1601013449997):
Product Overview
Description
Mini Laser welders Handheld Fiber Laser Welding Machine For Stainless Steel Carbon Steel Aluminum Iron With Good Price
Product Description

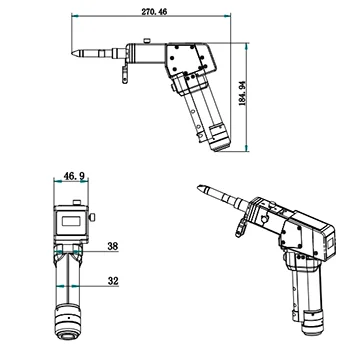

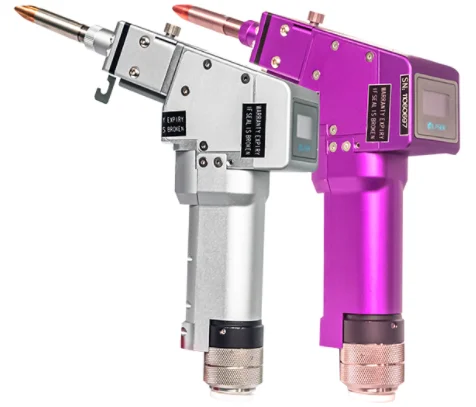

1.Dual-drive Handheld Swing Laser Head
Weight is 0.85KG,There are 7 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jittery function, the width of the weld can be adjusted, and the welding ability is significantly improved.

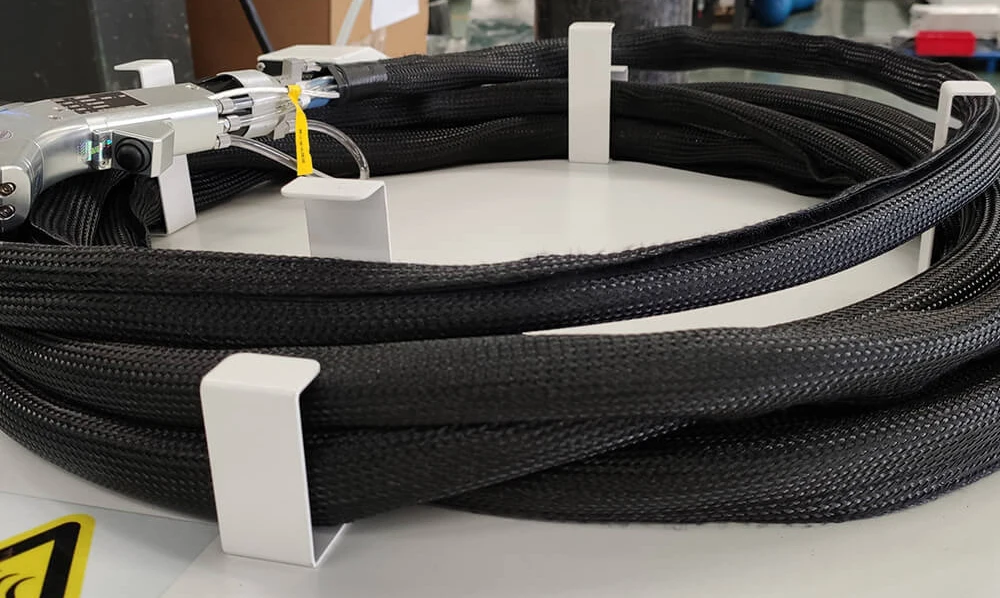

2.Standard 15 Meters Optical Fiber
It is conventionally equipped with 15-meter optical fiber, which can realize long-distance, flexible welding in large areas and reduce operating limitations

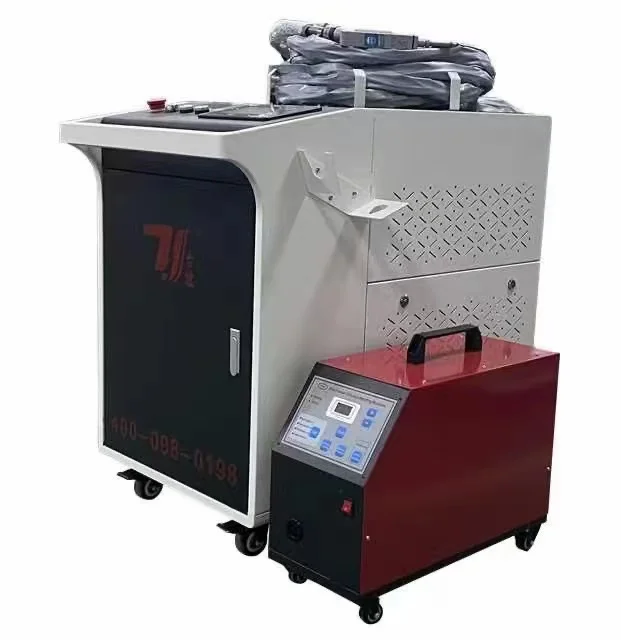

3.Auto Wire-feeder device
The machine is equipped with automatic wire-feeder device, which can easily adjust the parameters and provide multiple choices for
customers.It can effectively make up for the welding seam produced in the welding process, so that the welding more closely bonded.
customers.It can effectively make up for the welding seam produced in the welding process, so that the welding more closely bonded.

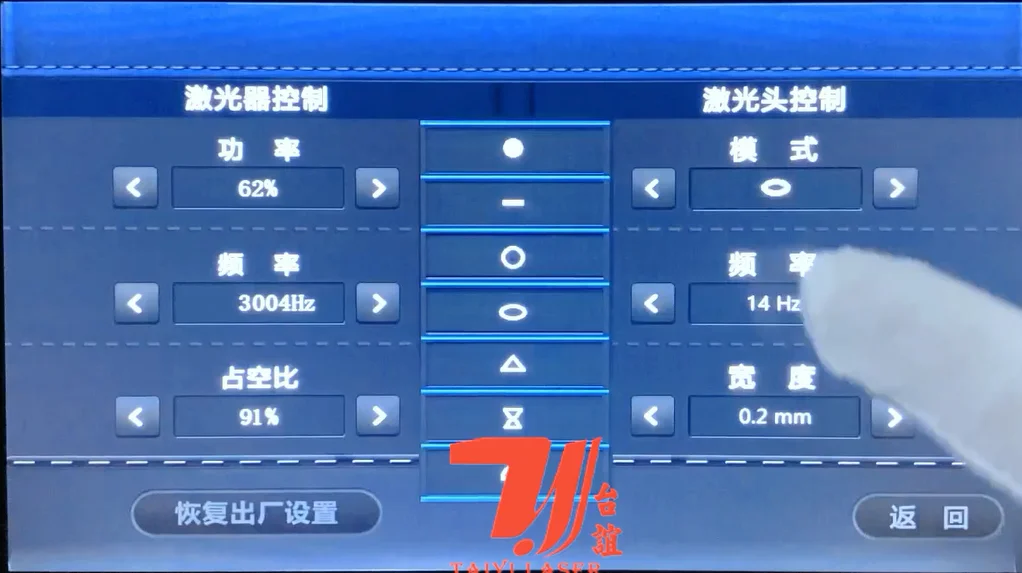

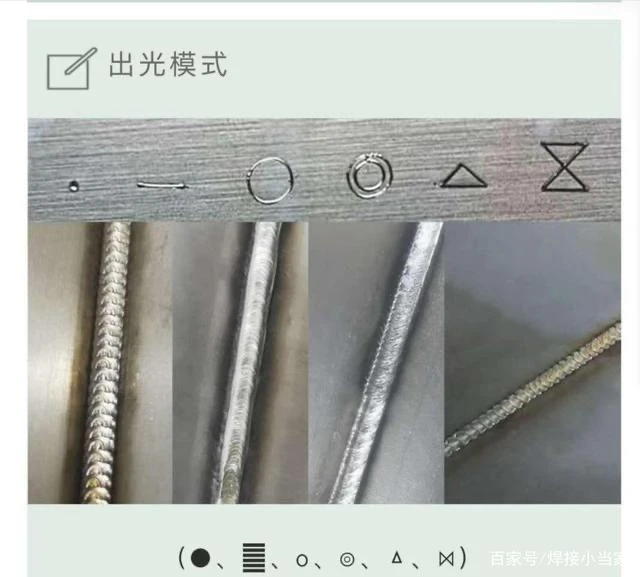

4. Have 7 Welding Modes And 22 Languages can choose
It can be used in 7 models:
-Point shape
-one shape
-0 shape
-double 0 shape
-triangle-figure eight welding
It can deal with various welding scenes, to meet various welding requirements of customers
| Product Name | Handheld Fiber Laser Welding Machine | |||||
| Laser Power | 1000W/1500W/2000W/3000W optional | |||||
| Laser Source | Max Raycus IPG BWT optional | |||||
| Welding Head | Qilin Raytools optional | |||||
| Laser Wavelength | 1070nm | |||||
| Pulse Width | 0.5-15ms | |||||
| Pulse Frequency | ≤100Hz | |||||
| Spot adjusting range | 0.1-3mm | |||||
| Repeating precision | ±0.01mm | |||||
| Cabinet size | 845*490*550mm | |||||
| Cooling System | Water Cooling | |||||
| Voltage | 220V/3-Phase/50Hz | |||||
| Function extension | Can be upgraded to 3-in-1 functions (welding, cleaning, cutting) according to customer requirements | |||||
| Welding thickness(complete penetration) | ||||
| Material | 1 KW | 1.5 KW | 2 KW | 3 KW |
| Stainless steel | 2.5mm | 3.5mm | 4.5mm | 6mm |
| Carbon steel | 2mm | 3mm | 4mm | 5.5mm |
| Aluminum | 2mm | 3mm | 4mm | 5.5mm |
| Brass | 1mm | 2mm | 3mm | 4.5mm |
| Galvanized sheet | 2.5mm | 3.5mm | 4.5mm | 6mm |

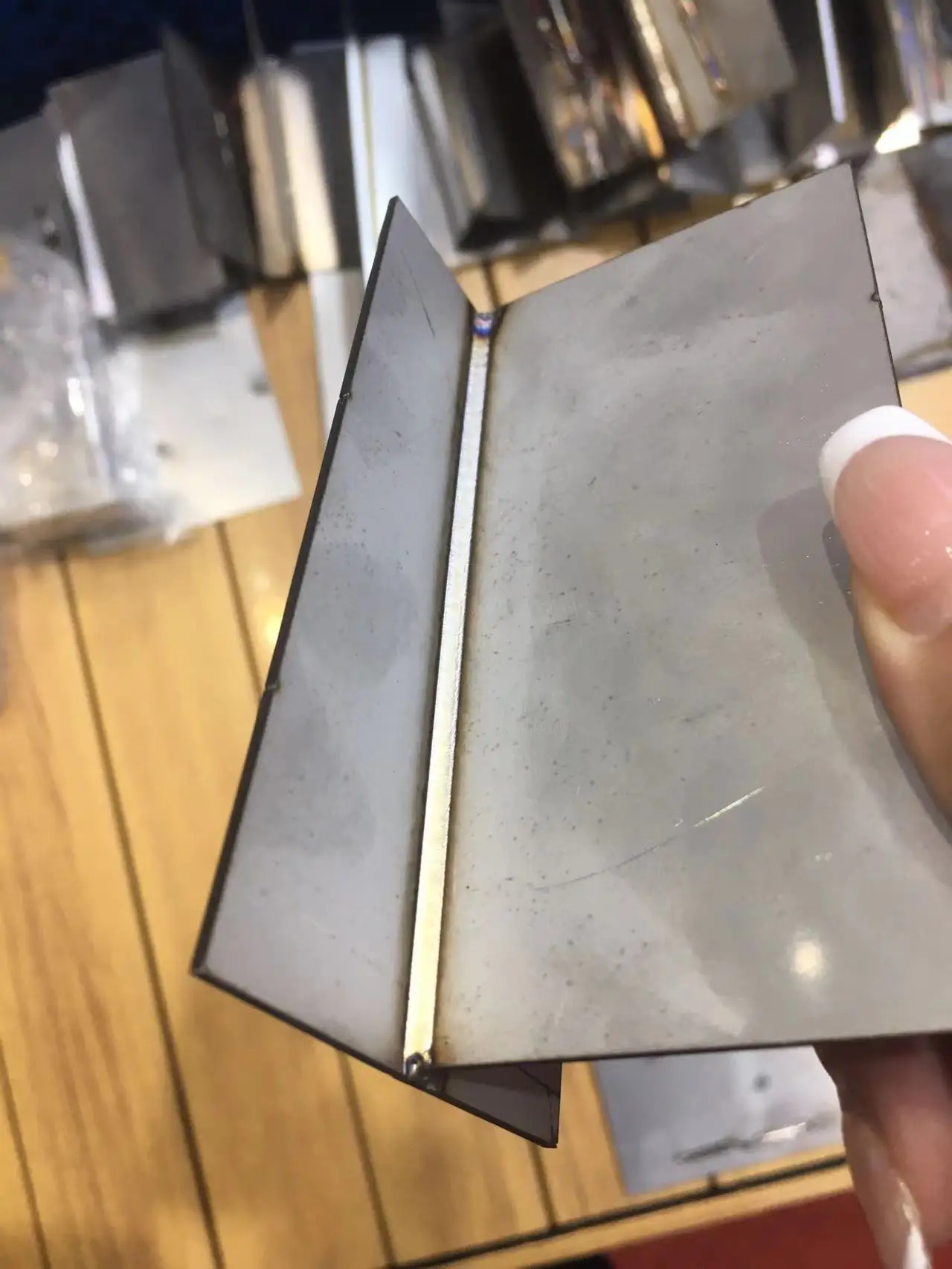

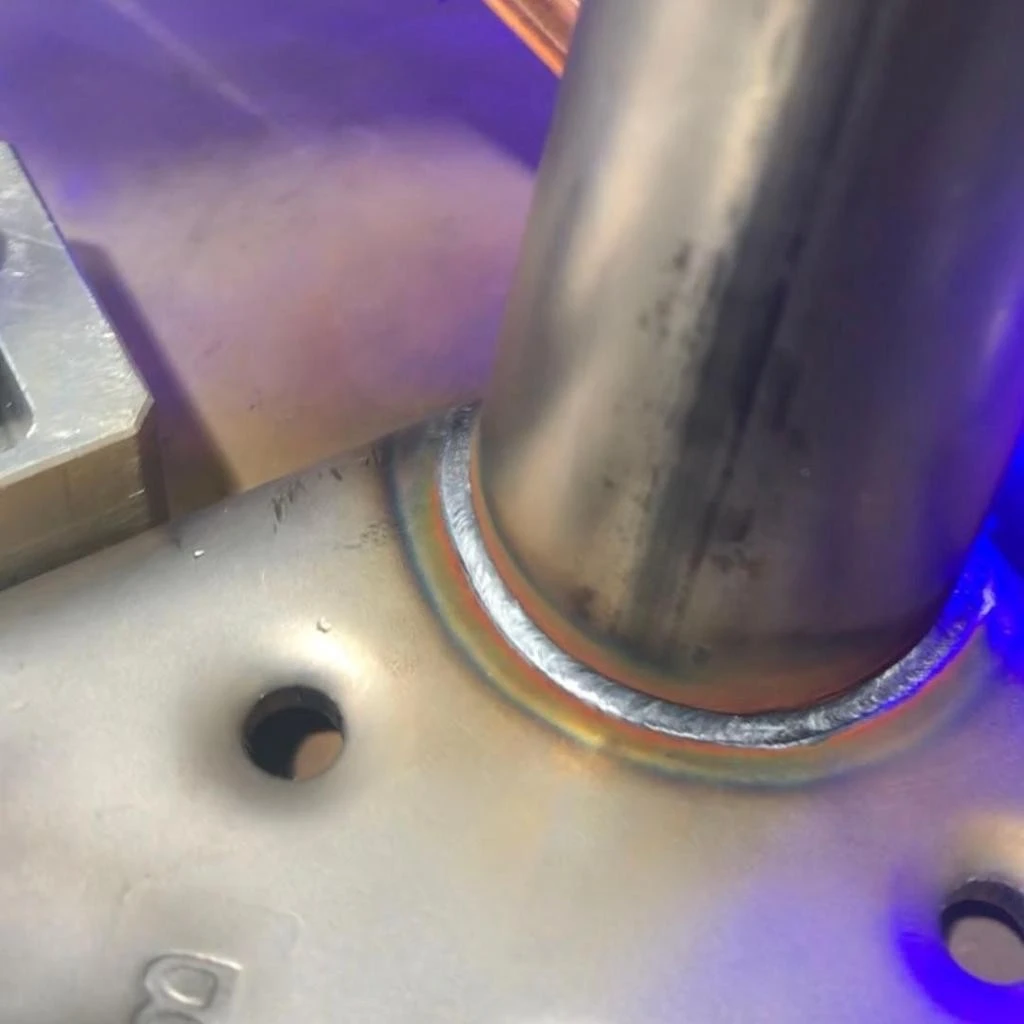

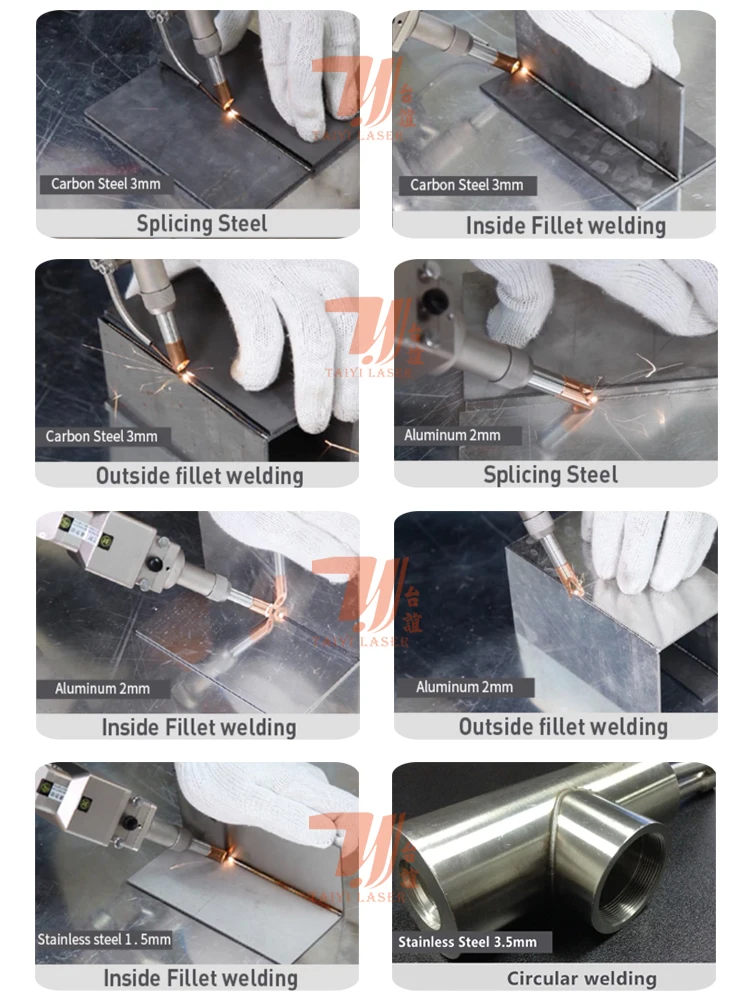

Welding Sample
1. Nozzle
Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm.

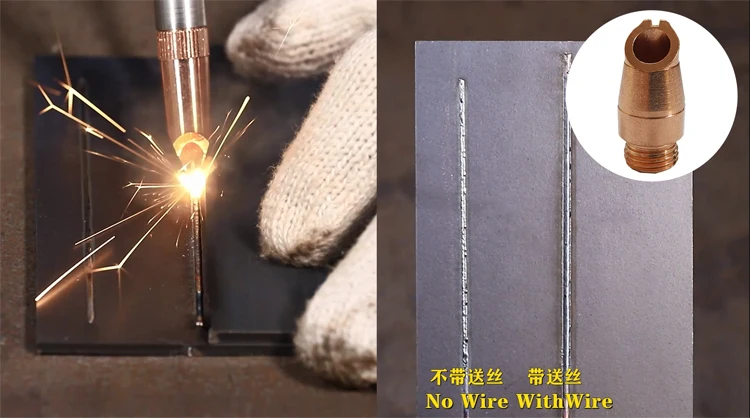

2. Wire Feeding Device:
Lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.
3. Trachea Interface
Protective gas inlet.
4. Lead Signal Line
It is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.
5. Protective Lens Mounting Port
The protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.
6. Circulating Water Channel
Cold water circulating structure is used to cool the reflector and gun body.
7. LCD
Used to show whether the parameters and signal state set by the system are normal.
8. Gun Handle
Aluminum a process, light and light grip comfortable.
After changing the structure of head and the position of the trigger button, it can be used for both left and right hands.
9. QBH Protective Cover
Connect with the laser end, pay attention to cleaning during installation to avoid dust entering the gun body.

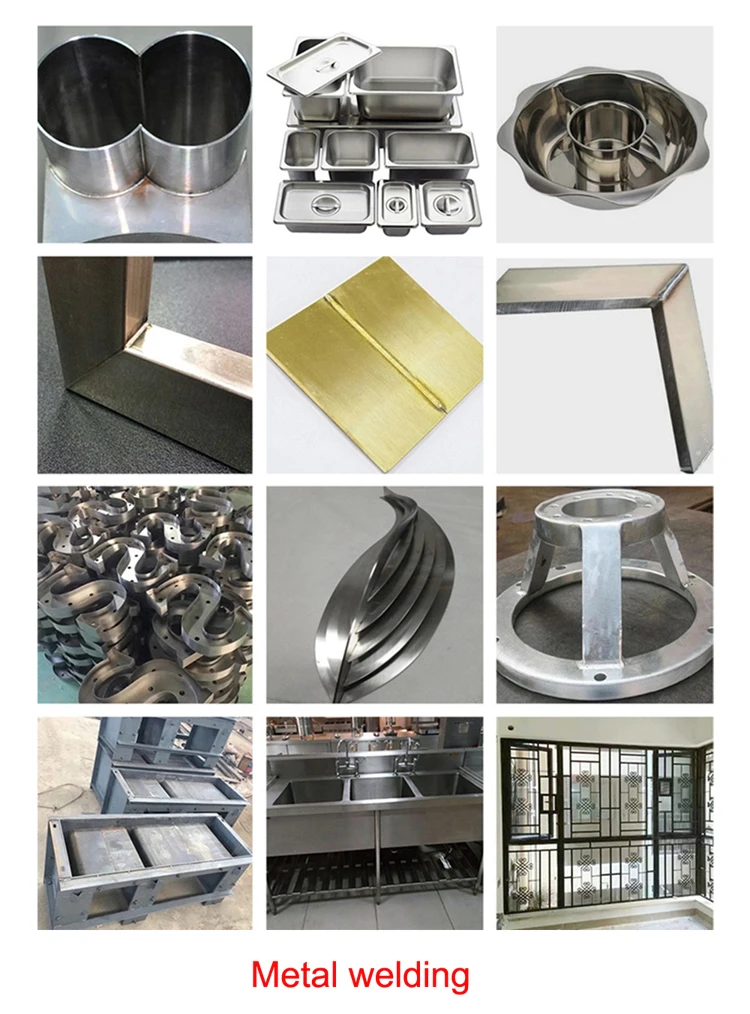

Application Industries:
Machine shell sheet metal welding,Kitchen cabinets,staircase elevator,Food Machinery,shelf, oven,stainless steel door,window guardrail,distribution box,communications equipment,craft gifts,household and other industries.
Application Materials:
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.
1.After Sales
We provide 1-3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
2.Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.
All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.
We will provide detailed Machine pictures and Test videos to customers before delivery.
3.OEM Service
Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.
No MOQ required.
4.Privacy
None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.
Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.
5.Payment terms
Alibaba Trade Assurance ( New,safe and popular payment terms)
30% T/T paid in advance as deposit, the balance paid before shipment.
lrevocable LC at sight.
Other payment terms: Paypal,Western Union and so on.
6.Documents Support
All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.
Taiyi Laser was established in 2001,It is a high-tech laser machinery and equipment manufacturer specializing on the research,development,production and sales service with research and production base in Dalingshan town Dongguan,Huanggang of Hubei and India Gujarat.Relying on the professional guidance of Huazhong University of Science and Technology and the strong engineering team of Taiyi, the transformation of scientific research achievements has been successfully realized, and high-precision equipments of laser cutting machine, laser marking machine, laser welding machine, laser cleaning machine have been developed. The products are widely used in IT manufacturing, electronics, hardware, communications, household appliances, automobiles, buildings, clothing jewelry, food, etc. Products, packaging and other industries can meet the application needs of the production field. Once Taiyi products are launched into the market, they are well received by customers at home and abroad.
The headquarter of Taiyi laser is in Dalingshan Town, Dongguan City, with a registered capital of 10 million yuan and a total area of 8,000 m2. It has more than 200 excellent employees and elite teams. With forward-looking strategic layout, adhering to the motherland-based and global development policy, Taiyi Science and Technology Hubei Production Base was established in 2014 with registered capital of 10 million yuan, a first-stage investment of more than 50 million yuan, an area of 30 mu, and an annual output value of over 100 million yuan. In July 2018, the production base in Gujarat State, India, was put into operation, with an investment of more than 3 million yuan and an area of 3000 m2, to meet the needs of customers in Southeast Asia. Marketing institutions include Dongguan, Chongqing, Kunshan, Xiamen, Quanzhou, Thailand, Singapore, India, Vietnam, Turkey and other countries and regions. In the next few years, Taiyi plans to set up more offices in major cities around the world,, to provide the best products and services for our partners, and to cooperate sincerely with customers at home and abroad to win-win situation.
With excellent product quality, product design that meets user's needs and high-quality after-sales service, Taiyi Laser has made great progress and won many awards. Its products serve more than 80 countries and regions, and have been chosen by more than 50 top 500 enterprises . At the same time, Taiyi Laser has been awarded as a national high-tech enterprise and a demonstration base for the promotion of large scientific and technological achievements in Central China. Its products have won a number of national patent certifications.
