ADMLaser Portable Handheld 1000W to 2000W Fiber Laser Cleaner Steel Sheet Cleaning Machine for Wood and Aluminum Rust Removal
- Category: >>>
- Supplier: Suzhou Alston D.M Laser Technology Co. Ltd
Share on (1601013463192):
Product Overview
Description
Product Description
1.1 Summary
Laser cleaning technology refers to the use of high-power density laser beams to irradiate the surface of the workpiece, so that the dirt, rust or coating on the surface can be evaporated or peeled off instantly, thereby achieving a clean process. This cleaning equipment is a high-tech product of Xinyi's representative surface treatment, which is easy to install, operate and realize automation. The operation is simple, and it can be cleaned without chemical reagents, media, dust, and water. It can remove resin, paint, oil, dirt, dirt, rust, coating, plating and oxide layer on the surface of the object. It has a wide range of applications, including ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection. Before using the RFL-7C-0200 handheld laser cleaner, please read the user manual carefully. In the course of use, if you have any difficult questions, please contact us in time, we will definitely give you a satisfactory answer as soon as possible. When unpacking the box, please check the user manual in the accessory box. If the manual is incomplete, please contact our company in time.
1.2 Product dimensions and features
1.2.1. Dimension drawing of cleaning head
Parameter name | HW970 |
Maximum applicable laser power | 3000W |
Welding Focusing Lens | D=20mm,F=150mm |
Collimating Lens Specifications | D=20mm,F=50mm |
Protective Lens Specifications | D=20mm,T=3mm |
Cleaning Focusing Lens Case | D=20mm,F=600mm |
Welding head weight | ≈0.9kg |
Parameter name | HWS5000L |
PWM adjustable range | 0-10KHz |
Oscillation frequency | 0-400Hz |
Man-machine interaction mode | 7-inch touch screen |
Communication interface | RS485/RS232 |
HW970
1. Selection of high-quality precision optical components, excellent and stable beam quality
2. Cool appearance, ergonomic design, comfortable grip
3.Dual protection lens design, better dust-proof\t
4.Straight line spot, welding operation is more simple, high degree of welding firmness, beautiful pattern\t
5.Standard with D20-F600 cleaning and focusing lens box to get the maximum 80mm spot.
2. Cool appearance, ergonomic design, comfortable grip
3.Dual protection lens design, better dust-proof\t
4.Straight line spot, welding operation is more simple, high degree of welding firmness, beautiful pattern\t
5.Standard with D20-F600 cleaning and focusing lens box to get the maximum 80mm spot.
HWS5000L
1. Reliable safety performance, using the contact out of the light, to enhance the safety protection level
2. Unique wireless module design, can be adjusted at the welding head of various parameters
3. Various working modes and light output modes can be switched at will, suitable for different application scenarios.
4. Controller and motor driver adopts modularized design, which is convenient to match with different programs.
2. Unique wireless module design, can be adjusted at the welding head of various parameters
3. Various working modes and light output modes can be switched at will, suitable for different application scenarios.
4. Controller and motor driver adopts modularized design, which is convenient to match with different programs.

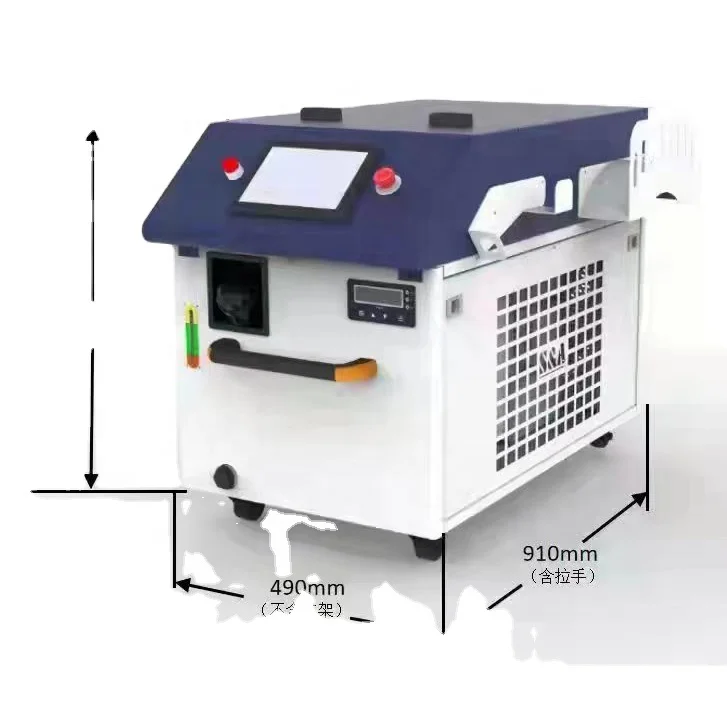

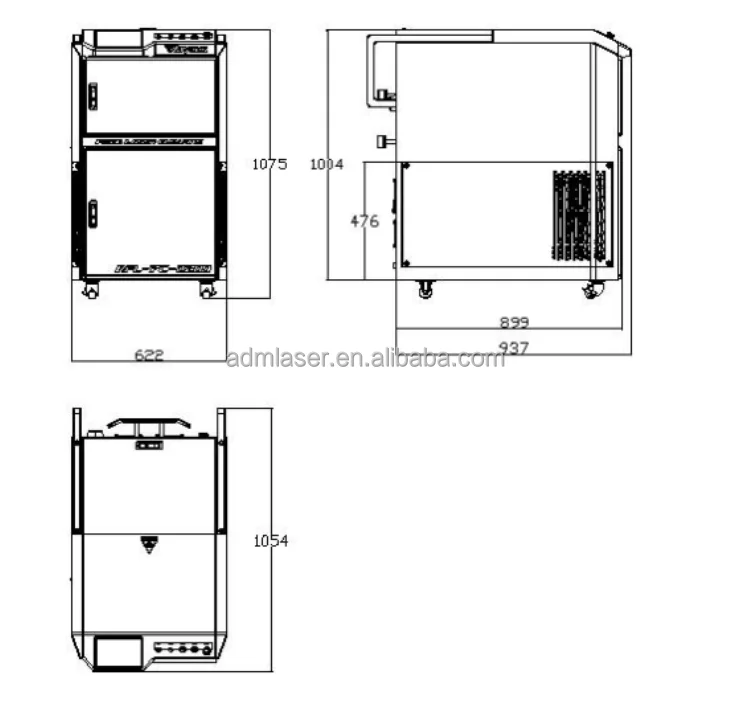

1.2.2. Overall dimensions
1.2.3 Product features:
◎Non-contact cleaning, without damaging the part matrix.
◎Precise cleaning can realize selective cleaning with precise position and precise size.
◎No chemical cleaning fluid, no consumables, safety and environmental protection.
◎Easy to operate, just power on, and it can be hand-held or matched with a manipulator to realize automatic cleaning.
◎High cleaning efficiency, saving time.
◎The laser cleaning system is stable, almost no maintenance
◎Precise cleaning can realize selective cleaning with precise position and precise size.
◎No chemical cleaning fluid, no consumables, safety and environmental protection.
◎Easy to operate, just power on, and it can be hand-held or matched with a manipulator to realize automatic cleaning.
◎High cleaning efficiency, saving time.
◎The laser cleaning system is stable, almost no maintenance
CLICK HERE FOR MORE PRODUCTS
1.3 Operating environment and related parameters
Operating environment | ||
Content | Parameter | |
Supply voltage | Single-phase 220V±10%, 50/60Hz AC | |
Whole machine power consumption | 2500W (including chiller) | |
Place the environment | Flat, no vibration, no impact | |
Working temperature | 0℃～40℃ | |
Working environment humidity | ≤80% | |
Optical parameters | ||
Content | Parameter | |
Average laser power | ≥200 W | |
Power adjustment range (%) | 10-100 (gradient adjustable) | |
Repetition frequency (KHz) | 20-50 (gradually adjustable) | |
Cleaning efficiency (m2/h) | 5 | |
Focal length (mm) | 210/160 replaceable | |
Cooling method | Water cooling | |
Mechanical parameters | ||
Content | Parameter | |
Size | 1100mm×700mm×1150mm | |
Weight | 270Kg | |
Optical fiber length | 5 meters (10 meters can be customized) | |
Washing head weight | 2.5Kg | |
Scan width | 10-80mm | |
Move method | Hand held | |

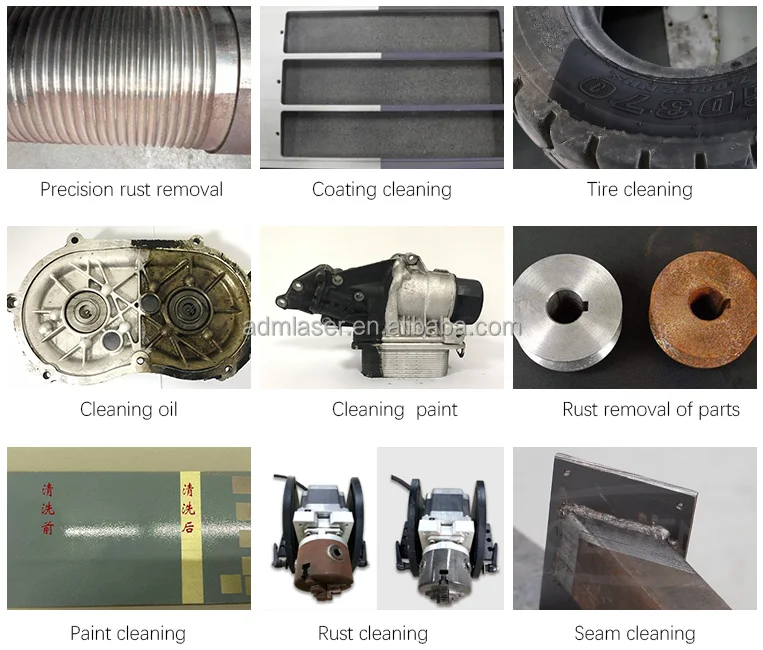

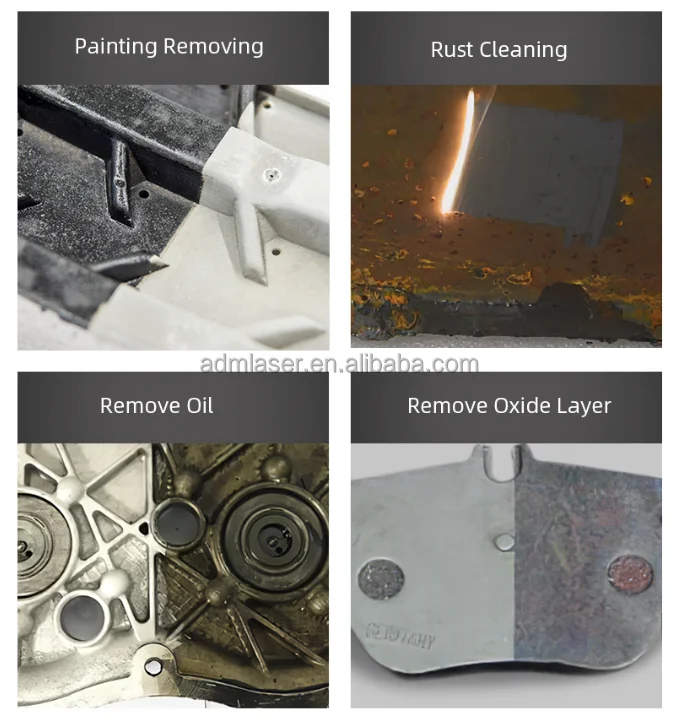

1.4 Main purpose and scope of application

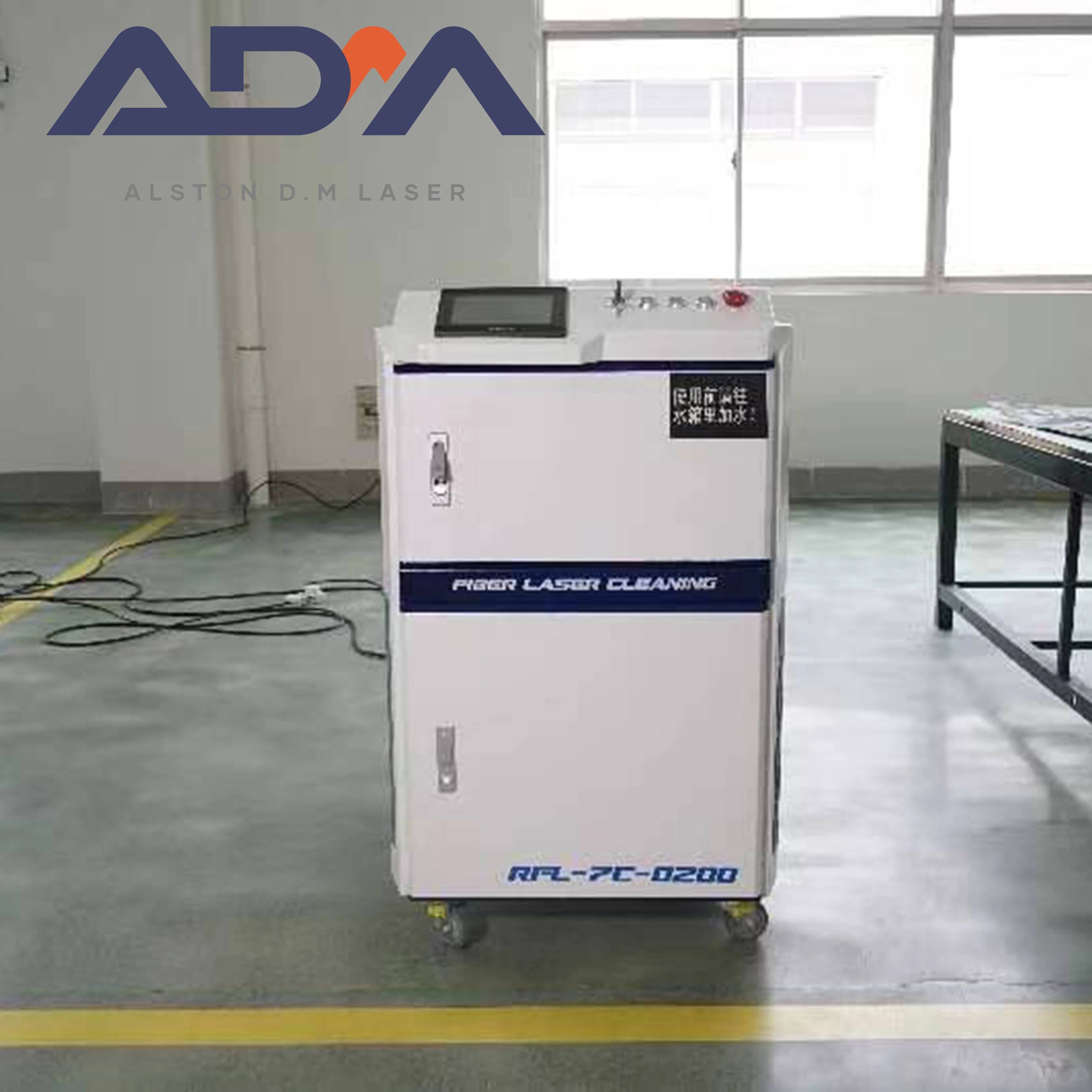

The RFL-7C-0200 hand-held laser cleaner produced by our company adopts high-power fiber laser. The photoelectric system is integrated with the hand-held design. The digital control panel outputs the laser. It has the characteristics of high precision,high efficiency and high cost performance. It can remove resin, paint, oil, stains, dirt, rust, coating, plating and oxide layer on the surface of objects, and has a wide range of industry applications, including ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection. Note: The range of material cleaning varies according to the power of the selected laser.
Features
Matters needing attention in the use of washing machine
1. When the laser cleaning machine is energized, it is forbidden to point the laser output head toward someone, and it is
forbidden to irradiate the laser output head on the surface of highly reflective materials (such as copper, aluminum, mirror
stainless steel and other highly reflective materials).
2. Wear labor protection equipment according to the regulations, and wear protective glasses that meet the regulations near the laser beam.
3. If the laser is not shut down normally, the next time it is turned on, it will be in an alarm state, which will affect the
life of the laser. Check whether the button switches of each function of the laser are reset before turning on.
4. Check whether the equipment circuit is properly connected before starting up. If not, it is forbidden to start up and use it.
5. It is forbidden to use the light outlet at a right angle of 90 degrees to the cleaned surface during use, so as not to affect
the life of the equipment using RFL-7C-0200 User Manual.
6. Please add deionized water or purified water to the water tank for the first use, and replace the water in the water tank
within 3-6 months.
7. It is forbidden to bend the corrugated tube. The bending radius of the corrugated tube is ≥250mm to prevent damage to the optical fiber in the corrugated tube.
forbidden to irradiate the laser output head on the surface of highly reflective materials (such as copper, aluminum, mirror
stainless steel and other highly reflective materials).
2. Wear labor protection equipment according to the regulations, and wear protective glasses that meet the regulations near the laser beam.
3. If the laser is not shut down normally, the next time it is turned on, it will be in an alarm state, which will affect the
life of the laser. Check whether the button switches of each function of the laser are reset before turning on.
4. Check whether the equipment circuit is properly connected before starting up. If not, it is forbidden to start up and use it.
5. It is forbidden to use the light outlet at a right angle of 90 degrees to the cleaned surface during use, so as not to affect
the life of the equipment using RFL-7C-0200 User Manual.
6. Please add deionized water or purified water to the water tank for the first use, and replace the water in the water tank
within 3-6 months.
7. It is forbidden to bend the corrugated tube. The bending radius of the corrugated tube is ≥250mm to prevent damage to the optical fiber in the corrugated tube.
