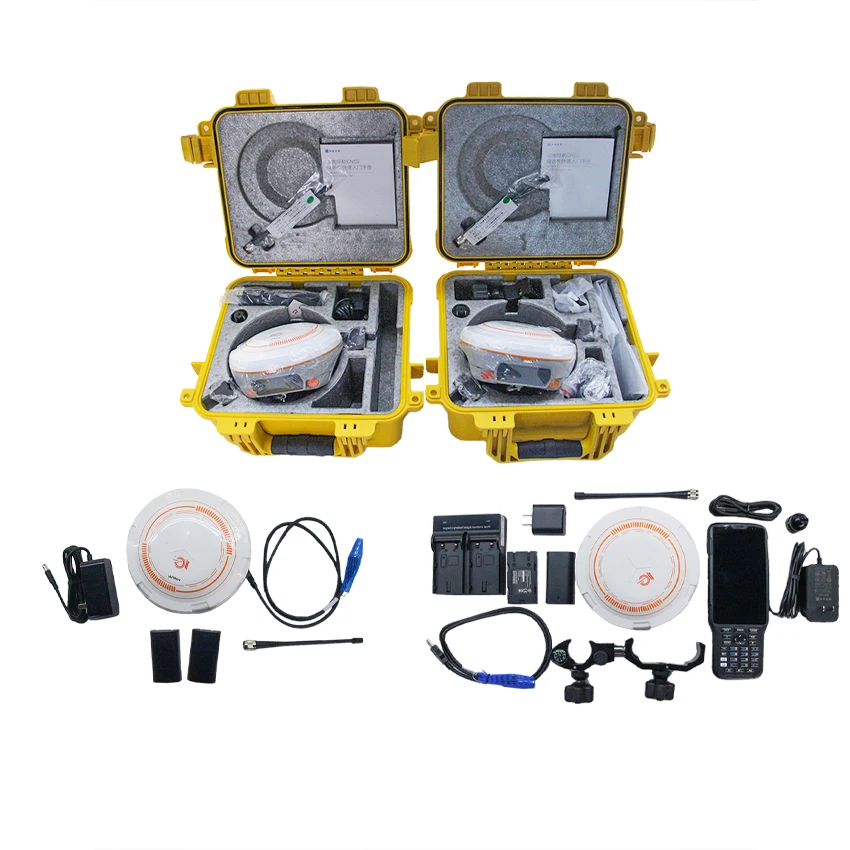

Sino N3 Gnss Surveying High Performance Gnss Survey Instruments Gps Gnss Gps Rtk
- Category: >>>
- Supplier: Shangrao Haodi Imp & Exp Trading Co. Ltd.
Share on (1601013473774):
Product Overview
Description
Company Information

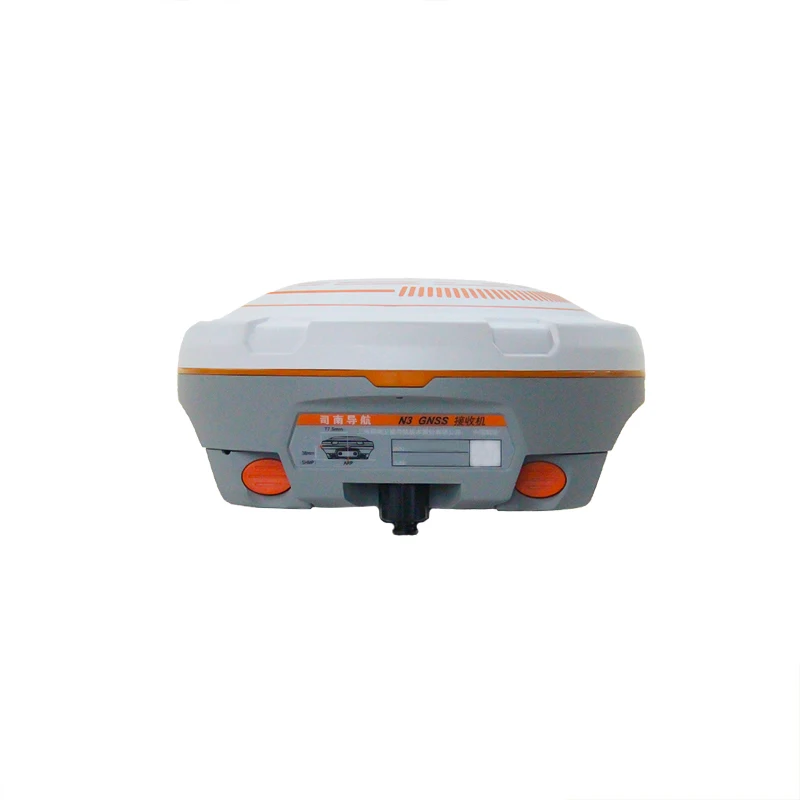

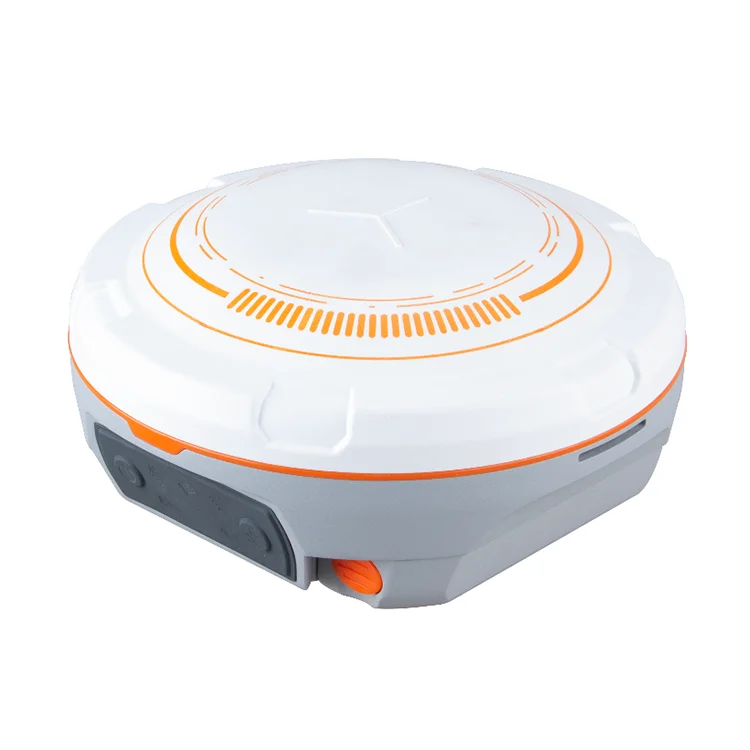

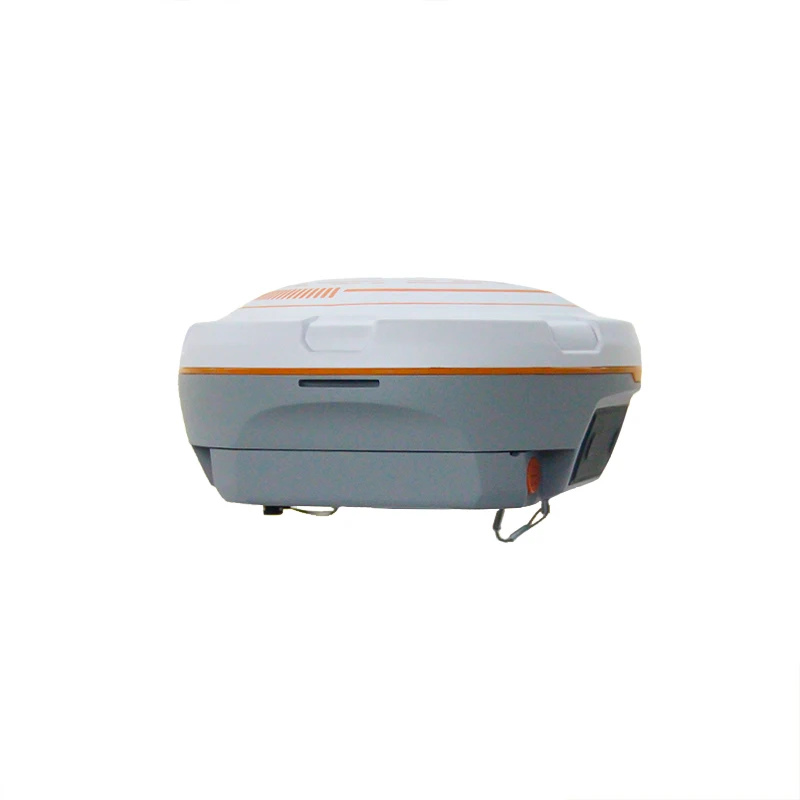

| N3 GNSS Receiver |
| Signal Tracking |
| Channels: 1198 |
| GPS: L1 C/A, L2C, L2P, L5 |
| BeiDou: B1, B2, B3 |
| BeiDou Global Signal: B1C, B2a |
| GLONASS: L1 C/A, L1P, L2 C/A, L2P |
| Galileo: E1, E5a, E5b, AltBOC |
| QZSS: L1C, L2, L5, L1C/A |
| IRNSS1 |
| SBAS: WAAS, EGNOS, MSAS, GAGAN |
| L-Band2 |
| Performance Specifications |
| Cold start: <50 s |
| Warm start: <30 s |
| Hot start: <15 s |
| Initialization time: <10 s |
| Signal re-acquisition: <1.5 s |
| Initialization reliability: >99.9% |
| Communications |
| 1 Serial port (7 pin Lemo) |
| - Baud rates up to 921,600 bps |

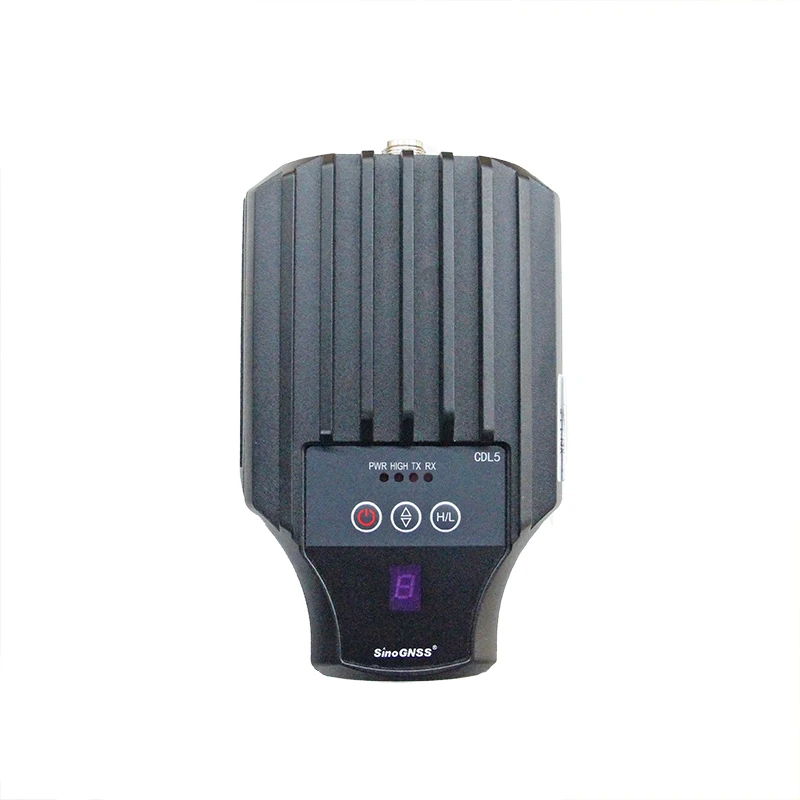

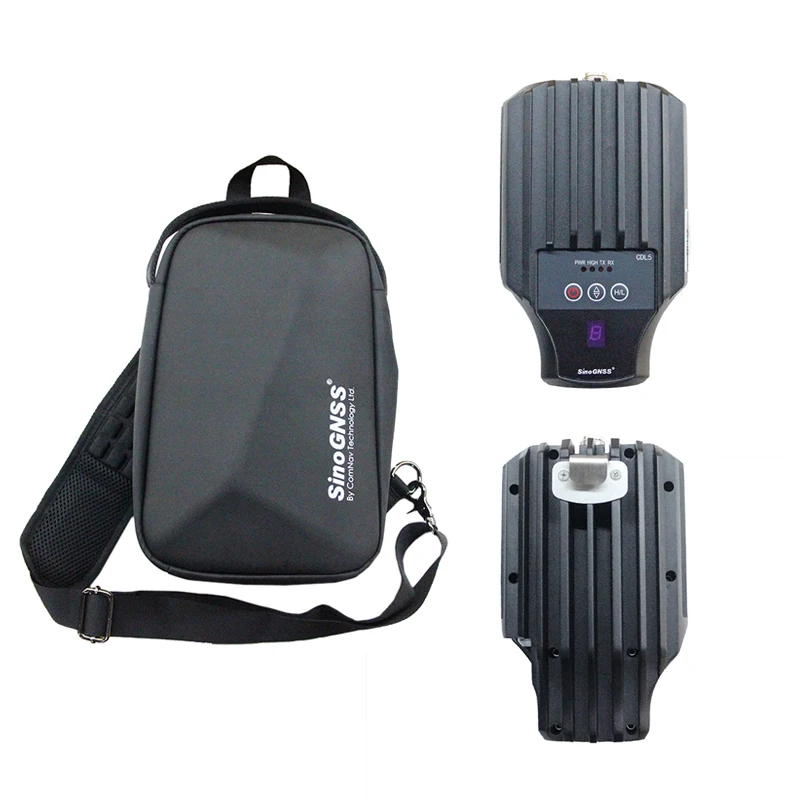

| Enhanced UHF modem3: Tx/Rx with full frequency range from 410-470 MHz4 |
| - Transmit power: 0.5-2 W adjustable |
| - Range: 15 km5 |
| WIFI/4G modem |
| - 4G Bands: 800/900/1800/2100/2600 MHz |
| - 3G Bands: 900/2100 MHz |
| - 2G Bands: 900/1800 MHz |
| - Support GSM, Point to Point/Points and NTRIP |
| Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |

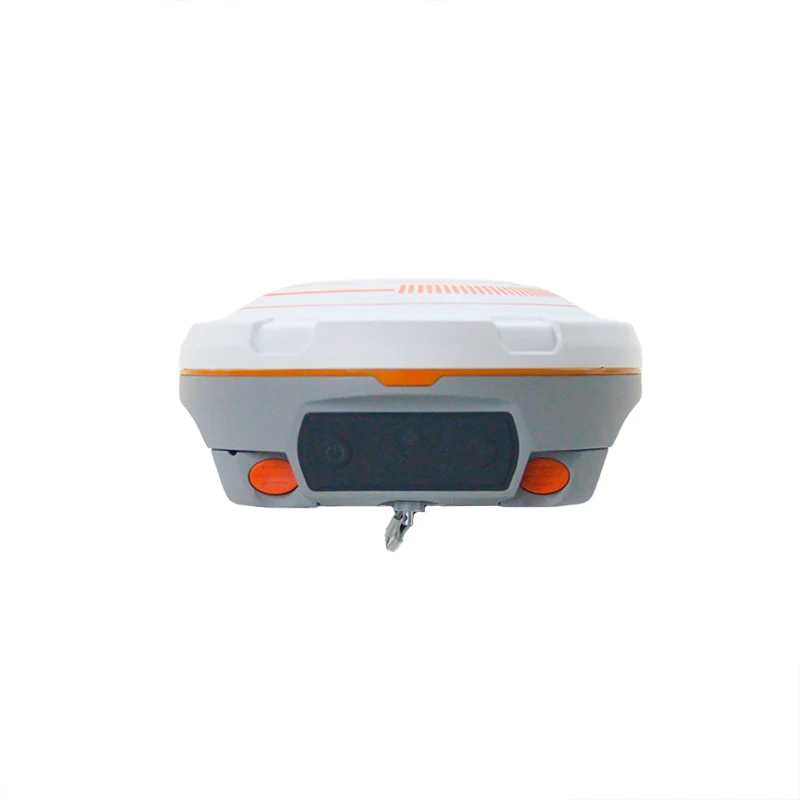

| 5 LEDs (indicating Satellites Tracking, RTK Corrections Data, GPRS |
| Status and Power) |
| 2 Function buttons for Power and Static Data Record |
| : V 4.0 protocol, compatible with Windows OS and Android OS |
| Calibration-free IMU integrated for Tilt Survey |
| Up to 60° tilt with 2.5 cm accuracy |
| Data Format |
| Correction data I/O: |
| - RTCM 2.X, 3.X, CMR (GPS only), CMR+ (GPS only) |
| Position data output: |
| - ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, |
| GST; PTNL, PJK; PTNL, AVR; PTNL, GGK |
| - ComNav Binary update to 20 Hz |
| Physical |
| Size(W * H): 15.5 cm *7.3 cm |
| Weight: 1.2 kg with two batteries |
| Environmental |
| Operating temperature: -40 °C to + 65 °C (-40 °F to 149 °F) |
| Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F) |
| Humidity: 100% non-condensing |
| Waterproof and dustproof: IP67, protected from temporary immersion |
| to depth of 1 m |
| Shock: Designed to survive a 2 m drop onto concrete |
| Electrical and Memory |
| Input voltage: 7-28 VDC |
| Power consumption: 1.7 W6 |
| Li-ion battery capacity: 2 * 3400 mAh, 7.4V, up to 25 hours typically |
| Memory: 8 GB7 |
| Software |

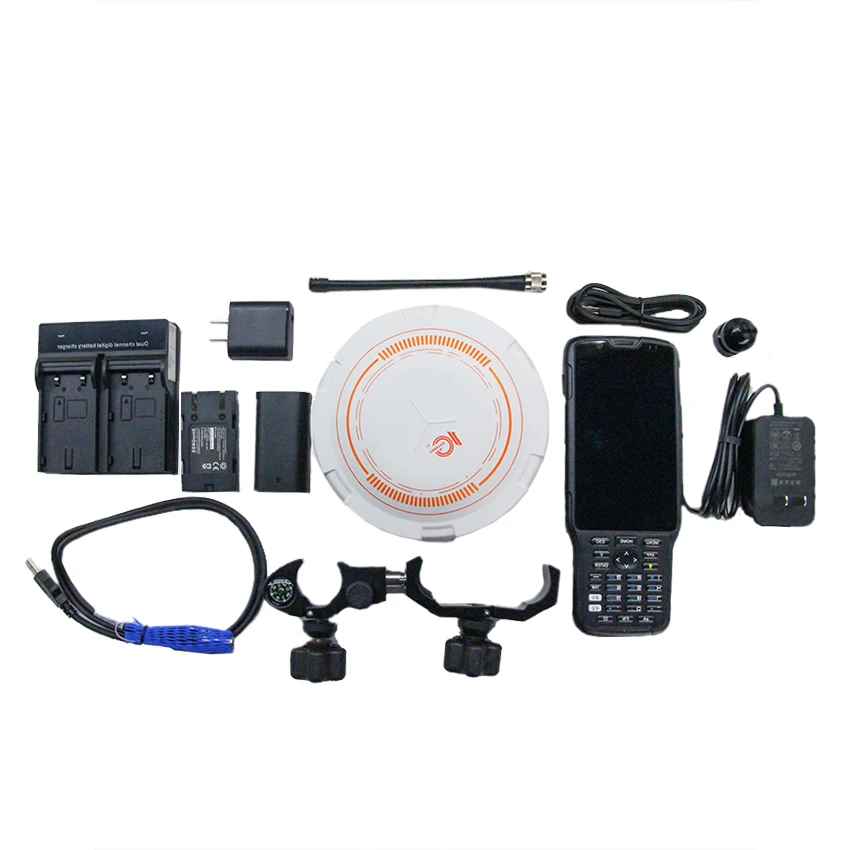

| Survey Master Android-based data collection software |
| Carlson SurvCE field data collection software (optional) |
| MicroSurvey FieldGenius field data collection software (optional) |
| 1. IRNSS is reserved for future upgrade. |
| 2. PPP service is optional. |
| 3. UHF modem is default configuration and it can be removed according to |
| your specific needs. |
| 4. Integrated UHF ranges from 410 to 470 MHz with 12.5 KHz channel spacing. |
| 5. Working distance of internal UHF varies in different environments, the |
| maximum distance is 15 Km in ideal situation. |
| 6. Power consumption will increase if transmitting corrections via internal UHF. |
| 7. 8GB is the default internal memory and optional 16GB, 32GB is available to |
| order. Please clarify when placing the order. |
| Specifications subject to change without notice. |
