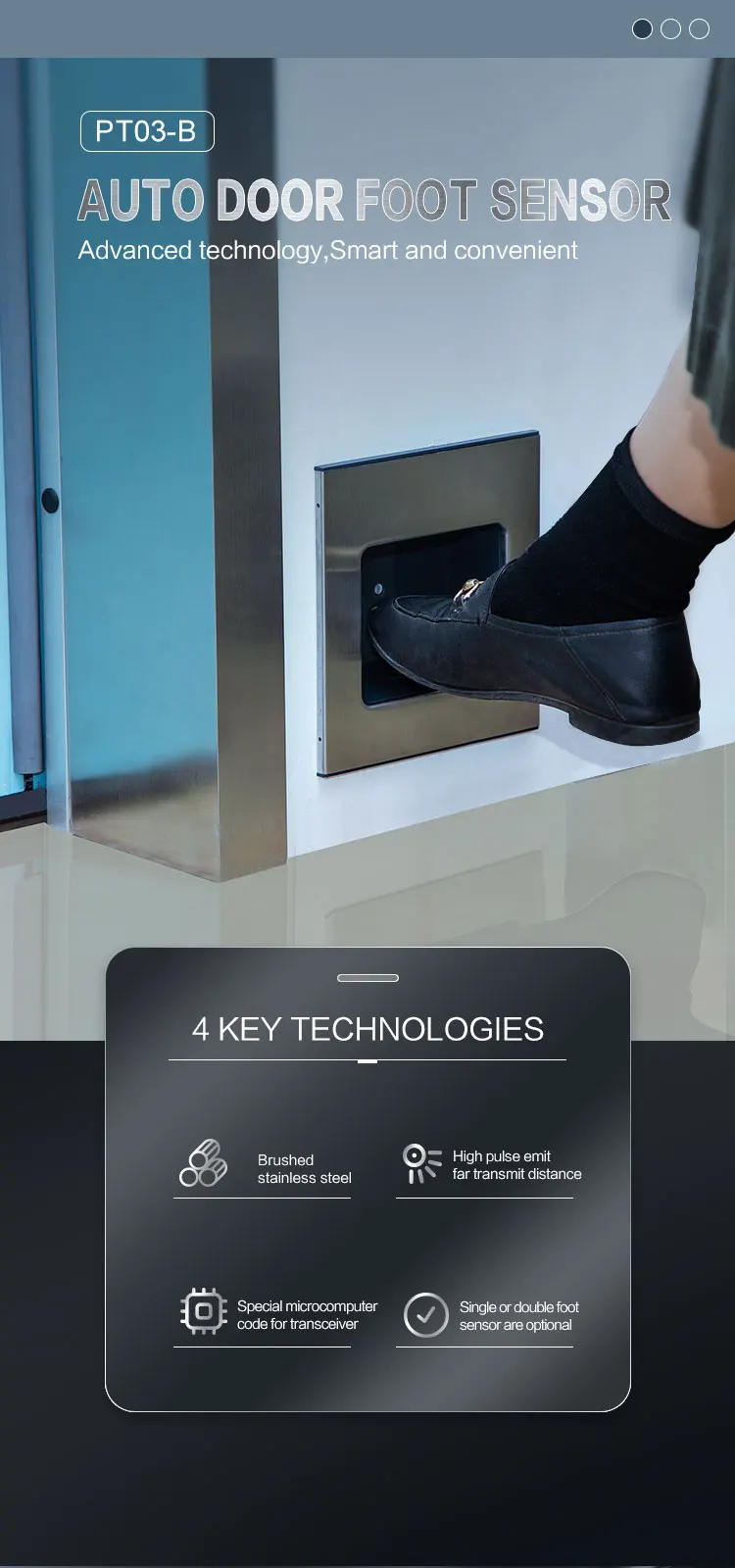

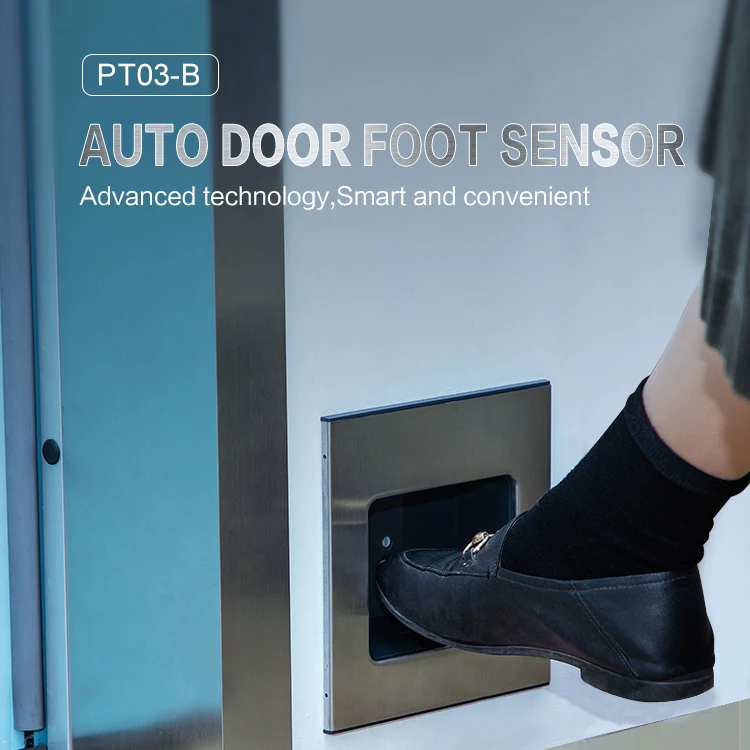

PT03 B active infrared foot sensing switch with high refresh rate used in hospital laboratories

Share on (1601013485765):


Price:$17.00 - $27.20

Quantity:


Product Overview

Description





Product Description


Packing details: ,carton ,bubble
Delivery details:2 to 10days after payment received

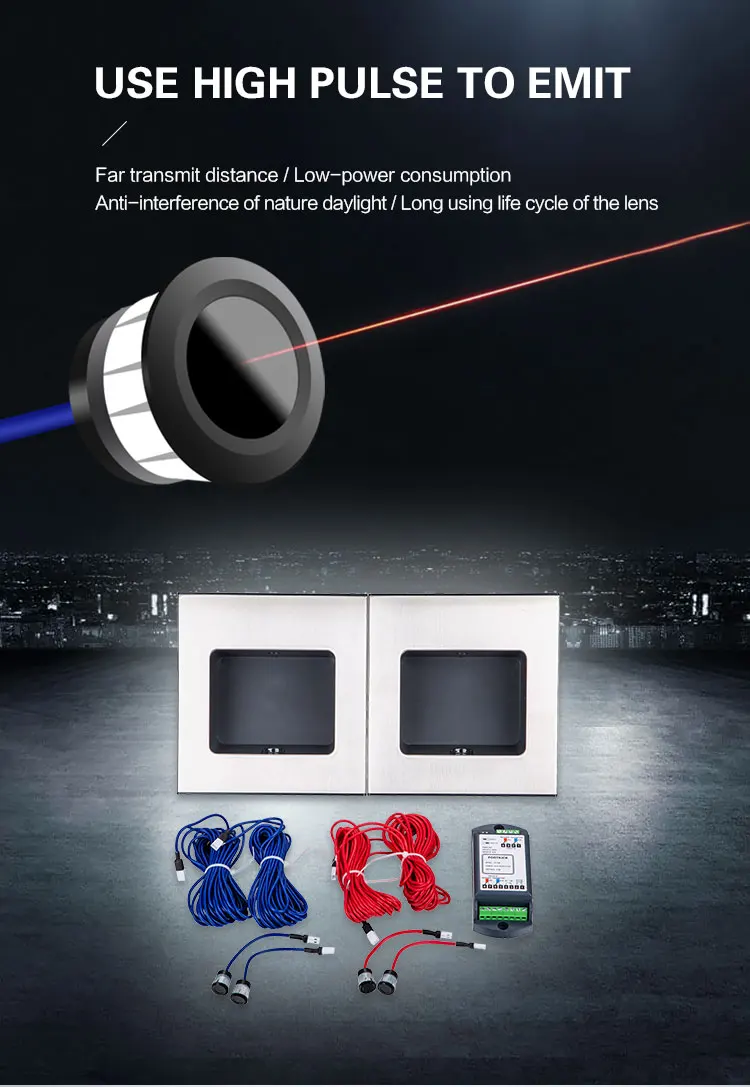

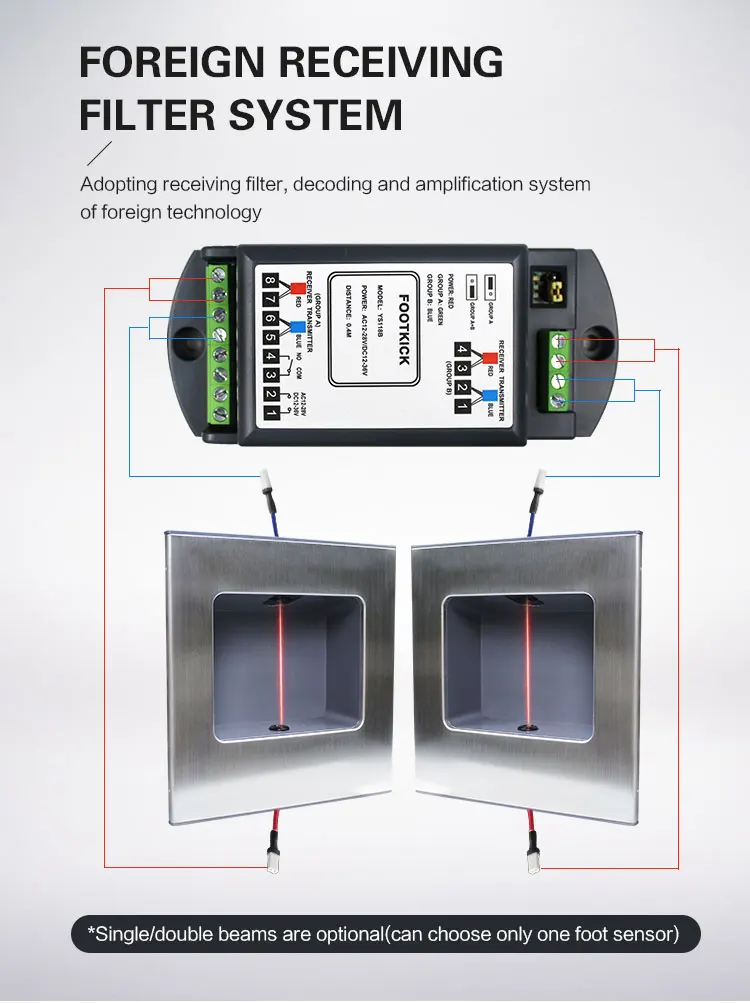

Application technology: Active infrared

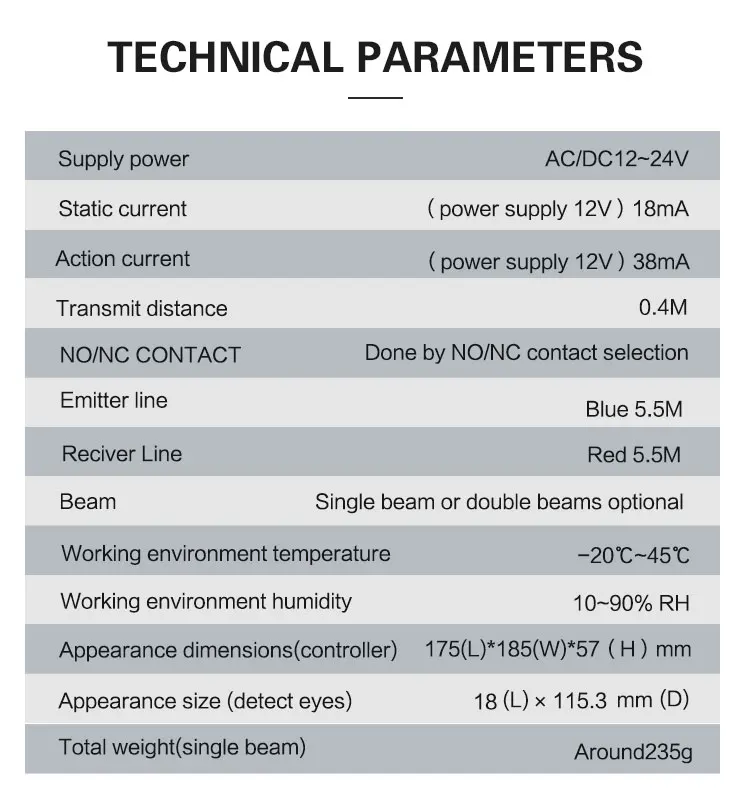

Specification




















Supply power
AC/DC12~24V
Static current
(power supply 12V)18mA
Action current
(power supply 12V)38mA
Transmit distance
0.4m
NO/NC CONTACT
Done by NO/NC contact selection
Emitter line
Blue 5.5m
Reciver Line
Red 5.5m

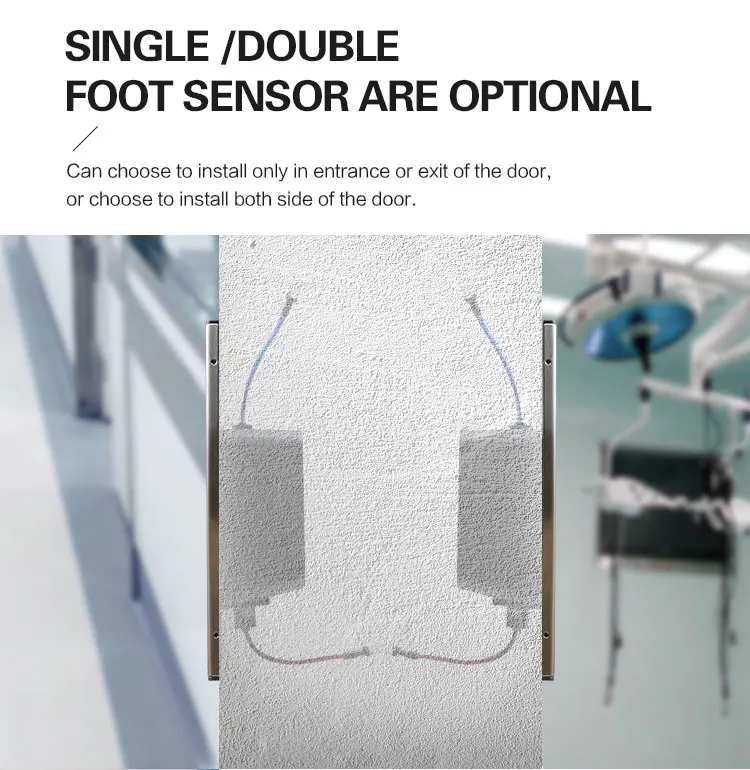

Beam
Single beam or double beams optional
Working environment temperature
-20℃~45℃
Working environment humidity
10~90% RH

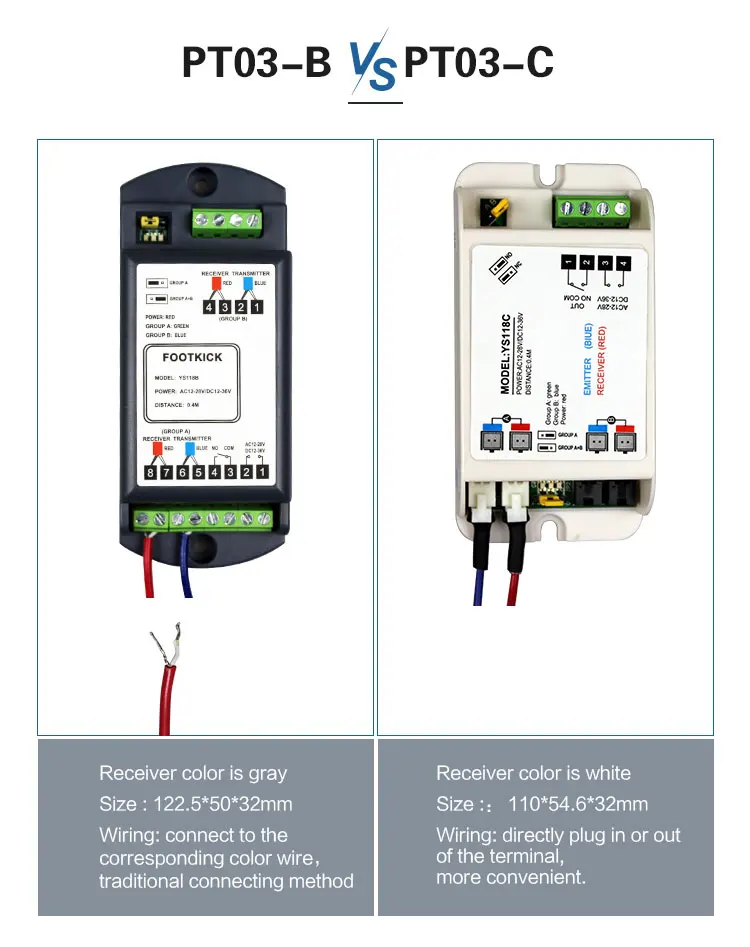

Appearance dimensions(controller)
175(L)*185(W)*57(H)mm
Appearance size (detect eyes)
18(L)*115.3(D)mm
Total weight(single beam)
Around235g
