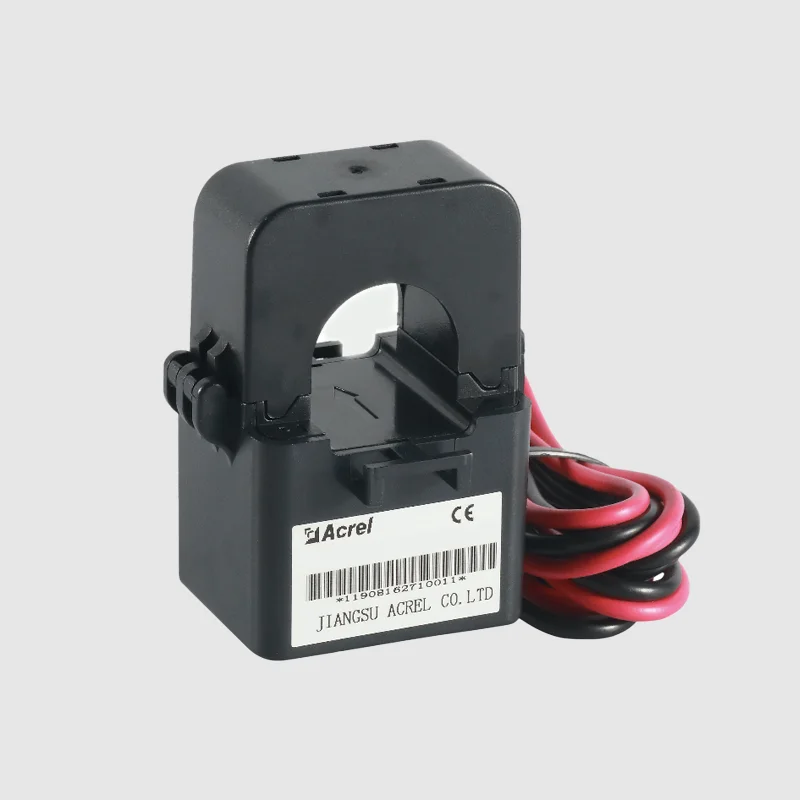

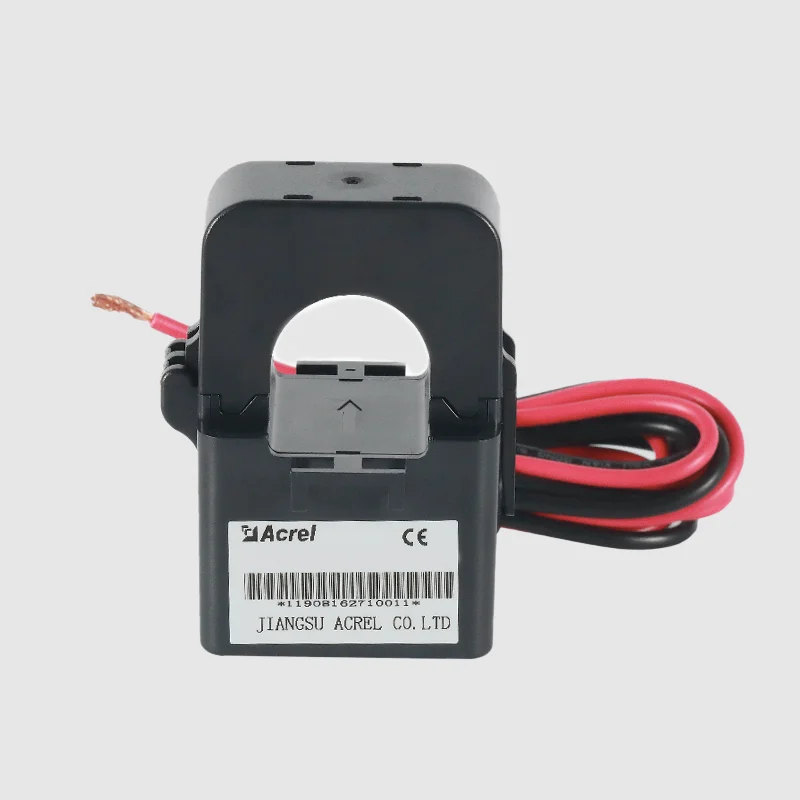

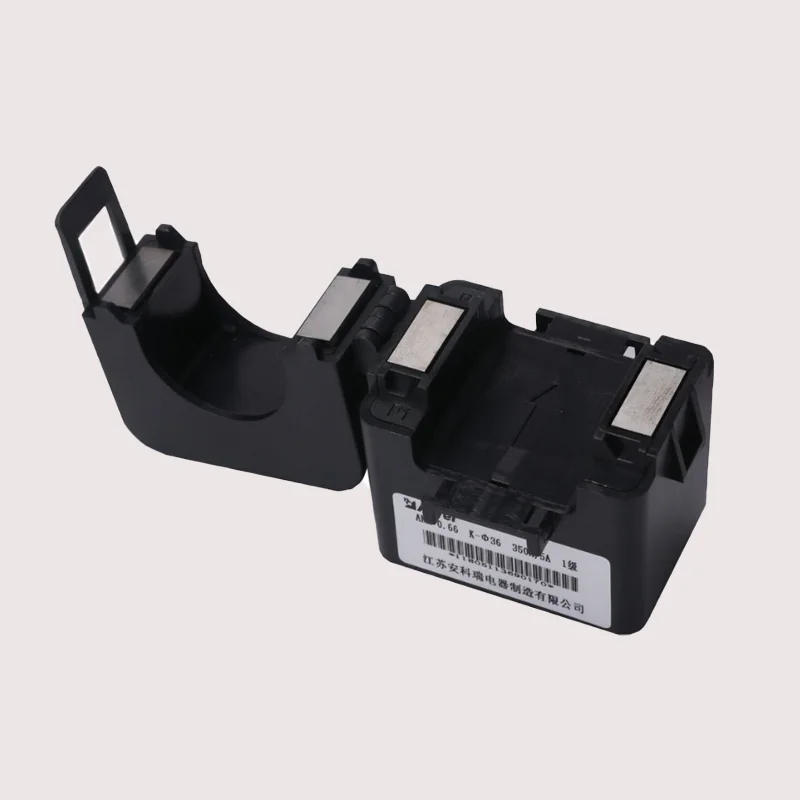

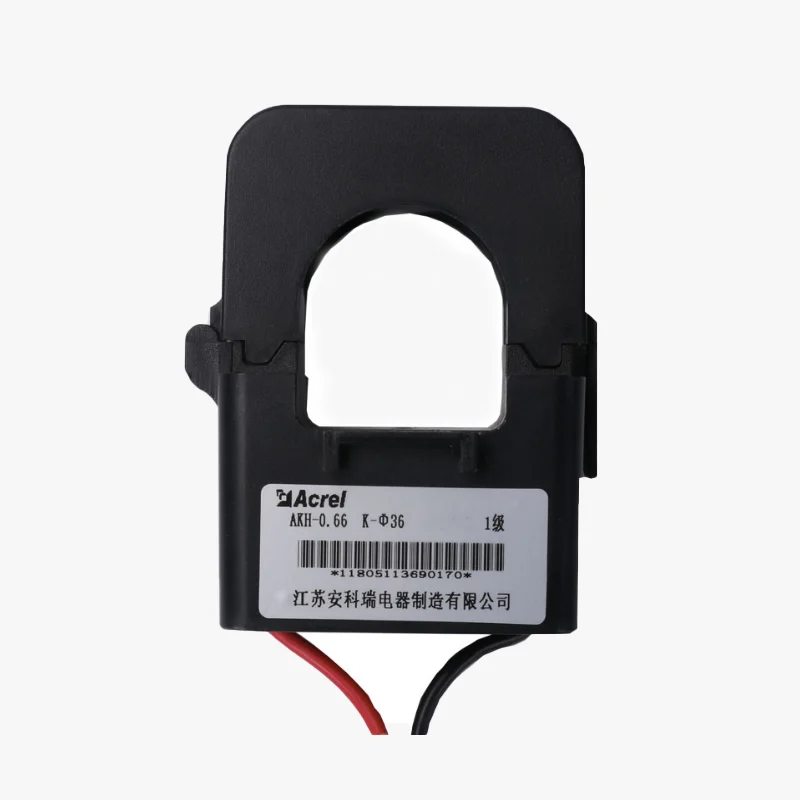

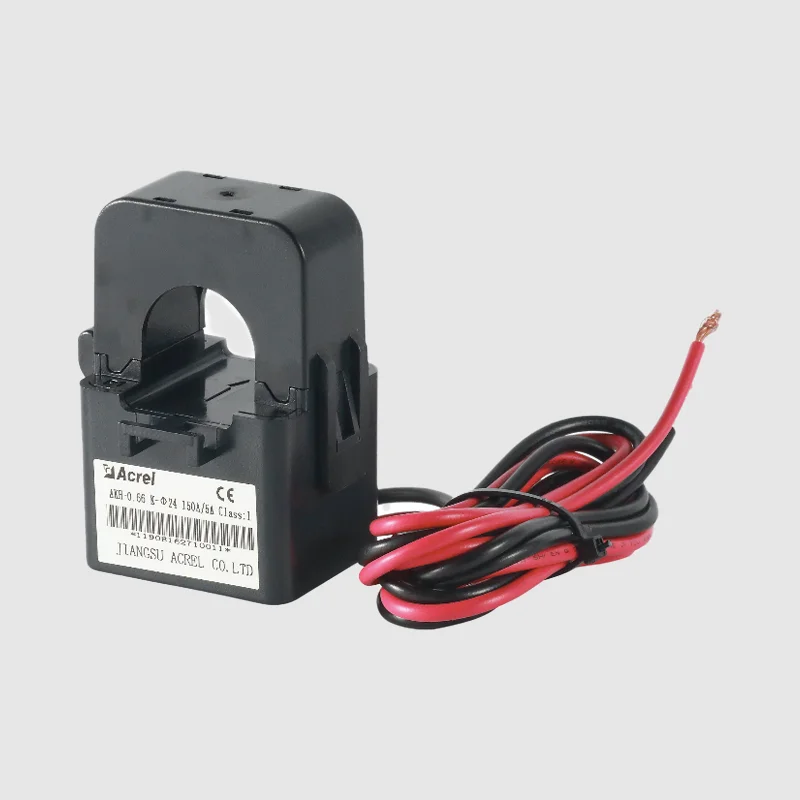

Acrel AKH 0.66 K 36 100 600 A/333mV Split Core CT Current Transformer Easy Installation Class 0.5 333mV Output
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601013562055):
Product Overview
Description
Products Overview
Video Introduction
The appearance is nice and the installation and wiring are convenient. AKH-0.66/K-Φ series split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. They save the manpower, material resources and financial resources and improve the efficiency of users.
Specification
● Rated operation voltage: AC 0.66kV
● Rated frequency: 50-60Hz
● Accuracy: class 0.5
● Suitable for electricity renovation project
Technical Parameter
Specification | Rated current ratio (A) | Precision degree | Straight through tums | Max. cable outer diameter (mm) | ||
0.5 | 1 | |||||
K-Φ10 | 5A/1.25mA | 10 | 1 | Φ10 | ||
(10-20)A/5mA | 10 | 1 | ||||
(40-60)A/20mA | 10 | 1 | ||||
K-Φ16 | (20-50)A/10mA | 10 | 1 | Φ16 | ||
(40-100)A/20mA | 10 | 1 | ||||
100A/40mA | 10 | 1 | ||||
K-Φ24 | (60-200)A/20mA | 10 | 1 | Φ24 | ||
(100-250)A/40mA | 10 | 1 | ||||
400A/100mA | 10 | 1 | ||||
K-Φ36 | (200-400)A/20mA | 10 | 1 | Φ36 | ||
(300-600)A/100mA | 10 | 1 | ||||
400A/40mA | 10 | 1 | ||||
600A/75mA | 10 | 1 | ||||
K-Φ50 | (600~800)A/100mA | 10 | 1 | Φ50 | ||
Dimension & Installation

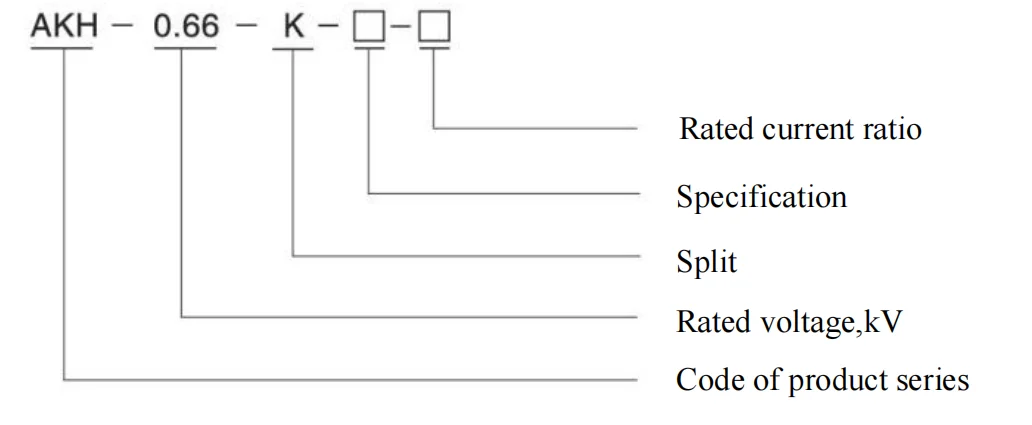

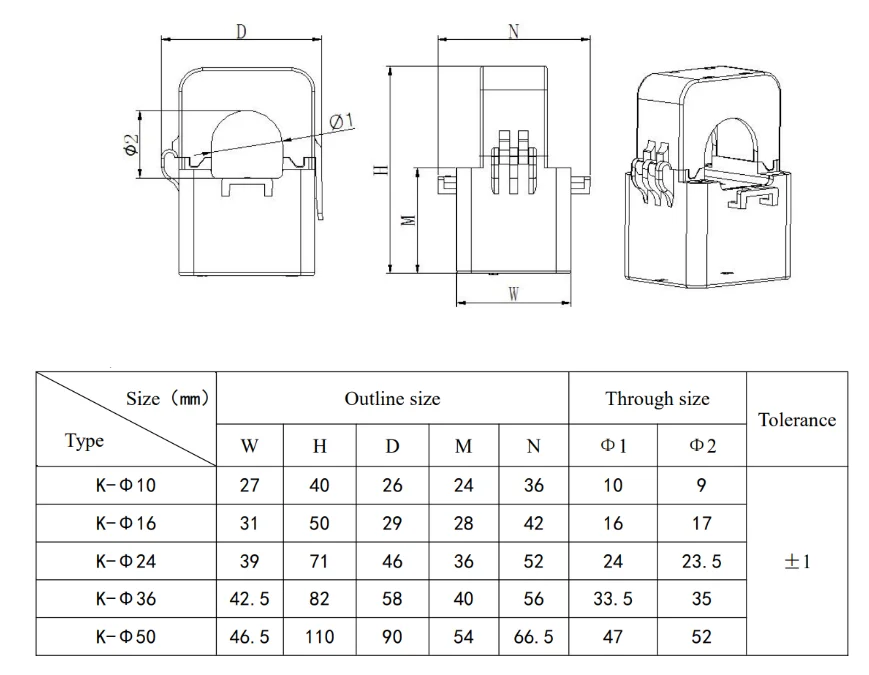

Spec. and Size

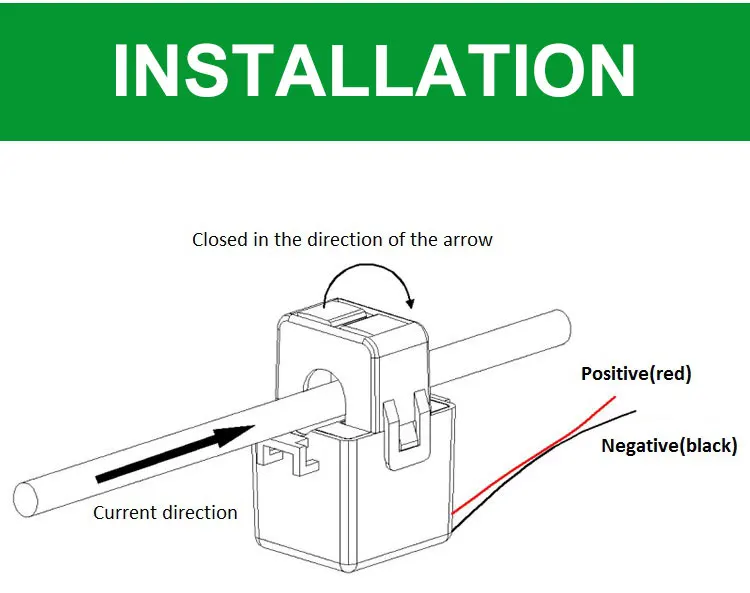

Installation

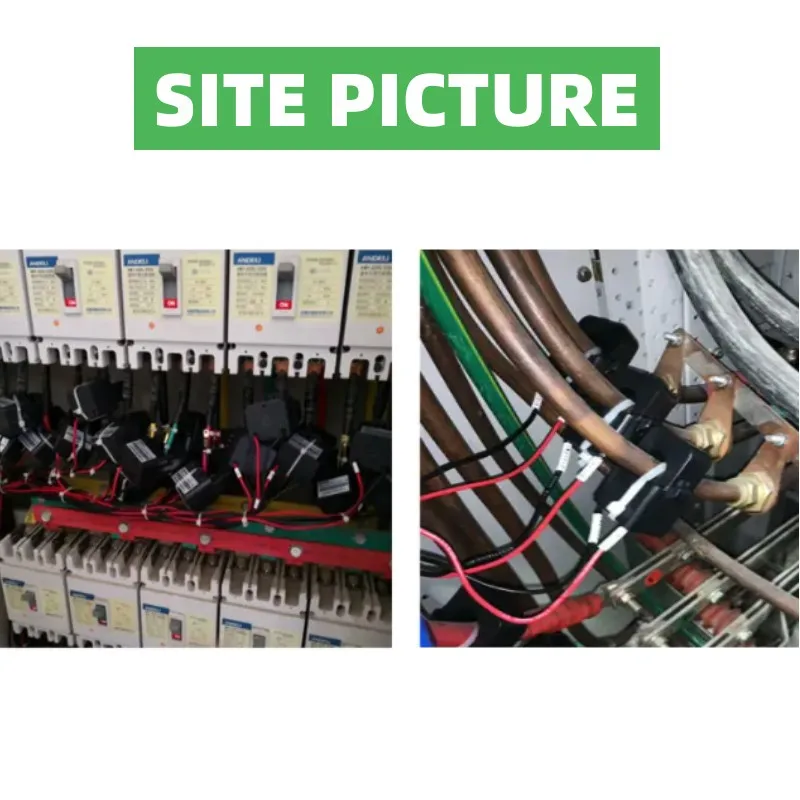

Application Scene

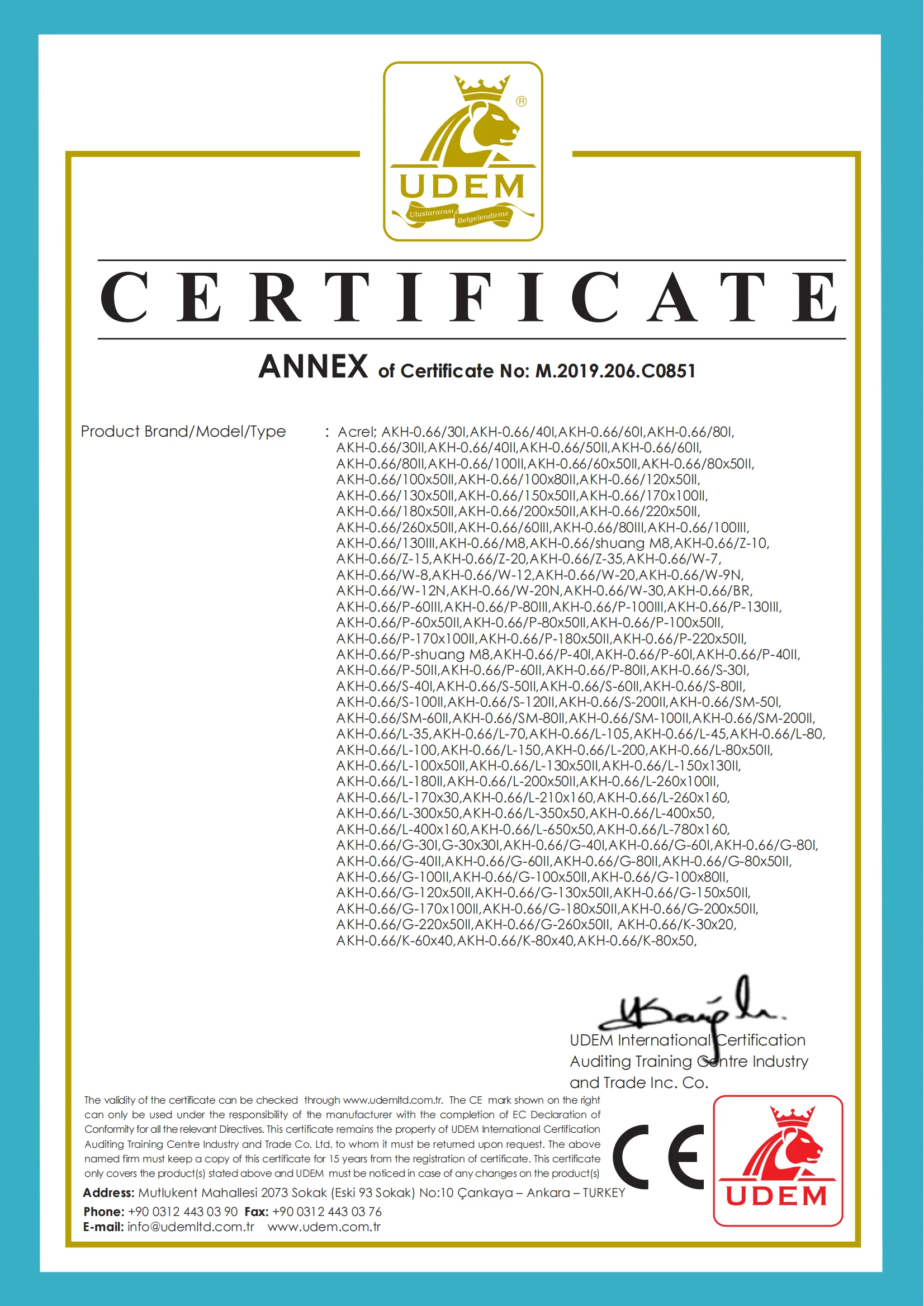

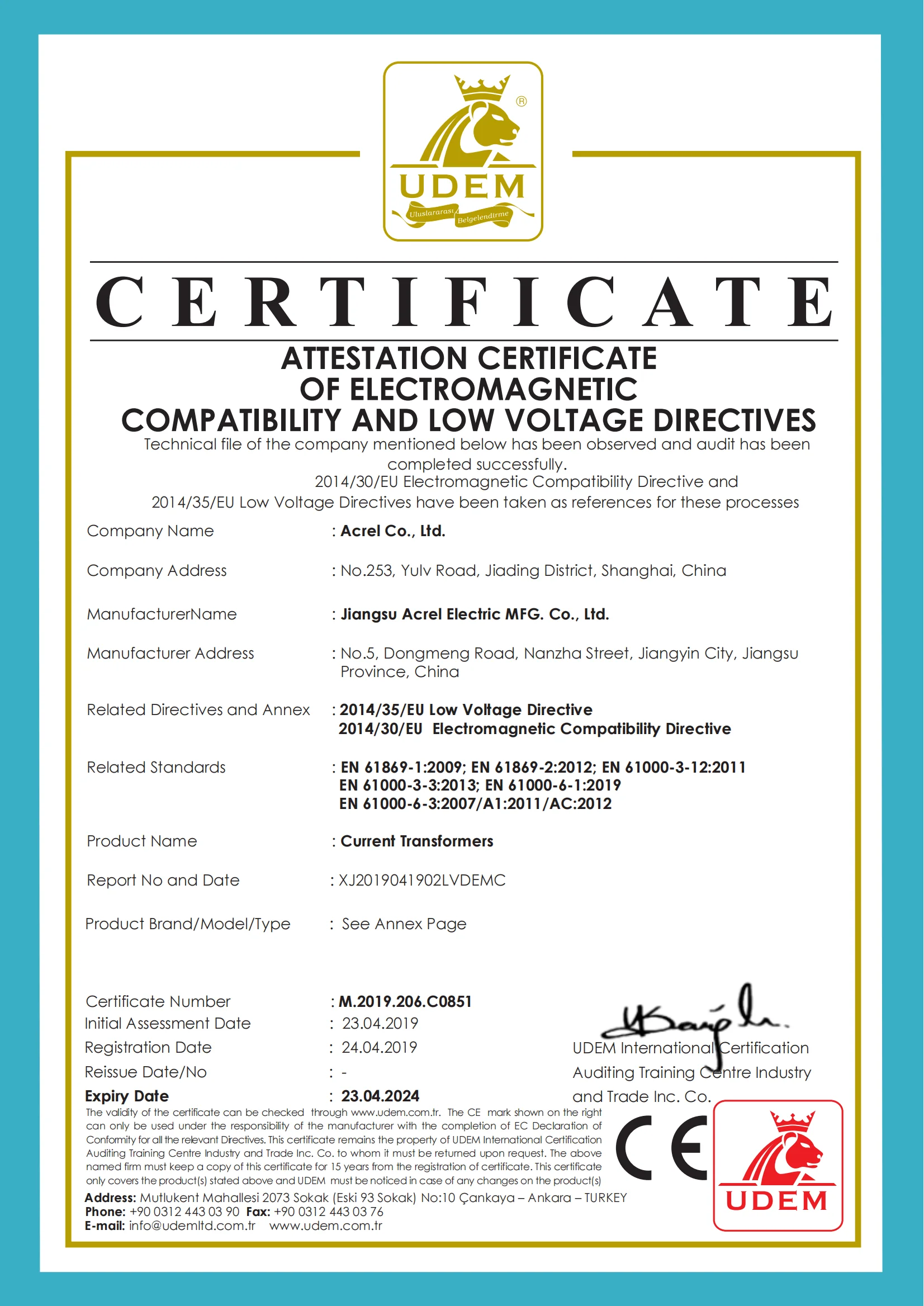

Certificate
