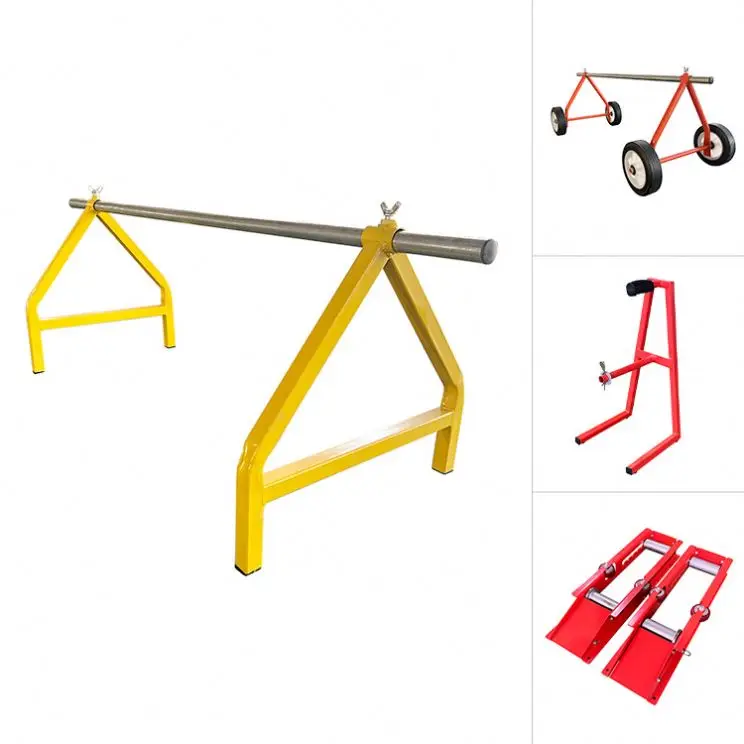

including Reel Jacks and Cable Drum Lifting Jacks Ratcheting Reel Stand for cable laying projects
- Category: >>>
- Supplier: Bazhou Dpair Hardware Equipment Co. Ltd.
Share on (1601013748893):
Product Overview
Description
Products Description

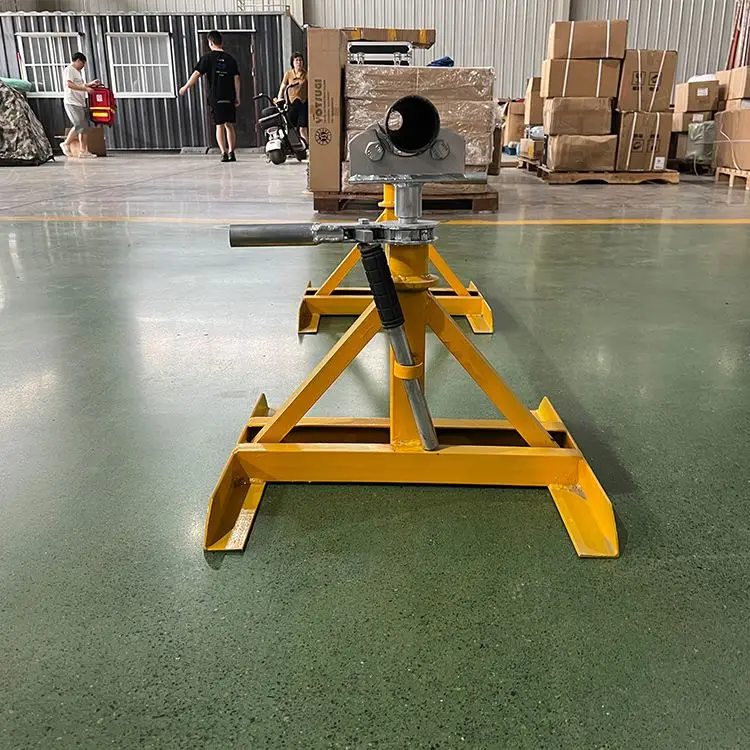

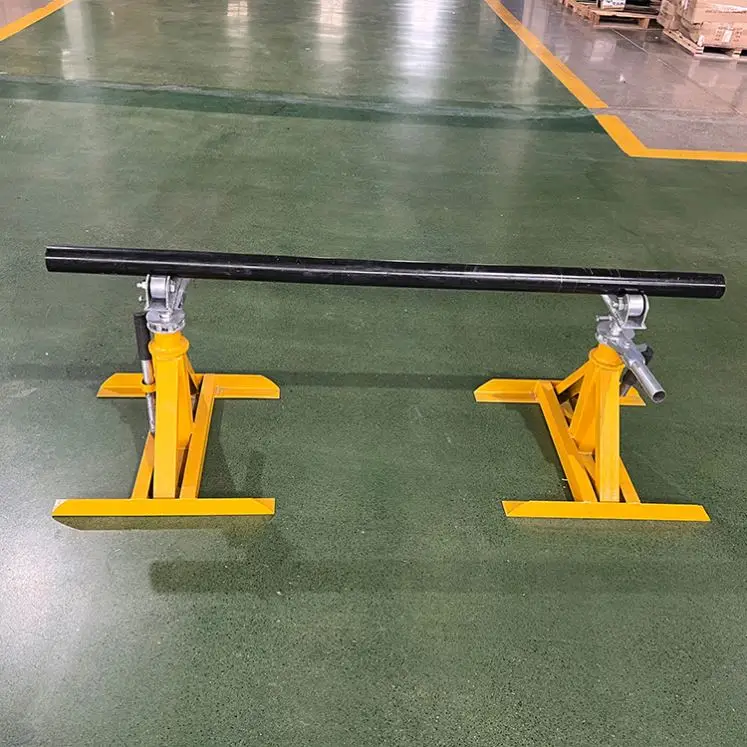

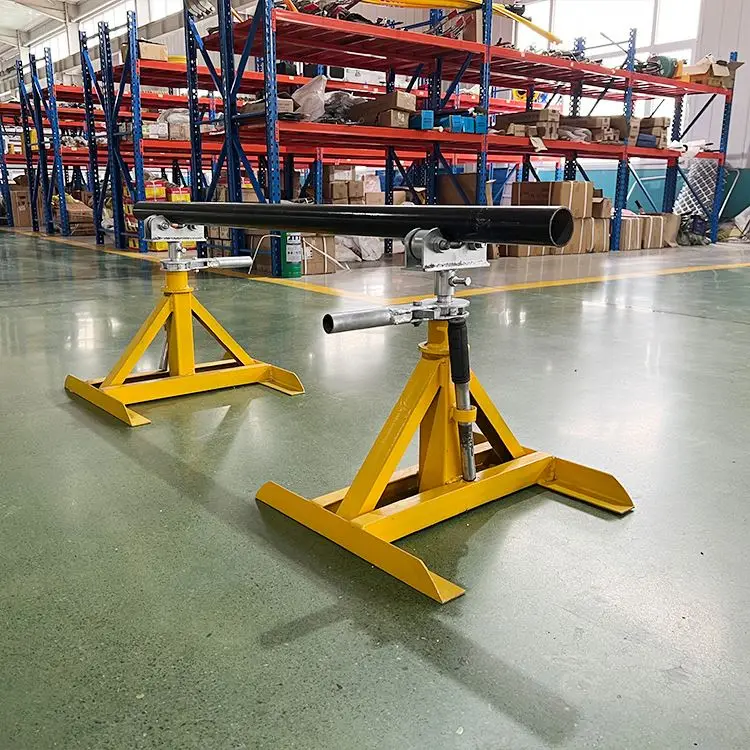

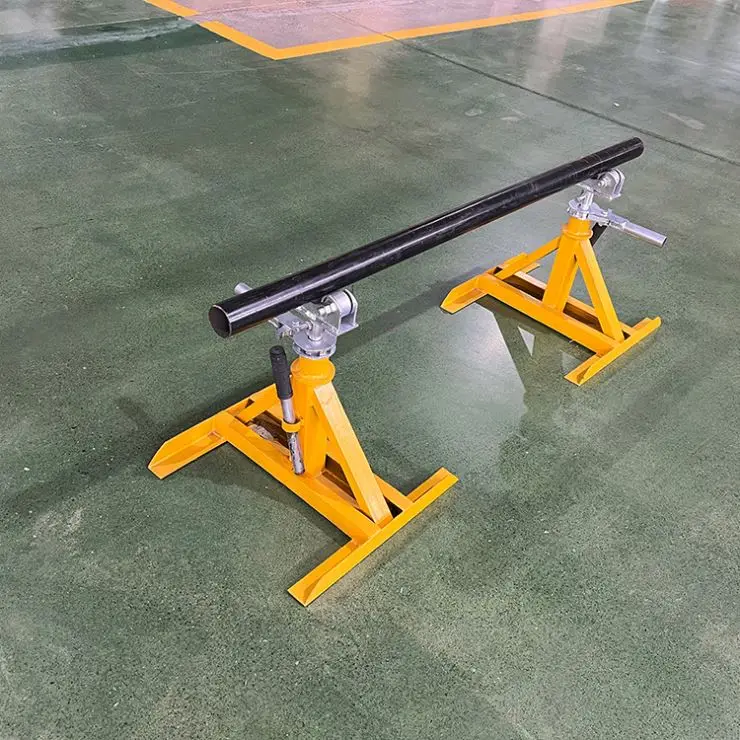

Reel Jack
Industrial Heavy Duty Screw Type Reel Jacks are designed with rugged use in mind. Simply turn the handle and raise the saddle to the desired payoff height.
Standard Features
Screw Type Reel Stand features a bolt together wide-base for stability.
Roller bearings located in spindle groove to provide free spinning during payout.
Dual adjustment pins wired to stands to improve overall safety.
Spindle and two jack stands are needed for complete set-up.
DPLX-1 Screw Type Reel Jacks 26” to 56” Dia. 5,000 Lbs./Pair
DPLX-2 Screw Type Reel Jacks 46” to 96” Dia. 5,000 Lbs./Pair
DPLX-3 Screw Type Reel Jacks 58” to 90” Dia. 7,500 Lbs./Pair
Industrial Heavy Duty Screw Type Reel Jacks are designed with rugged use in mind. Simply turn the handle and raise the saddle to the desired payoff height.
Standard Features
Screw Type Reel Stand features a bolt together wide-base for stability.
Roller bearings located in spindle groove to provide free spinning during payout.
Dual adjustment pins wired to stands to improve overall safety.
Spindle and two jack stands are needed for complete set-up.
DPLX-1 Screw Type Reel Jacks 26” to 56” Dia. 5,000 Lbs./Pair
DPLX-2 Screw Type Reel Jacks 46” to 96” Dia. 5,000 Lbs./Pair
DPLX-3 Screw Type Reel Jacks 58” to 90” Dia. 7,500 Lbs./Pair

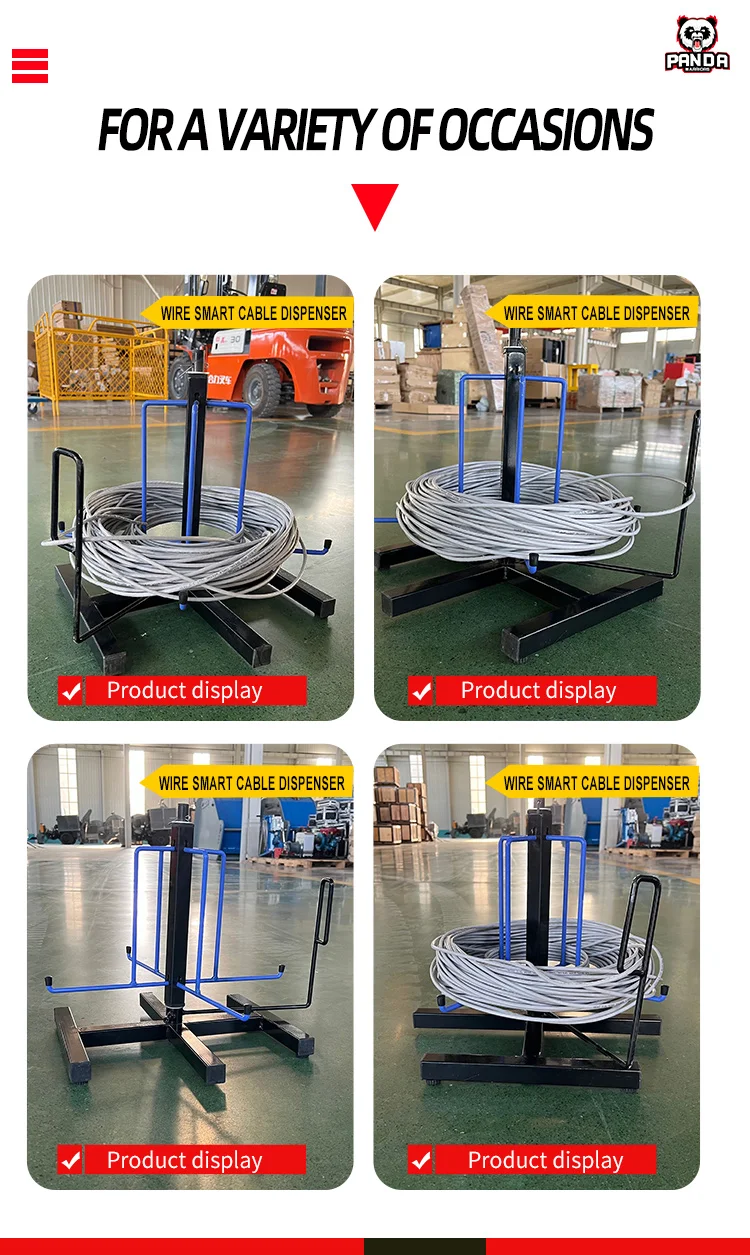

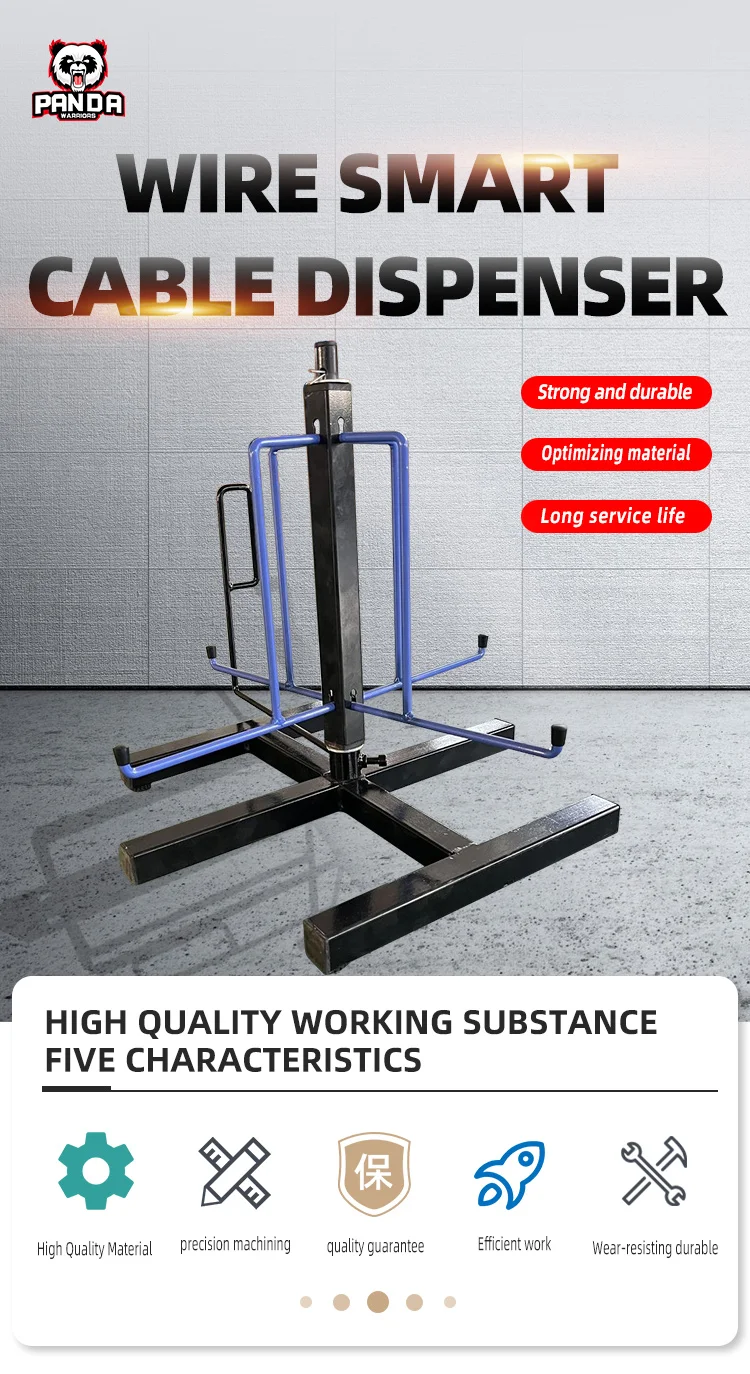

WIRE SMART CABLE DISPENSER
FEATURES:
Cable dispenser comes with both floor and stud mounting brackets, and has the capacity to support 1000' reels. Its swivel eyelet prevents tangles while paying out cable. The wide base keeps the load stable. Includes 2 brackets to mount to floor or stud. Convenient carry handle now included. Maximum weight of 50 lbs. w/arm, 100 lbs.
Capacity:ZNXQ-3130
Minimum inside coil diameter 5 1/2"
Maximum outside coil diameter 17"
Maximum weight 50 lbs
FEATURES:
Cable dispenser comes with both floor and stud mounting brackets, and has the capacity to support 1000' reels. Its swivel eyelet prevents tangles while paying out cable. The wide base keeps the load stable. Includes 2 brackets to mount to floor or stud. Convenient carry handle now included. Maximum weight of 50 lbs. w/arm, 100 lbs.
Capacity:ZNXQ-3130
Minimum inside coil diameter 5 1/2"
Maximum outside coil diameter 17"
Maximum weight 50 lbs

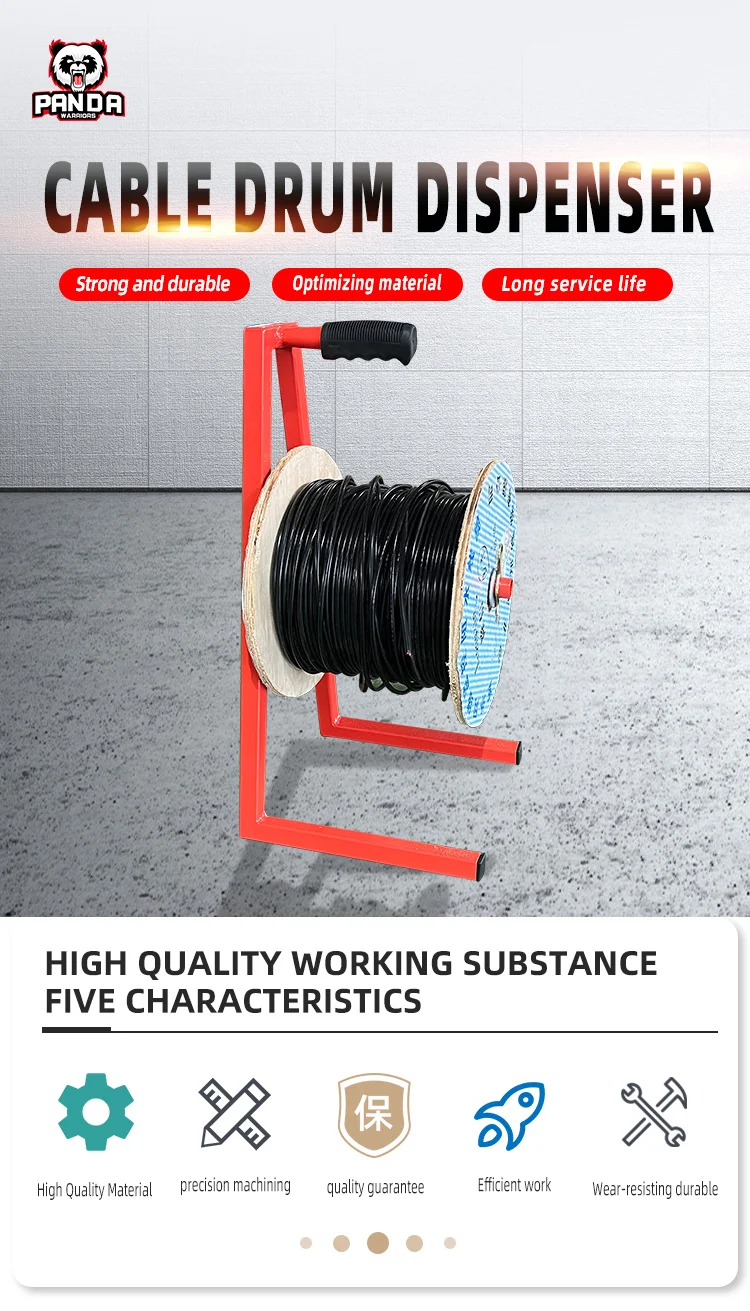

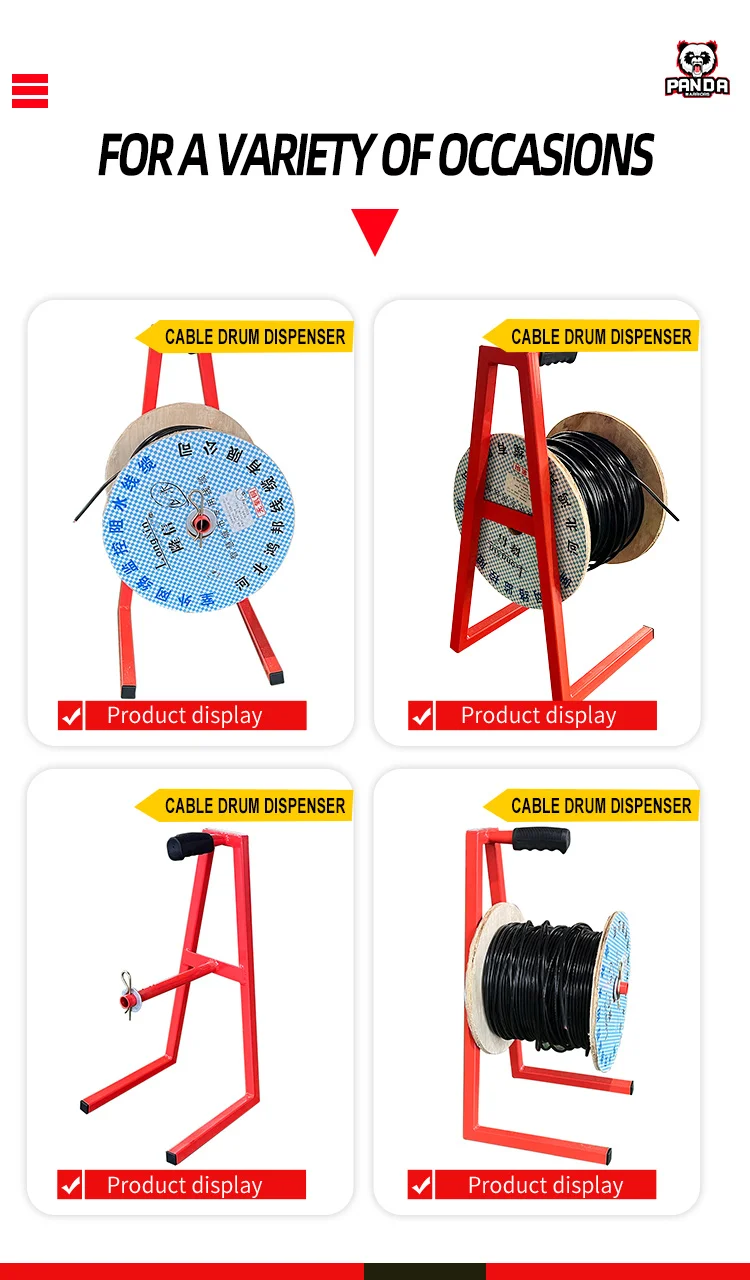

Cable Drum Dispenser
Holds a drum (or multiple drums) of cable in place (via the split pin lock) whilst it is being dispensed making it quick and easy to install cables and cut them to length. Suitable for most standard drums.
CDD-1
Height - 800mm
Width - 500mm
Depth - 370mm
Reel Bar Length - 370mm
Reel Bar Diameter - 30mm
Weight - 3Kg
CDD-2
Height: 63cm
Width: 30cm
Cable Roller Length: 230mm
Reel Bar Diameter -25mm
Weight: 2.4kg
If you need other sizes, we can make them according to your requirement
Holds a drum (or multiple drums) of cable in place (via the split pin lock) whilst it is being dispensed making it quick and easy to install cables and cut them to length. Suitable for most standard drums.
CDD-1
Height - 800mm
Width - 500mm
Depth - 370mm
Reel Bar Length - 370mm
Reel Bar Diameter - 30mm
Weight - 3Kg
CDD-2
Height: 63cm
Width: 30cm
Cable Roller Length: 230mm
Reel Bar Diameter -25mm
Weight: 2.4kg
If you need other sizes, we can make them according to your requirement

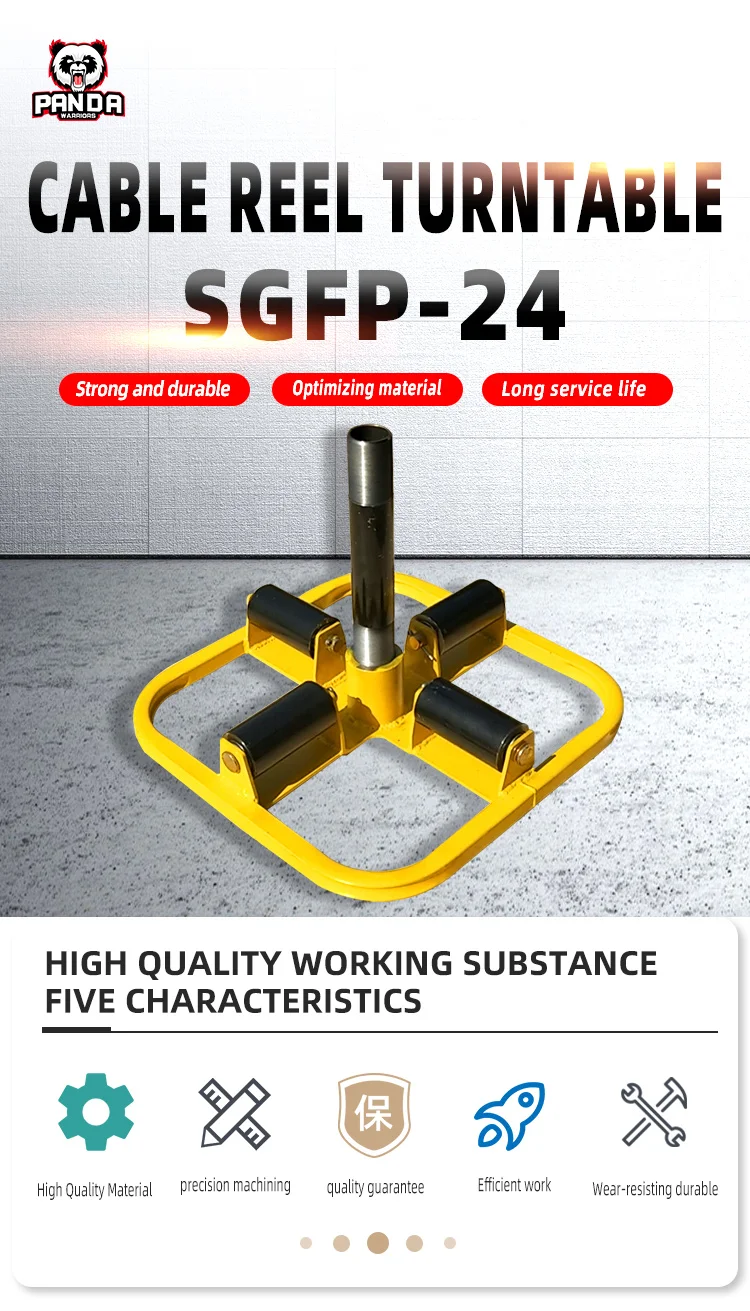

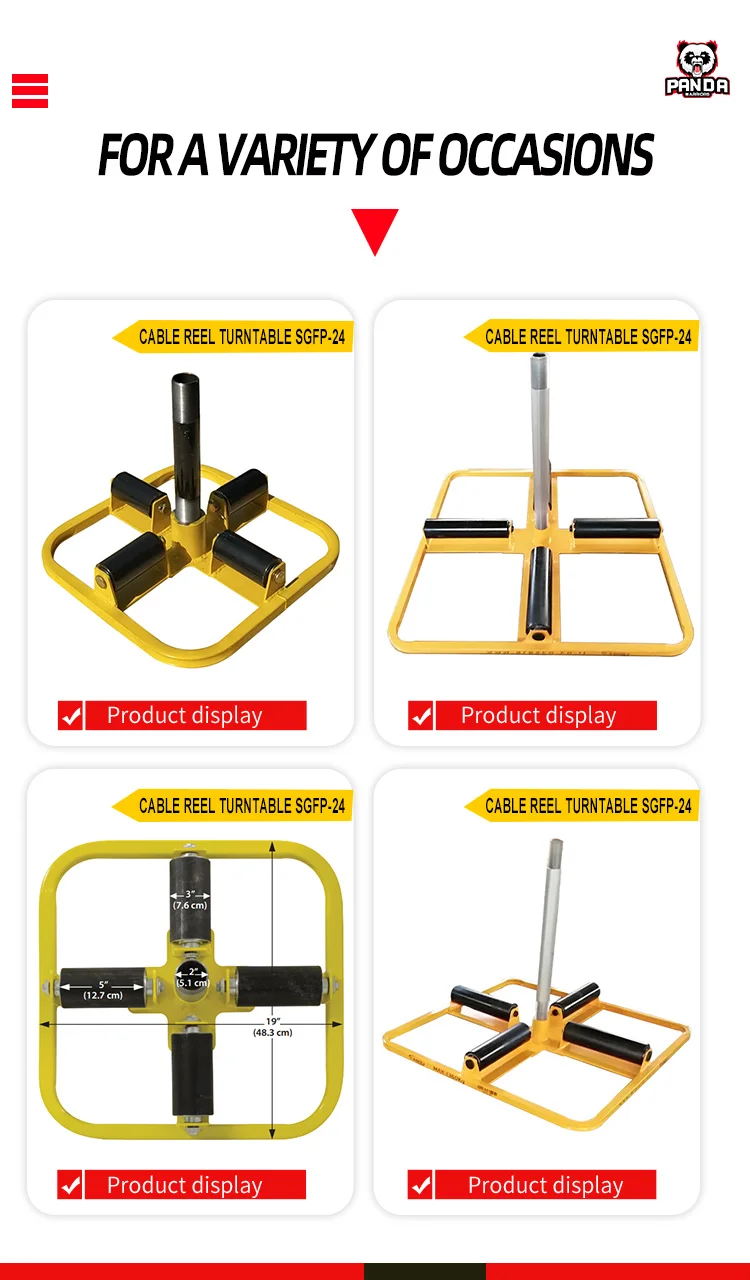

Cable Reel Turntable
The SGFP-24 series of industrial lazy susan turntables are engineered for horizontal pay out of wire, cable or other material stored on reels. The SGFP-24 reel turntable is ideal for cable reels with flange or arbor hole damage. The SGFP-24 is designed to support reels up to 1,000 lbs and comes standard with a 2” arbor spindle for fast set-up and operation.
The SGFP-24 series of industrial lazy susan turntables are engineered for horizontal pay out of wire, cable or other material stored on reels. The SGFP-24 reel turntable is ideal for cable reels with flange or arbor hole damage. The SGFP-24 is designed to support reels up to 1,000 lbs and comes standard with a 2” arbor spindle for fast set-up and operation.
model | SGFP-24 | SGFP-25 | SGFP-26 |
Product weight: | 27 lbs (12.25 kg) | 52 lbs (23.6 kg) | 53 lbs (24.04 kg) |
Length | 19” (48.3 cm) | 36” (91.5 cm) | 36” (91.5 cm) |
Width | 19” (48.3 cm) | 36” (91.5 cm) | 36” (91.5 cm) |
Depth | 3.5” (8.9 cm) | 3.5” (8.9 cm) | 3.5” (8.9 cm) |
Minimum reel width | 6” (15 cm) | 6” (15 cm) | 6” (15 cm) |
Maximum reel diameter | 36” (91.4 cm) | 60” (152.4 cm) | 60” (152.4 cm) |
Outside roller dimensions | 3.5” H x 19” W x 19” D | 3.5” H x 36” W x 36” D | 3.5” H x 36” W x 36” D |
capacity per turntable | 1,000 lbs. | 3,000 lbs. | 6,000 lbs. |

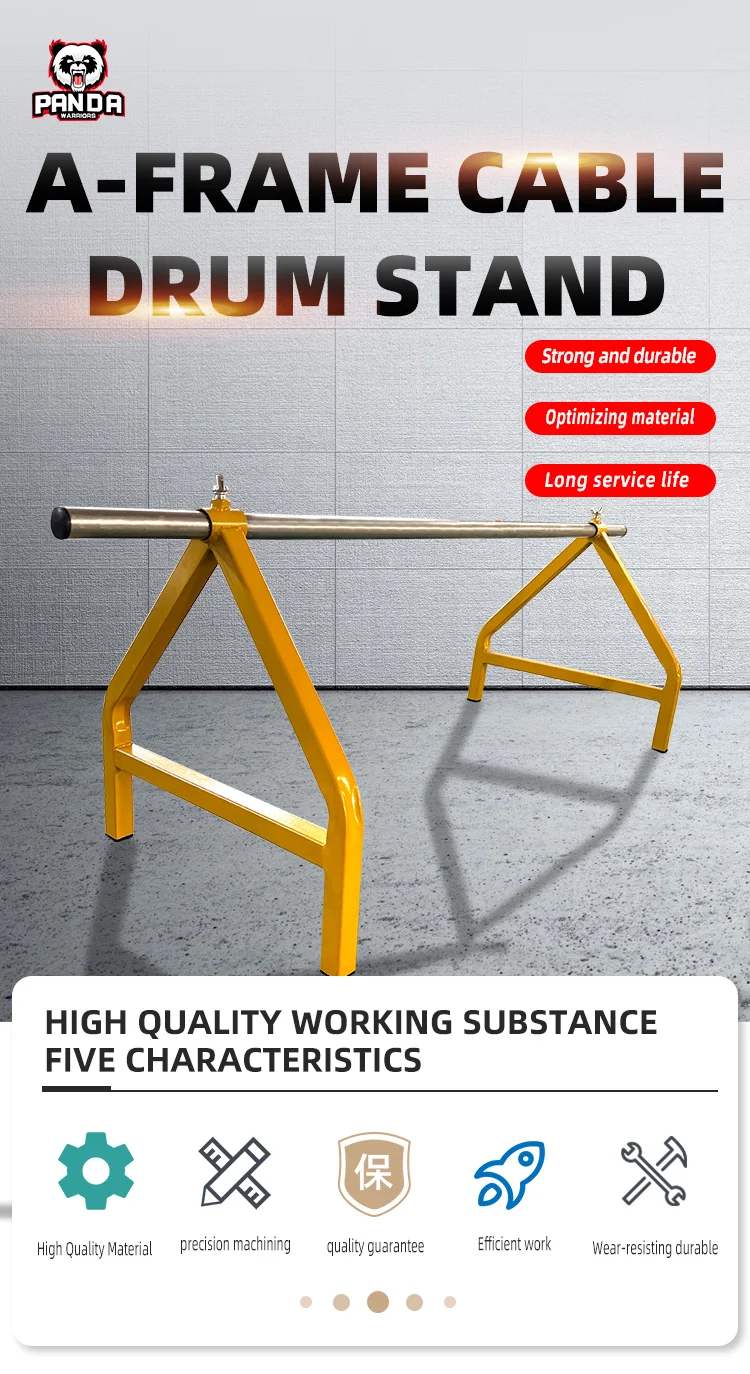

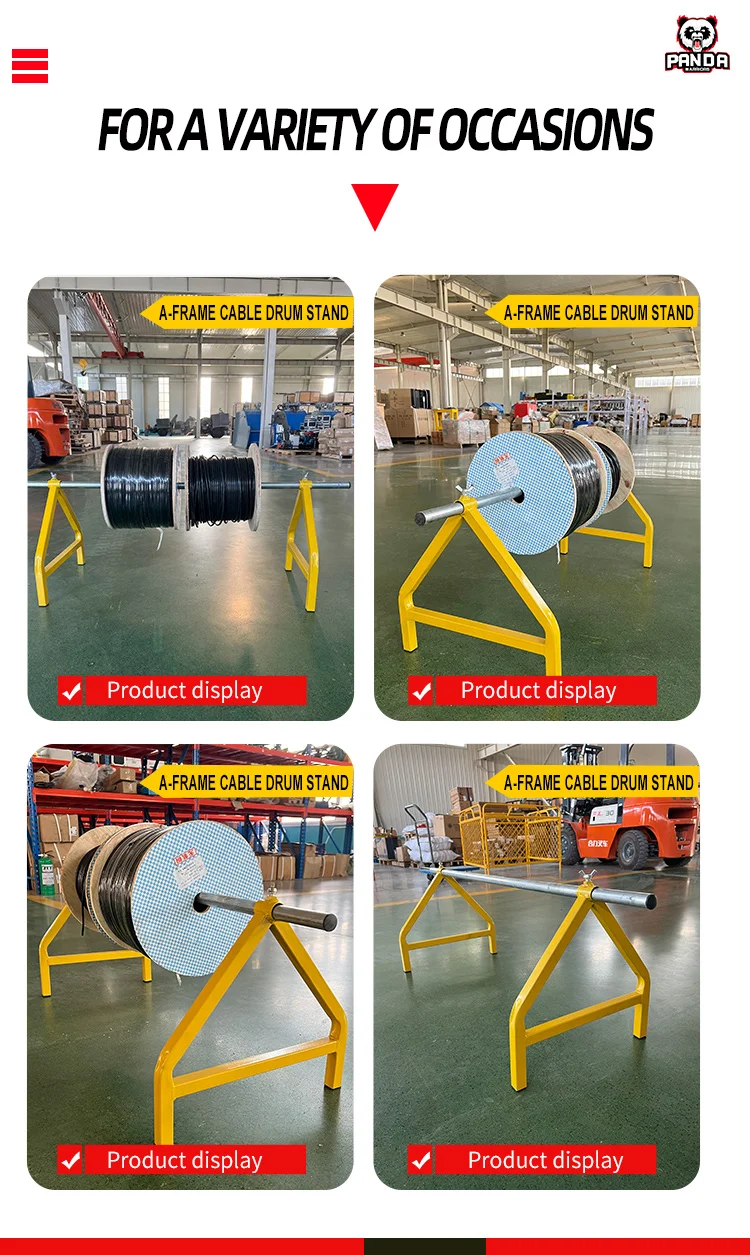

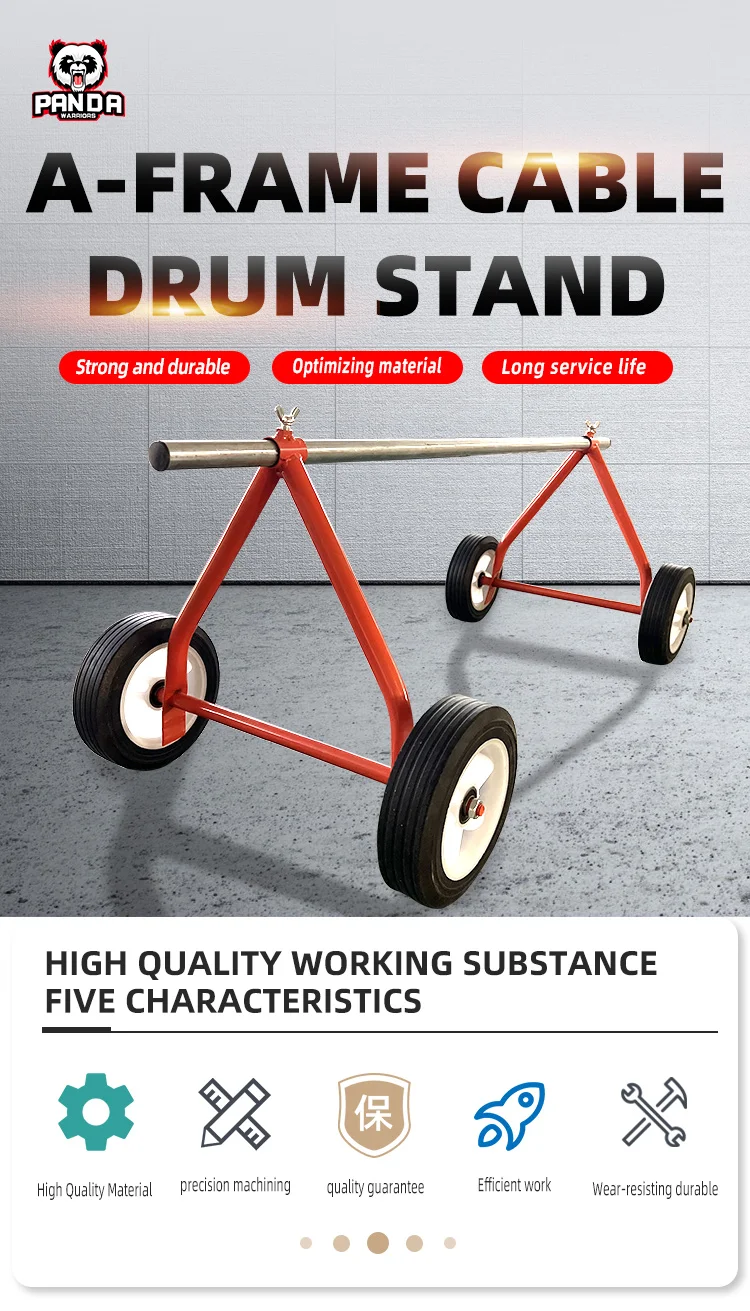

A-FRAME CABLE DRUM STAND
The Heavy Duty Cable Drum Stand is constructed from robust powder-coated ‘safety’ yellow support frames with galvanised steel axle. Once in position, for added safety, the A-Frames can be locked into position on the axle with thumb-screws (see close up above). This feature also allows for quick dismantling for transporting or storage, when the job is done. With the A-Frames locked into position 100mm in from each end of the axle, the Stand also provides a convenient means, for two people to transport rolls of cable around a building site. This versatile cable support has capacity for multiple rolls of cable to be paid out at the same time, in the same direction without twisting or tangling. The maximum Cable Drum size is 1000mm diameter and 150kg . .
The Heavy Duty Cable Drum Stand is constructed from robust powder-coated ‘safety’ yellow support frames with galvanised steel axle. Once in position, for added safety, the A-Frames can be locked into position on the axle with thumb-screws (see close up above). This feature also allows for quick dismantling for transporting or storage, when the job is done. With the A-Frames locked into position 100mm in from each end of the axle, the Stand also provides a convenient means, for two people to transport rolls of cable around a building site. This versatile cable support has capacity for multiple rolls of cable to be paid out at the same time, in the same direction without twisting or tangling. The maximum Cable Drum size is 1000mm diameter and 150kg . .
ADS-350A | Height: 350mm Width: 1000mm Maximum bearing weight:100Kg | Cable Stand Powder-coated "safety" yellow A- frames with galvanized steel axle. Quick, simple assembly. Multiple drum capacity. |
ADS-500A | Height: 500mm Width: 1000mm Maximum bearing weight:120Kg | Cable Stand Powder-coated "safety" yellow A- frames with galvanized steel axle. Thumb-screw, lockable assembly. Multiple drum capacity. |
ADS-800A | Height: 800mm Width: 1000mm Maximum bearing weight:150Kg |
