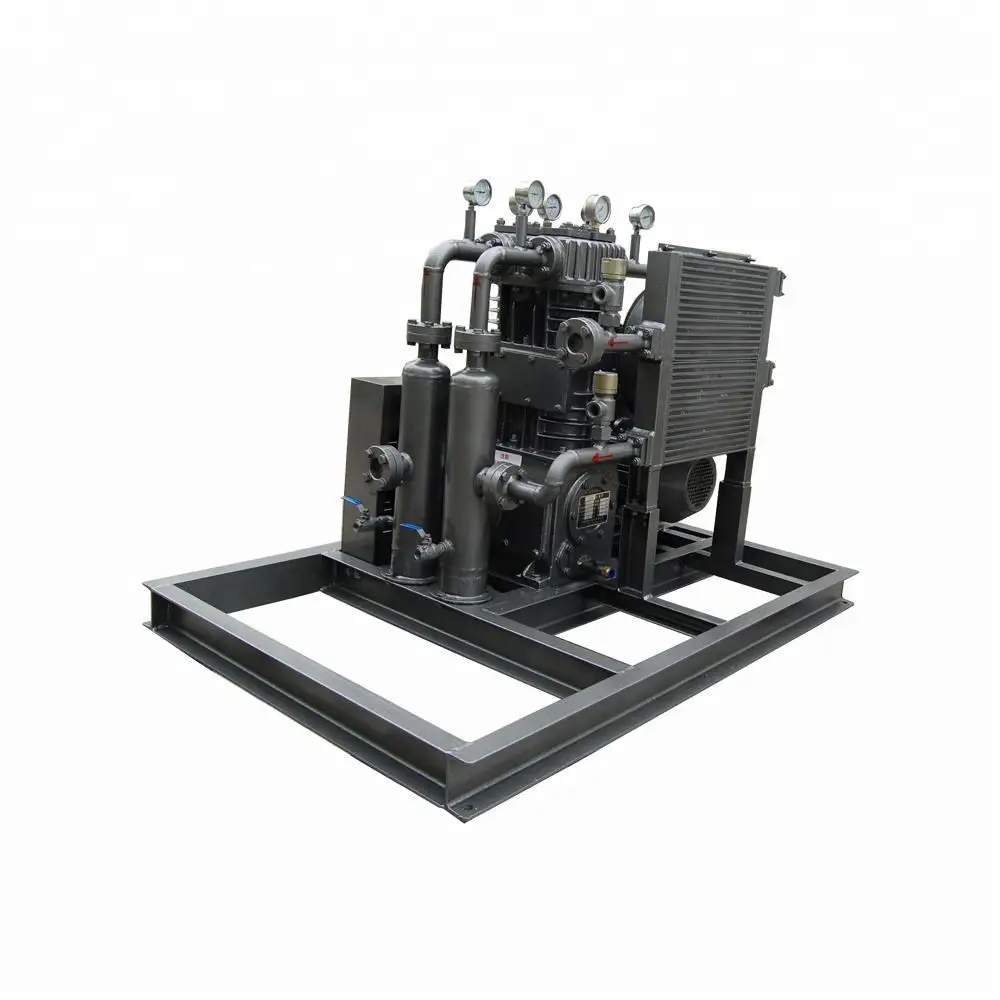

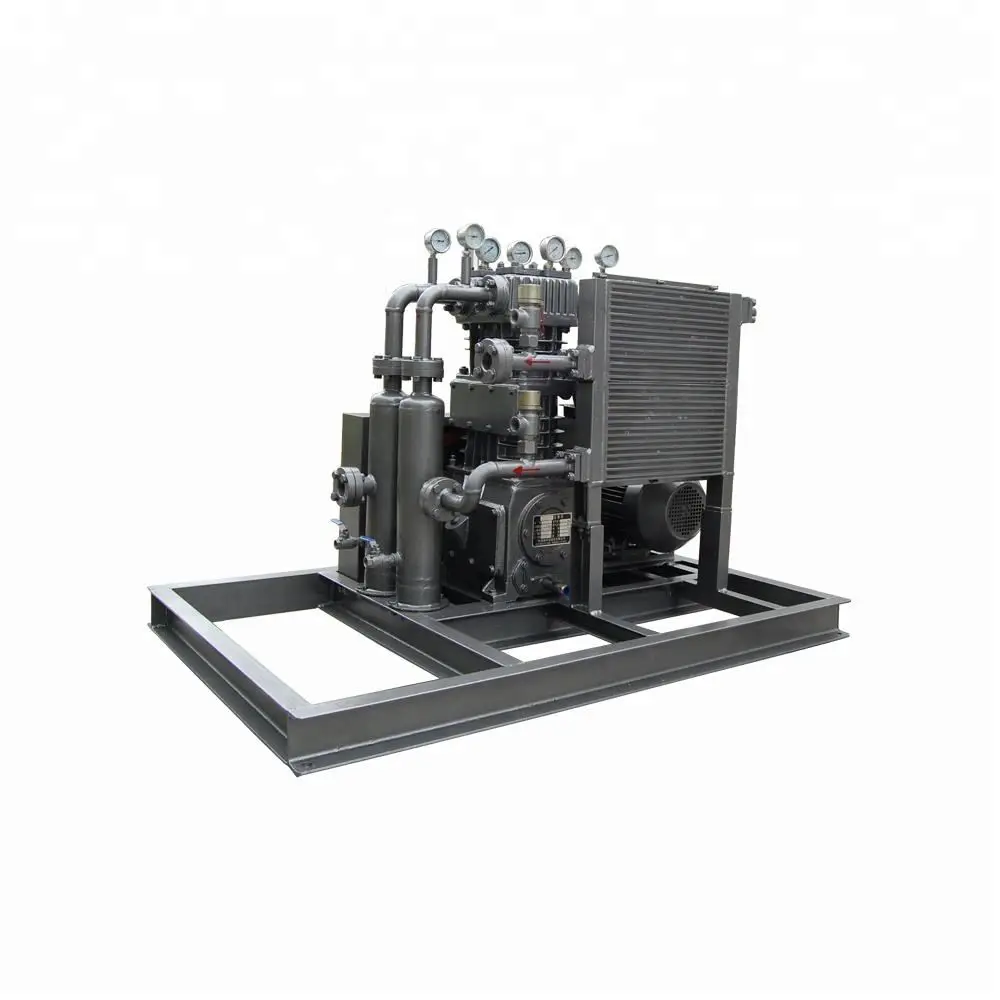

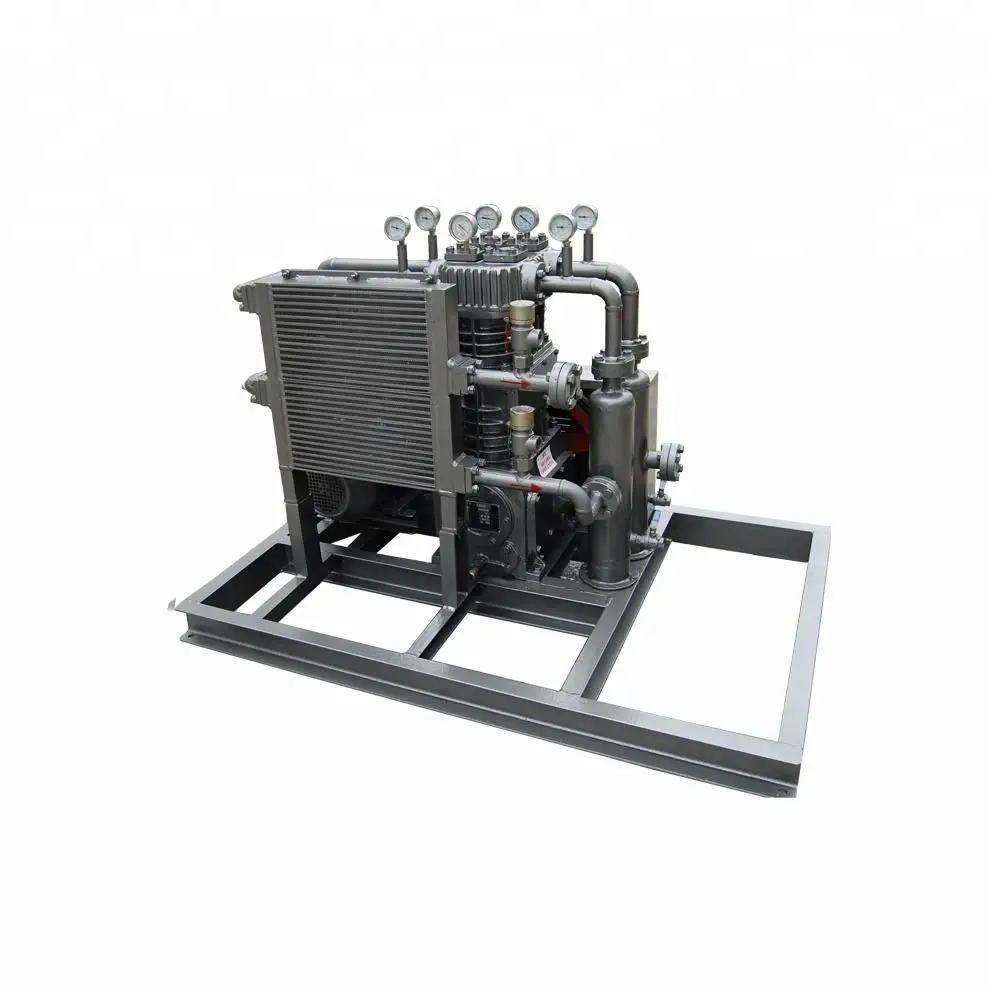

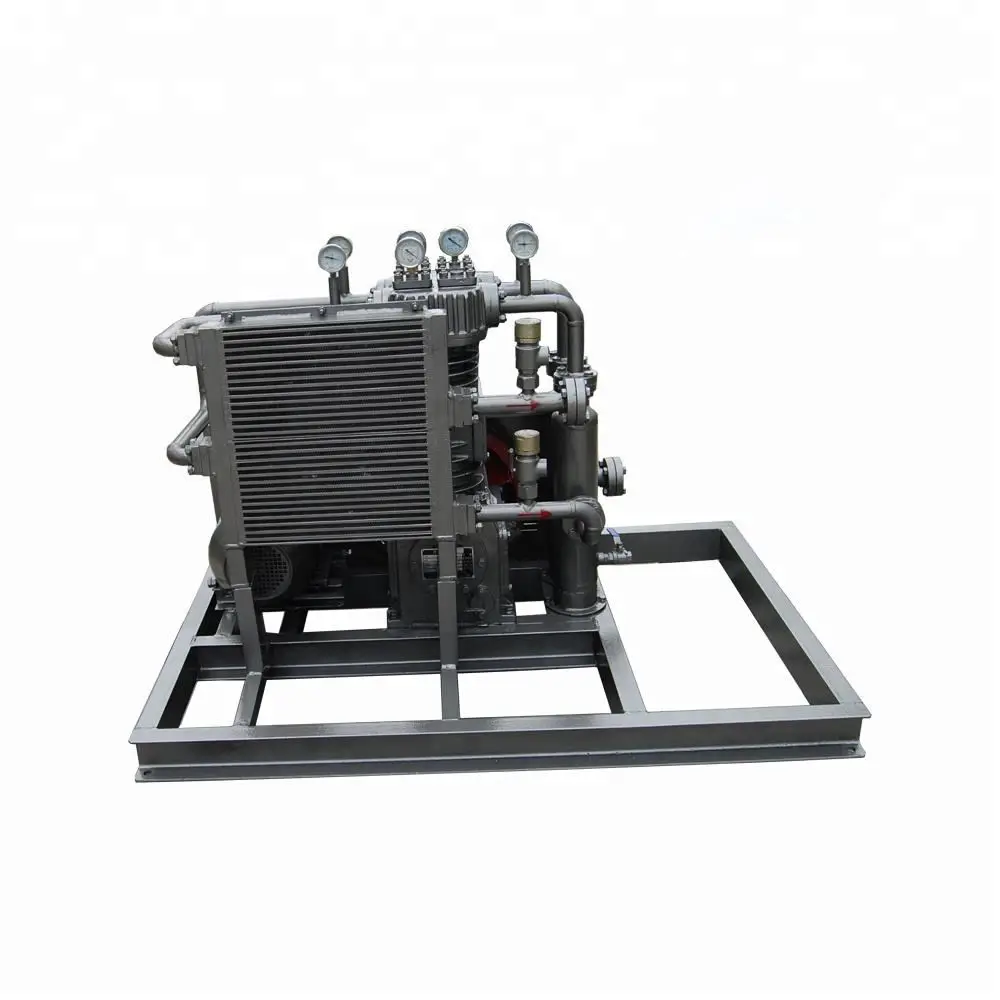

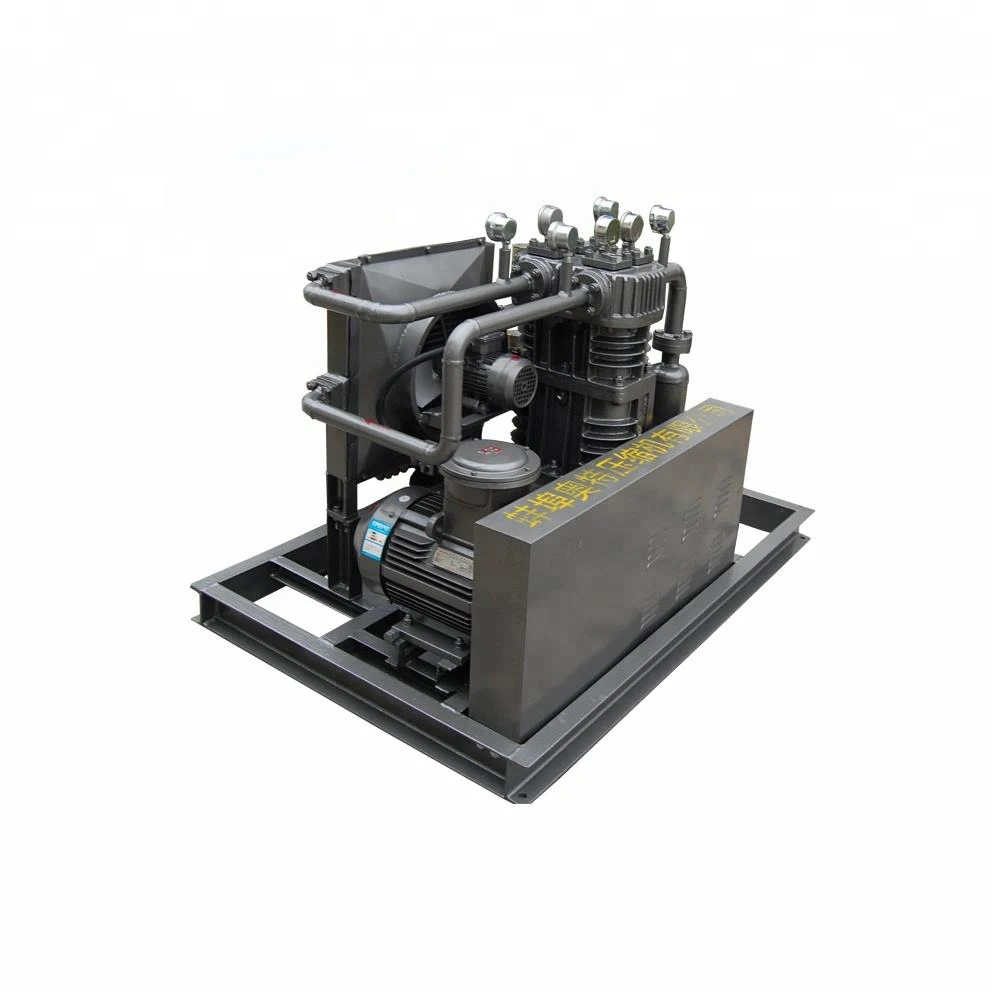

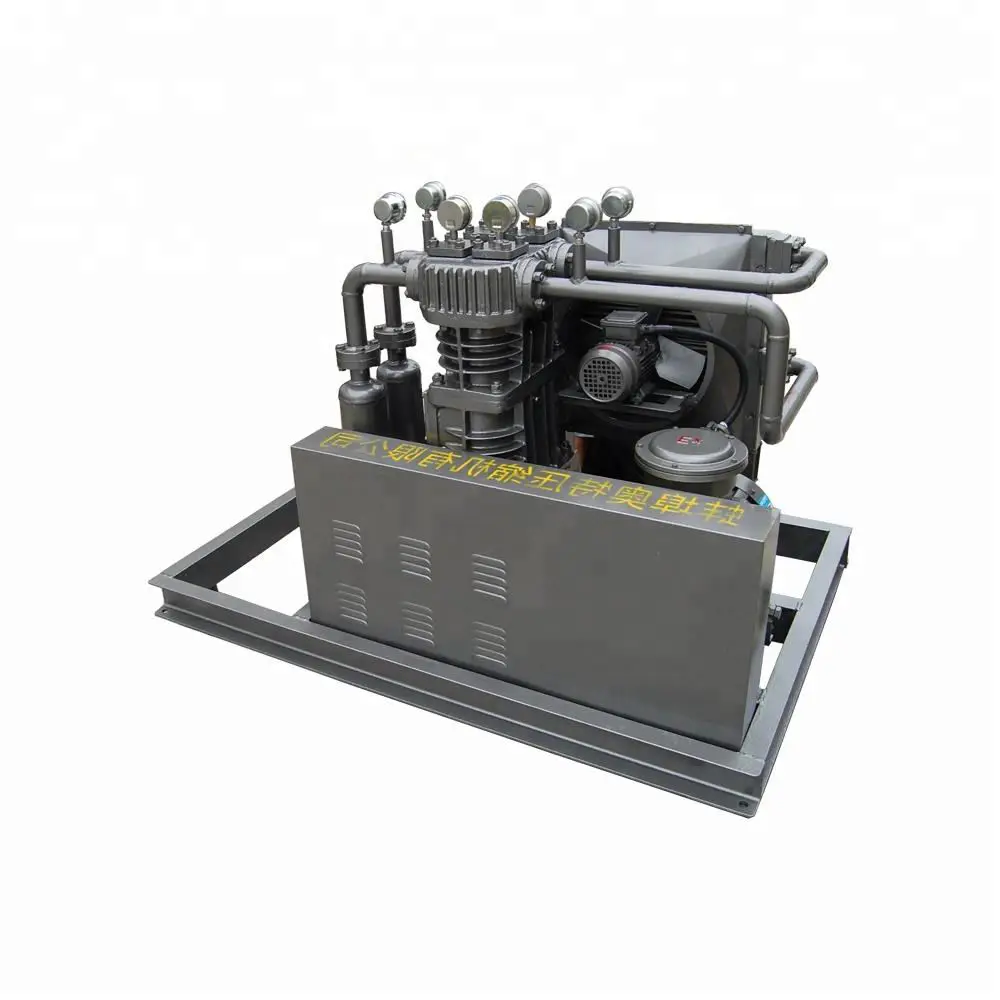

Compressor | Product Model | ZW-0.51/(8~10)-95 | |||
Type | Z Type | ||||
Compressed medium | Freon | ||||
Nominal volume flow(m³/mim) | 0.51 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | coupling | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling gas and water cooling | ||||
Rotational speed (r/min) | 740 | ||||
Suction pressure (MPa G) | 0.8~1.0 | ||||
Discharge Pressure (MPa G) | 9.5 | ||||
Suction temperature (℃) | ≤30 | ||||
Discharge temperature (℃) | ≤150 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YB3-280M-8 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 740 | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 94.1 | ||||
Rated power (Kw) | 45 | ||||
Compressor size (L×W×H) mm | ≈2200×1200×1200 | ||||
Weight(kg) | ≈2000 | ||||
No. | Name | Number | Note |
1 | Compressor host | 1 | / |
2 | Motor | 1 | / |
3 | Gas-liquid separator | 1 | / |
4 | water cooler | 2 | / |
5 | Shared chassis | 1 | / |
6 | Coupling | 1 set | / |
7 | Piping components | 1 set | / |
8 | Random spare parts | 1 set | / |
9 | The technical documentation | 1 set | / |
