Product Overview
Description
Product Description
30MPa IG55 argonite fire suppression system
Product Parameters
No. | Specification | Technical Parameter |
1 | Working Pressure | 30Mpa |
2 | Device Model | QMDY30/80 |
3 | Capacity | 80Ltr |
4 | Outside Diameter of Cylinder | Φ267mm |
5 | Height of Cylinder | 1770±10mm |
6 | Spraying Time | ≤120s |
7 | Power | DC24V/1.6A |
8 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
9 | Condition of Reserving Room for Container | temperature: 0~50℃ |
10 | Max Working Pressure | 36.6Mpa |
11 | Min Working Pressure | 27Mpa |
The Newest and Hot Product of Our Company's Clean Agent Fire Suppression System!
Come and know more about it !
IG55 adopts 50% nitrogen and 50% argon to form fire extinguishing agent, which fully integrates the design concept of new era fire extinguishing system, making the product successfully equipped with the function of protecting environment and efficient fire extinguishing. It has the characteristics of protecting the earth's ecological environment, safety and health, no damage caused by fire extinguishing agent, and enduring fire-extinguishing effect.
The fire-extinguishing principle of IG55 gas is mainly to reduce the oxygen concentration (below 15%) to achieve the fire-extinguishing without supporting combustion. The extinguishing mechanism is to dilute the oxygen in the burning area to achieve the purpose of smothering the fire. The ratio of nitrogen to air is 0.97, which enables the fire extinguishing agent to maintain a constant fire-extinguishing concentration after being released in the protection zone, thus ensuring the fire-extinguishing effect and effectively preventing reignition.
Detailed Images

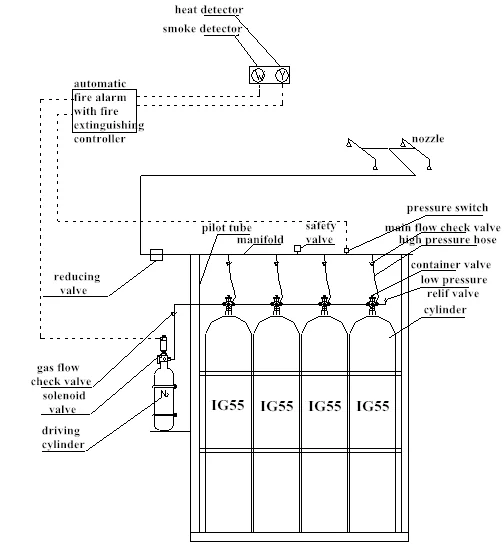

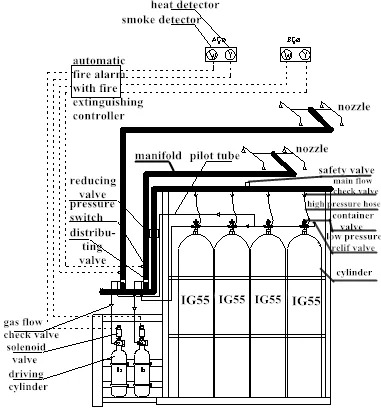

System Composition
• Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Related Products
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
• We provide 8×6 hrs technical support and service.
FAQ
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
