factory price USB C type C data cable wire double sided high precision pulse soldering machine
- Category: >>>
- Supplier: SINRAD TECHNOLOGY CO. LIMITED
Share on (1601013924747):
Product Overview
Description
Product Description

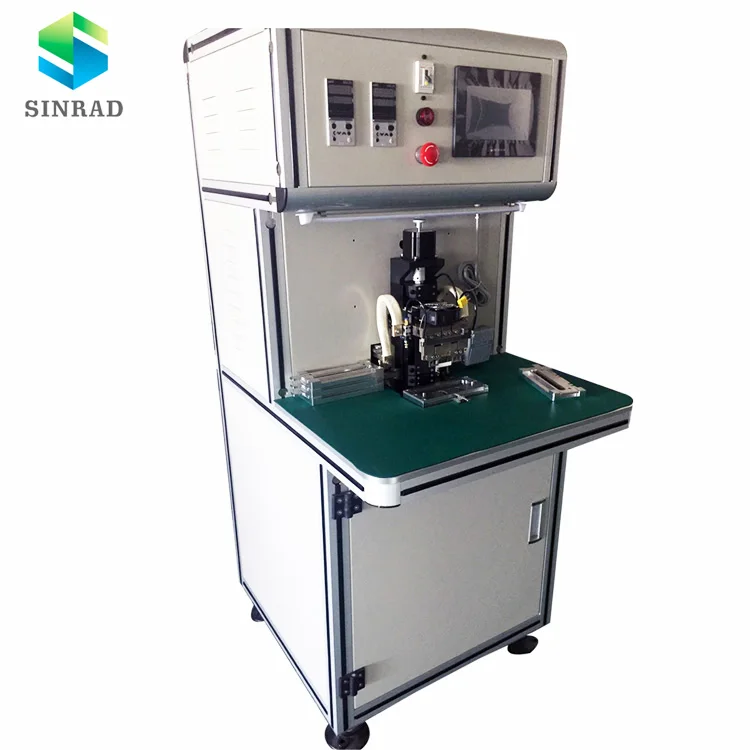

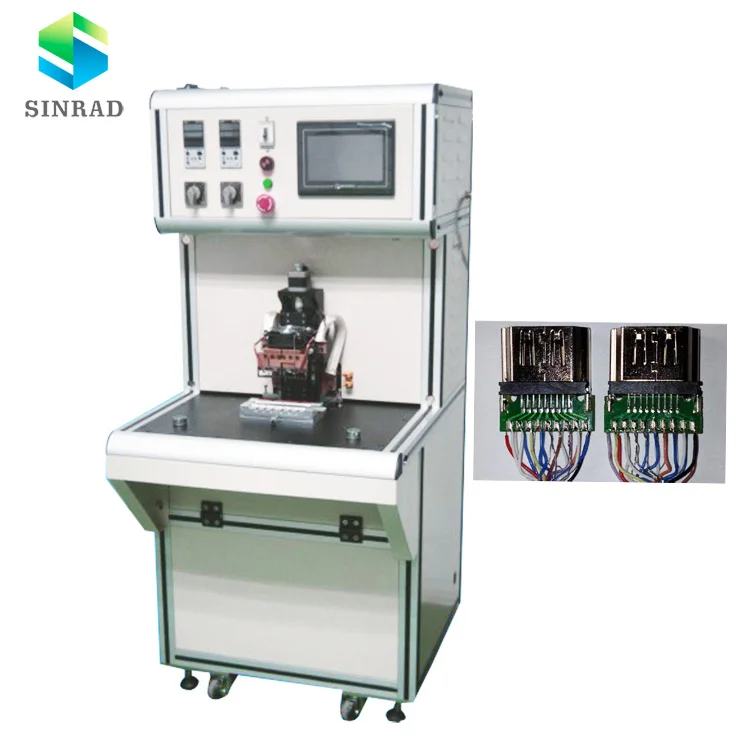

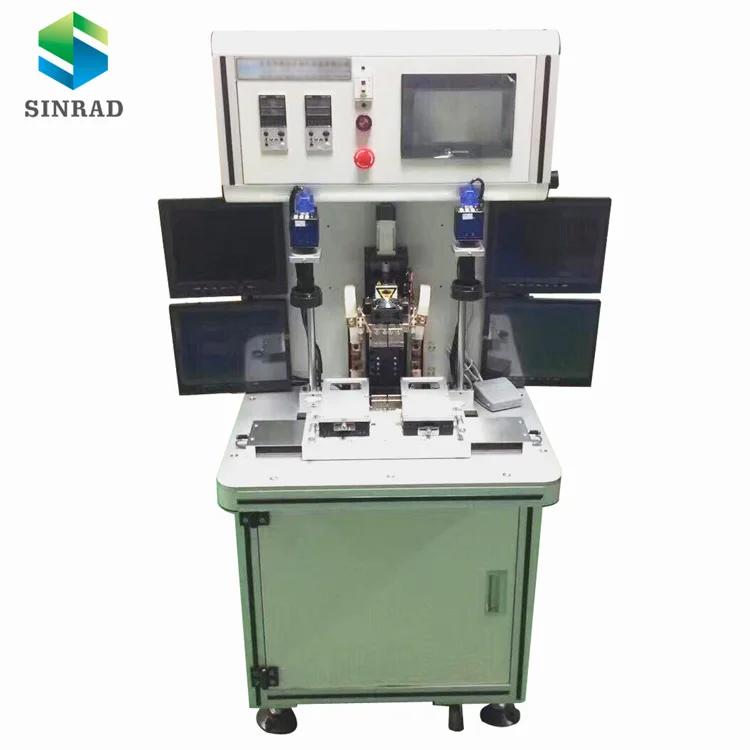

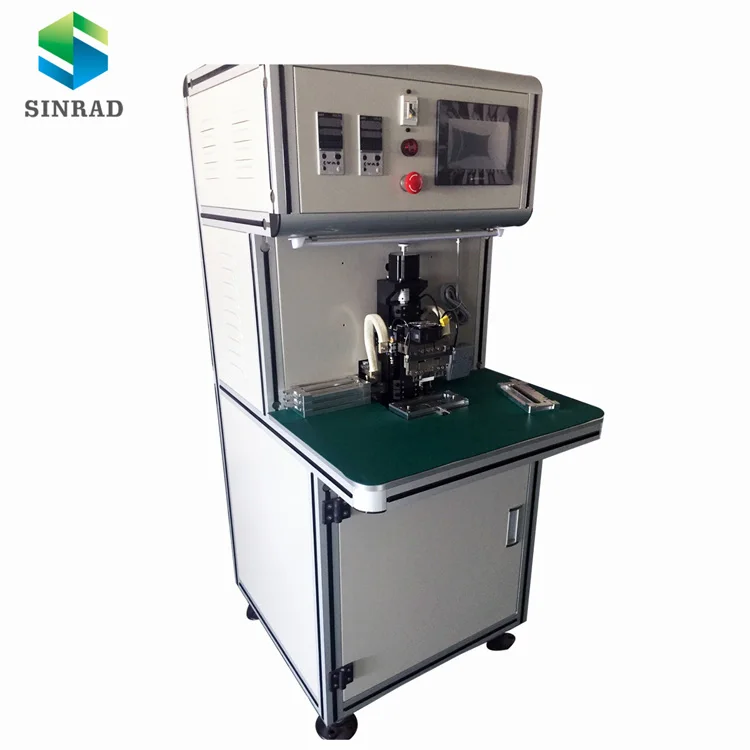

●Hot Bar Dual-Side Soldering Machine
Pulse welding machine (pulse soldering machine) is used to soldering FPC, PCB, LED display, cable, terminal and other products.Soldering machine uses pulse heating technology to work, so the temperature control is very accurate. This makes hot presses often used in places where temperature is very critical. When the hot press is working, the machine can be effectively controlled by multi-stage heating. The temperature of the hot press can be expressed by the real-time temperature curve, which is easy to understand and greatly facilitates the operation of the operator.
Hot Bar Dual-Side Soldering Machine | ||||||
Pressure of indenter | 0.02-0.8Mpa Adjustable pressure accuracy, ± 0.05Mpa | |||||
Soldering time | 7~15s | |||||
Indenter size | MAX 80*3 mm | |||||
Hot pressing accuracy | pitch 0.4 | |||||
Lock wattage | 3000W | |||||
Working pressure | 0.4-0.6Mpa | |||||
Working environment | -10~60°C | |||||
Temperature range | 0-500℃ | |||||
Temperature accuracy | ± 3 ℃ | |||||
Temperature, the number and scope of Section | 4 (including starting / separation temperature) | |||||
Working Voltage | 220V, AC | |||||
Working Efficiency | 500 - 700PCS / H (by product) | |||||
Hot head size | MAX108*25mm | |||||
Machine Dimensions | L680mm*W550mm*H1530mm | |||||
Machine Weight | 120 Kg | |||||

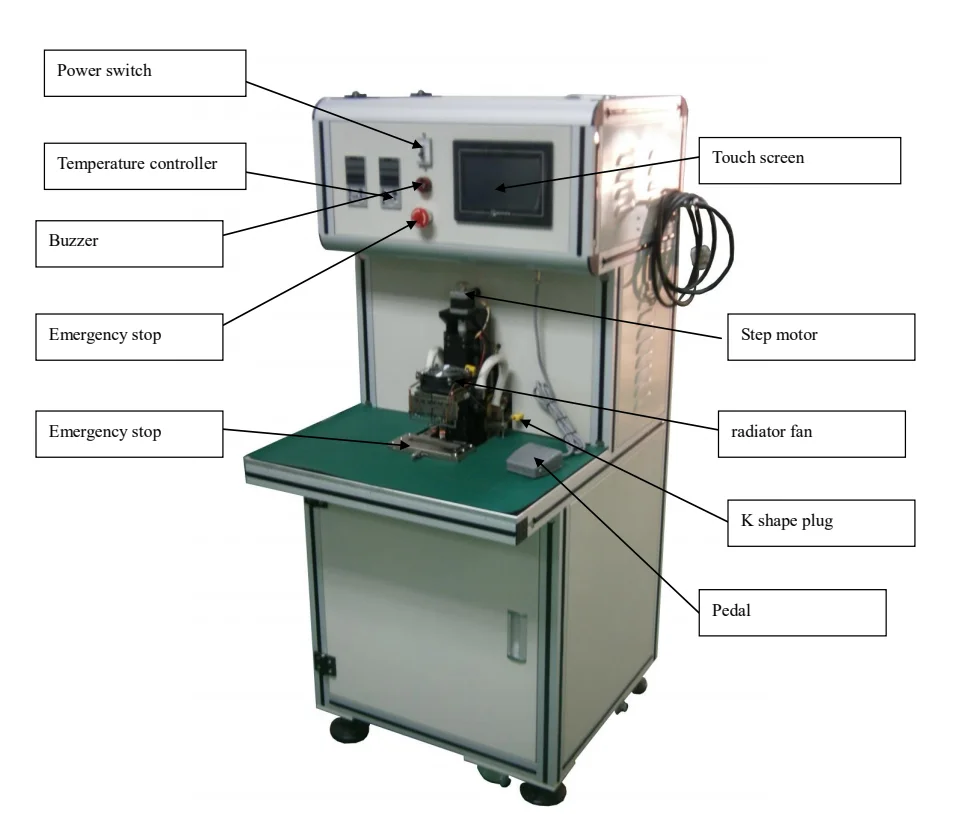

●Feature
1. PLC control system and components are made in Taiwan and Japan, with stable performance and precise temperature control.
2. The machine is operate by pedal, which is safe and convenient to operate.
3. The machine has the functions of rapid heating/cooling and auxiliary cooling.
4. The machine adopts stepping motor rotary pressing function to meet the soldering requirements of special wire.
5. The machine is easy to adjust and adjust the machine, and it has automatic system detection and fault alarm function.
6. Hot-Bar welding head is made of special high temperature resistant material and can be used continuously for 600 hours under proper use.
7. Hot-Bar welding head can be specially made according to requirements, and multiple connectors can be welded at one time to improve production efficiency.
8. High-quality temperature detection function, the LCD screen can display the temperature curve of the welding process.
2. The machine is operate by pedal, which is safe and convenient to operate.
3. The machine has the functions of rapid heating/cooling and auxiliary cooling.
4. The machine adopts stepping motor rotary pressing function to meet the soldering requirements of special wire.
5. The machine is easy to adjust and adjust the machine, and it has automatic system detection and fault alarm function.
6. Hot-Bar welding head is made of special high temperature resistant material and can be used continuously for 600 hours under proper use.
7. Hot-Bar welding head can be specially made according to requirements, and multiple connectors can be welded at one time to improve production efficiency.
8. High-quality temperature detection function, the LCD screen can display the temperature curve of the welding process.
●Application

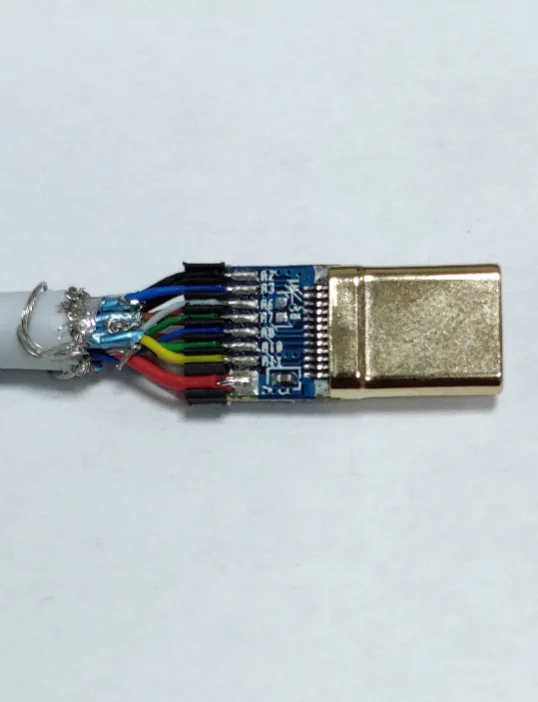

USB A male, USB A female, micro USB, MINI USB, DC terminal, iphone,Type-c connector,etc
● Full automatic USB/type-c soldering machine
→Different machine models are suitable for different connector
→Please send us a sample of the semi-finished or finished wire harness and we will supply or customize a suitable machine for you.
→All kind of soldering connector can be customized, just need to contact us
Packing & Delivery
All the machines are with safety packing. Small machines would be packed into a carton box.
Large machines would be wooden case package.
Large machines would be wooden case package.
Company Profile

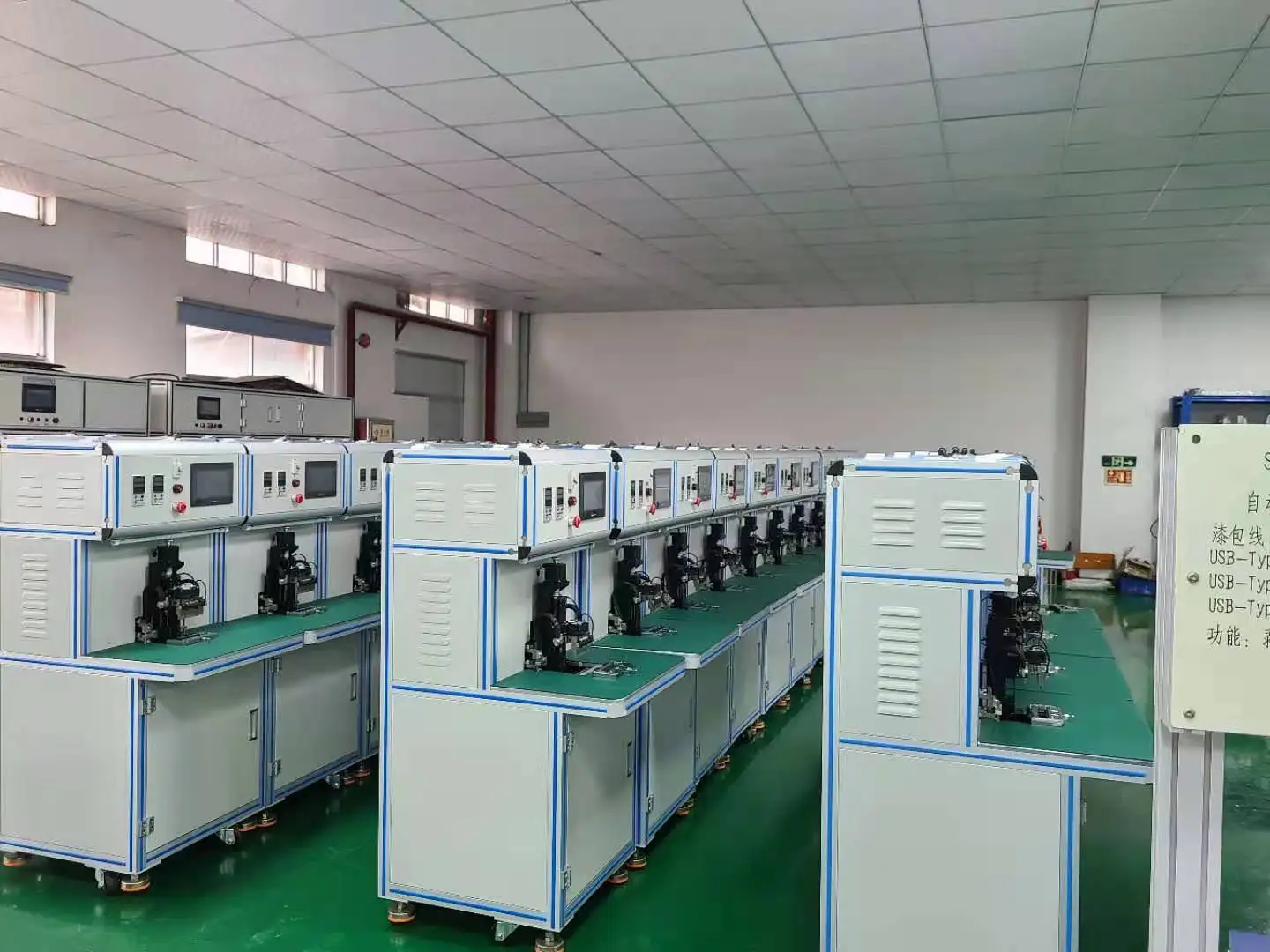

Sinrad Technology Co., Ltd is an international high Tech company specializing in R&D, production and sales automation machine. We mainly engaged in R&D and sales on intelligent production lines and non-standard automation equipment which we can provide professional solution for your production line. We mostly focus on wire harness processing machine, (cutting, striping, twisting, crimping, housing inserting, soldering, testing machine), intelligent soldering robot, welding machine and so on. Sinrad Tech has developed 3 factory for automation soldering machine, cable automotive machine and laser welding machine. We have committed to creating the first brand of automation robot in China.
In the future, Sinrad Technology will deeply in develop more multi-automatic machine & automation robot for striving as
outstanding enterprises in the automation field.
In the future, Sinrad Technology will deeply in develop more multi-automatic machine & automation robot for striving as
outstanding enterprises in the automation field.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Mid East(20.00%),Southern Europe(20.00%),Western Europe(20.00%),South Asia(10.00%),Eastern Europe(10.00%),North America(10.00%),Eastern Asia(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
soldering robot,cable soldering machine,winding and binding machine,wire cutting and stripping machine,laser machine
4. why should you buy from us not from other suppliers?
Professional R&D and technical team support,can make OEM & ODM order,and also can provide overall laboratory solutions.
Strict quality control and 1 year warrant.
Short leadtime and fast delivery.
Fast response to your any inquires.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese,Japanese,Portuguese
We are based in Guangdong, China, start from 2016,sell to Mid East(20.00%),Southern Europe(20.00%),Western Europe(20.00%),South Asia(10.00%),Eastern Europe(10.00%),North America(10.00%),Eastern Asia(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
soldering robot,cable soldering machine,winding and binding machine,wire cutting and stripping machine,laser machine
4. why should you buy from us not from other suppliers?
Professional R&D and technical team support,can make OEM & ODM order,and also can provide overall laboratory solutions.
Strict quality control and 1 year warrant.
Short leadtime and fast delivery.
Fast response to your any inquires.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese,Japanese,Portuguese
