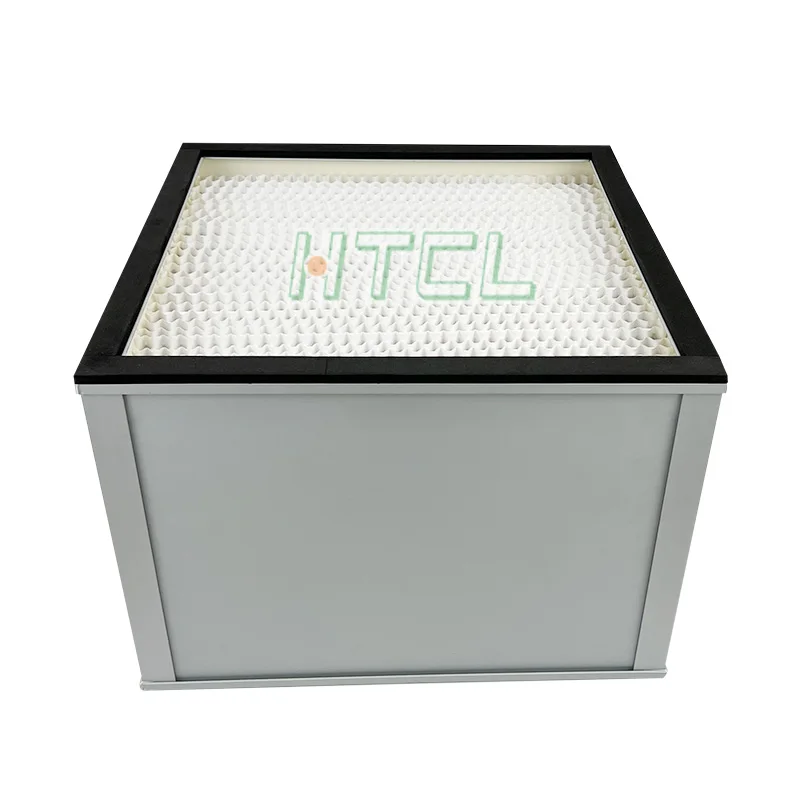

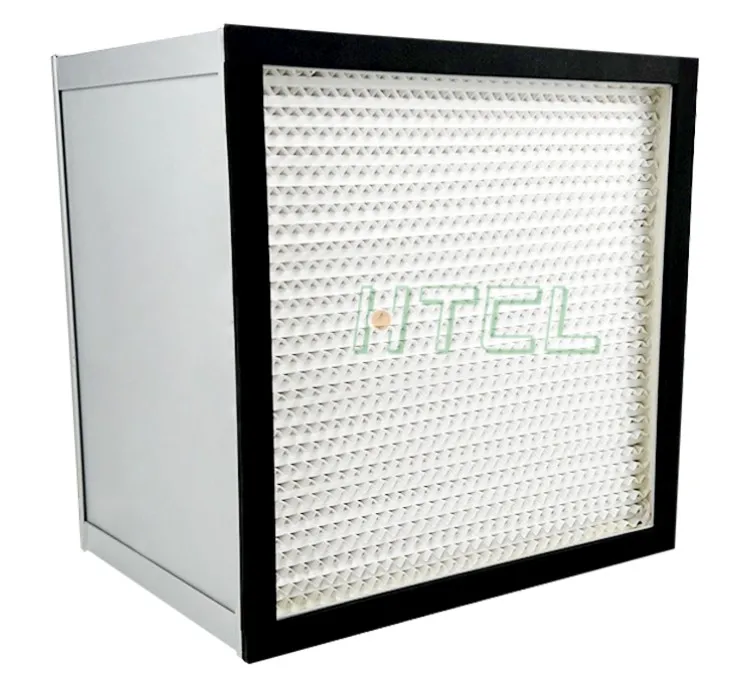

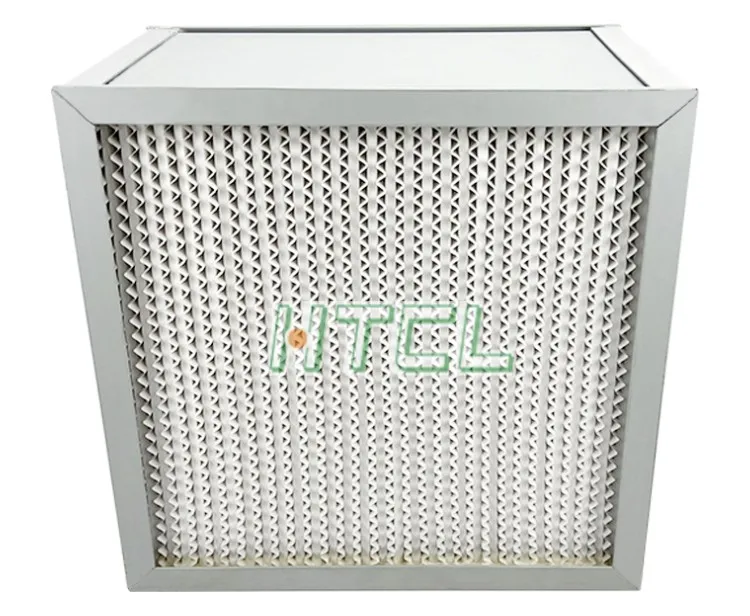

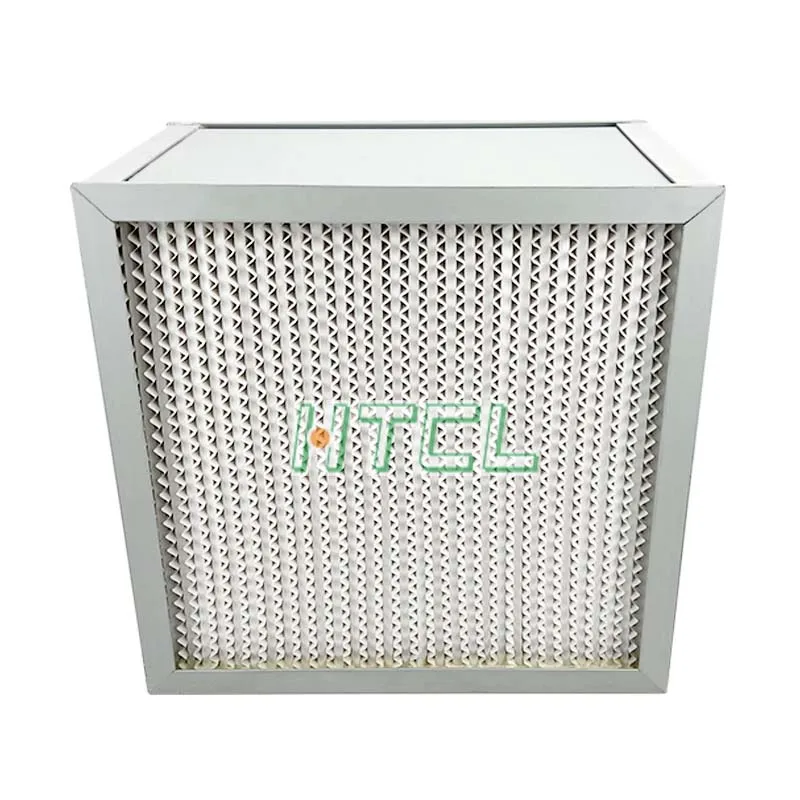

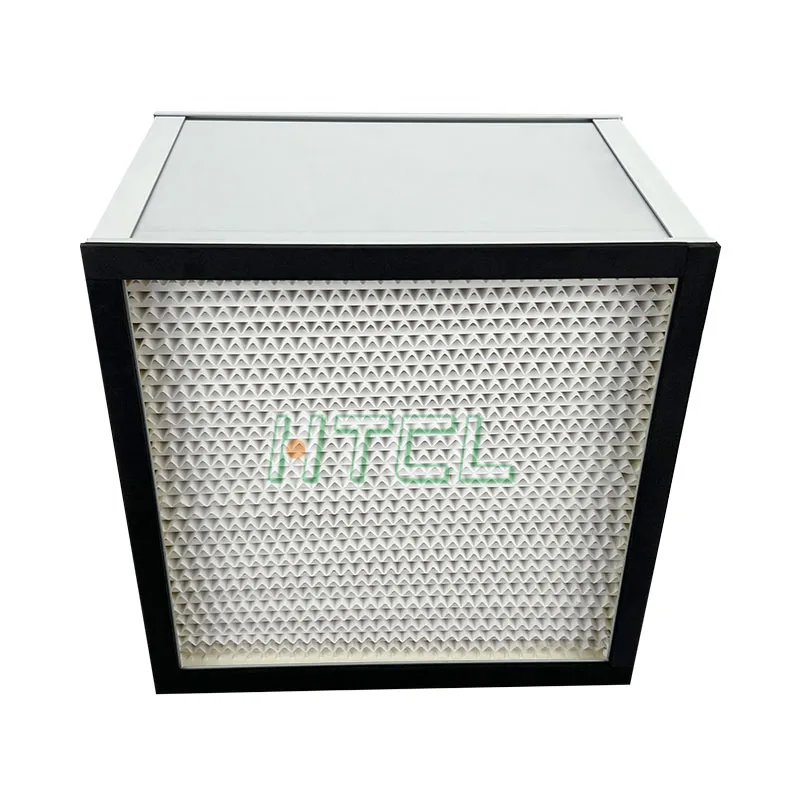

Customized High Efficiency Air Purifier Filter Element HEPA Filter Deep Pleat separator HEPA filter

Product Overview

Description

Customized High Efficiency Air Purifier Filter Element HEPA Filter Deep Pleat separator HEPA filter

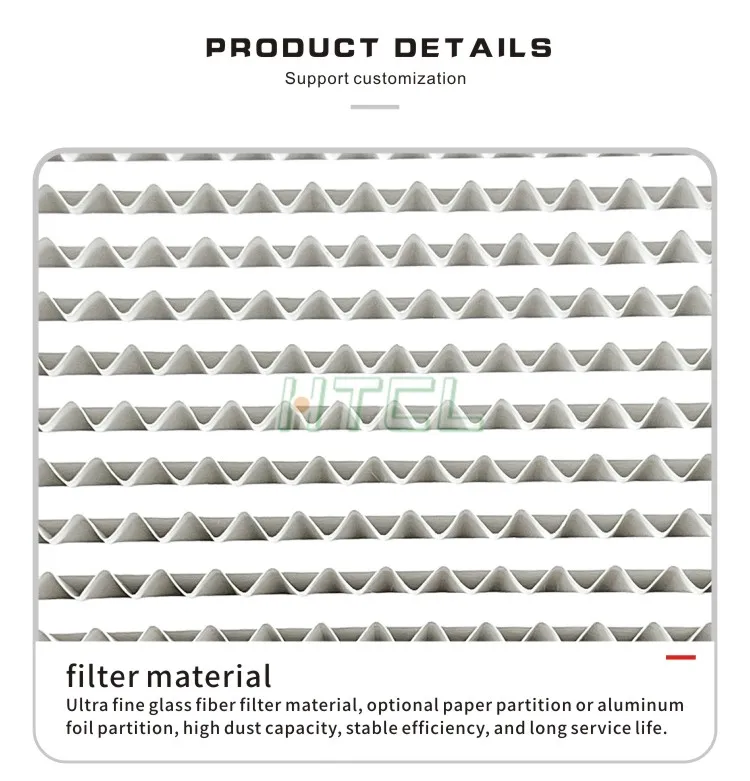

1, wavy aluminum foil folds or paper folds can be completely used to filter materials.
2, the thickness of aluminum foil is 0.03mm; The height of the wave is 4mm, which ensures the filtration area and filtration quality.
3. The filter material is a high-density paper made of ultra-fine glass fiber.
4, the filter paper (made of glass fiber) pleated, so that the filtration area as large as possible, while reducing the filtration speed. This is very important for HEPA filters.
5, laser one by one test temperature, resistance up to 80℃; Low resistance.
6, long service life.



product feature
∗High filtration efficiency, low resistance, large air volume
∗The process is simple and the price is low
∗Strong impact resistance



product application
♦Used in high Class purifying equipment
♦Used as the terminal filters of purification system
♦Used in partial purification eguipments and clean room



product design
•Ultrafine glass fiber filter paper folding, plywood paper, aluminum foil and other materials folding for partition structure

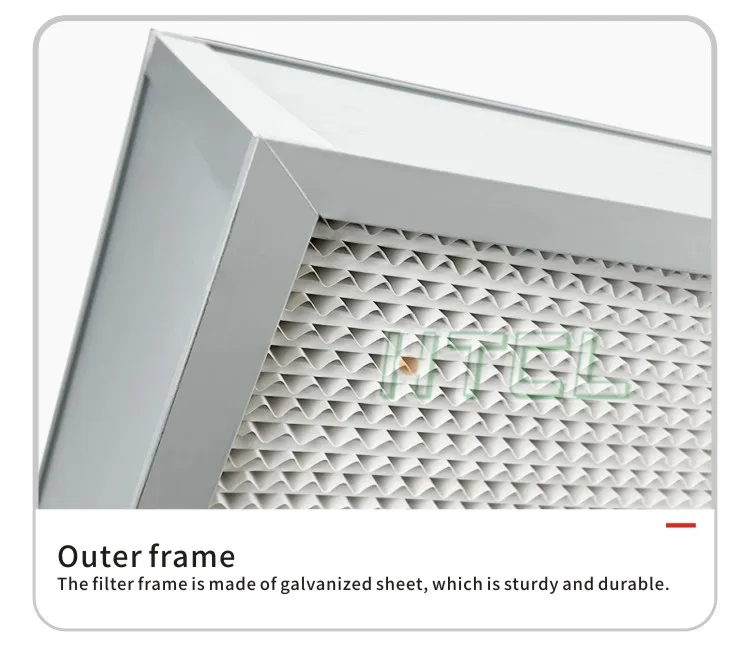

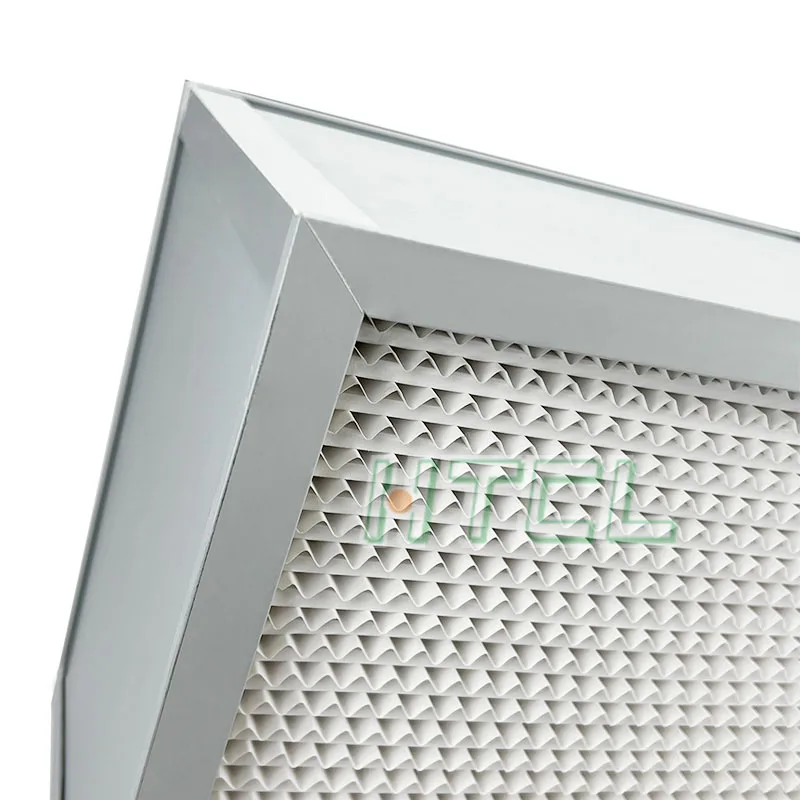

•The outer frame is usually made of aluminum alloy, aluminum plate, galvanized plate, stainless steel plate and wooden plate
•Sealing method: EPDM sealing strip

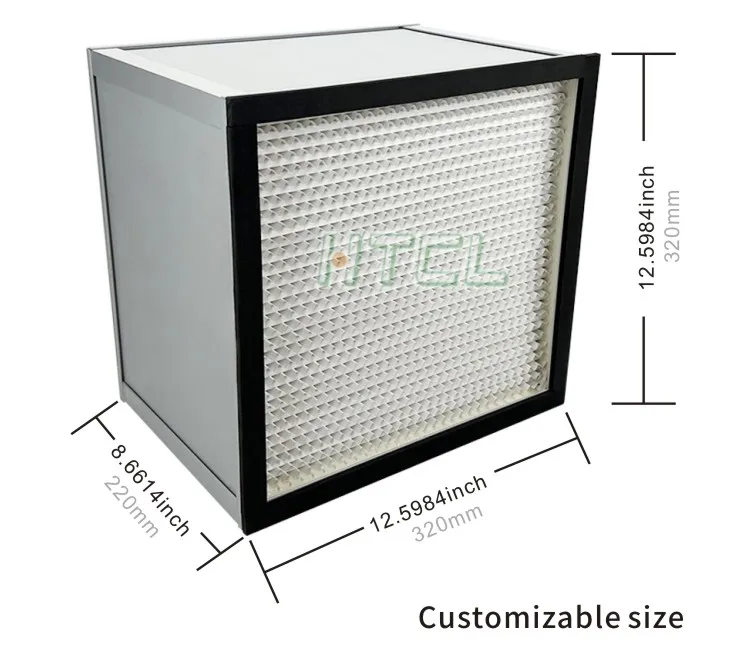

•Conventional size: 320mm, 484mm, 610mm, 630mm
•Aluminum partition is mainly used for high temperature or high humidity environment, paper partition is used for ordinary clean environment
•Filtration efficiency: H13, H14



Production Process
Step1:Material Preparation
Step2:Media and Clapboard Pleating
Step3:Parts Combination
Step4:Seal
Step5:Testing
Step6:Cleaning



Material And Operation Conditions

Efficiency:	H13 / H14
Media:	Micro glass fiber
Frame:	Aluminum / GI / SUS / MDF

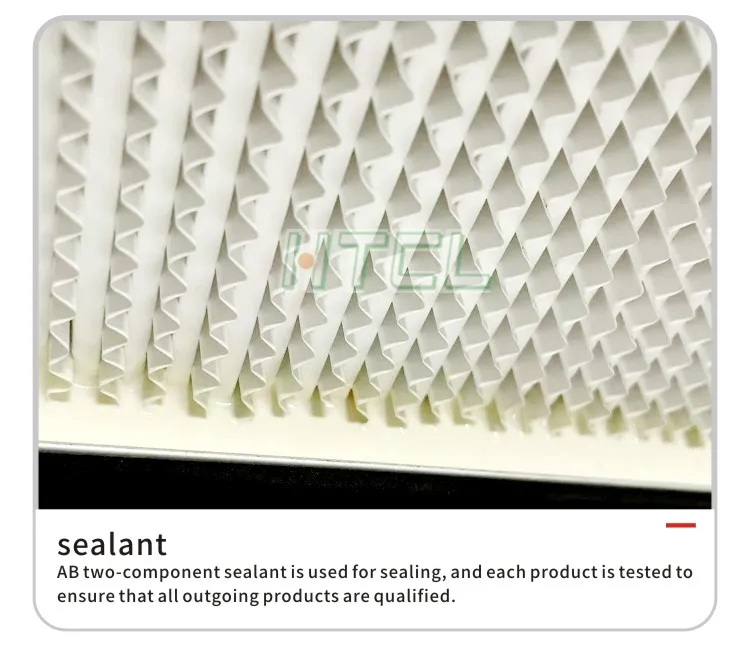

Sealant:	Pu two-component polyurethane glue
Gasket:	Pu endless gasket / EVA / EPDM
Separator:	120g/m² offset paper / 0.035mm aluminum foil
Optional thickness:	80 ~ 292mm
Max Temperature:	70℃ ~ 150℃
Max Humidity:	100%



Technical Parameters

Model number	Dimensions(mm) WxHxD	Rated Air Flow (m³/h)	Initial Resistance ( pa )	Efficiency 0.3μm (flame method)	Material
					Media	Separator	Sealant	Frame
HT	320*320*220 484*484*220 610*610*150 820*600*150 630*630*220 968*484*220 945*630*220 1260*630*220	500 1000 1000 1200 1500 2000 2200 3000	≤220	>99.99	Fiberglass paper	Aluminum foi	Polyurethane Rubber PU	Galvanized steel frame  Aluminum alloy plate

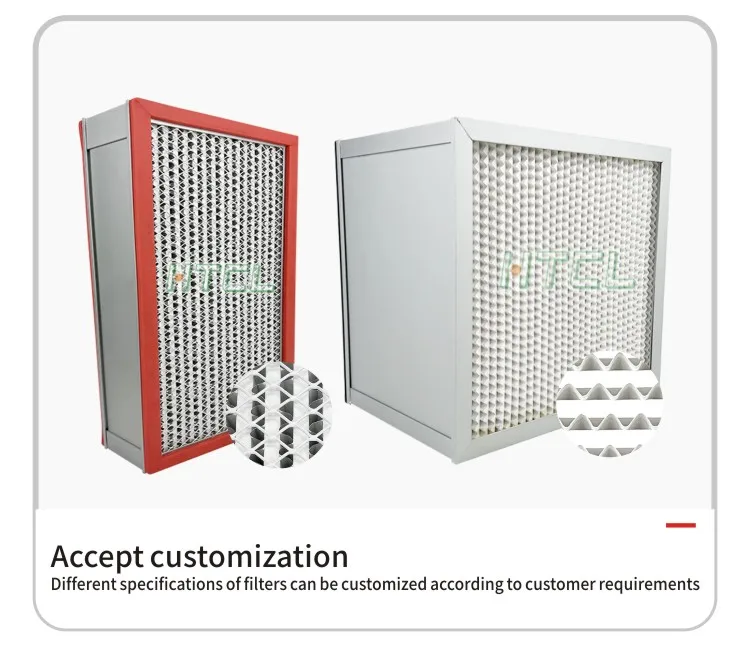

Note: other specifications can be customized according to requirements.
