Product Overview

Description



Product Overview

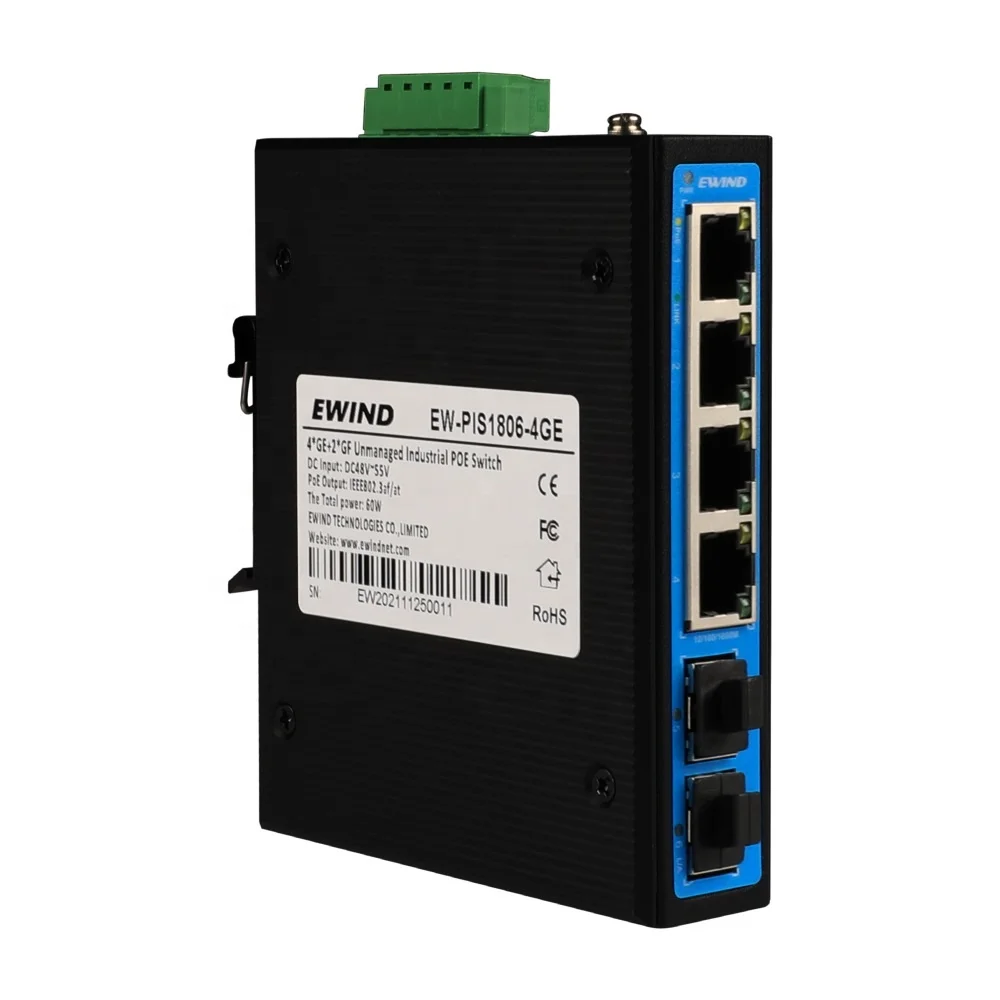

6 Port Full Gigabit Industrial PoE Fiber Switch
4*GE POE+2*GF Industrial PoE Switch
4*10/100/1000M PoE ports+ 2*100/1000M SFP port Industrial PoE Switch
PoE port1~port4 support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards;
Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale；
PoE default: 1, 2(+)/3, 6(-)
Operation TEMP:-40~85°C
Input voltage: DC48-57V, Redundant dual power 5-bit industrial terminals;

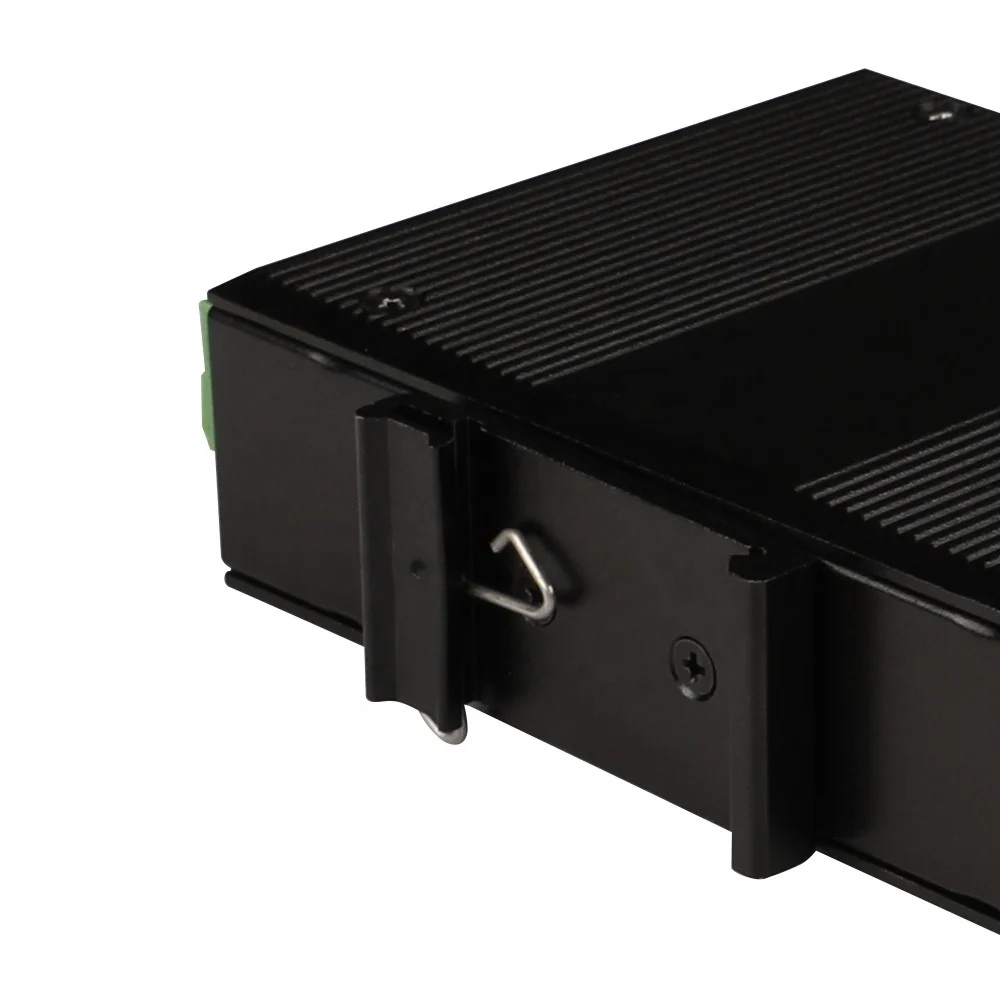

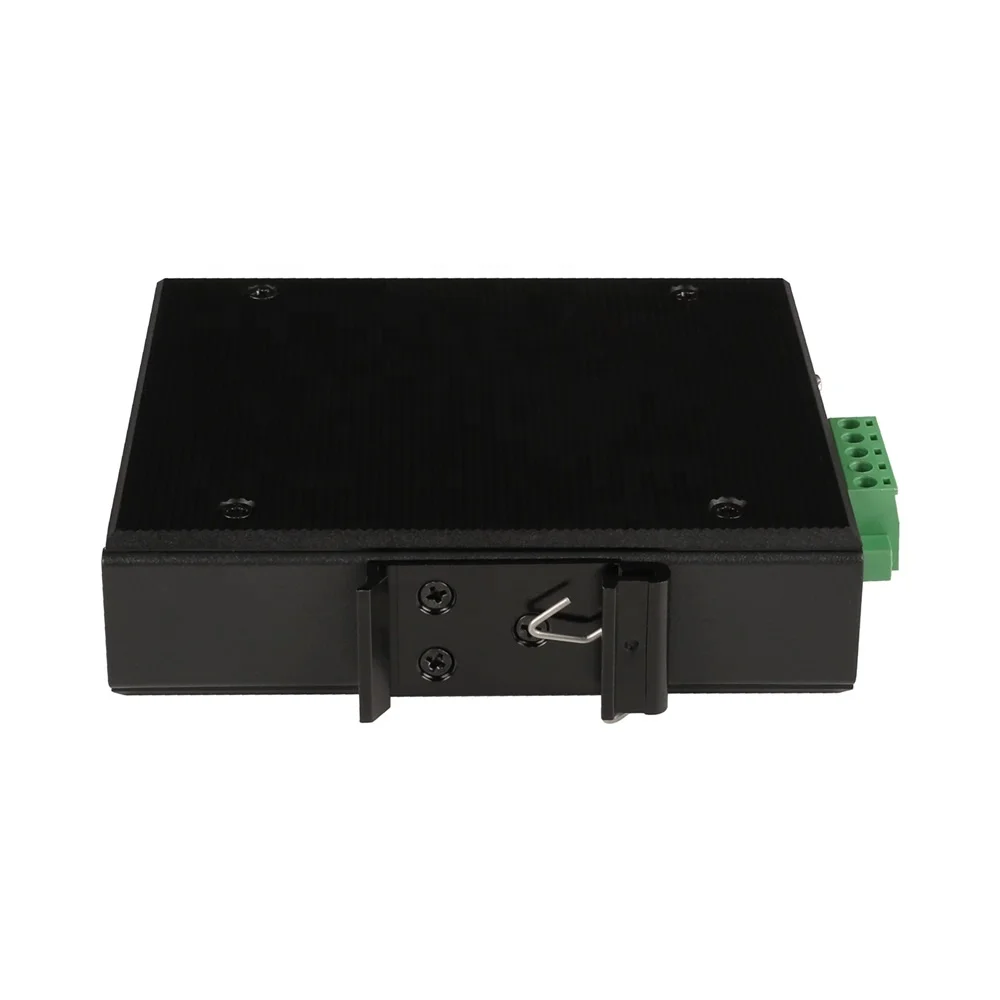

IP protection level: IP40; Rail-type installation;
5 years warranty.




Products Description




PRODUCT SPECIFICATIONS


Model
EW-PIS1806F-4GE
Interface
4*10/100/1000Base-T PoE ports (Data/Power)
1*1000Base-T uplink RJ45 port (Data)
1*100/1000Base-X uplink SFP fiber slot port (Data)

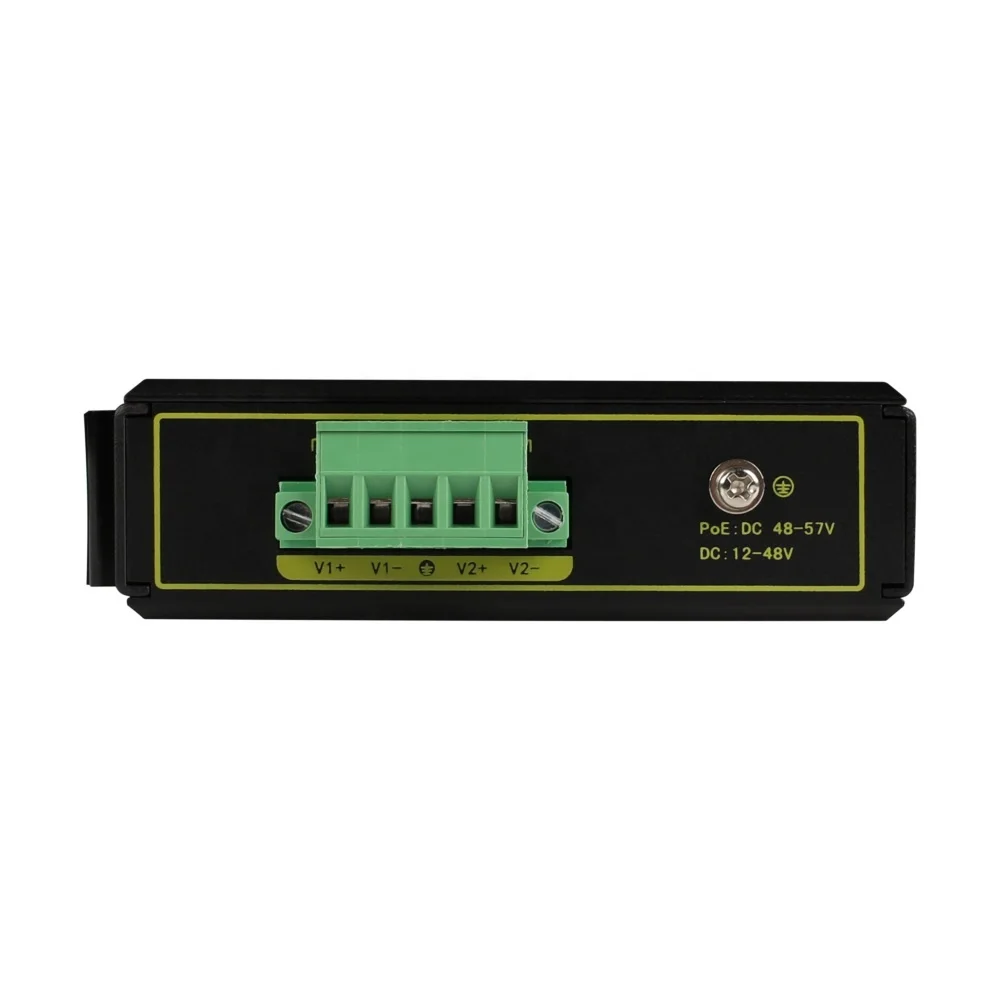

2 set of V+, V- redundant DC power interface (5Pin Phoenix terminal)
Ethernet Port
Port 1-4 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IIEEE802.3x
PoE Standard
IEEE802.3af/at
SFP Port
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual
fiber optical module. LC)
Optical Cable
Multimode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Forwarding Mode
Store and Forward
Switching Capacity
12Gbps
Forwarding Rate@64byte
8.93Mpps
MAC
4K
Buffer Memory
1M
Jumbo Frames
10K
MTBF
100000 hours
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5e or later UTP (≤100 meter)
Power Supply Pin
Default:1/2 (+), 3/6 (-)
120W /48VDC
Working Voltage
48-57VDC; 5P industrial phoenix terminal, anti-reverse protection.
Standby:<1W; Full load:<120W
Max Power Per Port
30W; IEEE802.3af/at
Total PWR / Input Voltage
60W/48VDC (IEEE802.3af)
120W/48VDC (IEEE802.3at)
Power Consumption
Standby:<2W; Full load:<60W
Standby:<2W; Full load:<120W
Power Supply
No, optional 48V/60W or 48V/120W industrial power supply
