Product Overview
Description
Product Overview

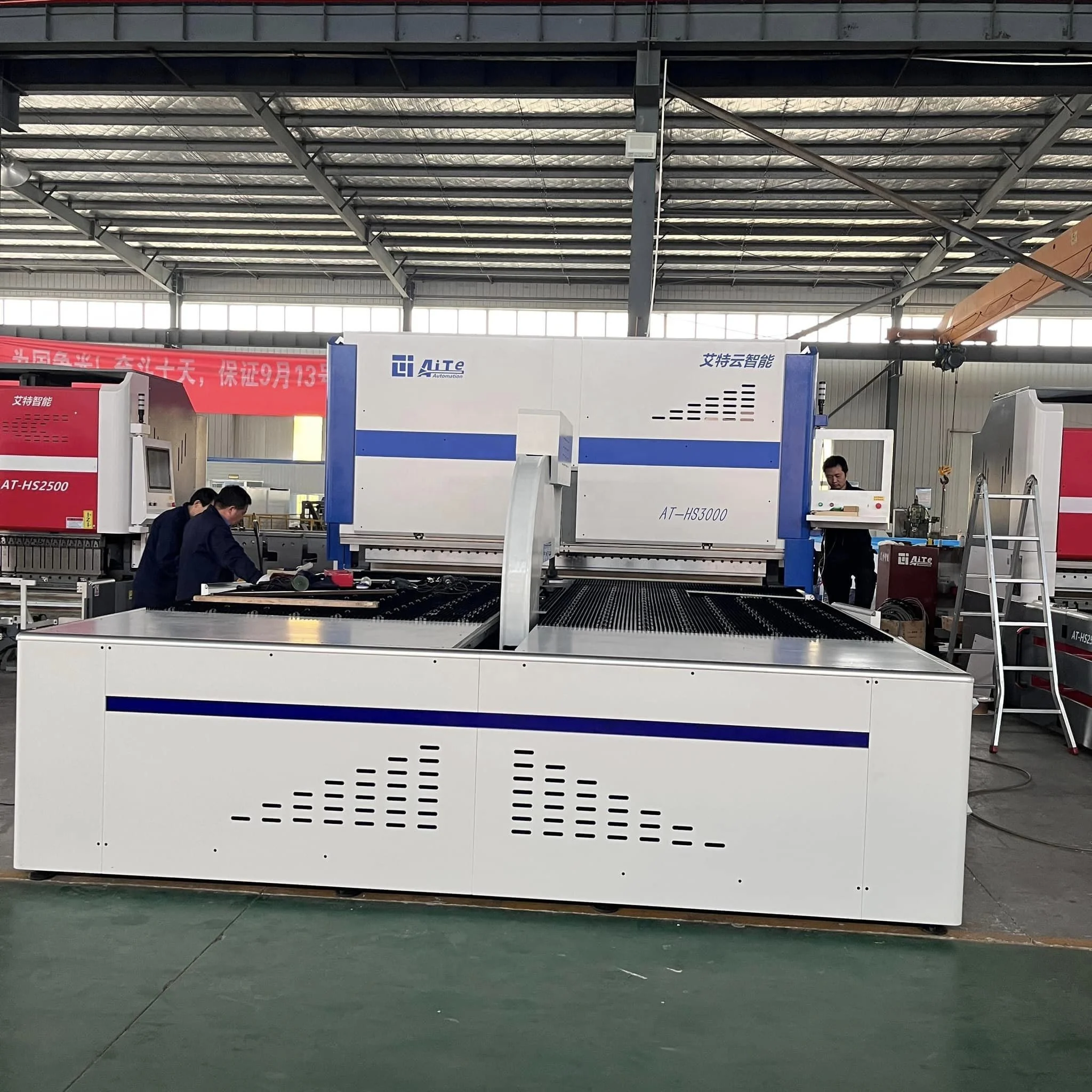

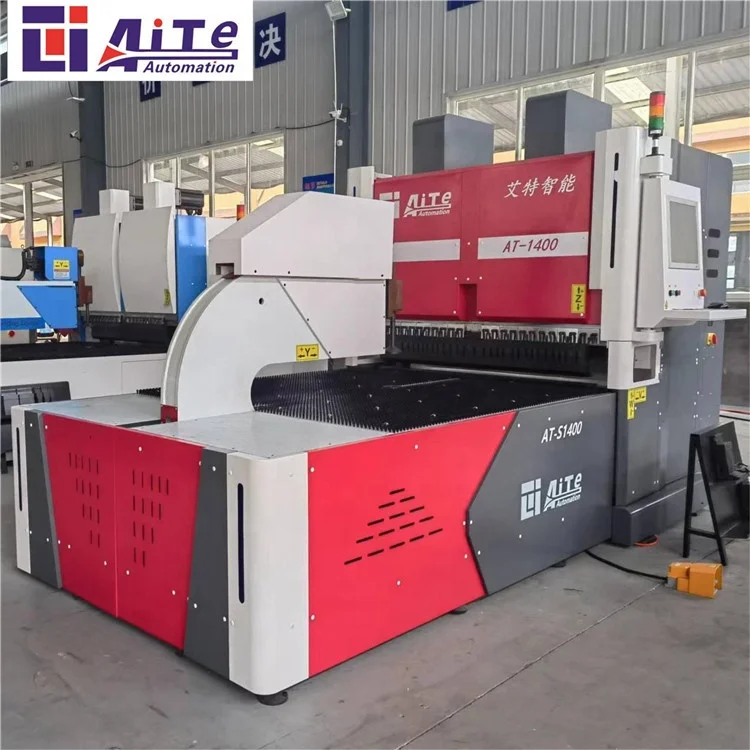

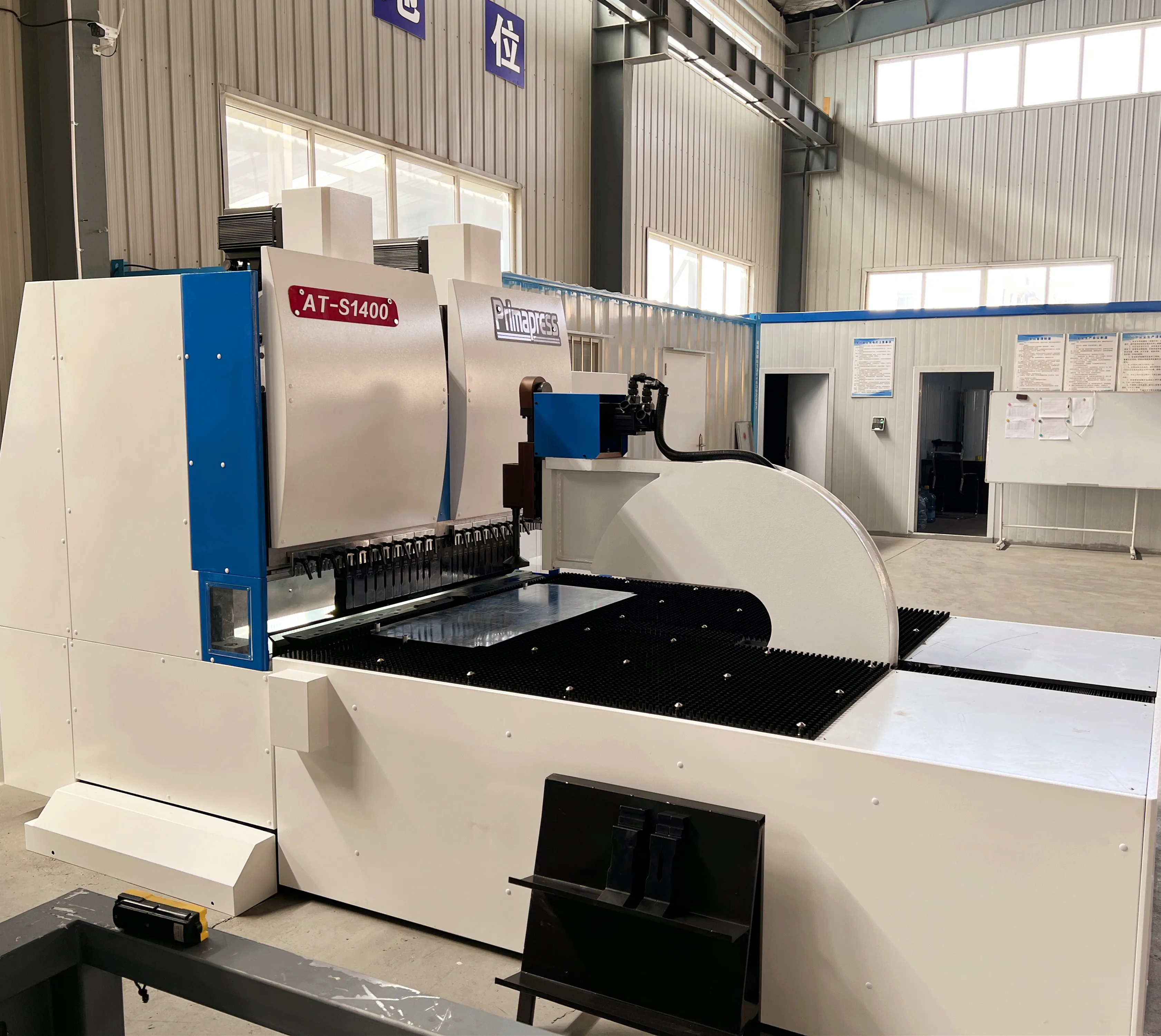

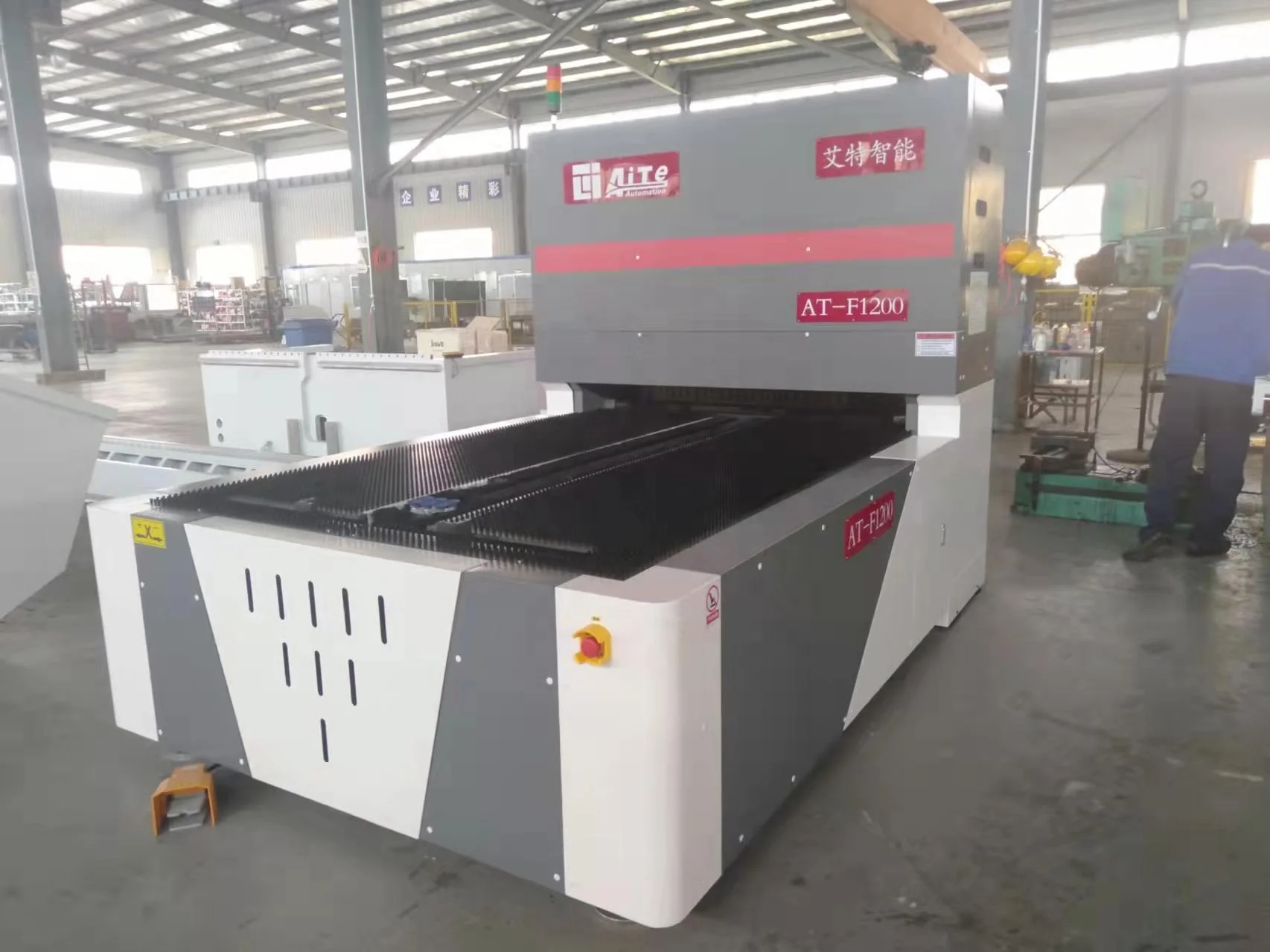

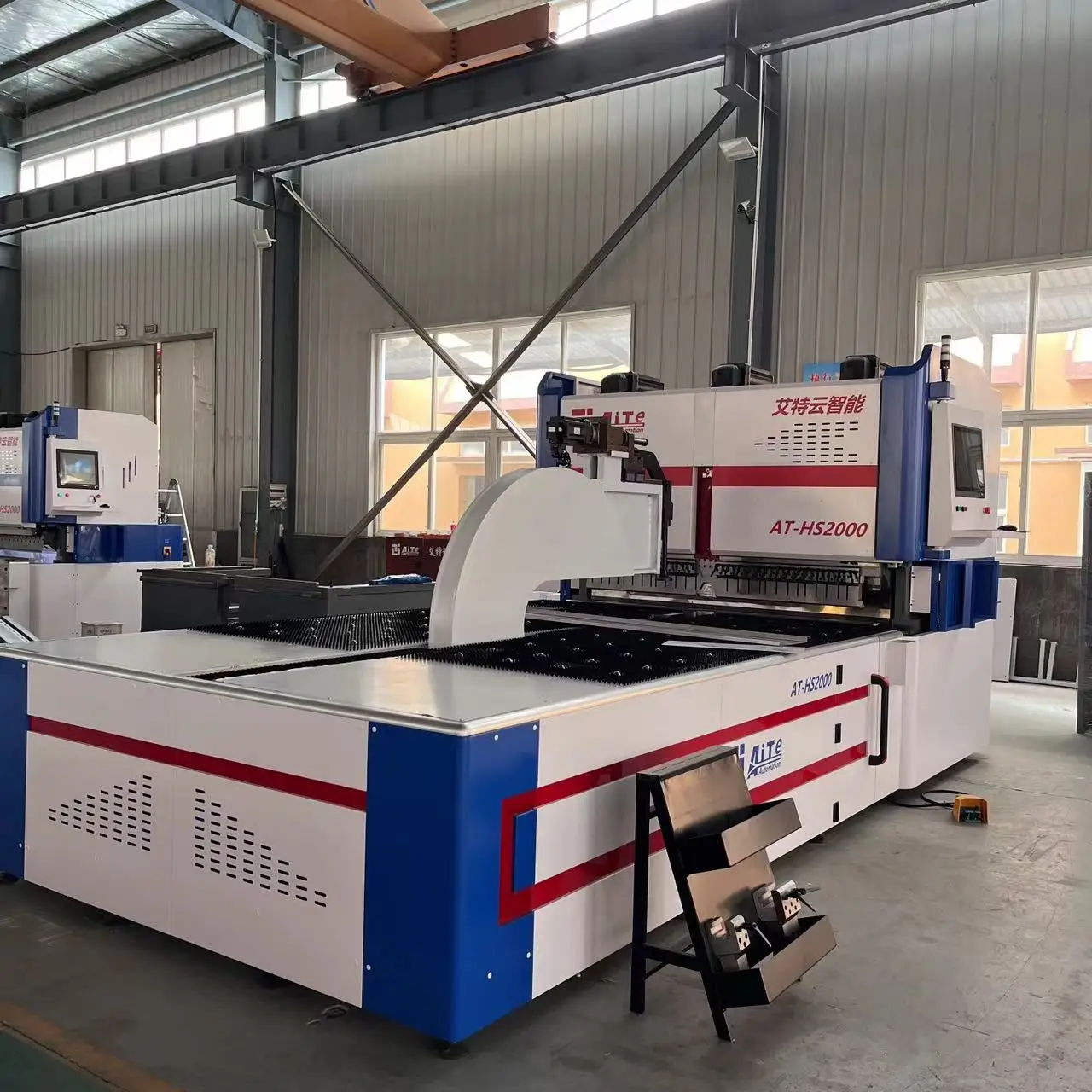

Full electric SERVO CNC Intelligent and Flexible Bending Center（CNC Panel Bender, CNC Press Brake)
This bending center can be intelligent and flexible to bend sheet metal panel's edges as per complecated combinations of various angles of edges , specially continuously bending up and bending down without replacing bending blades .
The whole machine includes four main parts:
(1). Bottom fabricated and welded heavy structure,which is integrally fabricated and holistically welded with super high-strength steel, ,which make the machine have a huge tonnage weight and stable gravity center.These features can ensure our machine have a long-term stability of bending accuracy, better reliability and good durability . the whole structure bodys also are treated by heat treatment such as stewing technology, tempering treatments,which make the struture have a strong rigidity and remove internal stress , stress relief ,specially prolong and extend the service life of machine and improve its positioning precision
.
(2). Upper fabricated and welded heavy sturcture, with pressing blades and hinge blades,which is fabricated ,welded and treated as same as bottom structure.
(3). The mobile fabricated and welded heavy bracket for bending blades of upward and downward ,which is fabricated ,welded and treated as same as bottom structure.
(4). Feeding system:Working table with C-type mobile strong clamping arms to control and operate the sheet metal panel flexibly, or you can choose the mobile suction-cups plate to control and operate the sheet metal panel flexibly.
The whole machine includes four main parts:
(1). Bottom fabricated and welded heavy structure,which is integrally fabricated and holistically welded with super high-strength steel, ,which make the machine have a huge tonnage weight and stable gravity center.These features can ensure our machine have a long-term stability of bending accuracy, better reliability and good durability . the whole structure bodys also are treated by heat treatment such as stewing technology, tempering treatments,which make the struture have a strong rigidity and remove internal stress , stress relief ,specially prolong and extend the service life of machine and improve its positioning precision
.
(2). Upper fabricated and welded heavy sturcture, with pressing blades and hinge blades,which is fabricated ,welded and treated as same as bottom structure.
(3). The mobile fabricated and welded heavy bracket for bending blades of upward and downward ,which is fabricated ,welded and treated as same as bottom structure.
(4). Feeding system:Working table with C-type mobile strong clamping arms to control and operate the sheet metal panel flexibly, or you can choose the mobile suction-cups plate to control and operate the sheet metal panel flexibly.
(5). Worktable also has enough hard brushes and rolling stainless steel beads to protect sheet matel panel when processing .
Application field:
1). various boxes,
2). canopies,
3).file cabinets
4).kitchen cabinets ,
5).chassis cabinets,
6).furniture industry,
7).decorating industry;
8).ventilation facilities,
9).referigation facilities,
10).elevator industry,
11).car industry,
12). door industry.
1). various boxes,
2). canopies,
3).file cabinets
4).kitchen cabinets ,
5).chassis cabinets,
6).furniture industry,
7).decorating industry;
8).ventilation facilities,
9).referigation facilities,
10).elevator industry,
11).car industry,
12). door industry.
FEATURES AT A GLANCE
Main functions:
1.four-side bending;
2.one-side bending;
3.continuously bending up and bending down without replacing bending blades .
4.Flexiblely bending arc-side curbs from 0-90 degree;
5.Automatically forming the squared rectangle side curbs .
6.Automatically tightly folding edges of panel;
7.Automatically forming rectangle boxes with max.100mm height of side edges.
8.Automatically bending the various complicated combinations of various angles of edges for panel.
Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
System control Unit

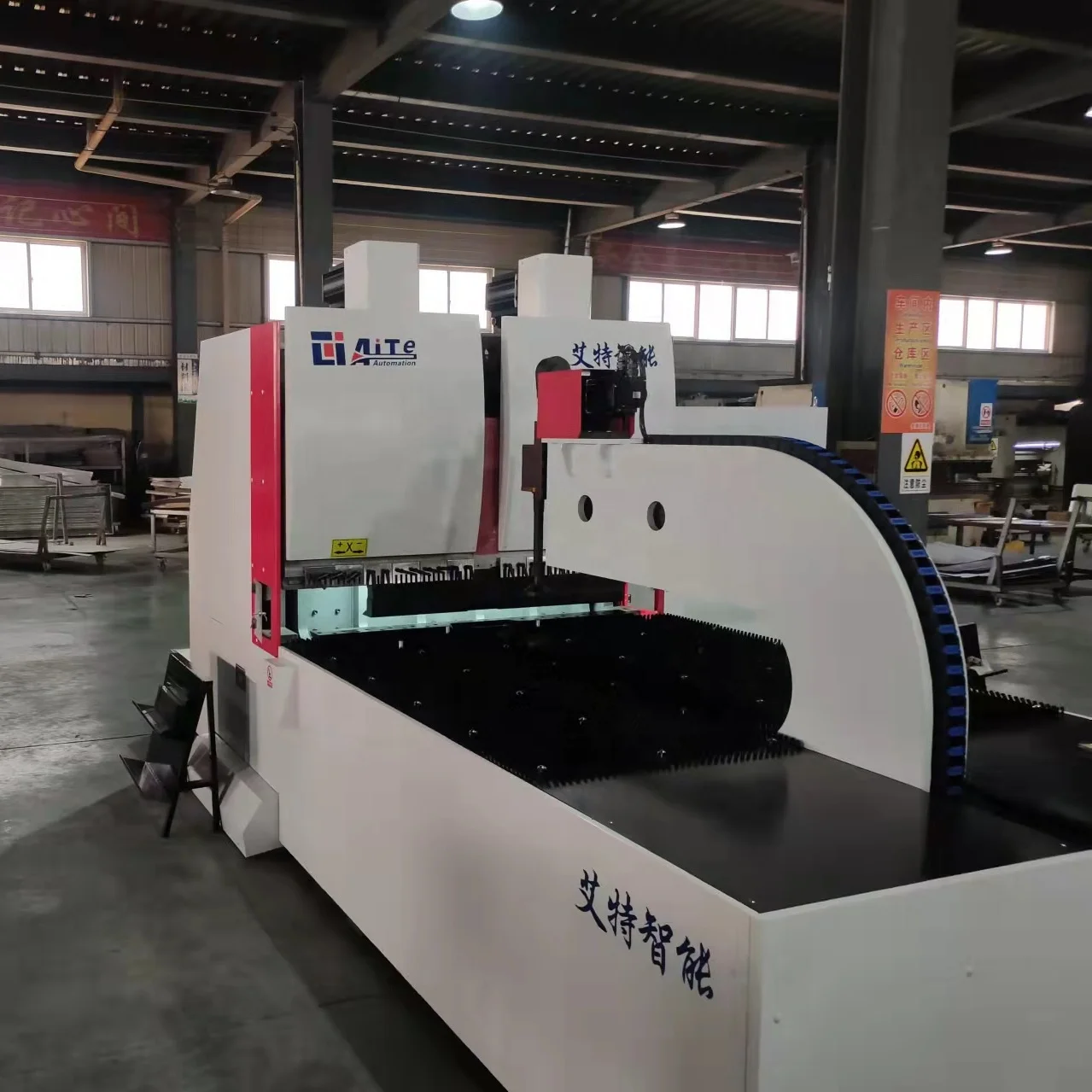

C-type mobile strong clamping arm
Upper Heavy Structure
Bending upward
Bending downward
Hard Pressing tools and two coincided blank holders in each side to press the panel firmly
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Feeding sytem | 1).C-type mobile strong clamping arm to control and operate the sheet metal panel. 2).Or you can choose the mobile suction-cup palte to control and operate the sheet metal panel. 3).Worktable with enough hard brushes and rolling stainless steel beads to protect matel panel when processing . | ||
2 | Bending length | customized | ||
3 | Maximum bending height | customized | ||
4 | Minimum bending height | customized | ||
5 | Min. Inner Size of Four-side bending | customized | ||
6 | Min.Inner size of one-side bending | customized | ||
7 | Minimuim arc radius of bending | customized | ||
8 | Minimum continuously bending Speed | 0.2/s |
9.Bending Angle of arc | degree | 0--90 | ||
10.Axles Controllable | sets | customized | ||
11Maximum Feeding Speed | m/min | 120 | ||
12.Equipment size | mm | customized | ||
13.Equipment weight | tons | - | ||
14.Total power | kw | - | ||
15.Average power | kw | - | ||
16. Workable structure | / | hard brush or rolling beads | ||
