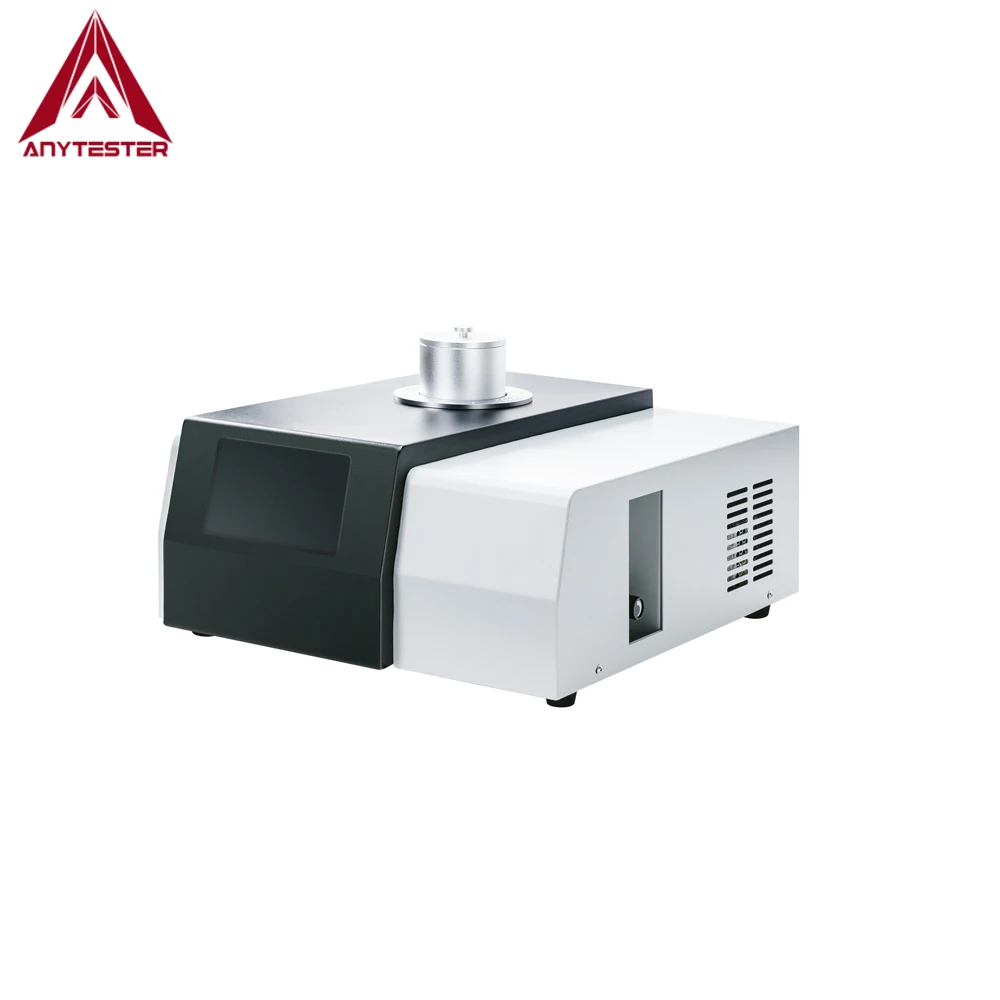

Automatic Thermo Gravimetric Analyzer TGA
- Category: >>>
- Supplier: Anytester (hefei) Co. Ltd.
Share on (1601014021679):
Product Overview
Description
Product Description
AT452 Thermo Gravimetric Analyzer is used to obverse the function that sample weight changing along with time or temperature during heating up, cooling or constant temperature. It is widely used for research and development, process optimization, quality motoring of plastic, rubber, paint, medicine, catalytic agent, inorganic material, mental material, composite material and other areas.
Specification
Model | AT452 |
Temperature range | Room temperature~1150℃ |
Resolution of temperature | 0.1℃ |
Temperature fluctuation | ±0.1℃ |
Up rate | 1~80℃/min |
Method of control temperature | heating, cooling, constant |
Holding time of constant temp. | 0~300min, settable |
Cooling time | 15min (1000℃…100℃) |
Range of balance | 1mg~2g |
Sensitivity of balance | 0.01mg |
Constant time | 0~300min |
Display | LCD touch screen |
Software | Curve of TG can be recorded and displayed automatically |
Data interface | Standard USB port |
Power supply | AC220V, 50Hz |
Dimension | 490*400*345mm |
Details & Features
★ Automatic temperature control mode: temperature up, keeping and cooling;
★ Build-in Gas flow indicator in Atmosphere device, gas velocity is adjustable;
★. Atmosphere: Inertia, oxidability, reducibility, static state, tendency;
★ Air flow Controlling: Static or dynamic atmosphere with gas flow control device;
★ Display: large LCD, real-time display theoretical temperature , actual temperature and working time;
★ When reach the setting temperature, machine automatically stop heating up and automatically cooling;
★ Providing easy operated software with user friendly characteristic;

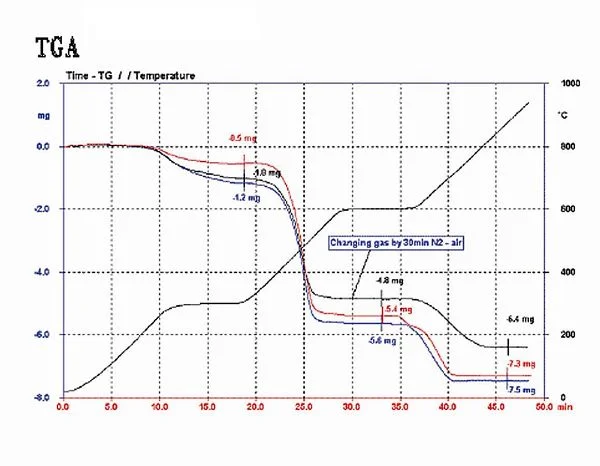

★ Obtaining TGA diagram plus printing ＆ filing capability of testing results;
★ Real-time display test curve;
★ Build-in Gas flow indicator in Atmosphere device, gas velocity is adjustable;
★. Atmosphere: Inertia, oxidability, reducibility, static state, tendency;
★ Air flow Controlling: Static or dynamic atmosphere with gas flow control device;
★ Display: large LCD, real-time display theoretical temperature , actual temperature and working time;
★ When reach the setting temperature, machine automatically stop heating up and automatically cooling;
★ Providing easy operated software with user friendly characteristic;
★ Obtaining TGA diagram plus printing ＆ filing capability of testing results;
★ Real-time display test curve;
★ Full equipped with accessories, convenient and easy to test.
★ Real-time display test curve;
